DtLatencyTest Class Reference

DtLatencyTest runs network latency tests between local RTI components. More...

Inheritance diagram for DtLatencyTest:

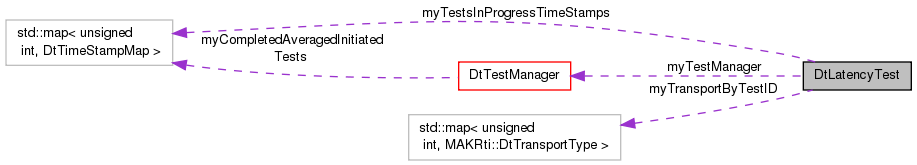

Collaboration diagram for DtLatencyTest:

Classes
struct	DtLatencyTestReportStruct
	Struct contains all report-worth details of a test. More...

Public Member Functions
	DtLatencyTest (DtTestManager *parent)
	Constructor.
	DtLatencyTest ()
	Default constructor. Not implemented.
virtual	~DtLatencyTest ()
	Destructor.
virtual bool	tick ()
	Process test activities.
virtual void	postJoinInit ()
	Perform initializations that will allow tests to be run (e.g., publish and subscribe to test interaction)
virtual void	resign ()
	Perform clean up from test instrumentation.
virtual void	addSendInteractionTimeStamp (unsigned int testID)=0
	called by testMgr
virtual void	addNetSendTimeStamp (unsigned int testID, DtRtiMsg &msg)=0
	called by either test initiator or test recipient.
virtual void	addNetReceiveTimeStamp (unsigned int testID, const DtRtiMsg &msg)=0
	called by either test initiator or test recipient.
virtual void	addReceiveInteractionTimeStamp (unsigned int testID, MAKRti::DtTime timeToUse)=0
	called by either test initiator or test recipient.
virtual void	addAsyncQueueMsgTimeStamp (unsigned int testID, const DtRtiMsg &msg)=0
	called by either test initiator or test recipient.
virtual void	addTransportTypeForTestID (unsigned int testID, MAKRti::DtTransportType type)
	Add a mapping for this testID to this transport type.
virtual MAKRti::DtTransportType	transportTypeForTestID (unsigned int testID) const
	look up the transport type for this testID.
virtual void	removeKnowledgeOfTestId (unsigned int testID)
	Remove knowledge of this testID.
MAKRti::DtTime	time () const

Protected Types
typedef std::multimap < DtMetadataType, MAKRti::DtTime >	DtTimeStampMap
typedef std::map< unsigned int, DtTimeStampMap >	DtTestToTimeStampMap
typedef std::multimap < DtFederateHandle, unsigned int >	DtFedHandleToTestMap

Protected Attributes
DtTestManager *	myTestManager
DtTestToTimeStampMap	myTestsInProgressTimeStamps
	TimeStamp storage (by testID) of all my known tests.
std::map< unsigned int, MAKRti::DtTransportType >	myTransportByTestID

Private Member Functions
	DtLatencyTest (DtLatencyTest const &orig)
	Copy Constructor - not allowed.
DtLatencyTest &	operator= (DtLatencyTest const &orig)
	Assignment operator - not allowed.

Detailed Description

DtLatencyTest runs network latency tests between local RTI components.

Member Typedef Documentation

typedef std::multimap<DtFederateHandle, unsigned int> DtLatencyTest::DtFedHandleToTestMap

protected

typedef std::map<unsigned int, DtTimeStampMap > DtLatencyTest::DtTestToTimeStampMap

protected

typedef std::multimap<DtMetadataType, MAKRti::DtTime> DtLatencyTest::DtTimeStampMap

protected

Constructor & Destructor Documentation

DtLatencyTest::DtLatencyTest

(

DtTestManager *

parent

)

Constructor.

DtLatencyTest::DtLatencyTest

(

)

Default constructor. Not implemented.

DtLatencyTest::~DtLatencyTest ( )

virtual

Destructor.

DtLatencyTest::DtLatencyTest ( DtLatencyTest const &  orig )

private

Copy Constructor - not allowed.

Member Function Documentation

virtual void DtLatencyTest::addAsyncQueueMsgTimeStamp ( unsigned int  testID, const DtRtiMsg &  msg  )

pure virtual

called by either test initiator or test recipient.

Record the current time and associate it with the input test ID in myTestsInProgressTimeStamp with a async Queue Msg time stamp.

Implemented in DtInitiatorLatencyTest, and DtRecipientLatencyTest.

virtual void DtLatencyTest::addNetReceiveTimeStamp ( unsigned int  testID, const DtRtiMsg &  msg  )

pure virtual

called by either test initiator or test recipient.

Record the current time and associate it with the input test ID in myTestsInProgressTimeStamp with a net receive metadata type.

Implemented in DtInitiatorLatencyTest, and DtRecipientLatencyTest.

virtual void DtLatencyTest::addNetSendTimeStamp ( unsigned int  testID, DtRtiMsg &  msg  )

pure virtual

called by either test initiator or test recipient.

Record the current time and associate it with the input test ID in myTestsInProgressTimeStamp with a net send metadata type.

Implemented in DtInitiatorLatencyTest, and DtRecipientLatencyTest.

virtual void DtLatencyTest::addReceiveInteractionTimeStamp ( unsigned int  testID, MAKRti::DtTime  timeToUse  )

pure virtual

called by either test initiator or test recipient.

Record the current time and associate it with the input test ID in myTestsInProgressTimeStamp with a receive Interaction metadata type.

Implemented in DtInitiatorLatencyTest, and DtRecipientLatencyTest.

virtual void DtLatencyTest::addSendInteractionTimeStamp ( unsigned int  testID )

pure virtual

called by testMgr

called by either test initiator or test recipient. Record the current time and associate it with the input test ID in myTestsInProgressTimeStamp with a send Interaction metadata type.

Implemented in DtInitiatorLatencyTest, and DtRecipientLatencyTest.

void DtLatencyTest::addTransportTypeForTestID ( unsigned int  testID, MAKRti::DtTransportType  type  )

virtual

Add a mapping for this testID to this transport type.

References myTransportByTestID.

Referenced by DtRecipientLatencyTest::addNetReceiveTimeStamp().

DtLatencyTest& DtLatencyTest::operator= ( DtLatencyTest const &  orig )

private

Assignment operator - not allowed.

void DtLatencyTest::postJoinInit ( )

virtual

Perform initializations that will allow tests to be run (e.g., publish and subscribe to test interaction)

void DtLatencyTest::removeKnowledgeOfTestId ( unsigned int  testID )

virtual

Remove knowledge of this testID.

Typically called when we're stored time stamps for a received message and then later determined it was not addressed to us.

References myTestsInProgressTimeStamps, and myTransportByTestID.

Referenced by DtTestManager::removeKnowledgeOfTestId().

void DtLatencyTest::resign ( )

virtual

Perform clean up from test instrumentation.

bool DtLatencyTest::tick ( )

virtual

Process test activities.

Reimplemented in DtInitiatorLatencyTest, and DtRecipientLatencyTest.

MAKRti::DtTime DtLatencyTest::time

(

)

const

References myTestManager, and DtTestManager::time().

Referenced by DtRecipientLatencyTest::addAsyncQueueMsgTimeStamp(), DtInitiatorLatencyTest::addAsyncQueueMsgTimeStamp(), DtRecipientLatencyTest::addNetReceiveTimeStamp(), DtInitiatorLatencyTest::addNetReceiveTimeStamp(), DtRecipientLatencyTest::addNetSendTimeStamp(), DtInitiatorLatencyTest::addNetSendTimeStamp(), DtRecipientLatencyTest::addSendInteractionTimeStamp(), DtInitiatorLatencyTest::addSendInteractionTimeStamp(), and DtInitiatorLatencyTest::getCompletedReportByTestID().

MAKRti::DtTransportType DtLatencyTest::transportTypeForTestID ( unsigned int  testID ) const

virtual

look up the transport type for this testID.

References myTransportByTestID.

Referenced by DtTestManager::receiveInteraction().

Member Data Documentation

DtTestManager* DtLatencyTest::myTestManager

protected

Referenced by DtRecipientLatencyTest::addNetSendTimeStamp(), DtInitiatorLatencyTest::averageReports(), DtInitiatorLatencyTest::consumeTestId(), DtInitiatorLatencyTest::currTestId(), DtInitiatorLatencyTest::getCompletedReportByTestID(), DtInitiatorLatencyTest::initiateLatencyTest(), DtInitiatorLatencyTest::takeCompletedTestReport(), DtInitiatorLatencyTest::tick(), and time().

DtTestToTimeStampMap DtLatencyTest::myTestsInProgressTimeStamps

protected

TimeStamp storage (by testID) of all my known tests.

Tests are removed by the test recipient on netSend and by the test initiator on receiveInteraction.

Referenced by DtRecipientLatencyTest::addAsyncQueueMsgTimeStamp(), DtInitiatorLatencyTest::addAsyncQueueMsgTimeStamp(), DtRecipientLatencyTest::addNetReceiveTimeStamp(), DtInitiatorLatencyTest::addNetReceiveTimeStamp(), DtRecipientLatencyTest::addNetSendTimeStamp(), DtInitiatorLatencyTest::addNetSendTimeStamp(), DtRecipientLatencyTest::addReceiveInteractionTimeStamp(), DtInitiatorLatencyTest::addReceiveInteractionTimeStamp(), DtRecipientLatencyTest::addSendInteractionTimeStamp(), DtInitiatorLatencyTest::addSendInteractionTimeStamp(), removeKnowledgeOfTestId(), and DtInitiatorLatencyTest::testIsFinished().

std::map<unsigned int, MAKRti::DtTransportType> DtLatencyTest::myTransportByTestID

protected

Referenced by DtInitiatorLatencyTest::addNetReceiveTimeStamp(), addTransportTypeForTestID(), DtInitiatorLatencyTest::getCompletedReportByTestID(), DtInitiatorLatencyTest::getCurrentTestInfo(), removeKnowledgeOfTestId(), DtInitiatorLatencyTest::takeCompletedTestReport(), DtInitiatorLatencyTest::tick(), and transportTypeForTestID().

---

The documentation for this class was generated from the following files:

• latencyTest.h
• latencyTest.cxx
