DtTestManager runs network connectivity tests between local RTI components. More...

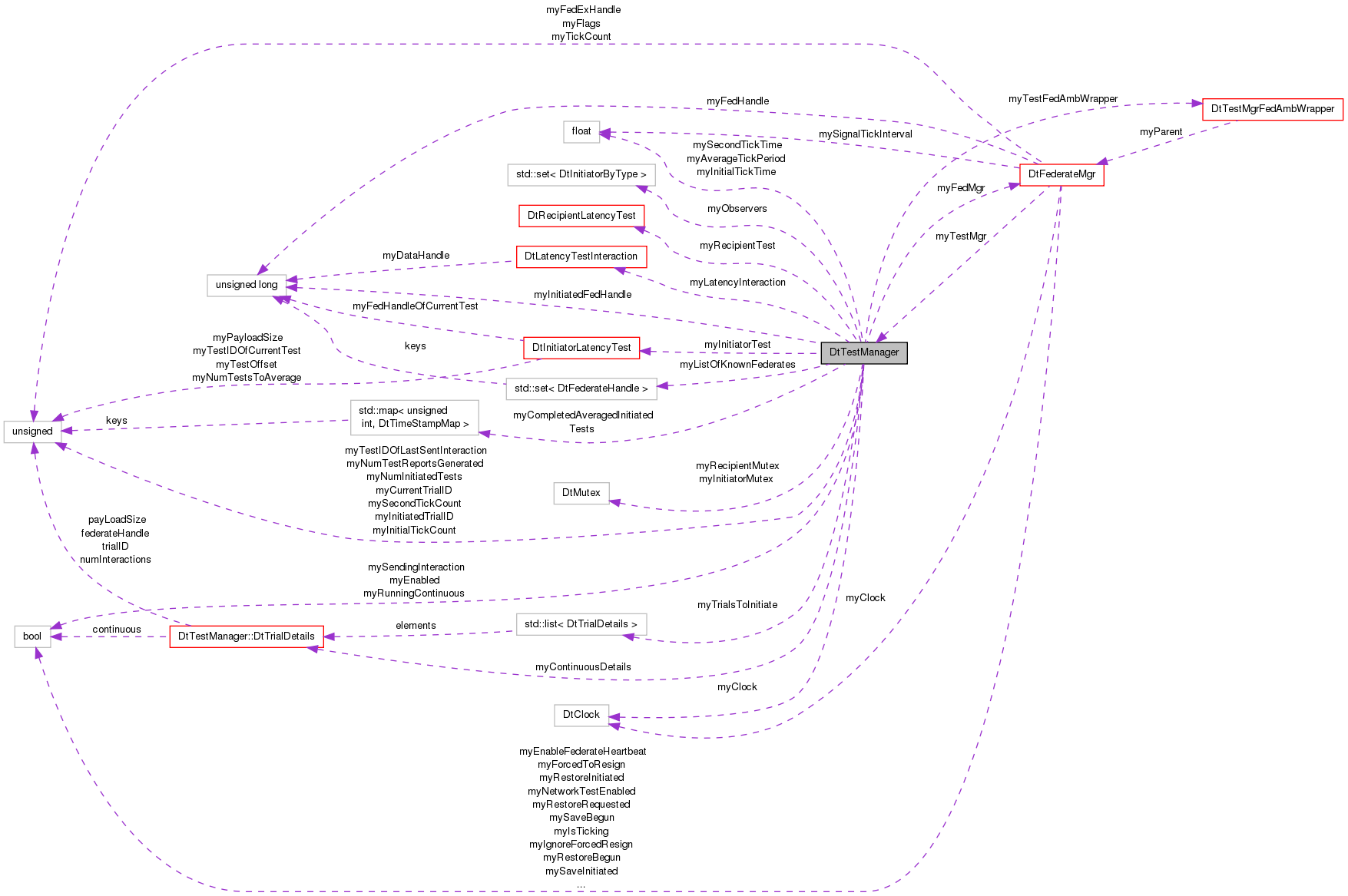

Collaboration diagram for DtTestManager:

Classes
struct	DtTrialDetails

Public Member Functions
	DtTestManager (bool initiallyEnabled)
	Constructor.
	DtTestManager (DtFederateMgr *fedMgr, bool initiallyEnabled)
	Constructor.
virtual	~DtTestManager ()
	Destructor.
DtRIDParameters *	params ()
	Access to RID.
DtRIDParameters *	params () const
	Const access to RID.
DtFederateMgr *	fedMgr ()
	Access to federate manager.
DtFederateMgr *	fedMgr () const
	Const access to federate manager.
RTI::RTIambassador *	rtiAmb ()
	Access to the federate's RTI Ambassador.
RTI::RTIambassador *	rtiAmb () const
	Const access to the federate's RTI Ambassador.
virtual DtConnectionMgr *	connectMgr ()
	Access to the connection manager.
virtual DtConnectionMgr *	connectMgr () const
	Const access to the connection manager.
virtual MAKRti::DtTime	time () const
	return the current time.
virtual void	postJoinInit ()
	Perform initializations that will allow tests to be run (e.g., publish and subscribe to test interaction)
virtual void	resign ()
	Perform clean up from test instrumentation.
virtual void	tick (unsigned long tickCount)
	Process test activities.
virtual float	averageTickPeriod () const
	Average period between ticks.
virtual void	enableNetworkTesting ()
	Enable network testing.
virtual void	disableNetworkTesting ()
	Disable network testing.
virtual bool	networkTestingEnabled () const
	Is network testing enabled?
void	processResign (const DtResignMsg &msg)
	Process resign msg to maintain list of known federates.
virtual bool	receiveInteraction (DtInteractionClassHandle classHandle, const DtPhvps &params)
	called by testMgr's installed fedAmbWrapper.
virtual bool	testMgrCurrentlySending () const
	returns whether the test Manager is in a sending state.
virtual bool	queueMsgForSend (DtRtiMsg &msg) const
	Add testID time stamp to message if necessary.
virtual void	setTestMgrCurrentlySending (bool isSending, unsigned int testID=0)
	Mark the test mgr as sending / not sending Also sets / clears the last sent testID.
virtual bool	addSendTimeStampMetaDataIfNecessary (DtRtiMsg &msg)
	If necessary add testing metadata to the message and to the testMgr, return whether timestamp was added.
virtual bool	addReceiveTimeStampIfNecessary (DtRtiMsg &msg)
	If necessary record receive Timestamp.
virtual bool	addAsyncQueueMsgOnRecieve (DtRtiMsg &msg)
	When the message is queued on Receive.
virtual bool	isTestInteractionClassHandle (DtInteractionClassHandle classHandle)
	Return boolean: Is the given interaction handle a test interaction?
virtual void	sendStatusMessages () const
	Update the status....

Protected Types
enum	DtInitiatorByType_e { DtInitiatedByExec, DtInitiatedByAssistant }
typedef enum DtTestManager::DtInitiatorByType_e	DtInitiatorByType
typedef std::multimap < DtMetadataType, MAKRti::DtTime >	DtTimeStampMap
typedef std::map< unsigned int, DtTimeStampMap >	DtTestToTimeStampMap

Protected Member Functions
virtual void	processSub (const DtSubInterMsg &msg)
	Process subscribe msg to maintain a list of known federates.
virtual void	processUnsub (const DtUnsubInterMsg &msg)
	Process unsubscribe msg to maintain a list of known federates.
virtual void	processChangeLatencyTestStatus (const DtAssistantChangeLatencyTestModeMsg &testMsg)
	Processes latency test status change messages.
virtual void	processChangeLatencyTestStatus (const DtChangeLatencyTestModeMsg &testMsg)
virtual void	changeLatencyTestRequestByType (bool initiateTest, bool continuousCommand, bool stopContinuous, bool observing, DtInitiatorByType type, MAKRti::DtTime period, unsigned int numInteractions, unsigned int payloadSize)
	Change status according to parameters / initiator.
virtual void	initiateLatencyTest ()
	if there are queued requests and the most recent trial has finished run a test.
virtual void	processLatencyTest ()
	Process an active latency test.
virtual bool	getTestIDFromMetaData (DtRtiMsg &msg, unsigned int &testID) const
virtual void	addKnownFederate (DtFederateHandle subscribedFed)
	Add the federate to the list of known subscribed federates so we know who to send test interactions to.
virtual void	removeKnownFederate (DtFederateHandle unsubscribedFed)
	Remove the federate from the list of known federates so we don't sent to it anymore.
virtual bool	atLeastOneKnownFederate () const
	Do we know of at least one federate we can initiate a test with.
virtual bool	isKnownFederateHandle (DtFederateHandle handle) const
	Is the input federate Handle known to us?
virtual void	addSendInteractionTimeStamp (unsigned int testID)
	called by either test initiator or test recipient.
virtual void	addNetSendTimeStamp (unsigned int testID, DtRtiMsg &msg)
	called by either test initiator or test recipient.
virtual void	addNetReceiveTimeStamp (unsigned int testID, const DtRtiMsg &msg)
	called by either test initiator or test recipient.
virtual void	addReceiveInteractionTimeStamp (unsigned int testID, MAKRti::DtTime timeToUse)
	called by either test initiator or test recipient.
virtual void	removeKnowledgeOfTestId (unsigned int testID)
	Remove knowledge of this testID.
virtual void	addAsyncQueueMsgTimeStamp (unsigned int &testID, const DtRtiMsg &msg)
	called by either test initiator or test recipient.
MAKRti::DtTransportType	transportTypeForTestID (unsigned int testID)
	look up the transport type for this testID.
virtual unsigned int	lastSentTestID () const
	called by test initiator only.
virtual void	setLastSentTestID (unsigned int testID)
	Set the Test ID of the last sent interaction.
virtual bool	sendSingleLatencyInteraction (unsigned int testID, DtFederateHandle recipient, MAKRti::DtTransportType transport, unsigned int payload)
	Send a single latency interaction.
virtual bool	addMetadataIfNecessary (DtRtiMsg &msg, unsigned int &testID) const
	Before netsend, set the msgs's metadata from the testID.
virtual bool	shouldAddMetadataToMessage (DtRtiMsg &msg) const
	determine if adding metadata is necessary based on msg type and current state.
virtual bool	isInitiatorOfTestID (unsigned int testID) const
	Was this testID generated by me?
virtual void	calculateTickTime (unsigned long tickCount)
	Calculate Average TickTime.
virtual bool	sendInteraction (unsigned int testID, DtInteractionClassHandle handle, const DtPhvps &params, unsigned int payloadSize)
	called by testManager when either a new test interaction is being sent or when a test Interaction is being sent as a response to a received test Interaction.

Static Protected Member Functions
static void	processSub (const DtSubInterMsg &msg, void *usr)
	Callback to install for processing subscription messages.
static void	processUnsub (const DtUnsubInterMsg &msg, void *usr)
	Callback to install for processing unsubscribe messages.
static void	queueLatencyTestRequest (const DtAssistantChangeLatencyTestModeMsg &testMsg, void *usr)
	Callback to install for processing initiate latency test messages.
static void	processChangeLatencyTestStatus (const DtAssistantChangeLatencyTestModeMsg &testMsg, void *usr)
	Processes latency test status change messages.
static void	processChangeLatencyTestStatus (const DtChangeLatencyTestModeMsg &testMsg, void *usr)

Protected Attributes
DtFederateMgr *	myFedMgr
	The federate manager.
DtInitiatorLatencyTest *	myInitiatorTest
	Handles initiating tests with other federates.
DtRecipientLatencyTest *	myRecipientTest
	Handles receiving tests from other federates.
DtLatencyTestInteraction *	myLatencyInteraction
	The latency test interaction.
MAKRti::DtClock	myClock
	Keep track of time.
bool	myRunningContinuous
	Are we currently running a continuous test?
DtTrialDetails	myContinuousDetails
	If so what are the details of the continuous test?
std::set< DtInitiatorByType >	myObservers
	list of observers.
DtTestToTimeStampMap	myCompletedAveragedInitiatedTests
	Storage of my completed initiated tests.
bool	mySendingInteraction
	Set when testMgr sends a message, is cleared by accessor when connectMgr checks whether the last message was a testMgr msg.
unsigned int	myTestIDOfLastSentInteraction
	The testID of the currently running initiated test.
unsigned int	myCurrentTrialID
	What is the current trial number.
unsigned int	myInitiatedTrialID
	What trials am I waiting to complete?
DtFederateHandle	myInitiatedFedHandle
DtTestMgrFedAmbWrapper *	myTestFedAmbWrapper
	Catches calls to ReceiveInteraction to prevent testInteractions from being delivered to the user.
std::list< DtTrialDetails >	myTrialsToInitiate
	List of trials to initiate.
std::set< DtFederateHandle >	myListOfKnownFederates
	Our list of known federates (not including self).
float	myInitialTickTime
	the earliest tick time we're using for avgTickPeriod.
unsigned long	myInitialTickCount
	the earliest tick count we're using for avgTickPeriod.
float	mySecondTickTime
	the second tick time we're using for avgTickPeriod.
unsigned long	mySecondTickCount
	the second tick count we're using for avgTickPeriod.
float	myAverageTickPeriod
	The average period between ticks.
bool	myEnabled
	Is network testing enabled?
unsigned	myNumInitiatedTests
	The number of tests this federate has initiated.
unsigned	myNumTestReportsGenerated
	The number of test reports this federate has generated.
DtMutex	myInitiatorMutex
	lock for the initiator test
DtMutex	myRecipientMutex

Private Member Functions
	DtTestManager (DtTestManager const &orig)
	Copy Constructor - not allowed.
DtTestManager &	operator= (DtTestManager const &orig)
	Assignment operator - not allowed.

Detailed Description

DtTestManager runs network connectivity tests between local RTI components.

Member Typedef Documentation

typedef enum DtTestManager::DtInitiatorByType_e DtTestManager::DtInitiatorByType

protected

typedef std::map<unsigned int, DtTimeStampMap > DtTestManager::DtTestToTimeStampMap

protected

typedef std::multimap<DtMetadataType, MAKRti::DtTime> DtTestManager::DtTimeStampMap

protected

Member Enumeration Documentation

enum DtTestManager::DtInitiatorByType_e

protected

Enumerator:

DtInitiatedByExec
DtInitiatedByAssistant

Constructor & Destructor Documentation

DtTestManager::DtTestManager ( bool initiallyEnabled )

Constructor.

References myInitialTickTime, mySecondTickTime, and time().

DtTestManager::DtTestManager	(	DtFederateMgr *	fedMgr,
		bool	initiallyEnabled
	)

Constructor.

References disableNetworkTesting(), enableNetworkTesting(), myEnabled, myInitialTickTime, mySecondTickTime, and time().

DtTestManager::~DtTestManager ( )

virtual

Destructor.

References connectMgr(), fedMgr(), myInitiatorTest, myLatencyInteraction, myRecipientTest, processChangeLatencyTestStatus(), processSub(), processUnsub(), DtSubInterMsg::removeCallback(), DtUnsubInterMsg::removeCallback(), DtChangeLatencyTestModeMsg::removeCallback(), and DtAssistantChangeLatencyTestModeMsg::removeCallback().

DtTestManager::DtTestManager ( DtTestManager const & orig )

private

Copy Constructor - not allowed.

Member Function Documentation

bool DtTestManager::addAsyncQueueMsgOnRecieve ( DtRtiMsg & msg )

virtual

When the message is queued on Receive.

Synchronous mode: does not occur. Asynchronous mode: does not occur. AsyncProcessMessage mode: after the message's callbacks are converted into a fedAmbQueue Message and its processing is performed

References addAsyncQueueMsgTimeStamp(), and getTestIDFromMetaData().

Referenced by DtAsyncConnectionMgr::processMsgQueueCallbacks(), and DtAsyncConnectionMgr::receivePackets().

void DtTestManager::addAsyncQueueMsgTimeStamp	(	unsigned int &	testID,
		const DtRtiMsg &	msg
	)

protectedvirtual

called by either test initiator or test recipient.

If not test is currently being performed this is a nop Test manager will record the current time and associate it with the appropriate testID extracted from the message's metadata. The testID is returned.

References DtRecipientLatencyTest::addAsyncQueueMsgTimeStamp(), DtInitiatorLatencyTest::addAsyncQueueMsgTimeStamp(), isInitiatorOfTestID(), myInitiatorMutex, myInitiatorTest, myRecipientMutex, and myRecipientTest.

Referenced by addAsyncQueueMsgOnRecieve().

void DtTestManager::addKnownFederate ( DtFederateHandle subscribedFed )

protectedvirtual

Add the federate to the list of known subscribed federates so we know who to send test interactions to.

References myListOfKnownFederates, and sendStatusMessages().

Referenced by processSub().

bool DtTestManager::addMetadataIfNecessary	(	DtRtiMsg &	msg,
		unsigned int &	testID
	)		const

protectedvirtual

Before netsend, set the msgs's metadata from the testID.

return whether it was necessary to add metadata.

References DtRtiMtdTestId::get(), lastSentTestID(), DtRtiMtdTestId::set(), and shouldAddMetadataToMessage().

Referenced by addSendTimeStampMetaDataIfNecessary(), and queueMsgForSend().

void DtTestManager::addNetReceiveTimeStamp	(	unsigned int	testID,
		const DtRtiMsg &	msg
	)

protectedvirtual

called by either test initiator or test recipient.

If no test is currently being performed this is a nop. Test manager will record the current time and associate it with the appropriate testID extracted from the message's metadata. That testID is returned in the first argument.

References DtRecipientLatencyTest::addNetReceiveTimeStamp(), DtInitiatorLatencyTest::addNetReceiveTimeStamp(), isInitiatorOfTestID(), myInitiatorMutex, myInitiatorTest, myRecipientMutex, and myRecipientTest.

Referenced by addReceiveTimeStampIfNecessary().

void DtTestManager::addNetSendTimeStamp	(	unsigned int	testID,
		DtRtiMsg &	msg
	)

protectedvirtual

called by either test initiator or test recipient.

If no test is currently being performed this is a nop. Test manager will remove all stored timestamps of testID Test manager will set the testMsg flag in the InteractionMsg. and insert them as metadata to the msg.

References DtRecipientLatencyTest::addNetSendTimeStamp(), DtInitiatorLatencyTest::addNetSendTimeStamp(), isInitiatorOfTestID(), myInitiatorMutex, myInitiatorTest, myRecipientMutex, and myRecipientTest.

Referenced by addSendTimeStampMetaDataIfNecessary().

void DtTestManager::addReceiveInteractionTimeStamp	(	unsigned int	testID,
		MAKRti::DtTime	timeToUse
	)

protectedvirtual

called by either test initiator or test recipient.

If no test is currently being performed this is a nop. Test Manager will record the current time and associate it with the testID

References DtRecipientLatencyTest::addReceiveInteractionTimeStamp(), DtInitiatorLatencyTest::addReceiveInteractionTimeStamp(), isInitiatorOfTestID(), myInitiatorMutex, myInitiatorTest, myRecipientMutex, and myRecipientTest.

Referenced by receiveInteraction().

bool DtTestManager::addReceiveTimeStampIfNecessary ( DtRtiMsg & msg )

virtual

If necessary record receive Timestamp.

References addNetReceiveTimeStamp(), and getTestIDFromMetaData().

Referenced by DtConnectionMgr::getMessage(), DtNetStatsAsyncConnMgr::processConnection(), DtConnectionMgr::processConnection(), and DtAsyncConnectionMgr::receivePacket().

void DtTestManager::addSendInteractionTimeStamp ( unsigned int testID )

protectedvirtual

called by either test initiator or test recipient.

If no test is currently being performed this is a nop. Test manager will record the current time and associate it with the input test ID.

References DtRecipientLatencyTest::addSendInteractionTimeStamp(), DtInitiatorLatencyTest::addSendInteractionTimeStamp(), isInitiatorOfTestID(), myInitiatorMutex, myInitiatorTest, myRecipientMutex, and myRecipientTest.

Referenced by sendInteraction().

bool DtTestManager::addSendTimeStampMetaDataIfNecessary ( DtRtiMsg & msg )

virtual

If necessary add testing metadata to the message and to the testMgr, return whether timestamp was added.

References addMetadataIfNecessary(), addNetSendTimeStamp(), and setTestMgrCurrentlySending().

Referenced by DtConnectionMgr::send(), and DtAsyncConnectionMgr::sendPackets().

bool DtTestManager::atLeastOneKnownFederate ( ) const

protectedvirtual

Do we know of at least one federate we can initiate a test with.

References myListOfKnownFederates.

Referenced by initiateLatencyTest(), and sendStatusMessages().

float DtTestManager::averageTickPeriod ( ) const

virtual

Average period between ticks.

References myAverageTickPeriod.

Referenced by DtRecipientLatencyTest::addNetSendTimeStamp(), and DtInitiatorLatencyTest::averageReports().

void DtTestManager::calculateTickTime ( unsigned long tickCount )

protectedvirtual

Calculate Average TickTime.

References myAverageTickPeriod, myInitialTickCount, myInitialTickTime, mySecondTickCount, mySecondTickTime, and time().

Referenced by tick().

void DtTestManager::changeLatencyTestRequestByType	(	bool	initiateTest,
		bool	continuousCommand,
		bool	stopContinuous,
		bool	observing,
		DtInitiatorByType	type,
		MAKRti::DtTime	period,
		unsigned int	numInteractions,
		unsigned int	payloadSize
	)

protectedvirtual

Change status according to parameters / initiator.

References DtTestManager::DtTrialDetails::continuous, DtTestManager::DtTrialDetails::federateHandle, DtTestManager::DtTrialDetails::initiatorType, myContinuousDetails, myCurrentTrialID, myEnabled, myListOfKnownFederates, myNumInitiatedTests, myObservers, myRunningContinuous, myTrialsToInitiate, DtTestManager::DtTrialDetails::numInteractions, DtTestManager::DtTrialDetails::payLoadSize, DtTestManager::DtTrialDetails::period, sendStatusMessages(), and DtTestManager::DtTrialDetails::trialID.

Referenced by processChangeLatencyTestStatus().

DtConnectionMgr * DtTestManager::connectMgr ( )

virtual

Access to the connection manager.

References DtFederateMgr::connectMgr(), and fedMgr().

Referenced by DtInitiatorLatencyTest::currTestId(), isInitiatorOfTestID(), postJoinInit(), processResign(), processSub(), processUnsub(), resign(), DtInitiatorLatencyTest::takeCompletedTestReport(), and ~DtTestManager().

DtConnectionMgr * DtTestManager::connectMgr ( ) const

virtual

Const access to the connection manager.

References DtFederateMgr::connectMgr(), and fedMgr().

void DtTestManager::disableNetworkTesting ( )

virtual

Disable network testing.

References myEnabled, myRunningContinuous, myTrialsToInitiate, and sendStatusMessages().

Referenced by DtTestManager(), and DtFederateMgr::processEnableDisableNetworkTesting().

void DtTestManager::enableNetworkTesting ( )

virtual

Enable network testing.

References myEnabled, and sendStatusMessages().

Referenced by DtTestManager(), and DtFederateMgr::processEnableDisableNetworkTesting().

DtFederateMgr * DtTestManager::fedMgr ( )

Access to federate manager.

References myFedMgr.

Referenced by DtRecipientLatencyTest::addNetSendTimeStamp(), connectMgr(), params(), postJoinInit(), receiveInteraction(), resign(), rtiAmb(), sendInteraction(), sendSingleLatencyInteraction(), DtInitiatorLatencyTest::takeCompletedTestReport(), and ~DtTestManager().

DtFederateMgr * DtTestManager::fedMgr ( ) const

Const access to federate manager.

References myFedMgr.

bool DtTestManager::getTestIDFromMetaData	(	DtRtiMsg &	msg,
		unsigned int &	testID
	)		const

protectedvirtual

References DtRtiMtdTestId::get(), DtRtiMsg::isInteractionMsgType(), DtNetMsgHeader::metadataInMessage(), and DtRtiMsg::netHeader().

Referenced by addAsyncQueueMsgOnRecieve(), and addReceiveTimeStampIfNecessary().

void DtTestManager::initiateLatencyTest ( )

protectedvirtual

if there are queued requests and the most recent trial has finished run a test.

References atLeastOneKnownFederate(), DtInitiatorLatencyTest::canInitiateTest(), DtTestManager::DtTrialDetails::federateHandle, DtInitiatorLatencyTest::initiateLatencyTest(), myInitiatedFedHandle, myInitiatedTrialID, myInitiatorMutex, myInitiatorTest, myTrialsToInitiate, DtTestManager::DtTrialDetails::numInteractions, DtTestManager::DtTrialDetails::payLoadSize, DtTestManager::DtTrialDetails::period, and DtTestManager::DtTrialDetails::trialID.

Referenced by tick().

bool DtTestManager::isInitiatorOfTestID ( unsigned int testID ) const

protectedvirtual

Was this testID generated by me?

References connectMgr(), DtRIDParameters::maxObjectsPerFederate(), and params().

Referenced by addAsyncQueueMsgTimeStamp(), addNetReceiveTimeStamp(), addNetSendTimeStamp(), addReceiveInteractionTimeStamp(), addSendInteractionTimeStamp(), receiveInteraction(), and removeKnowledgeOfTestId().

bool DtTestManager::isKnownFederateHandle ( DtFederateHandle handle ) const

protectedvirtual

Is the input federate Handle known to us?

References myListOfKnownFederates.

bool DtTestManager::isTestInteractionClassHandle ( DtInteractionClassHandle classHandle )

virtual

Return boolean: Is the given interaction handle a test interaction?

References DtTestInteraction::classHandle(), and myLatencyInteraction.

Referenced by processSub(), processUnsub(), and receiveInteraction().

unsigned int DtTestManager::lastSentTestID ( ) const

protectedvirtual

called by test initiator only.

TestManager does not support more than one concurrent test to be initiated. Returns whether test can be successfully initiated. returns the testID of the last interaction sendInteraction was called for.

References myTestIDOfLastSentInteraction.

Referenced by addMetadataIfNecessary().

bool DtTestManager::networkTestingEnabled ( ) const

virtual

Is network testing enabled?

References myEnabled.

Referenced by processLatencyTest().

DtTestManager& DtTestManager::operator= ( DtTestManager const & orig )

private

Assignment operator - not allowed.

DtRIDParameters * DtTestManager::params ( )

Access to RID.

References fedMgr(), and DtFederateMgr::params().

Referenced by DtRecipientLatencyTest::addNetSendTimeStamp(), DtInitiatorLatencyTest::consumeTestId(), DtInitiatorLatencyTest::currTestId(), DtInitiatorLatencyTest::getCompletedReportByTestID(), DtInitiatorLatencyTest::initiateLatencyTest(), isInitiatorOfTestID(), and DtInitiatorLatencyTest::takeCompletedTestReport().

DtRIDParameters * DtTestManager::params ( ) const

Const access to RID.

References fedMgr(), and DtFederateMgr::params().

void DtTestManager::postJoinInit ( )

virtual

Perform initializations that will allow tests to be run (e.g., publish and subscribe to test interaction)

References DtSubInterMsg::addCallback(), DtUnsubInterMsg::addCallback(), DtChangeLatencyTestModeMsg::addCallback(), DtAssistantChangeLatencyTestModeMsg::addCallback(), DtConnectionMgr::addFedAmbWrapper(), addTestToFom(), DtTestInteraction::classHandle(), connectMgr(), fedMgr(), DtFederateMgr::interMgr(), myFedMgr, myInitiatorTest, myLatencyInteraction, myRecipientTest, myTestFedAmbWrapper, processChangeLatencyTestStatus(), processSub(), processUnsub(), DtInteractionMgr::publish(), DtInteractionMgr::subscribe(), and theTestMgrFedAmbWrapperName.

void DtTestManager::processChangeLatencyTestStatus ( const DtAssistantChangeLatencyTestModeMsg & testMsg )

protectedvirtual

Processes latency test status change messages.

This includes informing the LRC that there is an observer of the tests, that there is no longer an observer, initiating a test, stopping a test, etc.

References changeLatencyTestRequestByType(), DtAssistantChangeLatencyTestModeMsg::continuousUpdate(), DtInitiatedByAssistant, DtAssistantChangeLatencyTestModeMsg::interactionPeriod(), DtAssistantChangeLatencyTestModeMsg::numInteractions(), DtAssistantChangeLatencyTestModeMsg::observingResults(), DtAssistantChangeLatencyTestModeMsg::payloadBytes(), DtAssistantChangeLatencyTestModeMsg::runTest(), and DtAssistantChangeLatencyTestModeMsg::shouldHaltContinuous().

Referenced by postJoinInit(), processChangeLatencyTestStatus(), and ~DtTestManager().

void DtTestManager::processChangeLatencyTestStatus ( const DtChangeLatencyTestModeMsg & testMsg )

protectedvirtual

References changeLatencyTestRequestByType(), DtChangeLatencyTestModeMsg::continuousUpdate(), DtInitiatedByExec, DtFederateMgr::federateHandle(), DtChangeLatencyTestModeMsg::initiator(), DtChangeLatencyTestModeMsg::interactionPeriod(), myFedMgr, DtChangeLatencyTestModeMsg::numInteractions(), DtChangeLatencyTestModeMsg::observingResults(), DtChangeLatencyTestModeMsg::payloadBytes(), DtChangeLatencyTestModeMsg::runTest(), and DtChangeLatencyTestModeMsg::shouldHaltContinuous().

void DtTestManager::processChangeLatencyTestStatus	(	const DtAssistantChangeLatencyTestModeMsg &	testMsg,
		void *	usr
	)

staticprotected

Processes latency test status change messages.

This includes informing the LRC that there is an observer of the tests, that there is no longer an observer, initiating a test, stopping a test, etc.

References processChangeLatencyTestStatus().

void DtTestManager::processChangeLatencyTestStatus	(	const DtChangeLatencyTestModeMsg &	testMsg,
		void *	usr
	)

staticprotected

References processChangeLatencyTestStatus().

void DtTestManager::processLatencyTest ( )

protectedvirtual

void DtTestManager::processResign ( const DtResignMsg & msg )

Process resign msg to maintain list of known federates.

References connectMgr(), DtRtiMsg::federateHandle(), DtConnectionMgr::fedHandle(), and removeKnownFederate().

Referenced by DtFederateMgr::processResign().

void DtTestManager::processSub ( const DtSubInterMsg & msg )

protectedvirtual

Process subscribe msg to maintain a list of known federates.

References addKnownFederate(), connectMgr(), DtTestManager::DtTrialDetails::federateHandle, DtRtiMsg::federateHandle(), DtConnectionMgr::fedHandle(), DtSubInterMsg::handle(), isTestInteractionClassHandle(), myContinuousDetails, myCurrentTrialID, myRunningContinuous, myTrialsToInitiate, and DtTestManager::DtTrialDetails::trialID.

Referenced by postJoinInit(), processSub(), resign(), and ~DtTestManager().

void DtTestManager::processSub	(	const DtSubInterMsg &	msg,
		void *	usr
	)

staticprotected

Callback to install for processing subscription messages.

References processSub().

void DtTestManager::processUnsub ( const DtUnsubInterMsg & msg )

protectedvirtual

Process unsubscribe msg to maintain a list of known federates.

References connectMgr(), DtRtiMsg::federateHandle(), DtConnectionMgr::fedHandle(), DtUnsubInterMsg::handle(), isTestInteractionClassHandle(), and removeKnownFederate().

Referenced by postJoinInit(), processUnsub(), resign(), and ~DtTestManager().

void DtTestManager::processUnsub	(	const DtUnsubInterMsg &	msg,
		void *	usr
	)

staticprotected

Callback to install for processing unsubscribe messages.

References processUnsub().

static void DtTestManager::queueLatencyTestRequest	(	const DtAssistantChangeLatencyTestModeMsg &	testMsg,
		void *	usr
	)

staticprotected

Callback to install for processing initiate latency test messages.

bool DtTestManager::queueMsgForSend ( DtRtiMsg & msg ) const

virtual

Add testID time stamp to message if necessary.

References addMetadataIfNecessary().

Referenced by DtAsyncConnectionMgr::queueMsg().

bool DtTestManager::receiveInteraction	(	DtInteractionClassHandle	classHandle,
		const DtPhvps &	params
	)

virtual

called by testMgr's installed fedAmbWrapper.

Returns true if Interaction was a networkTest Interaction and has been processed and should be dropped. Else false.

References addReceiveInteractionTimeStamp(), DtFederateMgr::federateHandle(), fedMgr(), isInitiatorOfTestID(), isTestInteractionClassHandle(), myFedMgr, myInitiatorMutex, myInitiatorTest, myLatencyInteraction, myRecipientMutex, myRecipientTest, DtLatencyTestInteraction::parameters(), DtTestInteraction::payloadSize(), removeKnowledgeOfTestId(), sendInteraction(), DtLatencyTestInteraction::setFromParameters(), DtTestInteraction::setTestId(), DtTestInteraction::setTransportType(), DtTestInteraction::targetFederate(), DtTestInteraction::testId(), DtInitiatorLatencyTest::testIsFinished(), time(), and DtLatencyTest::transportTypeForTestID().

void DtTestManager::removeKnowledgeOfTestId ( unsigned int testID )

protectedvirtual

Remove knowledge of this testID.

Typically called when we're stored time stamps for a received message and then later determined it was not addressed to us.

References isInitiatorOfTestID(), myInitiatorMutex, myInitiatorTest, myRecipientMutex, myRecipientTest, and DtLatencyTest::removeKnowledgeOfTestId().

Referenced by receiveInteraction().

void DtTestManager::removeKnownFederate ( DtFederateHandle unsubscribedFed )

protectedvirtual

Remove the federate from the list of known federates so we don't sent to it anymore.

References myListOfKnownFederates, myTrialsToInitiate, and sendStatusMessages().

Referenced by processResign(), and processUnsub().

void DtTestManager::resign ( )

virtual

Perform clean up from test instrumentation.

References DtTestInteraction::classHandle(), connectMgr(), fedMgr(), DtFederateMgr::interMgr(), myLatencyInteraction, myTestFedAmbWrapper, processSub(), processUnsub(), DtSubInterMsg::removeCallback(), DtUnsubInterMsg::removeCallback(), DtConnectionMgr::removeFedAmbWrapper(), theTestMgrFedAmbWrapperName, DtInteractionMgr::unpublish(), and DtInteractionMgr::unsubscribe().

RTI::RTIambassador * DtTestManager::rtiAmb ( )

Access to the federate's RTI Ambassador.

References fedMgr(), and DtFederateMgr::rtiAmb().

RTI::RTIambassador * DtTestManager::rtiAmb ( ) const

Const access to the federate's RTI Ambassador.

References fedMgr(), and DtFederateMgr::rtiAmb().

bool DtTestManager::sendInteraction	(	unsigned int	testID,
		DtInteractionClassHandle	handle,
		const DtPhvps &	params,
		unsigned int	payloadSize
	)

protectedvirtual

called by testManager when either a new test interaction is being sent or when a test Interaction is being sent as a response to a received test Interaction.

Returns true if Interaction was a networkTest Interaction and has been processed and should be dropped. Else false.

References addSendInteractionTimeStamp(), DtTestInteraction::classHandle(), DtDefaultRegionSetHandle, fedMgr(), DtFederateMgr::interMgr(), myLatencyInteraction, DtInteractionMgr::send(), setTestMgrCurrentlySending(), and DtInteractionMgr::setTransport().

Referenced by receiveInteraction(), and sendSingleLatencyInteraction().

bool DtTestManager::sendSingleLatencyInteraction	(	unsigned int	testID,
		DtFederateHandle	recipient,
		MAKRti::DtTransportType	transport,
		unsigned int	payload
	)

protectedvirtual

Send a single latency interaction.

References DtTestInteraction::classHandle(), fedMgr(), myLatencyInteraction, DtLatencyTestInteraction::parameters(), DtTestInteraction::payloadSize(), sendInteraction(), DtTestInteraction::setPayloadSize(), DtTestInteraction::setTargetFederate(), DtTestInteraction::setTestId(), and DtTestInteraction::setTransportType().

Referenced by tick().

void DtTestManager::sendStatusMessages ( ) const

virtual

Update the status....

References DtFederateMgr::assistantClient(), atLeastOneKnownFederate(), DtFederateMgr::federateHandle(), DtFederateMgr::fedExHandle(), myEnabled, myFedMgr, myNumInitiatedTests, myNumTestReportsGenerated, myRunningContinuous, myTrialsToInitiate, DtFederateMgr::reportLatencyTestStatus(), and DtRtiAssistantClient::sendLatencyTestStatusMsg().

Referenced by addKnownFederate(), changeLatencyTestRequestByType(), disableNetworkTesting(), enableNetworkTesting(), processLatencyTest(), and removeKnownFederate().

void DtTestManager::setLastSentTestID ( unsigned int testID )

protectedvirtual

Set the Test ID of the last sent interaction.

References myTestIDOfLastSentInteraction.

Referenced by setTestMgrCurrentlySending().

void DtTestManager::setTestMgrCurrentlySending	(	bool	isSending,
		unsigned int	testID = `0`
	)

virtual

Mark the test mgr as sending / not sending Also sets / clears the last sent testID.

References mySendingInteraction, and setLastSentTestID().

Referenced by addSendTimeStampMetaDataIfNecessary(), and sendInteraction().

bool DtTestManager::shouldAddMetadataToMessage ( DtRtiMsg & msg ) const

protectedvirtual

determine if adding metadata is necessary based on msg type and current state.

References DtRtiMsg::isInteractionMsgType(), and testMgrCurrentlySending().

Referenced by addMetadataIfNecessary().

bool DtTestManager::testMgrCurrentlySending ( ) const

virtual

returns whether the test Manager is in a sending state.

References mySendingInteraction.

Referenced by shouldAddMetadataToMessage().

void DtTestManager::tick ( unsigned long tickCount )

virtual

Process test activities.

References calculateTickTime(), DtInitiatorLatencyTest::getCurrentTestInfo(), initiateLatencyTest(), myInitiatedTrialID, myInitiatorMutex, myInitiatorTest, processLatencyTest(), sendSingleLatencyInteraction(), and DtInitiatorLatencyTest::tick().

Referenced by DtFederateMgr::tick().

MAKRti::DtTime DtTestManager::time ( ) const

virtual

return the current time.

References myClock.

Referenced by calculateTickTime(), DtTestManager(), DtInitiatorLatencyTest::initiateLatencyTest(), receiveInteraction(), DtInitiatorLatencyTest::tick(), and DtLatencyTest::time().

MAKRti::DtTransportType DtTestManager::transportTypeForTestID ( unsigned int testID )

protected

look up the transport type for this testID.

Member Data Documentation

float DtTestManager::myAverageTickPeriod

protected

The average period between ticks.

Referenced by averageTickPeriod(), and calculateTickTime().

MAKRti::DtClock DtTestManager::myClock

protected

Keep track of time.

Referenced by time().

DtTestToTimeStampMap DtTestManager::myCompletedAveragedInitiatedTests

protected

Storage of my completed initiated tests.

DtTrialDetails DtTestManager::myContinuousDetails

protected

If so what are the details of the continuous test?

Referenced by changeLatencyTestRequestByType(), processLatencyTest(), and processSub().

unsigned int DtTestManager::myCurrentTrialID

protected

What is the current trial number.

Referenced by changeLatencyTestRequestByType(), processLatencyTest(), and processSub().

bool DtTestManager::myEnabled

protected

Is network testing enabled?

Referenced by changeLatencyTestRequestByType(), disableNetworkTesting(), DtTestManager(), enableNetworkTesting(), networkTestingEnabled(), and sendStatusMessages().

DtFederateMgr* DtTestManager::myFedMgr

protected

The federate manager.

Referenced by fedMgr(), postJoinInit(), processChangeLatencyTestStatus(), processLatencyTest(), receiveInteraction(), and sendStatusMessages().

unsigned long DtTestManager::myInitialTickCount

protected

the earliest tick count we're using for avgTickPeriod.

Referenced by calculateTickTime().

float DtTestManager::myInitialTickTime

protected

the earliest tick time we're using for avgTickPeriod.

Referenced by calculateTickTime(), and DtTestManager().

DtFederateHandle DtTestManager::myInitiatedFedHandle

protected

Referenced by initiateLatencyTest(), and processLatencyTest().

unsigned int DtTestManager::myInitiatedTrialID

protected

What trials am I waiting to complete?

Referenced by initiateLatencyTest(), processLatencyTest(), and tick().

DtMutex DtTestManager::myInitiatorMutex

protected

lock for the initiator test

Referenced by addAsyncQueueMsgTimeStamp(), addNetReceiveTimeStamp(), addNetSendTimeStamp(), addReceiveInteractionTimeStamp(), addSendInteractionTimeStamp(), initiateLatencyTest(), processLatencyTest(), receiveInteraction(), removeKnowledgeOfTestId(), and tick().

DtInitiatorLatencyTest* DtTestManager::myInitiatorTest

protected

Handles initiating tests with other federates.

Referenced by addAsyncQueueMsgTimeStamp(), addNetReceiveTimeStamp(), addNetSendTimeStamp(), addReceiveInteractionTimeStamp(), addSendInteractionTimeStamp(), initiateLatencyTest(), postJoinInit(), processLatencyTest(), receiveInteraction(), removeKnowledgeOfTestId(), tick(), and ~DtTestManager().

DtLatencyTestInteraction* DtTestManager::myLatencyInteraction

protected

The latency test interaction.

Referenced by isTestInteractionClassHandle(), postJoinInit(), receiveInteraction(), resign(), sendInteraction(), sendSingleLatencyInteraction(), and ~DtTestManager().

std::set<DtFederateHandle> DtTestManager::myListOfKnownFederates

protected

Our list of known federates (not including self).

Populated and maintained through DtTestManager::subInterMsg, and DtTestManager::UnsubInterMsg calls which only monitors the interaction class handles of known testInteractions.

Referenced by addKnownFederate(), atLeastOneKnownFederate(), changeLatencyTestRequestByType(), isKnownFederateHandle(), and removeKnownFederate().

unsigned DtTestManager::myNumInitiatedTests

protected

The number of tests this federate has initiated.

Referenced by changeLatencyTestRequestByType(), and sendStatusMessages().

unsigned DtTestManager::myNumTestReportsGenerated

protected

The number of test reports this federate has generated.

Referenced by processLatencyTest(), and sendStatusMessages().

std::set<DtInitiatorByType> DtTestManager::myObservers

protected

list of observers.
