DtRtiAssistantClient Class Reference

Manages the client connection to the RTI Assistant. More...

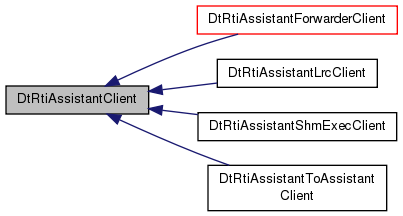

Inheritance diagram for DtRtiAssistantClient:

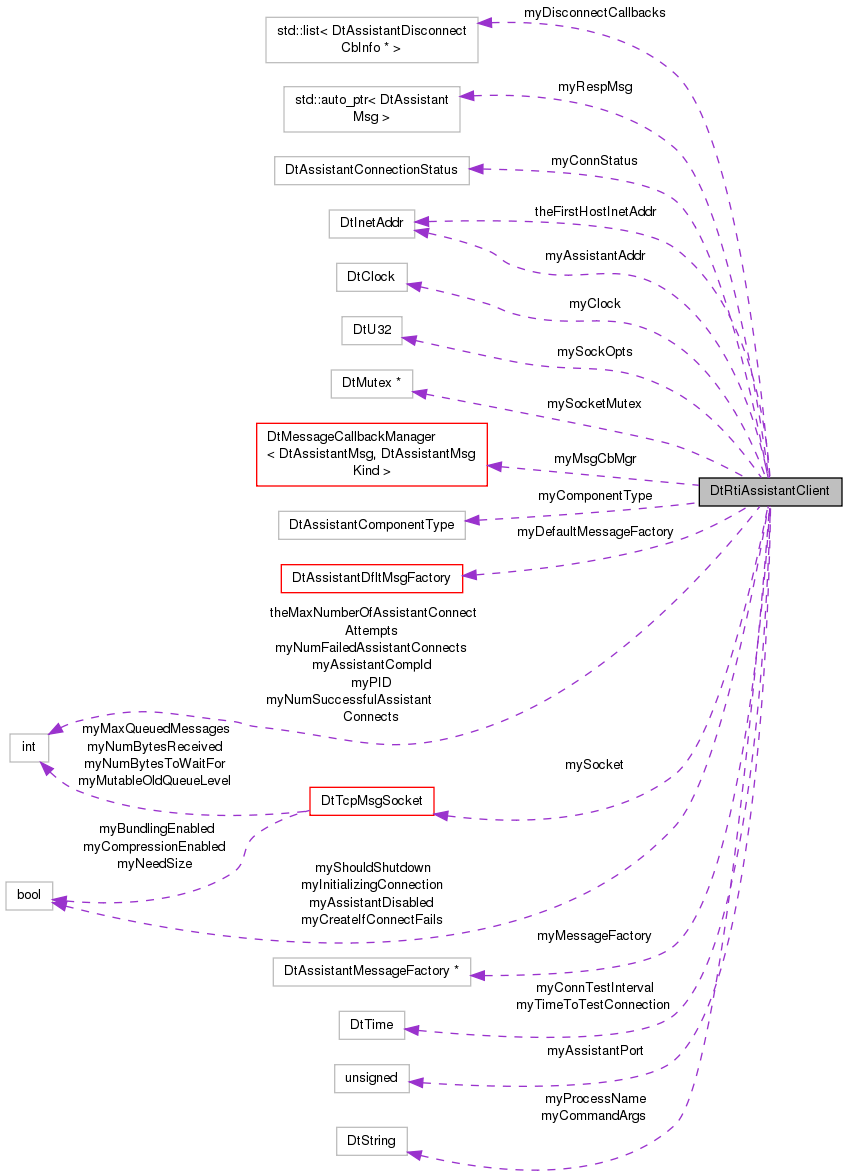

Collaboration diagram for DtRtiAssistantClient:

Public Member Functions
	DtRtiAssistantClient (DtAssistantComponentType type, int port=DtASSISTANT_DEFAULT_PORT)
	Constructor.
virtual	~DtRtiAssistantClient ()
	Destructor.
virtual bool	tick (unsigned int timeout=0)
	Do the actual message processing.
virtual bool	isConnected ()
	Returns true if the socket is connected.
virtual bool	isDisabled ()
	Returns true if the socket is disabled.
virtual void	addMsgCallback (DtAssistantMsgKind msgKind, DtAssistantMsgCbMgr::DtCallbackFcn fcn, void *usr)
	Message Callbacks These callback functions operate on all of the connections.
virtual void	removeMsgCallback (DtAssistantMsgKind msgKind, DtAssistantMsgCbMgr::DtCallbackFcn fcn, void *usr)
virtual void	addWildcardMsgCallback (DtAssistantMsgCbMgr::DtCallbackFcn fcn, void *usr)
virtual void	removeWildcardMsgCallback (DtAssistantMsgCbMgr::DtCallbackFcn fcn, void *usr)
virtual void	addDisconnectCallback (DtAssistantDisconnectCb cb, void *usr)
	These functions add callbacks for notification of a socket disconnect.
virtual void	removeDisconnectCallback (DtAssistantDisconnectCb cb, void *usr)
virtual bool	sendLRCConnQueryMsg (bool error, MAKRti::DtInetAddr &relIpAddr, MAKRti::DtInetAddr &beIpAddr, MAKRti::DtInetAddr &interfaceAddr, int &udpPort, int &tcpPort, bool &useRtiexec, bool &forceFullCompliance, int &forwarderPort)
	Send a message querying for the connection parameters.
virtual bool	sendForwardingComponentConnQueryMsg (bool error, MAKRti::DtInetAddr &relIpAddr, MAKRti::DtInetAddr &beIpAddr, MAKRti::DtInetAddr &interfaceAddr, int &udpPort, int &tcpPort, bool &forceFullCompliance, int &forwarderPort, MAKRti::DtInetAddr &forwardrToConnectTo)
	Send a message querying for the rtiexec connection parameters.
virtual void	sendLatencyTestMsg (const DtAssistantLatencyReportMsg &msg)
	Send a message to the assistant with latency test measurements.
virtual void	sendLatencyTestStatusMsg (const DtAssistantTestMgrStatusMsg &msg)
	Send an updated latency test status message to the assistant.
virtual bool	getNewLicenseServerFromAssistant (bool allowUnlicensed, bool &runUnlicensed, MAKRti::DtString &serverName, const MAKRti::DtString &featToCheck)
	Send a message to the assistant to query the user for an alternate license server.
virtual void	sendNotifyMsg (const MAKRti::DtString &text, DtNotifyLevelType notifyLevel)
	Send a message to display a pop up notification above the tray icon.
virtual void	sendSignalTickedMsg ()
	Send a signal ticked message to the assistant.
virtual void	sendDialogBoxMsg (const MAKRti::DtString &text, const MAKRti::DtString &advancedText)
	Send a message to display a dialog notification.
virtual void	sendClose ()
	Send connection closed message to Assistant.
virtual void	sendRidParamsMsg (const MAKRti::DtString &params, const MAKRti::DtFilename &filename, const MAKRti::DtString &federation=MAKRti::DtString::nullString(), unsigned federateHdl=0)
	Send the RID parameters.
virtual void	setMsgFactory (DtAssistantMessageFactory *fact)
	Get/Set the message factory.
virtual DtAssistantMessageFactory *	msgFactory () const
virtual void	shutDownConnection ()
	AssistantClientOwner should call this function when it processes an assistantExitMsg.
virtual MAKRti::DtString	getProcessName () const
	get the process name
virtual int	getPID () const
	get the PID
virtual MAKRti::DtString	getCommandArgs () const
	get the command args
bool	testConnectionStatus ()
	test the connection
virtual int	componentId () const
	Returns the component ID assigned by the assistant.

Protected Member Functions
virtual bool	initialize ()
	Attempts to connect to the RTI Assistant.
virtual DtAssistantConnectionStatus	connectToAssistant ()
	Attempt to open a connection and handshake with the Assistant.
virtual DtAssistantConnectionStatus	makeSingleConnectionAttempt ()
virtual bool	startAssistant ()
	Attempt to start a new Assistant.
virtual bool	readAndProcess (MAKRti::DtTime maxTime)
	Read and process any messages on the socket for up to the maxTime.
virtual bool	sendMsg (const DtAssistantMsg &msg)
	Send a message to the RTI Assistant.
virtual DtAssistantMsg *	sendMsgAndWait (const DtAssistantMsg &msg, DtAssistantMsgKind respKind, unsigned int waitSecs=0)
	Send a message to the RTI Assistant and wait for response of the specified kind.
virtual DtAssistantConnectionStatus	sendConnectMsg ()
	Send basic component information to the Assistant for a new connection.
virtual void	processRespMsg (const DtAssistantMsg &respMsg)
virtual void	processNtfyLvlUpdateMsg (const DtAssistantNtfyLvlUpdateMsg &updateMsg)
virtual void	processAssistantExitMsg (const DtAssistantExitMsg &inter)
virtual void	processDisconnect ()
	Process Assistant socket disconnect.
virtual std::auto_ptr < DtAssistantMsg >	netRead (int *retCode) const
	Attempt to read a new message from the socket.
virtual bool	sendLicQueryMsg (bool allowUnlicensed, bool &runUnlicensed, MAKRti::DtString &licServer)
	Send a message querying for the license server.
virtual void	sendClientInfo ()
	intended to be over-ridden by subclasses.

Static Protected Member Functions
static void	processRespMsg (const DtAssistantMsg &respMsg, void *usr)
	Response message callback.
static void	processNtfyLvlUpdateMsg (const DtAssistantNtfyLvlUpdateMsg &updateMsg, void *usr)
	Notify level update message callback.
static void	processAssistantExitMsg (const DtAssistantExitMsg &inter, void *usr)
	Process the assistant exit message. The assistant is commanding us to exit.

Protected Attributes
bool	myAssistantDisabled
	Set to true if the Assistant is disabled.
MAKRti::DtInetAddr	myAssistantAddr
	The IP address of the Assistant.
unsigned int	myAssistantPort
	The port on which the RTI Assistant listens for connections.
DtTcpMsgSocket *	mySocket
	The socket to the RTI Assistant.
bool	myCreateIfConnectFails
	Indicates whether an Assistant should be created if a connection cannot be established.
DtAssistantConnectionStatus	myConnStatus
	The current connection status.
bool	myInitializingConnection
	Is connection being initialized.
MAKRti::DtU32	mySockOpts
	The socket options to be used when connecting to the Assistant.
DtAssistantMessageFactory *	myMessageFactory
	The message factory.
DtAssistantDfltMsgFactory	myDefaultMessageFactory
	Default message factory.
DtAssistantComponentType	myComponentType
	The component type. (LRC, rtiexec, etc.)
MAKRti::DtClock	myClock
	Clock for timeouts.
MAKRti::DtTime	myConnTestInterval
	Interval at which connection should be tested.
MAKRti::DtTime	myTimeToTestConnection
	Next time to test connection.
DtAssistantMsgCbMgr	myMsgCbMgr
	Message callback manager.
std::auto_ptr< DtAssistantMsg >	myRespMsg
	The last response message to be received.
std::list < DtAssistantDisconnectCbInfo * >	myDisconnectCallbacks
	Lists of pointers to socket disconnect callbacks.
MAKRti::DtMutex *	mySocketMutex
	locks access to the socket connection.
bool	myShouldShutdown
	should be set when assistant exit msg has been received.
int	myNumFailedAssistantConnects
	How many assistant restarts have we attempted.
int	myNumSuccessfulAssistantConnects
	How many assistant reconnects occurred.
int	myPID
	the Process ID ( PID )
MAKRti::DtString	myProcessName
	the Process Name
MAKRti::DtString	myCommandArgs
	the command line arguments
int	myAssistantCompId
	The assistant assigned component ID.

Static Protected Attributes
static const int	theMaxNumberOfAssistantConnectAttempts = 10
	either starting up or reconnecting, how many assistant restarts do we tolerate before giving up.
static const MAKRti::DtInetAddr	theFirstHostInetAddr = DtDefaultInterfaceAddr()
	The first InetAddr when the federate was launched.

Private Member Functions
	DtRtiAssistantClient (DtRtiAssistantClient const &)
	Copy constructor not implemented.
DtRtiAssistantClient &	operator= (DtRtiAssistantClient const &)
	Assignment operator not implemented.

Detailed Description

Manages the client connection to the RTI Assistant.

DtRtiAssistantClient manages the connection to the RTI Assistant. It also provides methods for packaging and sending common messages to the RTI Assistant.

Constructor & Destructor Documentation

DtRtiAssistantClient::DtRtiAssistantClient	(	DtAssistantComponentType	type,
		int	port = DtASSISTANT_DEFAULT_PORT
	)

Constructor.

References DtAssistantExitMsg::addCallback(), DtAssistantNtfyLvlUpdateMsg::addCallback(), myAssistantAddr, myCommandArgs, myPID, myProcessName, mySocketMutex, NULL, processAssistantExitMsg(), processNtfyLvlUpdateMsg(), and DtAssistantPopupHelper::setCreatorFunction().

DtRtiAssistantClient::~DtRtiAssistantClient ( )

virtual

Destructor.

References mySocket, and mySocketMutex.

DtRtiAssistantClient::DtRtiAssistantClient ( DtRtiAssistantClient const &  )

private

Copy constructor not implemented.

Member Function Documentation

void DtRtiAssistantClient::addDisconnectCallback ( DtAssistantDisconnectCb  cb, void *  usr  )

virtual

These functions add callbacks for notification of a socket disconnect.

References myDisconnectCallbacks.

void DtRtiAssistantClient::addMsgCallback ( DtAssistantMsgKind  msgKind, DtAssistantMsgCbMgr::DtCallbackFcn  fcn, void *  usr  )

virtual

Message Callbacks These callback functions operate on all of the connections.

References myMsgCbMgr.

Referenced by DtAssistantExitMsg::addCallback(), DtAssistantFederateSignalTickIntervalMsg::addCallback(), DtAssistantLogRequestMsg::addCallback(), DtAssistantLogEnableMsg::addCallback(), DtAssistantDeleteFederationMsg::addCallback(), DtAssistantNtfyLvlUpdateMsg::addCallback(), DtAssistantAwaitingForwardersMsg::addCallback(), DtAssistantDeleteFederateMsg::addCallback(), DtAssistantNetworkTestEnableMsg::addCallback(), DtAssistantRidParamsMsg::addCallback(), DtAssistantChangeLatencyTestModeMsg::addCallback(), DtAssistantStateObserveMsg::addCallback(), and sendMsgAndWait().

void DtRtiAssistantClient::addWildcardMsgCallback ( DtAssistantMsgCbMgr::DtCallbackFcn  fcn, void *  usr  )

virtual

References myMsgCbMgr.

int DtRtiAssistantClient::componentId ( ) const

virtual

Returns the component ID assigned by the assistant.

References myAssistantCompId.

Referenced by DtRtiAssistantLrcClient::sendFomTreeData(), DtRtiAssistantLrcClient::sendFomUpdate(), DtRtiAssistantLrcClient::sendNetStatsAttrParamStringUpdate(), DtRtiAssistantLrcClient::sendNetStatsFomAttrParamUpdate(), DtRtiAssistantLrcClient::sendNetStatsStringUpdate(), DtRtiAssistantLrcClient::sendNetStatsUpdate(), DtRtiAssistantLrcClient::sendObjectInstanceNetStatsStringUpdate(), and DtRtiAssistantLrcClient::sendObjectInstanceNetStatsUpdate().

DtAssistantConnectionStatus DtRtiAssistantClient::connectToAssistant ( )

protectedvirtual

Attempt to open a connection and handshake with the Assistant.

Returns the connection status. Does not block, so

References DtAssistantConnected, DtAssistantConnectFailed, DtAssistantNoResponse, makeSingleConnectionAttempt(), myCreateIfConnectFails, myNumFailedAssistantConnects, startAssistant(), and theMaxNumberOfAssistantConnectAttempts.

Referenced by initialize().

MAKRti::DtString DtRtiAssistantClient::getCommandArgs ( ) const

virtual

get the command args

References myCommandArgs.

bool DtRtiAssistantClient::getNewLicenseServerFromAssistant ( bool  allowUnlicensed, bool &  runUnlicensed, MAKRti::DtString &  serverName, const MAKRti::DtString &  featToCheck  )

virtual

Send a message to the assistant to query the user for an alternate license server.

Returns true unless user cancels dialog.

References lm, DtAssistantPopupHelper::popupAssistantMessage(), and sendLicQueryMsg().

Referenced by DtFedExec::init(), and initControl().

int DtRtiAssistantClient::getPID ( ) const

virtual

get the PID

References myPID.

MAKRti::DtString DtRtiAssistantClient::getProcessName ( ) const

virtual

get the process name

References myProcessName.

bool DtRtiAssistantClient::initialize ( )

protectedvirtual

Attempts to connect to the RTI Assistant.

Will create one if none is present.

References connectToAssistant(), DtAssistantConnected, DtAssistantConnectFailed, DtAssistantConnectRejected, DtAssistantNoResponse, DtAssistantWrongDisplay, isDisabled(), myAssistantDisabled, myInitializingConnection, myNumSuccessfulAssistantConnects, myShouldShutdown, and sendClientInfo().

Referenced by DtRtiAssistantForwarderClient::DtRtiAssistantForwarderClient(), DtRtiAssistantLrcClient::DtRtiAssistantLrcClient(), DtRtiAssistantShmExecClient::DtRtiAssistantShmExecClient(), DtRtiAssistantToAssistantClient::DtRtiAssistantToAssistantClient(), readAndProcess(), sendMsg(), and sendMsgAndWait().

bool DtRtiAssistantClient::isConnected ( )

virtual

Returns true if the socket is connected.

References DtTcpMsgSocket::isConnected(), and mySocket.

Referenced by DtRtiAssistant::connectToAssistant(), and initControl().

bool DtRtiAssistantClient::isDisabled ( )

virtual

Returns true if the socket is disabled.

References myAssistantDisabled, myNumFailedAssistantConnects, and theMaxNumberOfAssistantConnectAttempts.

Referenced by initialize().

DtAssistantConnectionStatus DtRtiAssistantClient::makeSingleConnectionAttempt ( )

protectedvirtual

References DtAssistantConnectFailed, DtTcpMsgSocket::isConnected(), myAssistantAddr, myAssistantPort, myConnStatus, mySocket, mySocketMutex, mySockOpts, DtTcpMsgSocket::openClientSocket(), sendConnectMsg(), and DtTcpMsgSocket::setNonBlocking().

Referenced by connectToAssistant().

DtAssistantMessageFactory * DtRtiAssistantClient::msgFactory ( ) const

virtual

References myMessageFactory.

Referenced by netRead(), DtRtiAssistantShmExecClient::sendClientInfo(), DtRtiAssistantExecClient::sendClientInfo(), DtRtiAssistantForwarderClient::sendClientInfo(), DtRtiAssistantLrcClient::sendClientInfo(), sendClose(), DtRtiAssistantToAssistantClient::sendCommandMessage(), sendConnectMsg(), sendDialogBoxMsg(), DtRtiAssistantExecClient::sendExecStateMsg(), DtRtiAssistantExecClient::sendFederateUpdateMsg(), DtRtiAssistantExecClient::sendFederationStateMsg(), DtRtiAssistantExecClient::sendFederationTimeStateMsg(), DtRtiAssistantLrcClient::sendFomTreeData(), DtRtiAssistantLrcClient::sendFomUpdate(), sendForwardingComponentConnQueryMsg(), DtRtiAssistantForwarderClient::sendFullForwarderInfo(), DtRtiAssistantToAssistantClient::sendInteractiveCommandMessage(), sendLicQueryMsg(), DtRtiAssistantExecClient::sendLogMsg(), sendLRCConnQueryMsg(), DtRtiAssistantLrcClient::sendNetStatsAttrParamStringUpdate(), DtRtiAssistantLrcClient::sendNetStatsFomAttrParamUpdate(), DtRtiAssistantLrcClient::sendNetStatsStringUpdate(), DtRtiAssistantLrcClient::sendNetStatsUpdate(), DtRtiAssistantExecClient::sendNoFederationMsg(), sendNotifyMsg(), DtRtiAssistantLrcClient::sendObjectInstanceNetStatsStringUpdate(), DtRtiAssistantLrcClient::sendObjectInstanceNetStatsUpdate(), sendRidParamsMsg(), DtRtiAssistantToAssistantClient::sendShowDialogMsg(), DtRtiAssistantToAssistantClient::sendShutdownMessage(), sendSignalTickedMsg(), DtRtiAssistantExecClient::sendSyncPtUpdateMsg(), and DtRtiAssistantForwarderClient::sendWaitingForForwarders().

std::auto_ptr< DtAssistantMsg > DtRtiAssistantClient::netRead ( int *  retCode ) const

protectedvirtual

Attempt to read a new message from the socket.

References DtASSISTANT_BUFFER_TOO_SMALL, DtASSISTANT_INVALID_VERSION, DtASSISTANT_READ_BAD_PACKET, DtASSISTANT_READ_FILTERED_PACKET, DtASSISTANT_READ_NO_PACKETS, DtASSISTANT_READ_SIZE_MISMATCH, DtASSISTANT_READ_SUCCESS, DtASSISTANT_UNKNOWN_ERROR, DtAssistantMessageVersion, DtTcpMsgSocket::isConnected(), DtAssistantMsg::isOk(), DtAssistantMsg::kindToString(), msgFactory(), DtNetAssistantMsgHeader::msgKind, mySocket, mySocketMutex, DtTcpMsgSocket::recvMessage(), DtNetAssistantMsgHeader::totalSize, DtNetAssistantMsgHeader::version, and DtNetAssistantMsgHeader::versionMatches().

Referenced by readAndProcess().

DtRtiAssistantClient& DtRtiAssistantClient::operator= ( DtRtiAssistantClient const &  )

private

Assignment operator not implemented.

void DtRtiAssistantClient::processAssistantExitMsg ( const DtAssistantExitMsg &  inter, void *  usr  )

staticprotected

Process the assistant exit message. The assistant is commanding us to exit.

Referenced by DtRtiAssistantClient().

void DtRtiAssistantClient::processAssistantExitMsg ( const DtAssistantExitMsg &  inter )

protectedvirtual

References shutDownConnection().

void DtRtiAssistantClient::processDisconnect ( )

protectedvirtual

Process Assistant socket disconnect.

References DtAssistantDisconnectCbInfo::myCb, myDisconnectCallbacks, and DtAssistantDisconnectCbInfo::myUsr.

Referenced by testConnectionStatus(), and tick().

void DtRtiAssistantClient::processNtfyLvlUpdateMsg ( const DtAssistantNtfyLvlUpdateMsg &  updateMsg, void *  usr  )

staticprotected

Notify level update message callback.

Referenced by DtRtiAssistantClient().

void DtRtiAssistantClient::processNtfyLvlUpdateMsg ( const DtAssistantNtfyLvlUpdateMsg &  updateMsg )

protectedvirtual

References DtAssistantNtfyLvlUpdateMsg::notifyLevel().

void DtRtiAssistantClient::processRespMsg ( const DtAssistantMsg &  respMsg, void *  usr  )

staticprotected

Response message callback.

Referenced by sendMsgAndWait().

void DtRtiAssistantClient::processRespMsg ( const DtAssistantMsg &  respMsg )

protectedvirtual

References DtAssistantMsg::clone(), and myRespMsg.

bool DtRtiAssistantClient::readAndProcess ( MAKRti::DtTime  maxTime )

protectedvirtual

Read and process any messages on the socket for up to the maxTime.

References DtASSISTANT_INVALID_VERSION, DtASSISTANT_READ_NO_PACKETS, DtASSISTANT_READ_SUCCESS, initialize(), DtTcpMsgSocket::isConnected(), myClock, myMsgCbMgr, mySocket, netRead(), and shutDownConnection().

Referenced by tick().

void DtRtiAssistantClient::removeDisconnectCallback ( DtAssistantDisconnectCb  cb, void *  usr  )

virtual

References DtAssistantDisconnectCbInfo::myCb, myDisconnectCallbacks, and DtAssistantDisconnectCbInfo::myUsr.

void DtRtiAssistantClient::removeMsgCallback ( DtAssistantMsgKind  msgKind, DtAssistantMsgCbMgr::DtCallbackFcn  fcn, void *  usr  )

virtual

References myMsgCbMgr.

Referenced by DtAssistantExitMsg::removeCallback(), DtAssistantFederateSignalTickIntervalMsg::removeCallback(), DtAssistantLogRequestMsg::removeCallback(), DtAssistantLogEnableMsg::removeCallback(), DtAssistantDeleteFederationMsg::removeCallback(), DtAssistantNtfyLvlUpdateMsg::removeCallback(), DtAssistantAwaitingForwardersMsg::removeCallback(), DtAssistantDeleteFederateMsg::removeCallback(), DtAssistantNetworkTestEnableMsg::removeCallback(), DtAssistantRidParamsMsg::removeCallback(), DtAssistantChangeLatencyTestModeMsg::removeCallback(), DtAssistantStateObserveMsg::removeCallback(), and sendMsgAndWait().

void DtRtiAssistantClient::removeWildcardMsgCallback ( DtAssistantMsgCbMgr::DtCallbackFcn  fcn, void *  usr  )

virtual

References myMsgCbMgr.

void DtRtiAssistantClient::sendClientInfo ( )

protectedvirtual

intended to be over-ridden by subclasses.

Sends subclass specific data to the assistant.

Reimplemented in DtRtiAssistantLrcClient, DtRtiAssistantForwarderClient, DtRtiAssistantExecClient, DtRtiAssistantToAssistantClient, and DtRtiAssistantShmExecClient.

Referenced by initialize().

void DtRtiAssistantClient::sendClose ( )

virtual

Send connection closed message to Assistant.

This should be called prior to a normal shutdown of the client.

References DtAssistantConnMsgKind, msgFactory(), myComponentType, sendMsg(), DtAssistantConnMsg::setComponentType(), and DtAssistantConnMsg::setDisconnect().

Referenced by DtRtiAssistantToAssistantClient::~DtRtiAssistantToAssistantClient().

DtAssistantConnectionStatus DtRtiAssistantClient::sendConnectMsg ( )

protectedvirtual

Send basic component information to the Assistant for a new connection.

Returns false if the Assistant rejects this connection.

References DtAssistantMsg::compId(), DtAssistantConnMsg::display(), DtAssistantConnected, DtAssistantConnectRejected, DtAssistantConnMsgKind, DtAssistantNoResponse, DtAssistantWrongDisplay, DtAssistantConnMsg::isDisconnect(), msgFactory(), myAssistantCompId, myComponentType, myCreateIfConnectFails, mySocket, mySocketMutex, sendMsgAndWait(), DtAssistantConnMsg::setComponentType(), DtAssistantConnMsg::setDisconnect(), and DtAssistantConnMsg::setDisplay().

Referenced by makeSingleConnectionAttempt().

void DtRtiAssistantClient::sendDialogBoxMsg ( const MAKRti::DtString &  text, const MAKRti::DtString &  advancedText  )

virtual

Send a message to display a dialog notification.

References DtAssistantPopupMsgKind, msgFactory(), sendMsg(), and DtAssistantPopupMsg::set().

Referenced by DtAssistantPopupHelper::sendPopupMessage().

bool DtRtiAssistantClient::sendForwardingComponentConnQueryMsg ( bool  error, MAKRti::DtInetAddr &  relIpAddr, MAKRti::DtInetAddr &  beIpAddr, MAKRti::DtInetAddr &  interfaceAddr, int &  udpPort, int &  tcpPort, bool &  forceFullCompliance, int &  forwarderPort, MAKRti::DtInetAddr &  forwardrToConnectTo  )

virtual

Send a message querying for the rtiexec connection parameters.

References DtAssistantConnQueryMsg::additionalForwarderConnectionAddr(), DtAssistantConnQueryMsg::bestEffortIpAddress(), DtAssistantConnQueryMsgKind, DtAssistantConnQueryMsg::forceFullCompliance(), DtAssistantConnQueryMsg::forwarderPort(), DtAssistantConnQueryMsg::isAccepted(), msgFactory(), DtAssistantConnQueryMsg::networkInterfaceAddress(), DtAssistantConnQueryMsg::reliableIpAddress(), sendMsgAndWait(), DtAssistantConnQueryMsg::tcpPort(), and DtAssistantConnQueryMsg::udpPort().

void DtRtiAssistantClient::sendLatencyTestMsg ( const DtAssistantLatencyReportMsg &  msg )

virtual

Send a message to the assistant with latency test measurements.

References sendMsg().

Referenced by DtTestManager::processLatencyTest().

void DtRtiAssistantClient::sendLatencyTestStatusMsg ( const DtAssistantTestMgrStatusMsg &  msg )

virtual

Send an updated latency test status message to the assistant.

References sendMsg().

Referenced by DtTestManager::sendStatusMessages().

bool DtRtiAssistantClient::sendLicQueryMsg ( bool  allowUnlicensed, bool &  runUnlicensed, MAKRti::DtString &  licServer  )

protectedvirtual

Send a message querying for the license server.

References DtAssistantLicQueryMsgKind, DtAssistantLicQueryMsg::isAccepted(), DtAssistantLicQueryMsg::isUnlicensed(), DtAssistantLicQueryMsg::licenseServer(), msgFactory(), sendMsgAndWait(), and DtAssistantLicQueryMsg::setUnlicensed().

Referenced by getNewLicenseServerFromAssistant().

bool DtRtiAssistantClient::sendLRCConnQueryMsg ( bool  error, MAKRti::DtInetAddr &  relIpAddr, MAKRti::DtInetAddr &  beIpAddr, MAKRti::DtInetAddr &  interfaceAddr, int &  udpPort, int &  tcpPort, bool &  useRtiexec, bool &  forceFullCompliance, int &  forwarderPort  )

virtual

Send a message querying for the connection parameters.

References DtAssistantConnQueryMsg::bestEffortIpAddress(), DtAssistantConnQueryMsgKind, DtAssistantConnQueryMsg::forceFullCompliance(), DtAssistantConnQueryMsg::forwarderPort(), DtAssistantConnQueryMsg::isAccepted(), msgFactory(), DtAssistantConnQueryMsg::networkInterfaceAddress(), DtAssistantConnQueryMsg::reliableIpAddress(), sendMsgAndWait(), DtAssistantConnQueryMsg::setError(), DtAssistantConnQueryMsg::tcpPort(), DtAssistantConnQueryMsg::udpPort(), and DtAssistantConnQueryMsg::useRtiexec().

bool DtRtiAssistantClient::sendMsg ( const DtAssistantMsg &  msg )

protectedvirtual

Send a message to the RTI Assistant.

returns true if no error.

References initialize(), DtTcpMsgSocket::isConnected(), mySocket, mySocketMutex, and DtTcpMsgSocket::sendMessage().

Referenced by DtRtiAssistantShmExecClient::sendClientInfo(), DtRtiAssistantExecClient::sendClientInfo(), DtRtiAssistantForwarderClient::sendClientInfo(), DtRtiAssistantLrcClient::sendClientInfo(), sendClose(), DtRtiAssistantToAssistantClient::sendCommandMessage(), sendDialogBoxMsg(), DtRtiAssistantExecClient::sendExecStateMsg(), DtRtiAssistantExecClient::sendFederateUpdateMsg(), DtRtiAssistantExecClient::sendFederationStateMsg(), DtRtiAssistantExecClient::sendFederationTimeStateMsg(), DtRtiAssistantLrcClient::sendFomTreeData(), DtRtiAssistantLrcClient::sendFomUpdate(), DtRtiAssistantForwarderClient::sendFullForwarderInfo(), sendLatencyTestMsg(), sendLatencyTestStatusMsg(), DtRtiAssistantExecClient::sendLogMsg(), DtRtiAssistantLrcClient::sendNetStatsAttrParamStringUpdate(), DtRtiAssistantLrcClient::sendNetStatsFomAttrParamUpdate(), DtRtiAssistantLrcClient::sendNetStatsStringUpdate(), DtRtiAssistantLrcClient::sendNetStatsUpdate(), DtRtiAssistantExecClient::sendNoFederationMsg(), sendNotifyMsg(), DtRtiAssistantLrcClient::sendObjectInstanceNetStatsStringUpdate(), DtRtiAssistantLrcClient::sendObjectInstanceNetStatsUpdate(), sendRidParamsMsg(), DtRtiAssistantToAssistantClient::sendShowDialogMsg(), DtRtiAssistantToAssistantClient::sendShutdownMessage(), sendSignalTickedMsg(), DtRtiAssistantExecClient::sendSyncPtUpdateMsg(), and DtRtiAssistantForwarderClient::sendWaitingForForwarders().

DtAssistantMsg * DtRtiAssistantClient::sendMsgAndWait ( const DtAssistantMsg &  msg, DtAssistantMsgKind  respKind, unsigned int  waitSecs = 0  )

protectedvirtual

Send a message to the RTI Assistant and wait for response of the specified kind.

A pointer to the response message will be returned. Ownership of the message is passed to the calling function who must delete it when finished. Optional parameter waitSecs specifies how long we should wait for the response. If 0 is specified, wait is indefinite. Returns null pointer if timeout occurred.

References addMsgCallback(), DtTcpMsgSocket::flush(), initialize(), DtTcpMsgSocket::isConnected(), myClock, myNumSuccessfulAssistantConnects, myRespMsg, myShouldShutdown, mySocket, mySocketMutex, processRespMsg(), removeMsgCallback(), DtTcpMsgSocket::sendMessage(), DtTcpMsgSocket::testConnectionStatus(), and tick().

Referenced by sendConnectMsg(), sendForwardingComponentConnQueryMsg(), DtRtiAssistantToAssistantClient::sendInteractiveCommandMessage(), sendLicQueryMsg(), and sendLRCConnQueryMsg().

void DtRtiAssistantClient::sendNotifyMsg ( const MAKRti::DtString &  text, DtNotifyLevelType  notifyLevel  )

virtual

Send a message to display a pop up notification above the tray icon.

References DtAssistantNotifyMsgKind, msgFactory(), sendMsg(), DtAssistantNotifyMsg::setNotifyLevel(), and DtAssistantNotifyMsg::setText().

void DtRtiAssistantClient::sendRidParamsMsg ( const MAKRti::DtString &  params, const MAKRti::DtFilename &  filename, const MAKRti::DtString &  federation = MAKRti::DtString::nullString(), unsigned  federateHdl = 0  )

virtual

Send the RID parameters.

References DtAssistantRidParamsMsgKind, msgFactory(), sendMsg(), DtAssistantRidParamsMsg::setFederateHandle(), DtAssistantRidParamsMsg::setFederation(), DtAssistantRidParamsMsg::setIsRequest(), DtAssistantRidParamsMsg::setRidFilename(), and DtAssistantRidParamsMsg::setRidParams().

void DtRtiAssistantClient::sendSignalTickedMsg ( )

virtual

Send a signal ticked message to the assistant.

References DtAssistantSignalTickedMsgKind, msgFactory(), and sendMsg().

Referenced by DtFederateMgr::sendTickedMsg().

void DtRtiAssistantClient::setMsgFactory ( DtAssistantMessageFactory *  fact )

virtual

Get/Set the message factory.

References myMessageFactory.

void DtRtiAssistantClient::shutDownConnection ( )

virtual

AssistantClientOwner should call this function when it processes an assistantExitMsg.

References myShouldShutdown.

Referenced by processAssistantExitMsg(), and readAndProcess().

bool DtRtiAssistantClient::startAssistant ( )

protectedvirtual

Attempt to start a new Assistant.

References DtCreateProcess__rti__(), DtProcFgInteractive__rti__, DtProcNonInteractive__rti__, and DtRtiLibPath().

Referenced by connectToAssistant().

bool DtRtiAssistantClient::testConnectionStatus

(

)

test the connection

References mySocket, mySocketMutex, NULL, processDisconnect(), and DtTcpMsgSocket::testConnectionStatus().

Referenced by DtRtiAssistant::sendShutdownToConnectedAssistant().

bool DtRtiAssistantClient::tick ( unsigned int  timeout = 0 )

virtual

Do the actual message processing.

• RTI connections are treated as synchronous in main thread

References DtTcpMsgSocket::isConnected(), myClock, myConnTestInterval, mySocket, mySocketMutex, myTimeToTestConnection, processDisconnect(), readAndProcess(), and DtTcpMsgSocket::testConnectionStatus().

Referenced by DtFederateMgr::posttick(), and sendMsgAndWait().

Member Data Documentation

MAKRti::DtInetAddr DtRtiAssistantClient::myAssistantAddr

protected

The IP address of the Assistant.

Referenced by DtRtiAssistantClient(), and makeSingleConnectionAttempt().

int DtRtiAssistantClient::myAssistantCompId

protected

The assistant assigned component ID.

Referenced by componentId(), and sendConnectMsg().

bool DtRtiAssistantClient::myAssistantDisabled

protected

Set to true if the Assistant is disabled.

Referenced by initialize(), and isDisabled().

unsigned int DtRtiAssistantClient::myAssistantPort

protected

The port on which the RTI Assistant listens for connections.

Referenced by makeSingleConnectionAttempt().

MAKRti::DtClock DtRtiAssistantClient::myClock

protected

Clock for timeouts.

Referenced by readAndProcess(), sendMsgAndWait(), and tick().

MAKRti::DtString DtRtiAssistantClient::myCommandArgs

protected

the command line arguments

Referenced by DtRtiAssistantClient(), getCommandArgs(), and DtRtiAssistantLrcClient::sendClientInfo().

DtAssistantComponentType DtRtiAssistantClient::myComponentType

protected

The component type. (LRC, rtiexec, etc.)

Referenced by sendClose(), and sendConnectMsg().

DtAssistantConnectionStatus DtRtiAssistantClient::myConnStatus

protected

The current connection status.

Referenced by makeSingleConnectionAttempt().

MAKRti::DtTime DtRtiAssistantClient::myConnTestInterval

protected

Interval at which connection should be tested.

Referenced by tick().

bool DtRtiAssistantClient::myCreateIfConnectFails

protected

Indicates whether an Assistant should be created if a connection cannot be established.

Referenced by connectToAssistant(), DtRtiAssistantToAssistantClient::DtRtiAssistantToAssistantClient(), and sendConnectMsg().

DtAssistantDfltMsgFactory DtRtiAssistantClient::myDefaultMessageFactory

protected

Default message factory.

std::list<DtAssistantDisconnectCbInfo*> DtRtiAssistantClient::myDisconnectCallbacks

protected

Lists of pointers to socket disconnect callbacks.

Referenced by addDisconnectCallback(), processDisconnect(), and removeDisconnectCallback().

bool DtRtiAssistantClient::myInitializingConnection

protected

Is connection being initialized.

Referenced by initialize().

DtAssistantMessageFactory* DtRtiAssistantClient::myMessageFactory

protected

The message factory.

Referenced by msgFactory(), and setMsgFactory().

DtAssistantMsgCbMgr DtRtiAssistantClient::myMsgCbMgr

protected

Message callback manager.

Referenced by addMsgCallback(), addWildcardMsgCallback(), readAndProcess(), removeMsgCallback(), and removeWildcardMsgCallback().

int DtRtiAssistantClient::myNumFailedAssistantConnects

protected

How many assistant restarts have we attempted.

Referenced by connectToAssistant(), and isDisabled().

int DtRtiAssistantClient::myNumSuccessfulAssistantConnects

protected

How many assistant reconnects occurred.

Referenced by initialize(), and sendMsgAndWait().

int DtRtiAssistantClient::myPID

protected

the Process ID ( PID )

Referenced by DtRtiAssistantClient(), getPID(), and DtRtiAssistantLrcClient::sendClientInfo().

MAKRti::DtString DtRtiAssistantClient::myProcessName

protected

the Process Name

Referenced by DtRtiAssistantClient(), getProcessName(), and DtRtiAssistantLrcClient::sendClientInfo().

std::auto_ptr<DtAssistantMsg> DtRtiAssistantClient::myRespMsg

protected

The last response message to be received.

Referenced by processRespMsg(), and sendMsgAndWait().

bool DtRtiAssistantClient::myShouldShutdown

protected

should be set when assistant exit msg has been received.

Referenced by initialize(), sendMsgAndWait(), and shutDownConnection().

DtTcpMsgSocket* DtRtiAssistantClient::mySocket

protected

The socket to the RTI Assistant.

Referenced by isConnected(), makeSingleConnectionAttempt(), netRead(), readAndProcess(), sendConnectMsg(), DtRtiAssistantExecClient::sendLogMsg(), sendMsg(), sendMsgAndWait(), testConnectionStatus(), tick(), and ~DtRtiAssistantClient().

MAKRti::DtMutex* DtRtiAssistantClient::mySocketMutex

protected

locks access to the socket connection.

Referenced by DtRtiAssistantClient(), makeSingleConnectionAttempt(), netRead(), sendConnectMsg(), sendMsg(), sendMsgAndWait(), testConnectionStatus(), tick(), and ~DtRtiAssistantClient().

MAKRti::DtU32 DtRtiAssistantClient::mySockOpts

protected

The socket options to be used when connecting to the Assistant.

Referenced by DtRtiAssistantToAssistantClient::DtRtiAssistantToAssistantClient(), and makeSingleConnectionAttempt().

MAKRti::DtTime DtRtiAssistantClient::myTimeToTestConnection

protected

Next time to test connection.

Referenced by tick().

const MAKRti::DtInetAddr DtRtiAssistantClient::theFirstHostInetAddr = DtDefaultInterfaceAddr()

staticprotected

The first InetAddr when the federate was launched.

const int DtRtiAssistantClient::theMaxNumberOfAssistantConnectAttempts = 10

staticprotected

either starting up or reconnecting, how many assistant restarts do we tolerate before giving up.

Referenced by connectToAssistant(), and isDisabled().

---

The documentation for this class was generated from the following files:

• rtiAssistantClient.h
• rtiAssistantClient.cxx
