DtAssistantFomViewMgr Class Reference

Populates and displays the Fom dialog. More...

Inheritance diagram for DtAssistantFomViewMgr:

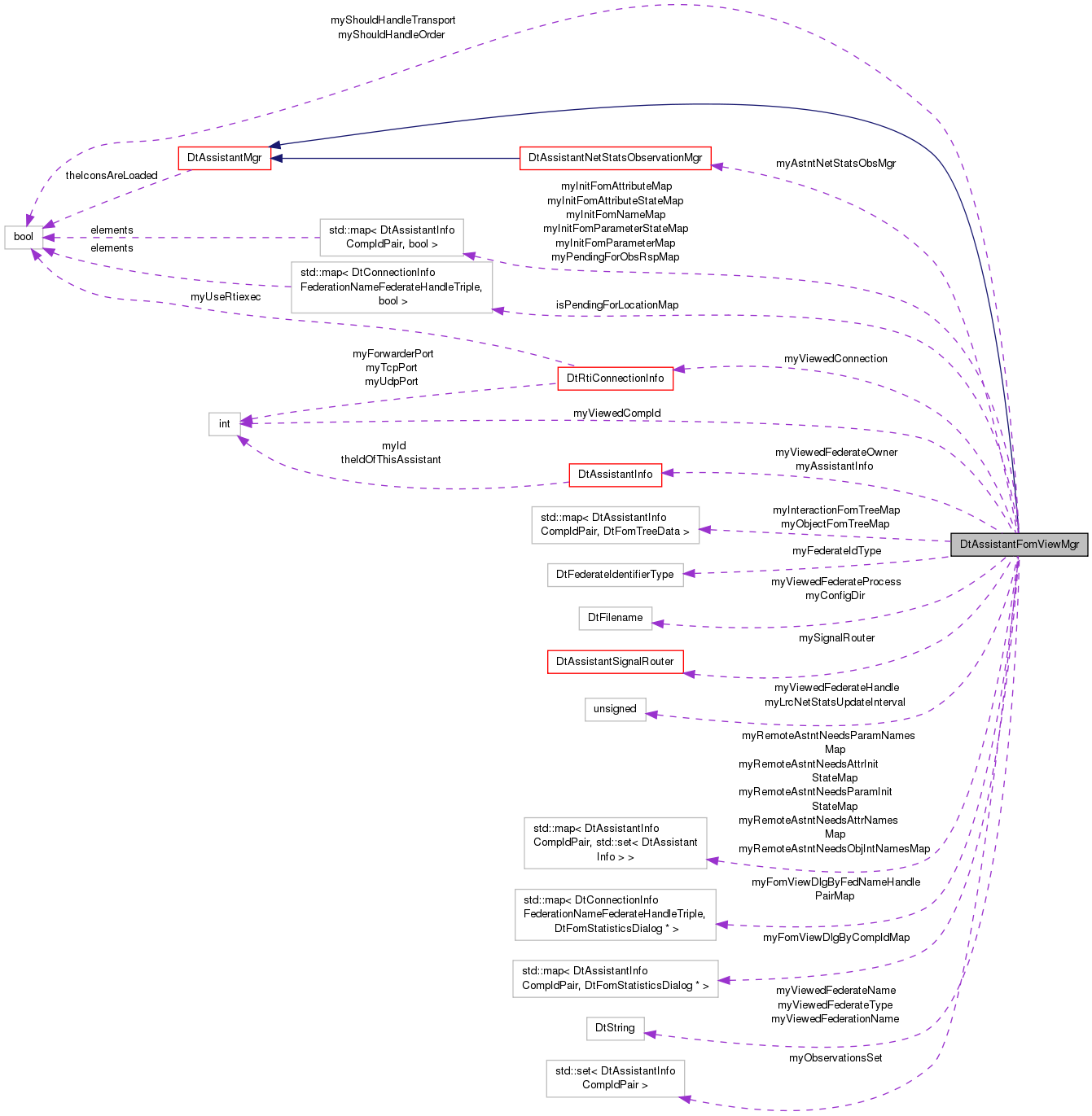

Collaboration diagram for DtAssistantFomViewMgr:

Public Slots
void	showFomDialog (const DtRtiConnectionInfo &connInfo, const MAKRti::DtString &federationName, unsigned int federateHandle)
	Displays the Fom Dialog.
void	fomStatDlgClosing (const DtAssistantInfo &astnt, int compId, const MAKRti::DtString &federationName, int federateHandle, const DtRtiConnectionInfo &connInfo)
void	sendFomObservationRequest (const DtRtiConnectionInfo &connInfo, const MAKRti::DtString &federationName, unsigned federateHdl, const DtAssistantInfo &astnt, unsigned compId, bool observe=true)
	Attempt to send a pending Observation request for the specified federate.
void	sendFomInitStateRequest (const DtAssistantInfo &astnt, unsigned compId)
void	processFederateRemoval (const DtAssistantComponentInfo *comp)
void	processFederateRemoval (const DtRtiConnectionInfo &connInfo, const MAKRti::DtString &federationName, unsigned federateHandle)
void	processLocalRtiComponentConnected (const DtAssistantComponentInfo *compInfo)
void	processLocalRtiComponentDisconnected (const DtAssistantComponentInfo *compInfo)
void	federateIdentifierUpdated (unsigned int)
	Updates how federates should be identified.
void	lrcNetStatsUpdateIntervalUpdated (unsigned int)
	Updates the LRC NetStats interval (seconds)
Public Slots inherited from DtAssistantMgr
void	displayWarningDialogs ()
	Displays all warning dialogs.

Signals
void	queryFederateInfo (const DtRtiConnectionInfo &conn, const MAKRti::DtString &federationName, unsigned federateHandle, const DtAssistantFederateInfo **info)
	Emitted to query for detailed federate info.
void	queryForwarderInfo (const DtRtiConnectionInfo &conn, const DtAssistantForwarderInfo **info)
	Emitted to query for detailed forwarder info.
void	requestFederateLoc (const DtRtiConnectionInfo &connInfo, const MAKRti::DtString &federationName, unsigned int federateHdl)
	Emitted to request a federate's location.
Signals inherited from DtAssistantMgr
void	warningDialogDisplayed ()
	Emitted when a warning dialog is displayed.
void	warningDialogDismissed ()
	Emitted when a warning dialog is dismissed.
void	popupRequested (const MAKRti::DtString &text, int sourceCompId, const MAKRti::DtString &advancedText)
	Emitted when a popup dialog should be displayed.
void	popupRequested (const MAKRti::DtString &text, const MAKRti::DtString &source, const MAKRti::DtString &advancedText)
	Emitted when a popup dialog should be displayed.
void	notificationRequested (const MAKRti::DtString &message, MAKRti::DtNotifyLevelType notifyLevel, int sourceCompId, bool logOnly)
	Emitted when a notification should be displayed.
void	notificationRequested (const MAKRti::DtString &message, MAKRti::DtNotifyLevelType notifyLevel, const MAKRti::DtString &source, bool logOnly)
	Emitted when a notification should be displayed.

Public Member Functions
	DtAssistantFomViewMgr (DtBoost::shared_ptr< DtRtiAssistantServer > server, DtBoost::shared_ptr< DtRtiAssistantPeer > peer, DtAssistantSignalRouter &signalRouter, const MAKRti::DtFilename &configDir)
	Constructor.
	~DtAssistantFomViewMgr ()
	Destructor.
virtual void	startShutdown ()
	Saves the GUI configuration at the start of shut down.
Public Member Functions inherited from DtAssistantMgr
	DtAssistantMgr (DtBoost::shared_ptr< DtRtiAssistantServer > server, DtBoost::shared_ptr< DtRtiAssistantPeer > peer, DtAssistantSignalRouter &signalRouter)
	Constructor.
virtual	~DtAssistantMgr ()
	Destructor.
virtual void	initialize ()
	Initializes this manager just prior to beginning assistant processing.
virtual void	tick ()
	Performs tasks that need to be completed periodically.
virtual bool	dialogsVisible () const
	Determines if there are any visible dialogs for which this manager is responsible.
virtual void	configWidget (DtAssistantConfigWidget **widget, QIcon &icon, QString &name, DtPreferencesPage &pageId)
	Retrieves a widget which will be placed in the configuration dialog for configuring user preferences.
virtual void	updateConfigWidget ()
	Forces the configuration widget to be updated.
virtual void	processConfigWidgetAccept ()
	Process the changes that were accepted in the configuration widget.

Protected Member Functions
virtual void	processPeerNetStatsObserveReqMsg (const DtAssistantNetStatsObserveReqMsg &msg)
virtual void	processPeerNetStatsObserveRspMsg (const DtAssistantNetStatsObserveRspMsg &msg)
virtual void	processServerNetStatsFomTreeUpdateMsg (const DtAssistantNetStatsFomTreeUpdateMsg &msg)
virtual void	processServerNetStatsFomUpdateMsg (const DtAssistantNetStatsFomUpdateMsg &msg)
virtual void	processServerNetStatsAttrParamStringUpdateMsg (const DtAssistantNetStatsAttrParamStringUpdateMsg &msg)
virtual void	processServerNetStatsFomAttrParamUpdateMsg (const DtAssistantNetStatsFomAttrParamUpdateMsg &msg)
virtual void	processPeerNetStatsFomAttrParamUpdateMsg (const DtAssistantNetStatsFomAttrParamUpdateMsg &msg)
virtual void	processPeerNetStatsFomTreeUpdateMsg (const DtAssistantNetStatsFomTreeUpdateMsg &msg)
virtual void	processPeerNetStatsAttrParamStringUpdateMsg (const DtAssistantNetStatsAttrParamStringUpdateMsg &msg)
virtual void	processPeerNetStatsInitStateRequestMsg (const DtAssistantNetStatsInitStateRequestMsg &msg)
void	handleNetStatsFomAttrParamUpdateMsg (const DtAssistantNetStatsFomAttrParamUpdateMsg &msg, bool isServer, const DtAssistantInfo &astntInfo)
void	handleFomTreeDataForFomStatDlg (DtFomTreeData &objectFomTreeData, DtFomTreeData &interactionFomTreeData, const DtAssistantInfoCompIdPair &astntInfoCompIdPair)
void	handleAttributeNamesForFomStatDlg (DtFomTreeData &objectFomTreeData, const DtAssistantInfoCompIdPair &astntInfoCompIdPair)
void	handleParameterNamesForFomStatDlg (DtFomTreeData &objectFomTreeData, const DtAssistantInfoCompIdPair &astntInfoCompidPair)
void	handleStateUpdateForFomStateDlg (DtAssistantHandleType type, const DtFomTreeData &objectFomTreeData, const DtAssistantInfoCompIdPair &astntInfoCompidPair)
virtual void	handleObsRspFomStatDlgUpdate (const DtAssistantInfo &observer, int compId, bool response)
virtual void	handleNetStatsInitStateReq (const DtAssistantInfo &astnt, int compId)
void	cleanLocalMaps (const DtAssistantInfo &astntInfo, unsigned int compId)
void	cleanRemoteMaps (unsigned int compId)
Protected Member Functions inherited from DtAssistantMgr
void	startDialog (QDialog *dlg, bool inTaskbar, bool warningDialog)
	Sets up the given widget as a dialog.
void	finishDialog (QDialog *dlg)
	Should be called prior to deleting any dialog started with startDialog.
void	showDialog (QDialog *dlg)
	Shows the dialog.
void	startMainWindow (QMainWindow *dlg)
	Sets up a main window dialog.
void	finishMainWindow (QMainWindow *dlg)
	Should be called prior to deleting any dialog started with startMainWindow.
void	showMainWindow (QMainWindow *dlg)
	Shows the dialog.
void	showPopup (const MAKRti::DtString &text, int sourceCompId=-1, const MAKRti::DtString &advancedText=MAKRti::DtString::nullString())
	Displays a popup message with the given text, advanced text, and name of the given source component.
void	showPopup (const MAKRti::DtString &text, const MAKRti::DtString &source, const MAKRti::DtString &advancedText=MAKRti::DtString::nullString())
	Displays a popup message with the given text, advanced text, and source name.
void	displayNotification (const MAKRti::DtString &message, MAKRti::DtNotifyLevelType notifyLevel, int sourceCompId=-1)
	Displays and logs a notification from the given component.
void	displayNotification (const MAKRti::DtString &message, MAKRti::DtNotifyLevelType notifyLevel, const MAKRti::DtString &source)
	Displays and logs notification with the given component name.
void	logNotification (const MAKRti::DtString &message, MAKRti::DtNotifyLevelType notifyLevel, int sourceCompId=-1)
	Logs a notification from the given component, does not display.
void	logNotification (const MAKRti::DtString &message, MAKRti::DtNotifyLevelType notifyLevel, const MAKRti::DtString &source)
	Logs a notification with the given component name, does not display.

Static Protected Member Functions
static void	processPeerNetStatsObserveReqMsg (const DtAssistantNetStatsObserveReqMsg &msg, void *usr)
static void	processPeerNetStatsObserveRspMsg (const DtAssistantNetStatsObserveRspMsg &msg, void *usr)
static void	processServerNetStatsFomTreeUpdateMsg (const DtAssistantNetStatsFomTreeUpdateMsg &msg, void *usr)
static void	processServerNetStatsFomUpdateMsg (const DtAssistantNetStatsFomUpdateMsg &msg, void *usr)
static void	processServerNetStatsAttrParamStringUpdateMsg (const DtAssistantNetStatsAttrParamStringUpdateMsg &msg, void *usr)
static void	processServerNetStatsFomAttrParamUpdateMsg (const DtAssistantNetStatsFomAttrParamUpdateMsg &msg, void *usr)
static void	processPeerNetStatsFomAttrParamUpdateMsg (const DtAssistantNetStatsFomAttrParamUpdateMsg &msg, void *usr)
static void	processPeerNetStatsFomTreeUpdateMsg (const DtAssistantNetStatsFomTreeUpdateMsg &msg, void *usr)
static void	processPeerNetStatsAttrParamStringUpdateMsg (const DtAssistantNetStatsAttrParamStringUpdateMsg &msg, void *usr)
static void	processPeerNetStatsInitStateRequestMsg (const DtAssistantNetStatsInitStateRequestMsg &msg, void *usr)

Protected Attributes
int	myViewedCompId
	The component ID of the federate being viewed.
DtAssistantInfo	myViewedFederateOwner
	The Assistant who "owns" the currently viewed federate.
MAKRti::DtFilename	myConfigDir
DtAssistantSignalRouter &	mySignalRouter
std::map < DtAssistantInfoCompIdPair, DtFomStatisticsDialog * >	myFomViewDlgByCompIdMap
std::map < DtConnectionInfoFederationNameFederateHandleTriple, DtFomStatisticsDialog * >	myFomViewDlgByFedNameHandlePairMap
std::map < DtConnectionInfoFederationNameFederateHandleTriple, bool >	isPendingForLocationMap
std::set < DtAssistantInfoCompIdPair >	myObservationsSet
std::map < DtAssistantInfoCompIdPair, bool >	myPendingForObsRspMap
unsigned int	myLrcNetStatsUpdateInterval
	This interval is the interval sent when observation requests are sent (in seconds).
const bool	myShouldHandleTransport
const bool	myShouldHandleOrder
DtAssistantNetStatsObservationMgr *	myAstntNetStatsObsMgr
DtFomTreeDataByCompIdMap	myObjectFomTreeMap
DtFomTreeDataByCompIdMap	myInteractionFomTreeMap
DtInitStatusByCompIdMap	myInitFomNameMap
DtInitStatusByCompIdMap	myInitFomAttributeMap
DtInitStatusByCompIdMap	myInitFomParameterMap
DtInitStatusByCompIdMap	myInitFomAttributeStateMap
DtInitStatusByCompIdMap	myInitFomParameterStateMap
DtAssistantInfoSetByCompIdMap	myRemoteAstntNeedsObjIntNamesMap
DtAssistantInfoSetByCompIdMap	myRemoteAstntNeedsAttrNamesMap
DtAssistantInfoSetByCompIdMap	myRemoteAstntNeedsParamNamesMap
DtAssistantInfoSetByCompIdMap	myRemoteAstntNeedsAttrInitStateMap
DtAssistantInfoSetByCompIdMap	myRemoteAstntNeedsParamInitStateMap
DtAssistantInfo	myAssistantInfo
	AssistantInfo for Server msgs.
DtFederateIdentifierType	myFederateIdType
	Flag indicating current federate identifier type.
unsigned	myViewedFederateHandle
	Basic information on the currently viewed federate.
MAKRti::DtString	myViewedFederateName
	Basic information on the currently viewed federate.
MAKRti::DtString	myViewedFederateType
	Basic information on the currently viewed federate.
MAKRti::DtFilename	myViewedFederateProcess
	Basic information on the currently viewed federate.
MAKRti::DtString	myViewedFederationName
	Basic information on the currently viewed federate.
DtRtiConnectionInfo	myViewedConnection
	Basic information on the currently viewed federate.
Protected Attributes inherited from DtAssistantMgr
DtBoost::shared_ptr < DtRtiAssistantServer >	myServer
	The Assistant server from which new messages will arrive from local RTI components.
DtBoost::shared_ptr < DtRtiAssistantPeer >	myPeer
	The Assistant peer which communicates with other Assistants.
std::set< QDialog * >	myUnparentedDialogs
	All unparented dialogs that are created by the GUI should be added to this set.
std::set< QMainWindow * >	myMainWindows
	All main windows that are created by the GUI should be added to this set.
std::set< QDialog * >	myWarningDialogs
	Set of the popup dialogs, either parented or unparented, which, when active, should cause a warning icon to be displayed.

Private Member Functions
	DtAssistantFomViewMgr (const DtAssistantFomViewMgr &)
	Copy Constructor not implemented.
DtAssistantFomViewMgr &	operator= (const DtAssistantFomViewMgr &)
	Assignment Operator not implemented.
void	clearInitMaps (const DtAssistantInfo &astnt, int compId)

Additional Inherited Members
Static Protected Attributes inherited from DtAssistantMgr
static QIcon	theRtiIcon
	The icons used by the RTI Assistant.
static QIcon	theSmallRtiIcon
static QIcon	theWebIcon
static QIcon	theNotifyRtiIcon
static QIcon	theWarningRtiIcon
static QIcon	thePreferencesIcon
static QIcon	theAboutIcon
static QIcon	theHelpIcon
static bool	theIconsAreLoaded = false
	Whether or not the icons have yet been loaded.

Detailed Description

Populates and displays the Fom dialog.

Constructor & Destructor Documentation

DtAssistantFomViewMgr::DtAssistantFomViewMgr	(	DtBoost::shared_ptr< DtRtiAssistantServer >	server,
		DtBoost::shared_ptr< DtRtiAssistantPeer >	peer,
		DtAssistantSignalRouter &	signalRouter,
		const MAKRti::DtFilename &	configDir
	)

Constructor.

References clearInitMaps(), connect(), DtAssistantFOM, DtDisplayFomDialogSig, DtFederateIdentifierUpdatedSig, DtFederateInfoQuery, DtFederateLocReceivedSig, DtFederateRemovedSig, DtForwarderInfoQuery, DtGetLocalHostName(), DtLrcComponentConnectedSig, DtLrcComponentDisconnectedSig, DtLrcComponentRemovedSig, DtLrcComponentRemovedUnexpectedlySig, DtLrcUpdateIntervalSecUpdatedSig, DtRequestFederateLocSig, federateIdentifierUpdated(), handleNetStatsInitStateReq(), handleObsRspFomStatDlgUpdate(), lrcNetStatsUpdateIntervalUpdated(), myAssistantInfo, myAstntNetStatsObsMgr, DtAssistantMgr::myPeer, DtAssistantMgr::myServer, processFederateRemoval(), processLocalRtiComponentConnected(), processLocalRtiComponentDisconnected(), processPeerNetStatsAttrParamStringUpdateMsg(), processPeerNetStatsFomAttrParamUpdateMsg(), processPeerNetStatsFomTreeUpdateMsg(), processPeerNetStatsInitStateRequestMsg(), processPeerNetStatsObserveReqMsg(), processPeerNetStatsObserveRspMsg(), processServerNetStatsAttrParamStringUpdateMsg(), processServerNetStatsFomAttrParamUpdateMsg(), processServerNetStatsFomTreeUpdateMsg(), queryFederateInfo(), queryForwarderInfo(), DtAssistantSignalRouter::registerQuery(), DtAssistantSignalRouter::registerSignal(), DtAssistantSignalRouter::registerSlot(), requestFederateLoc(), sendFomObservationRequest(), and showFomDialog().

DtAssistantFomViewMgr::~DtAssistantFomViewMgr

(

)

Destructor.

References DtAssistantMgr::finishMainWindow(), myAstntNetStatsObsMgr, and myFomViewDlgByCompIdMap.

DtAssistantFomViewMgr::DtAssistantFomViewMgr ( const DtAssistantFomViewMgr &  )

private

Copy Constructor not implemented.

Member Function Documentation

void DtAssistantFomViewMgr::cleanLocalMaps ( const DtAssistantInfo &  astntInfo, unsigned int  compId  )

protected

References myInitFomAttributeMap, myInitFomNameMap, myInitFomParameterMap, myInteractionFomTreeMap, and myObjectFomTreeMap.

void DtAssistantFomViewMgr::cleanRemoteMaps ( unsigned int  compId )

protected

void DtAssistantFomViewMgr::clearInitMaps ( const DtAssistantInfo &  astnt, int  compId  )

private

References myInitFomAttributeMap, myInitFomAttributeStateMap, myInitFomNameMap, myInitFomParameterMap, and myInitFomParameterStateMap.

Referenced by DtAssistantFomViewMgr().

void DtAssistantFomViewMgr::federateIdentifierUpdated ( unsigned int  identifier )

slot

Updates how federates should be identified.

References myFederateIdType, and myFomViewDlgByCompIdMap.

Referenced by DtAssistantFomViewMgr().

void DtAssistantFomViewMgr::fomStatDlgClosing ( const DtAssistantInfo &  astnt, int  compId, const MAKRti::DtString &  federationName, int  federateHandle, const DtRtiConnectionInfo &  connInfo  )

slot

References DtAssistantFOM, DtAssistantInvalidCompId, DtAssistantMgr::finishMainWindow(), DtAssistantInfo::host(), DtAssistantInfo::isThisAssistant(), DtHostNameAddress::isValid(), myAstntNetStatsObsMgr, myFomViewDlgByCompIdMap, myFomViewDlgByFedNameHandlePairMap, myObservationsSet, DtAssistantMgr::myPeer, myPendingForObsRspMap, and DtAssistantNetStatsObservationMgr::processObserveRequest().

Referenced by showFomDialog().

void DtAssistantFomViewMgr::handleAttributeNamesForFomStatDlg ( DtFomTreeData &  objectFomTreeData, const DtAssistantInfoCompIdPair &  astntInfoCompIdPair  )

protected

References DtFomTreeData::myAttrClassHandles, DtFomTreeData::myAttributeHandles, DtFomTreeData::myAttributeNames, DtFomTreeData::myAttrParentClassHandles, DtFomTreeData::myAttrTotalClassHandles, and myFomViewDlgByCompIdMap.

Referenced by processPeerNetStatsAttrParamStringUpdateMsg(), processServerNetStatsAttrParamStringUpdateMsg(), and sendFomObservationRequest().

void DtAssistantFomViewMgr::handleFomTreeDataForFomStatDlg ( DtFomTreeData &  objectFomTreeData, DtFomTreeData &  interactionFomTreeData, const DtAssistantInfoCompIdPair &  astntInfoCompIdPair  )

protected

References DtFomTreeData::myClassHandles, DtFomTreeData::myClassNames, myFomViewDlgByCompIdMap, and DtFomTreeData::myParentClassHandles.

Referenced by processPeerNetStatsFomTreeUpdateMsg(), processServerNetStatsFomTreeUpdateMsg(), and sendFomObservationRequest().

void DtAssistantFomViewMgr::handleNetStatsFomAttrParamUpdateMsg ( const DtAssistantNetStatsFomAttrParamUpdateMsg &  msg, bool  isServer, const DtAssistantInfo &  astntInfo  )

protected

References DtFomTreeData::clearStateAndReserve(), DtAssistantMsg::compId(), DtAssistantAttributeHandleType, DtAssistantParameterHandleType, handleStateUpdateForFomStateDlg(), myFomViewDlgByCompIdMap, myInitFomAttributeStateMap, myInitFomParameterStateMap, myInteractionFomTreeMap, myObjectFomTreeMap, myObservationsSet, myShouldHandleOrder, myShouldHandleTransport, DtFomTreeData::myStateAttributeHandles, DtFomTreeData::myStateObjectClassHandles, DtFomTreeData::myStateObjectPubSubHandles, DtFomTreeData::myStateObjPub, DtFomTreeData::myStateObjSub, DtFomTreeData::myStateOrder, DtFomTreeData::myStatePub, DtFomTreeData::myStateSub, and DtFomTreeData::myStateTransport.

Referenced by processPeerNetStatsFomAttrParamUpdateMsg(), and processServerNetStatsFomAttrParamUpdateMsg().

void DtAssistantFomViewMgr::handleNetStatsInitStateReq ( const DtAssistantInfo &  astnt, int  compId  )

protectedvirtual

References DtAssistantAttributeHandleType, DtAssistantParameterHandleType, myAssistantInfo, DtFomTreeData::myAttrClassHandles, DtFomTreeData::myAttributeHandles, DtFomTreeData::myAttributeNames, DtFomTreeData::myAttrParentClassHandles, DtFomTreeData::myAttrTotalClassHandles, DtFomTreeData::myClassHandles, DtFomTreeData::myClassNames, myInitFomAttributeMap, myInitFomNameMap, myInitFomParameterMap, myInteractionFomTreeMap, myObjectFomTreeMap, DtFomTreeData::myParentClassHandles, DtAssistantMgr::myPeer, myRemoteAstntNeedsAttrInitStateMap, myRemoteAstntNeedsAttrNamesMap, myRemoteAstntNeedsObjIntNamesMap, myRemoteAstntNeedsParamInitStateMap, myRemoteAstntNeedsParamNamesMap, DtFomTreeData::myStateAttributeHandles, DtFomTreeData::myStateObjectClassHandles, DtFomTreeData::myStateObjectPubSubHandles, DtFomTreeData::myStateObjPub, DtFomTreeData::myStateObjSub, DtFomTreeData::myStateOrder, DtFomTreeData::myStatePub, DtFomTreeData::myStateSub, and DtFomTreeData::myStateTransport.

Referenced by DtAssistantFomViewMgr(), and processPeerNetStatsInitStateRequestMsg().

void DtAssistantFomViewMgr::handleObsRspFomStatDlgUpdate ( const DtAssistantInfo &  observer, int  compId, bool  response  )

protectedvirtual

References myObservationsSet.

Referenced by DtAssistantFomViewMgr().

void DtAssistantFomViewMgr::handleParameterNamesForFomStatDlg ( DtFomTreeData &  objectFomTreeData, const DtAssistantInfoCompIdPair &  astntInfoCompidPair  )

protected

References DtFomTreeData::myAttrClassHandles, DtFomTreeData::myAttributeHandles, DtFomTreeData::myAttributeNames, DtFomTreeData::myAttrParentClassHandles, DtFomTreeData::myAttrTotalClassHandles, and myFomViewDlgByCompIdMap.

Referenced by processPeerNetStatsAttrParamStringUpdateMsg(), processServerNetStatsAttrParamStringUpdateMsg(), and sendFomObservationRequest().

void DtAssistantFomViewMgr::handleStateUpdateForFomStateDlg ( DtAssistantHandleType  type, const DtFomTreeData &  objectFomTreeData, const DtAssistantInfoCompIdPair &  astntInfoCompidPair  )

protected

References DtAssistantAttributeHandleType, DtAssistantParameterHandleType, myFomViewDlgByCompIdMap, DtFomTreeData::myStateAttributeHandles, DtFomTreeData::myStateObjectClassHandles, DtFomTreeData::myStateObjectPubSubHandles, DtFomTreeData::myStateObjPub, DtFomTreeData::myStateObjSub, DtFomTreeData::myStateOrder, DtFomTreeData::myStatePub, DtFomTreeData::myStateSub, and DtFomTreeData::myStateTransport.

Referenced by handleNetStatsFomAttrParamUpdateMsg(), and sendFomObservationRequest().

void DtAssistantFomViewMgr::lrcNetStatsUpdateIntervalUpdated ( unsigned int  interval )

slot

Updates the LRC NetStats interval (seconds)

References DtAssistantFOM, DtAssistantInfo::host(), interval, DtAssistantInfo::isThisAssistant(), DtHostNameAddress::isValid(), myAstntNetStatsObsMgr, myLrcNetStatsUpdateInterval, myObservationsSet, DtAssistantMgr::myPeer, and DtAssistantNetStatsObservationMgr::processObserveRequest().

Referenced by DtAssistantFomViewMgr().

DtAssistantFomViewMgr& DtAssistantFomViewMgr::operator= ( const DtAssistantFomViewMgr &  )

private

Assignment Operator not implemented.

void DtAssistantFomViewMgr::processFederateRemoval ( const DtAssistantComponentInfo *  comp )

slot

References DtAssistantComponentInfo::compId(), and myViewedCompId.

Referenced by DtAssistantFomViewMgr().

void DtAssistantFomViewMgr::processFederateRemoval ( const DtRtiConnectionInfo &  connInfo, const MAKRti::DtString &  federationName, unsigned  federateHandle  )

slot

References myViewedConnection, myViewedFederateHandle, and myViewedFederationName.

void DtAssistantFomViewMgr::processLocalRtiComponentConnected ( const DtAssistantComponentInfo *  compInfo )

slot

References DtAssistantComponentInfo::compId(), DtAssistantComponentInfo::isNetStatsEnabled(), myAstntNetStatsObsMgr, and DtAssistantNetStatsObservationMgr::setLrcNetStatsEnabled().

Referenced by DtAssistantFomViewMgr().

void DtAssistantFomViewMgr::processLocalRtiComponentDisconnected ( const DtAssistantComponentInfo *  compInfo )

slot

References DtAssistantComponentInfo::compId(), DtAssistantNetStatsObservationMgr::federateDisconnected(), myAstntNetStatsObsMgr, and DtAssistantNetStatsObservationMgr::removeLrcNetStatsEnabled().

Referenced by DtAssistantFomViewMgr().

void DtAssistantFomViewMgr::processPeerNetStatsAttrParamStringUpdateMsg ( const DtAssistantNetStatsAttrParamStringUpdateMsg &  msg, void *  usr  )

staticprotected

Referenced by DtAssistantFomViewMgr().

void DtAssistantFomViewMgr::processPeerNetStatsAttrParamStringUpdateMsg ( const DtAssistantNetStatsAttrParamStringUpdateMsg &  msg )

protectedvirtual

References DtFomTreeData::clearAttrAndReserve(), DtAssistantMsg::compId(), DtAssistantInteractionClassHandleType, DtAssistantObjectClassHandleType, handleAttributeNamesForFomStatDlg(), handleParameterNamesForFomStatDlg(), DtFomTreeData::myAttrClassHandles, DtFomTreeData::myAttributeHandles, DtFomTreeData::myAttributeNames, DtFomTreeData::myAttrParentClassHandles, DtFomTreeData::myAttrTotalClassHandles, myInitFomAttributeMap, myInitFomParameterMap, myObservationsSet, DtAssistantMgr::myPeer, DtAssistantMsg::sourceAddr(), DtAssistantMsg::sourceHost(), and DtAssistantMsg::sourceId().

void DtAssistantFomViewMgr::processPeerNetStatsFomAttrParamUpdateMsg ( const DtAssistantNetStatsFomAttrParamUpdateMsg &  msg, void *  usr  )

staticprotected

Referenced by DtAssistantFomViewMgr().

void DtAssistantFomViewMgr::processPeerNetStatsFomAttrParamUpdateMsg ( const DtAssistantNetStatsFomAttrParamUpdateMsg &  msg )

protectedvirtual

References DtAssistantMsg::compId(), handleNetStatsFomAttrParamUpdateMsg(), myObservationsSet, DtAssistantMgr::myPeer, DtAssistantMsg::sourceAddr(), DtAssistantMsg::sourceHost(), and DtAssistantMsg::sourceId().

void DtAssistantFomViewMgr::processPeerNetStatsFomTreeUpdateMsg ( const DtAssistantNetStatsFomTreeUpdateMsg &  msg, void *  usr  )

staticprotected

Referenced by DtAssistantFomViewMgr().

void DtAssistantFomViewMgr::processPeerNetStatsFomTreeUpdateMsg ( const DtAssistantNetStatsFomTreeUpdateMsg &  msg )

protectedvirtual

References DtFomTreeData::clearAndReserve(), DtAssistantMsg::compId(), handleFomTreeDataForFomStatDlg(), DtFomTreeData::myClassHandles, DtFomTreeData::myClassNames, myObservationsSet, DtFomTreeData::myParentClassHandles, DtAssistantMgr::myPeer, DtAssistantMsg::sourceAddr(), DtAssistantMsg::sourceHost(), and DtAssistantMsg::sourceId().

void DtAssistantFomViewMgr::processPeerNetStatsInitStateRequestMsg ( const DtAssistantNetStatsInitStateRequestMsg &  msg, void *  usr  )

staticprotected

Referenced by DtAssistantFomViewMgr().

void DtAssistantFomViewMgr::processPeerNetStatsInitStateRequestMsg ( const DtAssistantNetStatsInitStateRequestMsg &  msg )

protectedvirtual

References DtAssistantMsg::compId(), DtAssistantFOM, DtAssistantNetStatsObservationMgr::getObservingAssistantsMap(), handleNetStatsInitStateReq(), myAstntNetStatsObsMgr, DtAssistantMgr::myPeer, DtAssistantMsg::sourceAddr(), DtAssistantMsg::sourceHost(), and DtAssistantMsg::sourceId().

void DtAssistantFomViewMgr::processPeerNetStatsObserveReqMsg ( const DtAssistantNetStatsObserveReqMsg &  msg, void *  usr  )

staticprotected

Referenced by DtAssistantFomViewMgr().

void DtAssistantFomViewMgr::processPeerNetStatsObserveReqMsg ( const DtAssistantNetStatsObserveReqMsg &  msg )

protectedvirtual

References DtAssistantMsg::compId(), DtAssistantFOM, myAstntNetStatsObsMgr, DtAssistantMgr::myPeer, DtAssistantNetStatsObservationMgr::processObserveRequest(), DtAssistantMsg::sourceAddr(), DtAssistantMsg::sourceHost(), and DtAssistantMsg::sourceId().

void DtAssistantFomViewMgr::processPeerNetStatsObserveRspMsg ( const DtAssistantNetStatsObserveRspMsg &  msg, void *  usr  )

staticprotected

Referenced by DtAssistantFomViewMgr().

void DtAssistantFomViewMgr::processPeerNetStatsObserveRspMsg ( const DtAssistantNetStatsObserveRspMsg &  msg )

protectedvirtual

References DtAssistantMsg::compId(), DtAssistantFOM, myObservationsSet, DtAssistantMgr::myPeer, myPendingForObsRspMap, sendFomInitStateRequest(), DtAssistantMsg::sourceAddr(), DtAssistantMsg::sourceHost(), and DtAssistantMsg::sourceId().

void DtAssistantFomViewMgr::processServerNetStatsAttrParamStringUpdateMsg ( const DtAssistantNetStatsAttrParamStringUpdateMsg &  msg, void *  usr  )

staticprotected

Referenced by DtAssistantFomViewMgr().

void DtAssistantFomViewMgr::processServerNetStatsAttrParamStringUpdateMsg ( const DtAssistantNetStatsAttrParamStringUpdateMsg &  msg )

protectedvirtual

References DtFomTreeData::clearAttrAndReserve(), DtAssistantMsg::clone(), DtAssistantMsg::compId(), DtAssistantInteractionClassHandleType, DtAssistantObjectClassHandleType, handleAttributeNamesForFomStatDlg(), handleParameterNamesForFomStatDlg(), myAssistantInfo, DtFomTreeData::myAttrClassHandles, DtFomTreeData::myAttributeHandles, DtFomTreeData::myAttributeNames, DtFomTreeData::myAttrParentClassHandles, DtFomTreeData::myAttrTotalClassHandles, myInitFomAttributeMap, myInitFomParameterMap, myInteractionFomTreeMap, myObjectFomTreeMap, myObservationsSet, DtAssistantMgr::myPeer, myRemoteAstntNeedsAttrNamesMap, and myRemoteAstntNeedsParamNamesMap.

void DtAssistantFomViewMgr::processServerNetStatsFomAttrParamUpdateMsg ( const DtAssistantNetStatsFomAttrParamUpdateMsg &  msg, void *  usr  )

staticprotected

Referenced by DtAssistantFomViewMgr().

void DtAssistantFomViewMgr::processServerNetStatsFomAttrParamUpdateMsg ( const DtAssistantNetStatsFomAttrParamUpdateMsg &  msg )

protectedvirtual

References DtAssistantMsg::clone(), DtAssistantMsg::compId(), DtAssistantNetStatsObservationMgr::forwardNetStatsUpdateToRemoteAstnt(), handleNetStatsFomAttrParamUpdateMsg(), myAssistantInfo, myAstntNetStatsObsMgr, DtAssistantMgr::myPeer, and myRemoteAstntNeedsAttrInitStateMap.

void DtAssistantFomViewMgr::processServerNetStatsFomTreeUpdateMsg ( const DtAssistantNetStatsFomTreeUpdateMsg &  msg, void *  usr  )

staticprotected

Referenced by DtAssistantFomViewMgr().

void DtAssistantFomViewMgr::processServerNetStatsFomTreeUpdateMsg ( const DtAssistantNetStatsFomTreeUpdateMsg &  msg )

protectedvirtual

References DtFomTreeData::clearAndReserve(), DtAssistantMsg::clone(), DtAssistantMsg::compId(), handleFomTreeDataForFomStatDlg(), myAssistantInfo, DtFomTreeData::myClassHandles, DtFomTreeData::myClassNames, myInitFomNameMap, myInteractionFomTreeMap, myObjectFomTreeMap, myObservationsSet, DtFomTreeData::myParentClassHandles, DtAssistantMgr::myPeer, and myRemoteAstntNeedsObjIntNamesMap.

void DtAssistantFomViewMgr::processServerNetStatsFomUpdateMsg ( const DtAssistantNetStatsFomUpdateMsg &  msg, void *  usr  )

staticprotected

void DtAssistantFomViewMgr::processServerNetStatsFomUpdateMsg ( const DtAssistantNetStatsFomUpdateMsg &  msg )

protectedvirtual

void DtAssistantFomViewMgr::queryFederateInfo ( const DtRtiConnectionInfo &  conn, const MAKRti::DtString &  federationName, unsigned  federateHandle, const DtAssistantFederateInfo **  info  )

signal

Emitted to query for detailed federate info.

Referenced by DtAssistantFomViewMgr(), and showFomDialog().

void DtAssistantFomViewMgr::queryForwarderInfo ( const DtRtiConnectionInfo &  conn, const DtAssistantForwarderInfo **  info  )

signal

Emitted to query for detailed forwarder info.

Referenced by DtAssistantFomViewMgr(), and showFomDialog().

void DtAssistantFomViewMgr::requestFederateLoc ( const DtRtiConnectionInfo &  connInfo, const MAKRti::DtString &  federationName, unsigned int  federateHdl  )

signal

Emitted to request a federate's location.

Referenced by DtAssistantFomViewMgr(), and showFomDialog().

void DtAssistantFomViewMgr::sendFomInitStateRequest ( const DtAssistantInfo &  astnt, unsigned  compId  )

slot

References myAstntNetStatsObsMgr, and DtAssistantNetStatsObservationMgr::sendNetStatsInitStateReq().

Referenced by processPeerNetStatsObserveRspMsg().

void DtAssistantFomViewMgr::sendFomObservationRequest ( const DtRtiConnectionInfo &  connInfo, const MAKRti::DtString &  federationName, unsigned  federateHdl, const DtAssistantInfo &  astnt, unsigned  compId, bool  observe = true  )

slot

Attempt to send a pending Observation request for the specified federate.

References DtAssistantAttributeHandleType, DtAssistantFOM, DtAssistantParameterHandleType, handleAttributeNamesForFomStatDlg(), handleFomTreeDataForFomStatDlg(), handleParameterNamesForFomStatDlg(), handleStateUpdateForFomStateDlg(), DtAssistantInfo::host(), isPendingForLocationMap, DtAssistantInfo::isThisAssistant(), DtHostNameAddress::isValid(), myAssistantInfo, myAstntNetStatsObsMgr, myFomViewDlgByCompIdMap, myFomViewDlgByFedNameHandlePairMap, myInitFomAttributeMap, myInitFomAttributeStateMap, myInitFomNameMap, myInitFomParameterMap, myInitFomParameterStateMap, myInteractionFomTreeMap, myLrcNetStatsUpdateInterval, myObjectFomTreeMap, myObservationsSet, DtAssistantMgr::myPeer, myPendingForObsRspMap, DtAssistantNetStatsObservationMgr::processObserveRequest(), DtFomStatisticsDialog::setAssistantInfo(), and DtFomStatisticsDialog::setCompId().

Referenced by DtAssistantFomViewMgr().

void DtAssistantFomViewMgr::showFomDialog ( const DtRtiConnectionInfo &  connInfo, const MAKRti::DtString &  federationName, unsigned int  federateHandle  )

slot

Displays the Fom Dialog.

References connect(), DtAssistantFederateInfo::federateHostName(), DtFomStatisticsDialog::federateIdentifierUpdated(), DtAssistantForwarderInfo::federateInfo(), DtAssistantFederateInfo::federateName(), DtAssistantFederateInfo::federateType(), federationName(), fomStatDlgClosing(), DtIconAndTextureManager::getInstance(), isPendingForLocationMap, myConfigDir, myFederateIdType, myFomViewDlgByFedNameHandlePairMap, myViewedConnection, myViewedFederateHandle, myViewedFederationName, DtAssistantNetworkCompInfo::processName(), queryFederateInfo(), queryForwarderInfo(), requestFederateLoc(), DtFomStatisticsDialog::setConnInfo(), DtFomStatisticsDialog::setFederateHandle(), DtFomStatisticsDialog::setFederateHost(), DtFomStatisticsDialog::setFederateIcon(), DtFomStatisticsDialog::setFederateName(), DtFomStatisticsDialog::setFederateProcess(), DtFomStatisticsDialog::setFederateType(), DtFomStatisticsDialog::setFederationName(), DtFomStatisticsDialog::setFederationNameStr(), DtAssistantMgr::showMainWindow(), and DtAssistantMgr::startMainWindow().

Referenced by DtAssistantFomViewMgr().

void DtAssistantFomViewMgr::startShutdown ( )

virtual

Saves the GUI configuration at the start of shut down.

Reimplemented from DtAssistantMgr.

Member Data Documentation

std::map<DtConnectionInfoFederationNameFederateHandleTriple, bool> DtAssistantFomViewMgr::isPendingForLocationMap

protected

Referenced by sendFomObservationRequest(), and showFomDialog().

DtAssistantInfo DtAssistantFomViewMgr::myAssistantInfo

protected

AssistantInfo for Server msgs.

Referenced by DtAssistantFomViewMgr(), handleNetStatsInitStateReq(), processServerNetStatsAttrParamStringUpdateMsg(), processServerNetStatsFomAttrParamUpdateMsg(), processServerNetStatsFomTreeUpdateMsg(), and sendFomObservationRequest().

DtAssistantNetStatsObservationMgr* DtAssistantFomViewMgr::myAstntNetStatsObsMgr

protected

Referenced by DtAssistantFomViewMgr(), fomStatDlgClosing(), lrcNetStatsUpdateIntervalUpdated(), processLocalRtiComponentConnected(), processLocalRtiComponentDisconnected(), processPeerNetStatsInitStateRequestMsg(), processPeerNetStatsObserveReqMsg(), processServerNetStatsFomAttrParamUpdateMsg(), sendFomInitStateRequest(), sendFomObservationRequest(), and ~DtAssistantFomViewMgr().

MAKRti::DtFilename DtAssistantFomViewMgr::myConfigDir

protected

Referenced by showFomDialog().

DtFederateIdentifierType DtAssistantFomViewMgr::myFederateIdType

protected

Flag indicating current federate identifier type.

Referenced by federateIdentifierUpdated(), and showFomDialog().

std::map<DtAssistantInfoCompIdPair, DtFomStatisticsDialog*> DtAssistantFomViewMgr::myFomViewDlgByCompIdMap

protected

Referenced by federateIdentifierUpdated(), fomStatDlgClosing(), handleAttributeNamesForFomStatDlg(), handleFomTreeDataForFomStatDlg(), handleNetStatsFomAttrParamUpdateMsg(), handleParameterNamesForFomStatDlg(), handleStateUpdateForFomStateDlg(), sendFomObservationRequest(), and ~DtAssistantFomViewMgr().

std::map<DtConnectionInfoFederationNameFederateHandleTriple, DtFomStatisticsDialog*> DtAssistantFomViewMgr::myFomViewDlgByFedNameHandlePairMap

protected

Referenced by fomStatDlgClosing(), sendFomObservationRequest(), and showFomDialog().

DtInitStatusByCompIdMap DtAssistantFomViewMgr::myInitFomAttributeMap

protected

Referenced by cleanLocalMaps(), clearInitMaps(), handleNetStatsInitStateReq(), processPeerNetStatsAttrParamStringUpdateMsg(), processServerNetStatsAttrParamStringUpdateMsg(), and sendFomObservationRequest().

DtInitStatusByCompIdMap DtAssistantFomViewMgr::myInitFomAttributeStateMap

protected

Referenced by clearInitMaps(), handleNetStatsFomAttrParamUpdateMsg(), and sendFomObservationRequest().

DtInitStatusByCompIdMap DtAssistantFomViewMgr::myInitFomNameMap

protected

Referenced by cleanLocalMaps(), clearInitMaps(), handleNetStatsInitStateReq(), processServerNetStatsFomTreeUpdateMsg(), and sendFomObservationRequest().

DtInitStatusByCompIdMap DtAssistantFomViewMgr::myInitFomParameterMap

protected

Referenced by cleanLocalMaps(), clearInitMaps(), handleNetStatsInitStateReq(), processPeerNetStatsAttrParamStringUpdateMsg(), processServerNetStatsAttrParamStringUpdateMsg(), and sendFomObservationRequest().

DtInitStatusByCompIdMap DtAssistantFomViewMgr::myInitFomParameterStateMap

protected

Referenced by clearInitMaps(), handleNetStatsFomAttrParamUpdateMsg(), and sendFomObservationRequest().

DtFomTreeDataByCompIdMap DtAssistantFomViewMgr::myInteractionFomTreeMap

protected

Referenced by cleanLocalMaps(), handleNetStatsFomAttrParamUpdateMsg(), handleNetStatsInitStateReq(), processServerNetStatsAttrParamStringUpdateMsg(), processServerNetStatsFomTreeUpdateMsg(), and sendFomObservationRequest().

unsigned int DtAssistantFomViewMgr::myLrcNetStatsUpdateInterval

protected

This interval is the interval sent when observation requests are sent (in seconds).

The end result should be that the Display is updated with fresh information (if applicable) every interval.

Referenced by lrcNetStatsUpdateIntervalUpdated(), and sendFomObservationRequest().

DtFomTreeDataByCompIdMap DtAssistantFomViewMgr::myObjectFomTreeMap

protected

Referenced by cleanLocalMaps(), handleNetStatsFomAttrParamUpdateMsg(), handleNetStatsInitStateReq(), processServerNetStatsAttrParamStringUpdateMsg(), processServerNetStatsFomTreeUpdateMsg(), and sendFomObservationRequest().

std::set<DtAssistantInfoCompIdPair> DtAssistantFomViewMgr::myObservationsSet

protected

Referenced by fomStatDlgClosing(), handleNetStatsFomAttrParamUpdateMsg(), handleObsRspFomStatDlgUpdate(), lrcNetStatsUpdateIntervalUpdated(), processPeerNetStatsAttrParamStringUpdateMsg(), processPeerNetStatsFomAttrParamUpdateMsg(), processPeerNetStatsFomTreeUpdateMsg(), processPeerNetStatsObserveRspMsg(), processServerNetStatsAttrParamStringUpdateMsg(), processServerNetStatsFomTreeUpdateMsg(), and sendFomObservationRequest().

std::map<DtAssistantInfoCompIdPair, bool> DtAssistantFomViewMgr::myPendingForObsRspMap

protected

Referenced by fomStatDlgClosing(), processPeerNetStatsObserveRspMsg(), and sendFomObservationRequest().

DtAssistantInfoSetByCompIdMap DtAssistantFomViewMgr::myRemoteAstntNeedsAttrInitStateMap

protected

Referenced by handleNetStatsInitStateReq(), and processServerNetStatsFomAttrParamUpdateMsg().

DtAssistantInfoSetByCompIdMap DtAssistantFomViewMgr::myRemoteAstntNeedsAttrNamesMap

protected

Referenced by handleNetStatsInitStateReq(), and processServerNetStatsAttrParamStringUpdateMsg().

DtAssistantInfoSetByCompIdMap DtAssistantFomViewMgr::myRemoteAstntNeedsObjIntNamesMap

protected

Referenced by handleNetStatsInitStateReq(), and processServerNetStatsFomTreeUpdateMsg().

DtAssistantInfoSetByCompIdMap DtAssistantFomViewMgr::myRemoteAstntNeedsParamInitStateMap

protected

Referenced by handleNetStatsInitStateReq().

DtAssistantInfoSetByCompIdMap DtAssistantFomViewMgr::myRemoteAstntNeedsParamNamesMap

protected

Referenced by handleNetStatsInitStateReq(), and processServerNetStatsAttrParamStringUpdateMsg().

const bool DtAssistantFomViewMgr::myShouldHandleOrder

protected

Referenced by handleNetStatsFomAttrParamUpdateMsg().

const bool DtAssistantFomViewMgr::myShouldHandleTransport

protected

Referenced by handleNetStatsFomAttrParamUpdateMsg().

DtAssistantSignalRouter& DtAssistantFomViewMgr::mySignalRouter

protected

int DtAssistantFomViewMgr::myViewedCompId

protected

The component ID of the federate being viewed.

Referenced by processFederateRemoval().

DtRtiConnectionInfo DtAssistantFomViewMgr::myViewedConnection

protected

Basic information on the currently viewed federate.

Referenced by processFederateRemoval(), and showFomDialog().

unsigned DtAssistantFomViewMgr::myViewedFederateHandle

protected

Basic information on the currently viewed federate.

Referenced by processFederateRemoval(), and showFomDialog().

MAKRti::DtString DtAssistantFomViewMgr::myViewedFederateName

protected

Basic information on the currently viewed federate.

DtAssistantInfo DtAssistantFomViewMgr::myViewedFederateOwner

protected

The Assistant who "owns" the currently viewed federate.

MAKRti::DtFilename DtAssistantFomViewMgr::myViewedFederateProcess

protected

Basic information on the currently viewed federate.

MAKRti::DtString DtAssistantFomViewMgr::myViewedFederateType

protected

Basic information on the currently viewed federate.

MAKRti::DtString DtAssistantFomViewMgr::myViewedFederationName

protected

Basic information on the currently viewed federate.

Referenced by processFederateRemoval(), and showFomDialog().

---

The documentation for this class was generated from the following files:

• fomViewMgr.h
• fomViewMgr.cxx
