DtAssistantForwarderInfo Class Reference

Stores the current state of a single forwarder. More...

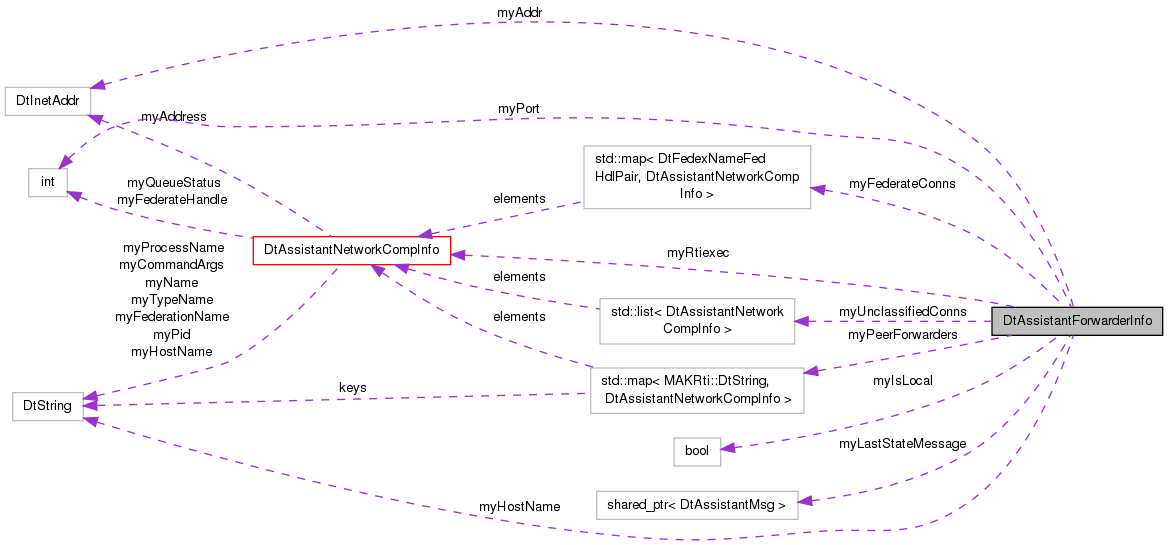

Collaboration diagram for DtAssistantForwarderInfo:

Public Types
typedef std::pair < MAKRti::DtString, int >	DtFedexNameFedHdlPair
	Typedefs for information storage.
typedef std::map < DtFedexNameFedHdlPair, DtAssistantNetworkCompInfo >	DtCompByFederationAndHandleMap
	Typedefs for information storage.
typedef std::map < MAKRti::DtString, DtAssistantNetworkCompInfo >	DtPeerForwarderByIdMap
	Typedefs for information storage.

Public Member Functions
	DtAssistantForwarderInfo (bool isLocal)
	Constructor.
	~DtAssistantForwarderInfo ()
	Destructor.
DtAssistantForwarderInfo &	operator= (const DtAssistantForwarderInfo &rhs)
	Overloaded operator=.
bool	operator!= (const DtAssistantForwarderInfo &other) const
bool	operator== (const DtAssistantForwarderInfo &other) const
void	updateFromStateMsg (const DtAssistantForwarderStateMsg &msg)
	Updates the state from a status message.
const DtAssistantMsg *	lastStateMsg () const
	Returns a pointer to the last state message we received for this forwarder.
MAKRti::DtInetAddr	address () const
	Methods to get forwarder information.
int	port () const
	Methods to get forwarder information.
MAKRti::DtString	hostName () const
	Methods to get forwarder information.
const DtPeerForwarderByIdMap *	peerForwarders () const
	Methods to get forwarder information.
const DtAssistantNetworkCompInfo *	rtiexecInfo () const
	Methods to get forwarder information.
const DtAssistantNetworkCompInfo *	federateInfo (const MAKRti::DtString &federation, int handle) const
	Methods to get forwarder information.
const DtCompByFederationAndHandleMap *	federates () const
	Methods to get forwarder information.
const DtAssistantNetworkCompInfoList *	unclassifiedConns () const
	Methods to get forwarder information.
const DtAssistantNetworkCompInfo *	unclassifiedConnInfo (unsigned connId) const
	Methods to get forwarder information.
bool	isDropped ()
	Methods to get forwarder information.

Protected Attributes
MAKRti::DtInetAddr	myAddr
	Address of this forwarder.
int	myPort
	Forwarder port for this forwarder.
MAKRti::DtString	myHostName
	Host name of this forwarder.
DtPeerForwarderByIdMap	myPeerForwarders
	Map of forwarder identifiers to connected peer forwarder info.
DtAssistantNetworkCompInfo	myRtiexec
	Info on the rtiexec connected to this forwarder.
DtCompByFederationAndHandleMap	myFederateConns
	Map of federation name/connection handle pairs to info on federate connections.
std::list < DtAssistantNetworkCompInfo >	myUnclassifiedConns
	List of unclassified connections.
bool	myIsLocal
	Whether or not this forwarder is local to this assistant.
DtBoost::shared_ptr < DtAssistantMsg >	myLastStateMessage
	The last received forwarder state message.

Detailed Description

Stores the current state of a single forwarder.

Member Typedef Documentation

typedef std::map<DtFedexNameFedHdlPair, DtAssistantNetworkCompInfo> DtAssistantForwarderInfo::DtCompByFederationAndHandleMap

Typedefs for information storage.

typedef std::pair<MAKRti::DtString, int> DtAssistantForwarderInfo::DtFedexNameFedHdlPair

Typedefs for information storage.

typedef std::map<MAKRti::DtString, DtAssistantNetworkCompInfo> DtAssistantForwarderInfo::DtPeerForwarderByIdMap

Typedefs for information storage.

Constructor & Destructor Documentation

DtAssistantForwarderInfo::DtAssistantForwarderInfo

(

bool

isLocal

)

Constructor.

DtAssistantForwarderInfo::~DtAssistantForwarderInfo

(

)

Destructor.

Member Function Documentation

MAKRti::DtInetAddr DtAssistantForwarderInfo::address ( ) const

inline

Methods to get forwarder information.

const DtAssistantNetworkCompInfo * DtAssistantForwarderInfo::federateInfo	(	const MAKRti::DtString &	federation,
		int	handle
	)		const

Methods to get forwarder information.

References myFederateConns.

Referenced by DtAssistantFederationsViewMgr::logFederateInfo(), DtAssistantFederationsViewMgr::processFederateSelection(), DtAssistantFederateViewMgr::showFederateStatsDialog(), and DtAssistantFomViewMgr::showFomDialog().

const DtCompByFederationAndHandleMap* DtAssistantForwarderInfo::federates ( ) const

inline

Methods to get forwarder information.

Referenced by DtAssistantFederationsViewMgr::processForwarderUpdated(), and DtFederateTree::updateFederateItemFromForwarderInformation().

MAKRti::DtString DtAssistantForwarderInfo::hostName

(

)

const

Methods to get forwarder information.

References myHostName.

Referenced by DtAssistantFederationsViewMgr::processForwarderUpdated().

bool DtAssistantForwarderInfo::isDropped

(

)

Methods to get forwarder information.

const DtAssistantMsg* DtAssistantForwarderInfo::lastStateMsg ( ) const

inline

Returns a pointer to the last state message we received for this forwarder.

Only stored for local forwarders.

bool DtAssistantForwarderInfo::operator!=

(

const DtAssistantForwarderInfo &

other

)

const

References operator==().

DtAssistantForwarderInfo & DtAssistantForwarderInfo::operator=

(

const DtAssistantForwarderInfo &

rhs

)

Overloaded operator=.

References myAddr, myFederateConns, myHostName, myIsLocal, myLastStateMessage, myPeerForwarders, myPort, myRtiexec, and myUnclassifiedConns.

bool DtAssistantForwarderInfo::operator==

(

const DtAssistantForwarderInfo &

other

)

const

References myAddr, myFederateConns, myHostName, myIsLocal, myLastStateMessage, myPeerForwarders, myPort, myRtiexec, and myUnclassifiedConns.

Referenced by operator!=().

const DtPeerForwarderByIdMap* DtAssistantForwarderInfo::peerForwarders ( ) const

inline

Methods to get forwarder information.

Referenced by DtAssistantFederationsViewMgr::processForwarderUpdated(), and DtAssistantFederationsViewMgr::processPeerForwarderSelection().

int DtAssistantForwarderInfo::port ( ) const

inline

Methods to get forwarder information.

const DtAssistantNetworkCompInfo* DtAssistantForwarderInfo::rtiexecInfo ( ) const

inline

Methods to get forwarder information.

Referenced by DtAssistantFederationsViewMgr::processForwarderUpdated(), and DtAssistantFederationsViewMgr::processRtiexecSelection().

const DtAssistantNetworkCompInfo * DtAssistantForwarderInfo::unclassifiedConnInfo

(

unsigned

connId

)

const

Methods to get forwarder information.

References myUnclassifiedConns.

Referenced by DtAssistantFederationsViewMgr::processFederateSelection().

const DtAssistantNetworkCompInfoList* DtAssistantForwarderInfo::unclassifiedConns ( ) const

inline

Methods to get forwarder information.

Referenced by DtAssistantFederationsViewMgr::processForwarderUpdated().

void DtAssistantForwarderInfo::updateFromStateMsg

(

const DtAssistantForwarderStateMsg &

msg

)

Updates the state from a status message.

References DtAssistantForwarderStateMsg::clone(), DtASSISTANT_NORMAL, DtAssistantForwarderStateMsg::getAllData(), myAddr, myFederateConns, myHostName, myIsLocal, myLastStateMessage, myPeerForwarders, myRtiexec, myUnclassifiedConns, DtAssistantForwarderStateMsg::numClientConnections(), DtAssistantForwarderStateMsg::numClientConnectionsThatAreExecs(), DtAssistantForwarderStateMsg::numForwarderToForwarderConnections(), DtAssistantNetworkCompInfo::setAddress(), DtAssistantNetworkCompInfo::setCommandArgs(), DtAssistantNetworkCompInfo::setConnectionId(), DtAssistantNetworkCompInfo::setFederateHandle(), DtAssistantNetworkCompInfo::setFederateStatus(), DtAssistantNetworkCompInfo::setFederationName(), DtAssistantNetworkCompInfo::setHlaVersion(), DtAssistantNetworkCompInfo::setHostName(), DtAssistantNetworkCompInfo::setName(), DtAssistantNetworkCompInfo::setPid(), DtAssistantNetworkCompInfo::setProcessName(), DtAssistantNetworkCompInfo::setQueueStatus(), and DtAssistantNetworkCompInfo::setTypeName().

Member Data Documentation

MAKRti::DtInetAddr DtAssistantForwarderInfo::myAddr

protected

Address of this forwarder.

Referenced by operator=(), operator==(), and updateFromStateMsg().

DtCompByFederationAndHandleMap DtAssistantForwarderInfo::myFederateConns

protected

Map of federation name/connection handle pairs to info on federate connections.

Referenced by federateInfo(), operator=(), operator==(), and updateFromStateMsg().

MAKRti::DtString DtAssistantForwarderInfo::myHostName

protected

Host name of this forwarder.

Referenced by hostName(), operator=(), operator==(), and updateFromStateMsg().

bool DtAssistantForwarderInfo::myIsLocal

protected

Whether or not this forwarder is local to this assistant.

Referenced by operator=(), operator==(), and updateFromStateMsg().

DtBoost::shared_ptr<DtAssistantMsg> DtAssistantForwarderInfo::myLastStateMessage

protected

The last received forwarder state message.

Referenced by operator=(), operator==(), and updateFromStateMsg().

DtPeerForwarderByIdMap DtAssistantForwarderInfo::myPeerForwarders

protected

Map of forwarder identifiers to connected peer forwarder info.

Referenced by operator=(), operator==(), and updateFromStateMsg().

int DtAssistantForwarderInfo::myPort

protected

Forwarder port for this forwarder.

Referenced by operator=(), and operator==().

DtAssistantNetworkCompInfo DtAssistantForwarderInfo::myRtiexec

protected

Info on the rtiexec connected to this forwarder.

Referenced by operator=(), operator==(), and updateFromStateMsg().

std::list<DtAssistantNetworkCompInfo> DtAssistantForwarderInfo::myUnclassifiedConns

protected

List of unclassified connections.

These are most likely federates which are not currently joined to a federation.

Referenced by operator=(), operator==(), unclassifiedConnInfo(), and updateFromStateMsg().

---

The documentation for this class was generated from the following files:

• forwarderInfo.h
• forwarderInfo.cxx
