DtAssistantFederationsViewMgr Class Reference

Compiles federation information from rtiForwarders and displays federation view dialogs. More...

Inheritance diagram for DtAssistantFederationsViewMgr:

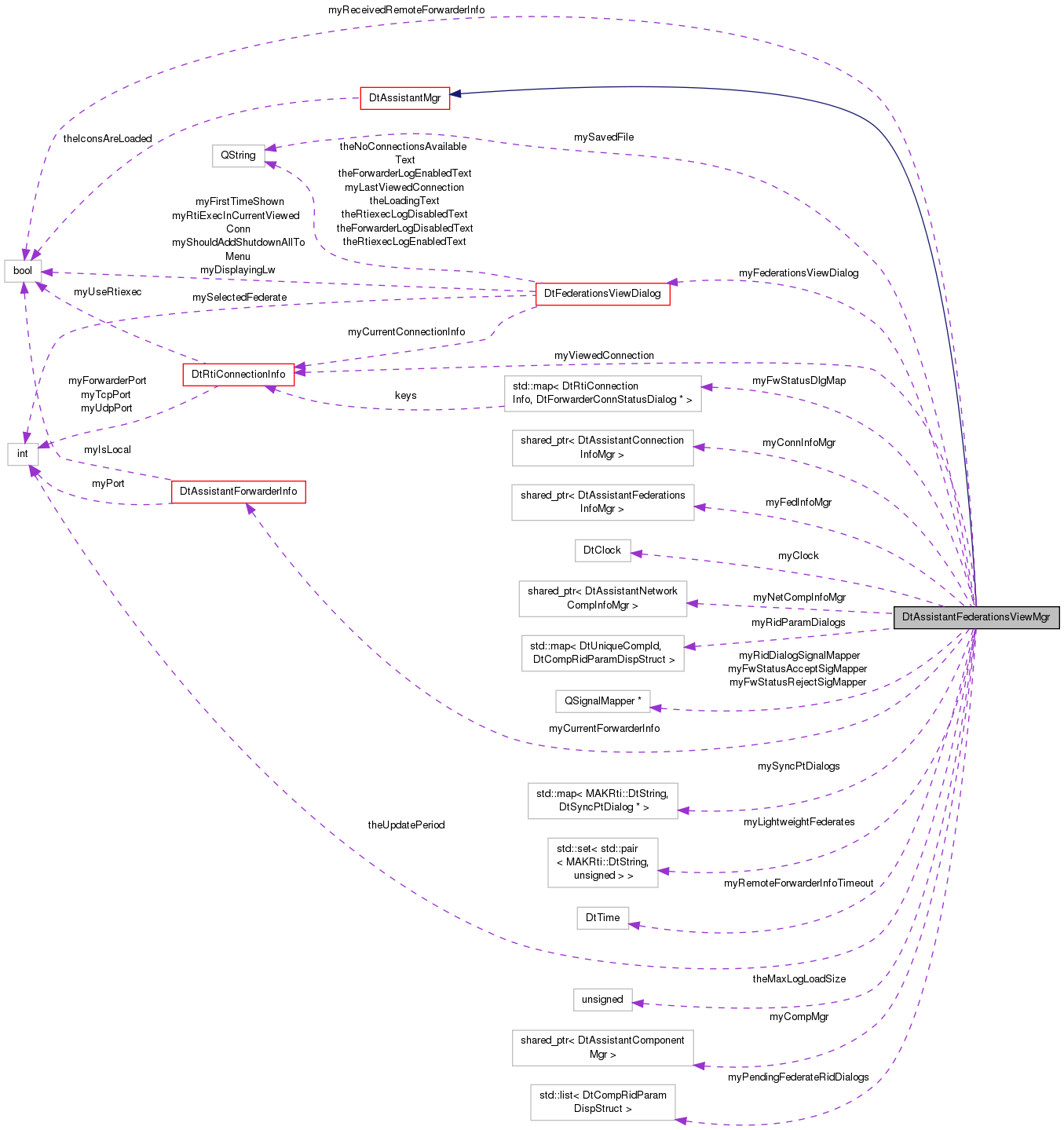

Collaboration diagram for DtAssistantFederationsViewMgr:

Classes
struct	DtCompRidParamDispStruct
	Structure to hold all information to display RID parameters for a single component. More...

Public Slots
void	showFederationsView ()
	Displays the Federations view dialog.
virtual void	sendLogRequest ()
	Sends a request to the currently displayed rtiexec for its log.
void	shutdownRtiexec ()
	Shuts down the currently viewed rtiexec.
void	shutdownRtiForwarder ()
	Shuts down the currently viewed RTI Forwarder.
void	processForwarderAdded (const DtRtiConnectionInfo &conn)
	Processes the addition of a new forwarder.
void	processForwarderConnUpdated (const DtRtiConnectionInfo &conn)
	Processes an update of the connection info for a known forwarder.
void	processForwarderUpdated (const DtRtiConnectionInfo &conn)
	Processes an update for a known forwarder.
void	processForwarderRemoved (const DtRtiConnectionInfo &conn)
	Processes the removal of a known forwarder.
void	processDoNotWaitForForwarders (QWidget *dlg)
	Processes a request to tell the forwarder to proceed without waiting for unconnected forwarders.
void	processShutDownWaitingForwarder (QWidget *dlg)
	Processes a request to shut down a forwarder which is waiting for other forwarder connections to be established.
void	changeViewedConnection (const DtRtiConnectionInfo &conn=DtRtiConnectionInfo::invalidConn())
	Changes which connection is currently being viewed.
void	resignFederate (int, const QString &)
	Tells the rtiexec to resign the given federate.
void	destroyFederation (const QString &)
	Tells the rtiexec to destroy the given federation.
void	sendNetworkTestingEnableMsg (const QString &fedexName)
	Sends a message to enable network testing for the given federation.
void	sendNetworkTestingDisableMsg (const QString &fedexName)
	Sends a message to disable network testing for the given federation.
void	showLatencyTestDialog (const QString &fedexName, int fedHandle)
	Opens a latency test dialog for the specified federate.
void	processFederationUpdate (const DtRtiConnectionInfo &conn, const MAKRti::DtString &federationName)
	Handles a federation update.
void	processFederationRemoved (const DtRtiConnectionInfo &conn, const MAKRti::DtString &federationName)
	Handles the removal of a federation.
void	processFederateUpdated (const DtRtiConnectionInfo &conn, const MAKRti::DtString &federationName, unsigned federateHandle)
	Handles the addition of a new federate.
void	processFederateRemoved (const DtRtiConnectionInfo &conn, const MAKRti::DtString &federationName, unsigned federateHandle)
	Handles the removal of a federate.
void	removeLoadingIndication (const DtRtiConnectionInfo &conn)
	Removes loading indication when an rtiexec responds to observation.
void	saveToLog ()
	Saves the currently displayed federation information to a log file.
void	processConnectionsUpdate (const DtRtiConnectionAndConfiguration &conns)
	Processes changes in connection state.
void	processConnectionsRemoval (const DtRtiConnectionAndConfiguration &conns)
	Processes the remove of connections.
void	showFederationsViewPreferences ()
	Show the preferences dialog.
void	processFederateSelection (const MAKRti::DtString &federation, int federate)
	Process selection of a federate.
void	processRtiexecSelection ()
	Process selection of an rtiexec.
void	processForwarderSelection (const MAKRti::DtString &fwName)
	Process selection of a forwarder.
void	processPeerForwarderSelection (const MAKRti::DtString &fwName)
	Process selection of a forwarder.
void	processFederationSelection (const MAKRti::DtString &federation)
	Process selection of a federation.
void	processLightweightNodeSelection ()
	Process selection of the central lightweight node.
void	showSyncPtDialog (const MAKRti::DtString &federation)
	Shows a sync point dialog for the specified federation.
void	showFederateStatsDialog (const MAKRti::DtString &federation, int federateHandle)
	Shows the federate statistics dialog for the specified federate.
void	showFomDialog (const MAKRti::DtString &federation, int federateHandle)
	Shows the federate statistics dialog for the specified federate.
void	showRtiexecRidParams ()
	Shows the RID parameter dialog for the current rtiexec.
void	showForwarderRidParams ()
	Shows the RID parameter dialog for the current forwarder.
void	showFederateRidParams (const MAKRti::DtString &federation, int federateHandle)
	Shows the RID parameter dialog for the specified federate.
void	destroyRidParamDialog (QWidget *widget)
	Destroys the RID parameter dialog specified by widget.
void	sendPendingRidRequest (const DtRtiConnectionInfo &connInfo, const MAKRti::DtString &federationName, unsigned federateHdl, const DtAssistantInfo &astnt, unsigned compId)
	Attempt to send a pending RID request for the specified federate.
void	showRtiexecLog ()
	Shows the log file dialog for the current rtiexec.
void	showForwarderLog ()
	Shows the log file dialog for the current forwarder.
void	showFederateLog (const MAKRti::DtString &federation, int federateHandle)
	Shows the log file dialog for the specified federate.
void	removeDefunctFederateFromMap (const MAKRti::DtString &federation, int federateHandle)
	Remove the given defunct federate from the network map.
Public Slots inherited from DtAssistantMgr
void	displayWarningDialogs ()
	Displays all warning dialogs.

Signals
void	aboutDialogRequested ()
	Emitted when the RTI about dialog is requested.
void	showPopup (const MAKRti::DtString &, const MAKRti::DtString &, const MAKRti::DtString &)
	Emitted when a popup dialog from a remote rtiexec should be displayed.
void	federateRemovalTimeChanged (float period)
	Emitted when the defunct federate removal time changes.
void	showConfigDialog (DtPreferencesPage pageId)
	Shows the config dialog;.
void	showLrcLatencyTestDialog (int id)
	Shows the latency test dialog for the LRC component.
void	showRtiexecLatencyTestDialog (const DtRtiConnectionInfoDataPair &connInfo, unsigned int federationHdl, const MAKRti::DtString &federationName, unsigned int federateHdl)
	Shows the latency test dialog for the rtiexec component.
void	showFederateStatsDialog (const DtRtiConnectionInfo &connInfo, const MAKRti::DtString &federationName, unsigned int federateHdl)
	Emitted to show the federate stats dialog for the given federate.
void	showFomDialog (const DtRtiConnectionInfo &connInfo, const MAKRti::DtString &federationName, unsigned int federateHdl)
	Emitted to show the fom dialog for the given federate.
void	requestFederateLoc (const DtRtiConnectionInfo &connInfo, const MAKRti::DtString &federationName, unsigned int federateHdl)
	Emitted to request a federate's loc.
void	showLogFileDialog (int compId)
	Emitted to show the log file dialog for the given component.
void	queryFederateInfo (const DtRtiConnectionInfo &, const MAKRti::DtString &, unsigned, const DtAssistantFederateInfo **)
	Queries for federation information.
Signals inherited from DtAssistantMgr
void	warningDialogDisplayed ()
	Emitted when a warning dialog is displayed.
void	warningDialogDismissed ()
	Emitted when a warning dialog is dismissed.
void	popupRequested (const MAKRti::DtString &text, int sourceCompId, const MAKRti::DtString &advancedText)
	Emitted when a popup dialog should be displayed.
void	popupRequested (const MAKRti::DtString &text, const MAKRti::DtString &source, const MAKRti::DtString &advancedText)
	Emitted when a popup dialog should be displayed.
void	notificationRequested (const MAKRti::DtString &message, MAKRti::DtNotifyLevelType notifyLevel, int sourceCompId, bool logOnly)
	Emitted when a notification should be displayed.
void	notificationRequested (const MAKRti::DtString &message, MAKRti::DtNotifyLevelType notifyLevel, const MAKRti::DtString &source, bool logOnly)
	Emitted when a notification should be displayed.

Public Member Functions
	DtAssistantFederationsViewMgr (DtBoost::shared_ptr< DtRtiAssistantServer > server, DtBoost::shared_ptr< DtRtiAssistantPeer > peer, DtAssistantSignalRouter &signalRouter, DtBoost::shared_ptr< DtAssistantComponentMgr > compMgr, DtBoost::shared_ptr< DtAssistantConnectionInfoMgr > connInfoMgr, DtBoost::shared_ptr< DtAssistantFederationsInfoMgr > fedInfoMgr, DtBoost::shared_ptr< DtAssistantNetworkCompInfoMgr > netCompInfoMgr, const MAKRti::DtFilename &configDir)
	Constructor.
	~DtAssistantFederationsViewMgr ()
	Destructor.
virtual void	tick ()
	Performs tasks that need to be completed periodically.
virtual void	startShutdown ()
	Performs any necessary processing at the start of shutdown.
virtual bool	dialogsVisible () const
	Determines if this manager has any visible dialogs.
void	saveGuiState ()
	Saves the current GUI state.
virtual void	processRidParamMsg (const DtAssistantRidParamsMsg &msg)
	Called by the callback function to process a RID parameter message.
Public Member Functions inherited from DtAssistantMgr
	DtAssistantMgr (DtBoost::shared_ptr< DtRtiAssistantServer > server, DtBoost::shared_ptr< DtRtiAssistantPeer > peer, DtAssistantSignalRouter &signalRouter)
	Constructor.
virtual	~DtAssistantMgr ()
	Destructor.
virtual void	initialize ()
	Initializes this manager just prior to beginning assistant processing.
virtual void	configWidget (DtAssistantConfigWidget **widget, QIcon &icon, QString &name, DtPreferencesPage &pageId)
	Retrieves a widget which will be placed in the configuration dialog for configuring user preferences.
virtual void	updateConfigWidget ()
	Forces the configuration widget to be updated.
virtual void	processConfigWidgetAccept ()
	Process the changes that were accepted in the configuration widget.

Static Public Member Functions
static void	processRidParamMsg (const DtAssistantRidParamsMsg &msg, void *usr)
	Callback to process a RID parameter message.

Protected Types
typedef std::map < DtRtiConnectionInfo, DtAssistantInfoSet >	DtConnectionToObserversMap
typedef std::map < DtRtiConnectionInfo, DtForwarderConnStatusDialog * >	DtConnectionToFwStatusDialogMap
typedef std::pair < DtAssistantInfo, int >	DtUniqueCompId
	The assistant information and component ID of a component uniquely identify it across the entire network of connected assistants.
typedef std::map < DtUniqueCompId, DtCompRidParamDispStruct >	DtRidParmDlgByComp
	Map of component IDs to their RID param dialog info.

Protected Member Functions
virtual void	processConnectionRemoval (const DtRtiConnectionInfoDataPair &conn)
	Processes the removal of a known connection.
void	logConnectionInfo (std::ofstream &fileStrm)
	Logs connection info to the file stream.
void	logFederationInfo (std::ofstream &fileStrm)
	Logs full federation info to the file stream.
void	logFomInfo (std::ofstream &fileStrm, const std::list< MAKRti::DtString > *foms)
	Logs FED file/FOM module info to the file stream.
void	logFederateInfo (std::ofstream &fileStrm, const DtFederateInfoByHandleMap *federates, const DtAssistantForwarderInfo *fwInfo)
	Logs federates' info to the file stream.
void	showRidDialog (const QString &name, const DtAssistantInfo &assistant, int compId)
	Shows a new RID dialog for the given component, identified by its assistant and component ID, displayed with the given name.
void	createRidDialog (const QString &name, DtCompRidParamDispStruct &dispInfo)
	Creates a new RID dialog.
void	updateRidParams (const DtAssistantInfo &assistant, int compId, const MAKRti::DtString &params, const MAKRti::DtString &filename, const MAKRti::DtString &federation, unsigned federateHdl)
	Updates and existing RID parameters dialog.
virtual void	updatePeerForwarders (const DtAssistantForwarderInfo::DtPeerForwarderByIdMap *newFwds, const DtAssistantForwarderInfo::DtPeerForwarderByIdMap *oldFwds)
	Processes updates to the peer forwarders.
virtual void	updateRtiexecCompInfo (const DtAssistantNetworkCompInfo *newInfo, const DtAssistantNetworkCompInfo *oldInfo)
	Processes update to the rtiexec component info.
virtual void	updateFederateCompInfo (const DtAssistantForwarderInfo::DtCompByFederationAndHandleMap *newInfo, const DtAssistantForwarderInfo::DtCompByFederationAndHandleMap *oldInfo, const DtFederationStateByNameMap *federationMap)
	Processes update to the federate component info.
virtual void	updateUnclassifiedComps (const DtAssistantNetworkCompInfoList *newInfo, const DtAssistantNetworkCompInfoList *oldInfo)
	Processes update to components which have connected to the forwarder but have not yet been classified (usually unjoined federates)
Protected Member Functions inherited from DtAssistantMgr
void	startDialog (QDialog *dlg, bool inTaskbar, bool warningDialog)
	Sets up the given widget as a dialog.
void	finishDialog (QDialog *dlg)
	Should be called prior to deleting any dialog started with startDialog.
void	showDialog (QDialog *dlg)
	Shows the dialog.
void	startMainWindow (QMainWindow *dlg)
	Sets up a main window dialog.
void	finishMainWindow (QMainWindow *dlg)
	Should be called prior to deleting any dialog started with startMainWindow.
void	showMainWindow (QMainWindow *dlg)
	Shows the dialog.
void	showPopup (const MAKRti::DtString &text, int sourceCompId=-1, const MAKRti::DtString &advancedText=MAKRti::DtString::nullString())
	Displays a popup message with the given text, advanced text, and name of the given source component.
void	showPopup (const MAKRti::DtString &text, const MAKRti::DtString &source, const MAKRti::DtString &advancedText=MAKRti::DtString::nullString())
	Displays a popup message with the given text, advanced text, and source name.
void	displayNotification (const MAKRti::DtString &message, MAKRti::DtNotifyLevelType notifyLevel, int sourceCompId=-1)
	Displays and logs a notification from the given component.
void	displayNotification (const MAKRti::DtString &message, MAKRti::DtNotifyLevelType notifyLevel, const MAKRti::DtString &source)
	Displays and logs notification with the given component name.
void	logNotification (const MAKRti::DtString &message, MAKRti::DtNotifyLevelType notifyLevel, int sourceCompId=-1)
	Logs a notification from the given component, does not display.
void	logNotification (const MAKRti::DtString &message, MAKRti::DtNotifyLevelType notifyLevel, const MAKRti::DtString &source)
	Logs a notification with the given component name, does not display.

Protected Attributes
DtBoost::shared_ptr < DtAssistantComponentMgr >	myCompMgr
	The local RTI component manager.
DtBoost::shared_ptr < DtAssistantConnectionInfoMgr >	myConnInfoMgr
	The connection info manager.
DtBoost::shared_ptr < DtAssistantFederationsInfoMgr >	myFedInfoMgr
	The federations info manager.
DtBoost::shared_ptr < DtAssistantNetworkCompInfoMgr >	myNetCompInfoMgr
	The federations info manager.
DtRtiConnectionInfo	myViewedConnection
	The connection currently being viewed at this Assistant.
DtAssistantForwarderInfo	myCurrentForwarderInfo
	The information on the currently displayed forwarder.
std::set< std::pair < MAKRti::DtString, unsigned > >	myLightweightFederates
	The federations and handles of the currently displayed lightweight federates.
DtFederationsViewDialog *	myFederationsViewDialog
	The dialog to display the federations view.
MAKRti::DtClock	myClock
	Clock used to determine if we need to resend lost messages.
bool	myReceivedRemoteForwarderInfo
	Indicates if we have yet received an update on a remote Forwarder we are currently viewing.
MAKRti::DtTime	myRemoteForwarderInfoTimeout
	Time at which we assume our request to observe a remote Forwarder was lost, causing us to resend it.
DtConnectionToFwStatusDialogMap	myFwStatusDlgMap
	The map of forwarder connection info to forwarder status dialogs.
QSignalMapper *	myFwStatusAcceptSigMapper
	Signal mapper for DtForwarderConnStatusDialog accepted signals.
QSignalMapper *	myFwStatusRejectSigMapper
	Signal mapper for DtForwarderConnStatusDialog rejected signals.
std::map< MAKRti::DtString, DtSyncPtDialog * >	mySyncPtDialogs
	The dialogs which show sync point information for a particular federation, indexed by federation name.
QSignalMapper *	myRidDialogSignalMapper
	Maps the close signals for RID parameter dialogs.
DtRidParmDlgByComp	myRidParamDialogs
	A map of all of our open RID parameter dialogs.
std::list < DtCompRidParamDispStruct >	myPendingFederateRidDialogs
	Our federate RID parameter dialogs which are currently loading.
QString	mySavedFile
	The previously saved file name.
Protected Attributes inherited from DtAssistantMgr
DtBoost::shared_ptr < DtRtiAssistantServer >	myServer
	The Assistant server from which new messages will arrive from local RTI components.
DtBoost::shared_ptr < DtRtiAssistantPeer >	myPeer
	The Assistant peer which communicates with other Assistants.
std::set< QDialog * >	myUnparentedDialogs
	All unparented dialogs that are created by the GUI should be added to this set.
std::set< QMainWindow * >	myMainWindows
	All main windows that are created by the GUI should be added to this set.
std::set< QDialog * >	myWarningDialogs
	Set of the popup dialogs, either parented or unparented, which, when active, should cause a warning icon to be displayed.

Static Protected Attributes
static const int	theUpdatePeriod
	The period, in seconds, to send updates on remotely observed federations that have been updated.
static const unsigned	theMaxLogLoadSize
	The maximum number of bytes that can be requested from an rtiexec log.
Static Protected Attributes inherited from DtAssistantMgr
static QIcon	theRtiIcon
	The icons used by the RTI Assistant.
static QIcon	theSmallRtiIcon
static QIcon	theWebIcon
static QIcon	theNotifyRtiIcon
static QIcon	theWarningRtiIcon
static QIcon	thePreferencesIcon
static QIcon	theAboutIcon
static QIcon	theHelpIcon
static bool	theIconsAreLoaded
	Whether or not the icons have yet been loaded.

Private Member Functions
	DtAssistantFederationsViewMgr (DtAssistantFederationsViewMgr const &)
	Copy Constructor not implemented – Copy Not Allowed!
DtAssistantFederationsViewMgr &	operator= (DtAssistantFederationsViewMgr const &)
	Assignment not implemented – Assignment Not Allowed!

Message Callbacks
Callbacks for federation information messages
virtual void	processExecObserveRspMsg (const DtAssistantExecObserveRspMsg &msg)
	Called by the callback function to process an rtiexec observe response message.
virtual void	processRtiexecNotifyMsg (const DtAssistantNotifyMsg &msg)
	Called by the callback function to process a viewed rtiexec notify msg.
virtual void	processAwaitingForwardersMsg (const DtAssistantAwaitingForwardersMsg &msg)
	Called by the callback function to process an awaiting forwarders msg.
static void	processExecObserveRspMsg (const DtAssistantExecObserveRspMsg &msg, void *usr)
	Callback to process an rtiexec observe response message.
static void	processRtiexecNotifyMsg (const DtAssistantNotifyMsg &msg, void *usr)
	Callback to process a notify message from a viewed rtiexec.
static void	processAwaitingForwardersMsg (const DtAssistantAwaitingForwardersMsg &msg, void *usr)
	Callback to process an awaiting forwarders message from a local forwarder.

Detailed Description

Compiles federation information from rtiForwarders and displays federation view dialogs.

Member Typedef Documentation

typedef std::map< DtRtiConnectionInfo, DtForwarderConnStatusDialog* > DtAssistantFederationsViewMgr::DtConnectionToFwStatusDialogMap

protected

typedef std::map< DtRtiConnectionInfo, DtAssistantInfoSet > DtAssistantFederationsViewMgr::DtConnectionToObserversMap

protected

typedef std::map<DtUniqueCompId, DtCompRidParamDispStruct> DtAssistantFederationsViewMgr::DtRidParmDlgByComp

protected

Map of component IDs to their RID param dialog info.

typedef std::pair<DtAssistantInfo, int> DtAssistantFederationsViewMgr::DtUniqueCompId

protected

The assistant information and component ID of a component uniquely identify it across the entire network of connected assistants.

Constructor & Destructor Documentation

DtAssistantFederationsViewMgr::DtAssistantFederationsViewMgr	(	DtBoost::shared_ptr< DtRtiAssistantServer >	server,
		DtBoost::shared_ptr< DtRtiAssistantPeer >	peer,
		DtAssistantSignalRouter &	signalRouter,
		DtBoost::shared_ptr< DtAssistantComponentMgr >	compMgr,
		DtBoost::shared_ptr< DtAssistantConnectionInfoMgr >	connInfoMgr,
		DtBoost::shared_ptr< DtAssistantFederationsInfoMgr >	fedInfoMgr,
		DtBoost::shared_ptr< DtAssistantNetworkCompInfoMgr >	netCompInfoMgr,
		const MAKRti::DtFilename &	configDir
	)

Constructor.

DtAssistantFederationsViewMgr::~DtAssistantFederationsViewMgr

(

)

Destructor.

DtAssistantFederationsViewMgr::DtAssistantFederationsViewMgr ( DtAssistantFederationsViewMgr const &  )

private

Copy Constructor not implemented – Copy Not Allowed!

Member Function Documentation

void DtAssistantFederationsViewMgr::aboutDialogRequested ( )

signal

Emitted when the RTI about dialog is requested.

void DtAssistantFederationsViewMgr::changeViewedConnection ( const DtRtiConnectionInfo &  conn = DtRtiConnectionInfo::invalidConn() )

slot

Changes which connection is currently being viewed.

void DtAssistantFederationsViewMgr::createRidDialog ( const QString &  name, DtCompRidParamDispStruct &  dispInfo  )

protected

Creates a new RID dialog.

void DtAssistantFederationsViewMgr::destroyFederation ( const QString &  )

slot

Tells the rtiexec to destroy the given federation.

void DtAssistantFederationsViewMgr::destroyRidParamDialog ( QWidget *  widget )

slot

Destroys the RID parameter dialog specified by widget.

virtual bool DtAssistantFederationsViewMgr::dialogsVisible ( ) const

virtual

Determines if this manager has any visible dialogs.

Reimplemented from DtAssistantMgr.

void DtAssistantFederationsViewMgr::federateRemovalTimeChanged ( float  period )

signal

Emitted when the defunct federate removal time changes.

void DtAssistantFederationsViewMgr::logConnectionInfo ( std::ofstream &  fileStrm )

protected

Logs connection info to the file stream.

void DtAssistantFederationsViewMgr::logFederateInfo ( std::ofstream &  fileStrm, const DtFederateInfoByHandleMap *  federates, const DtAssistantForwarderInfo *  fwInfo  )

protected

Logs federates' info to the file stream.

void DtAssistantFederationsViewMgr::logFederationInfo ( std::ofstream &  fileStrm )

protected

Logs full federation info to the file stream.

void DtAssistantFederationsViewMgr::logFomInfo ( std::ofstream &  fileStrm, const std::list< MAKRti::DtString > *  foms  )

protected

Logs FED file/FOM module info to the file stream.

DtAssistantFederationsViewMgr& DtAssistantFederationsViewMgr::operator= ( DtAssistantFederationsViewMgr const &  )

private

Assignment not implemented – Assignment Not Allowed!

static void DtAssistantFederationsViewMgr::processAwaitingForwardersMsg ( const DtAssistantAwaitingForwardersMsg &  msg, void *  usr  )

static

Callback to process an awaiting forwarders message from a local forwarder.

virtual void DtAssistantFederationsViewMgr::processAwaitingForwardersMsg ( const DtAssistantAwaitingForwardersMsg &  msg )

virtual

Called by the callback function to process an awaiting forwarders msg.

virtual void DtAssistantFederationsViewMgr::processConnectionRemoval ( const DtRtiConnectionInfoDataPair &  conn )

protectedvirtual

Processes the removal of a known connection.

void DtAssistantFederationsViewMgr::processConnectionsRemoval ( const DtRtiConnectionAndConfiguration &  conns )

slot

Processes the remove of connections.

void DtAssistantFederationsViewMgr::processConnectionsUpdate ( const DtRtiConnectionAndConfiguration &  conns )

slot

Processes changes in connection state.

void DtAssistantFederationsViewMgr::processDoNotWaitForForwarders ( QWidget *  dlg )

slot

Processes a request to tell the forwarder to proceed without waiting for unconnected forwarders.

static void DtAssistantFederationsViewMgr::processExecObserveRspMsg ( const DtAssistantExecObserveRspMsg &  msg, void *  usr  )

static

Callback to process an rtiexec observe response message.

virtual void DtAssistantFederationsViewMgr::processExecObserveRspMsg ( const DtAssistantExecObserveRspMsg &  msg )

virtual

Called by the callback function to process an rtiexec observe response message.

void DtAssistantFederationsViewMgr::processFederateRemoved ( const DtRtiConnectionInfo &  conn, const MAKRti::DtString &  federationName, unsigned  federateHandle  )

slot

Handles the removal of a federate.

void DtAssistantFederationsViewMgr::processFederateSelection ( const MAKRti::DtString &  federation, int  federate  )

slot

Process selection of a federate.

void DtAssistantFederationsViewMgr::processFederateUpdated ( const DtRtiConnectionInfo &  conn, const MAKRti::DtString &  federationName, unsigned  federateHandle  )

slot

Handles the addition of a new federate.

void DtAssistantFederationsViewMgr::processFederationRemoved ( const DtRtiConnectionInfo &  conn, const MAKRti::DtString &  federationName  )

slot

Handles the removal of a federation.

void DtAssistantFederationsViewMgr::processFederationSelection ( const MAKRti::DtString &  federation )

slot

Process selection of a federation.

void DtAssistantFederationsViewMgr::processFederationUpdate ( const DtRtiConnectionInfo &  conn, const MAKRti::DtString &  federationName  )

slot

Handles a federation update.

void DtAssistantFederationsViewMgr::processForwarderAdded ( const DtRtiConnectionInfo &  conn )

slot

Processes the addition of a new forwarder.

void DtAssistantFederationsViewMgr::processForwarderConnUpdated ( const DtRtiConnectionInfo &  conn )

slot

Processes an update of the connection info for a known forwarder.

void DtAssistantFederationsViewMgr::processForwarderRemoved ( const DtRtiConnectionInfo &  conn )

slot

Processes the removal of a known forwarder.

void DtAssistantFederationsViewMgr::processForwarderSelection ( const MAKRti::DtString &  fwName )

slot

Process selection of a forwarder.

void DtAssistantFederationsViewMgr::processForwarderUpdated ( const DtRtiConnectionInfo &  conn )

slot

Processes an update for a known forwarder.

void DtAssistantFederationsViewMgr::processLightweightNodeSelection ( )

slot

Process selection of the central lightweight node.

void DtAssistantFederationsViewMgr::processPeerForwarderSelection ( const MAKRti::DtString &  fwName )

slot

Process selection of a forwarder.

static void DtAssistantFederationsViewMgr::processRidParamMsg ( const DtAssistantRidParamsMsg &  msg, void *  usr  )

static

Callback to process a RID parameter message.

virtual void DtAssistantFederationsViewMgr::processRidParamMsg ( const DtAssistantRidParamsMsg &  msg )

virtual

Called by the callback function to process a RID parameter message.

static void DtAssistantFederationsViewMgr::processRtiexecNotifyMsg ( const DtAssistantNotifyMsg &  msg, void *  usr  )

static

Callback to process a notify message from a viewed rtiexec.

virtual void DtAssistantFederationsViewMgr::processRtiexecNotifyMsg ( const DtAssistantNotifyMsg &  msg )

virtual

Called by the callback function to process a viewed rtiexec notify msg.

void DtAssistantFederationsViewMgr::processRtiexecSelection ( )

slot

Process selection of an rtiexec.

void DtAssistantFederationsViewMgr::processShutDownWaitingForwarder ( QWidget *  dlg )

slot

Processes a request to shut down a forwarder which is waiting for other forwarder connections to be established.

void DtAssistantFederationsViewMgr::queryFederateInfo ( const DtRtiConnectionInfo &  , const MAKRti::DtString &  , unsigned  , const DtAssistantFederateInfo **    )

signal

Queries for federation information.

void DtAssistantFederationsViewMgr::removeDefunctFederateFromMap ( const MAKRti::DtString &  federation, int  federateHandle  )

slot

Remove the given defunct federate from the network map.

void DtAssistantFederationsViewMgr::removeLoadingIndication ( const DtRtiConnectionInfo &  conn )

slot

Removes loading indication when an rtiexec responds to observation.

void DtAssistantFederationsViewMgr::requestFederateLoc ( const DtRtiConnectionInfo &  connInfo, const MAKRti::DtString &  federationName, unsigned int  federateHdl  )

signal

Emitted to request a federate's loc.

void DtAssistantFederationsViewMgr::resignFederate ( int  , const QString &    )

slot

Tells the rtiexec to resign the given federate.

void DtAssistantFederationsViewMgr::saveGuiState

(

)

Saves the current GUI state.

void DtAssistantFederationsViewMgr::saveToLog ( )

slot

Saves the currently displayed federation information to a log file.

virtual void DtAssistantFederationsViewMgr::sendLogRequest ( )

virtualslot

Sends a request to the currently displayed rtiexec for its log.

void DtAssistantFederationsViewMgr::sendNetworkTestingDisableMsg ( const QString &  fedexName )

slot

Sends a message to disable network testing for the given federation.

void DtAssistantFederationsViewMgr::sendNetworkTestingEnableMsg ( const QString &  fedexName )

slot

Sends a message to enable network testing for the given federation.

void DtAssistantFederationsViewMgr::sendPendingRidRequest ( const DtRtiConnectionInfo &  connInfo, const MAKRti::DtString &  federationName, unsigned  federateHdl, const DtAssistantInfo &  astnt, unsigned  compId  )

slot

Attempt to send a pending RID request for the specified federate.

void DtAssistantFederationsViewMgr::showConfigDialog ( DtPreferencesPage  pageId )

signal

Shows the config dialog;.

void DtAssistantFederationsViewMgr::showFederateLog ( const MAKRti::DtString &  federation, int  federateHandle  )

slot

Shows the log file dialog for the specified federate.

void DtAssistantFederationsViewMgr::showFederateRidParams ( const MAKRti::DtString &  federation, int  federateHandle  )

slot

Shows the RID parameter dialog for the specified federate.

void DtAssistantFederationsViewMgr::showFederateStatsDialog ( const MAKRti::DtString &  federation, int  federateHandle  )

slot

Shows the federate statistics dialog for the specified federate.

void DtAssistantFederationsViewMgr::showFederateStatsDialog ( const DtRtiConnectionInfo &  connInfo, const MAKRti::DtString &  federationName, unsigned int  federateHdl  )

signal

Emitted to show the federate stats dialog for the given federate.

void DtAssistantFederationsViewMgr::showFederationsView ( )

slot

Displays the Federations view dialog.

void DtAssistantFederationsViewMgr::showFederationsViewPreferences ( )

slot

Show the preferences dialog.

void DtAssistantFederationsViewMgr::showFomDialog ( const MAKRti::DtString &  federation, int  federateHandle  )

slot

Shows the federate statistics dialog for the specified federate.

void DtAssistantFederationsViewMgr::showFomDialog ( const DtRtiConnectionInfo &  connInfo, const MAKRti::DtString &  federationName, unsigned int  federateHdl  )

signal

Emitted to show the fom dialog for the given federate.

void DtAssistantFederationsViewMgr::showForwarderLog ( )

slot

Shows the log file dialog for the current forwarder.

void DtAssistantFederationsViewMgr::showForwarderRidParams ( )

slot

Shows the RID parameter dialog for the current forwarder.

void DtAssistantFederationsViewMgr::showLatencyTestDialog ( const QString &  fedexName, int  fedHandle  )

slot

Opens a latency test dialog for the specified federate.

void DtAssistantFederationsViewMgr::showLogFileDialog ( int  compId )

signal

Emitted to show the log file dialog for the given component.

void DtAssistantFederationsViewMgr::showLrcLatencyTestDialog ( int  id )

signal

Shows the latency test dialog for the LRC component.

void DtAssistantFederationsViewMgr::showPopup ( const MAKRti::DtString &  , const MAKRti::DtString &  , const MAKRti::DtString &    )

signal

Emitted when a popup dialog from a remote rtiexec should be displayed.

void DtAssistantFederationsViewMgr::showRidDialog ( const QString &  name, const DtAssistantInfo &  assistant, int  compId  )

protected

Shows a new RID dialog for the given component, identified by its assistant and component ID, displayed with the given name.

void DtAssistantFederationsViewMgr::showRtiexecLatencyTestDialog ( const DtRtiConnectionInfoDataPair &  connInfo, unsigned int  federationHdl, const MAKRti::DtString &  federationName, unsigned int  federateHdl  )

signal

Shows the latency test dialog for the rtiexec component.

void DtAssistantFederationsViewMgr::showRtiexecLog ( )

slot

Shows the log file dialog for the current rtiexec.

void DtAssistantFederationsViewMgr::showRtiexecRidParams ( )

slot

Shows the RID parameter dialog for the current rtiexec.

void DtAssistantFederationsViewMgr::showSyncPtDialog ( const MAKRti::DtString &  federation )

slot

Shows a sync point dialog for the specified federation.

void DtAssistantFederationsViewMgr::shutdownRtiexec ( )

slot

Shuts down the currently viewed rtiexec.

void DtAssistantFederationsViewMgr::shutdownRtiForwarder ( )

slot

Shuts down the currently viewed RTI Forwarder.

virtual void DtAssistantFederationsViewMgr::startShutdown ( )

virtual

Performs any necessary processing at the start of shutdown.

Reimplemented from DtAssistantMgr.

virtual void DtAssistantFederationsViewMgr::tick ( )

virtual

Performs tasks that need to be completed periodically.

Reimplemented from DtAssistantMgr.

virtual void DtAssistantFederationsViewMgr::updateFederateCompInfo ( const DtAssistantForwarderInfo::DtCompByFederationAndHandleMap *  newInfo, const DtAssistantForwarderInfo::DtCompByFederationAndHandleMap *  oldInfo, const DtFederationStateByNameMap *  federationMap  )

protectedvirtual

Processes update to the federate component info.

virtual void DtAssistantFederationsViewMgr::updatePeerForwarders ( const DtAssistantForwarderInfo::DtPeerForwarderByIdMap *  newFwds, const DtAssistantForwarderInfo::DtPeerForwarderByIdMap *  oldFwds  )

protectedvirtual

Processes updates to the peer forwarders.

void DtAssistantFederationsViewMgr::updateRidParams ( const DtAssistantInfo &  assistant, int  compId, const MAKRti::DtString &  params, const MAKRti::DtString &  filename, const MAKRti::DtString &  federation, unsigned  federateHdl  )

protected

Updates and existing RID parameters dialog.

virtual void DtAssistantFederationsViewMgr::updateRtiexecCompInfo ( const DtAssistantNetworkCompInfo *  newInfo, const DtAssistantNetworkCompInfo *  oldInfo  )

protectedvirtual

Processes update to the rtiexec component info.

virtual void DtAssistantFederationsViewMgr::updateUnclassifiedComps ( const DtAssistantNetworkCompInfoList *  newInfo, const DtAssistantNetworkCompInfoList *  oldInfo  )

protectedvirtual

Processes update to components which have connected to the forwarder but have not yet been classified (usually unjoined federates)

Member Data Documentation

MAKRti::DtClock DtAssistantFederationsViewMgr::myClock

protected

Clock used to determine if we need to resend lost messages.

DtBoost::shared_ptr<DtAssistantComponentMgr> DtAssistantFederationsViewMgr::myCompMgr

protected

The local RTI component manager.

DtBoost::shared_ptr<DtAssistantConnectionInfoMgr> DtAssistantFederationsViewMgr::myConnInfoMgr

protected

The connection info manager.

DtAssistantForwarderInfo DtAssistantFederationsViewMgr::myCurrentForwarderInfo

protected

The information on the currently displayed forwarder.

DtFederationsViewDialog* DtAssistantFederationsViewMgr::myFederationsViewDialog

protected

The dialog to display the federations view.

DtBoost::shared_ptr<DtAssistantFederationsInfoMgr> DtAssistantFederationsViewMgr::myFedInfoMgr

protected

The federations info manager.

QSignalMapper* DtAssistantFederationsViewMgr::myFwStatusAcceptSigMapper

protected

Signal mapper for DtForwarderConnStatusDialog accepted signals.

DtConnectionToFwStatusDialogMap DtAssistantFederationsViewMgr::myFwStatusDlgMap

protected

The map of forwarder connection info to forwarder status dialogs.

QSignalMapper* DtAssistantFederationsViewMgr::myFwStatusRejectSigMapper

protected

Signal mapper for DtForwarderConnStatusDialog rejected signals.

std::set<std::pair<MAKRti::DtString, unsigned> > DtAssistantFederationsViewMgr::myLightweightFederates

protected

The federations and handles of the currently displayed lightweight federates.

DtBoost::shared_ptr<DtAssistantNetworkCompInfoMgr> DtAssistantFederationsViewMgr::myNetCompInfoMgr

protected

The federations info manager.

std::list<DtCompRidParamDispStruct> DtAssistantFederationsViewMgr::myPendingFederateRidDialogs

protected

Our federate RID parameter dialogs which are currently loading.

bool DtAssistantFederationsViewMgr::myReceivedRemoteForwarderInfo

protected

Indicates if we have yet received an update on a remote Forwarder we are currently viewing.

MAKRti::DtTime DtAssistantFederationsViewMgr::myRemoteForwarderInfoTimeout

protected

Time at which we assume our request to observe a remote Forwarder was lost, causing us to resend it.

QSignalMapper* DtAssistantFederationsViewMgr::myRidDialogSignalMapper

protected

Maps the close signals for RID parameter dialogs.

DtRidParmDlgByComp DtAssistantFederationsViewMgr::myRidParamDialogs

protected

A map of all of our open RID parameter dialogs.

QString DtAssistantFederationsViewMgr::mySavedFile

protected

The previously saved file name.

std::map<MAKRti::DtString, DtSyncPtDialog*> DtAssistantFederationsViewMgr::mySyncPtDialogs

protected

The dialogs which show sync point information for a particular federation, indexed by federation name.

DtRtiConnectionInfo DtAssistantFederationsViewMgr::myViewedConnection

protected

The connection currently being viewed at this Assistant.

const unsigned DtAssistantFederationsViewMgr::theMaxLogLoadSize

staticprotected

The maximum number of bytes that can be requested from an rtiexec log.

const int DtAssistantFederationsViewMgr::theUpdatePeriod

staticprotected

The period, in seconds, to send updates on remotely observed federations that have been updated.

---

The documentation for this class was generated from the following file:

• federationsViewMgr.h
