DtInOutForwarderPort Class Reference

The DtForwarderPort is an Abstract Base Class which provides the interface to a collection of connections from which messages may be read and to which messages may be sent. More...

Inheritance diagram for DtInOutForwarderPort:

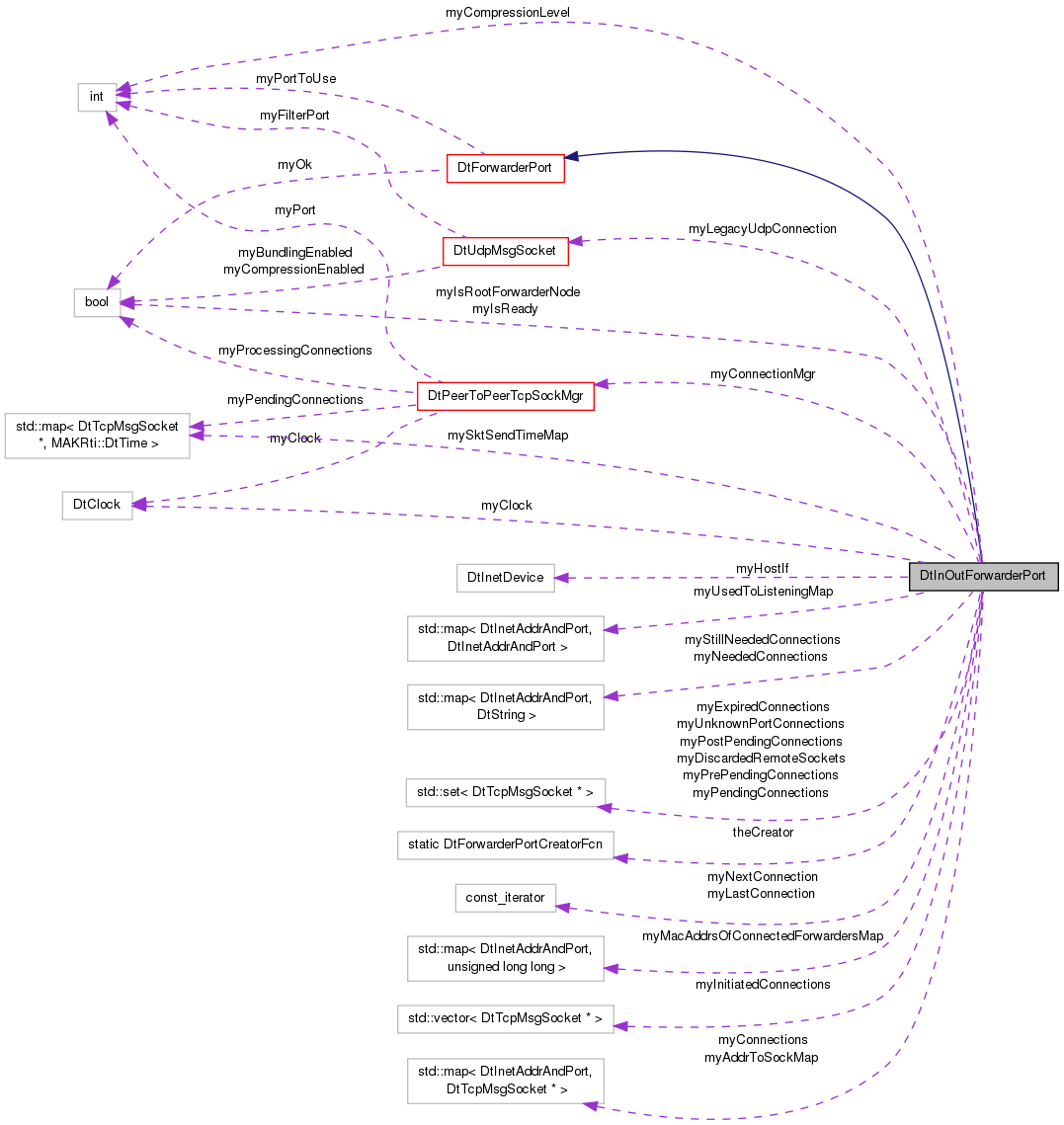

Collaboration diagram for DtInOutForwarderPort:

Public Member Functions
virtual	~DtInOutForwarderPort ()
virtual bool	isReady () const
	Is the Port fully usable and available?
virtual DtAddressMsgPair	getNextMsg ()
	Get the next message to forward and the source connection.
virtual bool	getInitializationMsgs (DtForwarderPort::DtSocketSet &socks, std::list< DtAddressMsgPair > &msgs, bool printBeDestMetadata)
	Get the next initialization messages off of a set of pending TCP sockets.
virtual bool	getInitializationMsg (DtMsgSocket *sock, DtAddressMsgPair &msg, bool printBeDestMetadata)
	Get the next initialization message off of a pending TCP socket.
virtual void	sendByTransport (const DtForwarderMsg &msg) const
	Check transport metadata and send message to appropriate destinations.
virtual void	sendToAllReliable (const DtForwarderMsg &msg) const
	Send a message to all available destinations.
virtual void	sendToListReliable (const DtForwarderMsg &msg, const DtAddressPortList &destinations) const
	Send a message to the specified list of destinations excluding the list of filtered destinations.
virtual void	selectParams (MAKRti::DtSelectParamWithWrite &selectParams)
	Add this port's current select() notification set to the passed set.
virtual void	updateRoutes ()
	Handle changes to the Routing map.
virtual void	processInitializationMessages ()
virtual int	checkConnectionStatus (const DtInetAddrAndPort *target=0)
	Test for lost connections - returns true if targeted connection is active or if no target specified returns false if at least one drop detected.
virtual void	clearNeededConnections ()
	Clear the list of needed forwarder connections.
virtual unsigned int	abortPendingConnections ()
	Abort any embryonic connections.
virtual unsigned int	pendingConnectionsAborted ()
	Return a count of aborted or failed connection attempts.
virtual DtAddressPortList	connections () const
	Get the list of all current connections to this port.
virtual void	listenToMulticastGroup (const MAKRti::DtInetAddr &mcastAddr)
	Listen / drop multicast groups (not implemented in this class)
virtual void	dropMulticastGroup (const MAKRti::DtInetAddr &mcastAddr)
virtual bool	updateFederateConnectionId (unsigned long orig, unsigned long final)
	Update locally connected federate connection ID (LAN-port-only)
virtual bool	flush ()
	Flush any pending messages.
virtual bool	flushOnly ()
	Flush any pending messages. Does not do any socket disconnect processing.
virtual MAKRti::DtString	connectionListToString (const char *separator=" : ") const
	Print the current connection list.
virtual bool	populateConnectionInformation (unsigned int &numForwarderToForwarderConns, std::vector< MAKRti::DtString > &forwarderIdentifiers, std::vector< MAKRti::DtString > &forwarderConnectionHostNames, std::vector< DtInetAddrAndPort > &forwarderConnectionAddrs) const
virtual void	socketAdditionCb (DtTcpMsgSocket *sock)
virtual void	sendMacAddrMsg (DtTcpMsgSocket *sock)
	Send a populated DtMacAddrMsg to the specified socket.
virtual void	sendPortMsg (DtTcpMsgSocket *sock)
	Send a message indicating our local socket port for the given socket.
virtual void	socketEstablishedCb (DtTcpMsgSocket *sock)
virtual void	socketRemovalCb (DtTcpMsgSocket *sock)
virtual void	processForwarderNodeInfoMsg (const DtForwarderPort::DtAddressMsgPair &msg)
virtual void	processMacAddrMsg (const DtForwarderPort::DtAddressMsgPair &msg)
virtual void	processPortMsg (const DtForwarderPort::DtAddressMsgPair &msgPair)
	Process a message indicating the listening port of the forwarder on the other end of a socket.
void	sendForwarderNodeInfoMsg (DtTcpMsgSocket *sock)
void	sendForwarderNodeInfoMsg ()
Public Member Functions inherited from DtForwarderPort
virtual	~DtForwarderPort ()
virtual bool	isOk () const
	Is the Port still alive?
virtual void	addConnectionEstablishedCb (DtConnectionChangeCb callback, void *usr)
	Register/Unregister a callback for new connections.
virtual void	removeConnectionEstablishedCb (DtConnectionChangeCb callback, void *usr)
virtual void	addConnectionLostCb (DtConnectionChangeCb callback, void *usr)
	Register/Unregister a callback for dropped connections.
virtual void	removeConnectionLostCb (DtConnectionChangeCb callback, void *usr)
virtual void	addForwarderPortReadyCb (DtPortReadyCb callback, void *usr)
virtual void	removeForwarderPortReadyCb (DtPortReadyCb callback, void *usr)
virtual void	addFederateJoinedCb (DtFederateAddedCb callback, void *usr)
virtual void	removeFederateJoinedCb (DtFederateAddedCb callback, void *usr)
virtual void	addFederateResignedCb (DtFederateRemovedCb callback, void *usr)
virtual void	removeFederateResignedCb (DtFederateRemovedCb callback, void *usr)
virtual void	addSocketQueueCb (DtSocketQueueCb callback, void *usr)
	Register/Unregister a callback for socket queuing.
virtual void	removeSocketQueueCb (DtSocketQueueCb callback, void *usr)
virtual void	addWaitingForForwarderConnectionsCb (DtWaitingForFwsCb callback, void *usr)
	Register/Unregister a callback for entrance to the "waiting for forwarder connections" state.
virtual void	removeWaitingForForwarderConnectionsCb (DtWaitingForFwsCb callback, void *usr)
virtual void	addNotWaitingForForwarderConnectionsCb (DtNotWaitingForFwsCb callback, void *usr)
	Register/Unregister a callback for exit from the "waiting for forwarder connections" state.
virtual void	removeNotWaitingForForwarderConnectionsCb (DtNotWaitingForFwsCb callback, void *usr)
virtual void	addExecConnectionEstablishedCb (DtExecAddChangeCb callback, void *usr)
virtual void	removeExecConnectionEstablishedCb (DtExecAddChangeCb callback, void *usr)
virtual void	addExecDisconnectedCb (DtExecRemovedChangeCb callback, void *usr)
virtual void	removeExecDisconnectedCb (DtExecRemovedChangeCb callback, void *usr)
virtual int	execConnected (const MAKRti::DtString &connName, unsigned int connID, const DtInetAddrAndPort &addr, const MAKRti::DtString &hostName, bool fullyCompliant)
virtual int	execDisconnected (const MAKRti::DtString &connName, unsigned int connID, const DtInetAddrAndPort &addr)
virtual int	socketQueueStatus (unsigned int connId, int connQueueStatus)
virtual void	forwarderNodeIsReady (unsigned long id)
virtual void	waitingForForwarderConnections (const DtConnAndNameMap &allNeededFws, const DtConnAndNameMap &stillNeededFws)
	Specifies that this port is waiting for other forwarder connections.
virtual void	notWaitingForForwarderConnections ()
virtual void	setForwarderId (unsigned long id)
	Set forwarder ID.

Static Public Member Functions
static DtForwarderPort *	create (const DtRIDParameters *params, const DtBoost::shared_ptr< DtRouteMap > routes, const MAKRti::DtInetAddr &host, int forwarderPort, const MAKRti::DtInetAddr &additionalForwarderToConnectTo)
	Creates an instance of a DtInOutForwarderPort.
static void	setCreatorFunction (DtForwarderPortCreatorFcn creator)
	Call this function to set an alternate creator function With this function, users can replace this DtInOutForwarderPort with their own derived class.
static void	socketAdditionCb (DtTcpMsgSocket *sock, void *usr)
	Callback for new connections.
static void	socketEstablishedCb (DtTcpMsgSocket *sock, void *usr)
	Callback for established connections.
static void	socketRemovalCb (DtTcpMsgSocket *sock, void *usr)
	Callback for dropped connections.

Protected Member Functions
	DtInOutForwarderPort (const DtRIDParameters *params, DtBoost::shared_ptr< DtRouteMap > routes, const MAKRti::DtInetAddr &host, int forwarderPort, const MAKRti::DtInetAddr &forwarderAddrToConnectTo)
	Base Ctor - called by default creator.
virtual void	initializeConnections ()
	Initiates a connection to each adjacent node.
virtual bool	connectToPeer (const DtInetAddrAndPort &addrToConnectTo)
	Returns whether sock was ok()
virtual int	processLostConnection (DtTcpMsgSocket *sock)
	Handle lost connections.
void	connectionCompleted (const DtInetAddrAndPort &addrAndPort, DtTcpMsgSocket *sock)
	The new socket has been processed (either via routes files or dynamically).
void	addSocketUsingRoutesFile (DtTcpMsgSocket *sock, const DtInetAddrAndPort &addrAndPort)
	Add this socket to connection using routes file information.
bool	addSocketDynamically (DtTcpMsgSocket *sock)
	Add socket to connections dynamically.
void	addConnection (const DtInetAddrAndPort &newConn, DtTcpMsgSocket *sock)
void	removeConnection (DtAddrToConnMap::iterator pos)
	DtInOutForwarderPort ()
	Default Ctor, Copy Ctor, Assignment - unimplemented.
	DtInOutForwarderPort (const DtInOutForwarderPort &orig)
DtInOutForwarderPort &	operator= (const DtInOutForwarderPort &orig)
bool	removeFromPendingList (DtTcpMsgSocket *addr)
	Remove a connection from the pending list (return true if found and removed)
void	becomeRootForwarderNode ()
	Sets this forwarder node as the root.
Protected Member Functions inherited from DtForwarderPort
	DtForwarderPort (const DtRIDParameters *params, DtBoost::shared_ptr< DtRouteMap > routes, MAKRti::DtInetAddr host, int forwarderPort, MAKRti::DtInetAddr addnlConnection)
virtual int	connectionEstablished (const MAKRti::DtString &connName, unsigned int connID, const DtInetAddrAndPort &addr)
	Call the appropriate callbacks for New or Lost connections.
virtual int	connectionLost (const MAKRti::DtString &connName, unsigned int connID, const DtInetAddrAndPort &addr)
virtual void	federateResigned (const MAKRti::DtString &connName, const MAKRti::DtString &connType, unsigned int connID, unsigned int fedHandle, const DtInetAddrAndPort &addr)
virtual void	federateJoined (const MAKRti::DtString &connName, const MAKRti::DtString &connType, const MAKRti::DtString &federationName, unsigned int connID, unsigned int fedHandle, const DtInetAddrAndPort &addr, const MAKRti::DtString &hostName, unsigned int processId, const MAKRti::DtString &processName, const MAKRti::DtString &commandArgs, DtHlaVersionId hlaVersion)

Protected Attributes
bool	myIsReady
DtPeerToPeerTcpSockMgr *	myConnectionMgr
DtForwarderPort::DtAddrToConnMap	myConnections
DtForwarderPort::DtAddrToConnMap::const_iterator	myNextConnection
DtForwarderPort::DtAddrToConnMap::const_iterator	myLastConnection
std::map< DtInetAddrAndPort, DtTcpMsgSocket * >	myAddrToSockMap
DtForwarderPort::DtSocketSet	myPendingConnections
	Connections which are in process.
DtForwarderPort::DtSocketSet	myPrePendingConnections
DtForwarderPort::DtSocketSet	myPostPendingConnections
DtForwarderPort::DtSocketSet	myUnknownPortConnections
std::map< DtInetAddrAndPort, DtString >	myNeededConnections
	Connections needed before the forwarding network is complete.
std::map< DtInetAddrAndPort, DtString >	myStillNeededConnections
	Connections still needed before the forwarding network is complete.
std::map< DtInetAddrAndPort, DtInetAddrAndPort >	myUsedToListeningMap
	Map of actual address/port pairs to listening address/port pairs, which are also used for identification.
DtForwarderPort::DtSocketList	myInitiatedConnections
DtForwarderPort::DtSocketSet	myExpiredConnections
DtForwarderPort::DtSocketSet	myDiscardedRemoteSockets
DtUdpMsgSocket *	myLegacyUdpConnection
std::map< DtInetAddrAndPort, unsigned long long >	myMacAddrsOfConnectedForwardersMap
bool	myIsRootForwarderNode
MAKRti::DtClock	myClock
std::map< DtTcpMsgSocket *, MAKRti::DtTime >	mySktSendTimeMap
MAKRti::DtInetDevice	myHostIf
	The interface used for connections with other forwarders.
int	myCompressionLevel
Protected Attributes inherited from DtForwarderPort
const DtRIDParameters *	myParams
DtBoost::shared_ptr< DtRouteMap >	myRoutes
const MAKRti::DtInetAddr	myAddress
bool	myOk
int	myPortToUse
MAKRti::DtInetAddr	myAdditionalAddrToConnectTo
DtCallbackList	myConnectionEstablishedCbs
DtCallbackList	myConnectionLostCbs
DtFederateAddedCallbackList	myFederateJoinedCbs
DtFederateRemovedCallbackList	myFederateResignedCbs
DtPortReadyCallbackList	myPortReadyCbs
DtExecAddedCallbackList	myExecConnectedCbs
DtExecRemovedCallbackList	myExecDisconnectedCbs
DtSocketQueueCallbackList	mySocketQueueCbs
DtWaitingForFwsCallbackList	myWaitingForFwsCbs
DtNotWaitingForFwsCallbackList	myNotWaitingForFwsCbs

Static Protected Attributes
static DtForwarderPortCreatorFcn	theCreator

Additional Inherited Members
Public Types inherited from DtForwarderPort
typedef DtForwarderPort *(*	DtForwarderPortCreatorFcn )(const DtRIDParameters *, const DtBoost::shared_ptr< DtRouteMap >, const MAKRti::DtInetAddr &, int, const MAKRti::DtInetAddr &)
	DtForwarderPort creator signature.
typedef DtRouteMap::DtAddressPortList	DtAddressPortList
typedef DtRouteMap::DtAddressList	DtAddressList
typedef DtRouteMap::DtInterfaceAddrSet	DtInterfaceAddrSet
typedef std::vector < DtTcpMsgSocket * >	DtSocketList
typedef std::set < DtTcpMsgSocket * >	DtSocketSet
typedef std::pair < DtInetAddrAndPort, DtForwarderMsg >	DtAddressMsgPair
typedef std::pair < DtTcpMsgSocket *, DtForwarderMsg >	DtSockMsgPair
typedef std::map < DtInetAddrAndPort, DtTcpMsgSocket * >	DtAddrToConnMap
typedef std::map < DtInetAddrAndPort, MAKRti::DtString >	DtConnAndNameMap
typedef int(*	DtConnectionChangeCb )(const MAKRti::DtString &, unsigned int, const DtInetAddrAndPort &, void *)
typedef void(*	DtFederateAddedCb )(const MAKRti::DtString &, const MAKRti::DtString &, const MAKRti::DtString &, unsigned int, unsigned int, const DtInetAddrAndPort &, const MAKRti::DtString &, unsigned int, const MAKRti::DtString &, const MAKRti::DtString &, DtHlaVersionId, void *)
typedef void(*	DtFederateRemovedCb )(const MAKRti::DtString &, const MAKRti::DtString &, unsigned int, unsigned int, const DtInetAddrAndPort &, void *)
typedef void(*	DtPortReadyCb )(unsigned long, void *)
typedef int(*	DtExecAddChangeCb )(const MAKRti::DtString &, unsigned int, const DtInetAddrAndPort &, const MAKRti::DtString &, bool, void *)
typedef int(*	DtExecRemovedChangeCb )(const MAKRti::DtString &, unsigned int, const DtInetAddrAndPort &, void *)
typedef int(*	DtSocketQueueCb )(unsigned int, int, void *)
typedef void(*	DtWaitingForFwsCb )(const DtConnAndNameMap &, const DtConnAndNameMap &, void *)
typedef void(*	DtNotWaitingForFwsCb )(void *)
typedef std::vector< std::pair < DtConnectionChangeCb, void * > >	DtCallbackList
typedef std::vector< std::pair < DtFederateAddedCb, void * > >	DtFederateAddedCallbackList
typedef std::vector< std::pair < DtFederateRemovedCb, void * > >	DtFederateRemovedCallbackList
typedef std::vector< std::pair < DtPortReadyCb, void * > >	DtPortReadyCallbackList
typedef std::vector< std::pair < DtExecAddChangeCb, void * > >	DtExecAddedCallbackList
typedef std::vector< std::pair < DtExecRemovedChangeCb, void * > >	DtExecRemovedCallbackList
typedef std::vector< std::pair < DtSocketQueueCb, void * > >	DtSocketQueueCallbackList
typedef std::vector< std::pair < DtWaitingForFwsCb, void * > >	DtWaitingForFwsCallbackList
typedef std::vector< std::pair < DtNotWaitingForFwsCb, void * > >	DtNotWaitingForFwsCallbackList
Static Protected Member Functions inherited from DtForwarderPort
static int	connectionEstablished (const MAKRti::DtString &connName, unsigned int connID, const DtInetAddrAndPort &addr, void *usr)
static int	connectionLost (const MAKRti::DtString &connName, unsigned int connID, const DtInetAddrAndPort &addr, void *usr)
static void	federateJoined (const MAKRti::DtString &connName, const MAKRti::DtString &connType, const MAKRti::DtString &federationName, unsigned int connID, unsigned int fedHandle, const DtInetAddrAndPort &addr, const MAKRti::DtString &hostName, unsigned int processId, const MAKRti::DtString &processName, const MAKRti::DtString &commandArgs, DtHlaVersionId hlaVersion, void *usr)
static void	federateResigned (const MAKRti::DtString &connName, const MAKRti::DtString &connType, unsigned int connID, unsigned int fedHandle, const DtInetAddrAndPort &addr, void *usr)
static int	execConnected (const MAKRti::DtString &connName, unsigned int connID, const DtInetAddrAndPort &addr, const MAKRti::DtString &hostName, bool fullyCompliant, void *usr)
static int	execDisconnected (const MAKRti::DtString &connName, unsigned int connID, const DtInetAddrAndPort &addr, void *usr)
static int	socketQueueStatus (unsigned int connId, int connQueueStatus, void *usr)
static void	forwarderNodeIsReady (unsigned long id, void *usr)

Detailed Description

The DtForwarderPort is an Abstract Base Class which provides the interface to a collection of connections from which messages may be read and to which messages may be sent.

Constructor & Destructor Documentation

DtInOutForwarderPort::DtInOutForwarderPort ( const DtRIDParameters *  params, DtBoost::shared_ptr< DtRouteMap >  routes, const MAKRti::DtInetAddr &  host, int  forwarderPort, const MAKRti::DtInetAddr &  forwarderAddrToConnectTo  )

protected

Base Ctor - called by default creator.

virtual DtInOutForwarderPort::~DtInOutForwarderPort ( )

virtual

DtInOutForwarderPort::DtInOutForwarderPort ( )

protected

Default Ctor, Copy Ctor, Assignment - unimplemented.

DtInOutForwarderPort::DtInOutForwarderPort ( const DtInOutForwarderPort &  orig )

protected

Member Function Documentation

virtual unsigned int DtInOutForwarderPort::abortPendingConnections ( )

virtual

Abort any embryonic connections.

Implements DtForwarderPort.

void DtInOutForwarderPort::addConnection ( const DtInetAddrAndPort &  newConn, DtTcpMsgSocket *  sock  )

protected

bool DtInOutForwarderPort::addSocketDynamically ( DtTcpMsgSocket *  sock )

protected

Add socket to connections dynamically.

Returns whether the socket was added to the routes map.

void DtInOutForwarderPort::addSocketUsingRoutesFile ( DtTcpMsgSocket *  sock, const DtInetAddrAndPort &  addrAndPort  )

protected

Add this socket to connection using routes file information.

void DtInOutForwarderPort::becomeRootForwarderNode ( )

protected

Sets this forwarder node as the root.

virtual int DtInOutForwarderPort::checkConnectionStatus ( const DtInetAddrAndPort *  target = 0 )

virtual

Test for lost connections - returns true if targeted connection is active or if no target specified returns false if at least one drop detected.

Implements DtForwarderPort.

virtual void DtInOutForwarderPort::clearNeededConnections ( )

virtual

Clear the list of needed forwarder connections.

Implements DtForwarderPort.

void DtInOutForwarderPort::connectionCompleted ( const DtInetAddrAndPort &  addrAndPort, DtTcpMsgSocket *  sock  )

protected

The new socket has been processed (either via routes files or dynamically).

Record established connection.

virtual MAKRti::DtString DtInOutForwarderPort::connectionListToString ( const char *  separator = " : " ) const

virtual

Print the current connection list.

virtual DtAddressPortList DtInOutForwarderPort::connections ( ) const

virtual

Get the list of all current connections to this port.

Implements DtForwarderPort.

virtual bool DtInOutForwarderPort::connectToPeer ( const DtInetAddrAndPort &  addrToConnectTo )

protectedvirtual

Returns whether sock was ok()

static DtForwarderPort* DtInOutForwarderPort::create ( const DtRIDParameters *  params, const DtBoost::shared_ptr< DtRouteMap >  routes, const MAKRti::DtInetAddr &  host, int  forwarderPort, const MAKRti::DtInetAddr &  additionalForwarderToConnectTo  )

static

Creates an instance of a DtInOutForwarderPort.

virtual void DtInOutForwarderPort::dropMulticastGroup ( const MAKRti::DtInetAddr &  mcastAddr )

inlinevirtual

Implements DtForwarderPort.

virtual bool DtInOutForwarderPort::flush ( )

virtual

Flush any pending messages.

Reimplemented from DtForwarderPort.

virtual bool DtInOutForwarderPort::flushOnly ( )

virtual

Flush any pending messages. Does not do any socket disconnect processing.

virtual bool DtInOutForwarderPort::getInitializationMsg ( DtMsgSocket *  sock, DtAddressMsgPair &  msg, bool  printBeDestMetadata  )

virtual

Get the next initialization message off of a pending TCP socket.

virtual bool DtInOutForwarderPort::getInitializationMsgs ( DtForwarderPort::DtSocketSet &  socks, std::list< DtAddressMsgPair > &  msgs, bool  printBeDestMetadata  )

virtual

Get the next initialization messages off of a set of pending TCP sockets.

virtual DtAddressMsgPair DtInOutForwarderPort::getNextMsg ( )

virtual

Get the next message to forward and the source connection.

Implements DtForwarderPort.

virtual void DtInOutForwarderPort::initializeConnections ( )

protectedvirtual

Initiates a connection to each adjacent node.

virtual bool DtInOutForwarderPort::isReady ( ) const

virtual

Is the Port fully usable and available?

Implements DtForwarderPort.

virtual void DtInOutForwarderPort::listenToMulticastGroup ( const MAKRti::DtInetAddr &  mcastAddr )

inlinevirtual

Listen / drop multicast groups (not implemented in this class)

Implements DtForwarderPort.

DtInOutForwarderPort& DtInOutForwarderPort::operator= ( const DtInOutForwarderPort &  orig )

protected

virtual unsigned int DtInOutForwarderPort::pendingConnectionsAborted ( )

virtual

Return a count of aborted or failed connection attempts.

Implements DtForwarderPort.

virtual bool DtInOutForwarderPort::populateConnectionInformation ( unsigned int &  numForwarderToForwarderConns, std::vector< MAKRti::DtString > &  forwarderIdentifiers, std::vector< MAKRti::DtString > &  forwarderConnectionHostNames, std::vector< DtInetAddrAndPort > &  forwarderConnectionAddrs  ) const

virtual

virtual void DtInOutForwarderPort::processForwarderNodeInfoMsg ( const DtForwarderPort::DtAddressMsgPair &  msg )

virtual

virtual void DtInOutForwarderPort::processInitializationMessages ( )

virtual

virtual int DtInOutForwarderPort::processLostConnection ( DtTcpMsgSocket *  sock )

protectedvirtual

Handle lost connections.

virtual void DtInOutForwarderPort::processMacAddrMsg ( const DtForwarderPort::DtAddressMsgPair &  msg )

virtual

virtual void DtInOutForwarderPort::processPortMsg ( const DtForwarderPort::DtAddressMsgPair &  msgPair )

virtual

Process a message indicating the listening port of the forwarder on the other end of a socket.

void DtInOutForwarderPort::removeConnection ( DtAddrToConnMap::iterator  pos )

protected

bool DtInOutForwarderPort::removeFromPendingList ( DtTcpMsgSocket *  addr )

protected

Remove a connection from the pending list (return true if found and removed)

virtual void DtInOutForwarderPort::selectParams ( MAKRti::DtSelectParamWithWrite &  selectParams )

virtual

Add this port's current select() notification set to the passed set.

Implements DtForwarderPort.

virtual void DtInOutForwarderPort::sendByTransport ( const DtForwarderMsg &  msg ) const

virtual

Check transport metadata and send message to appropriate destinations.

Implements DtForwarderPort.

void DtInOutForwarderPort::sendForwarderNodeInfoMsg

(

DtTcpMsgSocket *

sock

)

void DtInOutForwarderPort::sendForwarderNodeInfoMsg

(

)

virtual void DtInOutForwarderPort::sendMacAddrMsg ( DtTcpMsgSocket *  sock )

virtual

Send a populated DtMacAddrMsg to the specified socket.

virtual void DtInOutForwarderPort::sendPortMsg ( DtTcpMsgSocket *  sock )

virtual

Send a message indicating our local socket port for the given socket.

virtual void DtInOutForwarderPort::sendToAllReliable ( const DtForwarderMsg &  msg ) const

virtual

Send a message to all available destinations.

Implements DtForwarderPort.

virtual void DtInOutForwarderPort::sendToListReliable ( const DtForwarderMsg &  msg, const DtAddressPortList &  destinations  ) const

virtual

Send a message to the specified list of destinations excluding the list of filtered destinations.

Implements DtForwarderPort.

static void DtInOutForwarderPort::setCreatorFunction ( DtForwarderPortCreatorFcn  creator )

static

Call this function to set an alternate creator function With this function, users can replace this DtInOutForwarderPort with their own derived class.

static void DtInOutForwarderPort::socketAdditionCb ( DtTcpMsgSocket *  sock, void *  usr  )

static

Callback for new connections.

virtual void DtInOutForwarderPort::socketAdditionCb ( DtTcpMsgSocket *  sock )

virtual

static void DtInOutForwarderPort::socketEstablishedCb ( DtTcpMsgSocket *  sock, void *  usr  )

static

Callback for established connections.

virtual void DtInOutForwarderPort::socketEstablishedCb ( DtTcpMsgSocket *  sock )

virtual

static void DtInOutForwarderPort::socketRemovalCb ( DtTcpMsgSocket *  sock, void *  usr  )

static

Callback for dropped connections.

virtual void DtInOutForwarderPort::socketRemovalCb ( DtTcpMsgSocket *  sock )

virtual

bool DtInOutForwarderPort::updateFederateConnectionId ( unsigned long  orig, unsigned long  final  )

inlinevirtual

Update locally connected federate connection ID (LAN-port-only)

Implements DtForwarderPort.

virtual void DtInOutForwarderPort::updateRoutes ( )

virtual

Handle changes to the Routing map.

Implements DtForwarderPort.

Member Data Documentation

std::map<DtInetAddrAndPort, DtTcpMsgSocket*> DtInOutForwarderPort::myAddrToSockMap

protected

MAKRti::DtClock DtInOutForwarderPort::myClock

protected

int DtInOutForwarderPort::myCompressionLevel

protected

DtPeerToPeerTcpSockMgr* DtInOutForwarderPort::myConnectionMgr

protected

DtForwarderPort::DtAddrToConnMap DtInOutForwarderPort::myConnections

protected

DtForwarderPort::DtSocketSet DtInOutForwarderPort::myDiscardedRemoteSockets

protected

DtForwarderPort::DtSocketSet DtInOutForwarderPort::myExpiredConnections

protected

MAKRti::DtInetDevice DtInOutForwarderPort::myHostIf

protected

The interface used for connections with other forwarders.

DtForwarderPort::DtSocketList DtInOutForwarderPort::myInitiatedConnections

protected

bool DtInOutForwarderPort::myIsReady

protected

bool DtInOutForwarderPort::myIsRootForwarderNode

protected

DtForwarderPort::DtAddrToConnMap::const_iterator DtInOutForwarderPort::myLastConnection

protected

DtUdpMsgSocket* DtInOutForwarderPort::myLegacyUdpConnection

protected

std::map<DtInetAddrAndPort, unsigned long long> DtInOutForwarderPort::myMacAddrsOfConnectedForwardersMap

protected

std::map<DtInetAddrAndPort, DtString> DtInOutForwarderPort::myNeededConnections

protected

Connections needed before the forwarding network is complete.

DtForwarderPort::DtAddrToConnMap::const_iterator DtInOutForwarderPort::myNextConnection

protected

DtForwarderPort::DtSocketSet DtInOutForwarderPort::myPendingConnections

protected

Connections which are in process.

DtForwarderPort::DtSocketSet DtInOutForwarderPort::myPostPendingConnections

protected

DtForwarderPort::DtSocketSet DtInOutForwarderPort::myPrePendingConnections

protected

std::map< DtTcpMsgSocket*, MAKRti::DtTime > DtInOutForwarderPort::mySktSendTimeMap

mutableprotected

std::map<DtInetAddrAndPort, DtString> DtInOutForwarderPort::myStillNeededConnections

protected

Connections still needed before the forwarding network is complete.

DtForwarderPort::DtSocketSet DtInOutForwarderPort::myUnknownPortConnections

protected

std::map<DtInetAddrAndPort, DtInetAddrAndPort> DtInOutForwarderPort::myUsedToListeningMap

protected

Map of actual address/port pairs to listening address/port pairs, which are also used for identification.

DtForwarderPortCreatorFcn DtInOutForwarderPort::theCreator

staticprotected

---

The documentation for this class was generated from the following file:

• inOutForwarderPort.h
