DtAddForwarderConnDialog Class Reference

Dialog that allows a user to enter connection information. More...

Inheritance diagram for DtAddForwarderConnDialog:

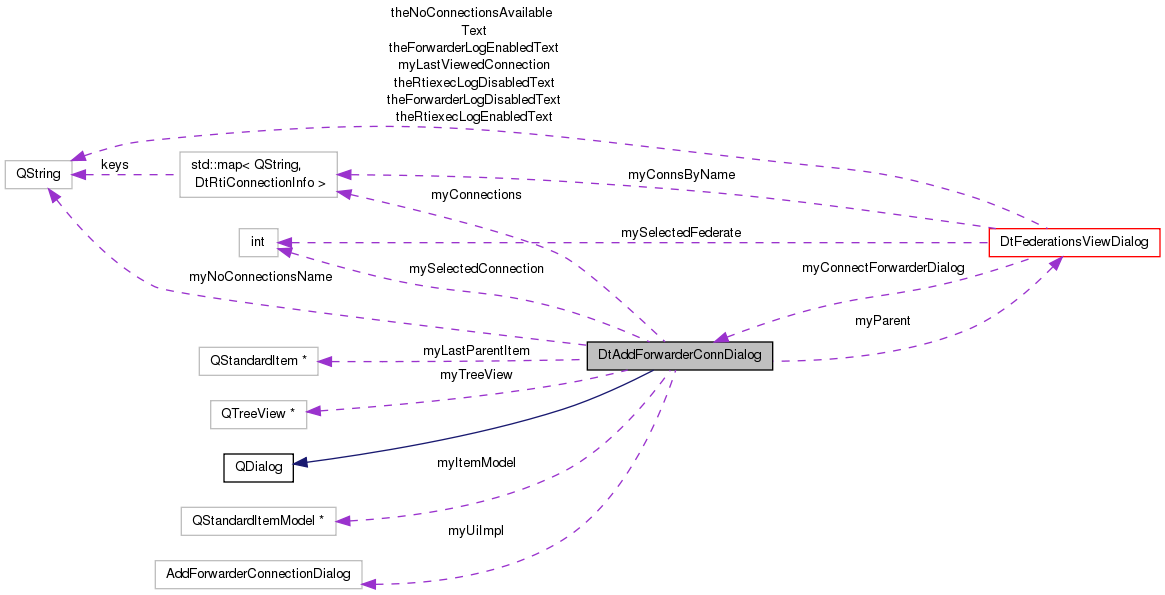

Collaboration diagram for DtAddForwarderConnDialog:

Public Slots
void	selectConnection ()
	Initiate a connection to the selected forwarder (from the view dialog's selected forwarder)
void	cancelConnect ()
	The connect was canceled. Clean up.
void	processConnectionSelection (int index)
	Processes the selection of a new connection.

Signals
void	connectionSelected (const QString &connectionName)
	Connection was selected.

Public Member Functions
	DtAddForwarderConnDialog (DtFederationsViewDialog *parent, Qt::WindowFlags f=0)
	Constructor.
virtual	~DtAddForwarderConnDialog ()
	Destructor.
virtual void	addConnection (const QString &connectionName, const DtRtiConnectionInfo &connection)
	Add a connection.
virtual int	selectedConnection () const
	Return the selected index.
void	clearConnections ()
	Clear the connection list.
virtual void	addItem (const QString &attribute, const QString &val, const QColor &colorValue=Qt::black)
	Add a new text item to the info panel optional text color.
virtual void	addItem (const QString &attribute, QWidget *w)
	Add a new widget item to the info panel.
virtual void	addSubItem (const QString &val, const QColor &colorValue=Qt::black)
	Add a new text sub-item to the info panel optional text color.
virtual void	removeItem (const QString &attribute)
	Removes any items with the matching attribute name.

Protected Attributes
DtFederationsViewDialog *	myParent
Ui::AddForwarderConnectionDialog	myUiImpl
	The GUI implementation of the widget.
int	mySelectedConnection
	The selected connection index.
QTreeView *	myTreeView
QStandardItemModel *	myItemModel
QStandardItem *	myLastParentItem
std::map< QString, DtRtiConnectionInfo >	myConnections
const QString	myNoConnectionsName

Detailed Description

Dialog that allows a user to enter connection information.

Constructor & Destructor Documentation

DtAddForwarderConnDialog::DtAddForwarderConnDialog	(	DtFederationsViewDialog *	parent,
		Qt::WindowFlags	f = 0
	)

Constructor.

virtual DtAddForwarderConnDialog::~DtAddForwarderConnDialog ( )

virtual

Destructor.

Member Function Documentation

virtual void DtAddForwarderConnDialog::addConnection ( const QString &  connectionName, const DtRtiConnectionInfo &  connection  )

virtual

Add a connection.

virtual void DtAddForwarderConnDialog::addItem ( const QString &  attribute, const QString &  val, const QColor &  colorValue = Qt::black  )

virtual

Add a new text item to the info panel optional text color.

virtual void DtAddForwarderConnDialog::addItem ( const QString &  attribute, QWidget *  w  )

virtual

Add a new widget item to the info panel.

virtual void DtAddForwarderConnDialog::addSubItem ( const QString &  val, const QColor &  colorValue = Qt::black  )

virtual

Add a new text sub-item to the info panel optional text color.

Sub-items are added as children under the previously added item.

void DtAddForwarderConnDialog::cancelConnect ( )

slot

The connect was canceled. Clean up.

void DtAddForwarderConnDialog::clearConnections

(

)

Clear the connection list.

void DtAddForwarderConnDialog::connectionSelected ( const QString &  connectionName )

signal

Connection was selected.

void DtAddForwarderConnDialog::processConnectionSelection ( int  index )

slot

Processes the selection of a new connection.

virtual void DtAddForwarderConnDialog::removeItem ( const QString &  attribute )

virtual

Removes any items with the matching attribute name.

void DtAddForwarderConnDialog::selectConnection ( )

slot

Initiate a connection to the selected forwarder (from the view dialog's selected forwarder)

virtual int DtAddForwarderConnDialog::selectedConnection ( ) const

virtual

Return the selected index.

Member Data Documentation

std::map<QString, DtRtiConnectionInfo> DtAddForwarderConnDialog::myConnections

protected

QStandardItemModel* DtAddForwarderConnDialog::myItemModel

protected

QStandardItem* DtAddForwarderConnDialog::myLastParentItem

protected

const QString DtAddForwarderConnDialog::myNoConnectionsName

protected

DtFederationsViewDialog* DtAddForwarderConnDialog::myParent

protected

int DtAddForwarderConnDialog::mySelectedConnection

protected

The selected connection index.

QTreeView* DtAddForwarderConnDialog::myTreeView

protected

Ui::AddForwarderConnectionDialog DtAddForwarderConnDialog::myUiImpl

protected

The GUI implementation of the widget.

---

The documentation for this class was generated from the following file:

• addForwarderConnectionDialog.h
