Maintains list of known RTI connections and processes connection queries from RTI components. More...

Inheritance diagram for DtAssistantConnQueryMgr:

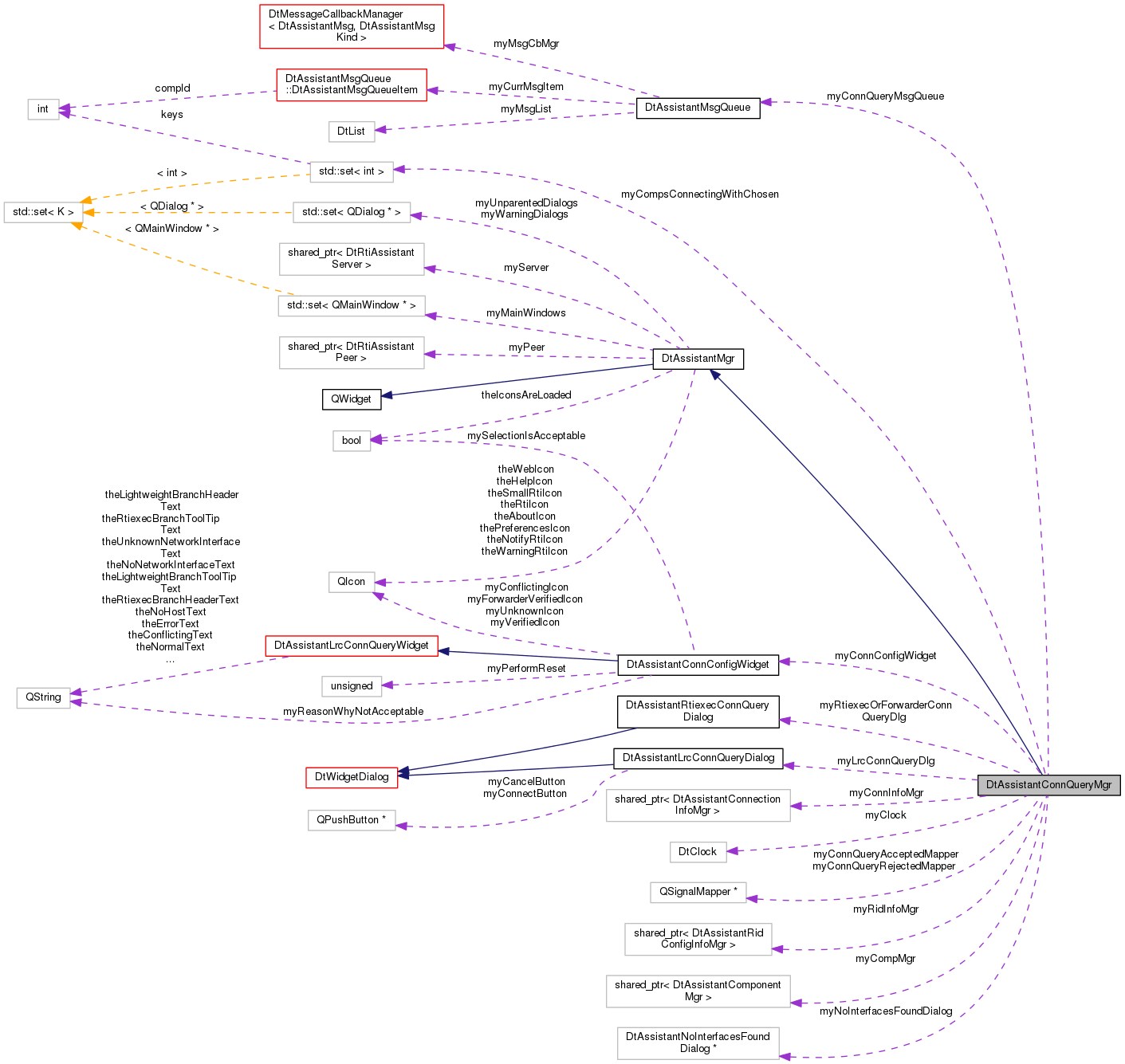

Collaboration diagram for DtAssistantConnQueryMgr:

Public Slots
void	processConnectionsUpdate (const DtRtiConnectionAndConfiguration &conns)
	Processes an update to existing connections or the discovery of new connections. More...

void	processConnectionsRemoval (const DtRtiConnectionAndConfiguration &conns)
	Processes the removal of existing connections. More...

void	processAssistantFound (const DtAssistantInfo &assistant)
	Process the discovery of a remote assistant. More...

void	processAssistantLost (const DtAssistantInfo &assistant)
	Process the loss of a discovered remote assistant. More...

void	processConnQueryAccepted (QWidget *widget)
	Processes the acceptance of a connection query dialog. More...

void	processConnQueryRejected (QWidget *widget)
	Processes the rejection of a connection query dialog. More...

void	captureStartRtiexec (const DtRtiConnectionInfoDataPair &, const DtRtiConnectionConfigurationInfo &, bool)
	Starts an rtiexec with the given connection and configuration. More...

void	captureEditRtiConfigurations ()
	Shows the RTI Configuration editing page of the preferences dialog. More...

void	addProhibitedPort (int port, const MAKRti::DtString &reason)
	Adds a port that will not be allowed to use in choosing a connection. More...

void	removeProhibitedPort (int port)
	Removes a port that will not be allowed to use in choosing a connection. More...

void	closeConnQueryDialog (const DtAssistantComponentInfo *info)
	Closes the displayed connection query dialog if it matches the given ID. More...

void	processNewUserAddedConnection (const DtRtiConnectionInfoDataPair &, DtAssistantConnQueryWidget *)
	Processes the addition of a new user defined connection that has not yet been accepted. More...

void	checkForConflictingUnsavedConns (DtAssistantConnQueryWidget *widget)
	Checks the unsaved user-added connections from the given widget in order to set whether the connection is conflicting or not. More...

void	setStartRtiexecEnableBasedOnConn (const DtRtiConnectionInfoDataPair &)
	Enables or disables the "Start rtiexec" functionality based on the given connection. More...

void	internalConnectionQuery (DtAssistantComponentType componentType)
	Handle a internal connection query. More...

virtual void	refreshConfigurationList ()
	Refresh instantiated conn query widgets with the latest configurations from the RID Info manager. More...

void	processRtiSettingsNameSelected (const MAKRti::DtString &, bool)
	Selects the proper RTI Setting from the combo box. More...

Public Slots inherited from DtAssistantMgr
void	displayWarningDialogs ()
	Displays all warning dialogs. More...

Signals
void	showConfigDialog (DtPreferencesPage pageNum=DtInvalidPreferencesPage)
	Signal to show the RID Configuration page. More...

void	startRtiexec (const DtRtiConnectionInfoDataPair &conn, const DtRtiConnectionConfigurationInfo &config, bool accepted)
	Signal to start an rtiexec with given configuration. More...

void	startRtiForwarder (const DtRtiConnectionInfoDataPair &conn, const DtRtiConnectionConfigurationInfo &config, bool accepted)
	Signal to start an rti forwarder with given configuration. More...

Signals inherited from DtAssistantMgr
void	warningDialogDisplayed ()
	Emitted when a warning dialog is displayed. More...

void	warningDialogDismissed ()
	Emitted when a warning dialog is dismissed. More...

void	popupRequested (const MAKRti::DtString &text, int sourceCompId, const MAKRti::DtString &advancedText)
	Emitted when a popup dialog should be displayed. More...

void	popupRequested (const MAKRti::DtString &text, const MAKRti::DtString &source, const MAKRti::DtString &advancedText)
	Emitted when a popup dialog should be displayed. More...

void	notificationRequested (const MAKRti::DtString &message, MAKRti::DtNotifyLevelType notifyLevel, int sourceCompId, bool logOnly)
	Emitted when a notification should be displayed. More...

void	notificationRequested (const MAKRti::DtString &message, MAKRti::DtNotifyLevelType notifyLevel, const MAKRti::DtString &source, bool logOnly)
	Emitted when a notification should be displayed. More...

Public Member Functions
	DtAssistantConnQueryMgr (DtBoost::shared_ptr< DtRtiAssistantServer > server, DtBoost::shared_ptr< DtRtiAssistantPeer > peer, DtAssistantSignalRouter &signalRouter, DtBoost::shared_ptr< DtAssistantComponentMgr > compMgr, DtBoost::shared_ptr< DtAssistantRidConfigInfoMgr > ridInfoMgr, DtBoost::shared_ptr< DtAssistantConnectionInfoMgr > connInfoMgr)
	Constructor. More...

virtual	~DtAssistantConnQueryMgr ()
	Destructor. More...

virtual void	tick ()
	Performs tasks that need to be completed periodically. More...

virtual void	configWidget (DtAssistantConfigWidget **widget, QIcon &icon, QString &name, DtPreferencesPage &pageId)
	Retrieves a widget which will be placed in the configuration dialog for configuring user preferences. More...

virtual void	updateConfigWidget ()
	Forces the configuration widget to be updated. More...

virtual void	processConfigWidgetAccept ()
	Process the changes that were accepted in the configuration widget. More...

virtual bool	updateConfigFromWidgetResults (DtRtiConnectionInfoDataPair &connInfo, DtRtiConnectionConfigurationInfo &config, DtAssistantConnQueryWidget *widget)
	Updates the stored configuration from the results of widget. More...

virtual void	updateConnQueryWidget (DtAssistantConnQueryWidget *widget, bool preserveSelection)
	Updates the given connection query widget with the latest RTI connections from the cache. More...

Public Member Functions inherited from DtAssistantMgr
	DtAssistantMgr (DtBoost::shared_ptr< DtRtiAssistantServer > server, DtBoost::shared_ptr< DtRtiAssistantPeer > peer, DtAssistantSignalRouter &signalRouter)
	Constructor. More...

virtual	~DtAssistantMgr ()
	Destructor. More...

virtual void	initialize ()
	Initializes this manager just prior to beginning assistant processing. More...

virtual void	startShutdown ()
	Performs any necessary processing at the start of shutdown. More...

virtual bool	dialogsVisible () const
	Determines if there are any visible dialogs for which this manager is responsible. More...

Protected Member Functions
virtual bool	checkForInterfaces ()
	Checks for the existence of at least one usable network interface. More...

void	processConnQueryResults (QWidget *widget, bool accepted)
	Processes the results of a connection query. More...

virtual void	processUserAddedConnections (const DtRtiConnectionAndConfiguration &conns)
	Process the addition of new connections. More...

virtual void	processUserRemovedConnections (const DtRtiConnectionAndConfiguration &conns)
	Process the removal of connections. More...

virtual void	addToAllConnQuery (const DtRtiConnectionAndConfiguration &conns)
	Adds a set of connections and configurations to all connection query widgets. More...

virtual void	removeFromAllConnQuery (const DtRtiConnectionAndConfiguration &conns)
	Removes the set of connections to all connection query widgets. More...

virtual void	setConfigurationMetaData (DtRtiConnectionConfigurationInfo &config)
	Refreshes the RID lisp in the configuration with the latest from disk. More...

void	setChosenConnection (const DtRtiConnectionInfo &conn, const DtRtiConnectionConfigurationInfo &config)
	Process a request to set the connection and config chosen to be used automatically in the future. More...

void	clearChosenConnection ()
	Process a request to remove the connection chosen to be used automatically in the future. More...

Protected Member Functions inherited from DtAssistantMgr
void	startDialog (QDialog *dlg, bool inTaskbar, bool warningDialog)
	Sets up the given widget as a dialog. More...

void	finishDialog (QDialog *dlg)
	Should be called prior to deleting any dialog started with startDialog. More...

void	showDialog (QDialog *dlg)
	Shows the dialog. More...

void	startMainWindow (QMainWindow *dlg)
	Sets up a main window dialog. More...

void	finishMainWindow (QMainWindow *dlg)
	Should be called prior to deleting any dialog started with startMainWindow. More...

void	showMainWindow (QMainWindow *dlg)
	Shows the dialog. More...

void	showPopup (const MAKRti::DtString &text, int sourceCompId=-1, const MAKRti::DtString &advancedText=MAKRti::DtString::nullString())
	Displays a popup message with the given text, advanced text, and name of the given source component. More...

void	showPopup (const MAKRti::DtString &text, const MAKRti::DtString &source, const MAKRti::DtString &advancedText=MAKRti::DtString::nullString())
	Displays a popup message with the given text, advanced text, and source name. More...

void	displayNotification (const MAKRti::DtString &message, MAKRti::DtNotifyLevelType notifyLevel, int sourceCompId=-1)
	Displays and logs a notification from the given component. More...

void	displayNotification (const MAKRti::DtString &message, MAKRti::DtNotifyLevelType notifyLevel, const MAKRti::DtString &source)
	Displays and logs notification with the given component name. More...

void	logNotification (const MAKRti::DtString &message, MAKRti::DtNotifyLevelType notifyLevel, int sourceCompId=-1)
	Logs a notification from the given component, does not display. More...

void	logNotification (const MAKRti::DtString &message, MAKRti::DtNotifyLevelType notifyLevel, const MAKRti::DtString &source)
	Logs a notification with the given component name, does not display. More...

virtual DtAssistantInfo	assistantInfoFromAssistantMsg (const DtAssistantMsg &assistantMsg, DtInetAddrSet *interfaces=0)

Protected Attributes
DtAssistantMsgQueue	myConnQueryMsgQueue
	The queue which holds connection query messages. More...

DtBoost::shared_ptr < DtAssistantComponentMgr >	myCompMgr
	The manager that keeps track of all local RTI components. More...

DtBoost::shared_ptr < DtAssistantRidConfigInfoMgr >	myRidInfoMgr
	The manager that keeps track of all RID configurations. More...

DtBoost::shared_ptr < DtAssistantConnectionInfoMgr >	myConnInfoMgr
	The manager that keeps track of all active and inactive connections. More...

DtClock	myClock
	Clock for determining when local interfaces should be checked. More...

DtAssistantLrcConnQueryDialog *	myLrcConnQueryDlg
	The dialog which queries the user for LRC connection information. More...

DtAssistantRtiexecConnQueryDialog *	myRtiexecOrForwarderConnQueryDlg
	The dialog which queries the user for rtiexec or Forwarder connection information. More...

DtAssistantConnConfigWidget *	myConnConfigWidget
	Connection configuration widget to be inserted into the assistant configuration dialog. More...

DtAssistantNoInterfacesFoundDialog *	myNoInterfacesFoundDialog
	The dialog that informs users that no network interfaces were found. More...

std::set< int >	myCompsConnectingWithChosen
	The set of components that have been told to try to use the current chosen connection. More...

Signal mappers for the connection query dialogs.
QSignalMapper *	myConnQueryAcceptedMapper

QSignalMapper *	myConnQueryRejectedMapper

Protected Attributes inherited from DtAssistantMgr
DtBoost::shared_ptr < DtRtiAssistantServer >	myServer
	The Assistant server from which new messages will arrive from local RTI components. More...

DtBoost::shared_ptr < DtRtiAssistantPeer >	myPeer
	The Assistant peer which communicates with other Assistants. More...

std::set< QDialog * >	myUnparentedDialogs
	All unparented dialogs that are created by the GUI should be added to this set. More...

std::set< QMainWindow * >	myMainWindows
	All main windows that are created by the GUI should be added to this set. More...

std::set< QDialog * >	myWarningDialogs
	Set of the popup dialogs, either parented or unparented, which, when active, should cause a warning icon to be displayed. More...

Private Member Functions
	DtAssistantConnQueryMgr (const DtAssistantConnQueryMgr &)
	Copy Constructor not implemented – Copy Not Allowed! More...

DtAssistantConnQueryMgr &	operator= (const DtAssistantConnQueryMgr &)
	Assignment not implemented – Assignment Not Allowed! More...

Message Callbacks
Callbacks for connection query messages
static void	addConnQueryMsgToQueue (const DtAssistantConnQueryMsg &msg, void *usr)
	Callback to add connection query message to queue. More...

static void	processConnQueryMsg (const DtAssistantConnQueryMsg &msg, void *usr)
	Callback to process a connection query message from a component. More...

virtual void	addConnQueryMsgToQueue (const DtAssistantConnQueryMsg &msg)
	Called by the callback function to add a message to the queue. More...

virtual void	processConnQueryMsg (const DtAssistantConnQueryMsg &msg)
	Called by the callback function to process connection query messages. More...

Additional Inherited Members
Static Protected Attributes inherited from DtAssistantMgr
static QIcon	theRtiIcon
	The icons used by the RTI Assistant. More...

static QIcon	theSmallRtiIcon

static QIcon	theWebIcon

static QIcon	theNotifyRtiIcon

static QIcon	theWarningRtiIcon

static QIcon	thePreferencesIcon

static QIcon	theAboutIcon

static QIcon	theHelpIcon

static bool	theIconsAreLoaded
	Whether or not the icons have yet been loaded. More...

Detailed Description

Maintains list of known RTI connections and processes connection queries from RTI components.

Constructor & Destructor Documentation

DtAssistantConnQueryMgr::DtAssistantConnQueryMgr	(	DtBoost::shared_ptr< DtRtiAssistantServer >	server,
		DtBoost::shared_ptr< DtRtiAssistantPeer >	peer,
		DtAssistantSignalRouter &	signalRouter,
		DtBoost::shared_ptr< DtAssistantComponentMgr >	compMgr,
		DtBoost::shared_ptr< DtAssistantRidConfigInfoMgr >	ridInfoMgr,
		DtBoost::shared_ptr< DtAssistantConnectionInfoMgr >	connInfoMgr
	)

Constructor.

virtual DtAssistantConnQueryMgr::~DtAssistantConnQueryMgr ( )

virtual

Destructor.

DtAssistantConnQueryMgr::DtAssistantConnQueryMgr ( const DtAssistantConnQueryMgr & )

private

Copy Constructor not implemented – Copy Not Allowed!

Member Function Documentation

static void DtAssistantConnQueryMgr::addConnQueryMsgToQueue	(	const DtAssistantConnQueryMsg &	msg,
		void *	usr
	)

staticprotected

Callback to add connection query message to queue.

Connection query messages should be added to a queue in order to be processed one at a time. Two connection query dialogs should not be displayed at the same time.

virtual void DtAssistantConnQueryMgr::addConnQueryMsgToQueue ( const DtAssistantConnQueryMsg & msg )

protectedvirtual

Called by the callback function to add a message to the queue.

void DtAssistantConnQueryMgr::addProhibitedPort	(	int	port,
		const MAKRti::DtString &	reason
	)

slot

Adds a port that will not be allowed to use in choosing a connection.

virtual void DtAssistantConnQueryMgr::addToAllConnQuery ( const DtRtiConnectionAndConfiguration & conns )

protectedvirtual

Adds a set of connections and configurations to all connection query widgets.

void DtAssistantConnQueryMgr::captureEditRtiConfigurations ( )

slot

Shows the RTI Configuration editing page of the preferences dialog.

void DtAssistantConnQueryMgr::captureStartRtiexec	(	const DtRtiConnectionInfoDataPair &	,
		const DtRtiConnectionConfigurationInfo &	,
		bool
	)

slot

Starts an rtiexec with the given connection and configuration.

void DtAssistantConnQueryMgr::checkForConflictingUnsavedConns ( DtAssistantConnQueryWidget * widget )

slot

Checks the unsaved user-added connections from the given widget in order to set whether the connection is conflicting or not.

virtual bool DtAssistantConnQueryMgr::checkForInterfaces ( )

protectedvirtual

Checks for the existence of at least one usable network interface.

If not an error dialog will be displayed and the return value will be false.

void DtAssistantConnQueryMgr::clearChosenConnection ( )

protected

Process a request to remove the connection chosen to be used automatically in the future.

void DtAssistantConnQueryMgr::closeConnQueryDialog ( const DtAssistantComponentInfo * info )

slot

Closes the displayed connection query dialog if it matches the given ID.

virtual void DtAssistantConnQueryMgr::configWidget	(	DtAssistantConfigWidget **	widget,
		QIcon &	icon,
		QString &	name,
		DtPreferencesPage &	pageId
	)

virtual

Retrieves a widget which will be placed in the configuration dialog for configuring user preferences.

Reimplemented from DtAssistantMgr.

void DtAssistantConnQueryMgr::internalConnectionQuery ( DtAssistantComponentType componentType )

slot

Handle a internal connection query.

DtAssistantConnQueryMgr& DtAssistantConnQueryMgr::operator= ( const DtAssistantConnQueryMgr & )

private

Assignment not implemented – Assignment Not Allowed!

void DtAssistantConnQueryMgr::processAssistantFound ( const DtAssistantInfo & assistant )

slot

Process the discovery of a remote assistant.

void DtAssistantConnQueryMgr::processAssistantLost ( const DtAssistantInfo & assistant )

slot

Process the loss of a discovered remote assistant.

virtual void DtAssistantConnQueryMgr::processConfigWidgetAccept ( )

virtual

Process the changes that were accepted in the configuration widget.

Reimplemented from DtAssistantMgr.

void DtAssistantConnQueryMgr::processConnectionsRemoval ( const DtRtiConnectionAndConfiguration & conns )

slot

Processes the removal of existing connections.

void DtAssistantConnQueryMgr::processConnectionsUpdate ( const DtRtiConnectionAndConfiguration & conns )

slot

Processes an update to existing connections or the discovery of new connections.

void DtAssistantConnQueryMgr::processConnQueryAccepted ( QWidget * widget )

slot

Processes the acceptance of a connection query dialog.

static void DtAssistantConnQueryMgr::processConnQueryMsg	(	const DtAssistantConnQueryMsg &	msg,
		void *	usr
	)

staticprotected

Callback to process a connection query message from a component.

virtual void DtAssistantConnQueryMgr::processConnQueryMsg ( const DtAssistantConnQueryMsg & msg )

protectedvirtual

Called by the callback function to process connection query messages.

void DtAssistantConnQueryMgr::processConnQueryRejected ( QWidget * widget )

slot

Processes the rejection of a connection query dialog.

void DtAssistantConnQueryMgr::processConnQueryResults	(	QWidget *	widget,
		bool	accepted
	)

protected

Processes the results of a connection query.

void DtAssistantConnQueryMgr::processNewUserAddedConnection	(	const DtRtiConnectionInfoDataPair &	,
		DtAssistantConnQueryWidget *
	)

slot

Processes the addition of a new user defined connection that has not yet been accepted.

void DtAssistantConnQueryMgr::processRtiSettingsNameSelected	(	const MAKRti::DtString &	,
		bool
	)

slot

Selects the proper RTI Setting from the combo box.

virtual void DtAssistantConnQueryMgr::processUserAddedConnections ( const DtRtiConnectionAndConfiguration & conns )

protectedvirtual

Process the addition of new connections.

virtual void DtAssistantConnQueryMgr::processUserRemovedConnections ( const DtRtiConnectionAndConfiguration & conns )

protectedvirtual

Process the removal of connections.

virtual void DtAssistantConnQueryMgr::refreshConfigurationList ( )

virtualslot

Refresh instantiated conn query widgets with the latest configurations from the RID Info manager.

virtual void DtAssistantConnQueryMgr::removeFromAllConnQuery ( const DtRtiConnectionAndConfiguration & conns )

protectedvirtual

Removes the set of connections to all connection query widgets.

void DtAssistantConnQueryMgr::removeProhibitedPort ( int port )

slot

Removes a port that will not be allowed to use in choosing a connection.

void DtAssistantConnQueryMgr::setChosenConnection	(	const DtRtiConnectionInfo &	conn,
		const DtRtiConnectionConfigurationInfo &	config
	)

protected

Process a request to set the connection and config chosen to be used automatically in the future.

virtual void DtAssistantConnQueryMgr::setConfigurationMetaData ( DtRtiConnectionConfigurationInfo & config )

protectedvirtual

Refreshes the RID lisp in the configuration with the latest from disk.

void DtAssistantConnQueryMgr::setStartRtiexecEnableBasedOnConn ( const DtRtiConnectionInfoDataPair & )

slot

Enables or disables the "Start rtiexec" functionality based on the given connection.

void DtAssistantConnQueryMgr::showConfigDialog ( DtPreferencesPage pageNum = DtInvalidPreferencesPage )

signal

Signal to show the RID Configuration page.

void DtAssistantConnQueryMgr::startRtiexec	(	const DtRtiConnectionInfoDataPair &	conn,
		const DtRtiConnectionConfigurationInfo &	config,
		bool	accepted
	)

signal

Signal to start an rtiexec with given configuration.

void DtAssistantConnQueryMgr::startRtiForwarder	(	const DtRtiConnectionInfoDataPair &	conn,
		const DtRtiConnectionConfigurationInfo &	config,
		bool	accepted
	)

signal

Signal to start an rti forwarder with given configuration.

virtual void DtAssistantConnQueryMgr::tick ( )

virtual

Performs tasks that need to be completed periodically.

Reimplemented from DtAssistantMgr.

virtual bool DtAssistantConnQueryMgr::updateConfigFromWidgetResults	(	DtRtiConnectionInfoDataPair &	connInfo,
		DtRtiConnectionConfigurationInfo &	config,
		DtAssistantConnQueryWidget *	widget
	)

virtual

Updates the stored configuration from the results of widget.

Sets connInfo and config with the currently selected connection information. Returns true if the connection was made the chosen connection.

virtual void DtAssistantConnQueryMgr::updateConfigWidget ( )

virtual

Forces the configuration widget to be updated.

Reimplemented from DtAssistantMgr.

virtual void DtAssistantConnQueryMgr::updateConnQueryWidget	(	DtAssistantConnQueryWidget *	widget,
		bool	preserveSelection
	)

virtual

Updates the given connection query widget with the latest RTI connections from the cache.

Will preserve the current selection in the dialog if preserveSelection is true.

Member Data Documentation

DtClock DtAssistantConnQueryMgr::myClock

protected

Clock for determining when local interfaces should be checked.

DtBoost::shared_ptr<DtAssistantComponentMgr> DtAssistantConnQueryMgr::myCompMgr

protected

The manager that keeps track of all local RTI components.

std::set<int> DtAssistantConnQueryMgr::myCompsConnectingWithChosen

protected

The set of components that have been told to try to use the current chosen connection.

DtAssistantConnConfigWidget* DtAssistantConnQueryMgr::myConnConfigWidget

protected

Connection configuration widget to be inserted into the assistant configuration dialog.

DtBoost::shared_ptr<DtAssistantConnectionInfoMgr> DtAssistantConnQueryMgr::myConnInfoMgr

protected

The manager that keeps track of all active and inactive connections.

QSignalMapper* DtAssistantConnQueryMgr::myConnQueryAcceptedMapper

protected

DtAssistantMsgQueue DtAssistantConnQueryMgr::myConnQueryMsgQueue

protected

The queue which holds connection query messages.

Only one may be processed at a time, but this should not prevent the processing of other messages.

QSignalMapper* DtAssistantConnQueryMgr::myConnQueryRejectedMapper

protected

DtAssistantLrcConnQueryDialog* DtAssistantConnQueryMgr::myLrcConnQueryDlg

protected

The dialog which queries the user for LRC connection information.

DtAssistantNoInterfacesFoundDialog* DtAssistantConnQueryMgr::myNoInterfacesFoundDialog

protected

The dialog that informs users that no network interfaces were found.

DtBoost::shared_ptr<DtAssistantRidConfigInfoMgr> DtAssistantConnQueryMgr::myRidInfoMgr

protected

The manager that keeps track of all RID configurations.

DtAssistantRtiexecConnQueryDialog* DtAssistantConnQueryMgr::myRtiexecOrForwarderConnQueryDlg

protected

The dialog which queries the user for rtiexec or Forwarder connection information.

The documentation for this class was generated from the following file:

connQueryMgr.h

Public Slots

Signals

Public Member Functions

Protected Member Functions

Protected Attributes

Private Member Functions

Message Callbacks

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
