DtMessageFilter is a base class for filters applied to DtFilteredTcpForwarder. More...

Inheritance diagram for DtMessageFilter:

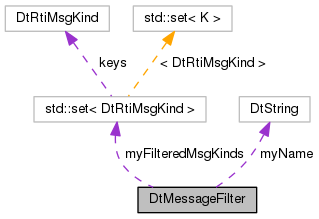

Collaboration diagram for DtMessageFilter:

Public Member Functions
	DtMessageFilter (const char *name)
	Default Ctor ( created with empty list of filtered messages ) More...

	DtMessageFilter (const char *name, const std::set< DtRtiMsgKind > &filteredKinds)
	Ctor taking a set of filtered message kinds. More...

virtual	~DtMessageFilter ()
	Default Dtor. More...

MAKRti::DtString const &	name () const
	Return filter name. More...

const std::set< DtRtiMsgKind > &	filteredMsgKinds () const
	Returns the set of all message types to which this filter may be applied - used to map messages to filters NOTE: isFilteredMsgKind may still reject the message. More...

virtual void	filter (const DtTcpMsgSocket fromSocket, const DtTcpMsgSocketMap connectionList, DtTcpMsgSocketMap *destinationList, caddr_t packet, size_t size)
	If applicable message type, Apply filter to the message and modify destination list to add or remove filtered connections from full connection list NOTE: Generally it is only necessary to override the isFilteredMsgKind and doFilter() methods since all real work should be done there. More...

virtual bool	isFilteredMsgKind (DtRtiMsgKind kind) const
	Does this filter apply to this message? More...

Static Public Member Functions
static void	addToSocketMap (DtTcpMsgSocketMap sockMap, DtTcpMsgSocket sock)
	Adds the given socket to the given socket map. More...

static void	removeFromSocketMap (DtTcpMsgSocketMap sockMap, DtTcpMsgSocket sock)
	Remove the given socket from the given socket map. More...

Protected Member Functions
virtual void	doFilter (const DtTcpMsgSocket fromSocket, const DtTcpMsgSocketMap connectionList, DtTcpMsgSocketMap *destinationList, caddr_t packet, size_t size)
	Apply filter to the message and modify destination list to add or remove filtered connections from full connection list. More...

Protected Attributes
std::set< DtRtiMsgKind >	myFilteredMsgKinds

MAKRti::DtString	myName

Detailed Description

DtMessageFilter is a base class for filters applied to DtFilteredTcpForwarder.

DtMessageFilter and its derived classes process incoming messages and return a list of connections. The default DtMessageFilter returns an unmodified list.

Constructor & Destructor Documentation

DtMessageFilter::DtMessageFilter ( const char * name )

inline

Default Ctor ( created with empty list of filtered messages )

DtMessageFilter::DtMessageFilter	(	const char *	name,
		const std::set< DtRtiMsgKind > &	filteredKinds
	)

inline

Ctor taking a set of filtered message kinds.

DtMessageFilter::~DtMessageFilter ( )

inlinevirtual

Default Dtor.

Member Function Documentation

void DtMessageFilter::addToSocketMap	(	DtTcpMsgSocketMap *	sockMap,
		DtTcpMsgSocket *	sock
	)

inlinestatic

Adds the given socket to the given socket map.

References DtTcpMsgSocket::inetTcpSocket().

void DtMessageFilter::doFilter	(	const DtTcpMsgSocket *	fromSocket,
		const DtTcpMsgSocketMap *	connectionList,
		DtTcpMsgSocketMap *	destinationList,
		caddr_t	packet,
		size_t	size
	)

inlineprotectedvirtual

Apply filter to the message and modify destination list to add or remove filtered connections from full connection list.

Reimplemented in DtInternalRoutingFilter, DtUpdateInterRoutingFilter, DtRtiExecTrackingFilter, DtFederationShadowTrackingFilter, DtInternalRoutePrinterFilter, DtFedexMsgFilter, DtFederateTrackingFilter, DtRoutePrinterFilter, DtConnectConfirmFilter, and DtDeleteSocketFilter.

Referenced by filter().

void DtMessageFilter::filter	(	const DtTcpMsgSocket *	fromSocket,
		const DtTcpMsgSocketMap *	connectionList,
		DtTcpMsgSocketMap *	destinationList,
		caddr_t	packet,
		size_t	size
	)

inlinevirtual

If applicable message type, Apply filter to the message and modify destination list to add or remove filtered connections from full connection list NOTE: Generally it is only necessary to override the isFilteredMsgKind and doFilter() methods since all real work should be done there.

References doFilter(), and isFilteredMsgKind().

const std::set< DtRtiMsgKind > & DtMessageFilter::filteredMsgKinds ( ) const

inline

Returns the set of all message types to which this filter may be applied - used to map messages to filters NOTE: isFilteredMsgKind may still reject the message.

References myFilteredMsgKinds.

bool DtMessageFilter::isFilteredMsgKind ( DtRtiMsgKind kind ) const

inlinevirtual

Does this filter apply to this message?
