The DtTcpMsgSocket class provides an address family independent TCP socket that handles RTI messages. More...

Inheritance diagram for DtTcpMsgSocket:

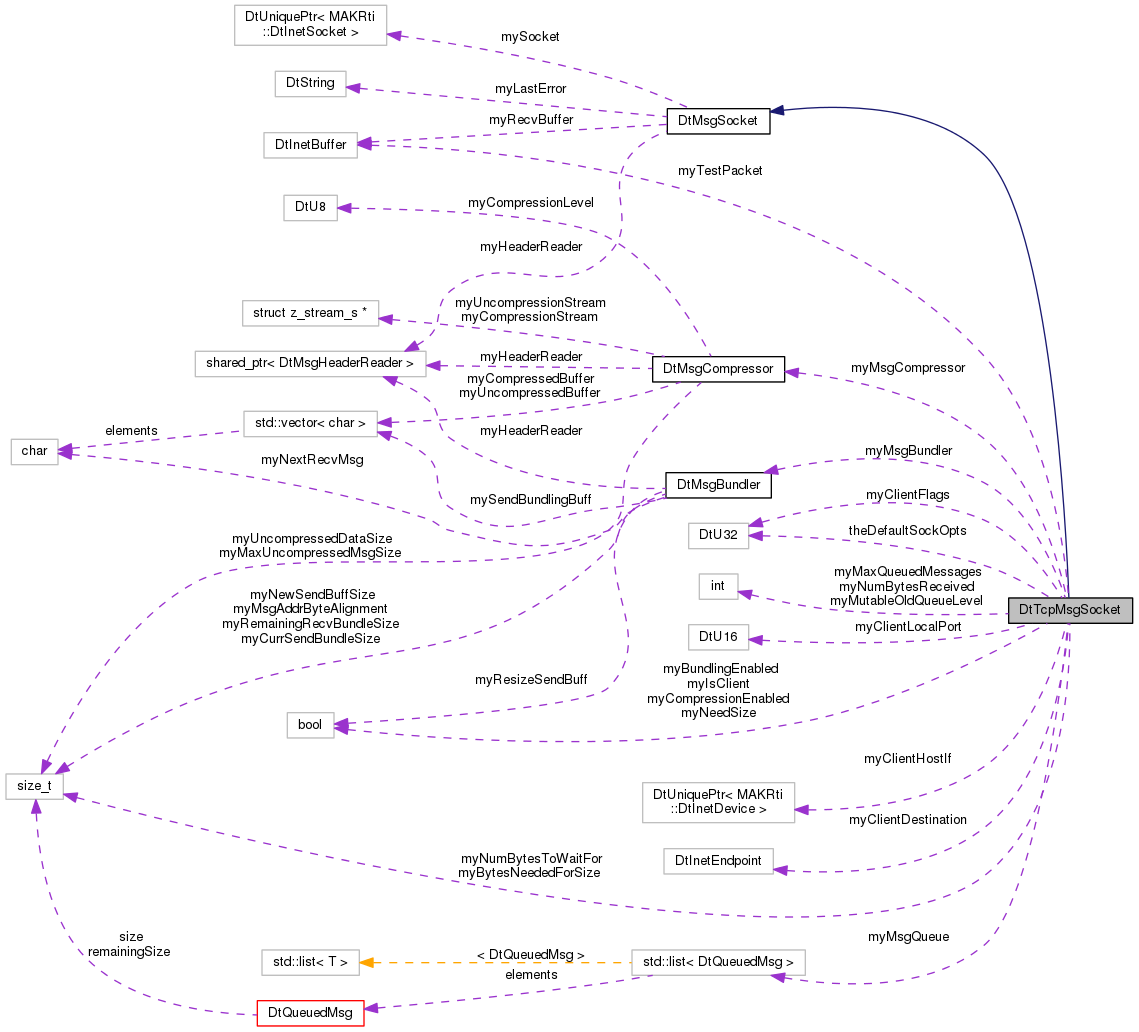

Collaboration diagram for DtTcpMsgSocket:

Public Member Functions
	DtTcpMsgSocket (std::shared_ptr< DtMsgHeaderReader > hdrReader, size_t recvBufferSize=20000, int maxQueuedMsgs=-1)
	Constructor. More...

	DtTcpMsgSocket (DtUniquePtr< MAKRti::DtInetTcpSocket > socket, std::shared_ptr< DtMsgHeaderReader > hdrReader, size_t recvBuffSize=20000, int maxQueuedMsgs=-1)
	Constructor which takes a pre-created MAKRti::DtInetTcpSocket pointer. More...

virtual	~DtTcpMsgSocket ()
	Destructor. More...

virtual void	openServerSocket (MAKRti::DtU16 localPort, MAKRti::DtU32 flags=theDefaultSockOpts, MAKRti::DtInetDevice *hostIf=NULL, MAKRti::DtInetUtils::DtInetAddrFamily family=MAKRti::DtInetUtils::DtInetAddrFamily_IPv4)
	Opens a server socket if not already open. More...

virtual void	openClientSocket (const MAKRti::DtInetEndpoint &dest, MAKRti::DtU32 flags=theDefaultSockOpts, MAKRti::DtU16 localPort=0, MAKRti::DtInetDevice *hostIf=NULL)
	Opens a client socket if not already open. More...

virtual MAKRti::DtInetTcpSocket *	reconnect ()

virtual void	replaceSocket (DtUniquePtr< MAKRti::DtInetTcpSocket > newSock)

virtual int	sendMessage (caddr_t msg, size_t msgSize, bool deleteAfterSend, const MAKRti::DtInetAddr &destAddr=MAKRti::DtInetAddr::inaddrAny(), int port=0)
	Sends a message, queuing it up if the receiver's buffer is full. More...

virtual bool	flush ()
	Attempts to send any queued messages and bundled messages. More...

virtual int	recvMessage (caddr_t *buffptr)
	Gets the next message from the stream of incoming data. More...

virtual int	recvMessageWithSrc (caddr_t *buffptr, MAKRti::DtInetEndpoint &src)
	Gets the next message from the stream of incoming data. More...

virtual void	enableBundling (size_t maxBundleSize)
	Enables message bundling and sets the maximum bundle size. More...

virtual void	disableBundling ()
	Disables message bundling. More...

virtual unsigned	bundleSize () const
	Returns the bundle size, or 0 if bundling disabled. More...

virtual void	enableCompression (MAKRti::DtU8 compressionLevel)
	Enables message compression and sets the compression level. More...

virtual void	disableCompression ()
	Disables message compression. More...

virtual unsigned	compressionLevel () const
	Returns the compression level, or 0 if compression disabled. More...

virtual bool	testConnectionStatus ()

virtual void	setMaxQueuedMessages (int size)
	Sets the maximum number of messages that can be queued. More...

virtual int	maxQueuedMessages () const
	Returns the maximum number of messages that can be queued. More...

virtual bool	getQueueStatus (int &percentFull) const
	Gets the percentage full of the message queue. More...

virtual void	setTcpNoDelay (bool enable)
	Changes the setting of TCP_NODELAY. More...

virtual void	setNonBlocking (bool nonBlocking)
	Makes the socket non-blocking or blocking. More...

virtual const MAKRti::DtInetEndpoint &	destination () const
	Returns the destination endpoint of this socket. More...

virtual MAKRti::DtU32	maxMsgSize () const
	Gets the maximum message size. More...

MAKRti::DtInetTcpSocket *	inetTcpSocket ()
	Returns a pointer to the MAKRti::DtInetTcpSocket. More...

bool	isConnected () const
	Returns true if the socket is connected. More...

bool	isConnectionInProgress () const
	Returns true if the socket is in the process of connecting. More...

MAKRti::DtString	getErrorString () const

virtual bool	isClient () const

Public Member Functions inherited from DtMsgSocket
	DtMsgSocket (std::shared_ptr< DtMsgHeaderReader > hdrReader, size_t recvBuffSize)
	Constructor. More...

	DtMsgSocket (DtUniquePtr< MAKRti::DtInetSocket > socket, std::shared_ptr< DtMsgHeaderReader > hdrReader, size_t recvBuffSize)
	Constructor which takes a pre-created MAKRti::DtInetSocket pointer. More...

virtual	~DtMsgSocket ()
	Destructor. More...

virtual bool	closeSocket ()
	Close a socket. Returns true on successful close or false on failure. More...

virtual MAKRti::DtInetSockState	state () const
	Returns the state of the socket. More...

void	printStateToStream (MAKRti::DtOutputStream &stream) const
	prints state to stream More...

const MAKRti::DtString &	lastError () const
	Returns a description of the last error. More...

const MAKRti::DtInetEndpoint &	localEndpoint () const
	Gets the local endpoint for the socket. More...

void	setSendBufferSize (MAKRti::DtU32 size)
	Sets the socket send buffer size. More...

void	setRecvBufferSize (MAKRti::DtU32 size)
	Sets the socket receive buffer size. More...

MAKRti::DtU32	maxSendMsgSize () const
	Gets the maximum socket send size. More...

unsigned int	descriptor () const
	Get's the socket file descriptor. More...

MAKRti::DtInetSocket *	inetSocket ()
	Returns a pointer to the MAKRti::DtInetSocket. More...

Protected Member Functions
virtual int	sendData (caddr_t msg, size_t msgSize, bool deleteAfterSend)
	Sends data on the socket, queues if it cannot be sent. More...

virtual bool	flushQueue ()
	Attempts to send any queued messages. More...

virtual bool	queueMessage (caddr_t msg, size_t msgSize)
	Adds a message to the transmit queue. Returns true if successful. More...

virtual void	resizeTestPacket ()
	Resizes the test packet used to test the connection. More...

Protected Member Functions inherited from DtMsgSocket
void	expandRecvBuffer (size_t sizeNeeded)
	Expands the receive buffer to accommodate the given size message. More...

Protected Attributes
bool	myNeedSize
	Whether we still need to receive the size field for the next/current message. More...

size_t	myNumBytesToWaitFor
	The number of bytes we are waiting for to complete the message. More...

int	myNumBytesReceived
	The number of bytes we have so far received for the current message. More...

MAKRti::DtInetBuffer	myTestPacket
	The buffer to store test packets in. More...

std::list< DtQueuedMsg >	myMsgQueue
	The queue of unsent messages. More...

DtMsgBundler	myMsgBundler
	Bundler for outgoing messages. More...

bool	myBundlingEnabled
	Whether message bundling is enabled. More...

DtMsgCompressor	myMsgCompressor
	Message compressor and uncompressor. More...

bool	myCompressionEnabled
	Whether message compression is enabled. More...

int	myMaxQueuedMessages
	The maximum size the send queue is allowed to reach. More...

int	myMutableOldQueueLevel
	The queue level the last time the user was notified of queue state. More...

size_t	myBytesNeededForSize
	The number of bytes needed to read the size from the message header. More...

bool	myIsClient

MAKRti::DtInetEndpoint	myClientDestination

MAKRti::DtU32	myClientFlags

MAKRti::DtU16	myClientLocalPort

DtUniquePtr< MAKRti::DtInetDevice >	myClientHostIf

Protected Attributes inherited from DtMsgSocket
DtUniquePtr< MAKRti::DtInetSocket >	mySocket
	The socket. More...

MAKRti::DtInetBuffer	myRecvBuffer
	The buffer to store received data in. More...

MAKRti::DtString	myLastError
	Description of last error. More...

std::shared_ptr < DtMsgHeaderReader >	myHeaderReader
	Reads data from message header. More...

Static Protected Attributes
static const MAKRti::DtU32	theDefaultSockOpts

Detailed Description

The DtTcpMsgSocket class provides an address family independent TCP socket that handles RTI messages.

Constructor & Destructor Documentation

DtTcpMsgSocket::DtTcpMsgSocket	(	std::shared_ptr< DtMsgHeaderReader >	hdrReader,
		size_t	recvBufferSize = `20000`,
		int	maxQueuedMsgs = `-1`
	)

Constructor.

Requires a header reader to extract information from message headers. Does NOT open the socket. A call to openServerSocket() or openClientSocket() is required.

DtTcpMsgSocket::DtTcpMsgSocket	(	DtUniquePtr< MAKRti::DtInetTcpSocket >	socket,
		std::shared_ptr< DtMsgHeaderReader >	hdrReader,
		size_t	recvBuffSize = `20000`,
		int	maxQueuedMsgs = `-1`
	)

Constructor which takes a pre-created MAKRti::DtInetTcpSocket pointer.

Gives ownership and responsibility of the socket to the DtTcpMsgSocket object.

virtual DtTcpMsgSocket::~DtTcpMsgSocket ( )

virtual

Destructor.

Member Function Documentation

virtual unsigned DtTcpMsgSocket::bundleSize ( ) const

virtual

Returns the bundle size, or 0 if bundling disabled.

virtual unsigned DtTcpMsgSocket::compressionLevel ( ) const

virtual

Returns the compression level, or 0 if compression disabled.

virtual const MAKRti::DtInetEndpoint& DtTcpMsgSocket::destination ( ) const

virtual

Returns the destination endpoint of this socket.

virtual void DtTcpMsgSocket::disableBundling ( )

virtual

Disables message bundling.

Implements DtMsgSocket.

virtual void DtTcpMsgSocket::disableCompression ( )

virtual

Disables message compression.

Implements DtMsgSocket.

virtual void DtTcpMsgSocket::enableBundling ( size_t maxBundleSize )

virtual

Enables message bundling and sets the maximum bundle size.

Implements DtMsgSocket.

virtual void DtTcpMsgSocket::enableCompression ( MAKRti::DtU8 compressionLevel )

virtual

Enables message compression and sets the compression level.

Implements DtMsgSocket.

virtual bool DtTcpMsgSocket::flush ( )

virtual

Attempts to send any queued messages and bundled messages.

Returns true if all queued and bundled messages were sent.

Implements DtMsgSocket.

virtual bool DtTcpMsgSocket::flushQueue ( )

protectedvirtual

Attempts to send any queued messages.

Returns true if all queued messages were sent.

MAKRti::DtString DtTcpMsgSocket::getErrorString ( ) const

virtual bool DtTcpMsgSocket::getQueueStatus ( int & percentFull ) const

virtual

Gets the percentage full of the message queue.

Return value indicates whether a threshold has been hit such that a user alert is necessary.

MAKRti::DtInetTcpSocket * DtTcpMsgSocket::inetTcpSocket ( )

inline

Returns a pointer to the MAKRti::DtInetTcpSocket.

References DtMsgSocket::mySocket.

Referenced by DtMessageFilter::addToSocketMap(), DtMessageFilter::removeFromSocketMap(), and DtTcpMsgSocketMgr::socketIter().

virtual bool DtTcpMsgSocket::isClient ( ) const

virtual

bool DtTcpMsgSocket::isConnected ( ) const

inline

Returns true if the socket is connected.

bool DtTcpMsgSocket::isConnectionInProgress ( ) const

inline

Returns true if the socket is in the process of connecting.

virtual MAKRti::DtU32 DtTcpMsgSocket::maxMsgSize ( ) const

virtual

Gets the maximum message size.

virtual int DtTcpMsgSocket::maxQueuedMessages ( ) const

virtual

Returns the maximum number of messages that can be queued.

A negative value indicates no limit is imposed.

virtual void DtTcpMsgSocket::openClientSocket	(	const MAKRti::DtInetEndpoint &	dest,
		MAKRti::DtU32	flags = `theDefaultSockOpts`,
		MAKRti::DtU16	localPort = `0`,
		MAKRti::DtInetDevice *	hostIf = `NULL`
	)

virtual

Opens a client socket if not already open.

Takes a MAKRti::DtInetEndpoint (containing the destination address, protocol - TCP or UDP, and destination port number), a source port number to use, a pointer to the local network interface device the socket will be bound to, and socket option flags. The address family (IPv4 or IPv6) is assumed from the dest endpoint object. If the specified local port is 0 an ephemeral port will be chosen for the connection UNLESS the destination is a broadcast or multicast address, in which case the destination port is used as the local port also. If no host interface is specified the most appropriate interface will be chosen based on the destination. This ctor will not throw exceptions on failure. Check the socket status by calling state() to determine if the socket is ready.

virtual void DtTcpMsgSocket::openServerSocket	(	MAKRti::DtU16	localPort,
		MAKRti::DtU32	flags = `theDefaultSockOpts`,
		MAKRti::DtInetDevice *	hostIf = `NULL`,
		MAKRti::DtInetUtils::DtInetAddrFamily	family = `MAKRti::DtInetUtils::DtInetAddrFamily_IPv4`
	)

virtual

Opens a server socket if not already open.

Takes a port number to listen on, a pointer to the local network interface device the socket will be bound to, an address family indication (IPv4 or IPv6), socket option flags, and a trigger to open the socket immediately. If no host interface is specified the socket will be bound to INADDR_ANY (or IN6ADDR_ANY). Socket will be opened immediately. This ctor will not throw exceptions on failure. Check the socket status by calling state() to determine if the socket is ready to use.

virtual bool DtTcpMsgSocket::queueMessage	(	caddr_t	msg,
		size_t	msgSize
	)

protectedvirtual

Adds a message to the transmit queue. Returns true if successful.

virtual MAKRti::DtInetTcpSocket* DtTcpMsgSocket::reconnect ( )

virtual

virtual int DtTcpMsgSocket::recvMessage ( caddr_t * buffptr )

virtual

Gets the next message from the stream of incoming data.

Implements DtMsgSocket.

virtual int DtTcpMsgSocket::recvMessageWithSrc	(	caddr_t *	buffptr,
		MAKRti::DtInetEndpoint &	src
	)

virtual

Gets the next message from the stream of incoming data.

Implements DtMsgSocket.

virtual void DtTcpMsgSocket::replaceSocket ( DtUniquePtr< MAKRti::DtInetTcpSocket > newSock )

virtual

virtual void DtTcpMsgSocket::resizeTestPacket ( )

protectedvirtual

Resizes the test packet used to test the connection.

virtual int DtTcpMsgSocket::sendData	(	caddr_t	msg,
		size_t	msgSize,
		bool	deleteAfterSend
	)

protectedvirtual

Sends data on the socket, queues if it cannot be sent.

virtual int DtTcpMsgSocket::sendMessage	(	caddr_t	msg,
		size_t	msgSize,
		bool	deleteAfterSend,
		const MAKRti::DtInetAddr &	destAddr = `MAKRti::DtInetAddr::inaddrAny()`,
		int	port = `0`
	)

virtual

Sends a message, queuing it up if the receiver's buffer is full.

destAddr is ignored.

Implements DtMsgSocket.

virtual void DtTcpMsgSocket::setMaxQueuedMessages ( int size )

virtual

Sets the maximum number of messages that can be queued.

A negative value indicates no limit is imposed.

virtual void DtTcpMsgSocket::setNonBlocking ( bool nonBlocking )

virtual

Makes the socket non-blocking or blocking.

virtual void DtTcpMsgSocket::setTcpNoDelay ( bool enable )

virtual

Changes the setting of TCP_NODELAY.

virtual bool DtTcpMsgSocket::testConnectionStatus ( )

virtual

Member Data Documentation

bool DtTcpMsgSocket::myBundlingEnabled

protected

Whether message bundling is enabled.

size_t DtTcpMsgSocket::myBytesNeededForSize

protected

The number of bytes needed to read the size from the message header.

MAKRti::DtInetEndpoint DtTcpMsgSocket::myClientDestination

protected

MAKRti::DtU32 DtTcpMsgSocket::myClientFlags

protected

DtUniquePtr<MAKRti::DtInetDevice> DtTcpMsgSocket::myClientHostIf

protected

MAKRti::DtU16 DtTcpMsgSocket::myClientLocalPort

protected

bool DtTcpMsgSocket::myCompressionEnabled

protected

Whether message compression is enabled.

bool DtTcpMsgSocket::myIsClient

protected

int DtTcpMsgSocket::myMaxQueuedMessages

protected

The maximum size the send queue is allowed to reach.

DtMsgBundler DtTcpMsgSocket::myMsgBundler

protected

Bundler for outgoing messages.

DtMsgCompressor DtTcpMsgSocket::myMsgCompressor

protected

Message compressor and uncompressor.

std::list<DtQueuedMsg> DtTcpMsgSocket::myMsgQueue

protected

The queue of unsent messages.

int DtTcpMsgSocket::myMutableOldQueueLevel

mutableprotected

The queue level the last time the user was notified of queue state.

Mutable since this is solely to maintain internal state and needs to be modified by the const getQueueStatus() method.

bool DtTcpMsgSocket::myNeedSize

protected

Whether we still need to receive the size field for the next/current message.

int DtTcpMsgSocket::myNumBytesReceived

protected

The number of bytes we have so far received for the current message.

size_t DtTcpMsgSocket::myNumBytesToWaitFor

protected

The number of bytes we are waiting for to complete the message.

MAKRti::DtInetBuffer DtTcpMsgSocket::myTestPacket

protected

The buffer to store test packets in.

const MAKRti::DtU32 DtTcpMsgSocket::theDefaultSockOpts

staticprotected

The documentation for this class was generated from the following file:

tcpMsgSocket.h

Public Member Functions

Protected Member Functions

Protected Attributes

Static Protected Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
