The DtMsgSocket provides a wrapper around the MAKRti::DtInetSocket class to operate on messages rather than just raw data. More...

Inheritance diagram for DtMsgSocket:

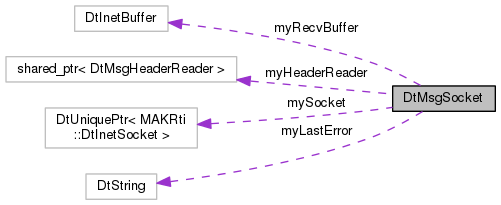

Collaboration diagram for DtMsgSocket:

Public Member Functions
	DtMsgSocket (std::shared_ptr< DtMsgHeaderReader > hdrReader, size_t recvBuffSize)
	Constructor. More...

	DtMsgSocket (DtUniquePtr< MAKRti::DtInetSocket > socket, std::shared_ptr< DtMsgHeaderReader > hdrReader, size_t recvBuffSize)
	Constructor which takes a pre-created MAKRti::DtInetSocket pointer. More...

virtual	~DtMsgSocket ()
	Destructor. More...

virtual int	sendMessage (caddr_t msg, size_t msgSize, bool deleteAfterSend, const MAKRti::DtInetAddr &destAddr=MAKRti::DtInetAddr::inaddrAny(), int port=0)=0
	Sends a message. More...

virtual bool	flush ()=0
	Attempts to send any queued messages and bundled messages. More...

virtual int	recvMessage (caddr_t *buffptr)=0
	Gets the next message from the incoming data. More...

virtual int	recvMessageWithSrc (caddr_t *buffptr, MAKRti::DtInetEndpoint &src)=0
	Gets the next message from the stream of incoming data and sets the source of the message. More...

virtual bool	closeSocket ()
	Close a socket. Returns true on successful close or false on failure. More...

virtual MAKRti::DtInetSockState	state () const
	Returns the state of the socket. More...

void	printStateToStream (MAKRti::DtOutputStream &stream) const
	prints state to stream More...

const MAKRti::DtString &	lastError () const
	Returns a description of the last error. More...

virtual void	enableBundling (size_t maxBundleSize)=0
	Enables message bundling and sets the maximum bundle size. More...

virtual void	disableBundling ()=0
	Disables message bundling. More...

virtual void	enableCompression (MAKRti::DtU8 compressionLevel)=0
	Enables message compression and sets the compression level. More...

virtual void	disableCompression ()=0
	Disables message compression. More...

const MAKRti::DtInetEndpoint &	localEndpoint () const
	Gets the local endpoint for the socket. More...

void	setSendBufferSize (MAKRti::DtU32 size)
	Sets the socket send buffer size. More...

void	setRecvBufferSize (MAKRti::DtU32 size)
	Sets the socket receive buffer size. More...

MAKRti::DtU32	maxSendMsgSize () const
	Gets the maximum socket send size. More...

unsigned int	descriptor () const
	Get's the socket file descriptor. More...

MAKRti::DtInetSocket *	inetSocket ()
	Returns a pointer to the MAKRti::DtInetSocket. More...

Protected Member Functions
void	expandRecvBuffer (size_t sizeNeeded)
	Expands the receive buffer to accommodate the given size message. More...

Protected Attributes
DtUniquePtr< MAKRti::DtInetSocket >	mySocket
	The socket. More...

MAKRti::DtInetBuffer	myRecvBuffer
	The buffer to store received data in. More...

MAKRti::DtString	myLastError
	Description of last error. More...

std::shared_ptr < DtMsgHeaderReader >	myHeaderReader
	Reads data from message header. More...

Private Member Functions
	DtMsgSocket (const DtMsgSocket &)
	Not copyable. More...

DtMsgSocket &	operator= (const DtMsgSocket &)

Detailed Description

The DtMsgSocket provides a wrapper around the MAKRti::DtInetSocket class to operate on messages rather than just raw data.

Constructor & Destructor Documentation

DtMsgSocket::DtMsgSocket	(	std::shared_ptr< DtMsgHeaderReader >	hdrReader,
		size_t	recvBuffSize
	)

Constructor.

Requires a header reader to extract information from message headers.

DtMsgSocket::DtMsgSocket	(	DtUniquePtr< MAKRti::DtInetSocket >	socket,
		std::shared_ptr< DtMsgHeaderReader >	hdrReader,
		size_t	recvBuffSize
	)

Constructor which takes a pre-created MAKRti::DtInetSocket pointer.

Gives ownership and responsibility of the socket to the DtMsgSocket object.

virtual DtMsgSocket::~DtMsgSocket ( )

virtual

Destructor.

DtMsgSocket::DtMsgSocket ( const DtMsgSocket & )

private

Not copyable.

Member Function Documentation

virtual bool DtMsgSocket::closeSocket ( )

virtual

Close a socket. Returns true on successful close or false on failure.

unsigned int DtMsgSocket::descriptor ( ) const

inline

Get's the socket file descriptor.

virtual void DtMsgSocket::disableBundling ( )

pure virtual

Disables message bundling.

Implemented in DtTcpMsgSocket, DtSmSocket__rti__, and DtUdpMsgSocket.

virtual void DtMsgSocket::disableCompression ( )

pure virtual

Disables message compression.

Implemented in DtTcpMsgSocket, DtSmSocket__rti__, and DtUdpMsgSocket.

virtual void DtMsgSocket::enableBundling ( size_t maxBundleSize )

pure virtual

Enables message bundling and sets the maximum bundle size.

Implemented in DtTcpMsgSocket, DtSmSocket__rti__, and DtUdpMsgSocket.

virtual void DtMsgSocket::enableCompression ( MAKRti::DtU8 compressionLevel )

pure virtual

Enables message compression and sets the compression level.

Implemented in DtTcpMsgSocket, and DtUdpMsgSocket.

void DtMsgSocket::expandRecvBuffer ( size_t sizeNeeded )

inlineprotected

Expands the receive buffer to accommodate the given size message.

References myRecvBuffer.

virtual bool DtMsgSocket::flush ( )

pure virtual

Attempts to send any queued messages and bundled messages.

Returns true if all queued and bundled messages were sent.

Implemented in DtTcpMsgSocket, DtSmSocket__rti__, and DtUdpMsgSocket.

MAKRti::DtInetSocket * DtMsgSocket::inetSocket ( )

inline

Returns a pointer to the MAKRti::DtInetSocket.

References mySocket.

const MAKRti::DtString & DtMsgSocket::lastError ( ) const

inline

Returns a description of the last error.

References myLastError.

Referenced by printStateToStream().

const MAKRti::DtInetEndpoint& DtMsgSocket::localEndpoint ( ) const

inline

Gets the local endpoint for the socket.

MAKRti::DtU32 DtMsgSocket::maxSendMsgSize ( ) const

inline

Gets the maximum socket send size.

DtMsgSocket& DtMsgSocket::operator= ( const DtMsgSocket & )

private

void DtMsgSocket::printStateToStream ( MAKRti::DtOutputStream & stream ) const

inline

prints state to stream

References lastError(), and state().

virtual int DtMsgSocket::recvMessage ( caddr_t * buffptr )

pure virtual

Gets the next message from the incoming data.

Implemented in DtTcpMsgSocket, and DtUdpMsgSocket.

virtual int DtMsgSocket::recvMessageWithSrc	(	caddr_t *	buffptr,
		MAKRti::DtInetEndpoint &	src
	)

pure virtual

Gets the next message from the stream of incoming data and sets the source of the message.

Implemented in DtTcpMsgSocket, and DtUdpMsgSocket.

virtual int DtMsgSocket::sendMessage	(	caddr_t	msg,
		size_t	msgSize,
		bool	deleteAfterSend,
		const MAKRti::DtInetAddr &	destAddr = `MAKRti::DtInetAddr::inaddrAny()`,
		int	port = `0`
	)

pure virtual

Sends a message.

Implemented in DtTcpMsgSocket, and DtUdpMsgSocket.

void DtMsgSocket::setRecvBufferSize ( MAKRti::DtU32 size )

inline

Sets the socket receive buffer size.

void DtMsgSocket::setSendBufferSize ( MAKRti::DtU32 size )

inline

Sets the socket send buffer size.

MAKRti::DtInetSockState DtMsgSocket::state ( ) const

inlinevirtual

Returns the state of the socket.

References mySocket.

Referenced by printStateToStream().

Member Data Documentation

std::shared_ptr<DtMsgHeaderReader> DtMsgSocket::myHeaderReader

protected

Reads data from message header.

MAKRti::DtString DtMsgSocket::myLastError

protected

Description of last error.

Referenced by lastError().

MAKRti::DtInetBuffer DtMsgSocket::myRecvBuffer

protected

The buffer to store received data in.

Referenced by expandRecvBuffer().

DtUniquePtr<MAKRti::DtInetSocket> DtMsgSocket::mySocket

protected

The socket.

Referenced by inetSocket(), DtTcpMsgSocket::inetTcpSocket(), DtUdpMsgSocket::inetUdpSocket(), and state().

The documentation for this class was generated from the following file:

msgSocket.h
