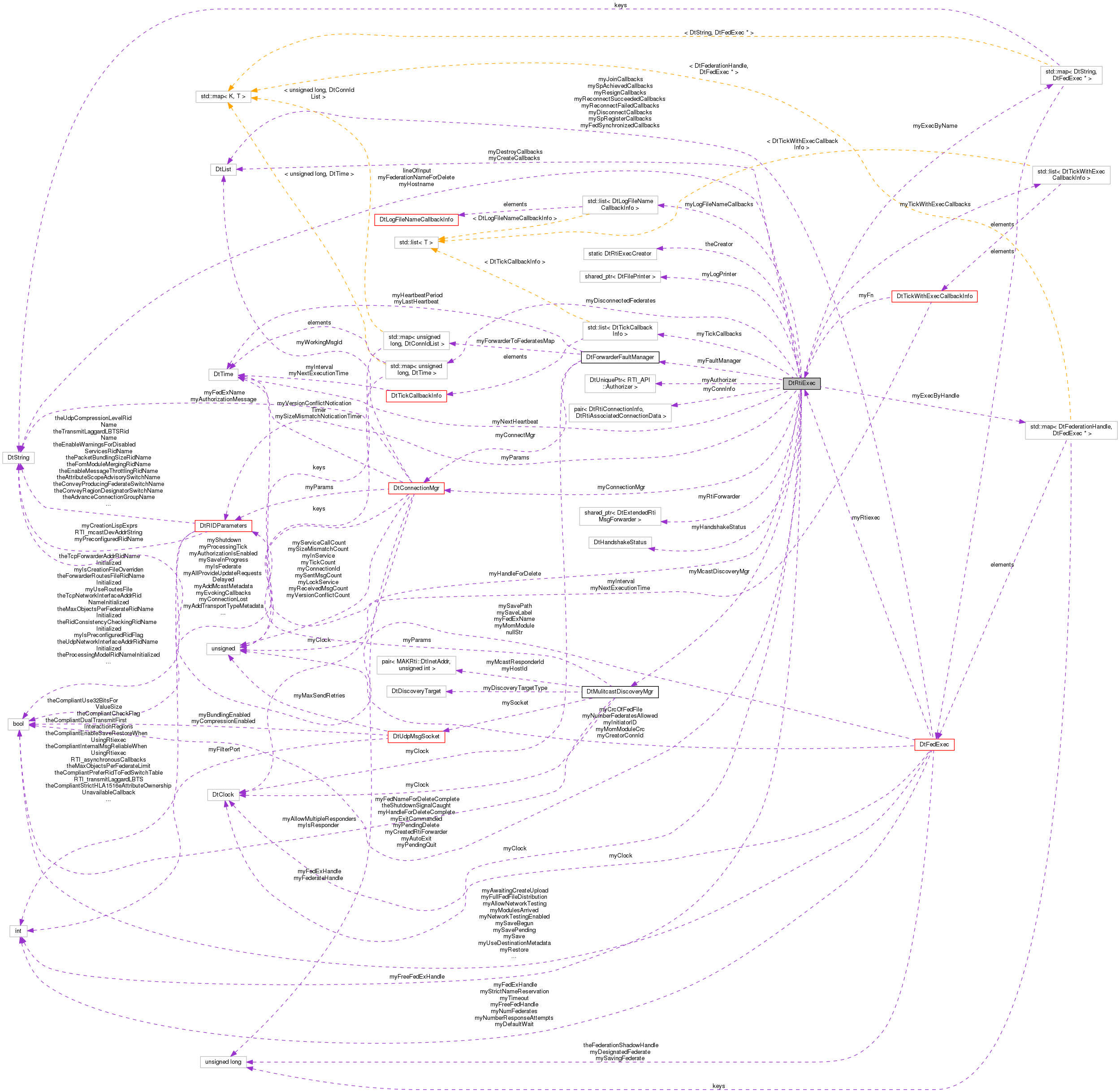

Collaboration diagram for DtRtiExec:

Public Member Functions
virtual	~DtRtiExec ()
	Destructor. More...

virtual void	shutdownForwarderIfCreated ()

virtual void	shutdownFederationShadow (DtHandle handle, const DtString &name)

virtual void	checkVersion (const DtString &version) const
	Called by the exec application to make sure that the RTI Version matches. More...

virtual DtFedExec *	createFedEx (DtConnectionMgr connMgr, const std::vector< unsigned int > &crcs, const char fedExName, std::string const &timeImplName, MAKRti::DtFomType fedType, const std::vector< DtString > &fedFileName, const DtString &momModuleName, int fedExHandle, DtRIDParameters *params, unsigned int momModuleCrc)
	Returns a new fed ex instance, Override this function to replace the default federation execution object. More...

DtConnectionMgr *	connectMgr ()
	Returns the connection manager Not virtual because referenced in both ctors and dtors. More...

virtual bool	exists (const DtString &fedExName)
	Returns true if the name fedex exists, false otherwise. More...

virtual void	destroyFederationByName (const DtString &fullFedexName, bool sendDestroyResponse=true, bool forceDestroy=false)
	Attempt to destroy a federation. More...

int	processQuit ()
	User request to quit is processed. More...

virtual void	listFederates ()
	Respond to a request to list federates through interactive input. More...

virtual void	parseDeleteCommand (const DtString &command, unsigned int &handle, DtString &federationName) const
	Respond to a request to delete a federate through interactive input. More...

virtual int	deleteFederate (unsigned int handle, const DtString &federationName)

virtual void	processUpdateNotifyLevel (DtNotifyLevelType level)
	Updates the rtiexec notify level. More...

virtual void	exit ()
	Causes the rtiexec to exit. More...

virtual void	enableLogging ()
	Enables logging. More...

virtual RTI_API::Authorizer *	authorizer ()
	Get the authorizer. More...

DtFedExec *	fedExec (const DtString &fedExName)
	Search for a fed rtiexec by name. More...

const DtFedExec *	fedExec (const DtString &fedExName) const

const std::map< DtString, DtFedExec * > &	fedExecs () const
	Returns a reference to the entire map of federations. More...

const DtRIDParameters &	params () const
	Returns a handle to the current RID Params. More...

virtual void	run ()
	main loop More...

virtual bool	tick (bool noCallbacks=false)
	Work performed here for each cycle in main loop. More...

virtual void	wait (DtTime intervalInSeconds)
	Wait for input or until the the given interval expires. More...

virtual void	ridRequestCb (const DtRidTestRequestMsg &msg)
	The RID request callback is processed by the RTI in response to a ridTestRequest. More...


virtual void	processCreate (const DtCreateMsg &msg)
	Message callback functions call these methods to process the message. More...

virtual void	processDestroy (const DtDestroyMsg &msg)
	Message callback functions call these methods to process the message. More...

virtual void	processListFederations (const DtListFederationsMsg &msg)
	Message callback functions call these methods to process the message. More...

virtual void	processListFederationMembers (const DtListFederationMembersMsg &msg)
	Message callback functions call these methods to process the message. More...

virtual void	processJoin (const DtJoinMsg &msg)
	Message callback functions call these methods to process the message. More...

virtual void	processDisconnect (const DtDisconnectMsg &msg)
	Used to capture broken connection. More...

virtual void	processQueueFull (const DtQueueFullMsg &msg)
	Message callback functions call these methods to process the message. More...

virtual void	processReconnect (const DtReconnectMsg &msg)
	Used to recover from a broken connection. More...


virtual void	addFedExCreatedCallback (DtFedExCbFn fn, void *usr)
	Register/remove a callback for specified events. More...

virtual void	removeFedExCreatedCallback (DtFedExCbFn fn, void *usr)
	Register/remove a callback for specified events. More...

virtual void	addFedExDestroyedCallback (DtFedExCbFn fn, void *usr)
	Register/remove a callback for specified events. More...

virtual void	removeFedExDestroyedCallback (DtFedExCbFn fn, void *usr)
	Register/remove a callback for specified events. More...

virtual void	addLogFileNameUpdatedCallback (DtLogFileNameCbFn fn, void *usr)
	Register/remove a callback for specified events. More...

virtual void	removeLogFileNameUpdatedCallback (DtLogFileNameCbFn fn, void *usr)
	Register/remove a callback for specified events. More...

virtual void	addTickCallback (DtTickCbFn fn, void *usr, DtTime interval)
	Called during tick, but only at the given interval. More...

virtual void	removeTickCallback (DtTickCbFn fn, void *usr)
	Register/remove a callback for specified events. More...

virtual void	addTickCallback (DtTickWithExecCbFn fn, void *usr, DtTime interval)
	Called during tick, but only at the given interval. More...

virtual void	removeTickCallback (DtTickWithExecCbFn fn, void *usr)
	Register/remove a callback for specified events. More...


virtual void	sendCreateResponseMsg (const unsigned long destinationID, DtCreateResponseFlag flag, MAKRti::DtString const &errorString)
	Send RTI messages. More...

virtual void	sendDestroyResponseMsg (const char *fedExName, DtDestroyResponseFlag flag)
	Send RTI messages. More...

virtual void	sendReportFederationsMsg (unsigned long destId, const std::vector< DtString > &federationNames, const std::vector< DtString > &timeImplNames)
	Send RTI messages. More...

virtual void	sendReportFederationMembersMsg (unsigned long destId, DtString federationName, DtReportFederationMembersMsg::DtFederateList *federates)
	Send RTI messages. More...

virtual void	sendJoinResponseMsg (unsigned long destinationIDValue, unsigned short requestID, unsigned int crc, DtFederateHandle handle, const char fedName, int fedExHandle, const char fedExName, const DtString &momModule, const std::vector< DtString > &fedFileName, unsigned long flags, bool allowNetworkTesting, MAKRti::DtString const &errorString, DtJoinResponseMsg::errorCodes errorValue=DtJoinResponseMsg::DT_NO_ERROR)
	Send RTI messages. More...

Static Public Member Functions
static DtRtiExec *	create (DtRIDParameters *p, std::shared_ptr< DtFilePrinter > logPrinter, bool autoExit=false, const DtRtiConnectionInfoDataPair &connInfo=DtRtiConnectionInfoDataPair())
	Creates an instance of a DtRtiExec;. More...

static void	setCreatorFunction (DtRtiExecCreator fn)
	Call this function to set an alternate creator function With this function, users can replace this DtRtiExec with their own derived class. More...

static bool	shutdownSignalCaught ()

static void	caughtShutdownSignal ()


static void	processRtiExecHandshakeMsg (const DtRtiExecHandshakeMsg &msg, void *usr)
	Message callback function used to register callbacks. More...

static void	processCreate (const DtCreateMsg &msg, void *usr)
	Message callback function used to register callbacks. More...

static void	processDestroy (const DtDestroyMsg &msg, void *usr)
	Message callback function used to register callbacks. More...

static void	processListFederations (const DtListFederationsMsg &msg, void *usr)
	Message callback function used to register callbacks. More...

static void	processListFederationMembers (const DtListFederationMembersMsg &msg, void *usr)
	Message callback function used to register callbacks. More...

static void	processJoin (const DtJoinMsg &msg, void *usr)
	Message callback function used to register callbacks. More...

static void	processDisconnect (const DtDisconnectMsg &msg, void *usr)
	Message callback function used to register callbacks. More...

static void	processQueueFull (const DtQueueFullMsg &msg, void *usr)
	Message callback function used to register callbacks. More...

static void	processReconnect (const DtReconnectMsg &msg, void *usr)
	Message callback function used to register callbacks. More...

static void	ridRequestCb (const DtRidTestRequestMsg &msg, void *usr)
	Message callback function used to register callbacks. More...

Protected Types
enum	DtStartRtiForwarderResult { ForwarderSuccessfullyStarted, RetryStartingForwarder, ForwarderStartupFailed }

typedef std::map< unsigned long, DtTime >	DtConnIdToTimeMap

Protected Member Functions
	DtRtiExec (DtRIDParameters *p, std::shared_ptr< DtFilePrinter > logPrinter, bool autoExit, const DtRtiConnectionInfoDataPair &connInfo)
	Constructor. More...

void	cleanupConstructorException ()
	Clean up before constructor throws an exception Not virtual since it is called by constructor. More...

virtual void	rtiExecToForwarderHandshake ()
	Inform RTI Forwarder that Exec is connected, and verify that this is the ONLY Exec connected. More...

virtual void	sendRtiExecHandshakeMsg (DtHandle destId, DtRtiExecHandshakeMsg::DtHandshakeStatus status)
	Send RTI Forwarder connection response msg. More...

virtual void	processRtiExecHandshakeMsg (const DtRtiExecHandshakeMsg &msg)
	Process the RTI Forwarder's Handshake response. More...

virtual void	performMulticastDiscovery (bool reliableTransportDisabled)
	Attempt to discover either the RTI Forwarder or other rtiexecs. More...

virtual void	removeDroppedFederateConnections ()
	Force resign a federate. More...

virtual DtStartRtiForwarderResult	startRtiForwarder (const DtRIDParameters *params)
	Starts forwarder if the exec is configured to do so. More...

virtual bool	startFederationShadow (DtHandle federationHandle, const DtString &federationName)
	Start a federation shadow process for the given federation. More...

virtual bool	authorizeFederationOperation (const DtCreateMsg &msg, DtString &errorMessage)
	Process authorization of the given credentials for create federation service. More...

Protected Attributes
DtConnectionMgr *	myConnectionMgr

std::map< DtString, DtFedExec * >	myExecByName

std::map< DtFederationHandle, DtFedExec * >	myExecByHandle

DtString	lineOfInput

bool	myHandleForDeleteComplete

bool	myFedNameForDeleteComplete

DtString	myFederationNameForDelete

unsigned int	myHandleForDelete

bool	myCreatedRtiForwarder

bool	myPendingDelete

bool	myPendingQuit

int	myFreeFedExHandle

DtList	myCreateCallbacks

DtList	myDestroyCallbacks

std::list< DtTickCallbackInfo >	myTickCallbacks
	List of tick callbacks. More...

std::list < DtTickWithExecCallbackInfo >	myTickWithExecCallbacks
	List of tick callbacks with DtRtiExec reference. More...

std::list < DtLogFileNameCallbackInfo >	myLogFileNameCallbacks
	List of log file name update callbacks. More...

DtClock	myClock

DtRtiExecHandshakeMsg::DtHandshakeStatus	myHandshakeStatus

DtTime	myNextHeartbeat

DtRtiMsgForwarderSP	myRtiForwarder

DtForwarderFaultManager *	myFaultManager

DtMulitcastDiscoveryMgr *	myMcastDiscoveryMgr

DtConnIdToTimeMap	myDisconnectedFederates
	Map of dropped Federate to timestamp of drop. More...

DtRIDParameters *	myParams

bool	myAutoExit

bool	myExitCommanded
	Flag indicating that an exit command was received. More...

std::shared_ptr< DtFilePrinter >	myLogPrinter
	Printer which prints output to a log file. More...

DtRtiConnectionInfoDataPair	myConnInfo

DtString	myHostname

DtUniquePtr< RTI_API::Authorizer >	myAuthorizer

Static Protected Attributes
static bool	theShutdownSignalCaught

static DtRtiExecCreator	theCreator

Member Typedef Documentation

typedef std::map< unsigned long, DtTime > DtRtiExec::DtConnIdToTimeMap

protected

Member Enumeration Documentation

enum DtRtiExec::DtStartRtiForwarderResult

protected

Enumerator
ForwarderSuccessfullyStarted
RetryStartingForwarder
ForwarderStartupFailed

Constructor & Destructor Documentation

DtRtiExec::DtRtiExec	(	DtRIDParameters *	p,
		std::shared_ptr< DtFilePrinter >	logPrinter,
		bool	autoExit,
		const DtRtiConnectionInfoDataPair &	connInfo
	)

protected

Constructor.

virtual DtRtiExec::~DtRtiExec ( )

virtual

Destructor.

Member Function Documentation

virtual void DtRtiExec::addFedExCreatedCallback	(	DtFedExCbFn	fn,
		void *	usr
	)

virtual

Register/remove a callback for specified events.

virtual void DtRtiExec::addFedExDestroyedCallback	(	DtFedExCbFn	fn,
		void *	usr
	)

virtual

Register/remove a callback for specified events.

virtual void DtRtiExec::addLogFileNameUpdatedCallback	(	DtLogFileNameCbFn	fn,
		void *	usr
	)

virtual

Register/remove a callback for specified events.

virtual void DtRtiExec::addTickCallback	(	DtTickCbFn	fn,
		void *	usr,
		DtTime	interval
	)

virtual

Called during tick, but only at the given interval.

virtual void DtRtiExec::addTickCallback	(	DtTickWithExecCbFn	fn,
		void *	usr,
		DtTime	interval
	)

virtual

Called during tick, but only at the given interval.

For callbacks which will be passed a reference to the calling DtRtiExec.

virtual bool DtRtiExec::authorizeFederationOperation	(	const DtCreateMsg &	msg,
		DtString &	errorMessage
	)

protectedvirtual

Process authorization of the given credentials for create federation service.

virtual RTI_API::Authorizer* DtRtiExec::authorizer ( )

virtual

Get the authorizer.

static void DtRtiExec::caughtShutdownSignal ( )

static

virtual void DtRtiExec::checkVersion ( const DtString & version ) const

virtual

Called by the exec application to make sure that the RTI Version matches.

void DtRtiExec::cleanupConstructorException ( )

protected

Clean up before constructor throws an exception Not virtual since it is called by constructor.

DtConnectionMgr * DtRtiExec::connectMgr ( )

inline

Returns the connection manager Not virtual because referenced in both ctors and dtors.

References myConnectionMgr.

static DtRtiExec* DtRtiExec::create	(	DtRIDParameters *	p,
		std::shared_ptr< DtFilePrinter >	logPrinter,
		bool	autoExit = `false`,
		const DtRtiConnectionInfoDataPair &	connInfo = `DtRtiConnectionInfoDataPair()`
	)

static

Creates an instance of a DtRtiExec;.

virtual DtFedExec* DtRtiExec::createFedEx	(	DtConnectionMgr *	connMgr,
		const std::vector< unsigned int > &	crcs,
		const char *	fedExName,
		std::string const &	timeImplName,
		MAKRti::DtFomType	fedType,
		const std::vector< DtString > &	fedFileName,
		const DtString &	momModuleName,
		int	fedExHandle,
		DtRIDParameters *	params,
		unsigned int	momModuleCrc
	)

virtual

Returns a new fed ex instance, Override this function to replace the default federation execution object.

virtual int DtRtiExec::deleteFederate	(	unsigned int	handle,
		const DtString &	federationName
	)

virtual

virtual void DtRtiExec::destroyFederationByName	(	const DtString &	fullFedexName,
		bool	sendDestroyResponse = `true`,
		bool	forceDestroy = `false`
	)

virtual

Attempt to destroy a federation.

By default, if destruction fails, a destroy response is sent. If this is being called in response to a command at the rtiexec GUI, then no response needs to be sent. If forceDestroy is set, federation is destroyed regardless of whether it has joined federates.

virtual void DtRtiExec::enableLogging ( )

virtual

Enables logging.

virtual bool DtRtiExec::exists ( const DtString & fedExName )

virtual

Returns true if the name fedex exists, false otherwise.

virtual void DtRtiExec::exit ( )

virtual

Causes the rtiexec to exit.

DtFedExec* DtRtiExec::fedExec ( const DtString & fedExName )

Search for a fed rtiexec by name.

Returns NULL if none are found.

const DtFedExec* DtRtiExec::fedExec ( const DtString & fedExName ) const

const std::map<DtString, DtFedExec*>& DtRtiExec::fedExecs ( ) const

Returns a reference to the entire map of federations.

virtual void DtRtiExec::listFederates ( )

virtual

Respond to a request to list federates through interactive input.

const DtRIDParameters & DtRtiExec::params ( ) const

inline

Returns a handle to the current RID Params.

References myParams.

virtual void DtRtiExec::parseDeleteCommand	(	const DtString &	command,
		unsigned int &	handle,
		DtString &	federationName
	)		const

virtual

Respond to a request to delete a federate through interactive input.

virtual void DtRtiExec::performMulticastDiscovery ( bool reliableTransportDisabled )

protectedvirtual

Attempt to discover either the RTI Forwarder or other rtiexecs.

virtual void DtRtiExec::processCreate ( const DtCreateMsg & msg )

virtual

Message callback functions call these methods to process the message.

static void DtRtiExec::processCreate	(	const DtCreateMsg &	msg,
		void *	usr
	)

static

Message callback function used to register callbacks.

virtual void DtRtiExec::processDestroy ( const DtDestroyMsg & msg )

virtual

Message callback functions call these methods to process the message.

static void DtRtiExec::processDestroy	(	const DtDestroyMsg &	msg,
		void *	usr
	)

static

Message callback function used to register callbacks.

virtual void DtRtiExec::processDisconnect ( const DtDisconnectMsg & msg )

virtual

Used to capture broken connection.

static void DtRtiExec::processDisconnect	(	const DtDisconnectMsg &	msg,
		void *	usr
	)

static

Message callback function used to register callbacks.

virtual void DtRtiExec::processJoin ( const DtJoinMsg & msg )

virtual

Message callback functions call these methods to process the message.

static void DtRtiExec::processJoin	(	const DtJoinMsg &	msg,
		void *	usr
	)

static

Message callback function used to register callbacks.

virtual void DtRtiExec::processListFederationMembers ( const DtListFederationMembersMsg & msg )

virtual

Message callback functions call these methods to process the message.

static void DtRtiExec::processListFederationMembers	(	const DtListFederationMembersMsg &	msg,
		void *	usr
	)

static

Message callback function used to register callbacks.

virtual void DtRtiExec::processListFederations ( const DtListFederationsMsg & msg )

virtual

Message callback functions call these methods to process the message.

static void DtRtiExec::processListFederations	(	const DtListFederationsMsg &	msg,
		void *	usr
	)

static

Message callback function used to register callbacks.

virtual void DtRtiExec::processQueueFull ( const DtQueueFullMsg & msg )

virtual

Message callback functions call these methods to process the message.

static void DtRtiExec::processQueueFull	(	const DtQueueFullMsg &	msg,
		void *	usr
	)

static

Message callback function used to register callbacks.

int DtRtiExec::processQuit ( )

User request to quit is processed.

If there are no federations, quit is granted immediately. Otherwise, a pending quit status is set to true and the user is prompted to confirm the quit request. Return -1 if quit should be granted immediately.

virtual void DtRtiExec::processReconnect ( const DtReconnectMsg & msg )

virtual

Used to recover from a broken connection.

static void DtRtiExec::processReconnect	(	const DtReconnectMsg &	msg,
		void *	usr
	)

static

Message callback function used to register callbacks.

static void DtRtiExec::processRtiExecHandshakeMsg	(	const DtRtiExecHandshakeMsg &	msg,
		void *	usr
	)

static

Message callback function used to register callbacks.

virtual void DtRtiExec::processRtiExecHandshakeMsg ( const DtRtiExecHandshakeMsg & msg )

protectedvirtual

Process the RTI Forwarder's Handshake response.

virtual void DtRtiExec::processUpdateNotifyLevel ( DtNotifyLevelType level )

virtual

Updates the rtiexec notify level.

virtual void DtRtiExec::removeDroppedFederateConnections ( )

protectedvirtual

Force resign a federate.

virtual void DtRtiExec::removeFedExCreatedCallback	(	DtFedExCbFn	fn,
		void *	usr
	)

virtual

Register/remove a callback for specified events.

virtual void DtRtiExec::removeFedExDestroyedCallback	(	DtFedExCbFn	fn,
		void *	usr
	)

virtual

Register/remove a callback for specified events.

virtual void DtRtiExec::removeLogFileNameUpdatedCallback	(	DtLogFileNameCbFn	fn,
		void *	usr
	)

virtual

Register/remove a callback for specified events.

virtual void DtRtiExec::removeTickCallback	(	DtTickCbFn	fn,
		void *	usr
	)

virtual

Register/remove a callback for specified events.

virtual void DtRtiExec::removeTickCallback	(	DtTickWithExecCbFn	fn,
		void *	usr
	)

virtual

Register/remove a callback for specified events.

virtual void DtRtiExec::ridRequestCb ( const DtRidTestRequestMsg & msg )

virtual

The RID request callback is processed by the RTI in response to a ridTestRequest.

It fills up a ridResponse with the number of RID parameters that it wants consistent and sends the response back to the federate that requested it.

static void DtRtiExec::ridRequestCb	(	const DtRidTestRequestMsg &	msg,
		void *	usr
	)

static

Message callback function used to register callbacks.

virtual void DtRtiExec::rtiExecToForwarderHandshake ( )

protectedvirtual

Inform RTI Forwarder that Exec is connected, and verify that this is the ONLY Exec connected.

virtual void DtRtiExec::run ( )

virtual

main loop

virtual void DtRtiExec::sendCreateResponseMsg	(	const unsigned long	destinationID,
		DtCreateResponseFlag	flag,
		MAKRti::DtString const &	errorString
	)

virtual

Send RTI messages.

virtual void DtRtiExec::sendDestroyResponseMsg	(	const char *	fedExName,
		DtDestroyResponseFlag	flag
	)

virtual

Send RTI messages.

virtual void DtRtiExec::sendJoinResponseMsg	(	unsigned long	destinationIDValue,
		unsigned short	requestID,
		unsigned int	crc,
		DtFederateHandle	handle,
		const char *	fedName,
		int	fedExHandle,
		const char *	fedExName,
		const DtString &	momModule,
		const std::vector< DtString > &	fedFileName,
		unsigned long	flags,
		bool	allowNetworkTesting,
		MAKRti::DtString const &	errorString,
		DtJoinResponseMsg::errorCodes	errorValue = `DtJoinResponseMsg::DT_NO_ERROR`
	)

virtual

Send RTI messages.

virtual void DtRtiExec::sendReportFederationMembersMsg	(	unsigned long	destId,
		DtString	federationName,
		DtReportFederationMembersMsg::DtFederateList *	federates
	)

virtual

Send RTI messages.

virtual void DtRtiExec::sendReportFederationsMsg	(	unsigned long	destId,
		const std::vector< DtString > &	federationNames,
		const std::vector< DtString > &	timeImplNames
	)

virtual

Send RTI messages.

virtual void DtRtiExec::sendRtiExecHandshakeMsg	(	DtHandle	destId,
		DtRtiExecHandshakeMsg::DtHandshakeStatus	status
	)

protectedvirtual

Send RTI Forwarder connection response msg.

static void DtRtiExec::setCreatorFunction ( DtRtiExecCreator fn )

static

Call this function to set an alternate creator function With this function, users can replace this DtRtiExec with their own derived class.

virtual void DtRtiExec::shutdownFederationShadow	(	DtHandle	handle,
		const DtString &	name
	)

virtual

virtual void DtRtiExec::shutdownForwarderIfCreated ( )

virtual

static bool DtRtiExec::shutdownSignalCaught ( )

static

virtual bool DtRtiExec::startFederationShadow	(	DtHandle	federationHandle,
		const DtString &	federationName
	)

protectedvirtual

Start a federation shadow process for the given federation.

virtual DtStartRtiForwarderResult DtRtiExec::startRtiForwarder ( const DtRIDParameters * params )

protectedvirtual

Starts forwarder if the exec is configured to do so.

return zero on error.

virtual bool DtRtiExec::tick ( bool noCallbacks = false )

virtual

Work performed here for each cycle in main loop.

Primarily processing messages and ticking each federation execution. Returns boolean: tick processed a message? If noCallbacks is true, no tick callbacks will be called

virtual void DtRtiExec::wait ( DtTime intervalInSeconds )

virtual

Wait for input or until the the given interval expires.

Member Data Documentation

DtString DtRtiExec::lineOfInput

protected

DtUniquePtr<RTI_API::Authorizer> DtRtiExec::myAuthorizer

protected

bool DtRtiExec::myAutoExit

protected

DtClock DtRtiExec::myClock

protected

DtConnectionMgr* DtRtiExec::myConnectionMgr

protected

Referenced by connectMgr().

DtRtiConnectionInfoDataPair DtRtiExec::myConnInfo

protected

DtList DtRtiExec::myCreateCallbacks

protected

bool DtRtiExec::myCreatedRtiForwarder

protected

DtList DtRtiExec::myDestroyCallbacks

protected

DtConnIdToTimeMap DtRtiExec::myDisconnectedFederates

protected

Map of dropped Federate to timestamp of drop.

If connection is not re-established before timeout, Then federate must be resigned.

std::map<DtFederationHandle, DtFedExec*> DtRtiExec::myExecByHandle

protected

std::map<DtString, DtFedExec*> DtRtiExec::myExecByName

protected

bool DtRtiExec::myExitCommanded

protected

Flag indicating that an exit command was received.

DtForwarderFaultManager* DtRtiExec::myFaultManager

protected

DtString DtRtiExec::myFederationNameForDelete

protected

bool DtRtiExec::myFedNameForDeleteComplete

protected

int DtRtiExec::myFreeFedExHandle

protected

unsigned int DtRtiExec::myHandleForDelete

protected

bool DtRtiExec::myHandleForDeleteComplete

protected

DtRtiExecHandshakeMsg::DtHandshakeStatus DtRtiExec::myHandshakeStatus

protected

DtString DtRtiExec::myHostname

protected

std::list<DtLogFileNameCallbackInfo> DtRtiExec::myLogFileNameCallbacks

protected

List of log file name update callbacks.

std::shared_ptr<DtFilePrinter> DtRtiExec::myLogPrinter

protected

Printer which prints output to a log file.

DtMulitcastDiscoveryMgr* DtRtiExec::myMcastDiscoveryMgr

protected

DtTime DtRtiExec::myNextHeartbeat

protected

DtRIDParameters* DtRtiExec::myParams

protected

Referenced by params().

bool DtRtiExec::myPendingDelete

protected

bool DtRtiExec::myPendingQuit

protected

DtRtiMsgForwarderSP DtRtiExec::myRtiForwarder

protected

std::list<DtTickCallbackInfo> DtRtiExec::myTickCallbacks

protected

List of tick callbacks.

std::list<DtTickWithExecCallbackInfo> DtRtiExec::myTickWithExecCallbacks

protected

List of tick callbacks with DtRtiExec reference.

DtRtiExecCreator DtRtiExec::theCreator

staticprotected

bool DtRtiExec::theShutdownSignalCaught

staticprotected

The documentation for this class was generated from the following file:

exec.h

Public Member Functions

Static Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Static Protected Attributes

Member Typedef Documentation

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
