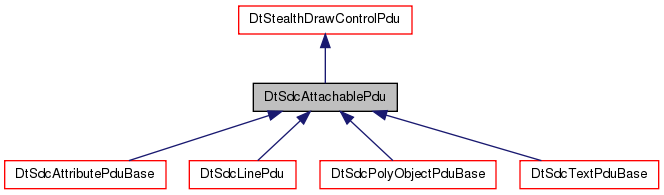

Inheritance diagram for DtSdcAttachablePdu:

Public Types
enum	DtVcObjectAttachment { DtVcObjectNoAttach = 0, DtVcObjectNoAttachNoAttach = 1, DtVcObjectAttachedToEntity = 2, DtVcObjectAttachedToObject = 3, DtVcObjectAttachedToEntityNoAttach = 4, DtVcObjectAttachedToObjectNoAttach = 5, DtVcObjectAttachedToNoAttachEntity = 6, DtVcObjectAttachedToNoAttachObject = 7, DtVcObjectAttachedToEntityObject = 8, DtVcObjectAttachedToObjectEntity = 9, DtVcObjectAttachedToEntityEntity = 10, DtVcObjectAttachedToObjectObject = 11 }
enum	DtVcDrawingStyle { DtVcStyleNoFlashing = 0x00, DtVcStyleFlashing = 0x04, DtVcDrawingStyleEntry = 0x04 }

Public Member Functions
virtual const DtVcObjectAttachment	attachmentType () const
	objects can be attach to 1 (text, sphere, cube, triangle, attribute group) or
virtual void	attachTo (const DtNetInt8 pos[2])
	2D placement of single position objects; uses a screen coordinate system of
virtual void	attachTo (const DtNetInt8 pos1[2], const DtNetInt8 pos2[2])
	2D placement of lines
virtual void	attachTo (const DtVector &pos)
	3D placement of single position objects
virtual void	attachTo (const DtNetU32 id)
virtual void	attachTo (const DtGlobalObjectDesignator &id)
virtual void	attachTo (const DtNetU32 id1, const DtNetU32 id2)
	3D placement of two position objects
virtual void	attachTo (const DtGlobalObjectDesignator &id1, const DtGlobalObjectDesignator &id2)
virtual void	attachTo (const DtVector &pos1, const DtVector &pos2)
virtual void	attachTo (const DtGlobalObjectDesignator &id1, const DtNetU32 id2)
virtual void	attachTo (const DtNetU32 id1, const DtGlobalObjectDesignator &id2)
virtual void	attachTo (const DtGlobalObjectDesignator &id, const DtVector &pos)
virtual void	attachTo (const DtVector &pos, const DtGlobalObjectDesignator &id)
virtual void	attachTo (const DtNetU32 id, const DtVector &pos)
virtual void	attachTo (const DtVector &pos, const DtNetU32 id)
virtual void	setRelativeLocation (DtNetU8 percentage, int index=0)
	relative location along the parent object if there is not parent object or the parent object is puntual this value is discarded The value is a percentage (0 - 100) messure from start point to end point Because a line or cylinder has two attachments, each of which could be another line or cylinder, the interface needs to support 2 relative locations.
virtual const DtNetU8	relativeLocation (int index=0) const
virtual void	setOffset (const DtVector &offsetVector)
	offset from final position.
virtual DtVector	offset () const
virtual const DtGlobalObjectDesignator	attachEntityId (int index) const
virtual const DtNetU32	attachObjectId (int index) const
virtual DtVector	position (int index) const
virtual void	setColor (DtNetU8 color[4])
virtual const DtNetU8 *	color () const
virtual void	setFlashing (bool onOff)
virtual const bool	flashing () const
virtual void	setFromString (const char *)
virtual const char *	string () const
virtual void	printData () const
Public Member Functions inherited from DtStealthDrawControlPdu
virtual const DtNetU32	objectId () const
virtual void	setObjectId (DtNetU32 lid)
virtual void	setType (DtNetU32 type)
virtual DtNetU32	type () const
virtual DtU32	paramVersion () const
Public Member Functions inherited from DtStealthControlPdu
const DtGlobalObjectDesignator &	viewerId () const
const DtGlobalObjectDesignator &	senderId () const
DtViewerCommand	viewerCommand () const
unsigned long	ignoreFlags () const
bool	statusCommand () const
void	setViewerId (const DtGlobalObjectDesignator &id)
void	setSenderId (const DtGlobalObjectDesignator &id)
void	setIgnoreFlags (unsigned long flags)
void	setStatusCommand (bool b)

Static Public Member Functions
static const char *	typeString (DtVcObjectAttachment param)
Static Public Member Functions inherited from DtStealthDrawControlPdu
static const char *	typeString (int param)
Static Public Member Functions inherited from DtStealthControlPdu
static DtPdu *	create (const DtNetPacket *initial, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
static DtPdu *	createFromNet (const DtNetPacket *initial, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
static DtU32	drawControlParamVersion (const DtNetViewControlPdu *vc)
static void	addCallback (DtExerciseConn conn, DtStealthControlInteractionCb cb, void usr)
static void	removeCallback (DtExerciseConn conn, DtStealthControlInteractionCb cb, void usr)

Protected Member Functions
virtual void	setAttachmentType (DtVcObjectAttachment attachmentType)
Protected Member Functions inherited from DtStealthDrawControlPdu
virtual int	setInternalText (DtString str, size_t structSize)
virtual const DtString	internalText (int size, size_t structSize) const
virtual void	setParamVersion (DtU32 paramVersion)
Protected Member Functions inherited from DtStealthControlPdu
bool	isNumber (const char *str)
DtPduKind	internalGetPduKind () const
void	setViewerCommand (DtViewerCommand com)
	DtStealthControlPdu ()

Additional Inherited Members
Static Protected Member Functions inherited from DtStealthControlPdu
static DtStealthControlPdu *	createViewControl (DtNetViewControlPdu *vc, DtBufferPtr buffer)
static DtStealthControlPdu *	createDrawControl (DtNetViewControlPdu *vc, DtBufferPtr buffer)
static DtStealthControlPdu *	createDrawControlV0 (DtNetViewControlPdu *vc, DtBufferPtr buffer)
static DtStealthControlPdu *	createDrawControlCurrent (DtNetViewControlPdu *vc, DtBufferPtr buffer)
Protected Attributes inherited from DtStealthDrawControlPdu
DtString	myTemporalText

Member Enumeration Documentation

enum DtSdcAttachablePdu::DtVcObjectAttachment

Enumerator:

DtVcObjectNoAttach
DtVcObjectNoAttachNoAttach	Attach to single position (2D or 3D)
DtVcObjectAttachedToEntity	Attach ends of a line to specified positions.
DtVcObjectAttachedToObject	Attach to a single entity (3D only? ) test 2D text.
DtVcObjectAttachedToEntityNoAttach	Attach text to a (3d) DrawControl Object.
DtVcObjectAttachedToObjectNoAttach	Attach one end of a line to an entity and the other end to a specified position.
DtVcObjectAttachedToNoAttachEntity	Attach one end of a line to a (3d) DrawControl Object and the other end to a specified position.
DtVcObjectAttachedToNoAttachObject	Attach one end of a line to a specified position and the other end to an entity.
DtVcObjectAttachedToEntityObject	Attach one end of a line to a specified position and the other end to a Draw Control Object.
DtVcObjectAttachedToObjectEntity	Attach one end of a line to an entity and the other end to a Draw Control Object.
DtVcObjectAttachedToEntityEntity	Attach one end of a line to a Draw Control Object and the other end to an entity.
DtVcObjectAttachedToObjectObject	Attach ends of a line to specified entities.

enum DtSdcAttachablePdu::DtVcDrawingStyle

Enumerator:

DtVcStyleNoFlashing
DtVcStyleFlashing
DtVcDrawingStyleEntry

Member Function Documentation

virtual const DtVcObjectAttachment DtSdcAttachablePdu::attachmentType ( ) const

virtual

objects can be attach to 1 (text, sphere, cube, triangle, attribute group) or

virtual void DtSdcAttachablePdu::attachTo ( const DtNetInt8 pos[2] )

virtual

2D placement of single position objects; uses a screen coordinate system of

virtual void DtSdcAttachablePdu::attachTo	(	const DtNetInt8	pos1[2],
		const DtNetInt8	pos2[2]
	)

virtual

2D placement of lines

virtual void DtSdcAttachablePdu::attachTo ( const DtVector & pos )

virtual

3D placement of single position objects

virtual void DtSdcAttachablePdu::attachTo ( const DtNetU32 id )

virtual

virtual void DtSdcAttachablePdu::attachTo ( const DtGlobalObjectDesignator & id )

virtual

virtual void DtSdcAttachablePdu::attachTo	(	const DtNetU32	id1,
		const DtNetU32	id2
	)

virtual

3D placement of two position objects

virtual void DtSdcAttachablePdu::attachTo	(	const DtGlobalObjectDesignator &	id1,
		const DtGlobalObjectDesignator &	id2
	)

virtual

virtual void DtSdcAttachablePdu::attachTo	(	const DtVector &	pos1,
		const DtVector &	pos2
	)

virtual

virtual void DtSdcAttachablePdu::attachTo	(	const DtGlobalObjectDesignator &	id1,
		const DtNetU32	id2
	)

virtual

virtual void DtSdcAttachablePdu::attachTo	(	const DtNetU32	id1,
		const DtGlobalObjectDesignator &	id2
	)

virtual

virtual void DtSdcAttachablePdu::attachTo	(	const DtGlobalObjectDesignator &	id,
		const DtVector &	pos
	)

virtual

virtual void DtSdcAttachablePdu::attachTo	(	const DtVector &	pos,
		const DtGlobalObjectDesignator &	id
	)

virtual

virtual void DtSdcAttachablePdu::attachTo	(	const DtNetU32	id,
		const DtVector &	pos
	)

virtual

virtual void DtSdcAttachablePdu::attachTo	(	const DtVector &	pos,
		const DtNetU32	id
	)

virtual

virtual void DtSdcAttachablePdu::setRelativeLocation	(	DtNetU8	percentage,
		int	index = `0`
	)

virtual

relative location along the parent object if there is not parent object or the parent object is puntual this value is discarded The value is a percentage (0 - 100) messure from start point to end point Because a line or cylinder has two attachments, each of which could be another line or cylinder, the interface needs to support 2 relative locations.

Note that Version 0 did NOT. Only one percentage could be specified, and it was used for both attachments when that case arose. The default values are left for backwards compatibility

virtual const DtNetU8 DtSdcAttachablePdu::relativeLocation ( int index = 0 ) const

virtual

virtual void DtSdcAttachablePdu::setOffset ( const DtVector & offsetVector )

virtual

offset from final position.

virtual DtVector DtSdcAttachablePdu::offset ( ) const

virtual

virtual const DtGlobalObjectDesignator DtSdcAttachablePdu::attachEntityId ( int index ) const

virtual

virtual const DtNetU32 DtSdcAttachablePdu::attachObjectId ( int index ) const

virtual

virtual DtVector DtSdcAttachablePdu::position ( int index ) const

virtual

virtual void DtSdcAttachablePdu::setColor ( DtNetU8 color[4] )

virtual

Reimplemented in DtSdcLinePdu.

virtual const DtNetU8* DtSdcAttachablePdu::color ( ) const

virtual

Reimplemented in DtSdcLinePdu.

virtual void DtSdcAttachablePdu::setFlashing ( bool onOff )

virtual

virtual const bool DtSdcAttachablePdu::flashing ( ) const

virtual

virtual void DtSdcAttachablePdu::setFromString ( const char * )

virtual

Reimplemented from DtStealthControlPdu.

Reimplemented in DtSdcAreaPduBase, DtSdcTrianglePduBase, DtSdcTextPduBase, DtSdcPolyObjectPduBase, and DtSdcAttributePduBase.

virtual const char* DtSdcAttachablePdu::string ( ) const

virtual

Reimplemented from DtStealthControlPdu.

Reimplemented in DtSdcAreaPduBase, DtSdcTrianglePduBase, DtSdcTextPduBase, DtSdcPolyObjectPduBase, and DtSdcAttributePduBase.

virtual void DtSdcAttachablePdu::printData ( ) const

virtual

Reimplemented from DtStealthDrawControlPdu.

Reimplemented in DtSdcAreaPduBase, DtSdcTrianglePduBase, DtSdcTextPduBase, DtSdcPolyObjectPduBase, DtSdcLinePdu, and DtSdcAttributePduBase.

static const char* DtSdcAttachablePdu::typeString ( DtVcObjectAttachment param )

static

virtual void DtSdcAttachablePdu::setAttachmentType ( DtVcObjectAttachment attachmentType )

protectedvirtual

The documentation for this class was generated from the following file:

include/vrvVrl/legacyStealthControl.h
