DtSdcPolyObjectPduBase Class Reference

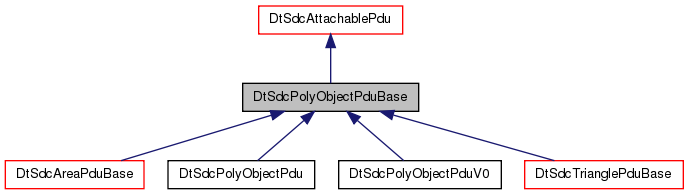

Inheritance diagram for DtSdcPolyObjectPduBase:

Public Types
enum	DtSdcFillArea { DtSdcFillAreaOff = 0x00, DtSdcFillAreaOn = 0x40, DtSdcFillAreaEntry = 0x40 }
Public Types inherited from DtSdcAttachablePdu
enum	DtVcObjectAttachment {   DtVcObjectNoAttach = 0, DtVcObjectNoAttachNoAttach = 1, DtVcObjectAttachedToEntity = 2, DtVcObjectAttachedToObject = 3,   DtVcObjectAttachedToEntityNoAttach = 4, DtVcObjectAttachedToObjectNoAttach = 5, DtVcObjectAttachedToNoAttachEntity = 6, DtVcObjectAttachedToNoAttachObject = 7,   DtVcObjectAttachedToEntityObject = 8, DtVcObjectAttachedToObjectEntity = 9, DtVcObjectAttachedToEntityEntity = 10, DtVcObjectAttachedToObjectObject = 11 }
enum	DtVcDrawingStyle { DtVcStyleNoFlashing = 0x00, DtVcStyleFlashing = 0x04, DtVcDrawingStyleEntry = 0x04 }

Public Member Functions
virtual void	setFill (bool onOff) const
virtual bool	fill () const
virtual void	setPattern (DtNetU32 patt)
virtual const DtNetU32	pattern () const
virtual void	setScale (const DtVector &pos)
virtual DtVector	scale () const
virtual void	setRotation (const DtTaitBryan &tait)
virtual DtTaitBryan	rotation () const
virtual void	setFromString (const char *str)
virtual const char *	string () const
virtual void	printData () const
Public Member Functions inherited from DtSdcAttachablePdu
virtual const DtVcObjectAttachment	attachmentType () const
	objects can be attach to 1 (text, sphere, cube, triangle, attribute group) or
virtual void	attachTo (const DtNetInt8 pos[2])
	2D placement of single position objects; uses a screen coordinate system of
virtual void	attachTo (const DtNetInt8 pos1[2], const DtNetInt8 pos2[2])
	2D placement of lines
virtual void	attachTo (const DtVector &pos)
	3D placement of single position objects
virtual void	attachTo (const DtNetU32 id)
virtual void	attachTo (const DtGlobalObjectDesignator &id)
virtual void	attachTo (const DtNetU32 id1, const DtNetU32 id2)
	3D placement of two position objects
virtual void	attachTo (const DtGlobalObjectDesignator &id1, const DtGlobalObjectDesignator &id2)
virtual void	attachTo (const DtVector &pos1, const DtVector &pos2)
virtual void	attachTo (const DtGlobalObjectDesignator &id1, const DtNetU32 id2)
virtual void	attachTo (const DtNetU32 id1, const DtGlobalObjectDesignator &id2)
virtual void	attachTo (const DtGlobalObjectDesignator &id, const DtVector &pos)
virtual void	attachTo (const DtVector &pos, const DtGlobalObjectDesignator &id)
virtual void	attachTo (const DtNetU32 id, const DtVector &pos)
virtual void	attachTo (const DtVector &pos, const DtNetU32 id)
virtual void	setRelativeLocation (DtNetU8 percentage, int index=0)
	relative location along the parent object if there is not parent object or the parent object is puntual this value is discarded The value is a percentage (0 - 100) messure from start point to end point Because a line or cylinder has two attachments, each of which could be another line or cylinder, the interface needs to support 2 relative locations.
virtual const DtNetU8	relativeLocation (int index=0) const
virtual void	setOffset (const DtVector &offsetVector)
	offset from final position.
virtual DtVector	offset () const
virtual const DtGlobalObjectDesignator	attachEntityId (int index) const
virtual const DtNetU32	attachObjectId (int index) const
virtual DtVector	position (int index) const
virtual void	setColor (DtNetU8 color[4])
virtual const DtNetU8 *	color () const
virtual void	setFlashing (bool onOff)
virtual const bool	flashing () const
Public Member Functions inherited from DtStealthDrawControlPdu
virtual const DtNetU32	objectId () const
virtual void	setObjectId (DtNetU32 lid)
virtual void	setType (DtNetU32 type)
virtual DtNetU32	type () const
virtual DtU32	paramVersion () const
Public Member Functions inherited from DtStealthControlPdu
const DtGlobalObjectDesignator &	viewerId () const
const DtGlobalObjectDesignator &	senderId () const
DtViewerCommand	viewerCommand () const
unsigned long	ignoreFlags () const
bool	statusCommand () const
void	setViewerId (const DtGlobalObjectDesignator &id)
void	setSenderId (const DtGlobalObjectDesignator &id)
void	setIgnoreFlags (unsigned long flags)
void	setStatusCommand (bool b)

Additional Inherited Members
Static Public Member Functions inherited from DtSdcAttachablePdu
static const char *	typeString (DtVcObjectAttachment param)
Protected Member Functions inherited from DtSdcAttachablePdu
virtual void	setAttachmentType (DtVcObjectAttachment attachmentType)
Static Protected Member Functions inherited from DtStealthControlPdu
static DtStealthControlPdu *	createViewControl (DtNetViewControlPdu *vc, DtBufferPtr buffer)
static DtStealthControlPdu *	createDrawControl (DtNetViewControlPdu *vc, DtBufferPtr buffer)
static DtStealthControlPdu *	createDrawControlV0 (DtNetViewControlPdu *vc, DtBufferPtr buffer)
static DtStealthControlPdu *	createDrawControlCurrent (DtNetViewControlPdu *vc, DtBufferPtr buffer)
Protected Attributes inherited from DtStealthDrawControlPdu
DtString	myTemporalText

Member Enumeration Documentation

enum DtSdcPolyObjectPduBase::DtSdcFillArea

Enumerator:

DtSdcFillAreaOff
DtSdcFillAreaOn
DtSdcFillAreaEntry

Member Function Documentation

virtual void DtSdcPolyObjectPduBase::setFill ( bool  onOff ) const

virtual

virtual bool DtSdcPolyObjectPduBase::fill ( ) const

virtual

virtual void DtSdcPolyObjectPduBase::setPattern ( DtNetU32  patt )

virtual

virtual const DtNetU32 DtSdcPolyObjectPduBase::pattern ( ) const

virtual

virtual void DtSdcPolyObjectPduBase::setScale ( const DtVector &  pos )

virtual

virtual DtVector DtSdcPolyObjectPduBase::scale ( ) const

virtual

virtual void DtSdcPolyObjectPduBase::setRotation ( const DtTaitBryan &  tait )

virtual

virtual DtTaitBryan DtSdcPolyObjectPduBase::rotation ( ) const

virtual

virtual void DtSdcPolyObjectPduBase::setFromString ( const char *  str )

virtual

Reimplemented from DtSdcAttachablePdu.

Reimplemented in DtSdcAreaPduBase, and DtSdcTrianglePduBase.

virtual const char* DtSdcPolyObjectPduBase::string ( ) const

virtual

Reimplemented from DtSdcAttachablePdu.

Reimplemented in DtSdcAreaPduBase, and DtSdcTrianglePduBase.

virtual void DtSdcPolyObjectPduBase::printData ( ) const

virtual

Reimplemented from DtSdcAttachablePdu.

Reimplemented in DtSdcAreaPduBase, and DtSdcTrianglePduBase.

---

The documentation for this class was generated from the following file:

• include/vrvVrl/legacyStealthControl.h
