DtTerrainDrawer Class Reference

This is the base class that represents a drawer that can draw an aspect of the terrain. More...

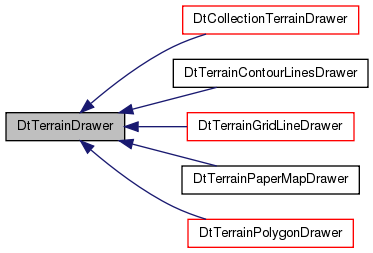

Inheritance diagram for DtTerrainDrawer:

Public Member Functions
	DtTerrainDrawer ()
	DtTerrainDrawer (const DtTerrainDrawer &)
virtual	~DtTerrainDrawer ()
DtTerrainDrawer &	operator= (const DtTerrainDrawer &)
virtual void	draw (const DtTerrainDatabase *, const DtViewportExtents *, DtPrimitiveDrawer *painter)
	Call in order to draw the particular aspect of the terrain on the supplied painter.
void	setDrawingEnabled (bool)
	Get/set the drawingEnabled flag.
bool	drawingEnabled () const

Protected Member Functions
virtual void	internalDraw (const DtTerrainDatabase *, const DtViewportExtents *, DtPrimitiveDrawer *painter)=0
	Implement this feature to do specific terrain drawing.
virtual void	drawExtent (const DtExtent &extent, const DtHomogeneousTransfMatrix &mtx, const DtViewportExtents *v, DtPrimitiveDrawer *painter)
	Drawing routines.
virtual void	drawFilledPoly (const DtAllTypesPolygon *polygon, const DtHomogeneousTransfMatrix &mtx, const DtViewportExtents *v, DtPrimitiveDrawer *painter)
virtual void	drawLine (const DtPoint &gdp0, const DtPoint &gdp1, const DtViewportExtents *view, DtPrimitiveDrawer *painter)
virtual void	drawWireframePoly (const DtAllTypesPolygon *polygon, const DtHomogeneousTransfMatrix &mtx, const DtViewportExtents *v, DtPrimitiveDrawer *painter)

Protected Attributes
bool	myDrawingEnabled

Detailed Description

This is the base class that represents a drawer that can draw an aspect of the terrain.

To be a terrain drawer, the internalDraw method must be implemented. This method will only be invoked if the drawer has drawing enabled

Constructor & Destructor Documentation

DtTerrainDrawer::DtTerrainDrawer

(

)

DtTerrainDrawer::DtTerrainDrawer

(

const DtTerrainDrawer &

)

virtual DtTerrainDrawer::~DtTerrainDrawer ( )

virtual

Member Function Documentation

DtTerrainDrawer& DtTerrainDrawer::operator=

(

const DtTerrainDrawer &

)

virtual void DtTerrainDrawer::draw ( const DtTerrainDatabase *  , const DtViewportExtents *  , DtPrimitiveDrawer *  painter  )

virtual

Call in order to draw the particular aspect of the terrain on the supplied painter.

Calls internalDraw to do the actual drawing if the drawingEnabled flag is true

Reimplemented in DtTerrainGdbDrawer.

void DtTerrainDrawer::setDrawingEnabled ( bool  b )

inline

Get/set the drawingEnabled flag.

Changing this flag does not have any immediate effect. By default this flag is true

References myDrawingEnabled.

bool DtTerrainDrawer::drawingEnabled ( ) const

inline

References myDrawingEnabled.

virtual void DtTerrainDrawer::internalDraw ( const DtTerrainDatabase *  , const DtViewportExtents *  , DtPrimitiveDrawer *  painter  )

protectedpure virtual

Implement this feature to do specific terrain drawing.

Implemented in DtTerrainGridLineDrawer, DtTerrainPolygonDrawer, DtTerrainPaperMapDrawer, DtTerrainFeatureDrawer, DtTerrainContourLinesDrawer, and DtCollectionTerrainDrawer.

virtual void DtTerrainDrawer::drawExtent ( const DtExtent &  extent, const DtHomogeneousTransfMatrix &  mtx, const DtViewportExtents *  v, DtPrimitiveDrawer *  painter  )

protectedvirtual

Drawing routines.

virtual void DtTerrainDrawer::drawFilledPoly ( const DtAllTypesPolygon *  polygon, const DtHomogeneousTransfMatrix &  mtx, const DtViewportExtents *  v, DtPrimitiveDrawer *  painter  )

protectedvirtual

virtual void DtTerrainDrawer::drawLine ( const DtPoint &  gdp0, const DtPoint &  gdp1, const DtViewportExtents *  view, DtPrimitiveDrawer *  painter  )

protectedvirtual

virtual void DtTerrainDrawer::drawWireframePoly ( const DtAllTypesPolygon *  polygon, const DtHomogeneousTransfMatrix &  mtx, const DtViewportExtents *  v, DtPrimitiveDrawer *  painter  )

protectedvirtual

Member Data Documentation

bool DtTerrainDrawer::myDrawingEnabled

protected

Referenced by drawingEnabled(), and setDrawingEnabled().

---

The documentation for this class was generated from the following file:

• include/drawertdb/terrainDrawer.h
