makVrf::DtResourceSelectionEntryWidget Class Reference

Widget that allows users to select resources for the given entity. More...

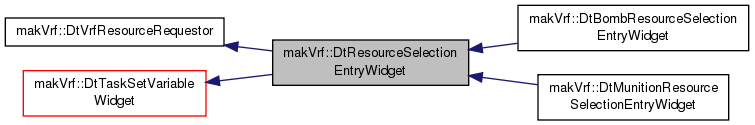

Inheritance diagram for makVrf::DtResourceSelectionEntryWidget:

Public Member Functions
	DtResourceSelectionEntryWidget (makVrv::DtDe &de, QWidget *parent, const Qt::WindowFlags &flags=0)
virtual	~DtResourceSelectionEntryWidget ()
virtual void	setLabel (const std::string &)
	Display label.
virtual void	setRange (double bottom, double top)
	Validation range. Not applicable.
virtual void	setDefaultValue (const std::string &)
	Default value to set in control. Will contain initial resource to select.
virtual void	setVariableData (const std::string &)
	Variable data. Unused in this widget.
virtual void	setupFrom (const std::vector< makVrv::DtSimEntry * > &data)
	Sets up widget with currently selected item. Requests data.
virtual DtReaderWriter *	createBoundVariable (const std::string &variableName)
	Creates the reader/writer variable that will be used as part of the task statement.
virtual void	setupFromBoundVariable (const DtReaderWriter *variableName)
	Sets up the widget from the given reader/writer variables.
Public Member Functions inherited from makVrf::DtVrfResourceRequestor
	DtVrfResourceRequestor (makVrv::DtDe &)
virtual	~DtVrfResourceRequestor ()
virtual void	requestResourcesFor (const std::vector< makVrv::DtSimEntry * > &data, bool entitiesOnly=true)
	Requests resources for all items in the vector.
virtual void	startMonitoring (const std::string &, int rate=-1)
	Start monitoring for this entity.
virtual void	stopMonitoring (const std::string &)
	Stop monitoring for the specified entity.
virtual void	setUpdateRate (const std::string &entity, int)
	Sets the update rate for entity being monitored.
Public Member Functions inherited from makVrf::DtTaskSetVariableWidget
	DtTaskSetVariableWidget (makVrv::DtDe &de, QWidget *parent, const Qt::WindowFlags &flags=0)
virtual	~DtTaskSetVariableWidget ()
virtual void	setToolTip (const QString &)
	Sets the tool tip.
virtual void	setTopLineVisible (bool)
	Hides top line.
virtual bool	topLineVisible () const
virtual void	createTopLine ()
	Creates top line.
virtual void	setIndent (int)
	Sets the indent level for the contents of this widget, except for the title line.
Public Member Functions inherited from makVrf::DtTaskSetVariableWidgetInterface
	DtTaskSetVariableWidgetInterface ()
virtual	~DtTaskSetVariableWidgetInterface ()
virtual DtTaskSetVariableWidgetExtensionInterface *	parameterContents (QWidget *parent, const Qt::WindowFlags &flags=0) const
	If there are any, returns contents for this variable for variable extension. Default is no extension.
virtual bool	guiElementOnly () const
	Returns true if this is a GUI element only. Default is false.

Static Public Member Functions
static makVrv::DtUnicode	codeVariableType ()

Public Attributes
QLabel *	myResourceLabel
QComboBox *	myResources
QHBoxLayout *	myContentLayout
QString	myDefaultValue
Public Attributes inherited from makVrf::DtTaskSetVariableWidget
QVBoxLayout *	myVariableWidgetLayout
QHBoxLayout *	mySpacedLayout
QVBoxLayout *	myVariableContentLayout
	When creating subclasses of this item, use the variable content layout to add your content.
QWidget *	myTopLine
QLabel *	myTopLabel
QSpacerItem *	myTopSeparator
QHBoxLayout *	myTopLineLayout
QSpacerItem *	mySpacerItem

Protected Member Functions
virtual void	addResource (const DtResource &)
	Called to add a new resource.
virtual void	resourceUpdated (const DtResource &)
	Called when a particular resource has been updated.
virtual void	resourcesChanged ()
	Virtual overrides to complete class.
virtual void	resourceCheckingDisabled ()
	Called when this item can not longer set resources.
virtual void	resourceCheckComplete ()
	Called when resource checking is complete.
Protected Member Functions inherited from makVrf::DtVrfResourceRequestor
virtual void	slot_resourceResponse (const DtIfServerRequestResponse &)

Additional Inherited Members
Protected Attributes inherited from makVrf::DtVrfResourceRequestor
makVrv::DtDe &	myDe
std::vector< std::string >	myResourceRequests
bool	myCanSetResources
DtEntityResourceList	myResources
Protected Attributes inherited from makVrf::DtTaskSetVariableWidget
makVrv::DtDe &	myDe
makVrv::DtSignalConnectionManager	myConnections

Detailed Description

Widget that allows users to select resources for the given entity.

Constructor & Destructor Documentation

makVrf::DtResourceSelectionEntryWidget::DtResourceSelectionEntryWidget	(	makVrv::DtDe &	de,
		QWidget *	parent,
		const Qt::WindowFlags &	flags = 0
	)

virtual makVrf::DtResourceSelectionEntryWidget::~DtResourceSelectionEntryWidget ( )

virtual

Member Function Documentation

virtual void makVrf::DtResourceSelectionEntryWidget::setLabel ( const std::string &  )

virtual

Display label.

Reimplemented from makVrf::DtTaskSetVariableWidget.

virtual void makVrf::DtResourceSelectionEntryWidget::setRange ( double  bottom, double  top  )

virtual

Validation range. Not applicable.

Implements makVrf::DtTaskSetVariableWidgetInterface.

virtual void makVrf::DtResourceSelectionEntryWidget::setDefaultValue ( const std::string &  )

virtual

Default value to set in control. Will contain initial resource to select.

Implements makVrf::DtTaskSetVariableWidgetInterface.

virtual void makVrf::DtResourceSelectionEntryWidget::setVariableData ( const std::string &  )

virtual

Variable data. Unused in this widget.

Implements makVrf::DtTaskSetVariableWidgetInterface.

virtual void makVrf::DtResourceSelectionEntryWidget::setupFrom ( const std::vector< makVrv::DtSimEntry * > &  data )

virtual

Sets up widget with currently selected item. Requests data.

Reimplemented from makVrf::DtTaskSetVariableWidget.

virtual DtReaderWriter* makVrf::DtResourceSelectionEntryWidget::createBoundVariable ( const std::string &  variableName )

virtual

Creates the reader/writer variable that will be used as part of the task statement.

Implements makVrf::DtTaskSetVariableWidgetInterface.

virtual void makVrf::DtResourceSelectionEntryWidget::setupFromBoundVariable ( const DtReaderWriter *  variableName )

virtual

Sets up the widget from the given reader/writer variables.

Implements makVrf::DtTaskSetVariableWidgetInterface.

static makVrv::DtUnicode makVrf::DtResourceSelectionEntryWidget::codeVariableType ( )

inlinestatic

References makVrv::DtUnicode::tr().

virtual void makVrf::DtResourceSelectionEntryWidget::addResource ( const DtResource &  )

protectedvirtual

Called to add a new resource.

Implements makVrf::DtVrfResourceRequestor.

Reimplemented in makVrf::DtBombResourceSelectionEntryWidget, and makVrf::DtMunitionResourceSelectionEntryWidget.

virtual void makVrf::DtResourceSelectionEntryWidget::resourceUpdated ( const DtResource &  )

protectedvirtual

Called when a particular resource has been updated.

Implements makVrf::DtVrfResourceRequestor.

virtual void makVrf::DtResourceSelectionEntryWidget::resourcesChanged ( )

protectedvirtual

Virtual overrides to complete class.

Called when resources received has changed

Implements makVrf::DtVrfResourceRequestor.

virtual void makVrf::DtResourceSelectionEntryWidget::resourceCheckingDisabled ( )

protectedvirtual

Called when this item can not longer set resources.

This will happen when multiple requests are made through this class and there are no common resources

Implements makVrf::DtVrfResourceRequestor.

virtual void makVrf::DtResourceSelectionEntryWidget::resourceCheckComplete ( )

protectedvirtual

Called when resource checking is complete.

Implements makVrf::DtVrfResourceRequestor.

Member Data Documentation

QLabel* makVrf::DtResourceSelectionEntryWidget::myResourceLabel

QComboBox* makVrf::DtResourceSelectionEntryWidget::myResources

QHBoxLayout* makVrf::DtResourceSelectionEntryWidget::myContentLayout

QString makVrf::DtResourceSelectionEntryWidget::myDefaultValue

---

The documentation for this class was generated from the following file:

• include/vrfGuiCoreQt/DtResourceSelectionEntryWidget.h
