makVrf::DtTaskSetVariableWidget Class Reference

Basic implementation that has a label at the top. More...

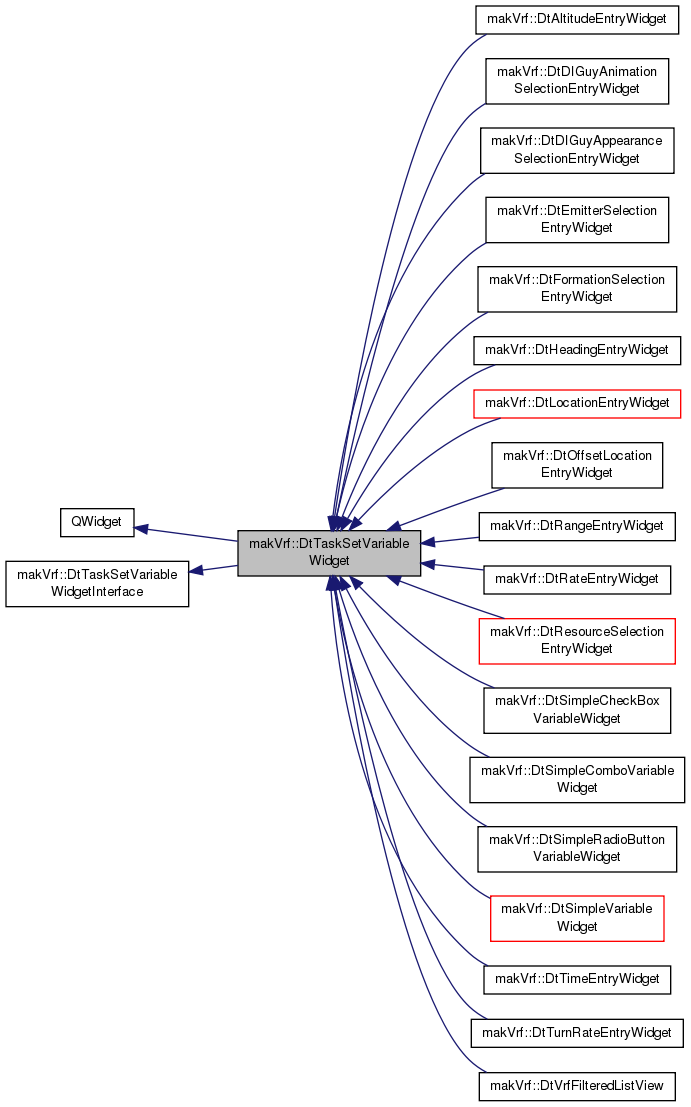

Inheritance diagram for makVrf::DtTaskSetVariableWidget:

Public Member Functions
	DtTaskSetVariableWidget (makVrv::DtDe &de, QWidget *parent, const Qt::WindowFlags &flags=0)
virtual	~DtTaskSetVariableWidget ()
virtual void	setToolTip (const QString &)
	Sets the tool tip.
virtual void	setLabel (const std::string &)
	Display label.
virtual void	setupFrom (const std::vector< makVrv::DtSimEntry * > &data)
	Sets up widget with currently selected item. No-op.
virtual void	setTopLineVisible (bool)
	Hides top line.
virtual bool	topLineVisible () const
virtual void	createTopLine ()
	Creates top line.
virtual void	setIndent (int)
	Sets the indent level for the contents of this widget, except for the title line.
Public Member Functions inherited from makVrf::DtTaskSetVariableWidgetInterface
	DtTaskSetVariableWidgetInterface ()
virtual	~DtTaskSetVariableWidgetInterface ()
virtual void	setRange (double bottom, double top)=0
virtual void	setDefaultValue (const std::string &)=0
	Default value to set in control.
virtual void	setVariableData (const std::string &)=0
	Variable data that can be used by this control to initialize values (i.e.
virtual DtReaderWriter *	createBoundVariable (const std::string &variableName)=0
	Creates the reader/writer variable that will be used as part of the task statement.
virtual void	setupFromBoundVariable (const DtReaderWriter *variableName)=0
	Sets up the widget from the given reader/writer variables.
virtual DtTaskSetVariableWidgetExtensionInterface *	parameterContents (QWidget *parent, const Qt::WindowFlags &flags=0) const
	If there are any, returns contents for this variable for variable extension. Default is no extension.
virtual bool	guiElementOnly () const
	Returns true if this is a GUI element only. Default is false.

Public Attributes
QVBoxLayout *	myVariableWidgetLayout
QHBoxLayout *	mySpacedLayout
QVBoxLayout *	myVariableContentLayout
	When creating subclasses of this item, use the variable content layout to add your content.
QWidget *	myTopLine
QLabel *	myTopLabel
QSpacerItem *	myTopSeparator
QHBoxLayout *	myTopLineLayout
QSpacerItem *	mySpacerItem

Protected Attributes
makVrv::DtDe &	myDe
makVrv::DtSignalConnectionManager	myConnections

Detailed Description

Basic implementation that has a label at the top.

Constructor & Destructor Documentation

makVrf::DtTaskSetVariableWidget::DtTaskSetVariableWidget	(	makVrv::DtDe &	de,
		QWidget *	parent,
		const Qt::WindowFlags &	flags = 0
	)

virtual makVrf::DtTaskSetVariableWidget::~DtTaskSetVariableWidget ( )

virtual

Member Function Documentation

virtual void makVrf::DtTaskSetVariableWidget::setToolTip ( const QString &  )

virtual

Sets the tool tip.

Implements makVrf::DtTaskSetVariableWidgetInterface.

virtual void makVrf::DtTaskSetVariableWidget::setLabel ( const std::string &  )

virtual

Display label.

This will create the top line if not overriden by a default.

Implements makVrf::DtTaskSetVariableWidgetInterface.

Reimplemented in makVrf::DtSimpleCheckBoxVariableWidget, makVrf::DtSimpleComboVariableWidget, makVrf::DtSimpleVariableWidget, makVrf::DtDIGuyAppearanceSelectionEntryWidget, makVrf::DtHeadingEntryWidget, makVrf::DtAltitudeEntryWidget, makVrf::DtRangeEntryWidget, makVrf::DtRateEntryWidget, makVrf::DtTurnRateEntryWidget, makVrf::DtOffsetLocationEntryWidget, makVrf::DtResourceSelectionEntryWidget, makVrf::DtTimeEntryWidget, makVrf::DtFormationSelectionEntryWidget, makVrf::DtDIGuyAnimationSelectionEntryWidget, and makVrf::DtEmitterSelectionEntryWidget.

virtual void makVrf::DtTaskSetVariableWidget::setupFrom ( const std::vector< makVrv::DtSimEntry * > &  data )

virtual

Sets up widget with currently selected item. No-op.

Implements makVrf::DtTaskSetVariableWidgetInterface.

Reimplemented in makVrf::DtDIGuyAppearanceSelectionEntryWidget, makVrf::DtResourceSelectionEntryWidget, makVrf::DtDIGuyAnimationSelectionEntryWidget, makVrf::DtFormationSelectionEntryWidget, and makVrf::DtEmitterSelectionEntryWidget.

virtual void makVrf::DtTaskSetVariableWidget::setTopLineVisible ( bool  )

virtual

Hides top line.

Reimplemented from makVrf::DtTaskSetVariableWidgetInterface.

virtual bool makVrf::DtTaskSetVariableWidget::topLineVisible ( ) const

virtual

Reimplemented from makVrf::DtTaskSetVariableWidgetInterface.

virtual void makVrf::DtTaskSetVariableWidget::createTopLine ( )

virtual

Creates top line.

virtual void makVrf::DtTaskSetVariableWidget::setIndent ( int  )

virtual

Sets the indent level for the contents of this widget, except for the title line.

The title line stays at the current overlayy indent level

Implements makVrf::DtTaskSetVariableWidgetInterface.

Member Data Documentation

makVrv::DtDe& makVrf::DtTaskSetVariableWidget::myDe

protected

makVrv::DtSignalConnectionManager makVrf::DtTaskSetVariableWidget::myConnections

protected

QVBoxLayout* makVrf::DtTaskSetVariableWidget::myVariableWidgetLayout

QHBoxLayout* makVrf::DtTaskSetVariableWidget::mySpacedLayout

QVBoxLayout* makVrf::DtTaskSetVariableWidget::myVariableContentLayout

When creating subclasses of this item, use the variable content layout to add your content.

QWidget* makVrf::DtTaskSetVariableWidget::myTopLine

QLabel* makVrf::DtTaskSetVariableWidget::myTopLabel

QSpacerItem* makVrf::DtTaskSetVariableWidget::myTopSeparator

QHBoxLayout* makVrf::DtTaskSetVariableWidget::myTopLineLayout

QSpacerItem* makVrf::DtTaskSetVariableWidget::mySpacerItem

---

The documentation for this class was generated from the following file:

• include/vrfGuiCoreQt/DtTaskSetVariableWidget.h
