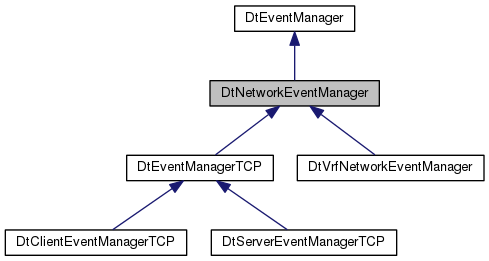

Inheritance diagram for DtNetworkEventManager:

Public Member Functions
	DtNetworkEventManager ()

virtual	~DtNetworkEventManager ()

virtual void	addEvent (const DtEvent &)
	Will check to see if this is an interaction that needs to be also sent on the network as well as added internally. More...

DtExerciseConn *	exerciseConnection () const

virtual void	setExerciseConnection (DtExerciseConn *)
	Set the exercise connection to use for this class. More...

virtual const DtSimulationAddress &	messageAddress () const
	Get the address that should be used as the sender for all messages originating from the backend. More...

virtual void	setTransportTypeReliable (int contentType)
	Sets the transport type for the given content type to be reliable. More...

virtual void	setTransportTypeBestEffort (int contentType)
	Sets the transport type for the given content type to be best-effort. More...

virtual bool	sendReliable (const DtVrfTDLMessage &message) const
	Update the transportation type to be used based on the given message. More...

virtual bool	sendReliable (const DtSimInterfaceMessage &message) const

virtual void	setProcessNetworkEventsLocally (bool)
	Whether or not to process events that are sent over the network locally if the connection is not self reflecting. More...

bool	processNetworkEventsLocally () const

virtual bool	selfReflecting (const DtEvent &) const
	Return true if exercise connection is reflecting. More...

virtual bool	selfReflecting () const
	Wether or not an event added will be processed locally. Default is true. More...

Public Member Functions inherited from DtEventManager
	DtEventManager ()

virtual	~DtEventManager ()

virtual void	tick ()

virtual void	setProcessEventsImmediately (bool b)
	Whether or not to put the messages onto a tickable queue (false) or process them immediately (true). More...

bool	processEventsImmediately () const

virtual void	selfReflect (unsigned int i)
	Whether or not to self reflect the given VRF data interaction messages (default is to self reflect all messages) More...

virtual void	doNotSelfReflect (unsigned int i)

EventSignal &	signalForFireEvent ()
	Convenience functions. More...

EventSignal &	signalForDetonationEvent ()

EventSignal &	signalForSimInterfaceContentMessage ()

EventSignal &	signalForDataInteraction ()

EventSignal &	signalForSignalInteraction ()

EventSignal &	signalForCommentInteraction ()

EventSignal &	signalForSensorFieldOfViewControlEvent ()

EventSignal &	signalForStartResumeInteraction ()

EventSignal &	signalForStopFreezeInteraction ()

EventSignal &	signalDiGuyActionEvent ()

EventSignal &	signalForInfluenceInteraction ()

EventSignal &	signalDiGuyEndActionEvent ()

EventSignal &	signalForServiceRequestEvent ()

EventSignal &	signalForResupplyOfferEvent ()

EventSignal &	signalForResupplyReceivedEvent ()

EventSignal &	signalForResupplyCancelEvent ()

virtual void	addEvent (const DtDetonationInteraction &)
	Convenience functions. More...

virtual void	addEvent (const DtFireInteraction &)

virtual void	addEvent (const DtAcknowledgeInteraction &)

virtual void	addEvent (const DtStopFreezeInteraction &)

virtual void	addEvent (const DtStartResumeInteraction &)

virtual void	addEvent (const DtDataInteraction &)

virtual void	addEvent (const DtSignalInteraction &)

virtual void	addEvent (const DtCommentInteraction &)

virtual void	addEvent (const DtSensorFieldOfViewControlInter &)

virtual void	addevent (const DtSimInterfaceContent &)

virtual void	addEvent (const DtDataInteractionWithTransportType &)

virtual void	addEvent (const DtInfluenceInteraction &)

virtual void	addEvent (const DtEndGestureInter &)

virtual void	addEvent (const DtExecuteGestureInter &)

virtual void	addEvent (const DtServiceRequestInteraction &)

virtual void	addEvent (const DtResupplyOfferInteraction &)

virtual void	addEvent (const DtResupplyRecInteraction &)

virtual void	addEvent (const DtResupplyCancelInteraction &)

virtual EventSignal &	signalForEvent (DtEvent::EventType type)
	Returns a signal for a particular event type that you will use to connect/disconnect with in order to be notified of that event being received. More...

Static Public Member Functions
static DtEventManager *	creator ()

Static Public Member Functions inherited from DtEventManager
static void	setEventManagerCreatorFcn (DtEventManagerCreatorFcn fcn)

static DtEventManager *	createEventManager ()

Public Attributes
boost::signals2::signal< void(const DtEvent &)>	signal_sendingEventOnNetwork

Protected Member Functions
virtual void	removeExerciseConnectionCallbacks ()

virtual void	installExerciseConnectionCallbacks ()

virtual void	processInfluence (DtInfluenceInteraction *)

virtual void	processCommentInteraction (DtCommentInteraction *ctrlInter)

virtual void	processFireCallback (DtFireInteraction *)

virtual void	processGimbalControl (DtSensorFieldOfViewControlInter *ctrlInter)

virtual void	processDetonationCallback (DtDetonationInteraction *)

virtual void	processStartResumeInteractionCallback (DtStartResumeInteraction *d)

virtual void	processStopFreezeInteractionCallback (DtStopFreezeInteraction *d)

virtual bool	isNetworkEvent (const DtEvent &) const
	Returns true if this is to be sent on the network. More...

virtual bool	sendNetworkEvent (const DtEvent &)
	Send this message on the network. More...

virtual void	processNetMessage (DtDataInteraction *dataInter)

virtual void	processSignalInteraction (DtSignalInteraction *dataInter)

virtual void	processServiceRequestCallback (DtServiceRequestInteraction *)

virtual void	processResupplyOfferCallback (DtResupplyOfferInteraction *)

virtual void	processResupplyReceivedCallback (DtResupplyRecInteraction *)

virtual void	processResupplyCancelCallback (DtResupplyCancelInteraction *)

virtual void	initializeProtocolSpecific ()

Protected Member Functions inherited from DtEventManager
virtual void	postEvent (const DtEvent &)
	Puts the event into the queue. More...

virtual void	processEvent (const DtEvent &)

virtual bool	wantsToProcessEvent (const DtEvent &) const
	Return true to self reflect this VRF message (if it is one) More...

Static Protected Member Functions
static void	influenceCallback (DtInfluenceInteraction , void )

static char *	dataInteractionChooser (DtExerciseConn *exConn, const DtInteraction &inter)

static void	commentInteractionCallback (DtCommentInteraction inter, void usr)

static void	fireCallback (DtFireInteraction , void )

static void	setGimbalControlCallback (DtSensorFieldOfViewControlInter ctrlInter, void usr)

static void	detonationCallback (DtDetonationInteraction , void )

static void	startResumeInterationCallback (DtStartResumeInteraction d, void u)

static void	stopFreezeInterationCallback (DtStopFreezeInteraction d, void u)

static void	netMessageCallback (DtDataInteraction dataInter, void usr)

static void	signalInteractionCallback (DtSignalInteraction dataInter, void usr)

static void	serviceRequestCallback (DtServiceRequestInteraction , void )

static void	resupplyOfferCallback (DtResupplyOfferInteraction , void )

static void	resupplyReceivedCallback (DtResupplyRecInteraction , void )

static void	resupplyCancelCallback (DtResupplyCancelInteraction , void )

Protected Attributes
DtExerciseConn *	myExerciseConnection

bool	myCallbacksInstalled

bool	myDataCallbackInstalled

bool	myProcessNetworkEventsLocally

bool	myAllowReliableDataInteractions
	Whether reliable data interactions are supported. More...

std::set< int >	myContentTypesToSendReliable
	Set of content types to be sent via reliable transport. More...

tbb::spin_rw_mutex	myFedTimeMutex

Protected Attributes inherited from DtEventManager
tbb::spin_mutex	myMutex

std::vector< DtEvent * >	myEvents

tbb::spin_mutex	myCallbackMutex

EventCallbackMap	myEventCallbackMap

bool	myProcessEventsImmediately

std::set< unsigned int >	myDoNotSelfReflect

Private Member Functions
	DtNetworkEventManager (const DtNetworkEventManager &)
	Not implemented. More...

DtNetworkEventManager &	operator= (const DtNetworkEventManager &)
	Not implemented. More...

Additional Inherited Members
Public Types inherited from DtEventManager
typedef boost::signals2::signal< void(const DtEvent &)>	EventSignal

Protected Types inherited from DtEventManager
typedef std::map < DtEvent::EventType, EventSignal * >	EventCallbackMap

Static Protected Attributes inherited from DtEventManager
static DtEventManagerCreatorFcn	theEventManagerCreatorFcn

Constructor & Destructor Documentation

DtNetworkEventManager::DtNetworkEventManager ( const DtNetworkEventManager & )

private

Not implemented.

DtNetworkEventManager::DtNetworkEventManager ( )

virtual DtNetworkEventManager::~DtNetworkEventManager ( )

virtual

Member Function Documentation

DtNetworkEventManager& DtNetworkEventManager::operator= ( const DtNetworkEventManager & )

private

Not implemented.

virtual void DtNetworkEventManager::addEvent ( const DtEvent & )

virtual

Will check to see if this is an interaction that needs to be also sent on the network as well as added internally.

If this is a self reflecting it will be sent on the network and then added via the manager by an exerise connection callback

Reimplemented from DtEventManager.

DtExerciseConn* DtNetworkEventManager::exerciseConnection ( ) const

inline

virtual void DtNetworkEventManager::setExerciseConnection ( DtExerciseConn * )

virtual

Set the exercise connection to use for this class.

virtual const DtSimulationAddress& DtNetworkEventManager::messageAddress ( ) const

virtual

Get the address that should be used as the sender for all messages originating from the backend.

virtual void DtNetworkEventManager::setTransportTypeReliable ( int contentType )

virtual

Sets the transport type for the given content type to be reliable.

virtual void DtNetworkEventManager::setTransportTypeBestEffort ( int contentType )

virtual

Sets the transport type for the given content type to be best-effort.

Since best-effort will be the default for all messages not explicitly set to another transport type, this is only necessary to undo a previous setting.

virtual bool DtNetworkEventManager::sendReliable ( const DtVrfTDLMessage & message ) const

virtual

Update the transportation type to be used based on the given message.

virtual bool DtNetworkEventManager::sendReliable ( const DtSimInterfaceMessage & message ) const

virtual

virtual void DtNetworkEventManager::setProcessNetworkEventsLocally ( bool )

virtual

Whether or not to process events that are sent over the network locally if the connection is not self reflecting.

Default is true

bool DtNetworkEventManager::processNetworkEventsLocally ( ) const

inline

virtual bool DtNetworkEventManager::selfReflecting ( const DtEvent & ) const

virtual

Return true if exercise connection is reflecting.

Reimplemented in DtEventManagerTCP.

virtual bool DtNetworkEventManager::selfReflecting ( ) const

virtual

Wether or not an event added will be processed locally. Default is true.

Reimplemented from DtEventManager.

static DtEventManager* DtNetworkEventManager::creator ( )

static

virtual void DtNetworkEventManager::removeExerciseConnectionCallbacks ( )

protectedvirtual

Reimplemented in DtVrfNetworkEventManager.

virtual void DtNetworkEventManager::installExerciseConnectionCallbacks ( )

protectedvirtual

Reimplemented in DtServerEventManagerTCP, and DtVrfNetworkEventManager.

static void DtNetworkEventManager::influenceCallback	(	DtInfluenceInteraction *	,
		void *
	)

staticprotected

virtual void DtNetworkEventManager::processInfluence ( DtInfluenceInteraction * )

protectedvirtual

static char* DtNetworkEventManager::dataInteractionChooser	(	DtExerciseConn *	exConn,
		const DtInteraction &	inter
	)

staticprotected

static void DtNetworkEventManager::commentInteractionCallback	(	DtCommentInteraction *	inter,
		void *	usr
	)

staticprotected

virtual void DtNetworkEventManager::processCommentInteraction ( DtCommentInteraction * ctrlInter )

protectedvirtual

static void DtNetworkEventManager::fireCallback	(	DtFireInteraction *	,
		void *
	)

staticprotected

virtual void DtNetworkEventManager::processFireCallback ( DtFireInteraction * )

protectedvirtual

static void DtNetworkEventManager::setGimbalControlCallback	(	DtSensorFieldOfViewControlInter *	ctrlInter,
		void *	usr
	)

staticprotected

virtual void DtNetworkEventManager::processGimbalControl ( DtSensorFieldOfViewControlInter * ctrlInter )

protectedvirtual

static void DtNetworkEventManager::detonationCallback	(	DtDetonationInteraction *	,
		void *
	)

staticprotected

virtual void DtNetworkEventManager::processDetonationCallback ( DtDetonationInteraction * )

protectedvirtual

static void DtNetworkEventManager::startResumeInterationCallback	(	DtStartResumeInteraction *	d,
		void *	u
	)

staticprotected

virtual void DtNetworkEventManager::processStartResumeInteractionCallback ( DtStartResumeInteraction * d )

protectedvirtual

static void DtNetworkEventManager::stopFreezeInterationCallback	(	DtStopFreezeInteraction *	d,
		void *	u
	)

staticprotected

virtual void DtNetworkEventManager::processStopFreezeInteractionCallback ( DtStopFreezeInteraction * d )

protectedvirtual

virtual bool DtNetworkEventManager::isNetworkEvent ( const DtEvent & ) const

protectedvirtual

Returns true if this is to be sent on the network.

virtual bool DtNetworkEventManager::sendNetworkEvent ( const DtEvent & )

protectedvirtual

Send this message on the network.

Reimplemented in DtEventManagerTCP.

static void DtNetworkEventManager::netMessageCallback	(	DtDataInteraction *	dataInter,
		void *	usr
	)

staticprotected

virtual void DtNetworkEventManager::processNetMessage ( DtDataInteraction * dataInter )

protectedvirtual

static void DtNetworkEventManager::signalInteractionCallback	(	DtSignalInteraction *	dataInter,
		void *	usr
	)

staticprotected

virtual void DtNetworkEventManager::processSignalInteraction ( DtSignalInteraction * dataInter )

protectedvirtual

static void DtNetworkEventManager::serviceRequestCallback	(	DtServiceRequestInteraction *	,
		void *
	)

staticprotected

virtual void DtNetworkEventManager::processServiceRequestCallback ( DtServiceRequestInteraction * )

protectedvirtual

static void DtNetworkEventManager::resupplyOfferCallback	(	DtResupplyOfferInteraction *	,
		void *
	)

staticprotected

virtual void DtNetworkEventManager::processResupplyOfferCallback ( DtResupplyOfferInteraction * )

protectedvirtual

static void DtNetworkEventManager::resupplyReceivedCallback	(	DtResupplyRecInteraction *	,
		void *
	)

staticprotected

virtual void DtNetworkEventManager::processResupplyReceivedCallback ( DtResupplyRecInteraction * )

protectedvirtual

static void DtNetworkEventManager::resupplyCancelCallback	(	DtResupplyCancelInteraction *	,
		void *
	)

staticprotected

virtual void DtNetworkEventManager::processResupplyCancelCallback ( DtResupplyCancelInteraction * )

protectedvirtual

virtual void DtNetworkEventManager::initializeProtocolSpecific ( )

protectedvirtual

Member Data Documentation

boost::signals2::signal<void (const DtEvent&)> DtNetworkEventManager::signal_sendingEventOnNetwork

DtExerciseConn* DtNetworkEventManager::myExerciseConnection

protected

bool DtNetworkEventManager::myCallbacksInstalled

protected

bool DtNetworkEventManager::myDataCallbackInstalled

protected

bool DtNetworkEventManager::myProcessNetworkEventsLocally

protected

bool DtNetworkEventManager::myAllowReliableDataInteractions

protected

Whether reliable data interactions are supported.

std::set<int> DtNetworkEventManager::myContentTypesToSendReliable

protected

Set of content types to be sent via reliable transport.

tbb::spin_rw_mutex DtNetworkEventManager::myFedTimeMutex

protected

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf4-10-branch/include/vrfMsgTransport/networkEventManager.h

Public Member Functions

Static Public Member Functions

Public Attributes

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Private Member Functions

Additional Inherited Members

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
