DtModelScaleWidget is a toolbar widget that combines a button to enable and disable model scaling, and a drop-down button to bring up a slider for the model scale factor. More...

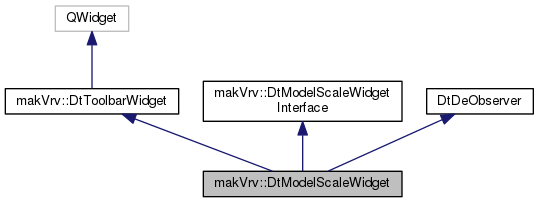

Inheritance diagram for makVrv::DtModelScaleWidget:

[legend]

Public Member Functions
	DtModelScaleWidget (DtDe &de, QWidget *parent=0, Qt::WindowFlags f=0)
	Constructor. More...

virtual	~DtModelScaleWidget ()
	Virtual Destructor. More...

virtual void	setEnabled (bool b)
	Enable or disable the model scaling button. More...

virtual void	setValue (bool b)
	Set the value of the model caling button (on/off) More...

virtual void	setModelScaleFactor (int factor)
	Set the current model scale factor to be used by the scale factor slider. More...

virtual void	setMaxModelScaleFactor (int maxModelScaleFactor)
	Sets the model scale slider's maximum value. More...

void	setupGui ()
	Sets up the user interface. Called from constructor. More...

virtual void	setWidgetsVisible (bool visible)
	Called whenever the ToolButtonStyle has changed. More...

Public Member Functions inherited from makVrv::DtToolbarWidget
	DtToolbarWidget (QWidget *p=0, Qt::WindowFlags f=0)
	CTOR The parent widget should be a QToolBar so that we can connect to its toolButtonStyleChanged(Qt::ToolButtonStyle) signal. More...

virtual	~DtToolbarWidget ()
	DTOR. More...

void	setToolButtonChecked (bool checked)
	Set/Get whether or not the tool button is checked. More...

bool	isToolButtonChecked () const

void	setToolButtonStyle (Qt::ToolButtonStyle style)
	Set/Get the current toolbutton style If myToolButton is uninitialized, the getter defaults to returning Qt::ToolButtonFollowStyle. More...

Qt::ToolButtonStyle	toolButtonStyle () const

Public Member Functions inherited from makVrv::DtModelScaleWidgetInterface
virtual	~DtModelScaleWidgetInterface ()
	Virtual DTOR. More...

Protected Slots
virtual void	on_modelScaleSliderChanged (int)
	connected to the internal model scale slider toggle button More...

virtual void	on_toolButtonClicked (bool checked)
	Slot when this widget's toolbutton has been clicked. More...

Protected Slots inherited from makVrv::DtToolbarWidget
virtual void	on_toolButtonStyleChanged (Qt::ToolButtonStyle val)
	Updates widget to match the new ToolButtonStyle. More...

virtual void	on_toolButtonClicked (bool checked)=0
	Slot when this widget's toolbutton has been clicked. More...

virtual void	on_aboutToShow ()
	Slot for when the menu for this widget is about to be shown The slot is only used if this toolbar widget is configured to have a menu. More...

Protected Member Functions

virtual void	slot_activate (DtDe *subject)
	For Display Engine subject observer. More...

virtual void	slot_deactivate (DtDe *)

Protected Member Functions inherited from makVrv::DtToolbarWidget
virtual void	configureToolButton (const QString &text, const QString &tooltip, const QString &iconPath, bool checkable=false, bool hasMenu=false, QToolButton::ToolButtonPopupMode menuMode=QToolButton::DelayedPopup)
	Configure the QToolButton for this toolbar widget. More...

Protected Attributes
DtDe &	myDe

DtModelScaleWidgetLogic *	myLogic

DtPopupToolbarButton *	mySliderEnableButton

DtModelScaleSliderWidget *	mySliderWidget

DtPopupToolbar *	mySliderToolBar

bool	mySliderWidgetShown

Protected Attributes inherited from makVrv::DtToolbarWidget
QToolButton *	myToolButton

QHBoxLayout *	myWidgetLayout

Private Member Functions
	DtModelScaleWidget ()
	Default CTOR. More...

	DtModelScaleWidget (const DtModelScaleWidget &)
	Copy CTOR. More...

DtModelScaleWidget &	operator= (const DtModelScaleWidget &)
	Copy operator. More...

Detailed Description

DtModelScaleWidget is a toolbar widget that combines a button to enable and disable model scaling, and a drop-down button to bring up a slider for the model scale factor.

Constructor & Destructor Documentation

makVrv::DtModelScaleWidget::DtModelScaleWidget	(	DtDe &	de,
		QWidget *	parent = `0`,
		Qt::WindowFlags	f = `0`
	)

Constructor.

virtual makVrv::DtModelScaleWidget::~DtModelScaleWidget ( )

virtual

Virtual Destructor.

makVrv::DtModelScaleWidget::DtModelScaleWidget ( )

private

Default CTOR.

Note: Not implemented ( force use of initializer ).

makVrv::DtModelScaleWidget::DtModelScaleWidget ( const DtModelScaleWidget & )

private

Copy CTOR.

Note: Not implemented ( prevents copies ).

Member Function Documentation

DtModelScaleWidget& makVrv::DtModelScaleWidget::operator= ( const DtModelScaleWidget & )

private

Copy operator.

Note: Not implemented ( prevents copies ).

virtual void makVrv::DtModelScaleWidget::setEnabled ( bool b )

virtual

Enable or disable the model scaling button.

If the scale slider is up, this will also bring that down

Implements makVrv::DtModelScaleWidgetInterface.

virtual void makVrv::DtModelScaleWidget::setValue ( bool b )

virtual

Set the value of the model caling button (on/off)

Implements makVrv::DtModelScaleWidgetInterface.

virtual void makVrv::DtModelScaleWidget::setModelScaleFactor ( int factor )

virtual

Set the current model scale factor to be used by the scale factor slider.

Implements makVrv::DtModelScaleWidgetInterface.

virtual void makVrv::DtModelScaleWidget::setMaxModelScaleFactor ( int maxModelScaleFactor )

virtual

Sets the model scale slider's maximum value.

Implements makVrv::DtModelScaleWidgetInterface.

void makVrv::DtModelScaleWidget::setupGui ( )

Sets up the user interface. Called from constructor.

virtual void makVrv::DtModelScaleWidget::setWidgetsVisible ( bool visible )

virtual

Called whenever the ToolButtonStyle has changed.

Parameters

visible Whether or not any custom widgets are visible This function updates the visibility of mySliderEnableButton

Reimplemented from makVrv::DtToolbarWidget.

virtual void makVrv::DtModelScaleWidget::slot_activate ( DtDe * subject )

protectedvirtual

For Display Engine subject observer.

virtual void makVrv::DtModelScaleWidget::slot_deactivate ( DtDe * )

inlineprotectedvirtual

virtual void makVrv::DtModelScaleWidget::on_modelScaleSliderChanged ( int )

protectedvirtualslot

connected to the internal model scale slider toggle button

virtual void makVrv::DtModelScaleWidget::on_toolButtonClicked ( bool checked )

protectedvirtualslot

Slot when this widget's toolbutton has been clicked.

Parameters

checked Whether or not the QToolButton is checked or not

Member Data Documentation

DtDe& makVrv::DtModelScaleWidget::myDe

protected

DtModelScaleWidgetLogic* makVrv::DtModelScaleWidget::myLogic

protected

DtPopupToolbarButton* makVrv::DtModelScaleWidget::mySliderEnableButton

protected

DtModelScaleSliderWidget* makVrv::DtModelScaleWidget::mySliderWidget

protected

DtPopupToolbar* makVrv::DtModelScaleWidget::mySliderToolBar

protected

bool makVrv::DtModelScaleWidget::mySliderWidgetShown

protected

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf4-10-branch/include/vrvCoreQt/DtModelScaleWidget.h
