Base class for OSG ribbon implementations. More...

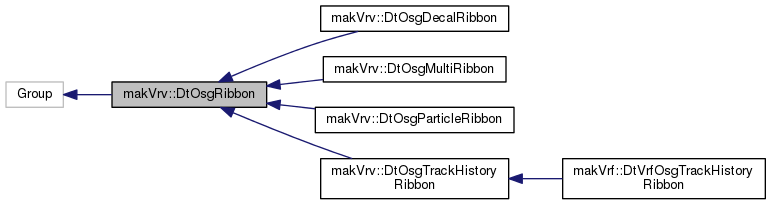

Inheritance diagram for makVrv::DtOsgRibbon:

Public Member Functions
	DtOsgRibbon (DtDe &de, float segmentSpacing=1.0, const osg::Vec4 &color=osg::Vec4d(0.5, 0.5, 0.5, 1.0), float maxLength=2000, float timeout=3600.0)
	CTOR. More...

virtual	~DtOsgRibbon ()
	DTOR. More...

virtual void	traverse (osg::NodeVisitor &nv)
	Interrupt CullVisitors by updating the ribbon. More...

virtual osg::Node *	node ()
	Get the osg geometry node associated with the ribbon. More...

virtual void	setColor (const osg::Vec4 &color)
	Set the ribbon's color. More...

virtual const osg::Vec4 &	color () const
	Get the ribbon's color. More...

virtual void	setDroppedPoints (const osg::Vec3d &pointA, const osg::Vec3d &pointB)
	Set the points to drop in local coordinates. More...

virtual void	setDroppedPointsPositionOffset (const osg::Vec3d &posOffset)
	Provide an offset to the dropped points so the entity can shift around the points specified in the model definition ex. More...

virtual void	update (double dt, double simTime)
	Update the ribbon with the current position. More...

virtual void	update ()
	Optional time independent update method. More...

virtual void	setMaxSegments (long segments)
	Sets the maximum number of segments allowed in the ribbon. More...

virtual long	maxSegments () const
	Gets the maximum number of segments allowed in the ribbon. More...

virtual void	setSegmentSpacing (float spacing)
	Sets the maximum length of ribbon segments. More...

virtual void	setSegmentTimeout (float duration)
	Sets the timeout of a ribbon segment. More...

virtual float	segmentSpacing () const
	Gets the maximum length of the ribbon segments. More...

virtual void	setStippled (bool stippled)

virtual bool	isStippled () const
	Get the stipple setting for this ribbon. More...

virtual void	setLightingEnabled (bool enable)
	set to true the lighting enabled flag to turn lighting on for the ribbon More...

virtual bool	lightingEnabled ()
	get the lighting enabled flag More...

Protected Member Functions
virtual void	addParticle (osg::Vec3d const &left, osg::Vec3d const &right, double simTime)=0
	Add a particle to the ribbon. More...

virtual float	currentSegmentLength ()=0
	Find the length of the current ribbon segment. More...

virtual void	cleanupOldSegments (double simTime)=0
	Check to see if any segments have reached their timeout if so remove them from the list to be rendered. More...

virtual void	extendCurrentSegment (osg::Vec3d const &left, osg::Vec3d const &right, double simTime)=0
	Extend the current segment to left and right points. More...

virtual osg::Drawable *	getDrawable ()=0
	Get the drawable responsible for drawing the ribbon. More...

virtual osg::Geode *	createGeode ()
	Create function for creating the geode for drawing this ribbon. More...

virtual void	setDrawable ()
	Removes any existing drawables and add the drawable returned from getDrawable. More...

Protected Attributes
osg::ref_ptr < osg::MatrixTransform >	myPositionNode

osg::ref_ptr< osg::Geode >	myGeode

osg::Matrixd	myWorldTransformInv

osg::Matrixd	myLastLocalToWork

int	myLastUpdatedFrame

double	myLastUpdateTime

long	myMaxSegments

float	mySegmentSpacingSquared

float	mySegmentSpacing

float	mySegmentTimeout

osg::Vec3d	myLocalPointA

osg::Vec3d	myLocalPointB

osg::Vec3d	myLocalPosOffset

osg::Vec4	myColor

bool	myFirstUpdate

bool	myStippled

DtDe &	myDe

bool	myLightingEnabled

bool	myShaderSet

Private Member Functions
	DtOsgRibbon ()=delete
	unimplemented private default constructor More...

	DtOsgRibbon (const DtOsgRibbon &)=delete
	Copy Constructor not implemented � Copy not allowed. More...

DtOsgRibbon &	operator= (const DtOsgRibbon &)=delete
	Assignment Operator not implemented � Copy not allowed. More...

Detailed Description

Base class for OSG ribbon implementations.

Constructor & Destructor Documentation

makVrv::DtOsgRibbon::DtOsgRibbon	(	DtDe &	de,
		float	segmentSpacing = `1.0`,
		const osg::Vec4 &	color = `osg::Vec4d(0.5, 0.5, 0.5, 1.0)`,
		float	maxLength = `2000`,
		float	timeout = `3600.0`
	)

CTOR.

Parameters

segmentSpacing	the distance between samples points (in meters).
color	the color of the ribbon.
maxLength	the max length of the ribbon (in samples).

virtual makVrv::DtOsgRibbon::~DtOsgRibbon ( )

virtual

DTOR.

makVrv::DtOsgRibbon::DtOsgRibbon ( )

privatedelete

unimplemented private default constructor

makVrv::DtOsgRibbon::DtOsgRibbon ( const DtOsgRibbon & )

privatedelete

Copy Constructor not implemented � Copy not allowed.

Member Function Documentation

DtOsgRibbon& makVrv::DtOsgRibbon::operator= ( const DtOsgRibbon & )

privatedelete

Assignment Operator not implemented � Copy not allowed.

virtual void makVrv::DtOsgRibbon::traverse ( osg::NodeVisitor & nv )

virtual

Interrupt CullVisitors by updating the ribbon.

Reimplemented in makVrv::DtOsgTrackHistoryRibbon.

virtual osg::Node* makVrv::DtOsgRibbon::node ( )

virtual

Get the osg geometry node associated with the ribbon.

Reimplemented in makVrv::DtOsgMultiRibbon.

virtual void makVrv::DtOsgRibbon::setColor ( const osg::Vec4 & color )

virtual

Set the ribbon's color.

Reimplemented in makVrv::DtOsgTrackHistoryRibbon.

virtual const osg::Vec4& makVrv::DtOsgRibbon::color ( void ) const

inlinevirtual

Get the ribbon's color.

virtual void makVrv::DtOsgRibbon::setDroppedPoints	(	const osg::Vec3d &	pointA,
		const osg::Vec3d &	pointB
	)

virtual

Set the points to drop in local coordinates.

virtual void makVrv::DtOsgRibbon::setDroppedPointsPositionOffset ( const osg::Vec3d & posOffset )

virtual

Provide an offset to the dropped points so the entity can shift around the points specified in the model definition ex.

5 ton truck can offset so front wheels leave tracks

Reimplemented in makVrv::DtOsgMultiRibbon.

virtual void makVrv::DtOsgRibbon::update	(	double	dt,
		double	simTime
	)

virtual

Update the ribbon with the current position.

Reimplemented in makVrv::DtOsgMultiRibbon, and makVrv::DtOsgParticleRibbon.

virtual void makVrv::DtOsgRibbon::update ( )

virtual

Optional time independent update method.

nop for now

Reimplemented in makVrv::DtOsgTrackHistoryRibbon.

virtual void makVrv::DtOsgRibbon::setMaxSegments ( long segments )

virtual

Sets the maximum number of segments allowed in the ribbon.

Reimplemented in makVrv::DtOsgTrackHistoryRibbon.

virtual long makVrv::DtOsgRibbon::maxSegments ( ) const

inlinevirtual

Gets the maximum number of segments allowed in the ribbon.

virtual void makVrv::DtOsgRibbon::setSegmentSpacing ( float spacing )

virtual

Sets the maximum length of ribbon segments.

virtual void makVrv::DtOsgRibbon::setSegmentTimeout ( float duration )

virtual

Sets the timeout of a ribbon segment.

virtual float makVrv::DtOsgRibbon::segmentSpacing ( ) const

inlinevirtual

Gets the maximum length of the ribbon segments.

virtual void makVrv::DtOsgRibbon::setStippled ( bool stippled )

virtual

Parameters

[in] stippled is a flag to use a stipple pattern instead of alpha blending. When true, the ribbon is considered opaque and the stipple pattern allows see through. When false, the ribbon is considered transparent and alpha blending allows see through.

virtual bool makVrv::DtOsgRibbon::isStippled ( ) const

inlinevirtual

Get the stipple setting for this ribbon.

Return values

true	if stippled.
false	otherwise.

See Also: setStippled(bool)

virtual void makVrv::DtOsgRibbon::setLightingEnabled ( bool enable )

virtual

set to true the lighting enabled flag to turn lighting on for the ribbon

virtual bool makVrv::DtOsgRibbon::lightingEnabled ( )

virtual

get the lighting enabled flag

virtual void makVrv::DtOsgRibbon::addParticle	(	osg::Vec3d const &	left,
		osg::Vec3d const &	right,
		double	simTime
	)

protectedpure virtual

Add a particle to the ribbon.

Implemented in makVrv::DtOsgParticleRibbon, makVrv::DtOsgTrackHistoryRibbon, makVrv::DtOsgMultiRibbon, and makVrv::DtOsgDecalRibbon.

virtual float makVrv::DtOsgRibbon::currentSegmentLength ( )

protectedpure virtual

Find the length of the current ribbon segment.

Implemented in makVrv::DtOsgParticleRibbon, makVrv::DtOsgTrackHistoryRibbon, makVrv::DtOsgMultiRibbon, and makVrv::DtOsgDecalRibbon.

virtual void makVrv::DtOsgRibbon::cleanupOldSegments ( double simTime )

protectedpure virtual

Check to see if any segments have reached their timeout if so remove them from the list to be rendered.

currently only implemented for track histories.

Implemented in makVrf::DtVrfOsgTrackHistoryRibbon, makVrv::DtOsgParticleRibbon, makVrv::DtOsgTrackHistoryRibbon, makVrv::DtOsgMultiRibbon, and makVrv::DtOsgDecalRibbon.

virtual void makVrv::DtOsgRibbon::extendCurrentSegment	(	osg::Vec3d const &	left,
		osg::Vec3d const &	right,
		double	simTime
	)

protectedpure virtual

Extend the current segment to left and right points.

Implemented in makVrv::DtOsgParticleRibbon, makVrv::DtOsgMultiRibbon, makVrv::DtOsgTrackHistoryRibbon, and makVrv::DtOsgDecalRibbon.

virtual osg::Drawable* makVrv::DtOsgRibbon::getDrawable ( )

protectedpure virtual

Get the drawable responsible for drawing the ribbon.

Implemented in makVrv::DtOsgParticleRibbon, makVrv::DtOsgTrackHistoryRibbon, makVrv::DtOsgMultiRibbon, and makVrv::DtOsgDecalRibbon.

virtual osg::Geode* makVrv::DtOsgRibbon::createGeode ( )

protectedvirtual

Create function for creating the geode for drawing this ribbon.

Reimplemented in makVrv::DtOsgParticleRibbon, and makVrv::DtOsgDecalRibbon.

virtual void makVrv::DtOsgRibbon::setDrawable ( )

protectedvirtual

Removes any existing drawables and add the drawable returned from getDrawable.

Member Data Documentation

osg::ref_ptr<osg::MatrixTransform> makVrv::DtOsgRibbon::myPositionNode

protected

osg::ref_ptr<osg::Geode> makVrv::DtOsgRibbon::myGeode

protected

osg::Matrixd makVrv::DtOsgRibbon::myWorldTransformInv

protected

osg::Matrixd makVrv::DtOsgRibbon::myLastLocalToWork

protected

int makVrv::DtOsgRibbon::myLastUpdatedFrame

protected

double makVrv::DtOsgRibbon::myLastUpdateTime

protected

long makVrv::DtOsgRibbon::myMaxSegments

protected

float makVrv::DtOsgRibbon::mySegmentSpacingSquared

protected

float makVrv::DtOsgRibbon::mySegmentSpacing

protected

float makVrv::DtOsgRibbon::mySegmentTimeout

protected

osg::Vec3d makVrv::DtOsgRibbon::myLocalPointA

protected

osg::Vec3d makVrv::DtOsgRibbon::myLocalPointB

protected

osg::Vec3d makVrv::DtOsgRibbon::myLocalPosOffset

protected

osg::Vec4 makVrv::DtOsgRibbon::myColor

protected

bool makVrv::DtOsgRibbon::myFirstUpdate

protected

bool makVrv::DtOsgRibbon::myStippled

protected

DtDe& makVrv::DtOsgRibbon::myDe

protected

bool makVrv::DtOsgRibbon::myLightingEnabled

protected

bool makVrv::DtOsgRibbon::myShaderSet

protected

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf4-10-branch/include/vrvOsg/DtOsgRibbon.h
