makVrv::DtVisualizerSet Class Reference

This contains all the DtVisualizers used to visualize an element in a particular model set. More...

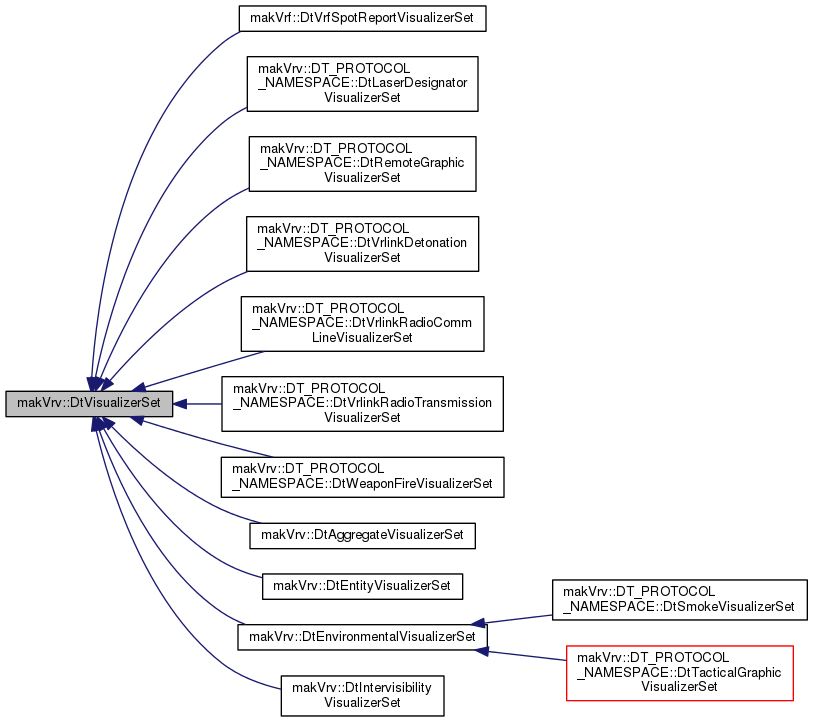

Inheritance diagram for makVrv::DtVisualizerSet:

Public Types
typedef std::vector < DtStateVisualizer * >	VisualizerList

Public Member Functions
	DtVisualizerSet (DtBaseConnection &conn, DtStateListener &listener, int modelSet, bool distribute)
	CTOR. More...
virtual	~DtVisualizerSet ()
	Destructor. More...
virtual void	visualizeElementDefinition (const DtUnicode &elementName, const DtElementDefinitionNew &def, const DtVisualizerCreationSettings::VisualTypeVisualizerCreationMap &creationMap)
	Visualize an element definition. More...
virtual void	visualizeElementDefinition (const DtUnicode &elementName, const DtElementDefinitionNew &def)
	Visualize an element definition. More...
virtual void	createVisualizersByType (int visualType)
	Go through the visualizer definitions in the member variable myDefinitions, and create/add any visualizers that have the specified visual type. More...
virtual void	destroyVisualizersByType (int visualType)
	Go through all realized visualizers and remove any that match the specified visual type. More...
const DtElementDefinitionNew *	definition () const
	Returns the visualized definition. More...
int	modelSet () const
	Returns the visualized model set. More...
template<typename VisualizerClass >
void	findVisualizers (std::vector< VisualizerClass * > &visualizers)
	Find all instances of a Visualizer by schema name. More...
template<typename VisualizerClass >
void	findVisualizersByDynamicCast (std::vector< VisualizerClass * > &visualizers)
	Find all instance of a visualizer by dynamically casting to the class type rather than doing the faster type info check. More...
virtual void	findVisualizers (const DtVisualizerSchema &, VisualizerList &visualizers)
	Find all visualizers which use a particular schema. More...
virtual bool	setVisible (bool visible, DtShowHideContext::ShowHideContext context=DtShowHideContext::InstanceHidden)
	Since there are many things that might want to show/hide an item, keep track of them in a list for each visualizer. More...
virtual bool	isVisible () const
	Is the instance visible. More...
virtual bool	show (DtShowHideContext::ShowHideContext)
	Show (or hide) the item with the given context. More...
virtual bool	hide (DtShowHideContext::ShowHideContext)
bool	isHiddenByContext (DtShowHideContext::ShowHideContext) const
	Returns true if hidden by the specified context. More...
virtual DtUniqueID	uniqueID () const
	Returns unique id of mySceneObjectAgent, else 0. More...
DtSceneObjectVisualizer *	sceneObjectVisualizer () const
virtual void	setPickable (bool pickable)
	Set whether this visualizer is pickable. More...
bool	pickable () const
	Is this visualizer pickable. More...
virtual void	setSelected (bool)
	Set if the instance selected. More...
bool	selected () const
	Is the instance selected. More...
virtual void	setHasMouseCursor (bool)
	Set if the instance is currently being hovered by the mouse cursor. More...
bool	addVisualizer (const DtVisualizerDefinition &def)
	Add a visualizer after the visualizerSet has been visualized. More...
virtual void	destroyAllModelVisualizers ()
	Destroys all model agent visualizers associated with visualizer. More...
virtual DtStateVisualizer::Type	supportsVisualizerType () const
	Get the type that this set supports. More...

Public Attributes
boost::signalslib::signal < void(DtMouseState &mouseState, const DtUniqueID &id, const std::string &displayEngineName, const std::string &windowName, const std::string &channelName, DtStateVisualizer *v, DtVisualizerSet *i)>	signal_mouseDown
	Emitted when the mouse is clicked on any visualizer in this collection. More...
boost::signalslib::signal < void(DtMouseState &mouseState, const DtUniqueID &id, const std::string &displayEngineName, const std::string &windowName, const std::string &channelName, DtStateVisualizer *v, DtVisualizerSet *i)>	signal_mouseUp
boost::signalslib::signal < void(DtMouseState &mouseState, const DtUniqueID &id, const std::string &displayEngineName, const std::string &windowName, const std::string &channelName, DtStateVisualizer *v, DtVisualizerSet *i)>	signal_mouseDblClick
boost::signalslib::signal < void(bool, DtVisualizerSet *vis) >	signal_selectionStateChanged
boost::signalslib::signal < void(bool, DtVisualizerSet *vis) >	signal_hasMouseCursorStateChanged

Protected Types
typedef boost::unordered_multimap < std::string, DtStateVisualizer * >	StateVisualizerMap
typedef std::vector < DtShowHideContext::ShowHideContext >	ShowHideContexts

Protected Member Functions
void	destroyAllModelVisualizersInternal ()
	Non-virtual work function for destroying all model visualizers in this set. More...
virtual void	visualizeVisualizerDefinitionSet (const DtUnicode &elementName, const DtVisualizerDefinitionSet &set, const DtVisualizerCreationSettings::VisualTypeVisualizerCreationMap *creationMap=nullptr)
	Given the DtVisualDefinitionSet, create all visualizers associated. More...
virtual DtStateVisualizer *	createVisualizerFromDefinition (const DtVisualizerDefinition &def)
	Create a state visualizer from a visual definition. More...
virtual void	addVisualizer (const std::string &schemaName, DtStateVisualizer *visualizer)
	Adds a new model visualizer into the list of visualizers. More...
virtual bool	suppressVisualizerCreation (const DtVisualizerDefinition *visDef, const DtVisualizerCreationSettings::VisualTypeVisualizerCreationMap *creationMap) const
	Check to see if the visualizer type and creation map warrant creation. More...
virtual int	findVisualType (const DtVisualizerDefinition &visDef) const
	lookup the visualtype attribute from a visual definition; returns 0 if none found More...
virtual void	setModelVisualizerVisible (const std::string &schemaName, bool onOff, int context)
	Call setVisible for all visualizers with the indicated schemaName. More...
virtual void	slot_mouseDown (DtMouseState &mouseState, const DtUniqueID &id, const std::string &displayEngineName, const std::string &windowName, const std::string &channelName, DtStateVisualizer *v)
	Called when the entity's indicator is clicked in some channel. More...
virtual void	slot_mouseUp (DtMouseState &mouseState, const DtUniqueID &id, const std::string &displayEngineName, const std::string &windowName, const std::string &channelName, DtStateVisualizer *v)
virtual void	slot_mouseDblClick (DtMouseState &mouseState, const DtUniqueID &id, const std::string &displayEngineName, const std::string &windowName, const std::string &channelName, DtStateVisualizer *v)
template<typename T , typename C >
void	connectAndUpdate (boost::signalslib::signal< void(T)> &sig, void(C::*fp)(T), T val)
	Utility function for connect a signal to an update function as well as calling the update function. More...
const DtUnicode *	chooseRandomString (const std::vector< DtUnicode > &stringList)
	Return the model definition that might be randomly chosen, if the definitions has more than 1 item. More...

Protected Attributes
DtBaseConnection &	myBaseConnection
DtStateVisualizerFactory &	myCachedFactory
DtStateListener &	myStateListener
StateVisualizerMap	myVisualizers
DtSignalConnectionManager	myConnections
const DtElementDefinitionNew *	myDefinition
bool	mySelected
bool	myHasMouseCursor
bool	myPickable
bool	myVisible
bool	myDistribute
DtSceneObjectVisualizer *	mySceneObjectVisualizer
ShowHideContexts	myShowHideContexts
int	myModelSet
std::string	myVisualTypeString

Detailed Description

This contains all the DtVisualizers used to visualize an element in a particular model set.

Member Typedef Documentation

typedef std::vector<DtStateVisualizer*> makVrv::DtVisualizerSet::VisualizerList

typedef boost::unordered_multimap<std::string,DtStateVisualizer* > makVrv::DtVisualizerSet::StateVisualizerMap

protected

typedef std::vector<DtShowHideContext::ShowHideContext> makVrv::DtVisualizerSet::ShowHideContexts

protected

Constructor & Destructor Documentation

makVrv::DtVisualizerSet::DtVisualizerSet	(	DtBaseConnection &	conn,
		DtStateListener &	listener,
		int	modelSet,
		bool	distribute
	)

CTOR.

virtual makVrv::DtVisualizerSet::~DtVisualizerSet ( )

virtual

Destructor.

Member Function Documentation

virtual void makVrv::DtVisualizerSet::visualizeElementDefinition ( const DtUnicode &  elementName, const DtElementDefinitionNew &  def, const DtVisualizerCreationSettings::VisualTypeVisualizerCreationMap &  creationMap  )

virtual

Visualize an element definition.

virtual void makVrv::DtVisualizerSet::visualizeElementDefinition ( const DtUnicode &  elementName, const DtElementDefinitionNew &  def  )

virtual

Visualize an element definition.

virtual void makVrv::DtVisualizerSet::createVisualizersByType ( int  visualType )

virtual

Go through the visualizer definitions in the member variable myDefinitions, and create/add any visualizers that have the specified visual type.

If the visualizerSet has not been realized yet, myDefinitions will be null, and this method will do nothing

virtual void makVrv::DtVisualizerSet::destroyVisualizersByType ( int  visualType )

virtual

Go through all realized visualizers and remove any that match the specified visual type.

const DtElementDefinitionNew* makVrv::DtVisualizerSet::definition

(

)

const

Returns the visualized definition.

int makVrv::DtVisualizerSet::modelSet

(

)

const

Returns the visualized model set.

template<typename VisualizerClass >

void makVrv::DtVisualizerSet::findVisualizers ( std::vector< VisualizerClass * > &  visualizers )

inline

Find all instances of a Visualizer by schema name.

References myVisualizers.

Referenced by makVrf::DtEnvironmentalFacadeCollection::setWidgetEventsEnabled().

template<typename VisualizerClass >

void makVrv::DtVisualizerSet::findVisualizersByDynamicCast ( std::vector< VisualizerClass * > &  visualizers )

inline

Find all instance of a visualizer by dynamically casting to the class type rather than doing the faster type info check.

Use this when you want to find all instances of a particular class, not the actual class

References myVisualizers.

Referenced by makVrf::DtEntityFacadeCollection::hasVisualizer(), makVrf::DtEntityFacadeCollection::setColor(), makVrf::DtEntityFacadeCollection::setEntityExtentsVisible(), makVrf::DtEntityFacadeCollection::setForceColor(), makVrf::DtEnvironmentalFacadeCollection::setForceColor(), makVrf::DtEntityFacadeCollection::setForceType(), makVrf::DtEntityFacadeCollection::setIconScale(), and makVrf::DtEntityFacadeCollection::setScale().

virtual void makVrv::DtVisualizerSet::findVisualizers ( const DtVisualizerSchema &  , VisualizerList &  visualizers  )

virtual

Find all visualizers which use a particular schema.

virtual bool makVrv::DtVisualizerSet::setVisible ( bool  visible, DtShowHideContext::ShowHideContext  context = DtShowHideContext::InstanceHidden  )

virtual

Since there are many things that might want to show/hide an item, keep track of them in a list for each visualizer.

Pass the context with which to show or hide into this routine. It will then be passed to each item, which will determine whether or not to show or hide itself based on the context. Will call setModelVisualizerVisible for all models. Returns true if any items visibility has changed

Reimplemented in makVrv::DtEnvironmentalVisualizerSet.

virtual bool makVrv::DtVisualizerSet::isVisible ( ) const

virtual

Is the instance visible.

virtual bool makVrv::DtVisualizerSet::show ( DtShowHideContext::ShowHideContext  )

virtual

Show (or hide) the item with the given context.

Called from setVisible

virtual bool makVrv::DtVisualizerSet::hide ( DtShowHideContext::ShowHideContext  )

virtual

bool makVrv::DtVisualizerSet::isHiddenByContext

(

DtShowHideContext::ShowHideContext

)

const

Returns true if hidden by the specified context.

virtual DtUniqueID makVrv::DtVisualizerSet::uniqueID ( ) const

virtual

Returns unique id of mySceneObjectAgent, else 0.

Referenced by makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkBoxVisualizer< T >::setHostGlobalId(), makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkArcVisualizer< T >::setHostGlobalId(), makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkWedgeVisualizer< T >::setHostGlobalId(), makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkEllipseVisualizer< DtVrf2DEllipseVisualizer >::setHostGlobalId(), and makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkSpiderWebVisualizer< T >::setHostGlobalId().

DtSceneObjectVisualizer* makVrv::DtVisualizerSet::sceneObjectVisualizer

(

)

const

virtual void makVrv::DtVisualizerSet::setPickable ( bool  pickable )

virtual

Set whether this visualizer is pickable.

bool makVrv::DtVisualizerSet::pickable

(

)

const

Is this visualizer pickable.

virtual void makVrv::DtVisualizerSet::setSelected ( bool  )

virtual

Set if the instance selected.

Reimplemented in makVrv::DT_PROTOCOL_NAMESPACE::DtTacticalGraphicPointVisualizerSet, and makVrv::DT_PROTOCOL_NAMESPACE::DtTacticalGraphicVertexVisualizerSet.

bool makVrv::DtVisualizerSet::selected

(

)

const

Is the instance selected.

virtual void makVrv::DtVisualizerSet::setHasMouseCursor ( bool  )

virtual

Set if the instance is currently being hovered by the mouse cursor.

This method is invoked by the DtEntityElementProcessor whenever the DtSharedSimulationSettingsSignaler::signal_elementHasMouseCursorStateChanged signal is emitted.

bool makVrv::DtVisualizerSet::addVisualizer

(

const DtVisualizerDefinition &

def

)

Add a visualizer after the visualizerSet has been visualized.

virtual void makVrv::DtVisualizerSet::destroyAllModelVisualizers ( )

virtual

Destroys all model agent visualizers associated with visualizer.

virtual DtStateVisualizer::Type makVrv::DtVisualizerSet::supportsVisualizerType ( ) const

virtual

Get the type that this set supports.

Reimplemented in makVrv::DtEnvironmentalVisualizerSet, makVrv::DtIntervisibilityVisualizerSet, makVrv::DtAggregateVisualizerSet, and makVrv::DtEntityVisualizerSet.

void makVrv::DtVisualizerSet::destroyAllModelVisualizersInternal ( )

protected

Non-virtual work function for destroying all model visualizers in this set.

virtual void makVrv::DtVisualizerSet::visualizeVisualizerDefinitionSet ( const DtUnicode &  elementName, const DtVisualizerDefinitionSet &  set, const DtVisualizerCreationSettings::VisualTypeVisualizerCreationMap *  creationMap = nullptr  )

protectedvirtual

Given the DtVisualDefinitionSet, create all visualizers associated.

If there is a problem, will throw an exception

virtual DtStateVisualizer* makVrv::DtVisualizerSet::createVisualizerFromDefinition ( const DtVisualizerDefinition &  def )

protectedvirtual

Create a state visualizer from a visual definition.

virtual void makVrv::DtVisualizerSet::addVisualizer ( const std::string &  schemaName, DtStateVisualizer *  visualizer  )

protectedvirtual

Adds a new model visualizer into the list of visualizers.

For consistency, the "default" name is always the one used when the visualizer is added regardless of visual driver selected

Reimplemented in makVrv::DT_PROTOCOL_NAMESPACE::DtTacticalGraphicShapeVisualizerSet.

virtual bool makVrv::DtVisualizerSet::suppressVisualizerCreation ( const DtVisualizerDefinition *  visDef, const DtVisualizerCreationSettings::VisualTypeVisualizerCreationMap *  creationMap  ) const

protectedvirtual

Check to see if the visualizer type and creation map warrant creation.

Reimplemented in makVrv::DT_PROTOCOL_NAMESPACE::DtWeaponFireVisualizerSet.

virtual int makVrv::DtVisualizerSet::findVisualType ( const DtVisualizerDefinition &  visDef ) const

protectedvirtual

lookup the visualtype attribute from a visual definition; returns 0 if none found

Reimplemented in makVrf::DtVrfSpotReportVisualizerSet.

virtual void makVrv::DtVisualizerSet::setModelVisualizerVisible ( const std::string &  schemaName, bool  onOff, int  context  )

protectedvirtual

Call setVisible for all visualizers with the indicated schemaName.

virtual void makVrv::DtVisualizerSet::slot_mouseDown ( DtMouseState &  mouseState, const DtUniqueID &  id, const std::string &  displayEngineName, const std::string &  windowName, const std::string &  channelName, DtStateVisualizer *  v  )

protectedvirtual

Called when the entity's indicator is clicked in some channel.

virtual void makVrv::DtVisualizerSet::slot_mouseUp ( DtMouseState &  mouseState, const DtUniqueID &  id, const std::string &  displayEngineName, const std::string &  windowName, const std::string &  channelName, DtStateVisualizer *  v  )

protectedvirtual

virtual void makVrv::DtVisualizerSet::slot_mouseDblClick ( DtMouseState &  mouseState, const DtUniqueID &  id, const std::string &  displayEngineName, const std::string &  windowName, const std::string &  channelName, DtStateVisualizer *  v  )

protectedvirtual

template<typename T , typename C >

void makVrv::DtVisualizerSet::connectAndUpdate ( boost::signalslib::signal< void(T)> &  sig, void(C::*)(T)  fp, T  val  )

inlineprotected

Utility function for connect a signal to an update function as well as calling the update function.

References makVrv::bind().

const DtUnicode* makVrv::DtVisualizerSet::chooseRandomString ( const std::vector< DtUnicode > &  stringList )

protected

Return the model definition that might be randomly chosen, if the definitions has more than 1 item.

Member Data Documentation

boost::signalslib::signal<void (DtMouseState& mouseState, const DtUniqueID& id, const std::string& displayEngineName, const std::string& windowName, const std::string& channelName, DtStateVisualizer* v, DtVisualizerSet* i)> makVrv::DtVisualizerSet::signal_mouseDown

Emitted when the mouse is clicked on any visualizer in this collection.

boost::signalslib::signal<void (DtMouseState& mouseState, const DtUniqueID& id, const std::string& displayEngineName, const std::string& windowName, const std::string& channelName, DtStateVisualizer* v, DtVisualizerSet* i)> makVrv::DtVisualizerSet::signal_mouseUp

boost::signalslib::signal<void (DtMouseState& mouseState, const DtUniqueID& id, const std::string& displayEngineName, const std::string& windowName, const std::string& channelName, DtStateVisualizer* v, DtVisualizerSet* i)> makVrv::DtVisualizerSet::signal_mouseDblClick

boost::signalslib::signal< void (bool, DtVisualizerSet* vis) > makVrv::DtVisualizerSet::signal_selectionStateChanged

boost::signalslib::signal< void (bool, DtVisualizerSet* vis) > makVrv::DtVisualizerSet::signal_hasMouseCursorStateChanged

DtBaseConnection& makVrv::DtVisualizerSet::myBaseConnection

protected

DtStateVisualizerFactory& makVrv::DtVisualizerSet::myCachedFactory

protected

DtStateListener& makVrv::DtVisualizerSet::myStateListener

protected

StateVisualizerMap makVrv::DtVisualizerSet::myVisualizers

protected

Referenced by findVisualizers(), and findVisualizersByDynamicCast().

DtSignalConnectionManager makVrv::DtVisualizerSet::myConnections

protected

const DtElementDefinitionNew* makVrv::DtVisualizerSet::myDefinition

protected

bool makVrv::DtVisualizerSet::mySelected

protected

bool makVrv::DtVisualizerSet::myHasMouseCursor

protected

bool makVrv::DtVisualizerSet::myPickable

protected

bool makVrv::DtVisualizerSet::myVisible

protected

bool makVrv::DtVisualizerSet::myDistribute

protected

DtSceneObjectVisualizer* makVrv::DtVisualizerSet::mySceneObjectVisualizer

protected

ShowHideContexts makVrv::DtVisualizerSet::myShowHideContexts

protected

int makVrv::DtVisualizerSet::myModelSet

protected

std::string makVrv::DtVisualizerSet::myVisualTypeString

protected

---

The documentation for this class was generated from the following file:

• /data/exports/nrhent7-1/nightly/docs/vrForces.vrf4-10-branch/include/vrvCore/DtVisualizerSet.h
