makVrv::DtStateVisualizer Class Reference

The DtStateVisualizer is an abstract class. More...

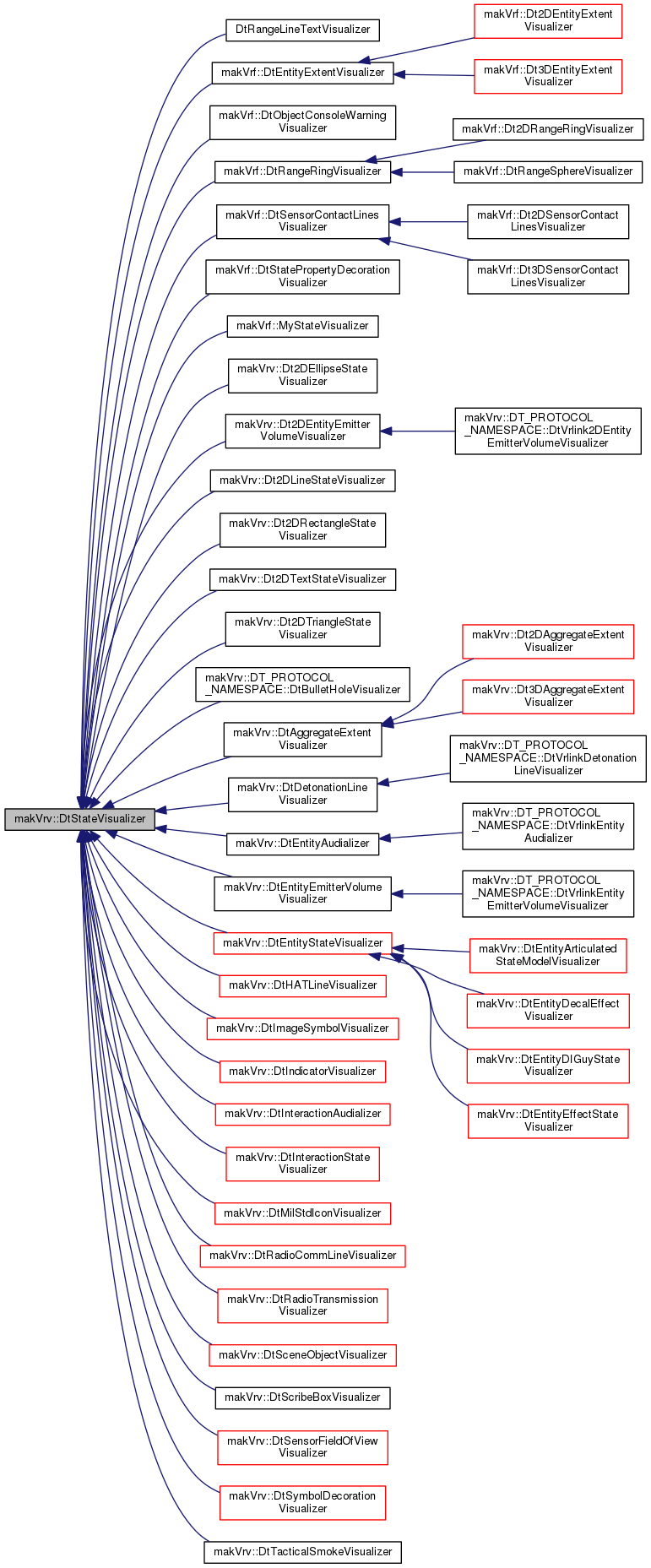

Inheritance diagram for makVrv::DtStateVisualizer:

Classes
struct	TypeInfo
	Struct to hold metadata about each functional visualizer type This allows users of the factory to get information about a visualizer without knowing its tag. More...

Public Types
enum	Type {   AllVisualizerTypes = 0, EntityVisualizerType = 1, EnvironmentalVisualizerType, InteractionVisualizerType,   AggregateVisualizerType, IntervisibilityVisualizerType, TacticalSmokeVisualizerType, UserType = 10000 }
	Visualizer class types that are supportable via visualizers. More...

Public Member Functions
	DtStateVisualizer (DtBaseConnection &connection, DtStateListener &listener, int modelSet)
	CTOR. More...
virtual	~DtStateVisualizer ()
	DTOR. More...
virtual DtObserverMode::ModelSets	modelSet ()
	Return the visualizer's model set enum. More...
virtual void	createModelAgents ()=0
	Override to create model agents that will be used to display data from the listener. More...
virtual void	destroyModelAgents ()=0
	Destroys all currently created definitions. More...
virtual const TypeInfo &	typeInfo () const =0
	Get the type info. More...
virtual void	setParent (DtStateVisualizer *)
	Override to set the parent of this visualizer. More...
virtual const DtStateVisualizer *	parent () const
	Get a const pointer to the parent visualizer of this visualizer. More...
void	setModelDefinition (const std::string &definition)
	Sets the model definition and creates agent(s) based on that definition. More...
const std::string &	modelDefinition () const
	Gets the current model definition. More...
virtual void	implementVisibility (bool visible)
	Wrap some of the show/hide functionality so that it can be overloaded (ex. More...
virtual bool	setVisible (bool visible, int context)
	Returns true if this context wants to show or hide the item. More...
virtual void	initialize ()
	Initialize the visualizer. More...
virtual bool	isVisible () const
	Returns true if visible. More...
virtual void	setHasMouseCursor (bool)
	Sets the mouse hover state. More...
virtual bool	hasMouseCursor () const
virtual void	setSelected (bool)
	Sets selected state. More...
virtual bool	selected () const
void	setName (const std::string &)
	Internal name of state visualizer. More...
const std::string &	name () const
virtual void	setPickable (bool)
	Sets pickable state. More...
virtual bool	pickable () const
virtual void	setUniqueID (DtUniqueID id)
DtUniqueID	uniqueID () const
int	visualizerType () const
void	setShowHideContext (const std::vector< int > &s)
	Set show/hide context without changing visibility of item. More...
virtual void	setVisualizerDefinition (const DtVisualizerDefinition &)
	Set any other additional visualizer information from the visual record. More...
DtStateListener &	listener ()
DtBaseConnection &	simulation ()
	Get the connection for this visualizer. More...
void	setDistribute (bool b)
	Whether or not to distribute over the network. More...
bool	distribute () const

Public Attributes
boost::signalslib::signal < void(DtStateVisualizer *, DtStateVisualizer *, DtStateVisualizer *)>	signal_reparented
	Signaled when the parent of this item changes, called before destroying any model agents. More...
boost::signalslib::signal < void(DtMouseState &, const DtUniqueID &, const std::string &, const std::string &, const std::string &, DtStateVisualizer *)>	signal_mouseDown
	Emitted when the entity's indicator is clicked. More...
boost::signalslib::signal < void(DtMouseState &, const DtUniqueID &, const std::string &, const std::string &, const std::string &, DtStateVisualizer *)>	signal_mouseUp
boost::signalslib::signal < void(DtMouseState &, const DtUniqueID &, const std::string &, const std::string &, const std::string &, DtStateVisualizer *)>	signal_mouseDblClick

Protected Member Functions
virtual void	slot_mouseDown (DtMouseState &mouseState, const std::string &displayEngineName, const std::string &windowName, const std::string &channelName)
	Called when the mouse is clicked in this visualizer. More...
virtual void	slot_mouseUp (DtMouseState &mouseState, const std::string &displayEngineName, const std::string &windowName, const std::string &channelName)
virtual void	slot_mouseDblClick (DtMouseState &mouseState, const std::string &displayEngineName, const std::string &windowName, const std::string &channelName)
virtual bool	hide (int context)
	Will call destroyModelAgents(), if, when the context is added, it is the first context in the list. More...
virtual bool	show (int context)
	Will call createModelAgents(), if, when context is removed from myShowHideContexts, the list size is zero. More...
virtual bool	supportsShowHideContext (int) const
	Default returns true. More...
virtual void	setModelDefinitionForAgents ()=0
	Sets model definition for all the agents that this visualizer might be using. More...
template<typename T , typename C >
void	connectAndUpdate (boost::signalslib::signal< void(T)> &sig, void(C::*fp)(T), T val)
	Connect a signal and update the entity. More...

Protected Attributes
DtBaseConnection &	mySimulation
DtStateListener &	myListener
bool	myDistributeFlag
DtUniqueID	myUniqueID
std::string	myName
std::string	myModelDefinition
DtSignalConnectionManager	myConnections
int	myModelSet
int	myVisualizerType
std::vector< int >	myShowHideContexts
bool	mySelected
bool	myHasMouseCursor
bool	myPickable
bool	myVisible
DtStateVisualizer *	myParent
DtSceneObjectAgent *	mySceneObjectAgent

Private Member Functions
	DtStateVisualizer ()=delete
	Default constructor. More...
	DtStateVisualizer (const DtStateVisualizer &)=delete
	Copy constructor. More...
DtStateVisualizer &	operator= (const DtStateVisualizer &)=delete
	Assignment Operator. More...

Detailed Description

The DtStateVisualizer is an abstract class.

Developers derive from this to create logic that "directs" things in the VRV framework.

Member Enumeration Documentation

enum makVrv::DtStateVisualizer::Type

Visualizer class types that are supportable via visualizers.

Each visualizer can be created by an instance visualizer that supports the creation of matching class types. This enum is linked with DtElementDefinitionTypeManager::BuiltInElementTypes

Enumerator
AllVisualizerTypes
EntityVisualizerType
EnvironmentalVisualizerType
InteractionVisualizerType
AggregateVisualizerType
IntervisibilityVisualizerType
TacticalSmokeVisualizerType
UserType

Constructor & Destructor Documentation

makVrv::DtStateVisualizer::DtStateVisualizer	(	DtBaseConnection &	connection,
		DtStateListener &	listener,
		int	modelSet
	)

CTOR.

virtual makVrv::DtStateVisualizer::~DtStateVisualizer ( )

virtual

DTOR.

makVrv::DtStateVisualizer::DtStateVisualizer ( )

privatedelete

Default constructor.

Note

Not implemented

makVrv::DtStateVisualizer::DtStateVisualizer ( const DtStateVisualizer &  )

privatedelete

Copy constructor.

Note

Not implemented

Member Function Documentation

virtual DtObserverMode::ModelSets makVrv::DtStateVisualizer::modelSet ( )

virtual

Return the visualizer's model set enum.

virtual void makVrv::DtStateVisualizer::createModelAgents ( )

pure virtual

Override to create model agents that will be used to display data from the listener.

Implemented in makVrf::VRF_PROTOCOL_NAMESPACE::DtVrfVrlink2DAggregateExtentVisualizer, makVrf::VRF_PROTOCOL_NAMESPACE::DtVrfVrlink3DAggregateExtentVisualizer, makVrv::DtEntityKinStateVisualizer, makVrv::DtEntityDIGuyStateVisualizer, makVrv::DtEnvironmentalVertexVisualizer, makVrv::DtMilStdIconVisualizer, makVrv::DtEntityWakeVisualizer, makVrf::DtVrfEnvironmentalVertexVisualizer, makVrf::VRF_PROTOCOL_NAMESPACE::DtVrlinkAggregateArticulatedStateModelVisualizer, makVrv::DtEntityArticulatedStateModelVisualizer, makVrv::DtWedgeVisualizer, makVrv::DtSpiderWebVisualizer, makVrv::DtArcVisualizer, makVrv::DtEllipseVisualizer, makVrv::DtEnvironmentalPointKinStateVisualizer, makVrv::Dt3DLineStateVisualizer, makVrv::DtHATLineVisualizer, makVrv::DtIntervisibilityVertexVisualizer, makVrf::DtVrf3DAggregateExtentVisualizer, makVrv::DtImageSymbolVisualizer, makVrf::DtVrf2DAggregateExtentVisualizer, makVrv::Dt2DLineStateVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtBulletHoleVisualizer, makVrf::DtRangeRingVisualizer, makVrv::DtIndicatorVisualizer, makVrv::DtCylinderStateVisualizer, makVrv::DtEnvironmentalVolumetricLineVisualizer, makVrv::Dt2DRectangleStateVisualizer, makVrv::DtEntityTrackHistoryVisualizer, makVrf::DtVrfEntityArticulatedStateModelVisualizer, makVrv::DtIntervisibilityFanVisualizer, makVrv::Dt3DTextStateVisualizer, makVrv::DtAttributeGroupStateVisualizer, makVrv::Dt2DEllipseStateVisualizer, makVrv::DtEllipsoidStateVisualizer, makVrv::DtIntervisibilityLineVisualizer, makVrv::DtCuboidStateVisualizer, makVrv::DtEntityOffsetDIGuyStateVisualizer, makVrv::DtEntityRotorWashVisualizer, makVrv::DtEnvironmentalIndicatorVisualizer, makVrv::DtEnvironmentalLineVisualizer, makVrv::DtIntervisibilityEntityFanVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkEntityMilStdIconVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkSensorFieldOfViewVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtVrlink3DAggregateMilStdIconVisualizer, makVrv::Dt2DTextStateVisualizer, makVrf::DtStatePropertyDecorationVisualizer, makVrv::DtEnvironmentalAreaVisualizer, makVrv::DtSymbolDecorationVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkEntityImageSymbolVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkAggregateImageSymbolVisualizer, makVrf::DtEntityExtentVisualizer, makVrf::Dt3DEntityExtentVisualizer, makVrf::DtSensorContactLinesVisualizer, makVrv::DtScribeBoxVisualizer, makVrv::Dt2DTriangleStateVisualizer, makVrv::Dt3DAreaStateVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkEntityEmitterVolumeVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkRadioCommLineVisualizer, makVrf::DtSpotReportTrackHistoryVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkRadioTransmissionVisualizer, makVrv::DtSceneObjectVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtVrlink2DEntityEmitterVolumeVisualizer, makVrv::Dt2DTextBoxVisualizer, makVrv::DtDetonationLineVisualizer, makVrv::DtEntityDecalEffectVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtVrlink2DAggregateMilStdIconVisualizer, makVrf::Dt2DEntityExtentVisualizer, makVrv::Dt2DEntityEmitterVolumeVisualizer, makVrv::DtEntityEmitterVolumeVisualizer, makVrv::DtEntityTrailEffectVisualizer, makVrf::VRF_PROTOCOL_NAMESPACE::DtVrfVrlinkTacticalGraphicVertexVisualizer, makVrv::DtAggregateExtentVisualizer, makVrf::DtObjectConsoleWarningVisualizer, makVrf::VRF_PROTOCOL_NAMESPACE::DtVrfVrlink2DEnvironmentalAreaVisualizer, makVrv::DtTacticalSmokeVisualizer, makVrv::Dt2DAggregateExtentVisualizer, makVrv::DtEntitySmokePlumeVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkEntityIndicatorVisualizer, makVrf::Dt2DIntervisibilitySensorFanVisualizer, makVrv::Dt3DAggregateExtentVisualizer, makVrv::DtDetonationInteractionVisualizer, makVrv::DtEntityParticleCollisionObjectVisualizer, makVrf::VRF_PROTOCOL_NAMESPACE::DtVrlinkAggregateRadioTransmissionVisualizer, DtRangeLineTextVisualizer, makVrf::VRF_PROTOCOL_NAMESPACE::DtVrfVrlinkRadioCommLineVisualizer, makVrv::Dt2DIntervisibilityEntityFanVisualizer, makVrv::DtRadioTransmissionVisualizer, makVrv::DtSensorFieldOfViewVisualizer, makVrv::DtEntityFlamesVisualizer, makVrv::DtRadioCommLineVisualizer, makVrv::Dt3DIntervisibilityEntityFanVisualizer, makVrv::DtEnvironmentalMilStdIconVisualizer, makVrv::DtLaserDesignatorVisualizer, makVrv::DtTacticalGraphicImageSymbolVisualizer, makVrf::Dt3DIntervisibilitySensorFanVisualizer, makVrf::DtRangeLineVertexVisualizer, makVrv::DtDetonationAudializer, makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkAggregateIndicatorVisualizer, makVrv::Dt2DIntervisibilityFanVisualizer, makVrv::DtEnvironmentalHATLineVisualizer, makVrf::DtVrfGuiEnvironmentalPointKinStateVisualizer, makVrv::DtAggregateKinStateVisualizer, makVrf::Dt2DRangeLineVisualizer, makVrf::Dt2DSensorContactLinesVisualizer, makVrf::Dt3DSensorContactLinesVisualizer, makVrv::DtInteractionAudializer, makVrv::DtFireInteractionVisualizer, makVrf::DtIntervisibilitySensorFanVisualizer, makVrv::DtEntityAudializer, makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkDetonationLineVisualizer, MassLabelVisualizer, and VrlinkMassLabelVisualizer.

virtual void makVrv::DtStateVisualizer::destroyModelAgents ( )

pure virtual

Destroys all currently created definitions.

Implemented in makVrv::DtEntityKinStateVisualizer, makVrv::DtEntityDIGuyStateVisualizer, makVrv::DtEnvironmentalVertexVisualizer, makVrv::DtMilStdIconVisualizer, makVrv::DtEntityWakeVisualizer, makVrv::DtEnvironmentalLineVisualizer, makVrv::DtEntityArticulatedStateModelVisualizer, makVrv::DtWedgeVisualizer, makVrv::DtEnvironmentalVolumetricLineVisualizer, makVrv::DtSpiderWebVisualizer, makVrv::DtArcVisualizer, makVrf::Dt2DRangeRingVisualizer, makVrv::Dt3DLineStateVisualizer, makVrv::DtEllipseVisualizer, makVrv::DtEnvironmentalAreaVisualizer, makVrv::DtEnvironmentalPointKinStateVisualizer, makVrv::DtHATLineVisualizer, makVrv::Dt2DLineStateVisualizer, makVrv::DtIntervisibilityVertexVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtBulletHoleVisualizer, makVrv::DtImageSymbolVisualizer, makVrv::DtIndicatorVisualizer, makVrv::DtCylinderStateVisualizer, makVrv::Dt2DRectangleStateVisualizer, makVrv::Dt3DTextStateVisualizer, makVrv::Dt2DEllipseStateVisualizer, makVrv::DtEntityTrackHistoryVisualizer, makVrf::DtRangeSphereVisualizer, makVrv::DtAttributeGroupStateVisualizer, makVrv::DtIntervisibilityFanVisualizer, makVrv::DtIntervisibilityLineVisualizer, makVrv::DtEllipsoidStateVisualizer, makVrv::Dt2DTextStateVisualizer, makVrv::DtCuboidStateVisualizer, makVrv::DtEntityRotorWashVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkSensorFieldOfViewVisualizer, makVrv::DtIntervisibilityEntityFanVisualizer, makVrv::Dt2DTriangleStateVisualizer, makVrv::Dt3DAreaStateVisualizer, makVrv::DtSymbolDecorationVisualizer, makVrf::DtStatePropertyDecorationVisualizer, makVrf::Dt3DEntityExtentVisualizer, makVrf::DtEntityExtentVisualizer, makVrf::DtSensorContactLinesVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkEntityEmitterVolumeVisualizer, makVrv::DtScribeBoxVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkRadioCommLineVisualizer, makVrv::DtSceneObjectVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtVrlink2DEntityEmitterVolumeVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkRadioTransmissionVisualizer, makVrv::Dt2DEntityEmitterVolumeVisualizer, makVrf::Dt2DIntervisibilitySensorFanVisualizer, makVrv::DtEntityEmitterVolumeVisualizer, makVrv::Dt2DTextBoxVisualizer, makVrf::Dt2DEntityExtentVisualizer, makVrf::DtSpotReportTrackHistoryVisualizer, makVrv::DtDetonationLineVisualizer, makVrv::DtEntityDecalEffectVisualizer, makVrv::DtAggregateExtentVisualizer, makVrv::DtEntityTrailEffectVisualizer, makVrv::DtEnvironmentalMilStdIconVisualizer, makVrf::VRF_PROTOCOL_NAMESPACE::DtVrfVrlink2DEnvironmentalAreaVisualizer, makVrf::DtObjectConsoleWarningVisualizer, makVrv::Dt2DAggregateExtentVisualizer, makVrv::DtTacticalGraphicImageSymbolVisualizer, makVrv::DtTacticalSmokeVisualizer, makVrf::Dt3DIntervisibilitySensorFanVisualizer, makVrv::Dt3DAggregateExtentVisualizer, makVrv::DtEntityParticleCollisionObjectVisualizer, makVrf::VRF_PROTOCOL_NAMESPACE::DtVrlinkAggregateRadioTransmissionVisualizer, makVrv::Dt3DEnvironmentalVolumetricLineVisualizer, makVrv::DtRadioTransmissionVisualizer, makVrv::DtSensorFieldOfViewVisualizer, DtRangeLineTextVisualizer, makVrv::DtRadioCommLineVisualizer, makVrf::VRF_PROTOCOL_NAMESPACE::DtVrfVrlinkTacticalGraphicVertexVisualizer, makVrv::Dt2DIntervisibilityFanVisualizer, makVrf::VRF_PROTOCOL_NAMESPACE::DtVrfVrlinkRadioCommLineVisualizer, makVrv::Dt2DIntervisibilityEntityFanVisualizer, makVrv::DtInteractionVisualizer, makVrv::Dt3DIntervisibilityEntityFanVisualizer, makVrv::Dt3DIntervisibilityFanVisualizer, makVrv::DtLaserDesignatorVisualizer, makVrv::DtInteractionKinStateVisualizer, makVrv::DtInteractionAudializer, makVrf::DtVrf2DEllipseVisualizer, makVrf::DtVrf2DEnvironmentalAreaVisualizer, makVrv::DtInteractionStateVisualizer, makVrv::DtEntityAudializer, makVrv::DtEntityEffectStateVisualizer, MassLabelVisualizer, makVrv::Dt2DLaserDesignatorVisualizer, and makVrv::Dt3DLaserDesignatorVisualizer.

virtual const TypeInfo& makVrv::DtStateVisualizer::typeInfo ( ) const

pure virtual

Get the type info.

Typically the implementation of this function should call a static function called theTypeInfo.

Implemented in makVrv::DtEntityKinStateVisualizer, makVrv::DtEntityDIGuyStateVisualizer, makVrv::DtEnvironmentalVertexVisualizer, makVrv::DtEntityWakeVisualizer, makVrv::DtEntityArticulatedStateModelVisualizer, makVrf::VRF_PROTOCOL_NAMESPACE::DtVrlinkAggregateArticulatedStateModelVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtBulletHoleVisualizer, makVrf::Dt2DRangeRingVisualizer, makVrv::Dt3DLineStateVisualizer, makVrv::DtIntervisibilityVertexVisualizer, makVrv::Dt2DEntityEmitterVolumeVisualizer, makVrv::Dt2DLineStateVisualizer, makVrv::DtCylinderStateVisualizer, makVrv::DtEntityEmitterVolumeVisualizer, makVrv::DtEnvironmentalPointKinStateVisualizer, makVrv::DtAttributeGroupStateVisualizer, makVrv::Dt2DRectangleStateVisualizer, makVrv::DtAggregateMilStdIconVisualizer, makVrv::DtEllipsoidStateVisualizer, makVrv::DtCuboidStateVisualizer, makVrv::Dt2DLaserDesignatorVisualizer, makVrv::Dt3DTextStateVisualizer, makVrv::DtEnvironmentalIndicatorVisualizer, makVrv::Dt2DEllipseStateVisualizer, makVrv::DtEntityOffsetDIGuyStateVisualizer, makVrv::DtEntityTrackHistoryVisualizer, makVrf::DtRangeSphereVisualizer, makVrv::Dt2DTextStateVisualizer, makVrv::DtSensorFieldOfViewVisualizer, makVrv::DtEntityRotorWashVisualizer, makVrv::DtRadioTransmissionVisualizer, makVrv::DtScribeBoxVisualizer, makVrf::DtAggregateArticulatedStateModelVisualizer, makVrv::DtRadioCommLineVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkEntityImageSymbolVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkAggregateImageSymbolVisualizer, makVrf::DtSpotReportTrackHistoryVisualizer, makVrv::Dt3DAreaStateVisualizer, makVrv::Dt3DLaserDesignatorVisualizer, makVrv::DtAggregateKinStateVisualizer, makVrv::DtEntityDecalEffectVisualizer, makVrv::Dt2DTriangleStateVisualizer, makVrv::DtDetonationLineVisualizer, makVrv::DtEntityTrailEffectVisualizer, makVrv::DtEntityIndicatorVisualizer, makVrf::VRF_PROTOCOL_NAMESPACE::DtVrfVrlinkAggregateTrackHistoryVisualizer, makVrf::Dt3DEntityExtentVisualizer, makVrf::Dt2DEntityExtentVisualizer, makVrv::DtEntitySmokePlumeVisualizer, makVrv::DtTacticalSmokeVisualizer, makVrf::Dt2DIntervisibilitySensorFanVisualizer, makVrv::DtEntityAudializer, makVrv::Dt2DAggregateExtentVisualizer, makVrv::DtAggregateSymbolDecorationVisualizer, makVrv::DtEntitySymbolDecorationVisualizer, makVrv::DtTacticalGraphicSymbolDecorationVisualizer, makVrv::Dt3DAggregateExtentVisualizer, makVrv::Dt3DEnvironmentalAreaVisualizer, makVrv::DtEntityFlamesVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkTacticalGraphicImageSymbolVisualizer, MassLabelVisualizer, makVrv::Dt2DBoxVisualizer, makVrv::Dt3DBoxVisualizer, makVrv::Dt3DEllipseVisualizer, DtRangeLineTextVisualizer, makVrf::DtObjectConsoleWarningVisualizer, makVrv::DtEnvironmentalMilStdIconVisualizer, makVrv::DtInteractionKinStateVisualizer, makVrf::DtStatePropertyDecorationVisualizer, makVrv::Dt2DTextBoxVisualizer, makVrv::Dt3DEnvironmentalLineVisualizer, makVrv::DtAggregateIndicatorVisualizer, makVrv::DtDetonationInteractionVisualizer, makVrf::Dt3DIntervisibilitySensorFanVisualizer, makVrv::Dt2DArcVisualizer, makVrv::Dt2DSpiderWebVisualizer, makVrv::Dt2DWedgeVisualizer, makVrv::DtTacticalGraphicImageSymbolVisualizer, makVrv::DtDetonationAudializer, makVrv::Dt2DAggregateMilStdIconVisualizer, makVrv::Dt2DIntervisibilityEntityFanVisualizer, makVrv::Dt3DEnvironmentalVolumetricLineVisualizer, makVrv::DtAggregateImageSymbolVisualizer, makVrv::DtEntityImageSymbolVisualizer, makVrv::Dt2DEnvironmentalLineVisualizer, makVrv::Dt2DIntervisibilityLineVisualizer, makVrv::Dt3DIntervisibilityEntityFanVisualizer, makVrv::Dt3DIntervisibilityLineVisualizer, makVrv::DtEntityParticleCollisionObjectVisualizer, makVrv::Dt2DEllipseVisualizer, makVrv::Dt2DIntervisibilityFanVisualizer, makVrv::Dt3DAggregateMilStdIconVisualizer, makVrv::Dt3DIntervisibilityFanVisualizer, makVrv::DtEntityMilStdIconVisualizer, makVrf::Dt2DSensorContactLinesVisualizer, makVrf::Dt3DSensorContactLinesVisualizer, makVrv::Dt2DEnvironmentalVolumetricLineVisualizer, makVrv::DtEnvironmentalHATLineVisualizer, makVrv::DtFireInteractionVisualizer, makVrv::DtFireInteractionAudializer, makVrv::Dt2DAirCorridorLineVisualizer, makVrv::Dt2DEnvironmentalAreaVisualizer, makVrv::Dt3DAirCorridorLineVisualizer, makVrv::DtEntityHATLineVisualizer, makVrf::Dt2DRangeLineVisualizer, and makVrf::DtRangeLineVertexVisualizer.

virtual void makVrv::DtStateVisualizer::setParent ( DtStateVisualizer *  )

virtual

Override to set the parent of this visualizer.

The parent is usually the scene object that will allow this visualizer to be displayed

Reimplemented in makVrv::DtEntityWakeVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtBulletHoleVisualizer, makVrv::DtDetonationLineVisualizer, makVrv::DtLaserDesignatorVisualizer, makVrv::DtSceneObjectVisualizer, and makVrv::DtScribeBoxVisualizer.

virtual const DtStateVisualizer* makVrv::DtStateVisualizer::parent ( ) const

virtual

Get a const pointer to the parent visualizer of this visualizer.

void makVrv::DtStateVisualizer::setModelDefinition

(

const std::string &

definition

)

Sets the model definition and creates agent(s) based on that definition.

const std::string& makVrv::DtStateVisualizer::modelDefinition

(

)

const

Gets the current model definition.

virtual void makVrv::DtStateVisualizer::implementVisibility ( bool  visible )

virtual

Wrap some of the show/hide functionality so that it can be overloaded (ex.

so that DtEntityoffsetDIGuyStateVisualizer does no have to create/destroy model agents)

Reimplemented in makVrf::DtVrfVrlinkEntityOffsetDIGuyStateVisualizer, makVrv::DtEntityKinStateVisualizer, and makVrv::DtEntityOffsetDIGuyStateVisualizer.

virtual bool makVrv::DtStateVisualizer::setVisible ( bool  visible, int  context  )

virtual

Returns true if this context wants to show or hide the item.

If it does, put onto (or removes) list of contexts that are responsible for keeping this item hidden. If there are no items left and the item wants to be show, createModelAgents() is called, else if being hidden, destroyModelAgents() is called. Returns true if visibility has changed

Reimplemented in makVrf::DtRangeRingVisualizer, makVrf::DtSensorContactLinesVisualizer, and makVrf::DtVrfGuiIntervisibilityVertexVisualizer.

virtual void makVrv::DtStateVisualizer::initialize ( )

virtual

Initialize the visualizer.

Reimplemented in makVrv::DtSymbolDecorationVisualizer, and makVrv::DtEntityArticulatedStateModelVisualizer.

Referenced by makVrv::DtSymbolDecorationVisualizer::initialize().

virtual bool makVrv::DtStateVisualizer::isVisible ( ) const

virtual

Returns true if visible.

virtual void makVrv::DtStateVisualizer::setHasMouseCursor ( bool  )

virtual

Sets the mouse hover state.

Reimplemented in makVrv::DtSymbolDecorationVisualizer, and makVrv::DtMilStdIconVisualizer.

virtual bool makVrv::DtStateVisualizer::hasMouseCursor ( ) const

virtual

virtual void makVrv::DtStateVisualizer::setSelected ( bool  )

virtual

Sets selected state.

Reimplemented in makVrv::DtEnvironmentalVertexVisualizer, makVrf::DtRangeRingVisualizer, makVrv::DtWedgeVisualizer, makVrv::DtSymbolDecorationVisualizer, makVrv::DtArcVisualizer, makVrv::DtSpiderWebVisualizer, makVrv::DtEllipseVisualizer, makVrf::VRF_PROTOCOL_NAMESPACE::DtVrfVrlink2DEnvironmentalAreaVisualizer, makVrv::DtIntervisibilityVertexVisualizer, makVrv::DtEnvironmentalVolumetricLineVisualizer, makVrf::DtSpotReportTrackHistoryVisualizer, makVrv::DtIntervisibilityEntityFanVisualizer, makVrv::DtIntervisibilityFanVisualizer, makVrv::DtIntervisibilityLineVisualizer, makVrv::DtEnvironmentalLineVisualizer, makVrf::DtEntityExtentVisualizer, makVrv::DtEnvironmentalAreaVisualizer, makVrv::DtMilStdIconVisualizer, makVrf::DtStatePropertyDecorationVisualizer, makVrv::DtEntityDIGuyStateVisualizer, makVrf::DtSensorContactLinesVisualizer, makVrv::DtIndicatorVisualizer, makVrf::DtVrf2DEllipseVisualizer, makVrf::DtVrf2DEnvironmentalAreaVisualizer, makVrv::DtAggregateExtentVisualizer, makVrv::DtEnvironmentalIndicatorVisualizer, makVrv::DtImageSymbolVisualizer, makVrf::DtIntervisibilitySensorFanVisualizer, and makVrv::DtScribeBoxVisualizer.

virtual bool makVrv::DtStateVisualizer::selected ( ) const

virtual

Reimplemented in makVrv::DtEnvironmentalIndicatorVisualizer.

void makVrv::DtStateVisualizer::setName

(

const std::string &

)

Internal name of state visualizer.

Use in instance visualizer map

const std::string& makVrv::DtStateVisualizer::name

(

)

const

virtual void makVrv::DtStateVisualizer::setPickable ( bool  )

virtual

Sets pickable state.

Reimplemented in makVrv::DtEnvironmentalLineVisualizer, makVrv::DtEnvironmentalVertexVisualizer, makVrv::DtMilStdIconVisualizer, makVrv::DtWedgeVisualizer, makVrv::DtEnvironmentalAreaVisualizer, makVrv::DtEllipseVisualizer, makVrv::DtArcVisualizer, makVrv::DtSpiderWebVisualizer, and makVrv::DtImageSymbolVisualizer.

virtual bool makVrv::DtStateVisualizer::pickable ( ) const

virtual

virtual void makVrv::DtStateVisualizer::setUniqueID ( DtUniqueID  id )

virtual

Reimplemented in makVrv::DtIndicatorVisualizer, DtRangeLineTextVisualizer, makVrv::DtEnvironmentalIndicatorVisualizer, and makVrv::DtHATLineVisualizer.

DtUniqueID makVrv::DtStateVisualizer::uniqueID ( ) const

inline

int makVrv::DtStateVisualizer::visualizerType ( ) const

inline

void makVrv::DtStateVisualizer::setShowHideContext ( const std::vector< int > &  s )

inline

Set show/hide context without changing visibility of item.

virtual void makVrv::DtStateVisualizer::setVisualizerDefinition ( const DtVisualizerDefinition &  )

virtual

Set any other additional visualizer information from the visual record.

Reimplemented in makVrv::DtEntityWakeVisualizer, makVrv::DtEnvironmentalLineVisualizer, makVrv::DtEntityDIGuyStateVisualizer, makVrv::DtEnvironmentalVolumetricLineVisualizer, makVrf::DtVrfGuiTacticalGraphicSymbolDecorationVisualizer, makVrf::DtVrfGuiAggregateSymbolDecorationVisualizer, makVrv::DtEnvironmentalAreaVisualizer, makVrf::DtVrfEntityTrackHistoryVisualizer, makVrf::DtVrfGuiEntitySymbolDecorationVisualizer, makVrv::DtHATLineVisualizer, makVrv::DtIntervisibilityVertexVisualizer, makVrv::DtEntityKinStateVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtBulletHoleVisualizer, makVrv::DtEntityArticulatedStateModelVisualizer, makVrv::DtIndicatorVisualizer, makVrv::DtEntityTrackHistoryVisualizer, makVrf::Dt2DRangeRingVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkRadioCommLineVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkRadioTransmissionVisualizer, makVrv::DtIntervisibilityFanVisualizer, makVrv::DtEntityRotorWashVisualizer, makVrv::DtSymbolDecorationVisualizer, makVrv::DtIntervisibilityEntityFanVisualizer, makVrv::DtSensorFieldOfViewVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkEntityEmitterVolumeVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtVrlink2DEntityEmitterVolumeVisualizer, makVrf::DtSensorContactLinesVisualizer, makVrf::Dt3DEntityExtentVisualizer, makVrv::DtEntityDecalEffectVisualizer, makVrv::DtEntityTrailEffectVisualizer, makVrv::DtTacticalSmokeVisualizer, makVrf::Dt2DEntityExtentVisualizer, makVrv::Dt2DTextBoxVisualizer, makVrv::Dt3DEllipseVisualizer, makVrv::DtEntityParticleCollisionObjectVisualizer, makVrv::DtDetonationLineVisualizer, makVrv::Dt2DAggregateExtentVisualizer, makVrv::Dt3DAggregateExtentVisualizer, makVrv::Dt3DEnvironmentalLineVisualizer, makVrv::Dt3DEnvironmentalVolumetricLineVisualizer, DtRangeLineTextVisualizer, makVrv::DtEnvironmentalVertexVisualizer, makVrv::DtEntitySmokePlumeVisualizer, makVrv::DtEnvironmentalPointKinStateVisualizer, makVrv::DtEnvironmentalMilStdIconVisualizer, makVrv::DtEntityAudializer, makVrv::DtTacticalGraphicImageSymbolVisualizer, makVrv::DtEntityFlamesVisualizer, makVrv::DtInteractionVisualizer, makVrv::DtLaserDesignatorVisualizer, makVrv::DtInteractionAudializer, makVrv::DtMilStdIconVisualizer, makVrv::Dt3DEnvironmentalAreaVisualizer, makVrv::DtDetonationInteractionVisualizer, makVrv::DtDetonationAudializer, makVrv::Dt2DArcVisualizer, makVrv::Dt2DSpiderWebVisualizer, makVrv::Dt2DWedgeVisualizer, makVrv::DtScribeBoxVisualizer, makVrv::DtEntityOffsetDIGuyStateVisualizer, makVrv::Dt2DAirCorridorLineVisualizer, makVrv::Dt3DAirCorridorLineVisualizer, makVrv::DtEntityEffectStateVisualizer, makVrv::DtInteractionStateVisualizer, makVrv::Dt2DEllipseVisualizer, makVrv::DtAggregateMilStdIconVisualizer, makVrv::DtImageSymbolVisualizer, makVrv::DtInteractionKinStateVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkEntityDecalEffectVisualizer, makVrv::Dt2DLaserDesignatorVisualizer, makVrv::Dt3DLaserDesignatorVisualizer, and makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkEntityTrailEffectVisualizer.

DtStateListener& makVrv::DtStateVisualizer::listener ( )

inline

DtBaseConnection& makVrv::DtStateVisualizer::simulation ( )

inline

Get the connection for this visualizer.

void makVrv::DtStateVisualizer::setDistribute ( bool  b )

inline

Whether or not to distribute over the network.

bool makVrv::DtStateVisualizer::distribute ( ) const

inline

virtual void makVrv::DtStateVisualizer::slot_mouseDown ( DtMouseState &  mouseState, const std::string &  displayEngineName, const std::string &  windowName, const std::string &  channelName  )

protectedvirtual

Called when the mouse is clicked in this visualizer.

virtual void makVrv::DtStateVisualizer::slot_mouseUp ( DtMouseState &  mouseState, const std::string &  displayEngineName, const std::string &  windowName, const std::string &  channelName  )

protectedvirtual

virtual void makVrv::DtStateVisualizer::slot_mouseDblClick ( DtMouseState &  mouseState, const std::string &  displayEngineName, const std::string &  windowName, const std::string &  channelName  )

protectedvirtual

virtual bool makVrv::DtStateVisualizer::hide ( int  context )

protectedvirtual

Will call destroyModelAgents(), if, when the context is added, it is the first context in the list.

Will return true if model is hidden

Reimplemented in makVrv::DtSceneObjectVisualizer.

virtual bool makVrv::DtStateVisualizer::show ( int  context )

protectedvirtual

Will call createModelAgents(), if, when context is removed from myShowHideContexts, the list size is zero.

Returns true if model is shown

Reimplemented in makVrv::DtSceneObjectVisualizer.

virtual bool makVrv::DtStateVisualizer::supportsShowHideContext ( int  ) const

protectedvirtual

Default returns true.

Override if want to ignore the specific context and return false

virtual void makVrv::DtStateVisualizer::setModelDefinitionForAgents ( )

protectedpure virtual

Sets model definition for all the agents that this visualizer might be using.

If model agents are not created, should create them. Should not call this directly, but rather call setModelDefinition

Implemented in makVrv::DtEntityKinStateVisualizer, makVrv::DtEntityDIGuyStateVisualizer, makVrv::DtEntityWakeVisualizer, makVrv::DtEnvironmentalLineVisualizer, makVrv::DtEnvironmentalVolumetricLineVisualizer, makVrv::DtEntityArticulatedStateModelVisualizer, makVrf::VRF_PROTOCOL_NAMESPACE::DtVrlinkAggregateArticulatedStateModelVisualizer, makVrv::Dt3DLineStateVisualizer, makVrv::DtEnvironmentalAreaVisualizer, makVrv::DtEnvironmentalPointKinStateVisualizer, makVrv::DtWedgeVisualizer, makVrv::DtHATLineVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtBulletHoleVisualizer, makVrv::Dt2DLineStateVisualizer, makVrf::DtVrfGui3DAggregateMilStdIconVisualizer, makVrv::DtArcVisualizer, makVrv::DtSpiderWebVisualizer, makVrv::DtEllipseVisualizer, makVrv::DtIndicatorVisualizer, makVrv::Dt2DRectangleStateVisualizer, makVrv::DtCylinderStateVisualizer, makVrv::Dt3DTextStateVisualizer, makVrv::DtEntityTrackHistoryVisualizer, makVrf::DtRangeRingVisualizer, makVrv::Dt2DEllipseStateVisualizer, makVrv::DtIntervisibilityLineVisualizer, makVrv::DtSensorFieldOfViewVisualizer, makVrv::DtAttributeGroupStateVisualizer, makVrv::Dt2DTextStateVisualizer, makVrv::DtEllipsoidStateVisualizer, makVrv::DtIntervisibilityFanVisualizer, makVrv::DtEntityRotorWashVisualizer, makVrv::DtCuboidStateVisualizer, makVrv::Dt2DTriangleStateVisualizer, makVrv::DtIntervisibilityEntityFanVisualizer, makVrv::Dt3DAreaStateVisualizer, makVrv::DtSymbolDecorationVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtVrlink2DAggregateMilStdIconVisualizer, makVrf::DtSensorContactLinesVisualizer, makVrf::DtStatePropertyDecorationVisualizer, makVrf::DtEntityExtentVisualizer, makVrv::DtEntityOffsetDIGuyStateVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkEntityMilStdIconVisualizer, makVrv::Dt2DEntityEmitterVolumeVisualizer, makVrv::Dt2DTextBoxVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtVrlink3DAggregateMilStdIconVisualizer, makVrv::DtEntityEmitterVolumeVisualizer, DtRangeLineTextVisualizer, makVrv::DtRadioTransmissionVisualizer, makVrv::DtDetonationLineVisualizer, makVrv::DtRadioCommLineVisualizer, makVrv::DtTacticalSmokeVisualizer, makVrv::DtEntityDecalEffectVisualizer, makVrv::DtAggregateExtentVisualizer, makVrv::DtEntityTrailEffectVisualizer, makVrv::DtEntityParticleCollisionObjectVisualizer, makVrf::DtObjectConsoleWarningVisualizer, makVrv::DtEntitySmokePlumeVisualizer, makVrv::DtLaserDesignatorVisualizer, MassLabelVisualizer, makVrv::DtInteractionVisualizer, makVrv::DtMilStdIconVisualizer, makVrv::DtEntityAudializer, makVrv::DtEntityFlamesVisualizer, makVrf::DtSpotReportTrackHistoryVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkTacticalGraphicMilStdIconVisualizer, makVrv::DtInteractionAudializer, makVrv::DtImageSymbolVisualizer, makVrv::DtSceneObjectVisualizer, makVrv::DtInteractionStateVisualizer, and makVrv::DtScribeBoxVisualizer.

template<typename T , typename C >

void makVrv::DtStateVisualizer::connectAndUpdate ( boost::signalslib::signal< void(T)> &  sig, void(C::*)(T)  fp, T  val  )

inlineprotected

Connect a signal and update the entity.

References makVrv::bind().

DtStateVisualizer& makVrv::DtStateVisualizer::operator= ( const DtStateVisualizer &  )

privatedelete

Assignment Operator.

Note

Not implemented

Member Data Documentation

boost::signalslib::signal<void (DtStateVisualizer*, DtStateVisualizer*, DtStateVisualizer*)> makVrv::DtStateVisualizer::signal_reparented

Signaled when the parent of this item changes, called before destroying any model agents.

Parameters are the visualizer that is reparent, the old and new parents

boost::signalslib::signal<void (DtMouseState&, const DtUniqueID&, const std::string&, const std::string&,const std::string&, DtStateVisualizer*)> makVrv::DtStateVisualizer::signal_mouseDown

Emitted when the entity's indicator is clicked.

boost::signalslib::signal<void (DtMouseState&, const DtUniqueID&, const std::string&, const std::string&,const std::string&, DtStateVisualizer*)> makVrv::DtStateVisualizer::signal_mouseUp

boost::signalslib::signal<void (DtMouseState&, const DtUniqueID&, const std::string&, const std::string&,const std::string&, DtStateVisualizer*)> makVrv::DtStateVisualizer::signal_mouseDblClick

DtBaseConnection& makVrv::DtStateVisualizer::mySimulation

protected

DtStateListener& makVrv::DtStateVisualizer::myListener

protected

bool makVrv::DtStateVisualizer::myDistributeFlag

protected

DtUniqueID makVrv::DtStateVisualizer::myUniqueID

protected

std::string makVrv::DtStateVisualizer::myName

protected

std::string makVrv::DtStateVisualizer::myModelDefinition

protected

DtSignalConnectionManager makVrv::DtStateVisualizer::myConnections

protected

int makVrv::DtStateVisualizer::myModelSet

protected

Referenced by makVrf::MyStateVisualizer::modelSet().

int makVrv::DtStateVisualizer::myVisualizerType

protected

std::vector<int> makVrv::DtStateVisualizer::myShowHideContexts

protected

bool makVrv::DtStateVisualizer::mySelected

protected

bool makVrv::DtStateVisualizer::myHasMouseCursor

protected

bool makVrv::DtStateVisualizer::myPickable

protected

bool makVrv::DtStateVisualizer::myVisible

protected

DtStateVisualizer* makVrv::DtStateVisualizer::myParent

protected

DtSceneObjectAgent* makVrv::DtStateVisualizer::mySceneObjectAgent

protected

---

The documentation for this class was generated from the following file:

• /data/exports/nrhent7-1/nightly/docs/vrForces.vrf4-10-branch/include/vrvCore/DtStateVisualizer.h
