A weather layer uses one or more weather effects to create a top level visual. More...

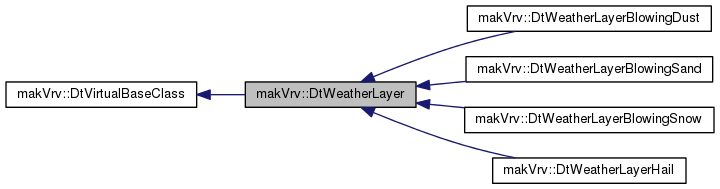

Inheritance diagram for makVrv::DtWeatherLayer:

Public Types
enum	LayerType { LayerTypeNone, LayerTypeBlowingDust, LayerTypeBlowingSand, LayerTypeBlowingSnow, LayerTypeHail }
	brief Layer type enumerations. More...

Public Member Functions
virtual	~DtWeatherLayer ()
	DTOR. More...

virtual void	init (DtDe &de)
	Called after creation to initialize effects. More...

DtUniqueID	id () const
	Gets the layer unique id. More...

virtual void	releaseGLObjects (osg::State *state) const
	Release all gl objects used by items in this layer. More...

virtual DtWeatherLayer::LayerType	layerType () const
	Gets a type for this layer. More...

virtual void	setIntensity (float level)
	Sets the weather intensity for this layer. More...

float	intensity () const
	Gets the weather intensity for this layer. More...

virtual void	setWind (float windDirectionRad, float windSpeedMps)
	Sets the current wind. More...

virtual void	simulationUpdate (float timeStep, double currentTime, DtJobSplitter *jobSplitter)
	Run a simulation update for weather effects in this layer. More...

virtual void	postSimulationUpdate (float timeStep, double currentTime)
	Run a post simulation update. More...

virtual void	cullUpdate (const osg::Vec3d &camPos, const osg::Matrixd &basis, DtJobSplitter *jobSplitter)
	Prepares the layer for drawing based on the camera position. More...

virtual void	drawWeatherEffects (DtWeatherEffect::DrawData &drawData)
	Draw all weather effects in this layer. More...

virtual void	addWeatherEffect (DtWeatherEffect *effect)
	Adds the given weather effect to this layer. More...

Public Member Functions inherited from makVrv::DtVirtualBaseClass
	DtVirtualBaseClass ()
	Do nothing constructor. More...

virtual	~DtVirtualBaseClass ()
	Virtual do nothing destructor. More...

Protected Types
typedef std::vector < DtWeatherEffect * >	WeatherEffectSet
	This type defines a set of weather effects. More...

Protected Member Functions
	DtWeatherLayer (DtUniqueID id)
	CTOR. More...

virtual void	drawAreaWeatherEffectsForLayerType (DtWeatherEffect::DrawData &drawData, DtWeatherLayer::LayerType layerType)
	Draw all weather effects in areas that match the given layer type. More...

virtual void	computeSurfaceParameters (DtWeatherEffect::DrawData &drawData, DtWeatherArea *area)
	Computes and sets up effect surface drawing parameters. More...

Protected Attributes
DtUniqueID	myId

LayerType	myLayerType

WeatherEffectSet	myWeatherEffectSet

float	myIntensity

Private Member Functions
	DtWeatherLayer ()=delete
	Default Constructor not implemented. More...

	DtWeatherLayer (const DtWeatherLayer &other)=delete
	Copy Constructor not implemented - Copy not allowed. More...

DtWeatherLayer &	operator= (const DtWeatherLayer &other)=delete
	Assignment Operator not implemented - Assignment not allowed. More...

Detailed Description

A weather layer uses one or more weather effects to create a top level visual.

A weather layer simulates an environmental condition such as blowing snow or rain. Weather layers can be globally visible or visible based on weather areas (see DtWeatherArea).

This class has a simulation update which updates all active weather effects in the layer. Weather effects queue update jobs to a job splitter which is provided by the update caller. There is also a post update for each weather effect for items that cannot use multithreading (currently intersection tests).

During scenegraph culling, this class calls cull methods on individual weather effects. If a weather effect is not culled, it submits a sort job to a job splitter

Member Typedef Documentation

typedef std::vector<DtWeatherEffect*> makVrv::DtWeatherLayer::WeatherEffectSet

protected

This type defines a set of weather effects.

Member Enumeration Documentation

enum makVrv::DtWeatherLayer::LayerType

brief Layer type enumerations.

Layer types help with descibing the layer for tying layer to areas.

Enumerator
LayerTypeNone
LayerTypeBlowingDust
LayerTypeBlowingSand
LayerTypeBlowingSnow
LayerTypeHail

Constructor & Destructor Documentation

virtual makVrv::DtWeatherLayer::~DtWeatherLayer ( )

virtual

DTOR.

makVrv::DtWeatherLayer::DtWeatherLayer ( DtUniqueID id )

protected

CTOR.

makVrv::DtWeatherLayer::DtWeatherLayer ( )

privatedelete

Default Constructor not implemented.

makVrv::DtWeatherLayer::DtWeatherLayer ( const DtWeatherLayer & other )

privatedelete

Copy Constructor not implemented - Copy not allowed.

Member Function Documentation

DtWeatherLayer& makVrv::DtWeatherLayer::operator= ( const DtWeatherLayer & other )

privatedelete

Assignment Operator not implemented - Assignment not allowed.

virtual void makVrv::DtWeatherLayer::init ( DtDe & de )

virtual

Called after creation to initialize effects.

Reimplemented in makVrv::DtWeatherLayerBlowingDust, makVrv::DtWeatherLayerBlowingSand, makVrv::DtWeatherLayerBlowingSnow, and makVrv::DtWeatherLayerHail.

DtUniqueID makVrv::DtWeatherLayer::id ( ) const

Gets the layer unique id.

virtual void makVrv::DtWeatherLayer::releaseGLObjects ( osg::State * state ) const

virtual

Release all gl objects used by items in this layer.

virtual DtWeatherLayer::LayerType makVrv::DtWeatherLayer::layerType ( ) const

virtual

Gets a type for this layer.

The layer type is used for determining things like tying layers to weather areas.

virtual void makVrv::DtWeatherLayer::setIntensity ( float level )

virtual

Sets the weather intensity for this layer.

This will control the intensity of weather effects.

Parameters

level The intensity value (0.0 - 1.0).

float makVrv::DtWeatherLayer::intensity ( ) const

Gets the weather intensity for this layer.

virtual void makVrv::DtWeatherLayer::setWind	(	float	windDirectionRad,
		float	windSpeedMps
	)

virtual

Sets the current wind.

Parameters

windDirectionRad	The wind direction in radians.
windSpeedMps	The wind speed in meters per second.

virtual void makVrv::DtWeatherLayer::simulationUpdate	(	float	timeStep,
		double	currentTime,
		DtJobSplitter *	jobSplitter
	)

virtual

Run a simulation update for weather effects in this layer.

Parameters

timeStep	The time step to simulate.
currentTime	The current simulation time.
jobSplitter	A job splitter to add simulation jobs to.

virtual void makVrv::DtWeatherLayer::postSimulationUpdate	(	float	timeStep,
		double	currentTime
	)

virtual

Run a post simulation update.

This is specifically here to update things that might not be job thread safe.

Parameters

timeStep The time step to simulate.

virtual void makVrv::DtWeatherLayer::cullUpdate	(	const osg::Vec3d &	camPos,
		const osg::Matrixd &	basis,
		DtJobSplitter *	jobSplitter
	)

virtual

Prepares the layer for drawing based on the camera position.

Parameters

camPos	The camera position.
basisRot	The basis rotation at the camera location.
jobSplitter	A job splitter to add predraw jobs to.

virtual void makVrv::DtWeatherLayer::drawWeatherEffects ( DtWeatherEffect::DrawData & drawData )

virtual

Draw all weather effects in this layer.

Reimplemented in makVrv::DtWeatherLayerBlowingDust, makVrv::DtWeatherLayerBlowingSand, and makVrv::DtWeatherLayerBlowingSnow.

virtual void makVrv::DtWeatherLayer::addWeatherEffect ( DtWeatherEffect * effect )

virtual

Adds the given weather effect to this layer.

Parameters

effect The effect to add.

virtual void makVrv::DtWeatherLayer::drawAreaWeatherEffectsForLayerType	(	DtWeatherEffect::DrawData &	drawData,
		DtWeatherLayer::LayerType	layerType
	)

protectedvirtual

Draw all weather effects in areas that match the given layer type.

Parameters

drawData	The drawing data that contains areas and data used for drawing.
layerType	The desired layer type for matching areas.

virtual void makVrv::DtWeatherLayer::computeSurfaceParameters	(	DtWeatherEffect::DrawData &	drawData,
		DtWeatherArea *	area
	)

protectedvirtual

Computes and sets up effect surface drawing parameters.

Parameters

drawData	The drawing data structure containing draw parameters.
area	The area containing a surface.

Member Data Documentation

DtUniqueID makVrv::DtWeatherLayer::myId

protected

LayerType makVrv::DtWeatherLayer::myLayerType

protected

WeatherEffectSet makVrv::DtWeatherLayer::myWeatherEffectSet

protected

float makVrv::DtWeatherLayer::myIntensity

protected

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf4-10-branch/include/vrvOsg/DtWeatherLayer.h
