A weather area represents localized environmental conditions such as blowing dust, blowing sand, or blowing snow. More...

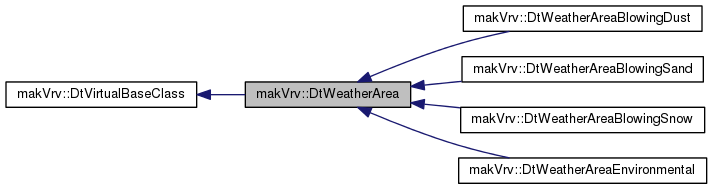

Inheritance diagram for makVrv::DtWeatherArea:

[legend]

Public Member Functions
virtual	~DtWeatherArea ()
	DTOR. More...

	DtWeatherArea ()=delete
	Default Constructor not implemented. More...

	DtWeatherArea (const DtWeatherArea &other)=delete
	Copy Constructor not implemented - Copy not allowed. More...

DtWeatherArea &	operator= (const DtWeatherArea &other)=delete
	Assignment Operator not implemented - Assignment not allowed. More...

virtual void	setEnabled (bool enabled)
	Enables or disables the weather area. More...

virtual bool	enabled () const
	Returns the enabled state. More...

virtual bool	culled () const
	Returns the culled state. More...

virtual void	setBounds (const DtVector &bounds, float cornerRadius)
	Sets the bounds of the area. More...

virtual void	setTransform (const DtVector &position, float orientation, bool relativeToCamera=false)
	Sets the area transform. More...

virtual const osg::Vec3d &	position () const
	Returns the area origin position in world space. More...

virtual const osg::Matrixd &	rotation () const
	Returns the area origin rotation in world space. More...

virtual float	boundsX () const
	Returns the bounds X size. More...

virtual float	boundsY () const
	Returns the bounds Y size. More...

virtual float	boundsZ () const
	Returns the bounds Z size. More...

virtual float	boundsCornerRadius () const
	Returns the bounds curner radius. More...

virtual const unsigned int *	packedData (int &sizeX, int &sizeY) const
	Returns the grid heights/blend packedData array used for terrain clamping. More...

virtual void	cullUpdate (const osg::Vec3d &camPos, const osg::Matrixd &viewMatrixI, const std::vector< osg::Vec4d > &cullingPlanes, DtJobSplitter *jobSplitter)
	Culls the area based on the current camera. More...

virtual float	computeBoundsDistance2D (const osg::Vec3d &position)
	Computes the xy distance from the given world position to the edge of the bounds. More...

virtual float	computeBoundsDistance3D (const osg::Vec3d &position)
	Computes the distance from the given world position to the edge of the bounds The bounds is a rounded rect. More...

virtual bool	usesWeatherLayerType (DtWeatherLayer::LayerType layerType) const
	Returns true if this area uses the give weather layer type. More...

virtual void	setPrecipitationIntensity (const float intensity)
	Sets a precipitation intensity for the area. More...

virtual const float	precipitationIntensity () const
	Returns the precipitation intensity for the area. More...

virtual void	setPrecipitationType (const DtSkyObject::PrecipitationType type)
	Sets a precipitation type for the area. More...

virtual const DtSkyObject::PrecipitationType	precipitationType () const
	Returns the precipitation type for the area. More...

virtual void	setGroundRainAccumulation (const float depth)
	Set the ground rain accumulation depth. More...

virtual const float	groundRainAccumulation () const
	Returns the ground rain accumulation depth. More...

virtual void	setFogColor (const DtVector &color)
	Sets a fog color for the area. More...

virtual const DtVector &	fogColor () const
	Returns the fog color for the area. More...

virtual void	setVisibilityDistance (const float distance)
	Sets a visibility distance for the area. More...

virtual const float	visibilityDistance () const
	Returns the visibility distance for the area. More...

virtual void	setOvercast (const float overcast)
	Sets a overcast percentage (lighting) for the area. More...

virtual const float	overcast () const
	Returns the overcast percentage for the area. More...

virtual void	setWind (const float windDirectionRad, const float windSpeedMps)
	Sets the current wind. More...

virtual void	setLightningEnabled (const bool enabled)
	Enables or disables lightning. More...

virtual const bool	lightningEnabled () const
	Returns true if lightning is enabled for the area. More...

virtual bool	computeLocalPrecipitation (const osg::Vec3d &location, int &type, float &intensity)
	Computes the precipitation at the given location. More...

virtual bool	computeLocalGroundRainAccumulation (const osg::Vec3d &location, float &depth, float &blend)
	Computes the ground rain accumulation at the given location. More...

Public Member Functions inherited from makVrv::DtVirtualBaseClass
	DtVirtualBaseClass ()
	Do nothing constructor. More...

virtual	~DtVirtualBaseClass ()
	Virtual do nothing destructor. More...

Static Public Member Functions
static float	computeBoundsDistance2D (const osg::Vec3d &position, const osg::Vec4d &bounds, const osg::Vec3d &boundsPosition, const osg::Matrixd &boundsRotation)
	Computes the xy distance from the given world position to the edge of the bounds. More...

static float	computeBoundsDistance3D (const osg::Vec3d &position, const osg::Vec4d &bounds, const osg::Vec3d &boundsPosition, const osg::Matrixd &boundsRotation)
	Computes the distance from the given world position to the edge of the bounds The bounds is a rounded rect with transform at bottom. More...

Protected Member Functions
	DtWeatherArea (makVrv::DtDe &de)
	CTOR. More...

virtual void	updateTransform ()
	Updates the current transform based on current settings. More...

virtual void	computeBasis (const osg::Vec3d &inGeocentricPos, osg::Matrixd &rotOut) const
	Computes a basis rotation matrix for the given geocentric position. More...

virtual bool	clampPositionToTerrain (osg::Vec3d &position, float clampDistance) const
	Clamps the given position to the terrain surface. More...

virtual bool	isSphereVisible (const std::vector< osg::Vec4d > &planes, const osg::Vec3d &center, double radius) const
	Tests to see if a sphere is visible using the given frustum planes. More...

Protected Attributes
DtDe &	myDe

bool	myEnabled

bool	myCulled

DtVector	mySetPosition

float	mySetOrientation

bool	mySetRelativeToCamera

osg::Vec3d	myPosition

osg::Matrixd	myRotation

float	myBoundsX

float	myBoundsY

float	myBoundsZ

float	myBoundsCornerRadius

float	myPrecipitationBoundsScale

float	myPrecipitationIntensity

DtSkyObject::PrecipitationType	myPrecipitationType

float	myGroundRainAccumulation

bool	myLightningEnabled

DtVector	myFogColor

float	myVisibilityDistance

float	myOvercast

float	myWindDirectionRad

float	myWindSpeedMps

Friends
class	DtWeatherAreaFactory

Detailed Description

A weather area represents localized environmental conditions such as blowing dust, blowing sand, or blowing snow.

The default (base class) weather area is mainly used as a bounds for localized environmental information such as precipitation intensity. AreaTypeBlowingDust, AreaTypeBlowingSand, AreaTypeBlowingSnow are specialized weather areas that represent 1 specific environmental condition.

Weather areas are used by weather layers to define where layers are active and visible. For example, a blowing snow layer might be active within a weather area bounding volume.

This base class also provides some common utility methods for weather areas.

Various local weather states and settings are tracked by this based class, but the base most likely does not provide any visual effect.

Constructor & Destructor Documentation

virtual makVrv::DtWeatherArea::~DtWeatherArea ( )

virtual

DTOR.

makVrv::DtWeatherArea::DtWeatherArea ( )

delete

Default Constructor not implemented.

makVrv::DtWeatherArea::DtWeatherArea ( const DtWeatherArea & other )

delete

Copy Constructor not implemented - Copy not allowed.

makVrv::DtWeatherArea::DtWeatherArea ( makVrv::DtDe & de )

protected

CTOR.

Member Function Documentation

DtWeatherArea& makVrv::DtWeatherArea::operator= ( const DtWeatherArea & other )

delete

Assignment Operator not implemented - Assignment not allowed.

virtual void makVrv::DtWeatherArea::setEnabled ( bool enabled )

virtual

Enables or disables the weather area.

Parameters

enabled Set to true to enable the area.

Reimplemented in makVrv::DtWeatherAreaBlowingDust, makVrv::DtWeatherAreaBlowingSand, makVrv::DtWeatherAreaBlowingSnow, and makVrv::DtWeatherAreaEnvironmental.

virtual bool makVrv::DtWeatherArea::enabled ( ) const

virtual

Returns the enabled state.

virtual bool makVrv::DtWeatherArea::culled ( ) const

virtual

Returns the culled state.

For areas that use culling, this will indicate if the area was culled during the last scenegraph culling pass.

virtual void makVrv::DtWeatherArea::setBounds	(	const DtVector &	bounds,
		float	cornerRadius
	)

virtual

Sets the bounds of the area.

Parameters

bounds	The (x,y,z) of the bounds.
cornerRadius	The radius at each corner of the bounds.

Reimplemented in makVrv::DtWeatherAreaBlowingDust, makVrv::DtWeatherAreaBlowingSand, makVrv::DtWeatherAreaBlowingSnow, and makVrv::DtWeatherAreaEnvironmental.

virtual void makVrv::DtWeatherArea::setTransform	(	const DtVector &	position,
		float	orientation,
		bool	relativeToCamera = `false`
	)

virtual

Sets the area transform.

Parameters

position	The transform position in world space.
oritantation	The yaw orientation in degrees (0 = north).
relativeToCamera	Set to true if the position is relative to the current camera.

Reimplemented in makVrv::DtWeatherAreaBlowingDust, makVrv::DtWeatherAreaBlowingSand, makVrv::DtWeatherAreaBlowingSnow, and makVrv::DtWeatherAreaEnvironmental.

virtual const osg::Vec3d& makVrv::DtWeatherArea::position ( ) const

virtual

Returns the area origin position in world space.

virtual const osg::Matrixd& makVrv::DtWeatherArea::rotation ( ) const

virtual

Returns the area origin rotation in world space.

virtual float makVrv::DtWeatherArea::boundsX ( ) const

virtual

Returns the bounds X size.

virtual float makVrv::DtWeatherArea::boundsY ( ) const

virtual

Returns the bounds Y size.

virtual float makVrv::DtWeatherArea::boundsZ ( ) const

virtual

Returns the bounds Z size.

virtual float makVrv::DtWeatherArea::boundsCornerRadius ( ) const

virtual

Returns the bounds curner radius.

virtual const unsigned int* makVrv::DtWeatherArea::packedData	(	int &	sizeX,
		int &	sizeY
	)		const

virtual

Returns the grid heights/blend packedData array used for terrain clamping.

Parameters

sizeX	Filled in output for the grid size in the x direction.
sizeY	Filled in output for the grid size in the y direction.

Reimplemented in makVrv::DtWeatherAreaBlowingDust, makVrv::DtWeatherAreaBlowingSand, and makVrv::DtWeatherAreaBlowingSnow.

virtual void makVrv::DtWeatherArea::cullUpdate	(	const osg::Vec3d &	camPos,
		const osg::Matrixd &	viewMatrixI,
		const std::vector< osg::Vec4d > &	cullingPlanes,
		DtJobSplitter *	jobSplitter
	)

inlinevirtual

Culls the area based on the current camera.

Parameters

cam	The current camera being drawn.
jobSplitter	A job splitter to add predraw jobs to.

Reimplemented in makVrv::DtWeatherAreaBlowingDust, makVrv::DtWeatherAreaBlowingSand, makVrv::DtWeatherAreaBlowingSnow, and makVrv::DtWeatherAreaEnvironmental.

static float makVrv::DtWeatherArea::computeBoundsDistance2D	(	const osg::Vec3d &	position,
		const osg::Vec4d &	bounds,
		const osg::Vec3d &	boundsPosition,
		const osg::Matrixd &	boundsRotation
	)

static

Computes the xy distance from the given world position to the edge of the bounds.

The bounds is a rounded rect with transform at bottom. Returns 0 if inside.

Parameters

position	The world position.
bounds	The (width, length, height, corner radius) of the bounds.
boundsPosition	The bounds world position.
boundRotation	The bounds world rotation.

static float makVrv::DtWeatherArea::computeBoundsDistance3D	(	const osg::Vec3d &	position,
		const osg::Vec4d &	bounds,
		const osg::Vec3d &	boundsPosition,
		const osg::Matrixd &	boundsRotation
	)

static

Computes the distance from the given world position to the edge of the bounds The bounds is a rounded rect with transform at bottom.

Returns 0 if inside.

Parameters

position	The world position.
bounds	The (width, length, height, corner radius) of the bounds.
boundsPosition	The bounds world position.
boundRotation	The bounds world rotation.

virtual float makVrv::DtWeatherArea::computeBoundsDistance2D ( const osg::Vec3d & position )

virtual

Computes the xy distance from the given world position to the edge of the bounds.

The bounds is a rounded rect. Returns 0 if inside.

Parameters

position The world position.

virtual float makVrv::DtWeatherArea::computeBoundsDistance3D ( const osg::Vec3d & position )

virtual

Computes the distance from the given world position to the edge of the bounds The bounds is a rounded rect.

Returns 0 if inside.

Parameters

position The world position.

virtual bool makVrv::DtWeatherArea::usesWeatherLayerType ( DtWeatherLayer::LayerType layerType ) const

virtual

Returns true if this area uses the give weather layer type.

Parameters

layerType The layer type to check.

Reimplemented in makVrv::DtWeatherAreaBlowingDust, makVrv::DtWeatherAreaBlowingSand, makVrv::DtWeatherAreaBlowingSnow, and makVrv::DtWeatherAreaEnvironmental.

virtual void makVrv::DtWeatherArea::setPrecipitationIntensity ( const float intensity )

virtual

Sets a precipitation intensity for the area.

Parameters

intensity The precipitation intensity.

Reimplemented in makVrv::DtWeatherAreaEnvironmental.

virtual const float makVrv::DtWeatherArea::precipitationIntensity ( ) const

virtual

Returns the precipitation intensity for the area.

virtual void makVrv::DtWeatherArea::setPrecipitationType ( const DtSkyObject::PrecipitationType type )

virtual

Sets a precipitation type for the area.

Parameters

type	The precipitation type.

Reimplemented in makVrv::DtWeatherAreaEnvironmental.

virtual const DtSkyObject::PrecipitationType makVrv::DtWeatherArea::precipitationType ( ) const

virtual

Returns the precipitation type for the area.

virtual void makVrv::DtWeatherArea::setGroundRainAccumulation ( const float depth )

virtual

Set the ground rain accumulation depth.

Parameters

depth The ground rain accumulation depth.

virtual const float makVrv::DtWeatherArea::groundRainAccumulation ( ) const

virtual

Returns the ground rain accumulation depth.

virtual void makVrv::DtWeatherArea::setFogColor ( const DtVector & color )

virtual

Sets a fog color for the area.

Parameters

color The fog color.

Reimplemented in makVrv::DtWeatherAreaEnvironmental.

virtual const DtVector& makVrv::DtWeatherArea::fogColor ( ) const

virtual

Returns the fog color for the area.

virtual void makVrv::DtWeatherArea::setVisibilityDistance ( const float distance )

virtual

Sets a visibility distance for the area.

Parameters

distance The distance.

Reimplemented in makVrv::DtWeatherAreaEnvironmental.

virtual const float makVrv::DtWeatherArea::visibilityDistance ( ) const

virtual

Returns the visibility distance for the area.

virtual void makVrv::DtWeatherArea::setOvercast ( const float overcast )

virtual

Sets a overcast percentage (lighting) for the area.

Parameters

overcast The overcast percentage value.

Reimplemented in makVrv::DtWeatherAreaEnvironmental.

virtual const float makVrv::DtWeatherArea::overcast ( ) const

virtual

Returns the overcast percentage for the area.

virtual void makVrv::DtWeatherArea::setWind	(	const float	windDirectionRad,
		const float	windSpeedMps
	)

virtual

Sets the current wind.

Parameters

windDirectionRad	The wind direction in radians.
windSpeedMps	The wind speed in meters per second.

Reimplemented in makVrv::DtWeatherAreaEnvironmental.

virtual void makVrv::DtWeatherArea::setLightningEnabled ( const bool enabled )

virtual

Enables or disables lightning.

Parameters

enabled Set to true to enable lightning.

Reimplemented in makVrv::DtWeatherAreaEnvironmental.

virtual const bool makVrv::DtWeatherArea::lightningEnabled ( ) const

virtual

Returns true if lightning is enabled for the area.

virtual bool makVrv::DtWeatherArea::computeLocalPrecipitation	(	const osg::Vec3d &	location,
		int &	type,
		float &	intensity
	)

virtual

Computes the precipitation at the given location.

Returns true if location is in this weather area, otherwise false.

Parameters

location	The location to compute the precipitation at.
type	The computed precipitation type (DtSkyObject::PrecipitationType).
intensity	The computed precipitation intensity.

virtual bool makVrv::DtWeatherArea::computeLocalGroundRainAccumulation	(	const osg::Vec3d &	location,
		float &	depth,
		float &	blend
	)

virtual

Computes the ground rain accumulation at the given location.

Returns true if location is in this weather area, otherwise false.

Parameters

location	The location to compute the ground rain accumulation at.
depth	The computed ground rain accumulation depth.
blend	(0.0 to 1.0) blend value based on local area perimeter.

virtual void makVrv::DtWeatherArea::updateTransform ( )

protectedvirtual

Updates the current transform based on current settings.

virtual void makVrv::DtWeatherArea::computeBasis	(	const osg::Vec3d &	inGeocentricPos,
		osg::Matrixd &	rotOut
	)		const

protectedvirtual

Computes a basis rotation matrix for the given geocentric position.

Parameters

inGeocentricPos	The geocentric reference position.
rotOut	The computed basis rotation transform.

virtual bool makVrv::DtWeatherArea::clampPositionToTerrain	(	osg::Vec3d &	position,
		float	clampDistance
	)		const

protectedvirtual

Clamps the given position to the terrain surface.

Returns true if successful.

Parameters

position	The input/output position to clamp.
clampDistance	The above/below distance to search for a surface.

virtual bool makVrv::DtWeatherArea::isSphereVisible	(	const std::vector< osg::Vec4d > &	planes,
		const osg::Vec3d &	center,
		double	radius
	)		const

protectedvirtual

Tests to see if a sphere is visible using the given frustum planes.

Parameters

planes	The frustum planes to test the sphere against.
center	The sphere center position.
radius	the sphere radius.

Friends And Related Function Documentation

friend class DtWeatherAreaFactory

friend

Member Data Documentation

DtDe& makVrv::DtWeatherArea::myDe

protected

bool makVrv::DtWeatherArea::myEnabled

protected

bool makVrv::DtWeatherArea::myCulled

protected

DtVector makVrv::DtWeatherArea::mySetPosition

protected

float makVrv::DtWeatherArea::mySetOrientation

protected

bool makVrv::DtWeatherArea::mySetRelativeToCamera

protected

osg::Vec3d makVrv::DtWeatherArea::myPosition

protected

osg::Matrixd makVrv::DtWeatherArea::myRotation

protected

float makVrv::DtWeatherArea::myBoundsX

protected

float makVrv::DtWeatherArea::myBoundsY

protected

float makVrv::DtWeatherArea::myBoundsZ

protected

float makVrv::DtWeatherArea::myBoundsCornerRadius

protected

float makVrv::DtWeatherArea::myPrecipitationBoundsScale

protected

float makVrv::DtWeatherArea::myPrecipitationIntensity

protected

DtSkyObject::PrecipitationType makVrv::DtWeatherArea::myPrecipitationType

protected

float makVrv::DtWeatherArea::myGroundRainAccumulation

protected

bool makVrv::DtWeatherArea::myLightningEnabled

protected

DtVector makVrv::DtWeatherArea::myFogColor

protected

float makVrv::DtWeatherArea::myVisibilityDistance

protected

float makVrv::DtWeatherArea::myOvercast

protected

float makVrv::DtWeatherArea::myWindDirectionRad

protected

float makVrv::DtWeatherArea::myWindSpeedMps

protected

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf4-10-branch/include/vrvOsg/DtWeatherArea.h

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Friends

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
