DtCoefficientsSignatureModifierEvaluator Class Reference

A DtSignatureModifierEvaluator that scales a signature with a. More...

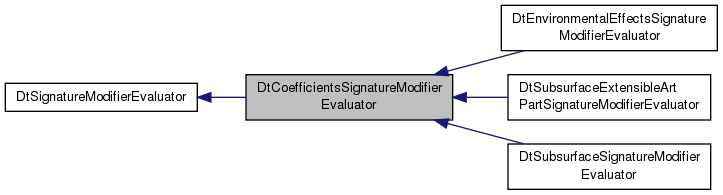

Inheritance diagram for DtCoefficientsSignatureModifierEvaluator:

Public Member Functions
	DtCoefficientsSignatureModifierEvaluator (const DtSignatureModifier &modifier, DtVrfObject *hostObject)
	default constructor
virtual	~DtCoefficientsSignatureModifierEvaluator ()
virtual bool	init ()
	Uses dynamic_cast to make sure that the passed in DtSignatureModifier derives from DtMultiplierSignatureModifier.
virtual double	modifySignature (double inputSignature) const =0
virtual bool	checkCondition () const =0
	Override this in subclasses to check the condition of this evaluator.
Public Member Functions inherited from DtSignatureModifierEvaluator
	DtSignatureModifierEvaluator (const DtSignatureModifier &modifier, DtVrfObject *hostObject)
	default constructor
virtual	~DtSignatureModifierEvaluator ()
virtual DtString	type () const =0

Private Member Functions
	DtCoefficientsSignatureModifierEvaluator ()
	Not implemented.
	DtCoefficientsSignatureModifierEvaluator (const DtCoefficientsSignatureModifierEvaluator &orig)
	Not implemented. Class not copyable.
DtCoefficientsSignatureModifierEvaluator &	operator= (const DtCoefficientsSignatureModifierEvaluator &orig)
	Not implemented. Class not copyable.

Additional Inherited Members
Static Public Member Functions inherited from DtSignatureModifierEvaluator
static void	setFactory (DtSignatureModifierEvaluatorFactory *factory)
	Sets the static factory member.
static DtSignatureModifierEvaluator *	createSignatureModifierEvaluator (const DtString &type, const DtSignatureModifier &modifier, DtVrfObject *hostObject)
	Uses the static factory assigned in setFactory to create the requested sensor geometry type.
Protected Attributes inherited from DtSignatureModifierEvaluator
const DtSignatureModifier &	mySignatureModifier
DtVrfObject *	myHostObject
Static Protected Attributes inherited from DtSignatureModifierEvaluator
static DtSignatureModifierEvaluatorFactory *	theFactory

Detailed Description

A DtSignatureModifierEvaluator that scales a signature with a.

polynomial whose coefficents are defined in modifier file. Based on the check of a boolean condition. This is an abstract base class for any actual evaluators that do this check. Requires that a DtCoefficientsSignatureModifier or subclass be passed in.

Constructor & Destructor Documentation

DtCoefficientsSignatureModifierEvaluator::DtCoefficientsSignatureModifierEvaluator ( )

private

Not implemented.

DtCoefficientsSignatureModifierEvaluator::DtCoefficientsSignatureModifierEvaluator ( const DtCoefficientsSignatureModifierEvaluator &  orig )

private

Not implemented. Class not copyable.

DtCoefficientsSignatureModifierEvaluator::DtCoefficientsSignatureModifierEvaluator	(	const DtSignatureModifier &	modifier,
		DtVrfObject *	hostObject
	)

default constructor

virtual DtCoefficientsSignatureModifierEvaluator::~DtCoefficientsSignatureModifierEvaluator ( )

virtual

Member Function Documentation

DtCoefficientsSignatureModifierEvaluator& DtCoefficientsSignatureModifierEvaluator::operator= ( const DtCoefficientsSignatureModifierEvaluator &  orig )

private

Not implemented. Class not copyable.

virtual bool DtCoefficientsSignatureModifierEvaluator::init ( )

virtual

Uses dynamic_cast to make sure that the passed in DtSignatureModifier derives from DtMultiplierSignatureModifier.

Reimplemented from DtSignatureModifierEvaluator.

Reimplemented in DtEnvironmentalEffectsSignatureModifierEvaluator, DtSubsurfaceExtensibleArtPartSignatureModifierEvaluator, and DtSubsurfaceSignatureModifierEvaluator.

virtual double DtCoefficientsSignatureModifierEvaluator::modifySignature ( double  inputSignature ) const

pure virtual

Returns

inputSignature scaled by polynomial User needs to define the variable to be used in the polynomial

Implements DtSignatureModifierEvaluator.

Implemented in DtEnvironmentalEffectsSignatureModifierEvaluator, DtSubsurfaceExtensibleArtPartSignatureModifierEvaluator, and DtSubsurfaceSignatureModifierEvaluator.

virtual bool DtCoefficientsSignatureModifierEvaluator::checkCondition ( ) const

pure virtual

Override this in subclasses to check the condition of this evaluator.

Returns

True if condition is met.

Implemented in DtEnvironmentalEffectsSignatureModifierEvaluator, DtSubsurfaceExtensibleArtPartSignatureModifierEvaluator, and DtSubsurfaceSignatureModifierEvaluator.

---

The documentation for this class was generated from the following file:

• /exports/nfedora7-1/nightly/docs/vrforcesDevelopment.tot/include/vrfobjcore/coeffSignatureModifierEval.h
