DtDrawerColl Class Reference

Qt includes. More...

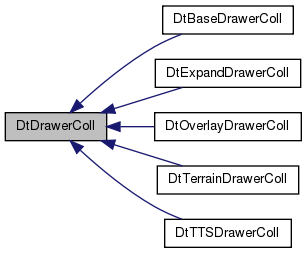

Inheritance diagram for DtDrawerColl:

Public Member Functions
	DtDrawerColl ()
	— public constructors / assignment operator / destructor
	DtDrawerColl (DtDrawerColl *nextComponent)
virtual	~DtDrawerColl ()
virtual DtSymbolDrawer *	lookupDrawer (const DtDrawerKey &key)=0
	— functions —
virtual DtDrawerColl *	component ()
virtual void	setComponent (DtDrawerColl *c)
	Sets the component to be the supplied component.
virtual void	addComponent (DtDrawerColl *c)
	Adds a new component into our component chain by moving to the last component and adding it to that one.
virtual bool	init ()
virtual void	addDrawerCreator (const QString &str, DtSymbolDrawerCreatorFcn fcn)
virtual DtSymbolDrawer *	createDrawer (const QString &str)

Protected Member Functions
	DtDrawerColl (const DtDrawerColl &orig)
DtDrawerColl &	operator= (const DtDrawerColl &orig)

Protected Attributes
DtDrawerColl *	myComponent
DtNullDrawer	myNullDrawer
DtDrawerMap	myMap
	Map of symbol types to drawers.

Detailed Description

Qt includes.

class DtDrawerColl:

Abstract base class of drawer collections. Concrete subclasses can be chained together using the decorator pattern. This allows the user to mix various subsets of drawers. For example, basic drawers which work on all o/s + drawers for windows basic drawers + true type fonts ttf + windows

The drawer collection owns any component with which it is constructed, and will delete it upon destruction.

Constructor & Destructor Documentation

DtDrawerColl::DtDrawerColl

(

)

— public constructors / assignment operator / destructor

DtDrawerColl::DtDrawerColl

(

DtDrawerColl *

nextComponent

)

virtual DtDrawerColl::~DtDrawerColl ( )

virtual

DtDrawerColl::DtDrawerColl ( const DtDrawerColl &  orig )

protected

Member Function Documentation

virtual DtSymbolDrawer* DtDrawerColl::lookupDrawer ( const DtDrawerKey &  key )

pure virtual

— functions —

Implemented in DtTerrainDrawerColl, DtTTSDrawerColl, DtOverlayDrawerColl, DtBaseDrawerColl, and DtExpandDrawerColl.

virtual DtDrawerColl* DtDrawerColl::component ( )

virtual

virtual void DtDrawerColl::setComponent ( DtDrawerColl *  c )

virtual

Sets the component to be the supplied component.

virtual void DtDrawerColl::addComponent ( DtDrawerColl *  c )

virtual

Adds a new component into our component chain by moving to the last component and adding it to that one.

virtual bool DtDrawerColl::init ( )

virtual

Reimplemented in DtTerrainDrawerColl, and DtOverlayDrawerColl.

virtual void DtDrawerColl::addDrawerCreator ( const QString &  str, DtSymbolDrawerCreatorFcn  fcn  )

virtual

virtual DtSymbolDrawer* DtDrawerColl::createDrawer ( const QString &  str )

virtual

Reimplemented in DtTerrainDrawerColl.

DtDrawerColl& DtDrawerColl::operator= ( const DtDrawerColl &  orig )

protected

Member Data Documentation

DtDrawerColl* DtDrawerColl::myComponent

protected

DtNullDrawer DtDrawerColl::myNullDrawer

protected

DtDrawerMap DtDrawerColl::myMap

protected

Map of symbol types to drawers.

---

The documentation for this class was generated from the following file:

• /exports/nfedora7-1/nightly/docs/vrforcesDevelopment.tot/include/symbolDrawerInterface/drawerColl.h
