DtIfFileOp Class Reference

DtIfFileOp is the base class of the content portion of file operation messages. More...

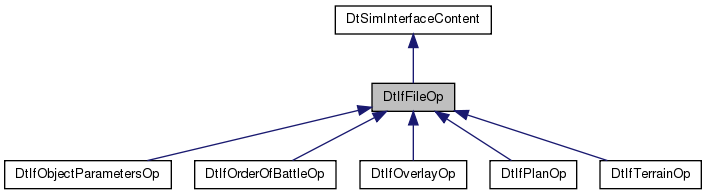

Inheritance diagram for DtIfFileOp:

Public Member Functions
	DtIfFileOp ()
	default constructor
	DtIfFileOp (const DtIfFileOp &orig)
	copy constructor
const DtIfFileOp &	operator= (const DtIfFileOp &orig)
	assignment operator
virtual	~DtIfFileOp ()
virtual int	type () const =0
	Override this with the type of file message name the operation is for, so the right manager can register a callback on it; use const strings found in msgTypes.h.
virtual DtSimInterfaceContent *	clone () const =0
virtual const DtString &	fileName () const
	Name of the file to operate on.
virtual void	setFileName (const DtString &fileName)
virtual int	fileOp () const
	The I/O type of the operation (DtReadFileOpType/DtWriteFileOpType).
virtual void	setFileOp (int fileOp)
virtual int	netRepSize () const
virtual bool	setFromNet (const char *contentBuffer, unsigned contentSize)
virtual bool	setToNet ()
virtual void	printDataToString (DtString &str)

Protected Attributes
DtString	myFileName
int	myFileOp

Detailed Description

DtIfFileOp is the base class of the content portion of file operation messages.

Messages derived from this class are typically only sent from front-end to the back-end.

Content-Type: Not applicable.

Parameters: fileName - A DtString that is the filename associated with this opera- tion.

fileOp - A DtString that is the file I/O operation to perform, read (DtReadFileOpType) or write (DtWriteFileOpType).

Constructor & Destructor Documentation

DtIfFileOp::DtIfFileOp

(

)

default constructor

DtIfFileOp::DtIfFileOp

(

const DtIfFileOp &

orig

)

copy constructor

virtual DtIfFileOp::~DtIfFileOp ( )

virtual

Member Function Documentation

const DtIfFileOp& DtIfFileOp::operator=

(

const DtIfFileOp &

orig

)

assignment operator

virtual int DtIfFileOp::type ( ) const

pure virtual

Override this with the type of file message name the operation is for, so the right manager can register a callback on it; use const strings found in msgTypes.h.

Currently, one of DtOverlayOpMessageName, DtPlanOpMessageName, or DtOrderOfBattleOpMessageName.

Implemented in DtIfObjectParametersOp, DtIfOrderOfBattleOp, DtIfPlanOp, DtIfOverlayOp, and DtIfTerrainOp.

virtual DtSimInterfaceContent* DtIfFileOp::clone ( ) const

pure virtual

Implemented in DtIfObjectParametersOp, DtIfOrderOfBattleOp, DtIfPlanOp, DtIfOverlayOp, and DtIfTerrainOp.

virtual const DtString& DtIfFileOp::fileName ( ) const

virtual

Name of the file to operate on.

virtual void DtIfFileOp::setFileName ( const DtString &  fileName )

virtual

virtual int DtIfFileOp::fileOp ( ) const

virtual

The I/O type of the operation (DtReadFileOpType/DtWriteFileOpType).

virtual void DtIfFileOp::setFileOp ( int  fileOp )

virtual

virtual int DtIfFileOp::netRepSize ( ) const

virtual

virtual bool DtIfFileOp::setFromNet ( const char *  contentBuffer, unsigned  contentSize  )

virtual

virtual bool DtIfFileOp::setToNet ( )

virtual

virtual void DtIfFileOp::printDataToString ( DtString &  str )

virtual

Member Data Documentation

DtString DtIfFileOp::myFileName

protected

int DtIfFileOp::myFileOp

protected

---

The documentation for this class was generated from the following file:

• /exports/nfedora7-1/nightly/docs/vrforcesDevelopment.tot/include/vrfmsgs/ifFileOp.h
