DtSimStatement Class Reference

8 bytes total More...

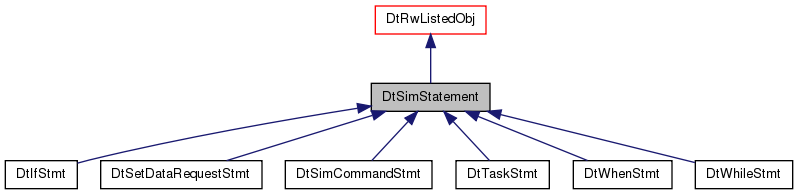

Inheritance diagram for DtSimStatement:

Public Member Functions
	DtSimStatement ()
	Default constructor.
	DtSimStatement (const DtString &name, DtReaderWriterRegistry *parentRegistry=NULL)
	Usual constructor NOTE: "name" should be the statement type string.
	DtSimStatement (const DtSimStatement &orig, DtReaderWriterRegistry *parentRegistry=NULL)
	Copy constructor.
virtual	~DtSimStatement ()
	Destructor.
virtual bool	init ()
	Base class init does nothing, but this will be called by create, in case any other deriving class needs to do virtual allocation.
DtSimStatement &	operator= (const DtSimStatement &orig)
	Assignment operator (protected because this is an abstract base class).
virtual DtSimStatement *	clone (DtReaderWriterRegistry *parentRegistry=NULL) const =0
	virtual copy constructor A typical clone function.
virtual int	type () const =0
	Returns the type of statement Type (defined in simStmtTypes.h)
virtual bool	validate ()
	Checks the statement for validity, and potentially fixes the statement to be valid.
virtual void	execute (DtPlan &planContext)=0
	Execute the current statement and make any changes to the Plan state as appropriate.
virtual void	step (DtPlan &planContext)
	Asks the statement to step the context DtPlan to the next statement.
virtual bool	translateIndex (DtStmtIndex &index)
	Translate an old statement index pointer to point to a statement in the current Plan.
virtual void	translateIndices (const DtList &indices)
	Same as translateIndex, except it operates on a DtList of DtStmtIndex's, and doesn't return a value.
DtSimStatement *	nextStmt () const
	Return next (previous) statements in the block, or NULL if hit the end (beginning) of the list.
DtSimStatement *	prevStmt () const
virtual DtStmtIdType	statementId () const
	Statement Id accessors.
virtual void	setStatementId (DtStmtIdType arg)
virtual DtSimBlock *	parentBlock () const
	The parent statement Block.
virtual void	setParentBlock (DtSimBlock *arg)
virtual int	subBlockCount () const
	Get the number of blocks nested inside this statement.
virtual DtSimBlock *	subBlock (int index)
	Get a pointer to any particular block nested inside this statement.
virtual DtRecursiveSimStatementIterator *	spawnRecursiveIterator () const
	Spawns an iterator that iterates over the subblocks in this statement, and all their children, sub children, etc.
virtual DtSimStatement *	lookupStatement (DtStmtIdType statementId)
	If statementId matches our statement, returns a pointer to us.
virtual DtString	stringRep (int subBlockIndex=DtSR_STMT) const =0
	Get a readable string representation of this statement.
virtual char *	netRep ()
virtual int	netRepSize () const
	Returns sizeof(DtNetSimStatement).
virtual bool	setFromNet (const char *contentBuffer, unsigned contentSize)
	Extracts statement Id from buffer.
virtual bool	setToNet ()
	Casts myNetRep to DtNetSimStatement* and fills in structure.
virtual bool	isSameStatement (DtSimStatement *)
	Returns true if statements are equivalent. Will not check statementId.
Public Member Functions inherited from DtRwListedObj
	DtRwListedObj ()
	Default constructor.
	DtRwListedObj (const DtString &name, DtReaderWriterRegistry *parentRegistry=NULL)
	Real constructor.
	DtRwListedObj (const DtSymbolString &name, DtReaderWriterRegistry *parentRegistry=NULL)
	DtRwListedObj (const DtRwListedObj &orig)
	Copy constructor.
virtual	~DtRwListedObj ()
	Destructor.
DtRwListedObj &	operator= (const DtRwListedObj &orig)
	Assignment operator.
DtRwListedObj *	next () const
	Return next (previous) elements on the list, or NULL if hit the end (beginning) of the list.
DtRwListedObj *	prev () const
DtRwListedObj *	wrapNext () const
	Return next (previous) elements on the list, but wrap to the beginning (end) of the list when you hit the end (beginning).
DtRwListedObj *	wrapPrev () const
virtual const char *	readerWriterType () const
	Used to supply a string type that this reader writer type is.
Public Member Functions inherited from DtReaderWriter
	DtReaderWriter ()
	default constructor
	DtReaderWriter (const DtString &name, DtReaderWriterRegistry *parentRegistry=NULL, bool readonly=false)
	real constructor Setting the readonly flag prevents object from writing itself to the stream.
	DtReaderWriter (const DtSymbolString &name, DtReaderWriterRegistry *parentRegistry=NULL, bool readonly=false)
	DtReaderWriter (const DtString &name, const DtReaderWriter &orig, DtReaderWriterRegistry *parentRegistry=NULL)
	copy constructor
	DtReaderWriter (const DtSymbolString &name, const DtReaderWriter &orig, DtReaderWriterRegistry *parentRegistry=NULL)
const DtReaderWriter &	operator= (const DtReaderWriter &orig)
	assignment operator
bool	operator== (const DtReaderWriter &) const
	Equivalence operator.
bool	operator!= (const DtReaderWriter &rhs)
virtual	~DtReaderWriter ()
	destructor
virtual void	putSelf (FILE *fp, int indentLevel=0, bool writeUnspecified=false, const DtFilename &path=DtFilename::nullFilename())
	Top level call to write itself to file.
virtual void	getSelf (DtlObjPtr args, const DtFilename &searchPath=DtFilename::nullFilename(), const DtVariableBindingsList &variableBindings=nullVariableReference())
	Top level to read itself from an input stream.
virtual void	writeSelf (FILE *fp, int indentLevel=0, bool writeUnspecified=false, const DtFilename &path=DtFilename::nullFilename())
	Called from putSelf, calls myRegistry.putSelf which in turn calls putSelf on each reader/writer in the registry.
virtual DtSymbolString	name () const
	Accessor for name of this readable/writable object.
virtual void	addAlias (const DtSymbolString &alias)
	Add an alias as an alternative name for this object.
virtual bool	hasAlias (const DtSymbolString &alias)
virtual const aliasContainer &	aliases () const
virtual void	setReadonly (bool flag)
	Set read-only flag.
virtual bool	isReadonly () const
virtual bool	variableIsBound () const
virtual void	unbindVariable ()
	Sets the myVariableIsBound flag to false.
virtual void	setName (const DtString &)
	Set the name of the object.
virtual DtString	prettyPrint () const
	Routine to return a human readable form of the reader/writer variable.
virtual void	bindVariables (DtVariableBindingsList variableBindings)
	Runs a variable binding pass on this reader writer and any of its children.
virtual std::list < DtVariableNameType >	unboundVariables () const
bool	invalid () const
virtual bool	hasChild (const DtReaderWriter *p) const
	Returns true if this variable has a child p in it's chain.
virtual void	setValueSpecified (bool specified, bool recurse=false)
	The specified flags are used for optional values.
virtual bool	valueSpecified () const
	The specified flags are used for optional values.
virtual bool	isVariableReference () const
	Specifies whether or not this reader writer is really a variable that is specified elsewhere.
virtual void	setIsVariableReference (bool value)
virtual void	clearAllVariableReferenceFlags ()
	Clears out all variable reference flags from all readerwriter items in registry recursively.
virtual DtSymbolString	variableName () const
	The variable name, if this object is a variable reference.
virtual void	setVariableName (const DtSymbolString variableName)
	The variable name, if this object is a variable reference.
const DtReaderWriterRegistry &	registry () const
	Collection of child DtReaderWriter nodes owned by this object.
DtReaderWriterRegistry &	registry ()
	Collection of child DtReaderWriter nodes owned by this object.

Static Public Member Functions
static DtStmtIdType	generateNewStmtId ()
static DtSimStatement *	createStatement (DtlObjPtr mtlStream, DtReaderWriterRegistry *parentRegistry=NULL)
	Static functions.
static DtSimStatement *	createStatement (int statementType, DtReaderWriterRegistry *parentRegistry=NULL)
static void	addStatementCreatorFcn (const DtString &type, int intType, DtStatementCreatorFcn fcn)
	Decodes a legacy stealth statement (VRF 3.9 and previous) and returns the proper statement for the current version.
static void	setFactory (DtStatementFactory *factory)
static DtStatementFactory *	factory ()
static bool	getStatementNameFromStatementType (int statementType, DtString &statementName)
static bool	getStatementTypeFromStatementName (const DtString &statementName, int &statementType)
static bool	addStatementTypeMapping (const DtString &statementName, int taskType)
static bool	removeStatementTypeMapping (const DtString &statementName, int statementType)

Static Public Attributes
static const int	DtSR_STMT = -1
	A constant for use as the subBlockIndex argument to stringRep().

Protected Member Functions
virtual char *	createNetworkBuffer ()
virtual bool	compare (DtSimStatement *)
	Called from isSameStatement.

Protected Attributes
DtStmtIdType	myStatementId
	A semi-unique Id value that helps trace the original identity of this statement if/when it gets copied.
DtSimBlock *	myParentBlock
	The containing DtSimBlock object (if any).
char *	myNetRep
Protected Attributes inherited from DtRwListedObj
DtList *	myList
DtListItem *	myItem
Protected Attributes inherited from DtReaderWriter
const DtSymbolString	myName
DtReaderWriterRegistry	myRegistry
bool	myValueSpecified
bool	myReadOnlyFlag
bool	myIsVariableReference
DtSymbolString	myVariableName
bool	myVariableIsBound
aliasContainer	myAliases
	Container for the aliases which represent alternative names for the object.
bool	myInvalid
	Set to true if there is a problem reading this item.

Static Protected Attributes
static DtStatementFactory *	myFactory
	Factory for this class.
static DtStringIntMapper	theStatementNameMapper

Friends
class	DtStmtIndex

Additional Inherited Members
Public Types inherited from DtReaderWriter
typedef std::vector < DtSymbolString >	aliasContainer
typedef std::vector < DtSymbolString >::iterator	aliasIter
typedef std::vector < DtSymbolString > ::const_iterator	aliasConstIter
typedef std::pair < DtSymbolString, DtString >	DtVariableNameType
typedef DtReaderWriterFactory *(*	DtReaderWriterFactoryCreatorFcn )()

Detailed Description

8 bytes total

class DtSimStatement:

Instances of DtSimStatement represent any kind of statement used in a Plan.

Constructor & Destructor Documentation

DtSimStatement::DtSimStatement

(

)

Default constructor.

DtSimStatement::DtSimStatement	(	const DtString &	name,
		DtReaderWriterRegistry *	parentRegistry = NULL
	)

Usual constructor NOTE: "name" should be the statement type string.

DtSimStatement::DtSimStatement	(	const DtSimStatement &	orig,
		DtReaderWriterRegistry *	parentRegistry = NULL
	)

Copy constructor.

virtual DtSimStatement::~DtSimStatement ( )

virtual

Destructor.

Member Function Documentation

virtual bool DtSimStatement::init ( )

virtual

Base class init does nothing, but this will be called by create, in case any other deriving class needs to do virtual allocation.

DtSimStatement& DtSimStatement::operator=

(

const DtSimStatement &

orig

)

Assignment operator (protected because this is an abstract base class).

virtual DtSimStatement* DtSimStatement::clone ( DtReaderWriterRegistry *  parentRegistry = NULL ) const

pure virtual

virtual copy constructor A typical clone function.

It must be overridden by derived classes to return an exact copy of the object.

Implemented in DtWhenStmt, DtWhileStmt, DtIfStmt, DtTaskStmt, DtSetDataRequestStmt, and DtSimCommandStmt.

virtual int DtSimStatement::type ( ) const

pure virtual

Returns the type of statement Type (defined in simStmtTypes.h)

Implemented in DtWhenStmt, DtWhileStmt, DtIfStmt, DtTaskStmt, DtSetDataRequestStmt, and DtSimCommandStmt.

virtual bool DtSimStatement::validate ( )

virtual

Checks the statement for validity, and potentially fixes the statement to be valid.

Returns

True if the statement is valid.

Reimplemented in DtWhileStmt.

virtual void DtSimStatement::execute ( DtPlan &  planContext )

pure virtual

Execute the current statement and make any changes to the Plan state as appropriate.

Tells the statement to activate its own behavior. Each kind of statement implements this function differently. It is passed a reference to the executing DtPlan object as a “context of execution”.

Implemented in DtWhenStmt, DtWhileStmt, DtIfStmt, DtTaskStmt, DtSetDataRequestStmt, and DtSimCommandStmt.

virtual void DtSimStatement::step ( DtPlan &  planContext )

virtual

Asks the statement to step the context DtPlan to the next statement.

The default implementation steps to the next statement in the same parent DtSimBlock. If this is the last statement in the Block, step() calls the block’s exitFromBlock() member function.

Reimplemented in DtIfStmt.

virtual bool DtSimStatement::translateIndex ( DtStmtIndex &  index )

virtual

Translate an old statement index pointer to point to a statement in the current Plan.

This does a look-up of the statement tree to find the statement that has the same statement ID as the one the statement index used to point to. Use this after a clone to convert any old statement pointers that you want to have pointing to the clone. If any subBlocks are defined, this will search in them too. Returns true if a match was found, false otherwise.

virtual void DtSimStatement::translateIndices ( const DtList &  indices )

virtual

Same as translateIndex, except it operates on a DtList of DtStmtIndex's, and doesn't return a value.

DtSimStatement * DtSimStatement::nextStmt ( ) const

inline

Return next (previous) statements in the block, or NULL if hit the end (beginning) of the list.

Inline functions.

Statement objects are derived from DtRwListedObj and these functions are wrappers for the base class next() and prev() member functions, which cast their return values to DtSimStatement pointers.

References DtRwListedObj::next().

DtSimStatement * DtSimStatement::prevStmt ( ) const

inline

References DtRwListedObj::prev().

virtual DtStmtIdType DtSimStatement::statementId ( ) const

virtual

Statement Id accessors.

virtual void DtSimStatement::setStatementId ( DtStmtIdType  arg )

virtual

virtual DtSimBlock* DtSimStatement::parentBlock ( ) const

virtual

The parent statement Block.

Returns a pointer to the surrounding DtSimBlock.

virtual void DtSimStatement::setParentBlock ( DtSimBlock *  arg )

virtual

virtual int DtSimStatement::subBlockCount ( ) const

virtual

Get the number of blocks nested inside this statement.

Reimplemented in DtWhenStmt, DtWhileStmt, and DtIfStmt.

virtual DtSimBlock* DtSimStatement::subBlock ( int  index )

virtual

Get a pointer to any particular block nested inside this statement.

Sub-blocks are indexed as C arrays are (i.e. starting with block #0).

Reimplemented in DtWhenStmt, DtWhileStmt, and DtIfStmt.

virtual DtRecursiveSimStatementIterator* DtSimStatement::spawnRecursiveIterator ( ) const

virtual

Spawns an iterator that iterates over the subblocks in this statement, and all their children, sub children, etc.

. The caller MUST DELETE the iterator when doen using it!

virtual DtSimStatement* DtSimStatement::lookupStatement ( DtStmtIdType  statementId )

virtual

If statementId matches our statement, returns a pointer to us.

Otherwise calls lookupStatement() for each of our subblocks, if any.

virtual DtString DtSimStatement::stringRep ( int  subBlockIndex = DtSR_STMT ) const

pure virtual

Get a readable string representation of this statement.

The subBlockIndex argument indicates which stringRep to get if this statement can have sub-blocks. If a sub-block index >= 0 is given, the string returned will be the one that should precede that sub-block. A sub-block index of DtSimStatement::DtSR_STMT requests the string that should follow any and all sub-blocks, this is the value that should be used for statements that have no subBlocks (i.e. subBlockCount() == 0).

Implemented in DtWhenStmt, DtWhileStmt, DtIfStmt, DtTaskStmt, DtSetDataRequestStmt, and DtSimCommandStmt.

virtual char* DtSimStatement::netRep ( )

virtual

virtual int DtSimStatement::netRepSize ( ) const

virtual

Returns sizeof(DtNetSimStatement).

Derived classes should add this size to the size of their net representation (dervied class net reps should always put the DtNetSimStatement at the start of their buffer, and put their class specific data immediately following that).

Reimplemented in DtWhenStmt, DtIfStmt, DtWhileStmt, DtTaskStmt, DtSetDataRequestStmt, and DtSimCommandStmt.

virtual bool DtSimStatement::setFromNet ( const char *  contentBuffer, unsigned  contentSize  )

virtual

Extracts statement Id from buffer.

First 16 bytes are a DtNetSimStatement structure. Derived class data should immediately follow this. Derived classes should call down to this one to make sure statement id gets set.

Reimplemented in DtWhenStmt, DtIfStmt, DtWhileStmt, DtTaskStmt, DtSetDataRequestStmt, and DtSimCommandStmt.

virtual bool DtSimStatement::setToNet ( )

virtual

Casts myNetRep to DtNetSimStatement* and fills in structure.

Derived classes should always call down to this base class version to set the DtNetSimStatement structure at the beginning of the buffer. Any dervied data should immediately follow the DtNetSimStatement structure.

Reimplemented in DtWhenStmt, DtIfStmt, DtWhileStmt, DtTaskStmt, DtSetDataRequestStmt, and DtSimCommandStmt.

static DtStmtIdType DtSimStatement::generateNewStmtId ( )

static

static DtSimStatement* DtSimStatement::createStatement ( DtlObjPtr  mtlStream, DtReaderWriterRegistry *  parentRegistry = NULL  )

static

Static functions.

Construct an empty conditional expression of the appropriate type. Creates a new statement, given a pointer to an MTL stream. It parses the stream to extract the type of statement to create. Then it calls the statement factory’s create() member function with the statement type. This returns a new instance of the statement type. The statement’s getData() member function is then called to retrieve the statement from the stream. The pointer to the new statement is returned.

static DtSimStatement* DtSimStatement::createStatement ( int  statementType, DtReaderWriterRegistry *  parentRegistry = NULL  )

static

static void DtSimStatement::addStatementCreatorFcn ( const DtString &  type, int  intType, DtStatementCreatorFcn  fcn  )

static

Decodes a legacy stealth statement (VRF 3.9 and previous) and returns the proper statement for the current version.

static DtSimStatement* createLegacyStealthStatement(DtlObjPtr mtlStream, DtReaderWriterRegistry* parentRegistry = NULL); Adds a statement creator member function to the statement factory.

static void DtSimStatement::setFactory ( DtStatementFactory *  factory )

static

static DtStatementFactory* DtSimStatement::factory ( )

static

Returns

A pointer to the static DtReaderWriterFactory. This factory can create instances of DtReaderWriter subclasses that have been registered with it.

Reimplemented from DtReaderWriter.

static bool DtSimStatement::getStatementNameFromStatementType ( int  statementType, DtString &  statementName  )

static

static bool DtSimStatement::getStatementTypeFromStatementName ( const DtString &  statementName, int &  statementType  )

static

static bool DtSimStatement::addStatementTypeMapping ( const DtString &  statementName, int  taskType  )

static

static bool DtSimStatement::removeStatementTypeMapping ( const DtString &  statementName, int  statementType  )

static

virtual bool DtSimStatement::isSameStatement ( DtSimStatement *  )

virtual

Returns true if statements are equivalent. Will not check statementId.

virtual char* DtSimStatement::createNetworkBuffer ( )

protectedvirtual

virtual bool DtSimStatement::compare ( DtSimStatement *  )

protectedvirtual

Called from isSameStatement.

Compares net reps to see if they are the same. Override to do different comparrison

Reimplemented in DtWhenStmt, DtIfStmt, and DtWhileStmt.

Friends And Related Function Documentation

friend class DtStmtIndex

friend

Member Data Documentation

const int DtSimStatement::DtSR_STMT = -1

static

A constant for use as the subBlockIndex argument to stringRep().

DtStmtIdType DtSimStatement::myStatementId

protected

A semi-unique Id value that helps trace the original identity of this statement if/when it gets copied.

DtSimBlock* DtSimStatement::myParentBlock

protected

The containing DtSimBlock object (if any).

DtStatementFactory* DtSimStatement::myFactory

staticprotected

Factory for this class.

char* DtSimStatement::myNetRep

protected

DtStringIntMapper DtSimStatement::theStatementNameMapper

staticprotected

---

The documentation for this class was generated from the following file:

• /exports/nfedora7-1/nightly/docs/vrforcesDevelopment.tot/include/vrfplan/simStmt.h
