makVrf::DtVrfEnvironmentConditionsWeatherWidget Class Reference

A GUI widget for configuring the environmental conditions. More...

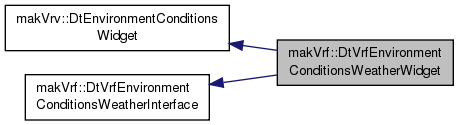

Inheritance diagram for makVrf::DtVrfEnvironmentConditionsWeatherWidget:

Public Member Functions
	DtVrfEnvironmentConditionsWeatherWidget (makVrv::DtDe &de, QWidget *parent=0)
	CTOR.
virtual	~DtVrfEnvironmentConditionsWeatherWidget ()
	DTOR.
virtual void	setupGui (bool globalPlanDialog=false)
	Sets up the dialog's contents (called by initialize)
virtual bool	precipitationEnabled ()
	Allows the DtSimulationCommandSetGlobalWeatherDialog to access the current value from the dialog.
virtual double	precipitationIntensity ()
virtual unsigned int	precipitationType ()
virtual DtVrfWeatherCloudState	cloudCover ()
virtual double	visibilityDistance ()
	Visibility distance in meters.
virtual double	windDirection ()
virtual double	windSpeed ()
virtual double	underwaterVisibility ()
virtual double	surfaceTransparency ()
virtual unsigned int	swellState ()
virtual double	swellStateDirection ()
virtual unsigned int	seaState ()
virtual double	seaStateDirection ()
virtual bool	windDrivenSeaStateEnabled ()
virtual double	choppiness ()
virtual double	surgeDepth ()
virtual void	setPrecipitationType (unsigned int type)
	Overridden to call setWidgetsEnabled without checking myListenToVrf.
virtual void	enableWindDrivenSeaState (bool enable)
virtual void	setDefaultConditionName (const makVrv::DtUnicode &name)
	Overridden to be a no-op to prevent the star icons from being applied.

Detailed Description

A GUI widget for configuring the environmental conditions.

Constructor & Destructor Documentation

makVrf::DtVrfEnvironmentConditionsWeatherWidget::DtVrfEnvironmentConditionsWeatherWidget	(	makVrv::DtDe &	de,
		QWidget *	parent = 0
	)

CTOR.

virtual makVrf::DtVrfEnvironmentConditionsWeatherWidget::~DtVrfEnvironmentConditionsWeatherWidget ( )

virtual

DTOR.

Member Function Documentation

virtual void makVrf::DtVrfEnvironmentConditionsWeatherWidget::setupGui ( bool  globalPlanDialog = false )

virtual

Sets up the dialog's contents (called by initialize)

virtual bool makVrf::DtVrfEnvironmentConditionsWeatherWidget::precipitationEnabled ( )

virtual

Allows the DtSimulationCommandSetGlobalWeatherDialog to access the current value from the dialog.

Implements makVrf::DtVrfEnvironmentConditionsWeatherInterface.

virtual double makVrf::DtVrfEnvironmentConditionsWeatherWidget::precipitationIntensity ( )

virtual

Implements makVrf::DtVrfEnvironmentConditionsWeatherInterface.

virtual unsigned int makVrf::DtVrfEnvironmentConditionsWeatherWidget::precipitationType ( )

virtual

Implements makVrf::DtVrfEnvironmentConditionsWeatherInterface.

virtual DtVrfWeatherCloudState makVrf::DtVrfEnvironmentConditionsWeatherWidget::cloudCover ( )

virtual

Implements makVrf::DtVrfEnvironmentConditionsWeatherInterface.

virtual double makVrf::DtVrfEnvironmentConditionsWeatherWidget::visibilityDistance ( )

virtual

Visibility distance in meters.

Implements makVrf::DtVrfEnvironmentConditionsWeatherInterface.

virtual double makVrf::DtVrfEnvironmentConditionsWeatherWidget::windDirection ( )

virtual

Implements makVrf::DtVrfEnvironmentConditionsWeatherInterface.

virtual double makVrf::DtVrfEnvironmentConditionsWeatherWidget::windSpeed ( )

virtual

Implements makVrf::DtVrfEnvironmentConditionsWeatherInterface.

virtual double makVrf::DtVrfEnvironmentConditionsWeatherWidget::underwaterVisibility ( )

virtual

Implements makVrf::DtVrfEnvironmentConditionsWeatherInterface.

virtual double makVrf::DtVrfEnvironmentConditionsWeatherWidget::surfaceTransparency ( )

virtual

Implements makVrf::DtVrfEnvironmentConditionsWeatherInterface.

virtual unsigned int makVrf::DtVrfEnvironmentConditionsWeatherWidget::swellState ( )

virtual

Implements makVrf::DtVrfEnvironmentConditionsWeatherInterface.

virtual double makVrf::DtVrfEnvironmentConditionsWeatherWidget::swellStateDirection ( )

virtual

Implements makVrf::DtVrfEnvironmentConditionsWeatherInterface.

virtual unsigned int makVrf::DtVrfEnvironmentConditionsWeatherWidget::seaState ( )

virtual

Implements makVrf::DtVrfEnvironmentConditionsWeatherInterface.

virtual double makVrf::DtVrfEnvironmentConditionsWeatherWidget::seaStateDirection ( )

virtual

Implements makVrf::DtVrfEnvironmentConditionsWeatherInterface.

virtual bool makVrf::DtVrfEnvironmentConditionsWeatherWidget::windDrivenSeaStateEnabled ( )

virtual

Implements makVrf::DtVrfEnvironmentConditionsWeatherInterface.

virtual double makVrf::DtVrfEnvironmentConditionsWeatherWidget::choppiness ( )

virtual

Implements makVrf::DtVrfEnvironmentConditionsWeatherInterface.

virtual double makVrf::DtVrfEnvironmentConditionsWeatherWidget::surgeDepth ( )

virtual

Implements makVrf::DtVrfEnvironmentConditionsWeatherInterface.

virtual void makVrf::DtVrfEnvironmentConditionsWeatherWidget::setPrecipitationType ( unsigned int  type )

virtual

Overridden to call setWidgetsEnabled without checking myListenToVrf.

virtual void makVrf::DtVrfEnvironmentConditionsWeatherWidget::enableWindDrivenSeaState ( bool  enable )

virtual

virtual void makVrf::DtVrfEnvironmentConditionsWeatherWidget::setDefaultConditionName ( const makVrv::DtUnicode &  name )

virtual

Overridden to be a no-op to prevent the star icons from being applied.

Default conditions for VR-Forces are determined by the back-end.

---

The documentation for this class was generated from the following file:

• /exports/nfedora7-1/nightly/docs/vrforcesDevelopment.tot/include/vrfGuiCoreQt/vrfEnvironmentConditionsWeatherWidget.h
