makVrf::DtWeaponSelectionWidget Class Reference

Widget that allows users to select weapons for the given entity. More...

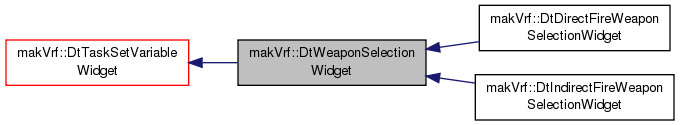

Inheritance diagram for makVrf::DtWeaponSelectionWidget:

Public Member Functions
	DtWeaponSelectionWidget (makVrv::DtDe &de, QWidget *parent, const Qt::WindowFlags &flags=0)
virtual	~DtWeaponSelectionWidget ()
virtual void	setLabel (const std::string &)
	Display label.
virtual void	setRange (double bottom, double top)
	Validation range. Not applicable.
virtual void	setDefaultValue (const std::string &)
	Default value to set in control. Will contain initial weapon to select.
virtual void	setVariableData (const std::string &)
	Variable data. Unused in this widget.
virtual void	setupFrom (const std::vector< makVrv::DtSimEntry * > &data)
	Sets up widget with currently selected item. Requests data.
virtual DtReaderWriter *	createBoundVariable (const std::string &variableName)
	Creates the reader/writer variable that will be used as part of the task statement.
virtual void	setupFromBoundVariable (const DtReaderWriter *variableName)
	Sets up the widget from the given reader/writer variables.
virtual void	requestWeaponsFor (const std::vector< makVrv::DtSimEntry * > &data, bool getResources=false)
	add in the ability to request the resources with the weapon system if desired.
virtual void	slot_receivedWeaponList (std::string entityName)
Public Member Functions inherited from makVrf::DtTaskSetVariableWidget
	DtTaskSetVariableWidget (makVrv::DtDe &de, QWidget *parent, const Qt::WindowFlags &flags=0)
virtual	~DtTaskSetVariableWidget ()
virtual void	setToolTip (const QString &)
	Sets the tool tip.
virtual void	setTopLineVisible (bool)
	Hides top line.
virtual bool	topLineVisible () const
virtual void	createTopLine ()
	Creates top line.
virtual void	setIndent (int)
	Sets the indent level for the contents of this widget, except for the title line.
Public Member Functions inherited from makVrf::DtTaskSetVariableWidgetInterface
	DtTaskSetVariableWidgetInterface ()
virtual	~DtTaskSetVariableWidgetInterface ()
virtual DtTaskSetVariableWidgetExtensionInterface *	parameterContents (QWidget *parent, const Qt::WindowFlags &flags=0) const
	If there are any, returns contents for this variable for variable extension. Default is no extension.
virtual bool	guiElementOnly () const
	Returns true if this is a GUI element only. Default is false.

Static Public Member Functions
static makVrv::DtUnicode	codeVariableType ()

Public Attributes
QLabel *	myWeaponLabel
QListWidget *	myWeaponSystems
QVBoxLayout *	myContentLayout
QString	myDefaultValue
Public Attributes inherited from makVrf::DtTaskSetVariableWidget
QVBoxLayout *	myVariableWidgetLayout
QHBoxLayout *	mySpacedLayout
QVBoxLayout *	myVariableContentLayout
	When creating subclasses of this item, use the variable content layout to add your content.
QWidget *	myTopLine
QLabel *	myTopLabel
QSpacerItem *	myTopSeparator
QHBoxLayout *	myTopLineLayout
QSpacerItem *	mySpacerItem

Protected Slots
virtual void	validateWeapon ()

Protected Member Functions
virtual void	addWeapon (const WeaponSystem &)
virtual void	weaponUpdated (const WeaponSystem &)
virtual void	weaponChanged ()
virtual void	weaponCheckingDisabled ()
virtual void	weaponCheckComplete ()
virtual void	updateWeapons ()

Protected Attributes
std::list< std::string >	myAwaitingWeaponSystemResponse
std::vector< std::string >	myCurrSelected
Protected Attributes inherited from makVrf::DtTaskSetVariableWidget
makVrv::DtDe &	myDe
makVrv::DtSignalConnectionManager	myConnections

Detailed Description

Widget that allows users to select weapons for the given entity.

Constructor & Destructor Documentation

makVrf::DtWeaponSelectionWidget::DtWeaponSelectionWidget	(	makVrv::DtDe &	de,
		QWidget *	parent,
		const Qt::WindowFlags &	flags = 0
	)

virtual makVrf::DtWeaponSelectionWidget::~DtWeaponSelectionWidget ( )

virtual

Member Function Documentation

virtual void makVrf::DtWeaponSelectionWidget::setLabel ( const std::string &  )

virtual

Display label.

Reimplemented from makVrf::DtTaskSetVariableWidget.

virtual void makVrf::DtWeaponSelectionWidget::setRange ( double  bottom, double  top  )

virtual

Validation range. Not applicable.

Implements makVrf::DtTaskSetVariableWidgetInterface.

virtual void makVrf::DtWeaponSelectionWidget::setDefaultValue ( const std::string &  )

virtual

Default value to set in control. Will contain initial weapon to select.

Implements makVrf::DtTaskSetVariableWidgetInterface.

virtual void makVrf::DtWeaponSelectionWidget::setVariableData ( const std::string &  )

virtual

Variable data. Unused in this widget.

Implements makVrf::DtTaskSetVariableWidgetInterface.

virtual void makVrf::DtWeaponSelectionWidget::setupFrom ( const std::vector< makVrv::DtSimEntry * > &  data )

virtual

Sets up widget with currently selected item. Requests data.

Reimplemented from makVrf::DtTaskSetVariableWidget.

virtual DtReaderWriter* makVrf::DtWeaponSelectionWidget::createBoundVariable ( const std::string &  variableName )

virtual

Creates the reader/writer variable that will be used as part of the task statement.

Implements makVrf::DtTaskSetVariableWidgetInterface.

virtual void makVrf::DtWeaponSelectionWidget::setupFromBoundVariable ( const DtReaderWriter *  variableName )

virtual

Sets up the widget from the given reader/writer variables.

Implements makVrf::DtTaskSetVariableWidgetInterface.

virtual void makVrf::DtWeaponSelectionWidget::requestWeaponsFor ( const std::vector< makVrv::DtSimEntry * > &  data, bool  getResources = false  )

virtual

add in the ability to request the resources with the weapon system if desired.

Currently Just going to use with indirect fire weapons.

virtual void makVrf::DtWeaponSelectionWidget::slot_receivedWeaponList ( std::string  entityName )

virtual

static makVrv::DtUnicode makVrf::DtWeaponSelectionWidget::codeVariableType ( )

inlinestatic

virtual void makVrf::DtWeaponSelectionWidget::addWeapon ( const WeaponSystem &  )

protectedvirtual

Reimplemented in makVrf::DtIndirectFireWeaponSelectionWidget, and makVrf::DtDirectFireWeaponSelectionWidget.

virtual void makVrf::DtWeaponSelectionWidget::weaponUpdated ( const WeaponSystem &  )

protectedvirtual

virtual void makVrf::DtWeaponSelectionWidget::weaponChanged ( )

protectedvirtual

virtual void makVrf::DtWeaponSelectionWidget::weaponCheckingDisabled ( )

protectedvirtual

virtual void makVrf::DtWeaponSelectionWidget::weaponCheckComplete ( )

protectedvirtual

virtual void makVrf::DtWeaponSelectionWidget::updateWeapons ( )

protectedvirtual

virtual void makVrf::DtWeaponSelectionWidget::validateWeapon ( )

protectedvirtualslot

Member Data Documentation

std::list<std::string> makVrf::DtWeaponSelectionWidget::myAwaitingWeaponSystemResponse

protected

std::vector<std::string> makVrf::DtWeaponSelectionWidget::myCurrSelected

protected

QLabel* makVrf::DtWeaponSelectionWidget::myWeaponLabel

QListWidget* makVrf::DtWeaponSelectionWidget::myWeaponSystems

QVBoxLayout* makVrf::DtWeaponSelectionWidget::myContentLayout

QString makVrf::DtWeaponSelectionWidget::myDefaultValue

---

The documentation for this class was generated from the following file:

• /exports/nfedora7-1/nightly/docs/vrforcesDevelopment.tot/include/vrfGuiCoreQt/weaponSelectionWidget.h
