VR-Forces 4.3.1 Class Documentation
|

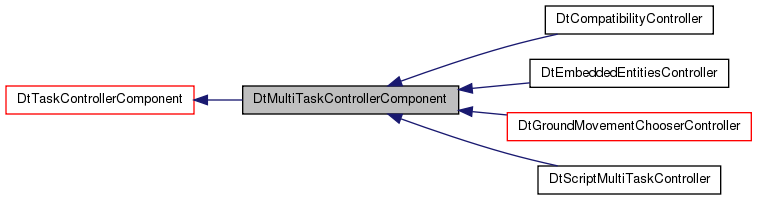

This class provides a base class for all controllers that are capable of executing a DtSimTask, and execute multiple DtSimTask instances at a time. More...
Public Member Functions | |
| DtMultiTaskControllerComponent (const DtString &name, DtVrfObject *owner, DtSimManager *simManager, DtComponentDescriptor *compDesc=0, DtReaderWriterRegistry *parentRegistry=0) | |
| (const DtString& name, | |
| virtual | ~DtMultiTaskControllerComponent () |
| destructor | |
| virtual bool | init () |
| Calls setRadio() | |
| virtual void | postTick () |
| Override to check if we're tasked and we want to give up (only performs the check if we're in play mode (dT() > 0)). | |
| virtual bool | beginProcessingTask (const DtTaskMessage &task, DtSimTaskStatePtr taskState) |
| Called by the task manager when this controller should start executing the specified task. | |
| virtual void | taskComplete (int taskId, bool success) |
| This indicates that the specified task is complete. | |
| virtual void | clearTask (int taskId) |
| Clears the specified task out, includes any related subtasks. | |
| virtual void | suspendTask (int taskId) |
| This method is called when the specified running task is being suspended. | |
| virtual DtTaskMessage * | currentTaskMessage (int taskId) |
| virtual DtSimTaskStatePtr | currentTaskState (int taskId) const |
| virtual int | sendSubtask (DtSimTask &task, int taskId) |
| Sends subtask to ourself. | |
| virtual int | sendTask (DtSimTask &task, const DtString &receiver, int taskId, bool actAsSubtask=true, bool useRadio=false) |
| Sends a task to another entity, and adds the task to the local subtask status list for tracking its completion. | |
| virtual void | clearSubtask (int subtaskId, int taskId) |
| Clears subtask with the given subtaskId (subtaskId is returned sendSubtask()). | |
| virtual void | addPendingSubtaskId (int subtaskId, int taskId) |
| Adds given subtask Id to list of pending subtasks. | |
| virtual bool | findPendingSubtaskId (int subtaskId, int taskId) |
| Checks to see if given subtaskId exists in our list of pending subtasks. | |
| virtual void | removePendingSubtaskId (int subtaskId, int taskId) |
| Removes pending subtask from list of subtasks for this component. | |
| virtual DtSubtaskStatusEntry * | subtaskStatus (int subtaskId, int taskId) |
| virtual void | removeAllPendingSubtaskIds (int taskId) |
| Clear all pending subtasks from our list of subtasks for taskId. | |
| virtual std::vector< int > | currentPendingSubstaskIds (int taskId) const |
| Returns the list of all currently pending subtask ids for this controller. | |
| virtual bool | decideToGiveUpTask () const |
| The DtMultiTaskControllerComponent does not current support decideToGiveUp. | |
| virtual void | giveUpTask () |
| Called when controller is tasked and decideToGiveUp() returns true. | |
| virtual bool | taskActive (int taskId) const |
| | |
| virtual bool | clearTopLevelTasks () |
| If this controller has any top level tasks (not subtasks), they are cleared. | |
| virtual void | clearConflictingTopLevelTasks (const DtSimTaskMessageType &conflictType) |
| Clears any top level tasks on this controller that conflict with the conflict task type. | |
| virtual void | clearTasksByType (const DtSimTaskMessageType &taskType) |
| Clears any tasks of the specified type running in this controller. | |
| virtual void | clearTaskById (int taskId) |
| Clears any task of the specified ID running in this controller. | |
| virtual DtSuspendedTaskInfo * | suspendTaskById (int taskId) |
| virtual std::list < DtTaskMessage * > | currentTaskMessages () const |
| | |
| virtual DtTaskWithTaskStateListPtr | topLevelTasks () const |
| | |
| virtual void | setScriptTickPeriod (const DtString &scriptId, double period) |
| If supported, and this is a scripted task controller, set the period to tick the script. | |
 Public Member Functions inherited from DtTaskControllerComponent | |
| DtTaskControllerComponent (const DtString &name, DtVrfObject *owner, DtSimManager *simManager, DtComponentDescriptor *compDesc=0, DtReaderWriterRegistry *parentRegistry=0) | |
| (const DtString& name, | |
| virtual | ~DtTaskControllerComponent () |
| destructor | |
| virtual DtString | type () const =0 |
| Returns a string identifies the class type of component. | |
| virtual void | taskNotify (const DtSimTask &task) |
| This is called to let us know when some other component receives a task In the case of this component, we don't care what the task actually is. | |
| virtual bool | showCurrentTaskInGui () const |
| virtual void | setRadio (DtSimRadio *radio) |
| Calls registerTaskMsgCallbacks. | |
| virtual void | registerTaskMsgCallbacks () |
| virtual void | addTaskProcessorCallback (const DtSimTaskMessageType &taskType, DtTaskMessageCallbackFcn fcn, void *usr) |
| Adds a new function for processing the specified task type. | |
| virtual void | addTaskProcessorCallback (const DtSimTaskMessageType &taskType, DtMessageCallbackFcn fcn, void *usr) |
| Deprecated form of addTaskProcessorCallback. | |
| virtual void | removeTaskProcessorCallback (const DtSimTaskMessageType &taskType, DtMessageCallbackFcn fcn, void *usr) |
| Undoes anything done by addTaskProcessorCallback(). | |
| virtual void | removeTaskProcessorCallback (const DtSimTaskMessageType &taskType, DtTaskMessageCallbackFcn fcn, void *usr) |
| Deprecated form of removeTaskProcessorCallback. | |
| virtual void | enable () |
| Overridden to call registerTaskMsgCallbacks(). | |
| virtual void | disable () |
| Overridden to 1) remove any task message callbacks registered by this controller 2) call clear task. | |
| virtual void | sendTaskCanceled (DtTaskMessage *taskMsg) |
| Sends the task canceled report for the specified message. | |
| virtual void | setTasked (bool tasked) |
| The current tasked state of this controller. | |
| virtual bool | tasked () const |
| The current tasked state of this controller. | |
| Public Member Functions inherited from DtControllerComponent | |
| DtControllerComponent (const DtString &name, DtVrfObject *owner, DtSimManager *simManager, DtComponentDescriptor *desc=0, DtReaderWriterRegistry *parentRegistry=0) | |
| (const DtString& name, | |
| virtual | ~DtControllerComponent () |
| destructor | |
| virtual DtSimRadio * | radio () |
| The radio this component is listening to. | |
| virtual void | clearTask () |
| Called when you want to clear out this component's task state. | |
| Public Member Functions inherited from DtSimComponent | |
| DtSimComponent (const DtString &name, DtVrfObject *owner, DtSimManager *simManager, DtComponentDescriptor *desc=0, DtReaderWriterRegistry *parentRegistry=0) | |
| virtual | ~DtSimComponent () |
| destructor | |
| void | setParentSystem (DtComponentSystem *system) |
| Sets the parent system of this component. | |
| virtual bool | postAddComponentsInit () |
| Called after all components have been created, initialized and added to the component manager. | |
| virtual void | registerAttributeFunctions () |
| Called to register functions that provide system attribute values. | |
| virtual void | preprocess () |
| Perform parallel preprocessing prior to tick and similar computations. | |
| virtual void | parallelTick () |
| called in parallel | |
| virtual void | preFirstTickInit () |
| called from preprocess if appropriate | |
| virtual void | tick () |
| This gives the thread of control to the component. | |
| virtual void | timedTick () |
| This version of tick checks to see if the time to tick has arrived. | |
| virtual void | setMinTickPeriod (double minTickPeriod) |
| specifies a minimum tick period (which can also be thought of as | |
| virtual double | minTickPeriod () const |
| access the minimum tick period | |
| virtual void | setMinTickPeriodVariance (double minTickPeriodVariance) |
| set the variance in the minimum tick time | |
| virtual double | minTickPeriodVariance () const |
| access the variance in the minimum tick period | |
| virtual void | setNextTickTime (double nextTickTime) |
| The next tick time is normally calculated internally. | |
| virtual double | nextTickTime () const |
| access the next tick time | |
| virtual double | calculateNextTickTime () const |
| The next tick time is equal to mySimManager->exerciseClock()-> approximateElapsedRealTime() + myMinTickPeriod + a random # between -myMinTickPeriodVariance/2. | |
| virtual double | calculateFirstTickTime () const |
| Returns the first time value that the component should tick at. | |
| virtual void | setEntity (DtVrfObject *entity) |
| The entity's state repository is the place that actuator components make updates and other components look to see our current state. | |
| virtual DtSimComponent * | nextComponent () |
| List management functions. | |
| virtual DtSimComponent * | prevComponent () |
| virtual void | setListItem (DtListItem *item) |
| Used by DtComponentList. | |
| virtual DtListItem * | listItem () |
| virtual void | putData (FILE *fp, int indentLevel=0) |
| putData writes our type, which is provided by the virtual type accessor of the deriving class. | |
| virtual DtlObjPtr | getData (DtlObjPtr args, const DtReaderWriter::SearchPaths &searchPaths, const DtVariableBindingsList &variableBindings) |
| getData is just used to get us past the type in the data stream, since it's not actual stored. | |
| virtual void | addInputPort (DtInputPort *port) |
| Adds this input port to the components input port list so that other components can look it up and attach to it. | |
| virtual void | removeInputPort (DtInputPort *port) |
| virtual DtInputPort * | lookupInputPort (const DtString &portName) |
| Returns a pointer to the input port registered on this component with the specified name. | |
| virtual DtList | inputPortList () const |
| Returns the list of DtInputPorts registered on this component. | |
| virtual void | addOutputPort (DtOutputPort *port) |
| Adds this output port to the components output port list so that other components can look it up and attach to it. | |
| virtual void | removeOutputPort (DtOutputPort *port) |
| virtual DtOutputPort * | lookupOutputPort (const DtString &portName) |
| Returns a pointer to the output port registered on this component with the specified name. | |
| virtual DtList | outputPortList () const |
| Returns the list of DtOutputPorts registered on this component. | |
| virtual void | addInputPortGroup (DtInputPortGroup *group) |
| Adds this input port to the components input port list so that other components can look it up and attach to it. | |
| virtual void | removeInputPortGroup (DtInputPortGroup *group) |
| virtual DtInputPortGroup * | lookupInputPortGroup (const DtString &groupName) |
| Returns a pointer the input port group registered on this component with the specified name. | |
| virtual DtList | inputPortGroupList () const |
| Returns the list of DtInputPortGroups registered on this component. | |
| virtual void | addOutputPortGroup (DtOutputPortGroup *group) |
| Adds this output port group to the components output port group list so that other components can look it up and attach to it. | |
| virtual void | removeOutputPortGroup (DtOutputPortGroup *group) |
| virtual DtOutputPortGroup * | lookupOutputPortGroup (const DtString &groupName) |
| Returns a pointer the output port group registered on this component with the specified name. | |
| virtual DtList | outputPortGroupList () const |
| Returns the list of DtOutputPortGroups registered on this component. | |
| virtual int | priority () const |
| Return the current connection priority for this component. | |
| virtual void | setPriority (int priority) |
| Sets a new connection priority for this component, and changes all current outgoing connections from this component to the new value. | |
| double | dT () const |
| This is the delta-t for this component, which may or may not be the same as the exerciseClock dT. | |
| virtual void | setDT (double deltaT) |
| Note that while dT is calculated internally, this makes it possible to 'lie' to the component about dT if necessary. | |
| virtual void | setComponentDescriptor (DtComponentDescriptor *componentDescriptor) |
| The component descriptor specified in the order of battle file or parameter file that was used to create this component. | |
| virtual const DtComponentDescriptor * | componentDescriptor () const |
| virtual bool | tickWhileDestroyed () const |
| If the component returns true here, it will be ticked regardless of the destroyed state of the host entity. | |
| DtVrfProcessStateRepositoryManager * | psrManager () |
| virtual DtString | componentFullName () const |
| virtual DtPhysicalWorld * | physicalWorld () |
| Gets the physical world that this component's entity exists in. | |
| virtual const DtPhysicalWorld * | physicalWorld () const |
| virtual DtAttachedTerrain * | terrainAttachedTo () |
| Gets the terrain that this component's entity is attached to, if any. | |
| virtual const DtAttachedTerrain * | terrainAttachedTo () const |
| virtual DtVrfObject * | entity () |
| Gets the entity. | |
| virtual const DtVrfObject * | entity () const |
| virtual DtSimManager * | simManager () |
| Gets the sim manager. | |
| virtual const DtSimManager * | simManager () const |
| virtual const Coordinate_System * | coordinateSystem () const |
| Gets the coordinate system, as it should always exist if the physical world is in a valid state! | |
| virtual Coordinate_System * | coordinateSystem () |
| virtual DtVrfObjectStateRepository * | localStateRepository () |
| Gets the local state repository. | |
| virtual const DtVrfObjectStateRepository * | localStateRepository () const |
| virtual bool | isEnabled () |
| Is this component enabled or not. | |
| virtual void | setIsEnabled (bool yesNo) |
| Is this component enabled or not. | |
| virtual DtOutputStream & | objectConsoleDebug () const |
| virtual DtOutputStream & | objectConsoleVerbose () const |
| virtual DtOutputStream & | objectConsoleInfo () const |
| virtual DtOutputStream & | objectConsoleWarn () const |
| virtual DtOutputStream & | objectConsoleError () const |
| virtual DtSimResourceManager & | resourceManager () |
| virtual const DtSimResourceManager & | resourceManager () const |
| Public Member Functions inherited from DtReaderWriter | |
| DtReaderWriter () | |
| default constructor | |
| DtReaderWriter (const DtString &name, DtReaderWriterRegistry *parentRegistry=NULL, bool readonly=false) | |
| real constructor Setting the readonly flag prevents object from writing itself to the stream. | |
| DtReaderWriter (const DtSymbolString &name, DtReaderWriterRegistry *parentRegistry=NULL, bool readonly=false) | |
| DtReaderWriter (const DtString &name, const DtReaderWriter &orig, DtReaderWriterRegistry *parentRegistry=NULL) | |
| pseudo-copy constructor | |
| DtReaderWriter (const DtSymbolString &name, const DtReaderWriter &orig, DtReaderWriterRegistry *parentRegistry=NULL) | |
| DtReaderWriter (const DtReaderWriter &, DtReaderWriterRegistry *parentRegistry=NULL) | |
| copy constructor | |
| const DtReaderWriter & | operator= (const DtReaderWriter &orig) |
| assignment operator | |
| bool | operator== (const DtReaderWriter &) const |
| Equivalence operator. | |
| bool | operator!= (const DtReaderWriter &rhs) |
| virtual | ~DtReaderWriter () |
| destructor | |
| virtual void | putSelf (FILE *fp, int indentLevel=0, bool writeUnspecified=false, const DtFilename &path=DtFilename::nullFilename()) |
| Top level call to write itself to file. | |
| virtual void | postPutSelf () |
| Called after either version of put self (file or environment). Default is no-op. | |
| virtual void | prePutSelf () |
| Called before either version of put self (file or environment). Default is no-op. | |
| virtual void | getSelf (DtlObjPtr args, const DtReaderWriter::SearchPaths &searchPaths=SearchPaths(), const DtVariableBindingsList &variableBindings=nullVariableReference()) |
| Top level to read itself from an input stream. | |
| virtual void | postGetSelf () |
| Called after either version of getSelf (mtl or environment). Default is no-op. | |
| virtual void | preGetSelf () |
| Called before either version of get self (file or environment). Default is no-op. | |
| virtual void | writeSelf (FILE *fp, int indentLevel=0, bool writeUnspecified=false, const DtFilename &path=DtFilename::nullFilename()) |
| Called from putSelf, calls myRegistry.putSelf which in turn calls putSelf on each reader/writer in the registry. | |
| virtual DtSymbolString | name () const |
| Accessor for name of this readable/writable object. | |
| virtual void | addAlias (const DtSymbolString &alias) |
| Add an alias as an alternative name for this object. | |
| virtual bool | hasAlias (const DtSymbolString &alias) |
| virtual const aliasContainer & | aliases () const |
| virtual void | setReadonly (bool flag) |
| Set read-only flag. | |
| virtual bool | isReadonly () const |
| virtual void | reset () |
| For those reader/writer items that support it, resets the reader/writer value to iriginal state Default is no-op. | |
| virtual int | alignment () const |
| For those items that are sent over the network via HLA, this will give the network alignment. | |
| virtual bool | variableIsBound () const |
| virtual void | unbindVariable () |
| Sets the myVariableIsBound flag to false. | |
| virtual void | setName (const DtString &) |
| Set the name of the object. | |
| virtual const char * | readerWriterType () const |
| Used to supply a string type that this reader writer type is. | |
| virtual const char * | xmlType () const |
| virtual DtString | prettyPrint () const |
| Routine to return a human readable form of the reader/writer variable. | |
| std::string | debugText () const |
| virtual void | bindVariables (DtVariableBindingsList variableBindings) |
| Runs a variable binding pass on this reader writer and any of its children. | |
| virtual std::list < DtVariableNameType > | unboundVariables () const |
| bool | invalid () const |
| virtual bool | hasChild (const DtReaderWriter *p) const |
| Returns true if this variable has a child p in it's chain. | |
| virtual bool | hasVariableReference () const |
| Returns true if this item or any item in the registry (recursive) is a variable reference. | |
| virtual void | bindLocalVariables (const DtVariableBindingsList &variableBindings) |
| Checks to see if this RW object is a variable reference that can be bound using the provided bindings. | |
| virtual void | recordUpdateTime () const |
| Can be implemented in subclasses to stamp the time when updated. | |
| virtual bool | wasUpdatedSince (DtTime t) const |
| Can be implemented in subclasses to return true if an update occurred after the specified time. | |
| virtual DtlObjPtr | getData (DtlObjPtr args, const SearchPaths &searchPaths, const DtVariableBindingsList &variableBindings) |
| Deriving class overrides these to get/put class specific data. | |
| virtual void | setValueSpecified (bool specified, bool recurse=false) |
| The specified flags are used for optional values. | |
| virtual bool | valueSpecified () const |
| The specified flags are used for optional values. | |
| virtual bool | isVariableReference () const |
| Specifies whether or not this reader writer is really a variable that is specified elsewhere. | |
| virtual void | setIsVariableReference (bool value) |
| virtual void | clearAllVariableReferenceFlags () |
| Clears out all variable reference flags from all readerwriter items in registry recursively. | |
| virtual DtSymbolString | variableName () const |
| The variable name, if this object is a variable reference. | |
| virtual void | setVariableName (const DtSymbolString variableName) |
| The variable name, if this object is a variable reference. | |
| virtual const DtReaderWriter * | defaultRWValue () const |
| The default value to use if the reader/writer object is a variable and that variable is not specified. | |
| virtual DtReaderWriter * | defaultRWValue () |
| The default value to use if the reader/writer object is a variable and that variable is not specified. | |
| virtual void | setDefaultRWValue (DtReaderWriter *) |
| Previous default value, if exists, will be removed and replaced with a clone of the supplied variable. | |
| virtual bool | checkAndSetDefaultRWValue (DtlObjPtr args, const DtReaderWriter::SearchPaths &searchPaths=SearchPaths(), const DtVariableBindingsList &variableBindings=nullVariableReference()) |
| Give the stream, if the stream contains a default value then set it here. | |
| const DtReaderWriterRegistry & | registry () const |
| Collection of child DtReaderWriter nodes owned by this object. | |
| DtReaderWriterRegistry & | registry () |
| Collection of child DtReaderWriter nodes owned by this object. | |
| virtual DtPropertyInterface * | property () |
| virtual const DtPropertyInterface * | property () const |
| virtual DtString | toXml () const |
| virtual bool | toXml (const DtFilename &) const |
| Writes contents of xml result to the given filename. | |
| virtual bool | fromXml (const DtString &) |
| Restores object from given xml string. Returns true if valid. | |
| virtual bool | fromXmlFile (const DtFilename &) |
| Restires object from given xml file. | |
| virtual void | putSelf (DtEnvironmentSP, DtEnvValueSP parent) const |
| virtual void | putData (DtEnvironmentSP, DtEnvValueSP value) const |
| Override to add attributes of actual data. | |
| virtual void | putVariableReference (DtEnvironmentSP, DtEnvValueSP value) const |
| Called when the item is a variable reference. | |
| virtual void | getSelf (const DtEnvironmentSP, const DtEnvValueSP root, const SearchPaths &searchPaths=SearchPaths(), const DtVariableBindingsList &bindings=DtVariableBindingsList()) |
| virtual void | getData (const DtEnvironmentSP, const DtEnvValueSP, const SearchPaths &searchPaths=SearchPaths(), const DtVariableBindingsList &bindings=DtVariableBindingsList()) |
| Gets data from the environment value. | |
| virtual void | unrecognizedItem (const DtEnvironmentSP env, const DtEnvValueSP root, const SearchPaths &searchPaths, const DtVariableBindingsList &varBindings) |
| Called when the xml reader tries to parse an unknown reader/writer item. Default is a no-op. | |
| virtual void | getVariableReference (DtEnvironmentSP, DtEnvValueSP value) |
| Called when the item is a variable reference. | |
Protected Member Functions | |
| virtual void | addCurrentTaskMessage (const DtTaskMessage *taskMessage) |
| Adds a new task message to the list of current tasks for this controller. | |
| virtual void | clearCurrentTaskMessage (int taskId) |
| Removes task with the specified task ID from the list of current tasks for this controller. | |
| virtual void | clearPendingSubtasks (int taskId) |
| Iterates over collection of all pending subtasks for this controller, and calls clearSubtask() for each subtask type. | |
| virtual void | clearSubtasksByType (const DtSimTaskMessageType &taskType, int taskId) |
| Clear all subtasks of a given type. | |
| virtual int | taskIdWhichStartedSubtask (int subtaskId) |
| Protected Member Functions inherited from DtTaskControllerComponent | |
| virtual void | suspendSubtasksOfTask (int taskId, DtSuspendedTaskInfo *suspendInfo) |
| Suspends all running subtasks of taskId, and puts the suspend info for each of them as subtasks into the provided suspendInfo. | |
| Protected Member Functions inherited from DtControllerComponent | |
| DtControllerComponent () | |
| default constructor | |
| DtControllerComponent (const DtControllerComponent &orig) | |
| copy constructor | |
| const DtControllerComponent & | operator= (const DtControllerComponent &orig) |
| assignment operator | |
| Protected Member Functions inherited from DtSimComponent | |
| virtual double | computeCurrentTime () |
| Compute current time and myDT, common between preprocess and timedTick. | |
| bool | testInvariant () const |
| virtual bool | createPortGroups () |
| Called by init. | |
| virtual bool | createPorts () |
| Called by init. | |
| Protected Member Functions inherited from DtReaderWriter | |
| virtual void | bindToRwAsVariable (const DtReaderWriter *rw) |
| Copies values from the specified DtReaderWriter. | |
| Protected Member Functions inherited from DtObjectDebugger< DtReaderWriter > | |
| DtObjectDebugger () | |
| DtObjectDebugger (const DtObjectDebugger &) | |
| ~DtObjectDebugger () | |
| Protected Member Functions inherited from DtObjectDebugger< DtSimComponent > | |
| DtObjectDebugger () | |
| DtObjectDebugger (const DtObjectDebugger &) | |
| ~DtObjectDebugger () | |
Additional Inherited Members | |
| Public Types inherited from DtReaderWriter | |
| typedef std::vector < DtSymbolString > | aliasContainer |
| typedef std::vector < DtSymbolString >::iterator | aliasIter |
| typedef std::vector < DtSymbolString > ::const_iterator | aliasConstIter |
| typedef std::vector< DtFilename > | SearchPaths |
| typedef std::pair < DtSymbolString, DtString > | DtVariableNameType |
| typedef DtReaderWriterFactory *(* | DtReaderWriterFactoryCreatorFcn )() |
| Static Public Member Functions inherited from DtTaskControllerComponent | |
| static void | deprecatedTaskProcessorCallbackAdapter (DtSimMessage *msg, void *usr, DtSimTaskStatePtr taskState) |
| Task processor callback function that acts as an adapter for the deprecated forms of addTaskProcessorCallback and removeTaskProcessorCallback (the deprecated form is is version that. | |
| Protected Types inherited from DtTaskControllerComponent | |
| typedef std::pair < DtTaskMessageCallbackFcn, void * > | DtTaskCallbackMapPair |
| This map stores callbacks that have been registered to processes various tasks. | |
| typedef std::map < DtSimTaskMessageType, DtTaskCallbackMapPair > | DtTaskCallbackMap |
| Protected Attributes inherited from DtTaskControllerComponent | |
| DtTaskCallbackMap | myTaskCallbackMap |
| std::list < DtTaskProcessorCallbackInfo * > | myTaskProcessorCallbackInfoList |
| This list stores any DtTaskProcessorCallbackInfo allocated locally so that they can be deleted when the component is deleted. | |
| Static Protected Attributes inherited from DtSimComponent | |
| static DtSimComponentFactory * | myFactory |
This class provides a base class for all controllers that are capable of executing a DtSimTask, and execute multiple DtSimTask instances at a time.
This is a special case for some controllers. Typeically, task controllers will be derived from DtSingleTaskControllerComponent.
| DtMultiTaskControllerComponent::DtMultiTaskControllerComponent | ( | const DtString & | name, |
| DtVrfObject * | owner, | ||
| DtSimManager * | simManager, | ||
| DtComponentDescriptor * | compDesc = 0, |
||
| DtReaderWriterRegistry * | parentRegistry = 0 |
||
| ) |
(const DtString& name,
| name | Reader writer name of this component. |
| owner | The DtVrfObject that owns this component |
| simManager | The simulation manager (provides access to terrain, message interface, simulation clock). |
| desc | The component descriptor used to initialize this component. |
| parentRegistry | Pointer to the parent reader writer registry (the containing object that reads/writes this object). |
|
virtual |
destructor
|
virtual |
Calls setRadio()
Reimplemented from DtControllerComponent.
Reimplemented in BHAVE::DtBhaveMovementChooserController, DtGroundMovementChooserController, DtEmbeddedEntitiesController, DtScriptMultiTaskController, and DtCompatibilityController.
|
virtual |
Override to check if we're tasked and we want to give up (only performs the check if we're in play mode (dT() > 0)).
Calls decideToGiveUpTask() to determine if we should give up. If true, calls giveUpTask().
Reimplemented from DtTaskControllerComponent.
|
virtual |
Called by the task manager when this controller should start executing the specified task.
| taskState | Used to convey at what point the task should begin execution. If taskState exists, execution of task may begin at some point other than the logical start of the task. If taskState is 0, begin processing at the logical start of the task. |
Reimplemented from DtTaskControllerComponent.
Reimplemented in DtScriptMultiTaskController.
This indicates that the specified task is complete.
This will kick off a series of events in the task manager to clean up this task and notify anyone relevant of the state change. To indicate that the task has failed (and is being abandoned) call this method with success set to false.
Reimplemented in DtScriptMultiTaskController.
|
virtual |
Clears the specified task out, includes any related subtasks.
Reimplemented in DtEmbeddedEntitiesController, and DtScriptMultiTaskController.
|
virtual |
This method is called when the specified running task is being suspended.
The default implementation clears all subtasks that were started by the specified taskId.
Reimplemented in DtGroundMovementChooserController, and DtScriptMultiTaskController.
|
virtual |
|
virtual |
Reimplemented in DtGroundMovementChooserController, and DtScriptMultiTaskController.
Sends subtask to ourself.
Creates task message and sends task to ourself through radio. Adds subtask Id to list of pending subtasks. Returns subtask Id.
|
virtual |
Sends a task to another entity, and adds the task to the local subtask status list for tracking its completion.
If actAsSubtask is false then the task will not be added as a subtask and the returned id will be -1
Clears subtask with the given subtaskId (subtaskId is returned sendSubtask()).
Also removed the subtask ID from the pending subtask ID list.
| taskId | Is the task ID of the task which owns this subtask. |
|
virtual |
Adds given subtask Id to list of pending subtasks.
This is done automatically by sendSubtask (user should not typically have to call this directly).
|
virtual |
Checks to see if given subtaskId exists in our list of pending subtasks.
Typically checked from within a task complete callback, to determine if given report corresponds to the specific subtask we issued.
|
virtual |
Removes pending subtask from list of subtasks for this component.
Users will typically call this from within a task complete callback, upon receipt of the specific subtasking task complete report they were waiting for.
|
virtual |
|
virtual |
Clear all pending subtasks from our list of subtasks for taskId.
Users should not typically have to call this. This also clears any tasks that were started on other entities using sendTask().
|
virtual |
Returns the list of all currently pending subtask ids for this controller.
|
virtual |
The DtMultiTaskControllerComponent does not current support decideToGiveUp.
This function always returns false.
|
virtual |
Called when controller is tasked and decideToGiveUp() returns true.
Base class implementation calls clearTask(). Derived classes may override this function to perform some specific handling.
Implements DtTaskControllerComponent.
|
virtual |
If this controller has any top level tasks (not subtasks), they are cleared.
Implements DtTaskControllerComponent.
|
virtual |
Clears any top level tasks on this controller that conflict with the conflict task type.
The task manager is used to determine what tasks conflict.
Implements DtTaskControllerComponent.
|
virtual |
Clears any tasks of the specified type running in this controller.
Implements DtTaskControllerComponent.
|
virtual |
Clears any task of the specified ID running in this controller.
Implements DtTaskControllerComponent.
|
virtual |
Implements DtTaskControllerComponent.
|
virtual |
Implements DtTaskControllerComponent.
|
virtual |
Implements DtTaskControllerComponent.
|
virtual |
If supported, and this is a scripted task controller, set the period to tick the script.
Default is no-op
Reimplemented in DtScriptMultiTaskController.
|
protectedvirtual |
Adds a new task message to the list of current tasks for this controller.
|
protectedvirtual |
Removes task with the specified task ID from the list of current tasks for this controller.
|
protectedvirtual |
Iterates over collection of all pending subtasks for this controller, and calls clearSubtask() for each subtask type.
|
protectedvirtual |
Clear all subtasks of a given type.
Should not normally be called (call clearSubtask(int subtaskId) to clear a given subtask instead). Provided as a utility function as an aid to backwards compatibility.
|
protectedvirtual |
