makVrv::DtCigiBaseEntity Class Reference

This class provides an abstract base class for CIGI entities. More...

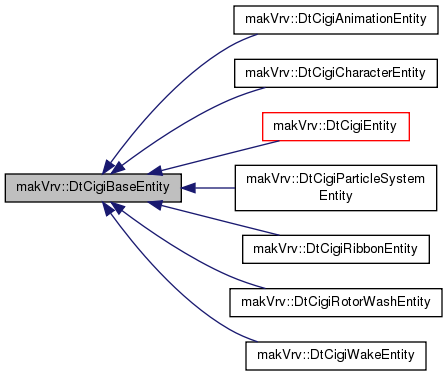

Inheritance diagram for makVrv::DtCigiBaseEntity:

Public Member Functions
	DtCigiBaseEntity (DtCigiConnection &connection, DtAgentManagerInterface &sceneInterface, int entityId, int entityType)
	Constructor takes a DtCigiConnection, scene interface, and the CIGI entity ID/type.
virtual	~DtCigiBaseEntity ()
	Destructor.
virtual DtUniqueID	uniqueId () const
	Returns the unique ID of the entity's scene object.
virtual int	cigiId () const
	Returns the ID of the CIGI entity.
virtual void	init ()
virtual void	setVisible (bool yesNo)
	Set whether the entity is visible.
virtual void	setDeadReckoningOn (bool onOff)
	Turns dead-reckoning on/off.
virtual void	setPosition (const DtGeodeticCoord &pos, bool force=false)
	Set the entity's geodetic position.
virtual const DtGeodeticCoord &	position () const
	Returns the last position set by a CIGI entity control message.
virtual const DtVector &	localPosition () const
	Returns the last computed local position set.
virtual void	setOrientation (const DtTaitBryan &orientation, bool force=false)
	Set the entity's orientation.
virtual const DtTaitBryan &	orientation () const
	Returns the last orientation set by a CIGI entity control message.
virtual void	setLinearRate (const DtVector &rate, bool useWorldCoordinates=true)
	Sets the entity's linear rate.
virtual void	setAngularRate (const DtVector &rate, bool useWorldCoordinates=true)
	Set's the entity's angular rate.
virtual void	setRelativeTo (DtCigiBaseEntity *parent)
	Attachment control.
virtual void	setRelativePosition (const DtVector &pos)
	Sets the entity's relative position (if attached).
virtual void	setRelativeOrientation (const DtTaitBryan &orient)
	Sets the entity's relative orientation (relative to the parent's body coordinates) if attached.
virtual void	slot_deadReckoningAllowed (bool allowed)
	Called when IG-wide extrapolation is turned on or off.
virtual void	setAlpha (int alpha)
	Sets the entity's alpha value.
virtual int	alpha () const
	Returns the entity's alpha value.
virtual void	setInheritAlpha (bool inherit)
	Set whether the entity should inherit alpha from its parent.
virtual void	slot_alphaChanged (int alpha, DtUniqueID id)
	Slot so we can check if the parent's alpha has changed.
virtual void	setGroundClampingOn (DtGroundClampingUpdater::GroundClampingMode clampType)
	Turns ground clamping on/off.

Public Attributes
boost::signal< void(int, DtUniqueID)>	signal_alphaChanged
	Emitted when this entity's alpha has changed.

Protected Member Functions
virtual void	startDeadReckoning ()
	Create and set up Dead Reckoning updater.
virtual void	endDeadReckoning ()
	Remove the Dead Reckoning updater.
virtual void	startEmbarked ()
	Create and set up Embarkation updater.
virtual void	endEmbarked ()
	Remove the Embarkation updater.
virtual void	startGroundClamping ()
	Create and set up Ground Clamping updater.
virtual void	endGroundClamping ()
	Remove the Ground Clamping updater.
virtual void	buildGroundClampingUpdater ()

Protected Attributes
DtSceneObjectAgent *	mySceneObject
DtModelAgent *	myModel
DtDeadReckonUpdaterAgent *	myDeadReckonUpdaterAgent
DtGroundClampingUpdaterAgent *	myGroundClampingUpdaterAgent
DtEmbarkationUpdaterAgent *	myEmbarkationUpdaterAgent
bool	myDeadReckoningOn
bool	myEmbarked
DtGroundClampingUpdater::GroundClampingMode	myGroundClampingType
DtGeodeticCoord	myLastPosition
DtVector	myLastLocalPosition
DtTaitBryan	myLastOrientation
DtTaitBryan	myLastLocalOrientation
DtTaitBryan	myLastGeocentricOrientation
DtVector	myLastVelocity
DtVector	myLastAngularVelocity
DtCigiConnection &	myConnection
DtAgentManagerInterface &	mySceneInterface
int	myEntityId
int	myEntityType
DtCigiBaseEntity *	myParent
DtUniqueID	myEmbarkedParentID
bool	myInheritAlpha
int	myAlpha
bool	myVisiblity
DtSignalConnectionManager	mySignalConnections

Detailed Description

This class provides an abstract base class for CIGI entities.

These are created by the DtCigiEntityVisualizer and updated as CIGI messages that pertain to entities are processed.

Constructor & Destructor Documentation

makVrv::DtCigiBaseEntity::DtCigiBaseEntity	(	DtCigiConnection &	connection,
		DtAgentManagerInterface &	sceneInterface,
		int	entityId,
		int	entityType
	)

Constructor takes a DtCigiConnection, scene interface, and the CIGI entity ID/type.

virtual makVrv::DtCigiBaseEntity::~DtCigiBaseEntity ( )

virtual

Destructor.

Member Function Documentation

virtual DtUniqueID makVrv::DtCigiBaseEntity::uniqueId ( ) const

virtual

Returns the unique ID of the entity's scene object.

virtual int makVrv::DtCigiBaseEntity::cigiId ( ) const

virtual

Returns the ID of the CIGI entity.

virtual void makVrv::DtCigiBaseEntity::init ( )

virtual

virtual void makVrv::DtCigiBaseEntity::setVisible ( bool  yesNo )

virtual

Set whether the entity is visible.

Reimplemented in makVrv::DtCigiWakeEntity.

virtual void makVrv::DtCigiBaseEntity::setDeadReckoningOn ( bool  onOff )

virtual

Turns dead-reckoning on/off.

virtual void makVrv::DtCigiBaseEntity::setPosition ( const DtGeodeticCoord &  pos, bool  force = false  )

virtual

Set the entity's geodetic position.

Parameters

[in]	pos	is the position set from the CIGI entity control message.
[in]	force	is a flag to force handling even if position has not changed.

Reimplemented in makVrv::DtCigiCharacterEntity, makVrv::DtCigiWatercraftEntity, and makVrv::DtCigiWakeEntity.

virtual const DtGeodeticCoord& makVrv::DtCigiBaseEntity::position ( ) const

virtual

Returns the last position set by a CIGI entity control message.

virtual const DtVector& makVrv::DtCigiBaseEntity::localPosition ( ) const

virtual

Returns the last computed local position set.

virtual void makVrv::DtCigiBaseEntity::setOrientation ( const DtTaitBryan &  orientation, bool  force = false  )

virtual

Set the entity's orientation.

Parameters

[in]	orientation	is the orientation set from the CIGI entity control message.
[in]	force	is a flag to force handling even if orientation has not changed.

Reimplemented in makVrv::DtCigiWakeEntity, makVrv::DtCigiCharacterEntity, and makVrv::DtCigiWatercraftEntity.

virtual const DtTaitBryan& makVrv::DtCigiBaseEntity::orientation ( ) const

virtual

Returns the last orientation set by a CIGI entity control message.

virtual void makVrv::DtCigiBaseEntity::setLinearRate ( const DtVector &  rate, bool  useWorldCoordinates = true  )

virtual

Sets the entity's linear rate.

If useWorldCoordinates is set to true, sets the velocity according to the entity's rate with respect to the tangential reference plane of the entity. Otherwise, sets the velocity with respect to the entity's coordinate system.

Reimplemented in makVrv::DtCigiWakeEntity, and makVrv::DtCigiWatercraftEntity.

virtual void makVrv::DtCigiBaseEntity::setAngularRate ( const DtVector &  rate, bool  useWorldCoordinates = true  )

virtual

Set's the entity's angular rate.

If useWorldCoordinates is set to true, sets the angular velocity with respect to the tangential reference plane of the entity. Otherwise, sets the velocity with respect to the entity's coordinate system.

virtual void makVrv::DtCigiBaseEntity::setRelativeTo ( DtCigiBaseEntity *  parent )

virtual

Attachment control.

Reimplemented in makVrv::DtCigiWakeEntity.

virtual void makVrv::DtCigiBaseEntity::setRelativePosition ( const DtVector &  pos )

virtual

Sets the entity's relative position (if attached).

Reimplemented in makVrv::DtCigiWakeEntity.

virtual void makVrv::DtCigiBaseEntity::setRelativeOrientation ( const DtTaitBryan &  orient )

virtual

Sets the entity's relative orientation (relative to the parent's body coordinates) if attached.

Reimplemented in makVrv::DtCigiWakeEntity.

virtual void makVrv::DtCigiBaseEntity::slot_deadReckoningAllowed ( bool  allowed )

virtual

Called when IG-wide extrapolation is turned on or off.

Stops the entity from dead reckoning if it currently is (but remembers if it was) and turns dead reckoning on if the entity has requested dead reckoning and it becomes allowed again

virtual void makVrv::DtCigiBaseEntity::setAlpha ( int  alpha )

virtual

Sets the entity's alpha value.

virtual int makVrv::DtCigiBaseEntity::alpha ( ) const

virtual

Returns the entity's alpha value.

This needs to be checked if the entity is inheriting its parent's alpha.

virtual void makVrv::DtCigiBaseEntity::setInheritAlpha ( bool  inherit )

virtual

Set whether the entity should inherit alpha from its parent.

virtual void makVrv::DtCigiBaseEntity::slot_alphaChanged ( int  alpha, DtUniqueID  id  )

virtual

Slot so we can check if the parent's alpha has changed.

virtual void makVrv::DtCigiBaseEntity::setGroundClampingOn ( DtGroundClampingUpdater::GroundClampingMode  clampType )

virtual

Turns ground clamping on/off.

virtual void makVrv::DtCigiBaseEntity::startDeadReckoning ( )

protectedvirtual

Create and set up Dead Reckoning updater.

Reimplemented in makVrv::DtCigiCharacterEntity, and makVrv::DtCigiWatercraftEntity.

virtual void makVrv::DtCigiBaseEntity::endDeadReckoning ( )

protectedvirtual

Remove the Dead Reckoning updater.

Reimplemented in makVrv::DtCigiCharacterEntity, and makVrv::DtCigiWatercraftEntity.

virtual void makVrv::DtCigiBaseEntity::startEmbarked ( )

protectedvirtual

Create and set up Embarkation updater.

Reimplemented in makVrv::DtCigiCharacterEntity.

virtual void makVrv::DtCigiBaseEntity::endEmbarked ( )

protectedvirtual

Remove the Embarkation updater.

Reimplemented in makVrv::DtCigiCharacterEntity.

virtual void makVrv::DtCigiBaseEntity::startGroundClamping ( )

protectedvirtual

Create and set up Ground Clamping updater.

Reimplemented in makVrv::DtCigiCharacterEntity.

virtual void makVrv::DtCigiBaseEntity::endGroundClamping ( )

protectedvirtual

Remove the Ground Clamping updater.

Reimplemented in makVrv::DtCigiCharacterEntity.

virtual void makVrv::DtCigiBaseEntity::buildGroundClampingUpdater ( )

protectedvirtual

Member Data Documentation

boost::signal<void (int, DtUniqueID)> makVrv::DtCigiBaseEntity::signal_alphaChanged

Emitted when this entity's alpha has changed.

DtSceneObjectAgent* makVrv::DtCigiBaseEntity::mySceneObject

protected

DtModelAgent* makVrv::DtCigiBaseEntity::myModel

protected

DtDeadReckonUpdaterAgent* makVrv::DtCigiBaseEntity::myDeadReckonUpdaterAgent

protected

DtGroundClampingUpdaterAgent* makVrv::DtCigiBaseEntity::myGroundClampingUpdaterAgent

protected

DtEmbarkationUpdaterAgent* makVrv::DtCigiBaseEntity::myEmbarkationUpdaterAgent

protected

bool makVrv::DtCigiBaseEntity::myDeadReckoningOn

protected

bool makVrv::DtCigiBaseEntity::myEmbarked

protected

DtGroundClampingUpdater::GroundClampingMode makVrv::DtCigiBaseEntity::myGroundClampingType

protected

DtGeodeticCoord makVrv::DtCigiBaseEntity::myLastPosition

protected

DtVector makVrv::DtCigiBaseEntity::myLastLocalPosition

protected

DtTaitBryan makVrv::DtCigiBaseEntity::myLastOrientation

protected

DtTaitBryan makVrv::DtCigiBaseEntity::myLastLocalOrientation

protected

DtTaitBryan makVrv::DtCigiBaseEntity::myLastGeocentricOrientation

protected

DtVector makVrv::DtCigiBaseEntity::myLastVelocity

protected

DtVector makVrv::DtCigiBaseEntity::myLastAngularVelocity

protected

DtCigiConnection& makVrv::DtCigiBaseEntity::myConnection

protected

DtAgentManagerInterface& makVrv::DtCigiBaseEntity::mySceneInterface

protected

int makVrv::DtCigiBaseEntity::myEntityId

protected

int makVrv::DtCigiBaseEntity::myEntityType

protected

DtCigiBaseEntity* makVrv::DtCigiBaseEntity::myParent

protected

DtUniqueID makVrv::DtCigiBaseEntity::myEmbarkedParentID

protected

bool makVrv::DtCigiBaseEntity::myInheritAlpha

protected

int makVrv::DtCigiBaseEntity::myAlpha

protected

bool makVrv::DtCigiBaseEntity::myVisiblity

protected

DtSignalConnectionManager makVrv::DtCigiBaseEntity::mySignalConnections

protected

---

The documentation for this class was generated from the following file:

• /exports/nfedora7-1/nightly/docs/vrforcesDevelopment.vrf4-3-branch/include/vrvCigi/DtCigiBaseEntity.h
