makVrv::DtEnvironmentalAreaVisualizer Class Reference
vrvCore

DtEnvironmentalAreaVisualizer display a area that contains at least three points. More...

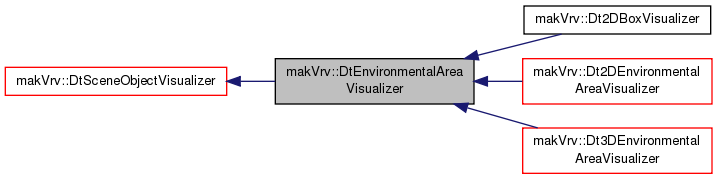

Inheritance diagram for makVrv::DtEnvironmentalAreaVisualizer:
Inheritance graph
[legend]

Public Member Functions

 DtEnvironmentalAreaVisualizer (DtBaseConnection &simulation, DtStateListener &listener, int modelSet)
 Constructor.
virtual ~DtEnvironmentalAreaVisualizer ()
 Destructor.
virtual void setColor (float r, float g, float b, float a)
 Sets the color for the area.
virtual void useDefaultColor ()
 Sets color to default color.
virtual void getColor (float &r, float &g, float &b, float &a) const
 Returns the color.
virtual void addPoint (int index, const DtVector &)
 Adds a point to the Area. If index is -1, appends else places at given point.
virtual void removePoint (int index)
 Removes point at the given index.
virtual void modifyPoint (int index, const DtVector &)
 Modifies the point at the given index.
virtual void setPoints (const DtEnvironmentalStateListener::ControlPointsList &)
 Sets the control points to the specified list, adding, removing and changing as needed.
virtual void setSelected (bool b)
 Selects the entire Area.
virtual void resetSpatial ()
 Resets geometry of Area.
virtual void createModelAgents ()
 Creates the model agents associated with the Area.
virtual void setStipplePattern (unsigned short)
 Sets the line style of the outline of the area.
virtual unsigned short lineStipple () const
virtual void setFillStyle (vrvTacticalGraphicUtilities::FillStyle)
 Sets the fill style of the area.
virtual
vrvTacticalGraphicUtilities::FillStyle 		fillStyle () const
 Returns the currently set fill style.
virtual void setPenStyle (vrvTacticalGraphicUtilities::PenStyle)
 Takes the pen style and translates it to a stipple pattern.
virtual void setLineWidth (int)
 Sets the Area width. If 0, uses the default as defined in the visual definition.
virtual void setOrigin (const DtVector &)
 Sets the origin of the area.
virtual void setUseDynamicOrigin (bool)
 Set whether or not to use dynamic origin.
- Public Member Functions inherited from makVrv::DtSceneObjectVisualizer
 DtSceneObjectVisualizer (DtBaseConnection &simulation, DtStateListener &listener, int modelSet)
virtual ~DtSceneObjectVisualizer ()
virtual DtUniqueID uniqueID () const
 Return unique id of mySceneObjectAgent, if it exists, else returns 0;.
virtual DtSceneObjectAgent * sceneObjectAgent ()
virtual void setParent (DtStateVisualizer *p)
 Override of base class setParent to simply set the parent without destroying/recreating model agents.
virtual void setSceneObjectAgent (DtSceneObjectAgent *)
virtual void setElementID (const DtElementID &elementID)
DtElementID elementID () const
virtual bool show (int)
 Override to show/hide scene object agent (if it exists)
virtual bool hide (int)
 Will call destroyModelAgents(), if, when the context is added, it is the first context in the list.
- Public Member Functions inherited from makVrv::DtStateVisualizer
 DtStateVisualizer (DtBaseConnection &connection, DtStateListener &listener, int modelSet)
 CTOR.
virtual ~DtStateVisualizer ()
 DTOR.
virtual const TypeInfo & typeInfo () const =0
 Get the type info.
void setModelDefinition (const std::string &definition)
 Sets the model definition and creates agent(s) based on that definition.
const std::string & modelDefinition () const
 Gets the current model definition.
virtual bool setVisible (bool visible, int context)
 Returns true if this context wants to show or hide the item.
virtual void initialize ()
 Initialize the visualizer.
virtual bool isVisible () const
 Returns true if visible.
virtual bool selected () const
void setName (const std::string &)
 Internal name of state visualizer.
const std::string & name () const
virtual void setPickable (bool)
 Sets pickable state.
virtual bool pickable () const
virtual void setUniqueID (DtUniqueID id)
int visualizerType () const
void setShowHideContext (const std::vector< int > &s)
 Set show/hide context without changing visibility of item.
DtStateListener & listener ()
DtBaseConnection & simulation ()
 Get the connection for this visualizer.
void setDistribute (bool b)
 Whether or not to distribute over the network.
bool distribute () const

Protected Member Functions

virtual void destroyModelAgents ()
 Destroys any model agents currently created.
virtual void setModelDefinitionForAgents ()
 Sets model definitions for agents.
virtual DtAreaFacadeInterface * createAreaFacadeInterface ()=0
 Implemented by subclasses to create the agent used to draw the area.
virtual void setVisualizerDefinition (const DtVisualizerDefinition &visDef)
 Set any other additional visualizer information from the visual record.
virtual DtVector offsetAtPosition (const DtVector &position) const
 Given the origin and the point offset, return an offset that is valid at the given position.
virtual void setSolid (bool)
virtual void setupArea (DtAreaFacadeInterface *)
 Sets the newly created area up with current values.
- Protected Member Functions inherited from makVrv::DtSceneObjectVisualizer
virtual DtSceneObjectAgent * createObjectAgent ()
- Protected Member Functions inherited from makVrv::DtStateVisualizer
virtual void slot_mouseDown (DtMouseState &mouseState, const std::string &displayEngineName, const std::string &windowName, const std::string &channelName)
 Called when the mouse is clicked in this visualizer.
virtual void slot_mouseUp (DtMouseState &mouseState, const std::string &displayEngineName, const std::string &windowName, const std::string &channelName)
virtual void slot_mouseDblClick (DtMouseState &mouseState, const std::string &displayEngineName, const std::string &windowName, const std::string &channelName)
virtual bool supportsShowHideContext (int) const
 Default returns true.
template<typename T , typename C >
void connectAndUpdate (boost::signal< void(T)> &sig, void(C::*fp)(T), T val)
 Connect a signal and update the entity.

Protected Attributes

DtTacticalGraphicStateListener & myAreaListener
DtAreaFacadeInterface * myAreaFacade
DtEnvironmentalStateListener::ControlPointsList myControlPoints
int myLineWidth
int myDefaultLineWidth
float myColor [4]
float myDefaultColor [4]
DtVector myPointOffset
bool myUseDynamicOrigin
unsigned short myLineStipple
vrvTacticalGraphicUtilities::FillStyle myFillStyle
bool myFillColorSet
float myFillColor
bool myScribed
- Protected Attributes inherited from makVrv::DtSceneObjectVisualizer
DtElementID myElementID
- Protected Attributes inherited from makVrv::DtStateVisualizer
DtBaseConnection & mySimulation
DtStateListener & myListener
bool myDistributeFlag
DtUniqueID myUniqueID
std::string myName
std::string myModelDefinition
DtSignalConnectionManager myConnections
int myModelSet
int myVisualizerType
std::vector< int > myShowHideContexts
bool mySelected
bool myPickable
bool myVisible
DtStateVisualizer * myParent
DtSceneObjectAgent * mySceneObjectAgent

Additional Inherited Members

- Public Types inherited from makVrv::DtStateVisualizer
enum  Type {
  AllVisualizerTypes = 0, EntityVisualizerType = 1, EnvironmentalVisualizerType, InteractionVisualizerType,
  AggregateVisualizerType, IntervisibilityVisualizerType, TacticalSmokeVisualizerType, UserType = 10000
}
 Visualizer class types that are supportable via visualizers. More...
- Public Attributes inherited from makVrv::DtStateVisualizer
boost::signal< void(DtStateVisualizer
*, DtStateVisualizer
*, DtStateVisualizer *)> 		signal_reparented
 Signaled when the parent of this item changes, called before destroying any model agents.
boost::signal< void(DtMouseState
&, const DtUniqueID &, const
std::string &, const
std::string &, const
std::string
&, DtStateVisualizer *)> 		signal_mouseDown
 Emitted when the entity's indicator is clicked.
boost::signal< void(DtMouseState
&, const DtUniqueID &, const
std::string &, const
std::string &, const
std::string
&, DtStateVisualizer *)> 		signal_mouseUp
boost::signal< void(DtMouseState
&, const DtUniqueID &, const
std::string &, const
std::string &, const
std::string
&, DtStateVisualizer *)> 		signal_mouseDblClick

Detailed Description

DtEnvironmentalAreaVisualizer display a area that contains at least three points.

Constructor & Destructor Documentation

makVrv::DtEnvironmentalAreaVisualizer::DtEnvironmentalAreaVisualizer ( DtBaseConnection &  simulation,
DtStateListener &  listener,
int  modelSet
)

Constructor.

virtual makVrv::DtEnvironmentalAreaVisualizer::~DtEnvironmentalAreaVisualizer ( )
virtual

Destructor.

Member Function Documentation

virtual void makVrv::DtEnvironmentalAreaVisualizer::setColor ( float  r,
float  g,
float  b,
float  a
)
virtual

Sets the color for the area.

This will apply to all segments of the area. If the default (all 0's), uses the default as defined in the visual definition

Reimplemented in makVrf::VRF_PROTOCOL_NAMESPACE::DtVrfVrlink2DEnvironmentalAreaVisualizer, makVrf::DtVrf2DEnvironmentalAreaVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtVrlink2DEnvironmentalAreaVisualizer, and makVrv::DT_PROTOCOL_NAMESPACE::DtVrlink3DEnvironmentalAreaVisualizer.

virtual void makVrv::DtEnvironmentalAreaVisualizer::useDefaultColor ( )
virtual

Sets color to default color.

virtual void makVrv::DtEnvironmentalAreaVisualizer::getColor ( float &  r,
float &  g,
float &  b,
float &  a
) const
virtual

Returns the color.

virtual void makVrv::DtEnvironmentalAreaVisualizer::addPoint ( int  index,
const DtVector &
)
virtual

Adds a point to the Area. If index is -1, appends else places at given point.

Reimplemented in makVrf::VRF_PROTOCOL_NAMESPACE::DtVrfVrlink2DEnvironmentalAreaVisualizer, makVrf::DtVrf2DEnvironmentalAreaVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtVrlink2DEnvironmentalAreaVisualizer, and makVrv::DT_PROTOCOL_NAMESPACE::DtVrlink3DEnvironmentalAreaVisualizer.

virtual void makVrv::DtEnvironmentalAreaVisualizer::removePoint ( int  index)
virtual

Removes point at the given index.

Reimplemented in makVrf::VRF_PROTOCOL_NAMESPACE::DtVrfVrlink2DEnvironmentalAreaVisualizer, and makVrf::DtVrf2DEnvironmentalAreaVisualizer.

virtual void makVrv::DtEnvironmentalAreaVisualizer::modifyPoint ( int  index,
const DtVector &
)
virtual

Modifies the point at the given index.

Reimplemented in makVrf::VRF_PROTOCOL_NAMESPACE::DtVrfVrlink2DEnvironmentalAreaVisualizer, makVrf::DtVrf2DEnvironmentalAreaVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtVrlink2DEnvironmentalAreaVisualizer, and makVrv::DT_PROTOCOL_NAMESPACE::DtVrlink3DEnvironmentalAreaVisualizer.

virtual void makVrv::DtEnvironmentalAreaVisualizer::setPoints ( const DtEnvironmentalStateListener::ControlPointsList &  )
virtual

Sets the control points to the specified list, adding, removing and changing as needed.

Reimplemented in makVrf::VRF_PROTOCOL_NAMESPACE::DtVrfVrlink2DEnvironmentalAreaVisualizer, makVrf::DtVrf2DEnvironmentalAreaVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtVrlink2DEnvironmentalAreaVisualizer, and makVrv::DT_PROTOCOL_NAMESPACE::DtVrlink3DEnvironmentalAreaVisualizer.

virtual void makVrv::DtEnvironmentalAreaVisualizer::setSelected ( bool  b)
virtual

Selects the entire Area.

Reimplemented from makVrv::DtStateVisualizer.

Reimplemented in makVrf::VRF_PROTOCOL_NAMESPACE::DtVrfVrlink2DEnvironmentalAreaVisualizer, and makVrf::DtVrf2DEnvironmentalAreaVisualizer.

virtual void makVrv::DtEnvironmentalAreaVisualizer::resetSpatial ( )
virtual

Resets geometry of Area.

virtual void makVrv::DtEnvironmentalAreaVisualizer::createModelAgents ( )
virtual

Creates the model agents associated with the Area.

Reimplemented from makVrv::DtSceneObjectVisualizer.

Reimplemented in makVrf::VRF_PROTOCOL_NAMESPACE::DtVrfVrlink2DEnvironmentalAreaVisualizer.

virtual void makVrv::DtEnvironmentalAreaVisualizer::setStipplePattern ( unsigned  short)
virtual

Sets the line style of the outline of the area.

virtual unsigned short makVrv::DtEnvironmentalAreaVisualizer::lineStipple ( ) const
virtual
virtual void makVrv::DtEnvironmentalAreaVisualizer::setFillStyle ( vrvTacticalGraphicUtilities::FillStyle  )
virtual

Sets the fill style of the area.

If fill is 0, will be considered an outlined area

virtual vrvTacticalGraphicUtilities::FillStyle makVrv::DtEnvironmentalAreaVisualizer::fillStyle ( ) const
virtual

Returns the currently set fill style.

virtual void makVrv::DtEnvironmentalAreaVisualizer::setPenStyle ( vrvTacticalGraphicUtilities::PenStyle  )
virtual

Takes the pen style and translates it to a stipple pattern.

See vrvTacticalGraphicUtilities for styles

virtual void makVrv::DtEnvironmentalAreaVisualizer::setLineWidth ( int  )
virtual

Sets the Area width. If 0, uses the default as defined in the visual definition.

Reimplemented in makVrv::DT_PROTOCOL_NAMESPACE::DtVrlink2DEnvironmentalAreaVisualizer, and makVrv::Dt3DEnvironmentalAreaVisualizer.

virtual void makVrv::DtEnvironmentalAreaVisualizer::setOrigin ( const DtVector &  )
virtual

Sets the origin of the area.

Reimplemented in makVrv::DT_PROTOCOL_NAMESPACE::DtVrlink3DEnvironmentalAreaVisualizer, and makVrv::DT_PROTOCOL_NAMESPACE::DtVrlink2DEnvironmentalAreaVisualizer.

virtual void makVrv::DtEnvironmentalAreaVisualizer::setUseDynamicOrigin ( bool  )
virtual

Set whether or not to use dynamic origin.

When enabled, the model ignores the origin set in setOrigin and dynamically generates one instead This should be enabled when you want to set the vertices to database positions instead of offsets from the origin to avoid precision issues

virtual void makVrv::DtEnvironmentalAreaVisualizer::destroyModelAgents ( )
protectedvirtual

Destroys any model agents currently created.

Reimplemented from makVrv::DtSceneObjectVisualizer.

Reimplemented in makVrf::VRF_PROTOCOL_NAMESPACE::DtVrfVrlink2DEnvironmentalAreaVisualizer, and makVrf::DtVrf2DEnvironmentalAreaVisualizer.

virtual void makVrv::DtEnvironmentalAreaVisualizer::setModelDefinitionForAgents ( )
protectedvirtual

Sets model definitions for agents.

Reimplemented from makVrv::DtSceneObjectVisualizer.

virtual DtAreaFacadeInterface* makVrv::DtEnvironmentalAreaVisualizer::createAreaFacadeInterface ( )
protectedpure virtual

Implemented by subclasses to create the agent used to draw the area.

Implemented in makVrv::Dt3DEnvironmentalAreaVisualizer, makVrv::Dt2DBoxVisualizer, and makVrv::Dt2DEnvironmentalAreaVisualizer.

virtual void makVrv::DtEnvironmentalAreaVisualizer::setVisualizerDefinition ( const DtVisualizerDefinition &  )
protectedvirtual

Set any other additional visualizer information from the visual record.

Reimplemented from makVrv::DtStateVisualizer.

Reimplemented in makVrv::DT_PROTOCOL_NAMESPACE::DtVrlink2DEnvironmentalAreaVisualizer, and makVrv::Dt3DEnvironmentalAreaVisualizer.

virtual DtVector makVrv::DtEnvironmentalAreaVisualizer::offsetAtPosition ( const DtVector &  position) const
protectedvirtual

Given the origin and the point offset, return an offset that is valid at the given position.

Default simply returns offset

Reimplemented in makVrv::DT_PROTOCOL_NAMESPACE::DtVrlink3DEnvironmentalAreaVisualizer, and makVrv::DT_PROTOCOL_NAMESPACE::DtVrlink2DEnvironmentalAreaVisualizer.

virtual void makVrv::DtEnvironmentalAreaVisualizer::setSolid ( bool  )
protectedvirtual

Reimplemented in makVrv::Dt3DEnvironmentalAreaVisualizer.

virtual void makVrv::DtEnvironmentalAreaVisualizer::setupArea ( DtAreaFacadeInterface *  )
protectedvirtual

Sets the newly created area up with current values.

Reimplemented in makVrf::VRF_PROTOCOL_NAMESPACE::DtVrfVrlink2DEnvironmentalAreaVisualizer.

Member Data Documentation

DtTacticalGraphicStateListener& makVrv::DtEnvironmentalAreaVisualizer::myAreaListener
protected
DtAreaFacadeInterface* makVrv::DtEnvironmentalAreaVisualizer::myAreaFacade
protected
DtEnvironmentalStateListener::ControlPointsList makVrv::DtEnvironmentalAreaVisualizer::myControlPoints
protected
int makVrv::DtEnvironmentalAreaVisualizer::myLineWidth
protected
int makVrv::DtEnvironmentalAreaVisualizer::myDefaultLineWidth
protected
float makVrv::DtEnvironmentalAreaVisualizer::myColor[4]
protected
float makVrv::DtEnvironmentalAreaVisualizer::myDefaultColor[4]
protected
DtVector makVrv::DtEnvironmentalAreaVisualizer::myPointOffset
protected
bool makVrv::DtEnvironmentalAreaVisualizer::myUseDynamicOrigin
protected
unsigned short makVrv::DtEnvironmentalAreaVisualizer::myLineStipple
protected
vrvTacticalGraphicUtilities::FillStyle makVrv::DtEnvironmentalAreaVisualizer::myFillStyle
protected
bool makVrv::DtEnvironmentalAreaVisualizer::myFillColorSet
protected
float makVrv::DtEnvironmentalAreaVisualizer::myFillColor
protected
bool makVrv::DtEnvironmentalAreaVisualizer::myScribed
protected
The documentation for this class was generated from the following file:
Document ID: Generated on Wed Jul 29 00:55:00 EDT 2015 from SVN revision 155257
Copyright © 2005-2015 VT MÄK. All Rights Reserved (www.mak.com)
