A DtAttachableUpdater updates a scene an object that can be positioned in the scene by (possibly) attaching it to one or more other scene objects. More...

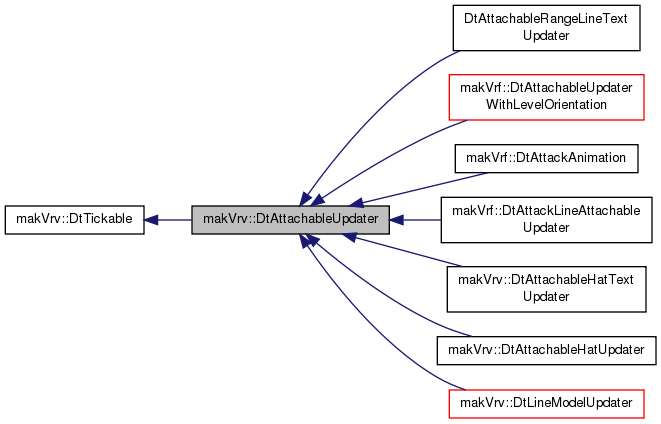

Inheritance diagram for makVrv::DtAttachableUpdater:

[legend]

Classes
class	AttachedPoint
	Common base class for all attachments. More...
class	LinearAttachedPoint
	AttachPoint used to attach to a point that is proportionally positioned between 2 other points. More...
class	ObjectAttachedPoint
	AttachedPoint used to attach to a scene object. More...
class	VertexAttachedPoint
	AttachPoint used to attach to a position provided through the updater interface. More...

Public Types
enum	AttachedPointType { AttachedPointTypeVertex, AttachedPointTypeObject, AttachedPointTypeProportional, AttachedPointTypeDeprecatedObject, AttachedPointTypeInvalidObject }
	Types of attachments. More...
enum	AttachedPointMode { AttachedPointModePositionAndOrientation, AttachedPointModePositionOnly, AttachedPointModeOrientationOnly }

Public Member Functions
	DtAttachableUpdater (DtDe &de, DtUniqueID id)
	CTOR.
virtual	~DtAttachableUpdater ()
	DTOR.
virtual bool	needsUpdate (DtTime tNow)
	Does this updater need to update?
virtual void	addAttachedPoint (const DtVector &position, int targetVertexIndex)
	Add a (vertex) attach point.
virtual void	addAttachedPoint (DtUniqueID uniqueID, int targetVertexIndex)
	Add a (object) attach point.
virtual void	addAttachedPoint (DtUniqueID uniqueID, int vtx1, int vtx2, double proportion, int targetVertexIndex)
	Add a (linear) attach point.
virtual const AttachedPoint &	attachedPoint (int targetVertexIndex) const
	Returns the attached point at the given vertex.
virtual void	setPositionOffset (const DtVector &offset)
	positionally offset the attach points by this amount.
virtual void	setPositionOffset (const DtVector &offset, int vtx)
	positionally offset the specific attach point by this amount.
virtual void	setOrientationOffset (const DtTaitBryan &offset)
	rotationally offset the attach points by this amount.
virtual void	setAttachedPointMode (unsigned int mode, int vtx)
	Set whether an attached point updates position, orientation, or both.
virtual void	update (DtTime tNow)
	Calls doAttachment()
virtual void	setSceneObject (DtSceneObject *sceneObject)
	Set the scene object to be updated.
virtual void	doAttachment (DtTime tNow)
	Find the actual position and orientation based on the attach points and offsets.
DtTime	lastUpdateTime () const
Public Member Functions inherited from makVrv::DtTickable
virtual	~DtTickable ()
	Virtual DTOR.

Protected Types
typedef std::vector < AttachedPoint * >	AttachedPointsVector

Protected Member Functions
virtual bool	pointLocationAndOrientation (AttachedPoint *point, double simTime, DtVector &location, DtTaitBryan &orientation)
virtual void	removeAttachedPoint (int vtx, DtVector *positionOffset=0)
	Returns current position offset in supplied pointer.
Slots
virtual void	slot_sceneObjectToBeDeleted (const DtUniqueID &id)
virtual void	slot_attachedSceneObjectToBeDeleted (const DtUniqueID &)
virtual void	slot_attachedUpdaterToBeDeleted (const DtUniqueID &id)
Protected Member Functions inherited from makVrv::DtTickable
	DtTickable (DtTickableManagerInterface *manager)
	CTOR.
	DtTickable ()
	Unimplemented default CTOR.

Protected Attributes
DtDe &	myDe
	The display engine.
DtUniqueID	myUniqueId
	This distributed object's unique identifier.
DtSceneObject *	mySceneObject
	A pointer to the current scene object being updated.
DtTime	myLastUpdateTime
	The last time stamp when the update()
AttachedPointsVector	myAttachedPoints
DtVector	myPositionOffset
DtTaitBryan	myOrientationOffset
Protected Attributes inherited from makVrv::DtTickable
DtTickableManagerInterface *	myManager
	Pointer to manager for removal during destruction.

Detailed Description

A DtAttachableUpdater updates a scene an object that can be positioned in the scene by (possibly) attaching it to one or more other scene objects.

Note that this is not a DtSceneObjectUpdater; It can't be linked to other DtSceneObjectUpdaters.

Member Typedef Documentation

typedef std::vector<AttachedPoint*> makVrv::DtAttachableUpdater::AttachedPointsVector

protected

Member Enumeration Documentation

enum makVrv::DtAttachableUpdater::AttachedPointType

Types of attachments.

Enumerator:

AttachedPointTypeVertex
AttachedPointTypeObject
AttachedPointTypeProportional
AttachedPointTypeDeprecatedObject
AttachedPointTypeInvalidObject

enum makVrv::DtAttachableUpdater::AttachedPointMode

Enumerator:

AttachedPointModePositionAndOrientation
AttachedPointModePositionOnly
AttachedPointModeOrientationOnly

Constructor & Destructor Documentation

makVrv::DtAttachableUpdater::DtAttachableUpdater	(	DtDe &	de,
		DtUniqueID	id
	)

CTOR.

virtual makVrv::DtAttachableUpdater::~DtAttachableUpdater ( )

virtual

DTOR.

Member Function Documentation

virtual bool makVrv::DtAttachableUpdater::needsUpdate ( DtTime tNow )

virtual

Does this updater need to update?

Implements makVrv::DtTickable.

virtual void makVrv::DtAttachableUpdater::addAttachedPoint	(	const DtVector &	position,
		int	targetVertexIndex
	)

virtual

Add a (vertex) attach point.

If multiple attach points are specified each will update its corresponding vertex in the scene object being updated

virtual void makVrv::DtAttachableUpdater::addAttachedPoint	(	DtUniqueID	uniqueID,
		int	targetVertexIndex
	)

virtual

Add a (object) attach point.

If multiple attach points are specified each will update its corresponding vertex in the scene object being updated

virtual void makVrv::DtAttachableUpdater::addAttachedPoint	(	DtUniqueID	uniqueID,
		int	vtx1,
		int	vtx2,
		double	proportion,
		int	targetVertexIndex
	)

virtual

Add a (linear) attach point.

If multiple attach points are specified each will update its corresponding vertex in the scene object being updated

virtual const AttachedPoint& makVrv::DtAttachableUpdater::attachedPoint ( int targetVertexIndex ) const

virtual

Returns the attached point at the given vertex.

This method returns a copy of the current state of the attached point. If an attached point with the given index could not be found, this method returns an AttachedPoint with type AttachedPointTypeInvalidObject.

virtual void makVrv::DtAttachableUpdater::setPositionOffset ( const DtVector & offset )

virtual

positionally offset the attach points by this amount.

This is in the coordinate system of the object attached to

virtual void makVrv::DtAttachableUpdater::setPositionOffset	(	const DtVector &	offset,
		int	vtx
	)

virtual

positionally offset the specific attach point by this amount.

This is in the coordinate system of the object attached to. Will be used in conjunction with the overall position offset

virtual void makVrv::DtAttachableUpdater::setOrientationOffset ( const DtTaitBryan & offset )

virtual

rotationally offset the attach points by this amount.

This is in the coordinate system of the object attached to

virtual void makVrv::DtAttachableUpdater::setAttachedPointMode	(	unsigned int	mode,
		int	vtx
	)

virtual

Set whether an attached point updates position, orientation, or both.

virtual void makVrv::DtAttachableUpdater::update ( DtTime tNow )

virtual

Calls doAttachment()

Implements makVrv::DtTickable.

Reimplemented in makVrv::DtAttachableEntityFanUpdater, makVrv::DtLineModelUpdater, and makVrv::DtAttachableIntervisibilityUpdater.

virtual void makVrv::DtAttachableUpdater::setSceneObject ( DtSceneObject * sceneObject )

virtual

Set the scene object to be updated.

Parameters

[in] sceneObject is the scene object to receive updates.

Reimplemented in makVrv::DtLineModelUpdater, and makVrf::DtRangeRingUpdater.

virtual void makVrv::DtAttachableUpdater::doAttachment ( DtTime tNow )

virtual

Find the actual position and orientation based on the attach points and offsets.

DtTime makVrv::DtAttachableUpdater::lastUpdateTime ( ) const

inline

virtual void makVrv::DtAttachableUpdater::slot_sceneObjectToBeDeleted ( const DtUniqueID & id )

protectedvirtual

Reimplemented in makVrf::DtAttackLineAttachableUpdater.

virtual void makVrv::DtAttachableUpdater::slot_attachedSceneObjectToBeDeleted ( const DtUniqueID & )

protectedvirtual

virtual void makVrv::DtAttachableUpdater::slot_attachedUpdaterToBeDeleted ( const DtUniqueID & id )

protectedvirtual

virtual bool makVrv::DtAttachableUpdater::pointLocationAndOrientation	(	AttachedPoint *	point,
		double	simTime,
		DtVector &	location,
		DtTaitBryan &	orientation
	)

protectedvirtual

virtual void makVrv::DtAttachableUpdater::removeAttachedPoint	(	int	vtx,
		DtVector *	positionOffset = `0`
	)

protectedvirtual

Returns current position offset in supplied pointer.

Member Data Documentation

DtDe& makVrv::DtAttachableUpdater::myDe

protected

The display engine.

DtUniqueID makVrv::DtAttachableUpdater::myUniqueId

protected

This distributed object's unique identifier.

DtSceneObject* makVrv::DtAttachableUpdater::mySceneObject

protected

A pointer to the current scene object being updated.

DtTime makVrv::DtAttachableUpdater::myLastUpdateTime

protected

The last time stamp when the update()

AttachedPointsVector makVrv::DtAttachableUpdater::myAttachedPoints

protected

DtVector makVrv::DtAttachableUpdater::myPositionOffset

protected

DtTaitBryan makVrv::DtAttachableUpdater::myOrientationOffset

protected

The documentation for this class was generated from the following file:

/exports/nfedora7-1/nightly/docs/vrforcesDevelopment.tot/include/vrvCore/DtAttachableUpdater.h
