makVrf::DtTerrainProfileDataStateView< _View > Class Template Reference

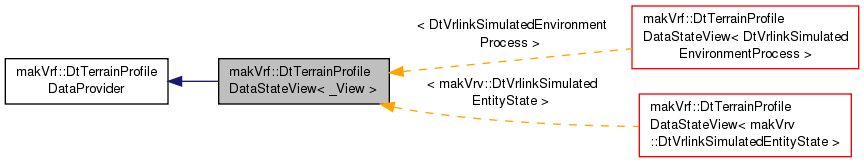

Inheritance diagram for makVrf::DtTerrainProfileDataStateView< _View >:

Public Member Functions
	DtTerrainProfileDataStateView (makVrv::DtDe &de, makVrv::DtUniqueID id)
	CTOR.
virtual	~DtTerrainProfileDataStateView ()
	DTOR.
virtual makVrv::DtUnicode	name () const
	The name of the object to display in the graph title bar.
virtual std::vector< DtVector >	points ()
	The list of points to be used to plot for the profile line in the graph.
virtual bool	setElementID (makVrv::DtUniqueID id)
	The ID of the element to provide data for.
makVrv::DtElementID	id () const
Public Member Functions inherited from makVrf::DtTerrainProfileDataProvider
	DtTerrainProfileDataProvider (makVrv::DtDe &de)
	CTOR.
virtual	~DtTerrainProfileDataProvider ()
	DTOR.
virtual int	color () const
	Returns the rgba value color of the line. Default is green.
virtual bool	allowsTracking () const
	For some providers it does not make sense to allow symbol tracking (i.e.
virtual bool	allowsVertices () const
	For some providers it does not make sense to allow vertices to be displayed on the graph due to the fact there could be many of them (i.e.

Protected Member Functions
virtual void	slot_simObjectEntryAboutToBeRemoved (makVrv::DtSimObjectEntry &e)
	Called when an object is about to be removed, will remove this dialog if the ID is the ID being profiled.
virtual const makVrv::DtStateView< _View > *	findStateView (makVrv::DtElementID id)=0
	Called to find the state view.
virtual void	slot_onStateViewUpdated ()=0
	Called when the state view is updated, signal that new data has been received.
virtual void	slot_onUpdateRateChanged (makVrv::DtUniqueID id, int rate)
	Called when the update rate has changed, make sure we at least keep the 1Hz update rate.
virtual void	completeRateChange ()

Protected Attributes
makVrv::DtUniqueID	myElementID
makVrv::DtStateView< _View > *	myStateView
std::vector< DtVector >	myGeocentricPoints
Protected Attributes inherited from makVrf::DtTerrainProfileDataProvider
makVrv::DtDe &	myDe

Additional Inherited Members
Public Attributes inherited from makVrf::DtTerrainProfileDataProvider
boost::signal< void()>	signal_dataUpdated
	Signal emitted when there is updated data to provide to the graph.
boost::signal< void()>	signal_dataRemoved
	Signal emitted when the source data has been removed.

Constructor & Destructor Documentation

template<typename _View>

makVrf::DtTerrainProfileDataStateView< _View >::DtTerrainProfileDataStateView	(	makVrv::DtDe &	de,
		makVrv::DtUniqueID	id
	)

CTOR.

template<typename _View>

virtual makVrf::DtTerrainProfileDataStateView< _View >::~DtTerrainProfileDataStateView ( )

virtual

DTOR.

Member Function Documentation

template<typename _View>

virtual makVrv::DtUnicode makVrf::DtTerrainProfileDataStateView< _View >::name ( ) const

virtual

The name of the object to display in the graph title bar.

Implements makVrf::DtTerrainProfileDataProvider.

template<typename _View>

virtual std::vector<DtVector> makVrf::DtTerrainProfileDataStateView< _View >::points ( )

virtual

The list of points to be used to plot for the profile line in the graph.

Note that these points must be returned in geocentric form

Implements makVrf::DtTerrainProfileDataProvider.

template<typename _View>

virtual bool makVrf::DtTerrainProfileDataStateView< _View >::setElementID ( makVrv::DtUniqueID  id )

virtual

The ID of the element to provide data for.

If there is an existing ID will switch to the new data. Returns false if state view is not found

template<typename _View>

makVrv::DtElementID makVrf::DtTerrainProfileDataStateView< _View >::id ( ) const

inline

template<typename _View>

virtual void makVrf::DtTerrainProfileDataStateView< _View >::slot_simObjectEntryAboutToBeRemoved ( makVrv::DtSimObjectEntry &  e )

protectedvirtual

Called when an object is about to be removed, will remove this dialog if the ID is the ID being profiled.

template<typename _View>

virtual const makVrv::DtStateView<_View>* makVrf::DtTerrainProfileDataStateView< _View >::findStateView ( makVrv::DtElementID  id )

protectedpure virtual

Called to find the state view.

Use the DtVrfStateViewCollectionManager to find the appropriate state view for your kind

Implemented in makVrf::DtTerrainProfileDataTrackHistory, and makVrf::DtTerrainProfileDataEnvironmentalStateView.

template<typename _View>

virtual void makVrf::DtTerrainProfileDataStateView< _View >::slot_onStateViewUpdated ( )

protectedpure virtual

Called when the state view is updated, signal that new data has been received.

Fill in myGeocentricPoints with the values to return for the point for this line.

Implemented in makVrf::DtTerrainProfileDataTrackHistory, and makVrf::DtTerrainProfileDataEnvironmentalStateView.

template<typename _View>

virtual void makVrf::DtTerrainProfileDataStateView< _View >::slot_onUpdateRateChanged ( makVrv::DtUniqueID  id, int  rate  )

protectedvirtual

Called when the update rate has changed, make sure we at least keep the 1Hz update rate.

template<typename _View>

virtual void makVrf::DtTerrainProfileDataStateView< _View >::completeRateChange ( )

protectedvirtual

Member Data Documentation

template<typename _View>

makVrv::DtUniqueID makVrf::DtTerrainProfileDataStateView< _View >::myElementID

protected

Referenced by makVrf::DtTerrainProfileDataStateView< makVrv::DtVrlinkSimulatedEntityState >::id().

template<typename _View>

makVrv::DtStateView<_View>* makVrf::DtTerrainProfileDataStateView< _View >::myStateView

protected

template<typename _View>

std::vector<DtVector> makVrf::DtTerrainProfileDataStateView< _View >::myGeocentricPoints

protected

---

The documentation for this class was generated from the following file:

• /exports/nfedora7-1/nightly/docs/vrforcesDevelopment.vrf4-4-branch/include/vrfGuiCore/terrainProfileDataStateView.h
