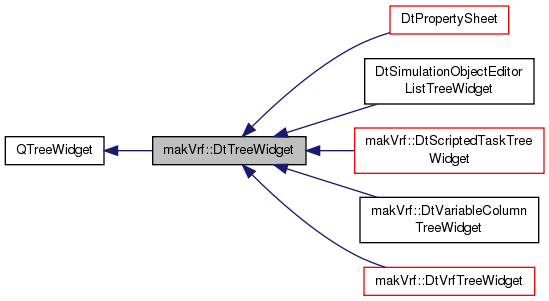

Inheritance diagram for makVrf::DtTreeWidget:

Signals
void	mouseLeftPressed (QTreeWidgetItem , QMouseEvent , int col)
	Emitted when the mouse button is pressed.
void	rightClickOnItem (QTreeWidgetItem , QMouseEvent , int col)
	Emitted when right button is released.
void	contentsMoving (int, int)

Public Member Functions
	DtTreeWidget (makVrv::DtDe &de, QWidget *parent)
	Constructor.
virtual	~DtTreeWidget ()
	DTOR.
virtual QTreeWidgetItem *	lastItem () const
	Returns the last item in the list.
QTreeWidgetItem *	itemFromIndex (const QModelIndex &idx)
QModelIndex	indexFromItem (QTreeWidgetItem *item, int column=0) const
virtual int	indexOfChild (QTreeWidgetItem *) const
	Returns the index of the child.
unsigned int	depth (QTreeWidgetItem *) const
	Returns the number of levels down this item is.
QTreeWidgetItem *	nextSibling (QTreeWidgetItem *) const
	Returns the next item after the supplied item.
void	setAllowEmptySelection (bool)
	Only valid in single selection mode.
bool	allowEmptySelection () const
virtual bool	edit (const QModelIndex &index, EditTrigger trigger, QEvent *event)
	Override to prevent keystrokes from going to vantage while editing.
virtual void	closeEditor (QWidget *editor, QAbstractItemDelegate::EndEditHint hint)

Protected Member Functions
virtual void	mousePressEvent (QMouseEvent *event)
virtual void	mouseReleaseEvent (QMouseEvent *event)
virtual void	scrollContentsBy (int, int)
virtual QSize	sizeHint () const
	Need to do this as default sizeHint() for an abstract scroll area (in Qt 4.2.2) is too large.
virtual QItemSelectionModel::SelectionFlags	selectionCommand (const QModelIndex &index, const QEvent *event=0) const
	Override to allow empty selection in single selection mode.
virtual QItemSelectionModel::SelectionFlags	selectionBehaviorFlags () const

Protected Attributes
bool	myMouseRightClick
bool	myAllowEmptySelection
makVrv::DtDe &	myDe

Constructor & Destructor Documentation

makVrf::DtTreeWidget::DtTreeWidget	(	makVrv::DtDe &	de,
		QWidget *	parent
	)

Constructor.

virtual makVrf::DtTreeWidget::~DtTreeWidget ( )

virtual

DTOR.

Member Function Documentation

virtual QTreeWidgetItem* makVrf::DtTreeWidget::lastItem ( ) const

virtual

Returns the last item in the list.

QTreeWidgetItem* makVrf::DtTreeWidget::itemFromIndex ( const QModelIndex & idx )

inline

QModelIndex makVrf::DtTreeWidget::indexFromItem	(	QTreeWidgetItem *	item,
		int	column = `0`
	)		const

inline

virtual int makVrf::DtTreeWidget::indexOfChild ( QTreeWidgetItem * ) const

virtual

Returns the index of the child.

unsigned int makVrf::DtTreeWidget::depth ( QTreeWidgetItem * ) const

Returns the number of levels down this item is.

QTreeWidgetItem* makVrf::DtTreeWidget::nextSibling ( QTreeWidgetItem * ) const

Returns the next item after the supplied item.

void makVrf::DtTreeWidget::setAllowEmptySelection ( bool b )

inline

Only valid in single selection mode.

References myAllowEmptySelection.

bool makVrf::DtTreeWidget::allowEmptySelection ( ) const

inline

References myAllowEmptySelection.

virtual bool makVrf::DtTreeWidget::edit	(	const QModelIndex &	index,
		EditTrigger	trigger,
		QEvent *	event
	)

virtual

Override to prevent keystrokes from going to vantage while editing.

virtual void makVrf::DtTreeWidget::closeEditor	(	QWidget *	editor,
		QAbstractItemDelegate::EndEditHint	hint
	)

virtual

void makVrf::DtTreeWidget::mouseLeftPressed	(	QTreeWidgetItem *	,
		QMouseEvent *	,
		int	col
	)

signal

Emitted when the mouse button is pressed.

If the event is accepted, will not process parent message

void makVrf::DtTreeWidget::rightClickOnItem	(	QTreeWidgetItem *	,
		QMouseEvent *	,
		int	col
	)

signal

Emitted when right button is released.

void makVrf::DtTreeWidget::contentsMoving	(	int	,
		int
	)

signal

virtual void makVrf::DtTreeWidget::mousePressEvent ( QMouseEvent * event )

protectedvirtual

virtual void makVrf::DtTreeWidget::mouseReleaseEvent ( QMouseEvent * event )

protectedvirtual

virtual void makVrf::DtTreeWidget::scrollContentsBy	(	int	,
		int
	)

protectedvirtual

virtual QSize makVrf::DtTreeWidget::sizeHint ( ) const

protectedvirtual

Need to do this as default sizeHint() for an abstract scroll area (in Qt 4.2.2) is too large.

Reimplemented in DtSimulationObjectEditorListTreeWidget.

virtual QItemSelectionModel::SelectionFlags makVrf::DtTreeWidget::selectionCommand	(	const QModelIndex &	index,
		const QEvent *	event = `0`
	)		const

protectedvirtual

Override to allow empty selection in single selection mode.

virtual QItemSelectionModel::SelectionFlags makVrf::DtTreeWidget::selectionBehaviorFlags ( ) const

protectedvirtual

Member Data Documentation

bool makVrf::DtTreeWidget::myMouseRightClick

protected

bool makVrf::DtTreeWidget::myAllowEmptySelection

protected

Referenced by allowEmptySelection(), and setAllowEmptySelection().

makVrv::DtDe& makVrf::DtTreeWidget::myDe

protected

The documentation for this class was generated from the following file:

/exports/nfedora7-1/nightly/docs/vrforcesDevelopment.vrf4-4-branch/include/vrfGuiCoreQt/treeWidget.h
