makVrv::DtCheckedItem Class Reference

Base class item builder for settings toggle items The menu id string is "DtViewSettingsItem". More...

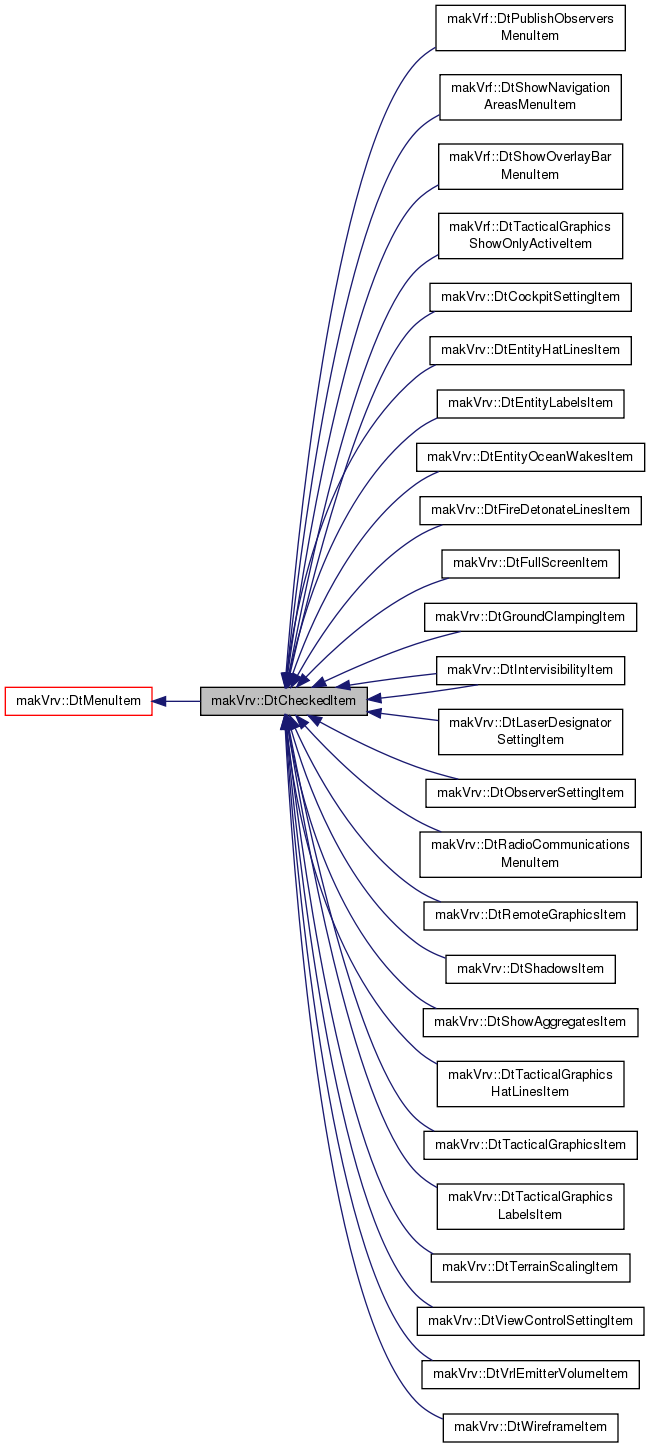

Inheritance diagram for makVrv::DtCheckedItem:

Public Member Functions
	DtCheckedItem (DtDe &de, const std::string &className)
	CTOR.
virtual	~DtCheckedItem ()
	DTOR.
virtual QAction *	createAction (DtDe &, QWidget *parent)
	Build a menu item (via an action).
virtual void	on_settingChanged (bool value)
	Boost slot called when window settings are changed.
void	updateValue ()
Public Member Functions inherited from makVrv::DtMenuItem
	DtMenuItem (const std::string &menuItemIdName)
	CTOR.
virtual	~DtMenuItem ()
	DTOR.
virtual const std::string &	menuItemIdName () const
	Get the menu id name, the menu id name is not the same thing as the visible menu text.

Protected Member Functions
virtual void	on_triggered ()
virtual void	setValue (bool value)=0
virtual bool	getValue () const =0

Protected Attributes
bool	myState
QString	myOnText
QString	myOffText
QString	myToolTip
QString	myIcon
QAction *	myAction
DtDe &	myDe
Protected Attributes inherited from makVrv::DtMenuItem
std::string	myMenuIdName

Additional Inherited Members
Protected Slots inherited from makVrv::DtMenuItem
virtual void	on_checkStateChanged (bool)
virtual void	on_aboutToShow ()

Detailed Description

Base class item builder for settings toggle items The menu id string is "DtViewSettingsItem".

Constructor & Destructor Documentation

makVrv::DtCheckedItem::DtCheckedItem	(	DtDe &	de,
		const std::string &	className
	)

CTOR.

virtual makVrv::DtCheckedItem::~DtCheckedItem ( )

virtual

DTOR.

Member Function Documentation

virtual QAction* makVrv::DtCheckedItem::createAction ( DtDe &  , QWidget *  parent  )

virtual

Build a menu item (via an action).

Implements makVrv::DtMenuItem.

Reimplemented in makVrv::DtObserverSettingItem, makVrv::DtLaserDesignatorSettingItem, makVrv::DtEntityOceanWakesItem, makVrv::DtIntervisibilityItem, makVrv::DtRadioCommunicationsMenuItem, makVrf::DtTacticalGraphicsShowOnlyActiveItem, makVrv::DtFireDetonateLinesItem, makVrv::DtIntervisibilityItem, makVrv::DtVrlEmitterVolumeItem, makVrv::DtTacticalGraphicsHatLinesItem, makVrv::DtEntityHatLinesItem, makVrf::DtShowOverlayBarMenuItem, makVrv::DtTacticalGraphicsLabelsItem, makVrv::DtTerrainScalingItem, makVrv::DtEntityLabelsItem, makVrv::DtRemoteGraphicsItem, makVrv::DtShadowsItem, makVrv::DtFullScreenItem, makVrv::DtCockpitSettingItem, makVrv::DtShowAggregatesItem, makVrv::DtGroundClampingItem, makVrv::DtTacticalGraphicsItem, makVrf::DtPublishObserversMenuItem, makVrv::DtViewControlSettingItem, makVrf::DtShowNavigationAreasMenuItem, and makVrv::DtWireframeItem.

virtual void makVrv::DtCheckedItem::on_settingChanged ( bool  value )

virtual

Boost slot called when window settings are changed.

void makVrv::DtCheckedItem::updateValue

(

)

virtual void makVrv::DtCheckedItem::on_triggered ( )

protectedvirtual

Reimplemented from makVrv::DtMenuItem.

virtual void makVrv::DtCheckedItem::setValue ( bool  value )

protectedpure virtual

Implemented in makVrv::DtObserverSettingItem, makVrv::DtLaserDesignatorSettingItem, makVrv::DtEntityOceanWakesItem, makVrv::DtIntervisibilityItem, makVrv::DtRadioCommunicationsMenuItem, makVrf::DtTacticalGraphicsShowOnlyActiveItem, makVrv::DtFireDetonateLinesItem, makVrv::DtIntervisibilityItem, makVrv::DtVrlEmitterVolumeItem, makVrv::DtTacticalGraphicsHatLinesItem, makVrv::DtTerrainScalingItem, makVrv::DtEntityHatLinesItem, makVrf::DtShowOverlayBarMenuItem, makVrv::DtTacticalGraphicsLabelsItem, makVrv::DtEntityLabelsItem, makVrv::DtShadowsItem, makVrv::DtRemoteGraphicsItem, makVrv::DtFullScreenItem, makVrv::DtCockpitSettingItem, makVrf::DtPublishObserversMenuItem, makVrv::DtShowAggregatesItem, makVrv::DtGroundClampingItem, makVrv::DtTacticalGraphicsItem, makVrv::DtWireframeItem, makVrv::DtViewControlSettingItem, and makVrf::DtShowNavigationAreasMenuItem.

virtual bool makVrv::DtCheckedItem::getValue ( ) const

protectedpure virtual

Implemented in makVrv::DtObserverSettingItem, makVrv::DtLaserDesignatorSettingItem, makVrv::DtEntityOceanWakesItem, makVrv::DtIntervisibilityItem, makVrv::DtRadioCommunicationsMenuItem, makVrf::DtTacticalGraphicsShowOnlyActiveItem, makVrv::DtFireDetonateLinesItem, makVrv::DtIntervisibilityItem, makVrv::DtVrlEmitterVolumeItem, makVrv::DtTacticalGraphicsHatLinesItem, makVrv::DtTerrainScalingItem, makVrv::DtEntityHatLinesItem, makVrf::DtShowOverlayBarMenuItem, makVrv::DtTacticalGraphicsLabelsItem, makVrv::DtEntityLabelsItem, makVrv::DtShadowsItem, makVrv::DtRemoteGraphicsItem, makVrv::DtFullScreenItem, makVrv::DtCockpitSettingItem, makVrf::DtPublishObserversMenuItem, makVrv::DtShowAggregatesItem, makVrv::DtGroundClampingItem, makVrv::DtTacticalGraphicsItem, makVrv::DtWireframeItem, makVrv::DtViewControlSettingItem, and makVrf::DtShowNavigationAreasMenuItem.

Member Data Documentation

bool makVrv::DtCheckedItem::myState

protected

QString makVrv::DtCheckedItem::myOnText

protected

QString makVrv::DtCheckedItem::myOffText

protected

QString makVrv::DtCheckedItem::myToolTip

protected

QString makVrv::DtCheckedItem::myIcon

protected

QAction* makVrv::DtCheckedItem::myAction

protected

DtDe& makVrv::DtCheckedItem::myDe

protected

---

The documentation for this class was generated from the following file:

• /exports/nfedora7-1/nightly/docs/vrforcesDevelopment.vrf4-4-branch/include/vrvCoreQt/DtCheckedItem.h
