makVrv::DtSceneObjectUpdater Class Reference

Scene Object Updater. More...

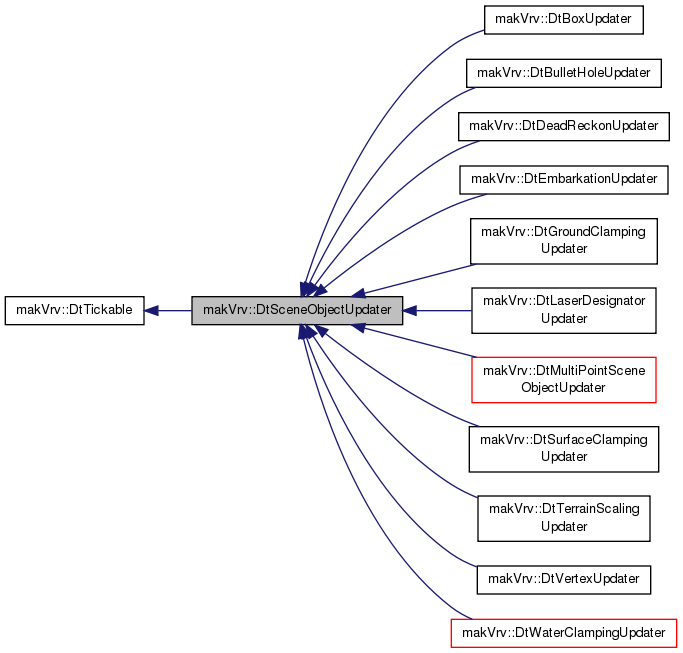

Inheritance diagram for makVrv::DtSceneObjectUpdater:

Public Member Functions
	DtSceneObjectUpdater (DtDe &de, DtUniqueID id)
	CTOR.
virtual	~DtSceneObjectUpdater ()
	Virtual DTOR.
virtual void	setNextUpdater (DtSceneObjectUpdater *nextUpdater)
	Set the next updater in the updater chain.
virtual void	setPrevUpdater (DtSceneObjectUpdater *prevUpdater)
	Set the previous updater in the updater chain.
virtual bool	needsUpdate (DtTime tNow)
	The check function called by DtTickableManager to verify if an update is required.
virtual void	update (DtTime tNow)
	The update function called by DtTickableManager during update-ticks.
virtual void	setVertexToUpdate (unsigned int vertex)
	Specify which vertex in the scene object this updater updates.
virtual void	setInputPosition (const DtVector &position)
	Set the position input to this updater.
virtual void	setInputOrientation (const DtTaitBryan &orientation)
	Set the orientation input to this updater.
virtual void	setOutputPosition (const DtVector &position)
	Output the resultant position.
virtual void	setOutputOrientation (const DtTaitBryan &orientation)
	Output the resultant orientation.
virtual DtTime	lastUpdateTime () const
	Get the time-stamp of the last update.
virtual void	setSceneObject (DtSceneObject *sceneObject)
	Set the scene object to be updated.
DtUniqueID	uniqueId () const
	Returns the distributed object id of this updater.
DtSceneObjectUpdater *	findNextUpdater () const
	Return the next updater in the updater chain.
DtSceneObjectUpdater *	findPrevUpdater () const
	Return the previous updater in the updater chain.
DtSceneObject *	findSceneObject ()
	Get the current scene object for this updater.
DtSceneObject *const	findSceneObject () const
	const correct version
Public Member Functions inherited from makVrv::DtTickable
virtual	~DtTickable ()
	Virtual DTOR.
virtual void	setUpdatePeriod (unsigned int period)
	Specify how often (in # of frames) this tickable should call update.
virtual unsigned int	updatePeriod () const
	Specify how often (in # of frames) this tickable should call update.

Public Attributes
Signals
Signal that this updater is being destroyed
boost::signal< void(const DtUniqueID &) >	signal_updaterToBeDeleted

Protected Member Functions
Slots
Slot called when the a scene object is to be deleted. If its the scene object that this updater is updating, then the local scene object copy is set to false
virtual void	slot_sceneObjectToBeDeleted (const DtUniqueID &id)
Protected Member Functions inherited from makVrv::DtTickable
	DtTickable (DtTickableManagerInterface *manager)
	CTOR.
	DtTickable ()
	Unimplemented default CTOR.
virtual void	slot_managerAboutToBeDeleted ()

Protected Attributes
DtDe &	myDe
	The display engine.
DtUniqueID	myUniqueId
	This distributed object's unique identifier.
DtSceneObject *	mySceneObject
	A pointer to the current scene object being updated.
DtTime	myLastUpdateTime
	The last time stamp when the update()
DtSceneObjectUpdater *	myNextUpdater
	The next updater in the chain (or NULL)
DtSceneObjectUpdater *	myPrevUpdater
	The previous updater in the chain (or NULL)
unsigned int	myVertexToUpdate
	The default scene object vertex to update.
DtVector	myInputPosition
	Input position.
DtTaitBryan	myInputOrientation
	Input Orientation.
bool	myPositionDataOutputted
	Flag to indicate if setOutputPosition has been called this tick.
bool	myOrientationDataOutputted
	Flag to indicate if setOutputOrientation has been called this tick.
Protected Attributes inherited from makVrv::DtTickable
DtTickableManagerInterface *	myManager
	Pointer to manager for removal during destruction.
DtSignalConnectionManager	myConnections
unsigned int	myFrameCounter
unsigned int	myFrameToUpdate
unsigned int	myUpdatePeriod

Detailed Description

Scene Object Updater.

DtSceneObjectUpdater is a distributed object managed by DtTickableManager. It provides an API and infrastructure used by deriving objects to update the position and orientation of scene objects in render space. DtSceneObjectUpdaters may be chained together in a list to perform multiple position and/or orientation transformations. For example, one updater might dead reckon position and orientation based on kinematic info, the next in the chain could ground clamp the object. A third might adjust the ground clamped position to support terrain scaling.

Constructor & Destructor Documentation

makVrv::DtSceneObjectUpdater::DtSceneObjectUpdater	(	DtDe &	de,
		DtUniqueID	id
	)

CTOR.

Parameters

[in]	de	is the display engine.
[in]	id	is a unique identifier for this distributed object.

virtual makVrv::DtSceneObjectUpdater::~DtSceneObjectUpdater ( )

virtual

Virtual DTOR.

Member Function Documentation

virtual void makVrv::DtSceneObjectUpdater::setNextUpdater ( DtSceneObjectUpdater *  nextUpdater )

virtual

Set the next updater in the updater chain.

Parameters

[in]

nextUpdater

is the next updater in this updater chain When the next updater is null, it indicates that the updater is at the end of the chain. Its output will be used to set the appropriate vertex (set using setVertexToUpdate) in the scene object. Updaters with a non-null next updater will provide its outputs to the inputs of the next updater.

Reimplemented in makVrv::DtSurfaceClampingUpdater.

virtual void makVrv::DtSceneObjectUpdater::setPrevUpdater ( DtSceneObjectUpdater *  prevUpdater )

virtual

Set the previous updater in the updater chain.

Parameters

[in]

prevUpdater

is the prev updater in this updater chain When the previous updater is null, it indicates that this is the start of the updater chain; intial position and information is provided using setInputPosition and setInputOrientation.

virtual bool makVrv::DtSceneObjectUpdater::needsUpdate ( DtTime  tNow )

virtual

The check function called by DtTickableManager to verify if an update is required.

If this function returns true, the DtTickableManager will then call update().

Parameters

[in]

tNow

is the current time-stamp.

Return values

true	if this object needs to be ticked.
false	otherwise. This base class method uses both the time and the presence of valid input transforms to determine if the updater should be ticked.

Reimplemented from makVrv::DtTickable.

virtual void makVrv::DtSceneObjectUpdater::update ( DtTime  tNow )

virtual

The update function called by DtTickableManager during update-ticks.

Parameters

[in]

tNow

is the current time-stamp.

Note

All classes deriving from DtSceneObjectUpdater must call DtSceneObjectUpdater::update() AFTER their own update completes for chaining (and pass-thru) to work correctly.

Implements makVrv::DtTickable.

Reimplemented in makVrv::DtEmbarkationUpdater, makVrv::DtMultiPointEmbarkationUpdater, makVrv::DtSurfaceClampingUpdater, makVrv::DtVertexUpdater, makVrv::DtMultiPointSceneObjectUpdater, makVrv::DtGroundClampingUpdater, makVrv::DtWaterClampingUpdater, makVrv::DtDeadReckonUpdater, and makVrv::DtTerrainScalingUpdater.

virtual void makVrv::DtSceneObjectUpdater::setVertexToUpdate ( unsigned int  vertex )

virtual

Specify which vertex in the scene object this updater updates.

Parameters

[in]

vertex

is the vertex in the scene object to update.

Reimplemented in makVrv::DtSurfaceClampingUpdater.

virtual void makVrv::DtSceneObjectUpdater::setInputPosition ( const DtVector &  position )

virtual

Set the position input to this updater.

Parameters

[in]

position

is the position to use.

Reimplemented in makVrv::DtSurfaceClampingUpdater, and makVrv::DtDeadReckonUpdater.

virtual void makVrv::DtSceneObjectUpdater::setInputOrientation ( const DtTaitBryan &  orientation )

virtual

Set the orientation input to this updater.

Parameters

[in]

orientation

is the orientation to use.

Reimplemented in makVrv::DtDeadReckonUpdater, and makVrv::DtSurfaceClampingUpdater.

virtual void makVrv::DtSceneObjectUpdater::setOutputPosition ( const DtVector &  position )

virtual

Output the resultant position.

If there is a next updater, this will call that updater's setInputPosition with the result. Otherwise the result will be provided to the specified scene object

Parameters

[in]

position

is the position to set.

Reimplemented in makVrv::DtBoxUpdater.

virtual void makVrv::DtSceneObjectUpdater::setOutputOrientation ( const DtTaitBryan &  orientation )

virtual

Output the resultant orientation.

If there is a next updater, this will call that updater's setInputOrientaiton with the result. Otherwise the result will be provided to the specified scene object

Parameters

[in]

orientation

is the orientation to set.

virtual DtTime makVrv::DtSceneObjectUpdater::lastUpdateTime ( ) const

virtual

Get the time-stamp of the last update.

Returns

The last update time.

virtual void makVrv::DtSceneObjectUpdater::setSceneObject ( DtSceneObject *  sceneObject )

virtual

Set the scene object to be updated.

Parameters

[in]

sceneObject

is the scene object to receive updates.

Reimplemented in makVrv::DtSurfaceClampingUpdater, and makVrv::DtDeadReckonUpdater.

DtSceneObject* makVrv::DtSceneObjectUpdater::findSceneObject ( )

inline

Get the current scene object for this updater.

Returns

A pointer to the scene object or NULL if not set.

DtSceneObject* const makVrv::DtSceneObjectUpdater::findSceneObject ( ) const

inline

const correct version

DtUniqueID makVrv::DtSceneObjectUpdater::uniqueId ( ) const

inline

Returns the distributed object id of this updater.

DtSceneObjectUpdater* makVrv::DtSceneObjectUpdater::findNextUpdater ( ) const

inline

Return the next updater in the updater chain.

DtSceneObjectUpdater* makVrv::DtSceneObjectUpdater::findPrevUpdater ( ) const

inline

Return the previous updater in the updater chain.

virtual void makVrv::DtSceneObjectUpdater::slot_sceneObjectToBeDeleted ( const DtUniqueID &  id )

protectedvirtual

Reimplemented in makVrf::DtVrfMultiPointEmbarkationUpdater.

Member Data Documentation

boost::signal< void ( const DtUniqueID& ) > makVrv::DtSceneObjectUpdater::signal_updaterToBeDeleted

DtDe& makVrv::DtSceneObjectUpdater::myDe

protected

The display engine.

DtUniqueID makVrv::DtSceneObjectUpdater::myUniqueId

protected

This distributed object's unique identifier.

DtSceneObject* makVrv::DtSceneObjectUpdater::mySceneObject

protected

A pointer to the current scene object being updated.

DtTime makVrv::DtSceneObjectUpdater::myLastUpdateTime

protected

The last time stamp when the update()

DtSceneObjectUpdater* makVrv::DtSceneObjectUpdater::myNextUpdater

protected

The next updater in the chain (or NULL)

DtSceneObjectUpdater* makVrv::DtSceneObjectUpdater::myPrevUpdater

protected

The previous updater in the chain (or NULL)

unsigned int makVrv::DtSceneObjectUpdater::myVertexToUpdate

protected

The default scene object vertex to update.

DtVector makVrv::DtSceneObjectUpdater::myInputPosition

protected

Input position.

DtTaitBryan makVrv::DtSceneObjectUpdater::myInputOrientation

protected

Input Orientation.

bool makVrv::DtSceneObjectUpdater::myPositionDataOutputted

protected

Flag to indicate if setOutputPosition has been called this tick.

If a deriving updater hasn't called setOutputPosition, this base class will copy the input position to the output.

bool makVrv::DtSceneObjectUpdater::myOrientationDataOutputted

protected

Flag to indicate if setOutputOrientation has been called this tick.

If a deriving updater hasn't called setOutputPosition, this base class will copy the input orientation to the output.

---

The documentation for this class was generated from the following file:

• /exports/nfedora7-1/nightly/docs/vrforcesDevelopment.vrf4-4-branch/include/vrvCore/DtSceneObjectUpdater.h
