DtLocalEntitySetController Class Reference

DtLocalEntitySetController is a controller that handles all DtSetDataRequest messages for an entity and updates the entity's state repository as appropriate. More...

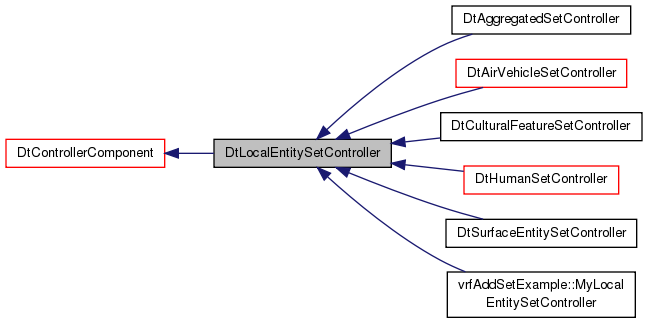

Inheritance diagram for DtLocalEntitySetController:

Public Member Functions
	DtLocalEntitySetController (const DtString &name, DtVrfObject *owner, DtSimManager *simManager, DtComponentDescriptor *desc=0, DtReaderWriterRegistry *parentRegistry=0)
	(const DtString&,DtVrfObject*,DtSimManager*,
virtual	~DtLocalEntitySetController ()
	destructor
virtual bool	init ()
	calls createPSR()
virtual const char *	type () const
	Returns a string identifies the class type of component.
virtual void	processSetForce (DtSimMessage *msg)
virtual void	processSetAppearance (DtSimMessage *msg)
virtual void	processSetCapabilities (DtSimMessage *msg)
virtual void	processSetAltitude (DtSimMessage *msg)
virtual void	processSetResource (DtSimMessage *msg)
virtual void	processSetSOR (DtSimMessage *msg)
virtual void	processSetSpeed (DtSimMessage *msg)
virtual void	processSetCurrentSpeed (DtSimMessage *msg)
virtual void	processSetEngagementRules (DtSimMessage *msg)
virtual void	processSetRestore (DtSimMessage *msg)
virtual void	processSetConcealed (DtSimMessage *msg)
virtual void	processSetInvisible (DtSimMessage *msg)
virtual void	processSetAiEnabled (DtSimMessage *msg)
virtual void	processSetLocation (DtSimMessage *msg)
	Verifies that the message contains a DtSetLocationRequest and if so pulls the requested location out of the message.
virtual void	processSetSuperior (DtSimMessage *msg)
virtual void	setLocation (DtVector geocentricLocation)
	Converts geocentricLocation to local coordinates and then provides them to myLocalEntity->place.
virtual void	setLocation (DtVector geocentricLocation, bool &dataAvailable)
	dataAvailable will indicate whether all data needed was paged in.
virtual void	processSetHeading (DtSimMessage *msg)
	Verifies that the message contains a DtSetHeadingRequest and if so pulls the requested heading out of the message.
virtual void	setHeading (DtReal heading)
	Calls place on myLocalEntity with the requested heading.
virtual void	enable ()
	Override to (re)add set data request callbacks.
virtual void	disable ()
	Override to remove set data request callbacks.
virtual void	tick ()
	Checks the #myPendingSetLocationRequest and if the terrain is available the location in #myPendingSetLocationRequest setLocation is called.
virtual bool	tickWhileDestroyed () const
	Tick while destroyed so that sets that do some processing during tick can be resolved while the entity is destroyed - for example set location on terrain that is not yet loaded.
virtual bool	createPSR ()
	Creates myProcessState data member, and adds it to our process state repository manager.
Public Member Functions inherited from DtControllerComponent
	DtControllerComponent (const DtString &name, DtVrfObject *owner, DtSimManager *simManager, DtComponentDescriptor *desc=0, DtReaderWriterRegistry *parentRegistry=0)
	(const DtString& name,
virtual	~DtControllerComponent ()
	destructor
virtual DtSimRadio *	radio ()
	The radio this component is listening to.
virtual void	taskNotify (const DtSimTask &task)
	This is used by the entity to notify all controllers that a new task has been received.
virtual void	clearTask ()
	Called when you want to clear out this component's task state.
Public Member Functions inherited from DtSimComponent
	DtSimComponent (const DtString &name, DtVrfObject *owner, DtSimManager *simManager, DtComponentDescriptor *desc=0, DtReaderWriterRegistry *parentRegistry=0)
virtual	~DtSimComponent ()
	destructor
void	setParentSystem (DtComponentSystem *system)
	Sets the parent system of this component.
virtual bool	postAddComponentsInit ()
	Called after all components have been created, initialized and added to the component manager.
virtual void	registerAttributeFunctions ()
	Called to register functions that provide system attribute values.
virtual void	preFirstTickInit ()
	This function can be overridden to initialize a component before it is ticked for the first time.
virtual void	postTick ()
	This function is called immediately after tick() is called.
virtual void	timedTick ()
	This version of tick checks to see if the time to tick has arrived.
virtual void	setMinTickPeriod (double minTickPeriod)
	specifies a minimum tick period (which can also be thought of as
virtual double	minTickPeriod () const
	access the minimum tick period
virtual void	setMinTickPeriodVariance (double minTickPeriodVariance)
	set the variance in the minimum tick time
virtual double	minTickPeriodVariance () const
	access the variance in the minimum tick period
virtual void	setNextTickTime (double nextTickTime)
	The next tick time is normally calculated internally.
virtual double	nextTickTime () const
	access the next tick time
virtual double	calculateNextTickTime () const
	The next tick time is equal to mySimManager->exerciseClock()-> approximateElapsedRealTime() + myMinTickPeriod + a random # between -myMinTickPeriodVariance/2.
virtual double	calculateFirstTickTime () const
	Returns the first time value that the component should tick at.
virtual void	setEntity (DtVrfObject *entity)
	The entity's state repository is the place that actuator components make updates and other components look to see our current state.
virtual DtSimComponent *	nextComponent ()
	List management functions.
virtual DtSimComponent *	prevComponent ()
virtual void	setListItem (DtListItem *item)
	Used by DtComponentList.
virtual DtListItem *	listItem ()
virtual void	putData (std::string &fp, int indentLevel=0)
	putData writes our type, which is provided by the virtual type accessor of the deriving class.
virtual DtlObjPtr	getData (DtlObjPtr args, const DtReaderWriter::SearchPaths &searchPaths, const DtVariableBindingsList &variableBindings)
	getData is just used to get us past the type in the data stream, since it's not actual stored.
virtual void	addInputPort (DtInputPort *port)
	Adds this input port to the components input port list so that other components can look it up and attach to it.
virtual void	removeInputPort (DtInputPort *port)
virtual DtInputPort *	lookupInputPort (const DtString &portName)
	Returns a pointer to the input port registered on this component with the specified name.
virtual DtList	inputPortList () const
	Returns the list of DtInputPorts registered on this component.
virtual void	addOutputPort (DtOutputPort *port)
	Adds this output port to the components output port list so that other components can look it up and attach to it.
virtual void	removeOutputPort (DtOutputPort *port)
virtual DtOutputPort *	lookupOutputPort (const DtString &portName)
	Returns a pointer to the output port registered on this component with the specified name.
virtual DtList	outputPortList () const
	Returns the list of DtOutputPorts registered on this component.
virtual void	addInputPortGroup (DtInputPortGroup *group)
	Adds this input port to the components input port list so that other components can look it up and attach to it.
virtual void	removeInputPortGroup (DtInputPortGroup *group)
virtual DtInputPortGroup *	lookupInputPortGroup (const DtString &groupName)
	Returns a pointer the input port group registered on this component with the specified name.
virtual DtList	inputPortGroupList () const
	Returns the list of DtInputPortGroups registered on this component.
virtual void	addOutputPortGroup (DtOutputPortGroup *group)
	Adds this output port group to the components output port group list so that other components can look it up and attach to it.
virtual void	removeOutputPortGroup (DtOutputPortGroup *group)
virtual DtOutputPortGroup *	lookupOutputPortGroup (const DtString &groupName)
	Returns a pointer the output port group registered on this component with the specified name.
virtual DtList	outputPortGroupList () const
	Returns the list of DtOutputPortGroups registered on this component.
virtual int	priority () const
	Return the current connection priority for this component.
virtual void	setPriority (int priority)
	Sets a new connection priority for this component, and changes all current outgoing connections from this component to the new value.
double	dT () const
	This is the delta-t for this component, which may or may not be the same as the exerciseClock dT.
virtual void	setDT (double deltaT)
	Note that while dT is calculated internally, this makes it possible to 'lie' to the component about dT if necessary.
virtual void	setComponentDescriptor (DtComponentDescriptor *componentDescriptor)
	The component descriptor specified in the order of battle file or parameter file that was used to create this component.
virtual const DtComponentDescriptor *	componentDescriptor () const
DtVrfProcessStateRepositoryManager *	psrManager ()
virtual DtString	componentFullName () const
virtual DtPhysicalWorld *	physicalWorld ()
	Gets the physical world that this component's entity exists in.
virtual const DtPhysicalWorld *	physicalWorld () const
virtual DtAttachedTerrain *	terrainAttachedTo ()
	Gets the terrain that this component's entity is attached to, if any.
virtual const DtAttachedTerrain *	terrainAttachedTo () const
virtual DtVrfObject *	entity ()
	Gets the entity.
virtual const DtVrfObject *	entity () const
virtual DtSimManager *	simManager ()
	Gets the sim manager.
virtual const DtSimManager *	simManager () const
virtual const Coordinate_System *	coordinateSystem () const
	Gets the coordinate system, as it should always exist if the physical world is in a valid state!
virtual Coordinate_System *	coordinateSystem ()
virtual DtVrfObjectStateRepository *	localStateRepository ()
	Gets the local state repository.
virtual const DtVrfObjectStateRepository *	localStateRepository () const
virtual DtTaskVisualizationMap &	taskVisualizations ()
	Returns the list of task visualizations for this component.
virtual bool	taskVisualizationsActive () const
	Returns true if task visualizations are currently active for this component.
virtual bool	taskVisualizationsEnabled () const
	Returns true if task visualizations are enabled for this component.
virtual bool	isEnabled ()
virtual void	setIsEnabled (bool yesNo)
virtual DtOutputStream &	objectConsoleDebug (const DtString &channel="") const
virtual DtOutputStream &	objectConsoleVerbose (const DtString &channel="") const
virtual DtOutputStream &	objectConsoleInfo (const DtString &channel="") const
virtual DtOutputStream &	objectConsoleWarn (const DtString &channel="") const
virtual DtOutputStream &	objectConsoleError (const DtString &channel="") const
virtual DtSimResourceManager &	resourceManager ()
virtual const DtSimResourceManager &	resourceManager () const
Public Member Functions inherited from DtReaderWriter
	DtReaderWriter ()
	default constructor
	DtReaderWriter (const DtString &name, DtReaderWriterRegistry *parentRegistry=NULL, bool readonly=false)
	real constructor Setting the readonly flag prevents object from writing itself to the stream.
	DtReaderWriter (const DtSymbolString &name, DtReaderWriterRegistry *parentRegistry=NULL, bool readonly=false)
	DtReaderWriter (const DtString &name, const DtReaderWriter &orig, DtReaderWriterRegistry *parentRegistry=NULL)
	pseudo-copy constructor
	DtReaderWriter (const DtSymbolString &name, const DtReaderWriter &orig, DtReaderWriterRegistry *parentRegistry=NULL)
	DtReaderWriter (const DtReaderWriter &, DtReaderWriterRegistry *parentRegistry=NULL)
	copy constructor
const DtReaderWriter &	operator= (const DtReaderWriter &orig)
	assignment operator
bool	operator== (const DtReaderWriter &) const
	Equivalence operator.
bool	operator!= (const DtReaderWriter &rhs)
virtual	~DtReaderWriter ()
	destructor
virtual void	putSelf (std::string &fp, int indentLevel=0, bool writeUnspecified=false, const DtFilename &path=DtFilename::nullFilename())
	Top level call to write itself to file.
virtual void	postPutSelf ()
	Called after either version of put self (file or environment). Default is no-op.
virtual void	prePutSelf ()
	Called before either version of put self (file or environment). Default is no-op.
virtual void	getSelf (DtlObjPtr args, const DtReaderWriter::SearchPaths &searchPaths=SearchPaths(), const DtVariableBindingsList &variableBindings=nullVariableReference())
	Top level to read itself from an input stream.
virtual void	postGetSelf ()
	Called after either version of getSelf (mtl or environment). Default is no-op.
virtual void	preGetSelf ()
	Called before either version of get self (file or environment). Default is no-op.
virtual void	writeSelf (std::string &fp, int indentLevel=0, bool writeUnspecified=false, const DtFilename &path=DtFilename::nullFilename())
	Called from putSelf, calls myRegistry.putSelf which in turn calls putSelf on each reader/writer in the registry.
virtual DtSymbolString	name () const
	Accessor for name of this readable/writable object.
virtual void	addAlias (const DtSymbolString &alias)
	Add an alias as an alternative name for this object.
virtual void	addAlias (const DtString &alias)
virtual bool	hasAlias (const DtSymbolString &alias)
virtual const aliasContainer &	aliases () const
virtual void	setReadonly (bool flag)
	Set read-only flag.
bool	isReadonly () const
virtual void	reset ()
	For those reader/writer items that support it, resets the reader/writer value to original state Default is no-op.
virtual int	alignment () const
	For those items that are sent over the network via HLA, this will give the network alignment.
virtual bool	variableIsBound () const
virtual void	unbindVariable ()
	Sets the myVariableIsBound flag to false.
virtual void	setName (const DtString &)
	Set the name of the object.
virtual const char *	readerWriterType () const
	Used to supply a string type that this reader writer type is.
virtual const char *	xmlType () const
virtual DtString	prettyPrint () const
	Routine to return a human readable form of the reader/writer variable.
std::string	debugText () const
virtual void	bindVariables (DtVariableBindingsList variableBindings)
	Runs a variable binding pass on this reader writer and any of its children.
virtual std::list < DtVariableNameType >	unboundVariables () const
bool	invalid () const
virtual bool	hasChild (const DtReaderWriter *p) const
	Returns true if this variable has a child p in it's chain.
virtual bool	hasVariableReference () const
	Returns true if this item or any item in the registry (recursive) is a variable reference.
virtual void	bindLocalVariables (const DtVariableBindingsList &variableBindings)
	Checks to see if this RW object is a variable reference that can be bound using the provided bindings.
virtual void	recordUpdateTime () const
	Can be implemented in subclasses to stamp the time when updated.
virtual bool	wasUpdatedSince (DtTime t) const
	Can be implemented in subclasses to return true if an update occurred after the specified time.
virtual bool	changedSinceLastChecked ()
	Returns true if this objects value has changed since the last time this function was called.
virtual bool	peekChangedSinceLastChecked () const
	Returns the value that changedSinceLastChecked would return but does not reset the internal flag.
virtual DtlObjPtr	getData (DtlObjPtr args, const SearchPaths &searchPaths, const DtVariableBindingsList &variableBindings)
virtual void	setValueSpecified (bool specified, bool recurse=false)
	The specified flags are used for optional values.
virtual bool	valueSpecified () const
virtual bool	isVariableReference () const
	Specifies whether or not this reader writer is really a variable that is specified elsewhere.
virtual void	setIsVariableReference (bool value)
virtual void	clearAllVariableReferenceFlags ()
	Clears out all variable reference flags from all readerwriter items in registry recursively.
virtual DtSymbolString	variableName () const
	The variable name, if this object is a variable reference.
virtual void	setVariableName (const DtSymbolString variableName)
virtual const DtReaderWriter *	defaultRWValue () const
	The default value to use if the reader/writer object is a variable and that variable is not specified.
virtual DtReaderWriter *	defaultRWValue ()
virtual void	setDefaultRWValue (DtReaderWriter *)
	Previous default value, if exists, will be removed and replaced with a clone of the supplied variable.
virtual bool	checkAndSetDefaultRWValue (DtlObjPtr args, const DtReaderWriter::SearchPaths &searchPaths=SearchPaths(), const DtVariableBindingsList &variableBindings=nullVariableReference())
	Give the stream, if the stream contains a default value then set it here.
const DtReaderWriterRegistry &	registry () const
	Collection of child DtReaderWriter nodes owned by this object.
DtReaderWriterRegistry &	registry ()
virtual DtPropertyInterface *	property ()
virtual const DtPropertyInterface *	property () const
virtual DtString	toXml () const
virtual bool	toXml (const DtFilename &) const
	Writes contents of xml result to the given filename.
virtual bool	fromXml (const DtString &)
	Restores object from given xml string. Returns true if valid.
virtual bool	fromXmlFile (const DtFilename &)
	Restores object from given xml file.
virtual void	putSelf (DtEnvironmentSP, DtEnvValueSP parent) const
virtual void	putData (DtEnvironmentSP, DtEnvValueSP value) const
	Override to add attributes of actual data.
virtual void	putVariableReference (DtEnvironmentSP, DtEnvValueSP value) const
	Called when the item is a variable reference.
virtual void	getSelf (const DtEnvironmentSP, const DtEnvValueSP root, const SearchPaths &searchPaths=SearchPaths(), const DtVariableBindingsList &bindings=DtVariableBindingsList())
virtual void	getData (const DtEnvironmentSP, const DtEnvValueSP, const SearchPaths &searchPaths=SearchPaths(), const DtVariableBindingsList &bindings=DtVariableBindingsList())
	Gets data from the environment value.
virtual void	unrecognizedItem (const DtEnvironmentSP env, const DtEnvValueSP root, const SearchPaths &searchPaths, const DtVariableBindingsList &varBindings)
	Called when the xml reader tries to parse an unknown reader/writer item. Default is a no-op.
virtual void	getVariableReference (DtEnvironmentSP, DtEnvValueSP value)
	Called when the item is a variable reference.

Static Public Member Functions
static void	setHeadingCallback (DtSimMessage *msg, void *usrData)
static void	setForceCallback (DtSimMessage *msg, void *usrData)
static void	setLocationCallback (DtSimMessage *msg, void *usrData)
static void	setSuperiorCallback (DtSimMessage *msg, void *usrData)
static void	setAppearanceCallback (DtSimMessage *msg, void *usrData)
static void	setCapabilitiesCallback (DtSimMessage *msg, void *usrData)
static void	setAltitudeCallback (DtSimMessage *msg, void *usrData)
static void	setResourceCallback (DtSimMessage *msg, void *usrData)
static void	setSORCallback (DtSimMessage *msg, void *usrData)
static void	setSpeedCallback (DtSimMessage *msg, void *usrData)
static void	setCurrentSpeedCallback (DtSimMessage *msg, void *usrData)
static void	setEngagementRulesCallback (DtSimMessage *msg, void *usrData)
static void	setRestoreCallback (DtSimMessage *msg, void *usrData)
static void	setConcealedCallback (DtSimMessage *msg, void *usrData)
static void	setInvisibleCallback (DtSimMessage *msg, void *usrData)
static void	setAiEnabledCallback (DtSimMessage *msg, void *usrData)
static DtSimComponent *	creator (const DtString &name, DtVrfObject *owner, DtSimManager *simManager, DtComponentDescriptor *desc=0, DtReaderWriterRegistry *parentRegistry=0)
	(const DtString&,DtVrfObject*,DtSimManager*,

Protected Member Functions
	DtLocalEntitySetController ()
	Default constructor; should not be called.
	DtLocalEntitySetController (const DtLocalEntitySetController &orig)
	copy constructor
const DtLocalEntitySetController &	operator= (const DtLocalEntitySetController &orig)
	assignment operator
virtual void	setRadio (DtSimRadio *radio)
	Overrides this so it can register its interest in the set commands.
virtual void	addSetDataCallbacks ()
	Add set data request callbacks.
void	removeSetDataCallbacks ()
	Callbacks are removed when component is disabled or destroyed.
Protected Member Functions inherited from DtControllerComponent
	DtControllerComponent ()
	default constructor
	DtControllerComponent (const DtControllerComponent &orig)
	copy constructor
const DtControllerComponent &	operator= (const DtControllerComponent &orig)
	assignment operator
Protected Member Functions inherited from DtSimComponent
virtual double	computeCurrentTime ()
	Compute current time and myDT.
bool	testInvariant () const
virtual bool	createPortGroups ()
	Called by init.
virtual bool	createPorts ()
	Called by init.
DtVrfProcessStateRepository *	createComponentPsr (const DtString &defaultPsrType, const DtString &defaultPsrName, bool useDescriptorParams=true)
	Creates a PSR for this component and registers it with the PSR manager.
virtual void	updateTaskVisualizations ()
	Called to update task visualizations after every tick.
virtual void	destroyTaskVisualizations ()
	Destroys all task visualizations for this component.
virtual void	destroyTaskVisualization (const DtString &name)
	Destroys an existing task visualization.
virtual DtPointTaskVisualizationPtr	pointTaskVisualization (const DtString &name)
	Finds an existing or creates a new point task visualization with the given name.
virtual DtLineTaskVisualizationPtr	lineTaskVisualization (const DtString &name)
	Finds an existing or creates a new line task visualization with the given name.
virtual DtAreaTaskVisualizationPtr	areaTaskVisualization (const DtString &name)
	Finds an existing or creates a new area task visualization with the given name.
virtual DtTextTaskVisualizationPtr	textTaskVisualization (const DtString &name)
	Finds an existing or creates a new text task visualization with the given name.
double	calculateNextTaskVisTickTime () const
	Determines the next time the task visualizations should be ticked.
Protected Member Functions inherited from DtReaderWriter
virtual void	bindToRwAsVariable (const DtReaderWriter *rw)
	Copies values from the specified DtReaderWriter.
Protected Member Functions inherited from DtObjectDebugger< DtReaderWriter >
	DtObjectDebugger ()
	DtObjectDebugger (const DtObjectDebugger &)
	~DtObjectDebugger ()
Protected Member Functions inherited from DtObjectDebugger< DtSimComponent >
	DtObjectDebugger ()
	DtObjectDebugger (const DtObjectDebugger &)
	~DtObjectDebugger ()

Protected Attributes
DtVrfObject *	myLocalEntity
	Cached pointer to parent object.
DtLocalEntitySetControllerPSR *	myProcessState
	Container for state data associated with this component.
Protected Attributes inherited from DtControllerComponent
DtSimRadio *	myRadio
	Controller components can send messages.
Protected Attributes inherited from DtSimComponent
DtVrfObject *	myEntity
DtVrfObjectStateRepository *	myLocalStateRepository
DtSimManager *	mySimManager
DtComponentSystem *	mySystem
	Pointer to the DtComponentSystem that this component belongs.
DtListItem *	myListItem
DtInputPortMap	myInputPortList
DtOutputPortMap	myOutputPortList
DtInputPortGroupMap	myInputPortGroupList
DtOutputPortGroupMap	myOutputPortGroupList
int	myPriority
double	myMinTickPeriod
double	myMinTickPeriodVariance
double	myNextTickTime
double	myLastTickSimTime
double	myDT
bool	myIsEnabled
	Indicates whether this component should be enabled for ticking or not.
bool	myFirstTick
	Initialized to true in the constructor, set to false by the first call to postTick.
bool	myIsThreadSafe
	Whether this component can be use the DtCriticalSection versions of the tick functions and be ticked in parallel with other components Defaults to false.
const DtComponentDescriptor *	myComponentDescriptor
std::list < DtVrfProcessStateRepository * >	myComponentPsrs
	List of PSRs made using createComponentPsr() that will be deleted by this component when it is destroyed.
bool	myTickEveryFrame
	Flag indicating that tickPeriod is set to 0, and the component will tick every frame.
DtTaskVisualizationMap	myTaskVisualizations
	The visualization objects to be drawn for this component.
double	myNextTaskVisTickTime
	The next tick time for updating the task visualizations.
Protected Attributes inherited from DtReaderWriter
const DtSymbolString	myName
DtReaderWriterRegistry	myRegistry
DtReaderWriterRegistry *	myParentRegistry
bool	myValueSpecified
bool	myReadOnlyFlag
bool	myIsVariableReference
DtSymbolString	myVariableName
bool	myVariableIsBound
DtReaderWriter *	myDefaultValue
aliasContainer	myAliases
	Container for the aliases which represent alternative names for the object.
bool	myInvalid
	Set to true if there is a problem reading this item.
bool	myChangedFlag
	Set to true when value changes Set to false when value checked with changedSinceLastChecked.

Additional Inherited Members
Public Types inherited from DtReaderWriter
typedef std::vector < DtSymbolString >	aliasContainer
typedef std::vector < DtSymbolString >::iterator	aliasIter
typedef std::vector < DtSymbolString > ::const_iterator	aliasConstIter
typedef std::vector< DtFilename >	SearchPaths
typedef std::pair < DtSymbolString, DtString >	DtVariableNameType
typedef DtReaderWriterFactory *(*	DtReaderWriterFactoryCreatorFcn )()
Protected Types inherited from DtSimComponent
typedef std::map< DtString, DtInputPort * >	DtInputPortMap
typedef std::map< DtString, DtOutputPort * >	DtOutputPortMap
typedef std::map< DtString, DtInputPortGroup * >	DtInputPortGroupMap
typedef std::map< DtString, DtOutputPortGroup * >	DtOutputPortGroupMap
Static Protected Attributes inherited from DtSimComponent
static DtSimComponentFactory *	myFactory

Detailed Description

DtLocalEntitySetController is a controller that handles all DtSetDataRequest messages for an entity and updates the entity's state repository as appropriate.

Uses Descriptor Type: DtComponentDescriptor

Examples

• Local Entity Set Controller

Constructor & Destructor Documentation

DtLocalEntitySetController::DtLocalEntitySetController	(	const DtString &	name,
		DtVrfObject *	owner,
		DtSimManager *	simManager,
		DtComponentDescriptor *	desc = 0,
		DtReaderWriterRegistry *	parentRegistry = 0
	)

(const DtString&,DtVrfObject*,DtSimManager*,

Parameters

name	Reader writer name of this component.
owner	The DtVrfObject that owns this component
simManager	The simulation manager (provides access to terrain, message interface, simulation clock).
desc	The component descriptor used to initialize this component.
parentRegistry	Pointer to the parent reader writer registry (the containing object that reads/writes this object).

(const DtString&,DtVrfObject*,DtSimManager*, DtComponentDescriptor*,DtReaderWriterRegistry* parentRegistry)

virtual DtLocalEntitySetController::~DtLocalEntitySetController ( )

virtual

destructor

DtLocalEntitySetController::DtLocalEntitySetController ( )

protected

Default constructor; should not be called.

Here because the compiler will generate an unprotected one otherwise.

DtLocalEntitySetController::DtLocalEntitySetController ( const DtLocalEntitySetController &  orig )

protected

copy constructor

Member Function Documentation

virtual bool DtLocalEntitySetController::init ( )

virtual

calls createPSR()

Reimplemented from DtControllerComponent.

Reimplemented in DtAggregatedSetController.

virtual const char* DtLocalEntitySetController::type ( ) const

virtual

Returns a string identifies the class type of component.

Type values are defined in compTypes.h. DtSimComponent creation functions are registered with the DtSimComponentFactory using the type values as the key. Warning: this function should always return the same pointer and it should be valid forever. This means the data should be static.

Returns

DtLocalEntitySetControllerType

Implements DtControllerComponent.

Reimplemented in DtAirVehicleSetController, DtCulturalFeatureSetController, DtFixedWingEntitySetController, DtHumanSetController, and DtSurfaceEntitySetController.

virtual void DtLocalEntitySetController::processSetForce ( DtSimMessage *  msg )

virtual

virtual void DtLocalEntitySetController::processSetAppearance ( DtSimMessage *  msg )

virtual

Reimplemented in DtHumanSetController.

virtual void DtLocalEntitySetController::processSetCapabilities ( DtSimMessage *  msg )

virtual

virtual void DtLocalEntitySetController::processSetAltitude ( DtSimMessage *  msg )

virtual

Reimplemented in DtAirVehicleSetController, DtCulturalFeatureSetController, and DtFixedWingEntitySetController.

virtual void DtLocalEntitySetController::processSetResource ( DtSimMessage *  msg )

virtual

virtual void DtLocalEntitySetController::processSetSOR ( DtSimMessage *  msg )

virtual

virtual void DtLocalEntitySetController::processSetSpeed ( DtSimMessage *  msg )

virtual

Reimplemented in DtFixedWingEntitySetController.

virtual void DtLocalEntitySetController::processSetCurrentSpeed ( DtSimMessage *  msg )

virtual

Reimplemented in DtFixedWingEntitySetController.

virtual void DtLocalEntitySetController::processSetEngagementRules ( DtSimMessage *  msg )

virtual

virtual void DtLocalEntitySetController::processSetRestore ( DtSimMessage *  msg )

virtual

Reimplemented in DtSurfaceEntitySetController.

virtual void DtLocalEntitySetController::processSetConcealed ( DtSimMessage *  msg )

virtual

virtual void DtLocalEntitySetController::processSetInvisible ( DtSimMessage *  msg )

virtual

virtual void DtLocalEntitySetController::processSetAiEnabled ( DtSimMessage *  msg )

virtual

Reimplemented in DtAggregatedSetController.

virtual void DtLocalEntitySetController::processSetLocation ( DtSimMessage *  msg )

virtual

Verifies that the message contains a DtSetLocationRequest and if so pulls the requested location out of the message.

If terrain data for the new locations of all the support points is available, setLocation is called immediately otherwise the pending request is set in myProcessState to allow tick() to call setLocation once the terrain gets paged in. Subsequent calls will override the queued values.

virtual void DtLocalEntitySetController::processSetSuperior ( DtSimMessage *  msg )

virtual

virtual void DtLocalEntitySetController::setLocation ( DtVector  geocentricLocation )

virtual

Converts geocentricLocation to local coordinates and then provides them to myLocalEntity->place.

virtual void DtLocalEntitySetController::setLocation ( DtVector  geocentricLocation, bool &  dataAvailable  )

virtual

dataAvailable will indicate whether all data needed was paged in.

Reimplemented in DtAirVehicleSetController, and DtFixedWingEntitySetController.

virtual void DtLocalEntitySetController::processSetHeading ( DtSimMessage *  msg )

virtual

Verifies that the message contains a DtSetHeadingRequest and if so pulls the requested heading out of the message.

If terrain data for the new locations of all the support points is available, setHeading is called immediately otherwise the pending request is set in myProcessState to allow tick() to call setHeading once the terrain gets paged in. Subsequent calls will override the queued values.

Reimplemented in DtAirVehicleSetController.

virtual void DtLocalEntitySetController::setHeading ( DtReal  heading )

virtual

Calls place on myLocalEntity with the requested heading.

Reimplemented in DtAirVehicleSetController.

virtual void DtLocalEntitySetController::enable ( )

virtual

Override to (re)add set data request callbacks.

Reimplemented from DtSimComponent.

Reimplemented in DtAggregatedSetController.

virtual void DtLocalEntitySetController::disable ( )

virtual

Override to remove set data request callbacks.

Reimplemented from DtSimComponent.

Reimplemented in DtAggregatedSetController.

virtual void DtLocalEntitySetController::tick ( )

virtual

Checks the #myPendingSetLocationRequest and if the terrain is available the location in #myPendingSetLocationRequest setLocation is called.

Reimplemented from DtSimComponent.

Reimplemented in DtAggregatedSetController.

virtual bool DtLocalEntitySetController::tickWhileDestroyed ( ) const

inlinevirtual

Tick while destroyed so that sets that do some processing during tick can be resolved while the entity is destroyed - for example set location on terrain that is not yet loaded.

Reimplemented from DtSimComponent.

virtual bool DtLocalEntitySetController::createPSR ( )

virtual

Creates myProcessState data member, and adds it to our process state repository manager.

Passes in the name and type specified in the component descriptor (if they exist) to the DtVrfProcessStateRepository::createRepository factory method. If the name and/or type is not specified, DtVrfLocalEntitySetControllerProcessStateRepositoryType is used from procSRTypes.h.

static void DtLocalEntitySetController::setHeadingCallback ( DtSimMessage *  msg, void *  usrData  )

static

static void DtLocalEntitySetController::setForceCallback ( DtSimMessage *  msg, void *  usrData  )

static

static void DtLocalEntitySetController::setLocationCallback ( DtSimMessage *  msg, void *  usrData  )

static

static void DtLocalEntitySetController::setSuperiorCallback ( DtSimMessage *  msg, void *  usrData  )

static

static void DtLocalEntitySetController::setAppearanceCallback ( DtSimMessage *  msg, void *  usrData  )

static

static void DtLocalEntitySetController::setCapabilitiesCallback ( DtSimMessage *  msg, void *  usrData  )

static

static void DtLocalEntitySetController::setAltitudeCallback ( DtSimMessage *  msg, void *  usrData  )

static

static void DtLocalEntitySetController::setResourceCallback ( DtSimMessage *  msg, void *  usrData  )

static

static void DtLocalEntitySetController::setSORCallback ( DtSimMessage *  msg, void *  usrData  )

static

static void DtLocalEntitySetController::setSpeedCallback ( DtSimMessage *  msg, void *  usrData  )

static

static void DtLocalEntitySetController::setCurrentSpeedCallback ( DtSimMessage *  msg, void *  usrData  )

static

static void DtLocalEntitySetController::setEngagementRulesCallback ( DtSimMessage *  msg, void *  usrData  )

static

static void DtLocalEntitySetController::setRestoreCallback ( DtSimMessage *  msg, void *  usrData  )

static

Reimplemented in DtSurfaceEntitySetController.

static void DtLocalEntitySetController::setConcealedCallback ( DtSimMessage *  msg, void *  usrData  )

static

static void DtLocalEntitySetController::setInvisibleCallback ( DtSimMessage *  msg, void *  usrData  )

static

static void DtLocalEntitySetController::setAiEnabledCallback ( DtSimMessage *  msg, void *  usrData  )

static

Reimplemented in DtAggregatedSetController.

static DtSimComponent* DtLocalEntitySetController::creator ( const DtString &  name, DtVrfObject *  owner, DtSimManager *  simManager, DtComponentDescriptor *  desc = 0, DtReaderWriterRegistry *  parentRegistry = 0  )

static

(const DtString&,DtVrfObject*,DtSimManager*,

Parameters

name	Reader writer name of this component.
owner	The DtVrfObject that owns this component
simManager	The simulation manager (provides access to terrain, message interface, simulation clock).
desc	The component descriptor used to initialize this component.
parentRegistry	Pointer to the parent reader writer registry (the containing object that reads/writes this object).

(const DtString&,DtVrfObject*,DtSimManager*, DtComponentDescriptor*,DtReaderWriterRegistry* parentRegistry)

Returns

New instance of this class.

Reimplemented in DtAggregatedSetController, DtAirVehicleSetController, DtFixedWingEntitySetController, DtCulturalFeatureSetController, DtHumanSetController, DtSurfaceEntitySetController, vrfAddSetExample::MyAirVehicleSetController, vrfAddSetExample::MyFixedWingEntitySetController, vrfAddSetExample::MyLocalEntitySetController, and vrfAddSetExample::MyHumanSetController.

const DtLocalEntitySetController& DtLocalEntitySetController::operator= ( const DtLocalEntitySetController &  orig )

protected

assignment operator

virtual void DtLocalEntitySetController::setRadio ( DtSimRadio *  radio )

protectedvirtual

Overrides this so it can register its interest in the set commands.

Reimplemented from DtControllerComponent.

Reimplemented in DtAggregatedSetController, DtHumanSetController, DtSurfaceEntitySetController, vrfAddSetExample::MyAirVehicleSetController, vrfAddSetExample::MyFixedWingEntitySetController, vrfAddSetExample::MyLocalEntitySetController, and vrfAddSetExample::MyHumanSetController.

virtual void DtLocalEntitySetController::addSetDataCallbacks ( )

protectedvirtual

Add set data request callbacks.

Set data request callbacks are added when component is first created, and whenever component is enabled.

Reimplemented in DtAirVehicleSetController, DtCulturalFeatureSetController, DtSurfaceEntitySetController, and DtAggregatedSetController.

void DtLocalEntitySetController::removeSetDataCallbacks ( )

protected

Callbacks are removed when component is disabled or destroyed.

Non-virtual because it is called from the destructor.

Reimplemented in DtAggregatedSetController.

Member Data Documentation

DtVrfObject* DtLocalEntitySetController::myLocalEntity

protected

Cached pointer to parent object.

DtLocalEntitySetControllerPSR* DtLocalEntitySetController::myProcessState

protected

Container for state data associated with this component.

This state is saved and restored as part of a scenario (or checkpoint).

---

The documentation for this class was generated from the following file:

• /exports/nfedora7-1/nightly/docs/vrforcesDevelopment.vrf4-6-branch/include/vrfmodel/localEntitySetController.h
