DtRemoteExtendedPropertiesNetInterface< BaseNetInterface, BaseStateRepository > Class Template Reference

Implements the DtRemoteExtendedPropertiesNetInterface class template. More...

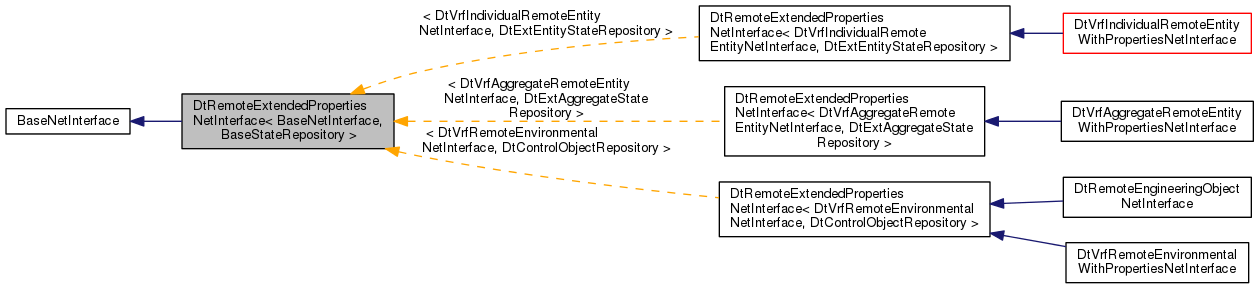

Inheritance diagram for DtRemoteExtendedPropertiesNetInterface< BaseNetInterface, BaseStateRepository >:

Public Member Functions
	DtRemoteExtendedPropertiesNetInterface (const DtString &name, DtVrfObject *simObject, DtReaderWriterRegistry *parentRegistry=0, bool publishObject=true)
	read/writable constructor More...
	DtRemoteExtendedPropertiesNetInterface (const DtRemoteExtendedPropertiesNetInterface< BaseNetInterface, BaseStateRepository > &orig, DtReaderWriterRegistry *parentRegistry=0)
	copy constructor More...
const DtRemoteExtendedPropertiesNetInterface &	operator= (const DtRemoteExtendedPropertiesNetInterface< BaseNetInterface, BaseStateRepository > &orig)
	assignment operator More...
virtual	~DtRemoteExtendedPropertiesNetInterface ()
	destructor More...
virtual bool	initExtendedProperties ()
	Initializer. More...
virtual void	initializeNetWithProperties ()=0
	Initializes network state rep with state and parameter properties. More...
virtual void	updateFromReflectedObject ()
	Calls the base class function to copy the network data to the local state repository, then does the same for the extended property attributes. More...

Static Public Member Functions
static DtSimObjectNetInterface *	creator (const DtString &name, DtVrfObject *simObject, DtReaderWriterRegistry *parentRegistry, bool publishObject)

Public Attributes
bool	myIsUninitialized
std::map< DtString, DtReaderWriterRegistryData * >	myStatePropertyMap
std::map< DtString, DtReaderWriterRegistryData * >	myParamPropertyMap

Protected Member Functions
	DtRemoteExtendedPropertiesNetInterface ()
	default constructor More...

Detailed Description

template<typename BaseNetInterface, typename BaseStateRepository>
class DtRemoteExtendedPropertiesNetInterface< BaseNetInterface, BaseStateRepository >

Implements the DtRemoteExtendedPropertiesNetInterface class template.

Extends an existing remote net interface class to give it the ability to receive extended properties.

Constructor & Destructor Documentation

template<typename BaseNetInterface, typename BaseStateRepository>

DtRemoteExtendedPropertiesNetInterface< BaseNetInterface, BaseStateRepository >::DtRemoteExtendedPropertiesNetInterface ( )

inlineprotected

default constructor

template<typename BaseNetInterface, typename BaseStateRepository>

DtRemoteExtendedPropertiesNetInterface< BaseNetInterface, BaseStateRepository >::DtRemoteExtendedPropertiesNetInterface ( const DtString &  name, DtVrfObject *  simObject, DtReaderWriterRegistry *  parentRegistry = 0, bool  publishObject = true  )

inline

read/writable constructor

template<typename BaseNetInterface, typename BaseStateRepository>

DtRemoteExtendedPropertiesNetInterface< BaseNetInterface, BaseStateRepository >::DtRemoteExtendedPropertiesNetInterface ( const DtRemoteExtendedPropertiesNetInterface< BaseNetInterface, BaseStateRepository > &  orig, DtReaderWriterRegistry *  parentRegistry = 0  )

inline

copy constructor

template<typename BaseNetInterface, typename BaseStateRepository>

virtual DtRemoteExtendedPropertiesNetInterface< BaseNetInterface, BaseStateRepository >::~DtRemoteExtendedPropertiesNetInterface ( )

inlinevirtual

destructor

Member Function Documentation

template<typename BaseNetInterface, typename BaseStateRepository>

const DtRemoteExtendedPropertiesNetInterface& DtRemoteExtendedPropertiesNetInterface< BaseNetInterface, BaseStateRepository >::operator= ( const DtRemoteExtendedPropertiesNetInterface< BaseNetInterface, BaseStateRepository > &  orig )

inline

assignment operator

template<typename BaseNetInterface, typename BaseStateRepository>

virtual bool DtRemoteExtendedPropertiesNetInterface< BaseNetInterface, BaseStateRepository >::initExtendedProperties ( )

inlinevirtual

Initializer.

template<typename BaseNetInterface, typename BaseStateRepository>

virtual void DtRemoteExtendedPropertiesNetInterface< BaseNetInterface, BaseStateRepository >::initializeNetWithProperties ( )

pure virtual

Initializes network state rep with state and parameter properties.

Implemented in DtVrfAggregateRemoteEntityWithPropertiesNetInterface, DtVrfIndividualRemoteEntityWithPropertiesNetInterface, DtVrfRemoteEnvironmentalWithPropertiesNetInterface, and DtRemoteEngineeringObjectNetInterface.

template<typename BaseNetInterface, typename BaseStateRepository>

virtual void DtRemoteExtendedPropertiesNetInterface< BaseNetInterface, BaseStateRepository >::updateFromReflectedObject ( )

inlinevirtual

Calls the base class function to copy the network data to the local state repository, then does the same for the extended property attributes.

Reimplemented in MyIndividualRemoteEntityNetInterface.

template<typename BaseNetInterface, typename BaseStateRepository>

static DtSimObjectNetInterface* DtRemoteExtendedPropertiesNetInterface< BaseNetInterface, BaseStateRepository >::creator ( const DtString &  name, DtVrfObject *  simObject, DtReaderWriterRegistry *  parentRegistry, bool  publishObject  )

inlinestatic

Member Data Documentation

template<typename BaseNetInterface, typename BaseStateRepository>

bool DtRemoteExtendedPropertiesNetInterface< BaseNetInterface, BaseStateRepository >::myIsUninitialized

template<typename BaseNetInterface, typename BaseStateRepository>

std::map<DtString, DtReaderWriterRegistryData *> DtRemoteExtendedPropertiesNetInterface< BaseNetInterface, BaseStateRepository >::myStatePropertyMap

template<typename BaseNetInterface, typename BaseStateRepository>

std::map<DtString, DtReaderWriterRegistryData *> DtRemoteExtendedPropertiesNetInterface< BaseNetInterface, BaseStateRepository >::myParamPropertyMap

---

The documentation for this class was generated from the following file:

• /data/exports/nrhent7-1/nightly/docs/vrForces.vrf4-8-branch/include/vrfobjcore/remoteExtendedPropertiesNetInterface.h
