DtVrfObject is used to represent any type of simulated object (entities, aggregate, control objects) in a VR-Forces application. More...

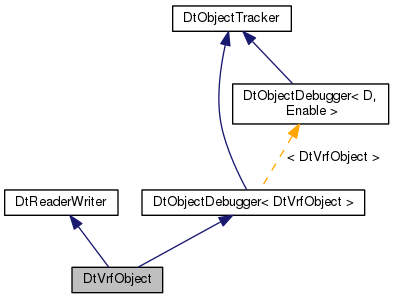

Inheritance diagram for DtVrfObject:

[legend]

Public Types
enum	ChangeFlag { MarkingText = 1, ForceType, ObjectLabel, OverlayParent, ObjectType, SubordinateOfForceLevel }

typedef std::list < DtLuaScriptInterfaceExtension::CreatorUserPair >	ScriptInterfaceExtensions


typedef std::pair < DtVrfObjectCallbackFunction, void * >	DtVrfObjectCallbackDataPair
	Definitions of container types used in the postInitFromParameters callback mechanism. More...

typedef std::pair< const DtVrfObject *, DtVrfObjectCallbackDataPair >	DtVrfObjectCallbackDataPair2

Public Types inherited from DtReaderWriter
typedef std::vector < DtSymbolString >	aliasContainer

typedef std::vector < DtSymbolString >::iterator	aliasIter

typedef std::vector < DtSymbolString > ::const_iterator	aliasConstIter

typedef std::vector< DtFilename >	SearchPaths

typedef std::pair < DtSymbolString, DtString >	DtVariableNameType

typedef DtReaderWriterFactory (	DtReaderWriterFactoryCreatorFcn )()

Public Member Functions
	DtVrfObject (const DtObjectType &objectType, DtVrfObjectManager vrfObjectManager, bool createLocalObject=true, bool publishLocalObject=true, const DtEntityIdentifier &objectIdentifier=DtEntityIdentifier::nullId(), const DtGlobalObjectDesignator globalId=0, DtReflectedObject reflectedObject=0, const DtString &objectName=DtString::nullString(), const DtString &objectLabel=DtString::nullString(), DtForceType forceType=DtForceOther, const DtList vertices=0, const DtTaitBryan orientation=0, bool projection=false, bool closedFigure=false, const DtAppearance &appearance=DtAppearance::nullAppearance(), const DtString &readerWriterName="vrf-object", DtReaderWriterRegistry parentRegistry=0, const DtUUID &uuid=DtUUID::nullUUID(), bool connectToRadioNetowrk=true)

virtual	~DtVrfObject ()
	destructor More...

virtual bool	create (bool createNetworkInterface=true)
	Virtual construction - must be called before any other member functions are called. More...

virtual bool	finalizeObjectCreation ()
	Called to create the network interface (if not already created) and finalize other object creation. More...

virtual void	finalizeObjectRead ()
	Called after the object has been read from a saved scenario. More...

virtual void	setSimulationCapable (bool)
	Get/set whether or not this object is simulation capable. More...

virtual bool	simulationCapable () const

virtual void	prepareForReinitialization ()
	Prepares this object for reinitialization. More...

virtual void	canBeHandedOff ()
	For remote objects that are awaiting the reflected object to be removed, this is called when the reflected object is removed. More...

virtual void	createCommunicationsInterface ()
	Allows an external process to invoke creation of a communications interface, if myCommunicationInterface is NULL. More...

virtual void	createCommunicationsInterface (const DtRadioDescriptorList &descList)
	Allows an external process to invoke creation of a communications interface, if myCommunicationInterface is NULL, and pass a radio descriptor list. More...

virtual void	createSetDataManager ()
	Allows an external process to invoke creation of a DtSetDataManager, if mySetDataManager is NULL. More...

virtual int	vrfSessionId () const
	Return the session id of this object. More...

virtual bool	init ()
	Initialization - must be called after create() and before any other member functions are called. More...

virtual void	tick ()
	Called by create(). More...

virtual void	startTick ()

virtual void	tickComponents ()

virtual void	endTick ()

virtual void	tickPublisherOnly ()
	Ticks only the publisher (net interface) More...

virtual bool	hasGuiKeyword (const DtString &) const
	Returns true if the gui keywords contain the particular keyword specified (the gui keywords are specified in the .entity object) More...

virtual bool	createRepository (DtVrfObjectParameters *parameterEntry)
	Override createRepository() to check if repository created in base class version is a DtSimVrfObjectBaseStateRepository (or a derived type). More...

virtual bool	createTaskManager ()

virtual bool	createScriptInterfaceHandler ()

virtual bool	createComponentManager ()

virtual bool	createVrfObjectPlanManager ()
	Creates myVrfObjectPlanManager based on the type specified in mySubComponentTypes. More...

virtual bool	createRadio ()

virtual bool	createNavigationInterfaceManager ()

virtual bool	initializeComponentManager ()
	Initialize component manager that has been created. Only call once! More...

virtual void	setNavigationEnabled (bool)
	Accessors for navigation enabled. More...

virtual bool	navigationEnabled () const

virtual void	addToPotentialLuaScripts (int)
	Durning object reload from sccenario, controllers can add to this variable, such that when the read is done, an amount of scripts can be preallocated in the lua script manager based on the total number of objects. More...

virtual int	potentialLuaScripts () const

virtual int	scenarioRunId () const
	The id of the scenario being run (if set). Retrieved from the sim manager. More...

virtual double	timeOfDay () const
	Gets the current time of day from the environment manager. More...

virtual double	dateAndTimeOfDay () const
	Gets the current date and time of day from the environment manager. More...

virtual DtSharedVrfObjectReference	sharedReference ()
	Returns the shared object reference to this object. Looks it up in object manager. More...

virtual DtSharedVrfObjectReference	sharedReference () const

virtual double	illumination () const
	How illuminated this object is. More...

virtual double	expectedIllumination (double dateAndTimeOfDay) const
	How illuminated we expect this object to be at the given time of day if it remains at its current location. More...

virtual DtSharedVrfObjectReference	weather () const
	Returns the weather object last calculated when the illumination was updated. More...

virtual MAKVRinTerra::DtFeatureGeometry	featureGeometry () const
	Compute DtFeatureGeometry representation of object geometry. More...

virtual void	updateIllumination () const
	Updates illumination value by providing local position to environment manager to calculate illumination value. More...

virtual void	updateWeather ()
	Updates weather object at the entities location. More...

virtual void	setRangeRingsParametersPublisherTickRange (double d)
	Sets the tick rate for updating range rings. Default is 5 seconds plus a random value (set in the range ring publisher) More...

virtual void	createAndInitializeRangeRingsParameterPublisher ()
	Creates range ring publisher and sets tick rate to 5 seconds plus a random value (set in the range ring publisher) More...

virtual bool	needsIlluminationUpdate () const
	Returns true if the entity has moved more than half a degree since (either in lat or lon) the last time the illumination was checked or the calculation time has changed. More...

virtual bool	isOnTopOf (const DtVrfObject *, bool checkSupportPoints=false) const
	Returns true if the entity is almost on top of the entity specified. More...

virtual bool	isOnTopOf (const DtVrfObject *, double d, bool checkSupportPoints=false) const

virtual bool	isSimulationObject () const
	Returns true if this is an entity or a unit. More...

virtual bool	isEntity () const

virtual bool	isUnit () const

virtual bool	intersect (const DtChord &, DtVrfChordIntersectionRecord *record=0) const
	Returns true if this chord intersects this entity. Uses the entities object geometry model. More...

virtual bool	checkAndDisembarkIfEmbarked (const DtVector &localPosition)
	Check terrain hit, and, if entity is embarked, and there is no terrain hit on parent, disembark. Will only check if embarked. More...

virtual bool	checkIfMoveOntoEmbarked (const DtVector &localPosition, DtVrfObject *&hit, const std::list< DtUUID > &additionalIgnore=std::list< DtUUID >())
	Check to see if there are any entities at the location given that can be moved onto for embarkation. More...

virtual bool	hasHighFidelityObjectGeometryModel () const
	Returns true if the object geometry model is high fidelity (loaded from an medf file) More...

virtual bool	isEmbeddedInTerrain () const
	Returns true if the object has its object geometry model embedded into the terrain. More...

virtual bool	needsWeatherAreaUpdate () const
	Returns true if the entity has moved more than half a degree since (either in lat or lon) the last time the illumination was checked or the calculation time has changed for weather. More...

virtual bool	isGlobalPlan () const
	Returns true if this object represents a global plan. More...

virtual const DtSimManager *	simManager () const
	Get a pointer to our sim manager. More...

virtual DtSimManager *	simManager ()

virtual DtSimTaskManager *	taskManager () const
	Get pointers to our various types of subcomponents. More...

virtual DtScriptInterfaceHandler *	scriptInterfaceHandler () const

virtual DtSimComponentManager *	componentManager ()

virtual const DtSimComponentManager *	componentManager () const

virtual DtVrfObjectPlanManager *	vrfObjectPlanManager () const

virtual DtSimRadio *	radio () const

virtual DtVrfObjectStateRepository *	vrfState () const

virtual DtExtent	extent () const
	Returns the extent of the vrfObject, if the vrfObject has one. More...

virtual DtExtent	roughExtent () const

const DtVrfObjectParameters *	parameterEntry () const
	Parameters used by this object in it's definition. More...

const DtMovingObjectParameters *	movingObjectParameterEntry () const
	Moving object parameters used by this object. More...

virtual void	expandExtent (DtExtent &extent) const
	If the vrfObject has geometry, and thus an extent, then this function expands the specified extent to include the vrfObjects extent. More...

virtual void	sendVrfObjectCreated (unsigned long requestId=0, bool requestCreated=true)
	Create and send a DtVrfObjectCreated message about ourself. More...

virtual void	setupFromMessageContent (DtIfModifyVrfObject *ifModVrfObject)
	Setup self from interface messages. More...

virtual void	setIsVrfSimulatedObject (bool b)
	Returns true if object is being simulated by a VR-Forces-simulated object, false if not. More...

virtual bool	isVrfSimulatedObject () const

virtual bool	isVrfSimulated () const

virtual bool	isSimulatingComponents () const
	returns true if object is simulating components VR-Forces components can be attached to non- VR-Forces entities. More...

virtual void	save (std::string &)
	Saves the object to the given std::string. More...

virtual void	putSelf (std::string &fp, int indentLevel=0, bool writeUnspecified=true, const DtFilename &path=DtReaderWriter::appPath())
	Override to write out <use-default> string for unspecified parameters. More...

virtual void	getSelf (DtlObjPtr args, const DtReaderWriter::SearchPaths &searchPaths, const DtVariableBindingsList &variableBindings)
	Override to do additional setup required when reading older oob, ovl files. More...

virtual bool	validNameLength (const DtString &name) const

virtual bool	setMarkingText (const DtString &name, bool rename=true)
	Override to inform the vrfObjectManager when the name changes. More...

virtual void	addVrfObjectChangedCallback (DtVrfObjectCallbackFunction function, void *userData) const
	WARNING: These methods are obsolete but have been retained for backward compatibility. More...

virtual void	removeVrfObjectChangedCallback (DtVrfObjectCallbackFunction function, void *userData) const

virtual void	addNavigationInterfaceChangedCallback (DtVrfObjectCallbackFunction function, void *userData) const
	Add/remove callback for when the navigation interface has changed due to navigation being enabled/disabled. More...

virtual void	removeNavigationInterfaceChangedCallback (DtVrfObjectCallbackFunction function, void *userData) const

virtual void	addVrfObjectPredicateCallback (DtVrfObjectPredicateCallbackFunction function, const DtVrfObjectPredicate &predicate, DtTime evaluationPeriod=0, void *userData=0) const
	Add/remove a callback function to be invoked when the DtVrfObject predicate object associated with it returns true(). More...

virtual void	removeVrfObjectPredicateCallback (DtVrfObjectPredicateCallbackFunction function, const DtVrfObjectPredicate &predicate, DtTime evaluationPeriod=0, void *userData=0) const

virtual int	predicateCallbackCount () const
	For testing. More...

virtual void	invokeVrfObjectPredicateCallbacks ()
	Called each tick. More...

virtual void	setCoordinateSystem (const Coordinate_System *coordinateSystem)
	Sets the coordinate system in mySimState (a DtVrfObjectStateRepository) and in myOvlVertices. More...

virtual const DtVrfObjectManager *	simObjectManager () const

virtual DtVrfObjectManager *	simObjectManager ()

virtual void	setSimObjectManager (DtVrfObjectManager *simObjectManager)

virtual bool	createNetInterface ()

virtual void	setGlobalId (const DtGlobalObjectDesignator &id)
	Set/get the entity's global Id. More...

virtual const DtGlobalObjectDesignator &	globalId () const

virtual const DtString &	globalIdString () const
	Produces the same result as globalId().string(), but the result is cached for faster access in the future. More...

virtual bool	baseSetMarkingText (const DtString &name)
	Set/get the name of the object. More...

virtual const DtString &	markingText () const

virtual const DtString &	objectName () const
	Deprecated as of 4.4 Used for backwards compatibility only. More...

virtual void	addNameAlias (const DtString &name)
	Adds a new string which can be used to reference this object by name. More...

virtual void	unregisterAliases ()
	Unregisters all aliases with object manager and removes the aliases from the local alias list. More...

virtual void	setUUID (const DtUUID &)
	Sets the UUID of this object. Use only if you know the repercussions of setting it! More...

virtual const DtUUID &	uuid () const
	Returns the UUID of this object. More...

virtual const DtString &	objectLabel () const
	Set/get the label of the object. More...

virtual void	setObjectLabel (const DtString &objectLabel)

virtual DtForceType	forceType () const
	Set/get force type. More...

virtual void	setForceType (DtForceType f)

virtual void	setIsSubordinateOfForceLevel (bool)
	Get/set whether or not this item is a subordinate of force level. If changes a change callback will be made. More...

virtual bool	isSubordinateOfForceLevel () const

virtual const DtString &	overlayParent () const
	Set/get the overlay parent of the object. More...

virtual void	setOverlayParent (const DtString &overlayParent)

virtual DtStateRepository *	netState ()
	VR-Link network state repository. More...

virtual const DtStateRepository *	netState () const

virtual DtSimObjectNetInterface *	netInterface ()
	VR-Forces network interface. More...

virtual const DtSimObjectNetInterface *	netInterface () const

virtual void	setNetInterface (DtSimObjectNetInterface *netInterface)

virtual void	setObjectIdentifier (const DtEntityIdentifier &objectId)
	Set/get the object identifier (DIS/RPR site:host:entity). More...

virtual const DtEntityIdentifier &	objectIdentifier () const

virtual const DtString &	objectIdentifierString () const
	Produces the same result as objectIdentifier().string(), but the result is cached for faster access in the future. More...

virtual bool	isLocal () const
	Returns true if object is local (has the same simulation address as the manager), false if not. More...

virtual DtString	type () const
	set by factory on creation More...

virtual DtString	objectClassType () const

virtual void	setObjectClassType (const DtString &objectClassType)
	same as type() More...

virtual void	clearVerticesChangedCallbacks ()
	Clear out vertices changed callback list. More...

virtual void	clearRelativeVerticesChangedCallbacks ()
	Clear out relative vertices changed callback list. More...

virtual void	clearPredicateCallbacks ()
	Clear out object predicate callback list. More...

virtual DtSimObjectStateRepository *	simState ()

virtual const DtSimObjectStateRepository *	simState () const

virtual void	setSimState (DtVrfObjectStateRepository *simState)

void	setEntityType (const DtEntityType &entityType)

const DtEntityType &	entityType () const

void	setDestroyed (bool destroyed)

bool	isDestroyed () const

virtual void	place (const DtVector &location, bool *dataAvailable=0, bool requireAllData=false)
	place entity at 'location', on the ground, keeping its current heading More...

virtual void	place (const DtReal heading, bool *dataAvailable=0, bool requireAllData=false)
	give entity the specified 'heading', but stay at its current location More...

virtual void	place (const DtVector &location, const DtReal heading, bool *dataAvailable=0, bool requireAllData=false)
	place entity at specified 'location' and 'heading' on the ground More...

const DtString &	echelonIdString () const

virtual DtSharedVrfObjectReference	leadEntity () const

virtual DtSharedVrfObjectReference	firstSubordinate () const

virtual DtSharedVrfObjectReference	lastSubordinate () const

virtual DtSharedVrfObjectReference	firstHealthySubordinate () const
	Returns first healthy subordinate if it exists, 0 if not. More...

virtual void	echelonIdChanged ()

virtual const DtObjectId &	objectId () const

virtual const DtObjectType &	objectType () const

virtual bool	isEmbarked () const

virtual DtVector	locationRelativeTo (const DtVector &, const DtVrfObject *relativeTo) const
	Given the local position vector, return a location that is relative to this entity given that position (in parent coordinates) More...

virtual DtVector	velocityRelativeTo (const DtVector &, const DtVrfObject *relativeTo) const
	Given the local velocity vector, return a velocity that is relative to this entity given that velocity (in parent coordinates) More...

virtual DtVector	accelerationRelativeTo (const DtVector &, const DtVrfObject *relativeTo) const
	Given the local acceleration vector, return an acceleration that is relative to this entity given that acceleration (in parent coordinates) More...

virtual DtTaitBryan	orientationRelativeTo (const DtTaitBryan &, const DtVrfObject *relativeTo) const
	Given the local orientation vector, return an orientation that is relative to this entity given that orientation (in parent coordinates) More...

virtual DtSharedVrfObjectReference	embarkedOn () const

virtual bool	isEmbarkedOn (const DtUUID &parent) const

DtAttachedTerrain *	terrainAttachedTo ()

const DtAttachedTerrain *	terrainAttachedTo () const

virtual const DtPhysicalWorld *	physicalWorld () const

virtual DtPhysicalWorld *	physicalWorld ()

void	setAboutToBeRemoved (bool)
	Set to true when object is about to be removed. More...

bool	aboutToBeRemoved () const

virtual DtSetDataManager *	setDataManager ()

virtual const DtSetDataManager *	setDataManager () const

virtual DtVrfObjectCommunicationInterface *	communicationInterface ()

virtual const DtVrfObjectCommunicationInterface *	communicationInterface () const

const DtVrfObjectNavInterface *	navInterface () const

DtVrfObjectNavInterface *	navInterface ()

virtual DtVrfObjectTerrainPreloadManager *	terrainPreloadManager ()

DtVrfObjectSubComponentTypes *	vrfSubComponentTypes () const
	For use in virtual construction. More...

virtual void	duplicateVrfSubComponentTypes ()
	Duplicates the sub component type. More...

virtual void	restoreDuplicatedVrfSubComponentTypes ()
	Restores (if duplicated) to parameter default for sub component types. More...

virtual bool	hasPlan () const

virtual bool	executingPlan () const

virtual bool	isCurrentlyTasked () const

virtual bool	isEllipsoid () const
	Returns true if this object is an ellipsoid object. More...

virtual DtU8	getNextEmitterSystemId ()

virtual void	addScriptExtension (DtLuaScriptInterfaceExtension::CreatorFcn extension, void *usr)
	Add a lua script extension for this entity only. More...

virtual void	removeScriptExtension (DtLuaScriptInterfaceExtension::CreatorFcn extension, void *usr)
	Remove a lua script extension that was previously added. More...

virtual const ScriptInterfaceExtensions &	scriptExtensions () const

virtual void	regenerateUUIDForImport ()
	Regenerates the existing UUID and maps it to be updated for import. More...

virtual std::string	archiveState ()
	Returned the current state of the object (as if putSelf were called) More...

virtual void	addedToObjectManager ()
	Called right after this object is added to the object manager. More...

virtual DtVrfUnderwaterAcoustics *	underwaterAcoustics ()
	Accesses acoustics publisher. Use to set sonar or propulstion noise. More...

virtual DtVrfObjectDeletionHandle	objectDeletionHandle () const

virtual void	updateTerrainEmbeddedGeometry (bool force=false)
	Updates geometry embedded into terrain (if configured) with current info. More...


virtual void	addVerticesChangedCallback (DtVrfObjectCallbackFunction function, void *userData) const
	Adds/removes a callback to be invoked whenever an object's local vertices change. More...

virtual void	removeVerticesChangedCallback (DtVrfObjectCallbackFunction function, void *userData) const


virtual void	addObjectDataChangedCallback (DtVrfObjectDataChangeCallbackList::DtCallbackFunctionType, void *) const
	Adds/removes callbacks for when values in the object have changed. More...

virtual void	removeObjectDataChangedCallback (DtVrfObjectDataChangeCallbackList::DtCallbackFunctionType, void *) const

virtual void	invokeObjectDataChangedCallbacks (ChangeFlag)


virtual void	addRelativeVerticesChangedCallback (DtVrfObjectCallbackFunction function, void *userData) const
	Adds/removes a callback to be invoked whenever an object's relative vertices change. More...

virtual void	removeRelativeVerticesChangedCallback (DtVrfObjectCallbackFunction function, void *userData) const


virtual void	setPublishObject (bool publishObject)
	Set/get flag indicating whether or not object should be published. More...

virtual bool	publishObject () const


virtual DtOutputStream &	objectConsoleDebug (const DtString &channel="") const

virtual DtOutputStream &	objectConsoleVerbose (const DtString &channel="") const

virtual DtOutputStream &	objectConsoleInfo (const DtString &channel="") const

virtual DtOutputStream &	objectConsoleWarn (const DtString &channel="") const

virtual DtOutputStream &	objectConsoleError (const DtString &channel="") const


virtual DtObjectConsole *	objectConsole ()
	Returns a pointer to the object console member of this object. More...

virtual const DtObjectConsole *	objectConsole () const


virtual void	addPostInitFromParamsCallback (DtVrfObjectCallbackFunction fcn, void *usr) const
	Add/remove callback function to be invoked immediately following the point at which the newly created object gets initialized from its parameter entry. More...

virtual void	removePostInitFromParamsCallback (DtVrfObjectCallbackFunction fcn, void *usr) const


virtual bool	convertToRemoteObject (DtString &error)
	Converts this object from a local object (if it is a local object) to an expected remote object. More...

virtual bool	convertToLocalObject (DtString &error, const std::string &archivedState="")
	This object will be converted from a remote object to a locally simulated object. More...


bool	awaitingHandoffCompletion () const

virtual void	completeHandoff (DtReflectedObject *)
	Completes the handoff from the VR-Link perspective. More...


virtual bool	prepareForHandoff ()

virtual void	addHandoffCallbackFunction (DtVrfObjectHandoffCallbackList::DtCallbackFunctionType, void *) const

virtual void	removeHandoffCallbackFunction (DtVrfObjectHandoffCallbackList::DtCallbackFunctionType, void *) const

virtual void	invokeObjectHandoffCallbacks (DtVrfObjectHandoffData::HandoffFlag)


virtual void	addObjectAboutToBeRemovedCallback (DtVrfObjectCallbackList::DtCallbackFunctionType fcn, void *usr) const
	Callback that is invoked when the entity is about to be removed from the simulation. More...

virtual void	removeObjectAboutToBeRemovedCallback (DtVrfObjectCallbackList::DtCallbackFunctionType fcn, void *usr) const

virtual void	invokeVrfObjectAboutToBeRemovedCallbacks ()


virtual void	addObjectModifiedViaMessageCallback (DtVrfObjectCallbackList::DtCallbackFunctionType fcn, void *usr) const
	Callback that is triggered when the object is modified via a VRF modify message. More...

virtual void	removeObjectModifiedViaMessageCallback (DtVrfObjectCallbackList::DtCallbackFunctionType fcn, void *usr) const

virtual void	invokeObjectModifiedViaMessageCallback ()


virtual void	addNewSensorContactCallback (DtVrfObjectCallbackList::DtCallbackFunctionType fcn, void *usr) const
	Callback that is invoked when the entity detects a new sensor contact or when a sensor contact's CID level is increased. More...

virtual void	removeNewSensorContactCallback (DtVrfObjectCallbackList::DtCallbackFunctionType fcn, void *usr) const

virtual void	invokeNewSensorContactCallbacks ()


virtual void	addSetLocationCompleteCallback (DtVrfObjectCallbackList::DtCallbackFunctionType fcn, void *usr) const
	Callback that is invoked when a set location request is completed. More...

virtual void	removeSetLocationCompleteCallback (DtVrfObjectCallbackList::DtCallbackFunctionType fcn, void *usr) const

virtual void	invokeSetLocationCompleteCallbacks ()

Public Member Functions inherited from DtReaderWriter
	DtReaderWriter ()
	default constructor More...

	DtReaderWriter (const DtString &name, DtReaderWriterRegistry *parentRegistry=NULL, bool readonly=false)
	real constructor Setting the readonly flag prevents object from writing itself to the stream. More...

	DtReaderWriter (const DtSymbolString &name, DtReaderWriterRegistry *parentRegistry=NULL, bool readonly=false)

	DtReaderWriter (const DtString &name, const DtReaderWriter &orig, DtReaderWriterRegistry *parentRegistry=NULL)
	pseudo-copy constructor More...

	DtReaderWriter (const DtSymbolString &name, const DtReaderWriter &orig, DtReaderWriterRegistry *parentRegistry=NULL)

	DtReaderWriter (const DtReaderWriter &, DtReaderWriterRegistry *parentRegistry=NULL)
	copy constructor More...

const DtReaderWriter &	operator= (const DtReaderWriter &orig)
	assignment operator More...

bool	operator== (const DtReaderWriter &) const
	Equivalence operator. More...

bool	operator!= (const DtReaderWriter &rhs)

virtual	~DtReaderWriter ()
	destructor More...

virtual void	postPutSelf ()
	Called after either version of put self (file or environment). Default is no-op. More...

virtual void	prePutSelf ()
	Called before either version of put self (file or environment). Default is no-op. More...

virtual void	postGetSelf ()
	Called after either version of getSelf (mtl or environment). Default is no-op. More...

virtual void	preGetSelf ()
	Called before either version of get self (file or environment). Default is no-op. More...

virtual void	writeSelf (std::string &fp, int indentLevel=0, bool writeUnspecified=false, const DtFilename &path=DtFilename::nullFilename())
	Called from putSelf, calls myRegistry.putSelf which in turn calls putSelf on each reader/writer in the registry. More...

virtual DtSymbolString	name () const
	Accessor for name of this readable/writable object. More...

virtual void	addAlias (const DtSymbolString &alias)
	Add an alias as an alternative name for this object. More...

virtual void	addAlias (const DtString &alias)

virtual bool	hasAlias (const DtSymbolString &alias)

virtual const aliasContainer &	aliases () const

virtual void	setReadonly (bool flag)
	Set read-only flag. More...

bool	isReadonly () const

virtual void	reset ()
	For those reader/writer items that support it, resets the reader/writer value to original state Default is no-op. More...

virtual int	alignment () const
	For those items that are sent over the network via HLA, this will give the network alignment. More...

virtual bool	variableIsBound () const

virtual void	unbindVariable ()
	Sets the myVariableIsBound flag to false. More...

virtual void	setName (const DtString &)
	Set the name of the object. More...

virtual const char *	readerWriterType () const
	Used to supply a string type that this reader writer type is. More...

virtual const char *	xmlType () const

virtual DtString	prettyPrint () const
	Routine to return a human readable form of the reader/writer variable. More...

std::string	debugText () const

virtual void	bindVariables (DtVariableBindingsList variableBindings)
	Runs a variable binding pass on this reader writer and any of its children. More...

virtual std::list < DtVariableNameType >	unboundVariables () const

bool	invalid () const

virtual bool	hasChild (const DtReaderWriter *p) const
	Returns true if this variable has a child p in it's chain. More...

virtual bool	hasVariableReference () const
	Returns true if this item or any item in the registry (recursive) is a variable reference. More...

virtual void	bindLocalVariables (const DtVariableBindingsList &variableBindings)
	Checks to see if this RW object is a variable reference that can be bound using the provided bindings. More...

virtual void	recordUpdateTime () const
	Can be implemented in subclasses to stamp the time when updated. More...

virtual bool	wasUpdatedSince (DtTime t) const
	Can be implemented in subclasses to return true if an update occurred after the specified time. More...

virtual bool	changedSinceLastChecked ()
	Returns true if this objects value has changed since the last time this function was called. More...

virtual bool	peekChangedSinceLastChecked () const
	Returns the value that changedSinceLastChecked would return but does not reset the internal flag. More...

virtual void	putData (std::string &fp, int indentLevel=0)
	Deriving class overrides these to get/put class specific data. More...

virtual DtlObjPtr	getData (DtlObjPtr args, const SearchPaths &searchPaths, const DtVariableBindingsList &variableBindings)

virtual void	setValueSpecified (bool specified, bool recurse=false)
	The specified flags are used for optional values. More...

virtual bool	valueSpecified () const

virtual bool	isVariableReference () const
	Specifies whether or not this reader writer is really a variable that is specified elsewhere. More...

virtual void	setIsVariableReference (bool value)

virtual void	clearAllVariableReferenceFlags ()
	Clears out all variable reference flags from all readerwriter items in registry recursively. More...

virtual DtSymbolString	variableName () const
	The variable name, if this object is a variable reference. More...

virtual void	setVariableName (const DtSymbolString variableName)

virtual const DtReaderWriter *	defaultRWValue () const
	The default value to use if the reader/writer object is a variable and that variable is not specified. More...

virtual DtReaderWriter *	defaultRWValue ()

virtual void	setDefaultRWValue (DtReaderWriter *)
	Previous default value, if exists, will be removed and replaced with a clone of the supplied variable. More...

virtual bool	checkAndSetDefaultRWValue (DtlObjPtr args, const DtReaderWriter::SearchPaths &searchPaths=SearchPaths(), const DtVariableBindingsList &variableBindings=nullVariableReference())
	Give the stream, if the stream contains a default value then set it here. More...

const DtReaderWriterRegistry &	registry () const
	Collection of child DtReaderWriter nodes owned by this object. More...

DtReaderWriterRegistry &	registry ()

virtual DtPropertyInterface *	property ()

virtual const DtPropertyInterface *	property () const

virtual DtString	toXml () const

virtual DtRwVariableBindings *	generateVariableBindings () const
	Iterates over the registry (recursively) and returns a variable bindings object that contains all the variables that are contained in this read/writer class. More...

virtual bool	toXml (const DtFilename &) const
	Writes contents of xml result to the given filename. More...

virtual bool	fromXml (const DtString &)
	Restores object from given xml string. Returns true if valid. More...

virtual bool	fromXmlFile (const DtFilename &)
	Restores object from given xml file. More...

virtual void	putSelf (DtEnvironmentSP, DtEnvValueSP parent) const

virtual void	putData (DtEnvironmentSP, DtEnvValueSP value) const
	Override to add attributes of actual data. More...

virtual void	putVariableReference (DtEnvironmentSP, DtEnvValueSP value) const
	Called when the item is a variable reference. More...

virtual void	getSelf (const DtEnvironmentSP, const DtEnvValueSP root, const SearchPaths &searchPaths=SearchPaths(), const DtVariableBindingsList &bindings=DtVariableBindingsList())

virtual void	getData (const DtEnvironmentSP, const DtEnvValueSP, const SearchPaths &searchPaths=SearchPaths(), const DtVariableBindingsList &bindings=DtVariableBindingsList())
	Gets data from the environment value. More...

virtual void	unrecognizedItem (const DtEnvironmentSP env, const DtEnvValueSP root, const SearchPaths &searchPaths, const DtVariableBindingsList &varBindings)
	Called when the xml reader tries to parse an unknown reader/writer item. Default is a no-op. More...

virtual void	getVariableReference (DtEnvironmentSP, DtEnvValueSP value)
	Called when the item is a variable reference. More...

Static Public Member Functions
static void	enableSingleObjectMode ()
	Puts VRF in "single object mode" which limits it to simulating only a single local entity or lifeform object. More...

static bool	singleObjectModeActive ()

static void	addSimObjectCreatorFcn (const DtString &type, DtSimObjectCreatorFcn fcn)

static DtSimObjectFactory *	factory ()
	a DtSimObjectFactory is allocated by the DtSimCreator, and this pointer is set. More...

static void	setFactory (DtSimObjectFactory *factory)

static void	setDefaultNotifyLevel (DtNotifyLevelType level)
	Sets the notify level for all object consoles. More...

static DtNotifyLevelType	defaultNotifyLevel ()

static DtVrfObject *	creator (const DtObjectType &objectType, DtVrfObjectManager simObjectManager, bool createLocalObject=true, bool publishLocalObject=true, const DtEntityIdentifier &objectIdentifier=DtEntityIdentifier::nullId(), const DtGlobalObjectDesignator globalId=0, DtReflectedObject reflectedObject=0, const DtString &objectName=DtString::nullString(), const DtString &objectLabel=DtString::nullString(), DtForceType forceType=DtForceOther, const DtList vertices=0, const DtTaitBryan orientation=0, bool projection=false, bool closedFigure=false, const DtAppearance &appearance=DtAppearance::nullAppearance(), const DtString &readerWriterName=DtString::nullString(), DtReaderWriterRegistry parentRegistry=0, const DtUUID &uuid=DtUUID::nullUUID(), bool connectToRadioNetowrk=true)
	Returns a newly created DtVrfObject. More...

static DtVrfObject *	createObject (const DtObjectType &objectType, DtVrfObjectManager vrfObjectManager, const DtString &classType, bool createLocalObject=true, bool publishLocalObject=true, const DtEntityIdentifier &objectIdentifier=DtEntityIdentifier::nullId(), const DtGlobalObjectDesignator globalId=0, DtReflectedObject reflectedObject=0, const DtString &objectName=DtString::nullString(), const DtString &objectLabel=DtString::nullString(), DtForceType forceType=DtForceOther, const DtList vertices=0, const DtTaitBryan orientation=0, bool projection=false, bool closedFigure=false, const DtAppearance &appearance=DtAppearance::nullAppearance(), const DtString &readerWriterName=DtString::nullString(), DtReaderWriterRegistry parentRegistry=0, const DtUUID &initialUUID=DtUUID::nullUUID(), bool connectToRadioNetowrk=true)
	Create and initialize a new sim object, using the factory. More...

static DtVrfObject *	createObject (const DtObjectType &objectType, DtVrfObjectManager vrfObjectManager, const DtString &classType, bool createLocalObject=true, bool publishLocalObject=true, const DtEntityIdentifier &objectIdentifier=DtEntityIdentifier::nullId(), const DtGlobalObjectDesignator globalId=0, DtReflectedObject reflectedObject=0, const DtString &objectName=DtString::nullString(), const DtString &objectLabel=DtString::nullString(), DtForceType forceType=DtForceOther, const DtVector &location=DtVector::zero(), const DtTaitBryan orientation=0, bool projection=false, bool closedFigure=false, const DtAppearance &appearance=DtAppearance::nullAppearance(), const DtString &readerWriterName=DtString::nullString(), DtReaderWriterRegistry *parentRegistry=0, const DtUUID &uuid=DtUUID::nullUUID(), bool connectToRadioNetowrk=true)
	Create and initialize a new sim object, using the factory. More...

static DtVrfObject *	createAndInit (DtVrfObjectManager *vrfObjectManager, DtlObjPtr mtlStream)
	Create and initialize a new sim object from a mtl stream. More...

static DtVrfObject *	createAndInitForSimulationObjectGroup (DtVrfObjectManager *vrfObjectManager, DtlObjPtr mtlStream, int flags, int force, const DtVector &geocentricOffsetLocation, double offsetRotation=0.)
	Create and initialize a new sim object from a mtl stream as created as part of a simulation object group. More...

static void	verticesChangedCallback (const DtVrfObject obj, DtVrfObjectPredicateEvaluator predicateEval, void *userData)
	Invokes all vertices-changed callbacks that have registered with the object. More...

static void	relativeVerticesChangedCallback (const DtVrfObject obj, DtVrfObjectPredicateEvaluator predicateEval, void *userData)
	Invokes all relative-vertices-changed callbacks. More...

static void	postInitFromParamsCallback (DtVrfObjectStateRepository &stateRepository, void *usr)
	Callback function registered with object's state repository. More...

Static Public Member Functions inherited from DtReaderWriter
static void	putIndent (std::string &fp, int indentLevel)

static const DtVariableBindingsList &	nullVariableReference ()

static void	setPostGetSelfCallback (DtGetSelfCallbackFcn fcn, void *usrData)

static void	setPrePutSelfCallback (DtPutSelfCallbackFcn fcn, void *usrData)

static void	setPutIndent (bool)

static bool	putIndent ()

static const char *	theXmlType ()
	The type that is used when archiving to an XML stream. More...

static const DtFilename &	appPath ()
	Gets the current working directory. More...

static void	setFactoryCreatorFunction (DtReaderWriterFactoryCreatorFcn fcn)
	Sets the function to create the DtReaderWriterFactory. More...

static void	createReaderWriterFactory ()

static void	cleanupFactory ()

static DtReaderWriterFactory *	factory ()

static void	setOutputStream (DtOutputStream *stream)

static DtOutputStream &	outputStream ()

static DtReaderWriter *	createFromXmlFile (const DtFilename &, bool createAsProperty=false)
	Given a filename, returns a newly created reader/writer object from the object found within. More...

static DtReaderWriter *	createFromXml (const DtString &, bool createAsProperty=false)
	Given a xml string, returns a newly created reader/writer object from the object found within. More...

static DtReaderWriter *	createFromEnvironment (DtEnvironmentSP, bool createAsProperty=false)
	Given a xml environment, returns a newly created reader/writer object from the object found within. More...

static DtString	getAttribute (DtEnvironmentSP env, const DtString &name, DtEnvValueSP root)
	Gets the named attribute from a DtEnvValueSP. More...

Static Public Member Functions inherited from DtObjectDebugger< DtVrfObject >
static DtObjectCounter::CounterType	ObjectCount ()

static const DtObjectContainer *	ObjectContainer ()

Protected Member Functions
	DtVrfObject ()
	Abstract base classes should not be constructed. More...

	DtVrfObject (const DtVrfObject &orig)
	copy constructor More...

DtVrfObject &	operator= (const DtVrfObject &orig)
	assignment operator More...

virtual bool	initializeNetInterface ()
	Initializes network interface (either from init() if created or finalizeObjectCreation()) More...

virtual void	setupStateRepository ()
	Called by init() after state repository's init() has been called. More...

virtual bool	setupNetInterface ()
	Called by init() after net interface's init() has been called. More...

void	emptyVertexList ()
	Non virtual utility function - called in destructor. More...

void	copyVertexList (const DtList &orig)
	Non-virtual utility function called in constructor. More...

virtual void	validateObjectType ()
	Validates the object type to make sure there are no -1s in the object type. More...

virtual void	processPostInitFromParamsCallback (DtVrfObjectCallbackFunction fcn, void *usr) const
	Invokes callback added through a call to addPostInitFromParamsCallback. More...

virtual void	initializeCommunicationInterfaceCallbacks ()
	Adds admin content callback registration. More...

virtual void	processSetOverlayLayerTask (const DtVrfObjectMessage *msg)

virtual void	updateBoundingVolumeBasedOnPosture ()
	Based on the entities current posture, update bounding geometry based on whether or not the entity is standing, prone or kneeling. More...

virtual DtExtent	computeExtent () const
	Compute the extent, not lazy. More...

virtual void	initializeObjectGeometryModel ()
	Initializes object geometry for this model. More...

virtual void	cleanupItemsNeededForHandoff ()
	Cleans up all the items that need to be removed in response to an authority handoff. More...

virtual bool	recreateItemsNeededForHandoff ()
	Recreates all the items that were cleaned up as part of handoff process. This will create and initialize the objects. More...

Protected Member Functions inherited from DtReaderWriter
virtual void	bindToRwAsVariable (const DtReaderWriter *rw)
	Copies values from the specified DtReaderWriter. More...

Protected Member Functions inherited from DtObjectDebugger< DtVrfObject >
	DtObjectDebugger ()

	DtObjectDebugger (const DtObjectDebugger &)

	~DtObjectDebugger ()

Static Protected Member Functions
static void	setOverlayLayerTaskCallback (const DtVrfObjectMessage msg, void usr)

Protected Attributes
DtExtent	myExtent

bool	myExtentInvalid
	lazy per-tick cache of extent More...

DtRwString	myObjectClassType

DtRwEntityIdentifier	myObjectIdentifier

DtString	myMutableObjectIdStringCache

DtRwObjectType	myObjectType
	passed in to constructor, held for SR construction More...

DtRwVrfObjectName	myMarkingText

DtRwString	myObjectLabel

DtRwString	myOverlayParent

DtGlobalObjectDesignator	myGlobalId

DtString	myMutableGlobalIdStringCache

DtVrfObjectManager *	mySimObjectManager

DtVrfObjectStateRepository *	mySimState

DtSimObjectNetInterface *	myNetInterface

DtRwBoolean	myPublishObject

bool	myCreateLocalObject
	isLocal() used to check simulation address against object identifier to see if this was a local object, but myCreateLocalObject should already contain this information More...

bool	myIsVrfSimulatedObject
	Returns true if this is a vrf simulated object. More...

DtReflectedObject *	myReflectedObject
	Passed into constructor - held only to pass into create() function for virtual construction. More...

DtForceType	myForceType

DtList	myVertices

DtTaitBryan	myOrientation

bool	myProjection

bool	myClosedFigure

DtAppearance	myAppearance

DtVrfObjectSubComponentTypes *	mySubComponentTypes
	Used in create(). More...

DtSimManager *	mySimManager

DtSimTaskManager *	myTaskManager

DtScriptInterfaceHandler *	myScriptInterfaceHandler

DtSimRadio *	myRadio

DtSimComponentManager *	myComponentManager

DtVrfObjectPlanManager *	myVrfObjectPlanManager

DtLocalVertexList	myOvlVertices
	The following member data are backward compatible reading of ovl files No accessors/mutators provided. More...

DtRwVector	myOvlTargetLocation

DtRwVector	myOvlStartPoint

DtRwVector	myOvlEndPoint

DtObstacleAreaCompatilibility	myOvlObstacleArea

DtRwBoolean	myOvlObstacleIsBreached

std::list< boost::shared_ptr < DtVrfObjectPredicateCallbackInfo > >	myPredicateCallbackList
	List of predicate function callbacks. More...

tbb::spin_mutex	myPredicateCallbackListMutex

DtVrfObjectCallbackList	myVerticesChangedCallbackList
	List of DtSimObjectCallbackFunction's, to be invoked when the object's position changes. More...

DtVrfObjectCallbackList	myNavigationInterfaceChangedCallbackList
	List of functions to call when the navigation interface has changed. More...

DtVrfObjectCallbackList	myRelativeVerticesChangedCallbackList
	List of functions to call when some object data has changed. More...

DtVrfObjectDataChangeCallbackList	myObjectDataChangedCallbackList
	List of callback functions to call when object data has changed. More...

DtVrfObjectHandoffCallbackList	myObjectHandoffCallbackList
	List of callbacks that will be invoked at points during object handoff. More...

DtVrfObjectCallbackList	myAboutToBeRemovedCallbackList

DtVrfObjectCallbackList	mySetLocationCompleteCallbackList

DtVrfObjectCallbackList	myNewSensorContactCallbackList

DtVrfObjectCallbackList	myObjectModifiedViaMessage

DtVrfUnderwaterAcoustics *	myVrfUnderwaterAcoustics

bool	myAboutToBeRemoved
	Set to true if this object is about to be removed from the object manager list. More...

DtObjectConsole *	myObjectConsole

DtSetDataManager *	mySetDataManager

DtVrfObjectCommunicationInterface *	myCommunicationInterface

DtNavInterfaceManager *	myNavInterfaceManager

DtU8	myNextEmitterSystemId

DtVrfObjectTerrainPreloadManager *	myTerrainPreloadManager

ScriptInterfaceExtensions	myScriptInterfaceExtensions

DtRangeRingsParametersPublisher *	myRangeRingsParametersPublisher
	This object will manage range rings from state and parameter data. More...

DtVrfObjectParameters *	myParameterEntry

DtMovingObjectParameters *	myMovingObject

int	myPotentialLuaScripts

double	myIlluminationValue

double	myLastTimeIlluminationCalculated

double	myLastTimeWeatherAreaCalculated

DtGeodeticCoord	myLastIlluminationPosition

bool	myMutableIlluminationCalculatedThisTick
	Tracks whether illumination has been calculated this tick or not. Only calculate it once for performance. More...

tbb::spin_rw_mutex	myIlluminationMutex

DtSharedVrfObjectReference	myWeatherObject
	The weather object retrieved the last time illumination was calculated. More...

bool	myWeatherIsGlobal

bool	myMutableWeatherObjectUpdatedThisTick

tbb::spin_rw_mutex	myWeatherMutex

DtVrfObjectDeletionHandle	myObjectDeletionHandle

bool	myUseDayNightIlluminationModel

DtVrfObjectUUID	myUUID

std::set< DtString >	myNameAliasList

DtSharedVrfObjectReference	mySharedReference

bool	myWarnedObjectName

bool	mySimulationCapable

const bool	myConnectToRadioNetwork

DtAttachedTerrain	myObjectGeometryModel
	The object geometry that this object can use to see if it intersects with a higher level fidelity model. More...

DtTerrainGeometryHandle *	myTerrainEmbeddedGeometry
	If the geometry for this object is embedded in the terrain this handle allows control. More...

DtTime	myLastTerrainEmbeddedGeometryUpdateTime

double	myLastWeatherHeading

bool	myDuplicatedSubComponents

bool	myAwaitingHandoffCompletion

Protected Attributes inherited from DtReaderWriter
const DtSymbolString	myName

DtReaderWriterRegistry	myRegistry

DtReaderWriterRegistry *	myParentRegistry

bool	myValueSpecified

bool	myReadOnlyFlag

bool	myIsVariableReference

DtSymbolString	myVariableName

bool	myVariableIsBound

DtReaderWriter *	myDefaultValue

aliasContainer	myAliases
	Container for the aliases which represent alternative names for the object. More...

bool	myInvalid
	Set to true if there is a problem reading this item. More...

bool	myChangedFlag
	Set to true when value changes Set to false when value checked with changedSinceLastChecked. More...

Static Protected Attributes
static DtSimObjectFactory *	theFactory

static int	theDefaultNotifyLevel

Static Protected Attributes inherited from DtReaderWriter
static DtString	theUnspecifiedValue

static DtGetSelfCallbackInfo	thePostGetSelfCallback

static DtPutSelfCallbackInfo	thePrePutSelfCallback

static const DtVariableBindingsList	theEmptyVariableBindingsList

static bool	theCreatorFcnSet

static DtReaderWriterFactory *	theFactory

static DtReaderWriterFactoryCreatorFcn	theFactoryCreatorFcn

static bool	thePutIndent

static DtOutputStream *	theOutputStream

virtual void	processReadDRThresholdSettings (const DtSettingsObject *settings)

static void	readDRThresholdSettingsCallback (const DtSettingsObject settings, void usr)
	Callback function registered with the DtVrfSimSettings class. More...

Detailed Description

DtVrfObject is used to represent any type of simulated object (entities, aggregate, control objects) in a VR-Forces application.

It has the following elements:

state repository
network interface
radio (used to send/receive tasks, set data requests, reports)
component manager (set of sensors, controllers, actuators for simulating behaviors)
task manager (handles skip task requests, manages assumption of tasks by from one entity to another)
organization manager (echelon organization)

Most Back End Examples can be explored for reference.

Member Typedef Documentation

typedef std::pair<DtVrfObjectCallbackFunction, void*> DtVrfObject::DtVrfObjectCallbackDataPair

Definitions of container types used in the postInitFromParameters callback mechanism.

typedef std::pair<const DtVrfObject*, DtVrfObjectCallbackDataPair> DtVrfObject::DtVrfObjectCallbackDataPair2

typedef std::list<DtLuaScriptInterfaceExtension::CreatorUserPair> DtVrfObject::ScriptInterfaceExtensions

Member Enumeration Documentation

enum DtVrfObject::ChangeFlag

Enumerator
MarkingText
ForceType
ObjectLabel
OverlayParent
ObjectType
SubordinateOfForceLevel

Constructor & Destructor Documentation

DtVrfObject::DtVrfObject ( )

protected

Abstract base classes should not be constructed.

DtVrfObject::DtVrfObject	(	const DtObjectType &	objectType,
		DtVrfObjectManager *	vrfObjectManager,
		bool	createLocalObject = `true`,
		bool	publishLocalObject = `true`,
		const DtEntityIdentifier &	objectIdentifier = `DtEntityIdentifier::nullId()`,
		const DtGlobalObjectDesignator *	globalId = `0`,
		DtReflectedObject *	reflectedObject = `0`,
		const DtString &	objectName = `DtString::nullString()`,
		const DtString &	objectLabel = `DtString::nullString()`,
		DtForceType	forceType = `DtForceOther`,
		const DtList *	vertices = `0`,
		const DtTaitBryan *	orientation = `0`,
		bool	projection = `false`,
		bool	closedFigure = `false`,
		const DtAppearance &	appearance = `DtAppearance::nullAppearance()`,
		const DtString &	readerWriterName = `"vrf-object"`,
		DtReaderWriterRegistry *	parentRegistry = `0`,
		const DtUUID &	uuid = `DtUUID::nullUUID()`,
		bool	connectToRadioNetowrk = `true`
	)

virtual DtVrfObject::~DtVrfObject ( )

virtual

destructor

DtVrfObject::DtVrfObject ( const DtVrfObject & orig )

protected

copy constructor

Member Function Documentation

static void DtVrfObject::enableSingleObjectMode ( )

static

Puts VRF in "single object mode" which limits it to simulating only a single local entity or lifeform object.

Note: This mode cannot be turned off once it is enabled.

static bool DtVrfObject::singleObjectModeActive ( )

static

Returns: True if VRF is current in Single Object Mode.

virtual bool DtVrfObject::create ( bool createNetworkInterface = true )

virtual

Virtual construction - must be called before any other member functions are called.

If createNetworkInterface is false then it will not create the network interface. Do this if you want to make sure all data is present in the object before it is on the network. When it is, call createNetworkInterface

virtual bool DtVrfObject::finalizeObjectCreation ( )

virtual

Called to create the network interface (if not already created) and finalize other object creation.

Will also set is simulationCapable to true. Will only be used if not currently simulation capable

virtual void DtVrfObject::finalizeObjectRead ( )

virtual

Called after the object has been read from a saved scenario.

virtual void DtVrfObject::setSimulationCapable ( bool )

virtual

Get/set whether or not this object is simulation capable.

If not will not be ticked nor considered part of the simulation. Objects that are not simulation capable will be part of a group of imported objects where some of the objects are not yet valid

virtual bool DtVrfObject::simulationCapable ( ) const

virtual

virtual void DtVrfObject::prepareForReinitialization ( )

virtual

Prepares this object for reinitialization.

This means: 1) Making sure the systems are set to read only so they are not saved as part of the order of battle 2) Restarting the plan (if one) and clearing out the current task (if one and there is a plan)

virtual void DtVrfObject::canBeHandedOff ( )

virtual

For remote objects that are awaiting the reflected object to be removed, this is called when the reflected object is removed.

virtual void DtVrfObject::createCommunicationsInterface ( )

virtual

Allows an external process to invoke creation of a communications interface, if myCommunicationInterface is NULL.

virtual void DtVrfObject::createCommunicationsInterface ( const DtRadioDescriptorList & descList )

virtual

Allows an external process to invoke creation of a communications interface, if myCommunicationInterface is NULL, and pass a radio descriptor list.

virtual void DtVrfObject::createSetDataManager ( )

virtual

Allows an external process to invoke creation of a DtSetDataManager, if mySetDataManager is NULL.

virtual int DtVrfObject::vrfSessionId ( ) const

virtual

Return the session id of this object.

This will need to be sure the netState is of a VRF type and it can return the session id

virtual bool DtVrfObject::init ( )

virtual

Initialization - must be called after create() and before any other member functions are called.

virtual void DtVrfObject::tick ( )

virtual

Called by create().

Ticks object's organization manager, task manager, and component manager, and then calls down to base class tick. Calls invokeVrfObjectPredicateCallbacks.

virtual void DtVrfObject::startTick ( )

virtual

virtual void DtVrfObject::tickComponents ( )

virtual

virtual void DtVrfObject::endTick ( )

virtual

virtual void DtVrfObject::tickPublisherOnly ( )

virtual

Ticks only the publisher (net interface)

virtual bool DtVrfObject::hasGuiKeyword ( const DtString & ) const

virtual

Returns true if the gui keywords contain the particular keyword specified (the gui keywords are specified in the .entity object)

virtual bool DtVrfObject::createRepository ( DtVrfObjectParameters * parameterEntry )

virtual

Override createRepository() to check if repository created in base class version is a DtSimVrfObjectBaseStateRepository (or a derived type).

If it is, returns true, if not Returns false.

virtual bool DtVrfObject::createTaskManager ( )

virtual

virtual bool DtVrfObject::createScriptInterfaceHandler ( )

virtual

virtual bool DtVrfObject::createComponentManager ( )

virtual

virtual bool DtVrfObject::createVrfObjectPlanManager ( )

virtual

Creates myVrfObjectPlanManager based on the type specified in mySubComponentTypes.

virtual bool DtVrfObject::createRadio ( )

virtual

virtual bool DtVrfObject::createNavigationInterfaceManager ( )

virtual

virtual bool DtVrfObject::initializeComponentManager ( )

virtual

Initialize component manager that has been created. Only call once!

virtual void DtVrfObject::setNavigationEnabled ( bool )

virtual

Accessors for navigation enabled.

The actual state is stored in the vrfState(). This will also be changed in the navigation interface (if created). If not created will be set into the interface when it is

virtual bool DtVrfObject::navigationEnabled ( ) const

virtual

virtual void DtVrfObject::addToPotentialLuaScripts ( int )

virtual

Durning object reload from sccenario, controllers can add to this variable, such that when the read is done, an amount of scripts can be preallocated in the lua script manager based on the total number of objects.

Note that this value is only valid as of the time of a putSelf on this object

virtual int DtVrfObject::potentialLuaScripts ( ) const

virtual

virtual int DtVrfObject::scenarioRunId ( ) const

virtual

The id of the scenario being run (if set). Retrieved from the sim manager.

virtual double DtVrfObject::timeOfDay ( ) const

virtual

Gets the current time of day from the environment manager.

virtual double DtVrfObject::dateAndTimeOfDay ( ) const

virtual

Gets the current date and time of day from the environment manager.

virtual DtSharedVrfObjectReference DtVrfObject::sharedReference ( )

virtual

Returns the shared object reference to this object. Looks it up in object manager.

virtual DtSharedVrfObjectReference DtVrfObject::sharedReference ( ) const

virtual

virtual double DtVrfObject::illumination ( ) const

virtual

How illuminated this object is.

Calculated from position and date/time to given sun/moon position. Calculated so often as defined in the moving object parameter

virtual double DtVrfObject::expectedIllumination ( double dateAndTimeOfDay ) const

virtual

How illuminated we expect this object to be at the given time of day if it remains at its current location.

Calculated from position and date/time to given sun/moon position.

virtual DtSharedVrfObjectReference DtVrfObject::weather ( ) const

virtual

Returns the weather object last calculated when the illumination was updated.

virtual MAKVRinTerra::DtFeatureGeometry DtVrfObject::featureGeometry ( ) const

virtual

Compute DtFeatureGeometry representation of object geometry.

virtual void DtVrfObject::updateIllumination ( ) const

virtual

Updates illumination value by providing local position to environment manager to calculate illumination value.

virtual void DtVrfObject::updateWeather ( )

virtual

Updates weather object at the entities location.

virtual void DtVrfObject::setRangeRingsParametersPublisherTickRange ( double d )

virtual

Sets the tick rate for updating range rings. Default is 5 seconds plus a random value (set in the range ring publisher)

virtual void DtVrfObject::createAndInitializeRangeRingsParameterPublisher ( )

virtual

Creates range ring publisher and sets tick rate to 5 seconds plus a random value (set in the range ring publisher)

virtual bool DtVrfObject::needsIlluminationUpdate ( ) const

virtual

Returns true if the entity has moved more than half a degree since (either in lat or lon) the last time the illumination was checked or the calculation time has changed.

virtual bool DtVrfObject::isOnTopOf	(	const DtVrfObject *	,
		bool	checkSupportPoints = `false`
	)		const

virtual

Returns true if the entity is almost on top of the entity specified.

If no distance is given, the entities half height + .5m is used

virtual bool DtVrfObject::isOnTopOf	(	const DtVrfObject *	,
		double	d,
		bool	checkSupportPoints = `false`
	)		const

virtual

virtual bool DtVrfObject::isSimulationObject ( ) const

virtual

Returns true if this is an entity or a unit.

virtual bool DtVrfObject::isEntity ( ) const

virtual

virtual bool DtVrfObject::isUnit ( ) const

virtual

virtual bool DtVrfObject::intersect	(	const DtChord &	,
		DtVrfChordIntersectionRecord *	record = `0`
	)		const

virtual

Returns true if this chord intersects this entity. Uses the entities object geometry model.

virtual bool DtVrfObject::checkAndDisembarkIfEmbarked ( const DtVector & localPosition )

virtual

Check terrain hit, and, if entity is embarked, and there is no terrain hit on parent, disembark. Will only check if embarked.

virtual bool DtVrfObject::checkIfMoveOntoEmbarked	(	const DtVector &	localPosition,
		DtVrfObject *&	hit,
		const std::list< DtUUID > &	additionalIgnore = `std::list< DtUUID >()`
	)

virtual

Check to see if there are any entities at the location given that can be moved onto for embarkation.

If ther are then check to see if they are intersected. Return true if is

virtual bool DtVrfObject::hasHighFidelityObjectGeometryModel ( ) const

virtual

Returns true if the object geometry model is high fidelity (loaded from an medf file)

virtual bool DtVrfObject::isEmbeddedInTerrain ( ) const

virtual

Returns true if the object has its object geometry model embedded into the terrain.

virtual bool DtVrfObject::needsWeatherAreaUpdate ( ) const

virtual

Returns true if the entity has moved more than half a degree since (either in lat or lon) the last time the illumination was checked or the calculation time has changed for weather.

If illumination update is needed this will update weather as well

virtual bool DtVrfObject::isGlobalPlan ( ) const

virtual

Returns true if this object represents a global plan.

virtual const DtSimManager* DtVrfObject::simManager ( ) const

virtual

Get a pointer to our sim manager.

virtual DtSimManager* DtVrfObject::simManager ( )

virtual

virtual DtSimTaskManager* DtVrfObject::taskManager ( ) const

virtual

Get pointers to our various types of subcomponents.

virtual DtScriptInterfaceHandler* DtVrfObject::scriptInterfaceHandler ( ) const

virtual

virtual DtSimComponentManager* DtVrfObject::componentManager ( )

virtual

virtual const DtSimComponentManager* DtVrfObject::componentManager ( ) const

virtual

virtual DtVrfObjectPlanManager* DtVrfObject::vrfObjectPlanManager ( ) const

virtual

virtual DtSimRadio* DtVrfObject::radio ( ) const

virtual

virtual DtVrfObjectStateRepository* DtVrfObject::vrfState ( ) const

virtual

virtual DtExtent DtVrfObject::extent ( ) const

virtual

Returns the extent of the vrfObject, if the vrfObject has one.

If the vrfObject does not have an extent, and uninitialized extent is returned.

Implementation Detail: The extent is determined by transforming the vrfObjects local bounding volume to it's current location/orientation and then fitting an axis-aligned extent around the resulting world bounding volume.

Note: If you don't require the minimum fitting extent to the bounding volume, use roughExtent() instead, as it is faster to execute.

virtual DtExtent DtVrfObject::roughExtent ( ) const

virtual

Returns: A DtExtent that contains the bounding volume of this object, but may not be the minimum extent that contains the object.

Note: This function is significantly faster than extent(), but is not the minimum extent.; May return the same value as extent() if this value is already cached and valid.

const DtVrfObjectParameters* DtVrfObject::parameterEntry ( ) const

Parameters used by this object in it's definition.

const DtMovingObjectParameters* DtVrfObject::movingObjectParameterEntry ( ) const

Moving object parameters used by this object.

Returns null if the parameter entry is of a different type.

virtual void DtVrfObject::expandExtent ( DtExtent & extent ) const

virtual

If the vrfObject has geometry, and thus an extent, then this function expands the specified extent to include the vrfObjects extent.

See the DtSsExtentIntersector for more information on why this function is necessary.

virtual void DtVrfObject::sendVrfObjectCreated	(	unsigned long	requestId = `0`,
		bool	requestCreated = `true`
	)

virtual

Create and send a DtVrfObjectCreated message about ourself.

requestId is the requestId to be used in the message (request Ids are used to link a DtIfVrfCreated message to a DtCreateVrfObject message).

virtual void DtVrfObject::setupFromMessageContent ( DtIfModifyVrfObject * ifModVrfObject )

virtual

Setup self from interface messages.

virtual void DtVrfObject::setIsVrfSimulatedObject ( bool b )

virtual

Returns true if object is being simulated by a VR-Forces-simulated object, false if not.

virtual bool DtVrfObject::isVrfSimulatedObject ( ) const

virtual

virtual bool DtVrfObject::isVrfSimulated ( ) const

inlinevirtual

virtual bool DtVrfObject::isSimulatingComponents ( ) const

virtual

returns true if object is simulating components VR-Forces components can be attached to non- VR-Forces entities.

In that case a call to isLocal() will be false, and a call to isVrfSimulatedObject() might be true. Neither will indicate if the components are being simulated on this back end. Method isSimulatingComponents() will interrogate the component manager. The presence of components in the component manager indicates that this back end is responsible for handling ride-along attachment.

virtual void DtVrfObject::save ( std::string & )

virtual

Saves the object to the given std::string.

virtual void DtVrfObject::putSelf	(	std::string &	fp,
		int	indentLevel = `0`,
		bool	writeUnspecified = `true`,
		const DtFilename &	path = `DtReaderWriter::appPath()`
	)

virtual

Override to write out <use-default> string for unspecified parameters.

Reimplemented from DtReaderWriter.

virtual void DtVrfObject::getSelf	(	DtlObjPtr	args,
		const DtReaderWriter::SearchPaths &	searchPaths,
		const DtVariableBindingsList &	variableBindings
	)

virtual

Override to do additional setup required when reading older oob, ovl files.

Reimplemented from DtReaderWriter.

virtual bool DtVrfObject::validNameLength ( const DtString & name ) const

virtual

virtual bool DtVrfObject::setMarkingText	(	const DtString &	name,
		bool	rename = `true`
	)

virtual

Override to inform the vrfObjectManager when the name changes.

Returns true if successful. Names which are too long may cause a failure, see baseSetMarkingTest(). If the baseSetMarkingTest() fails and rename is true, this function generates the next standard name for the object, calls baseSetMarkingTest with that name and then returns false. If rename is false when the set name fails, the name is left unchanged and the function returns false.

virtual void DtVrfObject::addVrfObjectChangedCallback	(	DtVrfObjectCallbackFunction	function,
		void *	userData
	)		const

virtual

WARNING: These methods are obsolete but have been retained for backward compatibility.

These methods may be removed in a future release. If you are testing for changes in an object's vertices, then the methods addVerticesChangedCallback and removeVerticesChangedCallback should be used instead. These methods are now equivalent to the {add/remove}VerticesChangedCallback functions. If you need to check for changes to the object other than/in addition to changes to vertices, then define your own DtVrfObjectPredicate function, and register a callback associated with that predicate object using the addVrfObjectPredicateCallback function.

Register/remove a callback function to be invoked when the object changes.

virtual void DtVrfObject::removeVrfObjectChangedCallback	(	DtVrfObjectCallbackFunction	function,
		void *	userData
	)		const

virtual

virtual void DtVrfObject::addNavigationInterfaceChangedCallback	(	DtVrfObjectCallbackFunction	function,
		void *	userData
	)		const

virtual

Add/remove callback for when the navigation interface has changed due to navigation being enabled/disabled.

virtual void DtVrfObject::removeNavigationInterfaceChangedCallback	(	DtVrfObjectCallbackFunction	function,
		void *	userData
	)		const

virtual

virtual void DtVrfObject::addVerticesChangedCallback	(	DtVrfObjectCallbackFunction	function,
		void *	userData
	)		const

virtual

Adds/removes a callback to be invoked whenever an object's local vertices change.

If an object is attached to another object, this callback will be called for every movement of the parent object. If you desire callbacks invoked only on modification of the geometry, use addRelativeVerticesChangedCallback().

virtual void DtVrfObject::removeVerticesChangedCallback	(	DtVrfObjectCallbackFunction	function,
		void *	userData
	)		const

virtual

virtual void DtVrfObject::addObjectDataChangedCallback	(	DtVrfObjectDataChangeCallbackList::DtCallbackFunctionType	,
		void *
	)		const

virtual

Adds/removes callbacks for when values in the object have changed.

This callback does not send the old value but rather just notifies (by flag) the value has changed

virtual void DtVrfObject::removeObjectDataChangedCallback	(	DtVrfObjectDataChangeCallbackList::DtCallbackFunctionType	,
		void *
	)		const

virtual

virtual void DtVrfObject::invokeObjectDataChangedCallbacks ( ChangeFlag )

virtual

virtual void DtVrfObject::addRelativeVerticesChangedCallback	(	DtVrfObjectCallbackFunction	function,
		void *	userData
	)		const

virtual

Adds/removes a callback to be invoked whenever an object's relative vertices change.

I.e: A route attached to a moving object will have its local vertices changing, but not it's relative vertices.

virtual void DtVrfObject::removeRelativeVerticesChangedCallback	(	DtVrfObjectCallbackFunction	function,
		void *	userData
	)		const

virtual

virtual void DtVrfObject::addVrfObjectPredicateCallback	(	DtVrfObjectPredicateCallbackFunction	function,
		const DtVrfObjectPredicate &	predicate,
		DtTime	evaluationPeriod = `0`,
		void *	userData = `0`
	)		const

virtual

Add/remove a callback function to be invoked when the DtVrfObject predicate object associated with it returns true().

virtual void DtVrfObject::removeVrfObjectPredicateCallback	(	DtVrfObjectPredicateCallbackFunction	function,
		const DtVrfObjectPredicate &	predicate,
		DtTime	evaluationPeriod = `0`,
		void *	userData = `0`
	)		const

virtual

virtual int DtVrfObject::predicateCallbackCount ( ) const

virtual

For testing.

Returns the number of predicate callbacks registered with this object.

virtual void DtVrfObject::invokeVrfObjectPredicateCallbacks ( )

virtual

Called each tick.

Iterates through myPredicateCallbackList, calling the predicate object's isTrue() function. If it time to test the predicate (isTimeToTest()) and the predicate's isTrue() function returns true, it invokes the associated callback function.

virtual void DtVrfObject::setCoordinateSystem ( const Coordinate_System * coordinateSystem )

virtual

Sets the coordinate system in mySimState (a DtVrfObjectStateRepository) and in myOvlVertices.

virtual const DtVrfObjectManager* DtVrfObject::simObjectManager ( ) const

virtual

virtual DtVrfObjectManager* DtVrfObject::simObjectManager ( )

virtual

virtual void DtVrfObject::setSimObjectManager ( DtVrfObjectManager * simObjectManager )

virtual

virtual bool DtVrfObject::createNetInterface ( )

virtual

virtual void DtVrfObject::setGlobalId ( const DtGlobalObjectDesignator & id )

virtual

Set/get the entity's global Id.

The global Id can be used to uniquely identify an entity across all other applications/federates. Under HLA/RPR, DtGlobalObjectDesignator is typdef'd to a DtString, and under DIS, it is typedef'd to a DtObjectId.

virtual const DtGlobalObjectDesignator& DtVrfObject::globalId ( ) const

virtual

virtual const DtString& DtVrfObject::globalIdString ( ) const

virtual

Produces the same result as globalId().string(), but the result is cached for faster access in the future.

virtual bool DtVrfObject::baseSetMarkingText ( const DtString & name )

virtual

Set/get the name of the object.

Returns true if the name set was successful. Since there are length restrictions on the name (depending on the type of net interface and protocol being used) name setting may fail.

virtual const DtString& DtVrfObject::markingText ( ) const

virtual

virtual const DtString& DtVrfObject::objectName ( ) const

virtual

Deprecated as of 4.4 Used for backwards compatibility only.

If using as a means to lookup objects or send messages, use the uuid() method. For printing the actual marking text of the object use the markingText() method.

virtual void DtVrfObject::addNameAlias ( const DtString & name )

virtual

Adds a new string which can be used to reference this object by name.

The object will register the alias with the ObjectManager.

virtual void DtVrfObject::unregisterAliases ( )

virtual

Unregisters all aliases with object manager and removes the aliases from the local alias list.

virtual void DtVrfObject::setUUID ( const DtUUID & )

virtual

Sets the UUID of this object. Use only if you know the repercussions of setting it!

virtual const DtUUID& DtVrfObject::uuid ( ) const

virtual

Returns the UUID of this object.

virtual const DtString& DtVrfObject::objectLabel ( ) const

virtual

Set/get the label of the object.

virtual void DtVrfObject::setObjectLabel ( const DtString & objectLabel )

virtual

virtual DtForceType DtVrfObject::forceType ( ) const

virtual

Set/get force type.

virtual void DtVrfObject::setForceType ( DtForceType f )

virtual

virtual void DtVrfObject::setIsSubordinateOfForceLevel ( bool )

virtual

Get/set whether or not this item is a subordinate of force level. If changes a change callback will be made.

virtual bool DtVrfObject::isSubordinateOfForceLevel ( ) const

virtual

virtual const DtString& DtVrfObject::overlayParent ( ) const

virtual

Set/get the overlay parent of the object.

virtual void DtVrfObject::setOverlayParent ( const DtString & overlayParent )

virtual

virtual DtStateRepository* DtVrfObject::netState ( )

virtual

VR-Link network state repository.

virtual const DtStateRepository* DtVrfObject::netState ( ) const

virtual

virtual DtSimObjectNetInterface* DtVrfObject::netInterface ( )

virtual

VR-Forces network interface.

virtual const DtSimObjectNetInterface* DtVrfObject::netInterface ( ) const

virtual

virtual void DtVrfObject::setNetInterface ( DtSimObjectNetInterface * netInterface )

virtual

virtual void DtVrfObject::setObjectIdentifier ( const DtEntityIdentifier & objectId )

virtual

Set/get the object identifier (DIS/RPR site:host:entity).

virtual const DtEntityIdentifier& DtVrfObject::objectIdentifier ( ) const

virtual

virtual const DtString& DtVrfObject::objectIdentifierString ( ) const

virtual

Produces the same result as objectIdentifier().string(), but the result is cached for faster access in the future.

virtual bool DtVrfObject::isLocal ( ) const

virtual

Returns true if object is local (has the same simulation address as the manager), false if not.

virtual void DtVrfObject::setPublishObject ( bool publishObject )

virtual

Set/get flag indicating whether or not object should be published.

Note: This will not cause the object to become or stop publishing after the object has been created.

virtual bool DtVrfObject::publishObject ( ) const

virtual

virtual DtString DtVrfObject::type ( ) const

virtual

set by factory on creation

virtual DtString DtVrfObject::objectClassType ( ) const

virtual

virtual void DtVrfObject::setObjectClassType ( const DtString & objectClassType )

virtual

same as type()

virtual void DtVrfObject::clearVerticesChangedCallbacks ( )

virtual

Clear out vertices changed callback list.

Should only be called by the DtVrfObjectManager, upon queuing object for removal and deletion.

virtual void DtVrfObject::clearRelativeVerticesChangedCallbacks ( )

virtual

Clear out relative vertices changed callback list.

Should only be called by the DtVrfObjectManager, upon queuing object for removal and deletion.

virtual void DtVrfObject::clearPredicateCallbacks ( )

virtual

Clear out object predicate callback list.

Should only be called by the DtVrfObjectManager, upon queuing object for removal and deletion.

static void DtVrfObject::addSimObjectCreatorFcn	(	const DtString &	type,
		DtSimObjectCreatorFcn	fcn
	)

static

static DtSimObjectFactory* DtVrfObject::factory ( )

static

a DtSimObjectFactory is allocated by the DtSimCreator, and this pointer is set.

The DtSimCreator deletes this pointer when it is deleted. This is done this way because we don't allow static initialization

static void DtVrfObject::setFactory ( DtSimObjectFactory * factory )

static

virtual DtSimObjectStateRepository* DtVrfObject::simState ( )

virtual

virtual const DtSimObjectStateRepository* DtVrfObject::simState ( ) const

virtual

virtual void DtVrfObject::setSimState ( DtVrfObjectStateRepository * simState )

virtual

void DtVrfObject::setEntityType ( const DtEntityType & entityType )

const DtEntityType& DtVrfObject::entityType ( ) const

void DtVrfObject::setDestroyed ( bool destroyed )

bool DtVrfObject::isDestroyed ( ) const

virtual void DtVrfObject::place	(	const DtVector &	location,
		bool *	dataAvailable = `0`,
		bool	requireAllData = `false`
	)

virtual

place entity at 'location', on the ground, keeping its current heading

Parameters

Input
location	new location for the entity
requireAllData	if true and dataAvailable is also specified this call will not make any changes to the entity unless all intersections have terrain data available.
Output
dataAvailable	prevents the call from blocking due to terrain paging and will get a true value if the terrain intersections are successful. See DtVrfMovingObjectStateRepository::clampToGround for more information.

virtual void DtVrfObject::place	(	const DtReal	heading,
		bool *	dataAvailable = `0`,
		bool	requireAllData = `false`
	)

virtual

give entity the specified 'heading', but stay at its current location

Parameters

Input
heading	new heading for the entity
requireAllData	if true and dataAvailable is also specified this call will not make any changes to the entity unless all intersections have terrain data available.
Output
dataAvailable	prevents the call from blocking due to terrain paging and will get a true value if the terrain intersections are successful. See DtVrfMovingObjectStateRepository::clampToGround for more information.

virtual void DtVrfObject::place	(	const DtVector &	location,
		const DtReal	heading,
		bool *	dataAvailable = `0`,
		bool	requireAllData = `false`
	)

virtual

place entity at specified 'location' and 'heading' on the ground

Parameters

Input
location	new location for the entity
heading	new heading for the entity
requireAllData	if true and dataAvailable is also specified this call will not make any changes to the entity unless all intersections have terrain data available.
Output
dataAvailable	prevents the call from blocking due to terrain paging and will get a true value if the terrain intersections are successful. See DtVrfMovingObjectStateRepository::clampToGround for more information.

const DtString& DtVrfObject::echelonIdString ( ) const

virtual DtSharedVrfObjectReference DtVrfObject::leadEntity ( ) const

virtual

virtual DtSharedVrfObjectReference DtVrfObject::firstSubordinate ( ) const

virtual

virtual DtSharedVrfObjectReference DtVrfObject::lastSubordinate ( ) const

virtual

virtual DtSharedVrfObjectReference DtVrfObject::firstHealthySubordinate ( ) const

virtual

Returns first healthy subordinate if it exists, 0 if not.

virtual void DtVrfObject::echelonIdChanged ( )

inlinevirtual

virtual const DtObjectId& DtVrfObject::objectId ( ) const

virtual

virtual const DtObjectType& DtVrfObject::objectType ( ) const

virtual

virtual bool DtVrfObject::isEmbarked ( ) const

virtual

Returns: True if the state repository has a parent attachment

virtual DtVector DtVrfObject::locationRelativeTo	(	const DtVector &	,
		const DtVrfObject *	relativeTo
	)		const

virtual

Given the local position vector, return a location that is relative to this entity given that position (in parent coordinates)

virtual DtVector DtVrfObject::velocityRelativeTo	(	const DtVector &	,
		const DtVrfObject *	relativeTo
	)		const

virtual

Given the local velocity vector, return a velocity that is relative to this entity given that velocity (in parent coordinates)

virtual DtVector DtVrfObject::accelerationRelativeTo	(	const DtVector &	,
		const DtVrfObject *	relativeTo
	)		const

virtual

Given the local acceleration vector, return an acceleration that is relative to this entity given that acceleration (in parent coordinates)

virtual DtTaitBryan DtVrfObject::orientationRelativeTo	(	const DtTaitBryan &	,
		const DtVrfObject *	relativeTo
	)		const

virtual

Given the local orientation vector, return an orientation that is relative to this entity given that orientation (in parent coordinates)

virtual DtSharedVrfObjectReference DtVrfObject::embarkedOn ( ) const

virtual

Returns: The object this object is embarked on (if embarked)

virtual bool DtVrfObject::isEmbarkedOn ( const DtUUID & parent ) const

virtual

Returns: True if this entity is embarked on the parent, or is embarked on something that is embarked on the parent

DtAttachedTerrain* DtVrfObject::terrainAttachedTo ( )

const DtAttachedTerrain* DtVrfObject::terrainAttachedTo ( ) const

virtual const DtPhysicalWorld* DtVrfObject::physicalWorld ( ) const

virtual

virtual DtPhysicalWorld* DtVrfObject::physicalWorld ( )

virtual

void DtVrfObject::setAboutToBeRemoved ( bool b )

inline

Set to true when object is about to be removed.

References myAboutToBeRemoved.

bool DtVrfObject::aboutToBeRemoved ( ) const

inline

References myAboutToBeRemoved.

virtual DtOutputStream& DtVrfObject::objectConsoleDebug ( const DtString & channel = "" ) const

virtual

Returns: The stream that is routed to the object's console.

virtual DtOutputStream& DtVrfObject::objectConsoleVerbose ( const DtString & channel = "" ) const

virtual

virtual DtOutputStream& DtVrfObject::objectConsoleInfo ( const DtString & channel = "" ) const

virtual

virtual DtOutputStream& DtVrfObject::objectConsoleWarn ( const DtString & channel = "" ) const

virtual

virtual DtOutputStream& DtVrfObject::objectConsoleError ( const DtString & channel = "" ) const

virtual

virtual DtObjectConsole* DtVrfObject::objectConsole ( )

virtual

Returns a pointer to the object console member of this object.

virtual const DtObjectConsole* DtVrfObject::objectConsole ( ) const

virtual

virtual DtSetDataManager* DtVrfObject::setDataManager ( )

virtual

Returns: The DtSetDataManager for this object. Any part of the object wishing notification of a set data request should register with this manager instead of registering directly with the radio. Any set data request can be invoked on the entity by passing it into this manager.

virtual const DtSetDataManager* DtVrfObject::setDataManager ( ) const

virtual

virtual DtVrfObjectCommunicationInterface* DtVrfObject::communicationInterface ( )

virtual

Returns: The DtVrfObjectCommunicationInterface for this object. This is the central point for all processing of messages to/from this object, whether they are though a radio or though the internal communication mechanism of VR-Forces.

virtual const DtVrfObjectCommunicationInterface* DtVrfObject::communicationInterface ( ) const

virtual

const DtVrfObjectNavInterface* DtVrfObject::navInterface ( ) const

Returns: The DtVrfObjectNavInterface for this object. This is the entry point for interfacing with the navigation mesh subysstem of VRF for a specific sim object.

DtVrfObjectNavInterface* DtVrfObject::navInterface ( )

virtual DtVrfObjectTerrainPreloadManager* DtVrfObject::terrainPreloadManager ( )

virtual

Returns: The terrain preload manager for this object. Use this to register providers which have data to help determine what parts of the terrain will be needed by this object in the near future.

DtVrfObjectSubComponentTypes* DtVrfObject::vrfSubComponentTypes ( ) const

For use in virtual construction.

Casts mySubComponentTypes to derived type.

virtual void DtVrfObject::duplicateVrfSubComponentTypes ( )

virtual

Duplicates the sub component type.

Call this if you need to modify the sub compoenent type as changing the default will change all objects that use this sub component type

virtual void DtVrfObject::restoreDuplicatedVrfSubComponentTypes ( )

virtual

Restores (if duplicated) to parameter default for sub component types.

virtual bool DtVrfObject::hasPlan ( ) const

virtual

Returns: True if this object has a plan associated with it. Does not mean the entity is executing the plan. Use executingPlan() for this.

virtual bool DtVrfObject::executingPlan ( ) const

virtual

Returns: True if the object is currently executing it's plan.

virtual bool DtVrfObject::isCurrentlyTasked ( ) const

virtual

Returns: True if this object is currently tasked

virtual bool DtVrfObject::isEllipsoid ( ) const

virtual

Returns true if this object is an ellipsoid object.

virtual void DtVrfObject::addPostInitFromParamsCallback	(	DtVrfObjectCallbackFunction	fcn,
		void *	usr
	)		const

virtual

Add/remove callback function to be invoked immediately following the point at which the newly created object gets initialized from its parameter entry.

The call to add a callback must be called before DtVrfObject::init gets called.

virtual void DtVrfObject::removePostInitFromParamsCallback	(	DtVrfObjectCallbackFunction	fcn,
		void *	usr
	)		const

virtual

virtual DtU8 DtVrfObject::getNextEmitterSystemId ( )

virtual

Returns: A new integer emitter system ID that has not been returned previously from this function, on an object-by-object basis. : This ID is not saved, so it will start from 0 after the scenario is loaded.

static void DtVrfObject::setDefaultNotifyLevel ( DtNotifyLevelType level )

static

Sets the notify level for all object consoles.

static DtNotifyLevelType DtVrfObject::defaultNotifyLevel ( )

static

Returns: The current default notification level.

virtual void DtVrfObject::addScriptExtension	(	DtLuaScriptInterfaceExtension::CreatorFcn	extension,
		void *	usr
	)

virtual

Add a lua script extension for this entity only.

The creator function passed in will be called every time a lua environment is created for this entity.

virtual void DtVrfObject::removeScriptExtension	(	DtLuaScriptInterfaceExtension::CreatorFcn	extension,
		void *	usr
	)

virtual

Remove a lua script extension that was previously added.

virtual const ScriptInterfaceExtensions& DtVrfObject::scriptExtensions ( ) const

virtual

Returns: The current set of script extensions.

virtual void DtVrfObject::regenerateUUIDForImport ( )

virtual

Regenerates the existing UUID and maps it to be updated for import.

If scheduled to be read on load will set a flag to say that it should ignore the next getSelf on this as it has already been reworked

virtual std::string DtVrfObject::archiveState ( )

virtual

Returned the current state of the object (as if putSelf were called)

virtual bool DtVrfObject::convertToRemoteObject ( DtString & error )

virtual

Converts this object from a local object (if it is a local object) to an expected remote object.

These routines are for handing off control of an object from one back-end to another. Note that this should not be confused with the DIS/HLA concept of ownership transfer. This is not that. Also, these calls, since they will delete and recreate the network interface, really only work in DIS to make sure the handoff works correctly. In HLA this will not work due to restrictions on global id reuse Note that this object will not be considered fully remote until it is assigned a VR-Link reflected object from the network. This will either be done because the reflected object already exists or it will come into existence. Note that this call currently only works on entity objects.

virtual bool DtVrfObject::convertToLocalObject	(	DtString &	error,
		const std::string &	archivedState = `""`
	)

virtual

This object will be converted from a remote object to a locally simulated object.

If the archived state is given the controller will be restored from that archived state, however, the entity will take all it's current kinematic state data from the last known reflected object state. Currently only entities can be converted to local objects

bool DtVrfObject::awaitingHandoffCompletion ( ) const

These calls are only made as part of a a VR-Link DIS/HLA handoff. These calls do not need to be made for other transport protocols Whether or not this object is waiting for handoff to be complete. Entities that are awaiting handoff completion cannot be ticked, but, they will be known to the system

virtual void DtVrfObject::completeHandoff ( DtReflectedObject * )

virtual

Completes the handoff from the VR-Link perspective.

Will only be called when the reflected VR-Link object is discovered for an object that is VR-Link based

virtual bool DtVrfObject::prepareForHandoff ( )

virtual

Callback registration and prepare. Callbacks are invoked when certain steps are preformed for the handoff. If the step is Prepare and you do not wish to have the object handed off, change the flag to Abort and the object will be rejected for handoff

virtual void DtVrfObject::addHandoffCallbackFunction	(	DtVrfObjectHandoffCallbackList::DtCallbackFunctionType	,
		void *
	)		const

virtual

virtual void DtVrfObject::removeHandoffCallbackFunction	(	DtVrfObjectHandoffCallbackList::DtCallbackFunctionType	,
		void *
	)		const

virtual

virtual void DtVrfObject::invokeObjectHandoffCallbacks ( DtVrfObjectHandoffData::HandoffFlag )

virtual

static DtVrfObject* DtVrfObject::creator	(	const DtObjectType &	objectType,
		DtVrfObjectManager *	simObjectManager,
		bool	createLocalObject = `true`,
		bool	publishLocalObject = `true`,
		const DtEntityIdentifier &	objectIdentifier = `DtEntityIdentifier::nullId()`,
		const DtGlobalObjectDesignator *	globalId = `0`,
		DtReflectedObject *	reflectedObject = `0`,
		const DtString &	objectName = `DtString::nullString()`,
		const DtString &	objectLabel = `DtString::nullString()`,
		DtForceType	forceType = `DtForceOther`,
		const DtList *	vertices = `0`,
		const DtTaitBryan *	orientation = `0`,
		bool	projection = `false`,
		bool	closedFigure = `false`,
		const DtAppearance &	appearance = `DtAppearance::nullAppearance()`,
		const DtString &	readerWriterName = `DtString::nullString()`,
		DtReaderWriterRegistry *	parentRegistry = `0`,
		const DtUUID &	uuid = `DtUUID::nullUUID()`,
		bool	connectToRadioNetowrk = `true`
	)

static

Returns a newly created DtVrfObject.

This is the function that gets registered with the factory.

static DtVrfObject* DtVrfObject::createObject	(	const DtObjectType &	objectType,
		DtVrfObjectManager *	vrfObjectManager,
		const DtString &	classType,
		bool	createLocalObject = `true`,
		bool	publishLocalObject = `true`,
		const DtEntityIdentifier &	objectIdentifier = `DtEntityIdentifier::nullId()`,
		const DtGlobalObjectDesignator *	globalId = `0`,
		DtReflectedObject *	reflectedObject = `0`,
		const DtString &	objectName = `DtString::nullString()`,
		const DtString &	objectLabel = `DtString::nullString()`,
		DtForceType	forceType = `DtForceOther`,
		const DtList *	vertices = `0`,
		const DtTaitBryan *	orientation = `0`,
		bool	projection = `false`,
		bool	closedFigure = `false`,
		const DtAppearance &	appearance = `DtAppearance::nullAppearance()`,
		const DtString &	readerWriterName = `DtString::nullString()`,
		DtReaderWriterRegistry *	parentRegistry = `0`,
		const DtUUID &	initialUUID = `DtUUID::nullUUID()`,
		bool	connectToRadioNetowrk = `true`
	)

static

Create and initialize a new sim object, using the factory.

static DtVrfObject* DtVrfObject::createObject	(	const DtObjectType &	objectType,
		DtVrfObjectManager *	vrfObjectManager,
		const DtString &	classType,
		bool	createLocalObject = `true`,
		bool	publishLocalObject = `true`,
		const DtEntityIdentifier &	objectIdentifier = `DtEntityIdentifier::nullId()`,
		const DtGlobalObjectDesignator *	globalId = `0`,
		DtReflectedObject *	reflectedObject = `0`,
		const DtString &	objectName = `DtString::nullString()`,
		const DtString &	objectLabel = `DtString::nullString()`,
		DtForceType	forceType = `DtForceOther`,
		const DtVector &	location = `DtVector::zero()`,
		const DtTaitBryan *	orientation = `0`,
		bool	projection = `false`,
		bool	closedFigure = `false`,
		const DtAppearance &	appearance = `DtAppearance::nullAppearance()`,
		const DtString &	readerWriterName = `DtString::nullString()`,
		DtReaderWriterRegistry *	parentRegistry = `0`,
		const DtUUID &	uuid = `DtUUID::nullUUID()`,
		bool	connectToRadioNetowrk = `true`
	)

static

Create and initialize a new sim object, using the factory.

static DtVrfObject* DtVrfObject::createAndInit	(	DtVrfObjectManager *	vrfObjectManager,
		DtlObjPtr	mtlStream
	)

static

Create and initialize a new sim object from a mtl stream.

static DtVrfObject* DtVrfObject::createAndInitForSimulationObjectGroup	(	DtVrfObjectManager *	vrfObjectManager,
		DtlObjPtr	mtlStream,
		int	flags,
		int	force,
		const DtVector &	geocentricOffsetLocation,
		double	offsetRotation = `0.`
	)

static

Create and initialize a new sim object from a mtl stream as created as part of a simulation object group.

The offset rotation is the amount to rotate the entire simulation object group around the center of mass (including changing headings). Angle is in radians

static void DtVrfObject::verticesChangedCallback	(	const DtVrfObject *	obj,
		DtVrfObjectPredicateEvaluator *	predicateEval,
		void *	userData
	)

static

Invokes all vertices-changed callbacks that have registered with the object.

Updates the predicate's (DtLclVerticesNotEqualPredicate) vertices.

static void DtVrfObject::relativeVerticesChangedCallback	(	const DtVrfObject *	obj,
		DtVrfObjectPredicateEvaluator *	predicateEval,
		void *	userData
	)

static

Invokes all relative-vertices-changed callbacks.

static void DtVrfObject::postInitFromParamsCallback	(	DtVrfObjectStateRepository &	stateRepository,
		void *	usr
	)

static

Callback function registered with object's state repository.

Gets called immediately after DtVrfObjectStateRepository::initializeFromParameters gets called. Calls processPostInitFromParamsCallback.

static void DtVrfObject::readDRThresholdSettingsCallback	(	const DtSettingsObject *	settings,
		void *	usr
	)

static

Callback function registered with the DtVrfSimSettings class.

Called by DtVrfObject::init().

virtual void DtVrfObject::processReadDRThresholdSettings ( const DtSettingsObject * settings )

virtual

virtual void DtVrfObject::addedToObjectManager ( )

virtual

Called right after this object is added to the object manager.

virtual void DtVrfObject::addObjectAboutToBeRemovedCallback	(	DtVrfObjectCallbackList::DtCallbackFunctionType	fcn,
		void *	usr
	)		const

virtual

Callback that is invoked when the entity is about to be removed from the simulation.

virtual void DtVrfObject::removeObjectAboutToBeRemovedCallback	(	DtVrfObjectCallbackList::DtCallbackFunctionType	fcn,
		void *	usr
	)		const

virtual

virtual void DtVrfObject::invokeVrfObjectAboutToBeRemovedCallbacks ( )

virtual

virtual void DtVrfObject::addObjectModifiedViaMessageCallback	(	DtVrfObjectCallbackList::DtCallbackFunctionType	fcn,
		void *	usr
	)		const

virtual

Callback that is triggered when the object is modified via a VRF modify message.

virtual void DtVrfObject::removeObjectModifiedViaMessageCallback	(	DtVrfObjectCallbackList::DtCallbackFunctionType	fcn,
		void *	usr
	)		const

virtual

virtual void DtVrfObject::invokeObjectModifiedViaMessageCallback ( )

virtual

virtual void DtVrfObject::addNewSensorContactCallback	(	DtVrfObjectCallbackList::DtCallbackFunctionType	fcn,
		void *	usr
	)		const

virtual

Callback that is invoked when the entity detects a new sensor contact or when a sensor contact's CID level is increased.

virtual void DtVrfObject::removeNewSensorContactCallback	(	DtVrfObjectCallbackList::DtCallbackFunctionType	fcn,
		void *	usr
	)		const

virtual

virtual void DtVrfObject::invokeNewSensorContactCallbacks ( )

virtual

virtual void DtVrfObject::addSetLocationCompleteCallback	(	DtVrfObjectCallbackList::DtCallbackFunctionType	fcn,
		void *	usr
	)		const

virtual

Callback that is invoked when a set location request is completed.

virtual void DtVrfObject::removeSetLocationCompleteCallback	(	DtVrfObjectCallbackList::DtCallbackFunctionType	fcn,
		void *	usr
	)		const

virtual

virtual void DtVrfObject::invokeSetLocationCompleteCallbacks ( )

virtual

virtual DtVrfUnderwaterAcoustics* DtVrfObject::underwaterAcoustics ( )

virtual

Accesses acoustics publisher. Use to set sonar or propulstion noise.

virtual DtVrfObjectDeletionHandle DtVrfObject::objectDeletionHandle ( ) const

virtual

virtual void DtVrfObject::updateTerrainEmbeddedGeometry ( bool force = false )

virtual

Updates geometry embedded into terrain (if configured) with current info.

DtVrfObject& DtVrfObject::operator= ( const DtVrfObject & orig )

protected

assignment operator

virtual bool DtVrfObject::initializeNetInterface ( )

protectedvirtual

Initializes network interface (either from init() if created or finalizeObjectCreation())

virtual void DtVrfObject::setupStateRepository ( )

protectedvirtual

Called by init() after state repository's init() has been called.

virtual bool DtVrfObject::setupNetInterface ( )

protectedvirtual

Called by init() after net interface's init() has been called.

void DtVrfObject::emptyVertexList ( )

protected

Non virtual utility function - called in destructor.

void DtVrfObject::copyVertexList ( const DtList & orig )

protected

Non-virtual utility function called in constructor.

virtual void DtVrfObject::validateObjectType ( )

protectedvirtual

Validates the object type to make sure there are no -1s in the object type.

If there are, it will change them to 0's

virtual void DtVrfObject::processPostInitFromParamsCallback	(	DtVrfObjectCallbackFunction	fcn,
		void *	usr
	)		const

protectedvirtual

Invokes callback added through a call to addPostInitFromParamsCallback.

virtual void DtVrfObject::initializeCommunicationInterfaceCallbacks ( )

protectedvirtual

Adds admin content callback registration.

Currently registers for DtSetOverlayLayerAdmin message

static void DtVrfObject::setOverlayLayerTaskCallback	(	const DtVrfObjectMessage *	msg,
		void *	usr
	)

staticprotected

virtual void DtVrfObject::processSetOverlayLayerTask ( const DtVrfObjectMessage * msg )

protectedvirtual

virtual void DtVrfObject::updateBoundingVolumeBasedOnPosture ( )

protectedvirtual

Based on the entities current posture, update bounding geometry based on whether or not the entity is standing, prone or kneeling.

Calls down to human state repository to do the change

virtual DtExtent DtVrfObject::computeExtent ( ) const

protectedvirtual

Compute the extent, not lazy.

virtual void DtVrfObject::initializeObjectGeometryModel ( )

protectedvirtual

Initializes object geometry for this model.

virtual void DtVrfObject::cleanupItemsNeededForHandoff ( )

protectedvirtual

Cleans up all the items that need to be removed in response to an authority handoff.

virtual bool DtVrfObject::recreateItemsNeededForHandoff ( )

protectedvirtual

Recreates all the items that were cleaned up as part of handoff process. This will create and initialize the objects.

Member Data Documentation

DtExtent DtVrfObject::myExtent

mutableprotected

bool DtVrfObject::myExtentInvalid

mutableprotected

lazy per-tick cache of extent

DtRwString DtVrfObject::myObjectClassType

protected

DtSimObjectFactory* DtVrfObject::theFactory

staticprotected

DtRwEntityIdentifier DtVrfObject::myObjectIdentifier

protected

DtString DtVrfObject::myMutableObjectIdStringCache

mutableprotected

DtRwObjectType DtVrfObject::myObjectType

protected

passed in to constructor, held for SR construction

DtRwVrfObjectName DtVrfObject::myMarkingText

protected

DtRwString DtVrfObject::myObjectLabel

protected

DtRwString DtVrfObject::myOverlayParent

protected

DtGlobalObjectDesignator DtVrfObject::myGlobalId

protected

DtString DtVrfObject::myMutableGlobalIdStringCache

mutableprotected

DtVrfObjectManager* DtVrfObject::mySimObjectManager

protected

DtVrfObjectStateRepository* DtVrfObject::mySimState

protected

DtSimObjectNetInterface* DtVrfObject::myNetInterface

protected

DtRwBoolean DtVrfObject::myPublishObject

protected

bool DtVrfObject::myCreateLocalObject

protected

isLocal() used to check simulation address against object identifier to see if this was a local object, but myCreateLocalObject should already contain this information

bool DtVrfObject::myIsVrfSimulatedObject

protected

Returns true if this is a vrf simulated object.

Locally set to the same value as passed into constructor for createLocal

DtReflectedObject* DtVrfObject::myReflectedObject

protected

Passed into constructor - held only to pass into create() function for virtual construction.

DtForceType DtVrfObject::myForceType

protected

DtList DtVrfObject::myVertices

protected

DtTaitBryan DtVrfObject::myOrientation

protected

bool DtVrfObject::myProjection

protected

bool DtVrfObject::myClosedFigure

protected

DtAppearance DtVrfObject::myAppearance

protected

DtVrfObjectSubComponentTypes* DtVrfObject::mySubComponentTypes

protected

Used in create().

DtSimManager* DtVrfObject::mySimManager

protected

DtSimTaskManager* DtVrfObject::myTaskManager

protected

DtScriptInterfaceHandler* DtVrfObject::myScriptInterfaceHandler

protected

DtSimRadio* DtVrfObject::myRadio

protected

DtSimComponentManager* DtVrfObject::myComponentManager

protected

DtVrfObjectPlanManager* DtVrfObject::myVrfObjectPlanManager

protected

DtLocalVertexList DtVrfObject::myOvlVertices

protected

The following member data are backward compatible reading of ovl files No accessors/mutators provided.

They are just used in reading old ovl files.

DtRwVector DtVrfObject::myOvlTargetLocation

protected

DtRwVector DtVrfObject::myOvlStartPoint

protected

DtRwVector DtVrfObject::myOvlEndPoint

protected

DtObstacleAreaCompatilibility DtVrfObject::myOvlObstacleArea

protected

DtRwBoolean DtVrfObject::myOvlObstacleIsBreached

protected

std::list< boost::shared_ptr<DtVrfObjectPredicateCallbackInfo> > DtVrfObject::myPredicateCallbackList

mutableprotected

List of predicate function callbacks.

Users can register callbacks associated with a DtVrfObjectPredicate object. This class evaluates the isTrue() function associated with each predicate object. When isTrue() returns true, it invokes the callback function that it was registered with.

tbb::spin_mutex DtVrfObject::myPredicateCallbackListMutex

mutableprotected

DtVrfObjectCallbackList DtVrfObject::myVerticesChangedCallbackList

mutableprotected

List of DtSimObjectCallbackFunction's, to be invoked when the object's position changes.

DtVrfObjectCallbackList DtVrfObject::myNavigationInterfaceChangedCallbackList

mutableprotected

List of functions to call when the navigation interface has changed.

DtVrfObjectCallbackList DtVrfObject::myRelativeVerticesChangedCallbackList

mutableprotected

List of functions to call when some object data has changed.

List of DtSimObjectCallbackFunction's, to be invoked when the object's relative position changes.

DtVrfObjectDataChangeCallbackList DtVrfObject::myObjectDataChangedCallbackList

mutableprotected

List of callback functions to call when object data has changed.

DtVrfObjectHandoffCallbackList DtVrfObject::myObjectHandoffCallbackList

mutableprotected

List of callbacks that will be invoked at points during object handoff.

DtVrfObjectCallbackList DtVrfObject::myAboutToBeRemovedCallbackList

mutableprotected

DtVrfObjectCallbackList DtVrfObject::mySetLocationCompleteCallbackList

mutableprotected

DtVrfObjectCallbackList DtVrfObject::myNewSensorContactCallbackList

mutableprotected

DtVrfObjectCallbackList DtVrfObject::myObjectModifiedViaMessage

mutableprotected

DtVrfUnderwaterAcoustics* DtVrfObject::myVrfUnderwaterAcoustics

protected

bool DtVrfObject::myAboutToBeRemoved

protected

Set to true if this object is about to be removed from the object manager list.

Referenced by aboutToBeRemoved(), and setAboutToBeRemoved().

DtObjectConsole* DtVrfObject::myObjectConsole

protected

DtSetDataManager* DtVrfObject::mySetDataManager

protected

DtVrfObjectCommunicationInterface* DtVrfObject::myCommunicationInterface

protected

DtNavInterfaceManager* DtVrfObject::myNavInterfaceManager

protected

DtU8 DtVrfObject::myNextEmitterSystemId

protected

DtVrfObjectTerrainPreloadManager* DtVrfObject::myTerrainPreloadManager

protected

ScriptInterfaceExtensions DtVrfObject::myScriptInterfaceExtensions

protected

DtRangeRingsParametersPublisher* DtVrfObject::myRangeRingsParametersPublisher

protected

This object will manage range rings from state and parameter data.

DtVrfObjectParameters* DtVrfObject::myParameterEntry

protected

DtMovingObjectParameters* DtVrfObject::myMovingObject

protected

int DtVrfObject::theDefaultNotifyLevel

staticprotected

int DtVrfObject::myPotentialLuaScripts

protected

double DtVrfObject::myIlluminationValue

mutableprotected

double DtVrfObject::myLastTimeIlluminationCalculated

mutableprotected

double DtVrfObject::myLastTimeWeatherAreaCalculated

mutableprotected

DtGeodeticCoord DtVrfObject::myLastIlluminationPosition

protected

bool DtVrfObject::myMutableIlluminationCalculatedThisTick

mutableprotected

Tracks whether illumination has been calculated this tick or not. Only calculate it once for performance.

tbb::spin_rw_mutex DtVrfObject::myIlluminationMutex

mutableprotected

DtSharedVrfObjectReference DtVrfObject::myWeatherObject

mutableprotected

The weather object retrieved the last time illumination was calculated.

bool DtVrfObject::myWeatherIsGlobal

mutableprotected

bool DtVrfObject::myMutableWeatherObjectUpdatedThisTick

mutableprotected

tbb::spin_rw_mutex DtVrfObject::myWeatherMutex

mutableprotected

DtVrfObjectDeletionHandle DtVrfObject::myObjectDeletionHandle

protected

bool DtVrfObject::myUseDayNightIlluminationModel

protected

DtVrfObjectUUID DtVrfObject::myUUID

protected

std::set<DtString> DtVrfObject::myNameAliasList

protected

DtSharedVrfObjectReference DtVrfObject::mySharedReference

mutableprotected

bool DtVrfObject::myWarnedObjectName

mutableprotected

bool DtVrfObject::mySimulationCapable

protected

const bool DtVrfObject::myConnectToRadioNetwork

protected

DtAttachedTerrain DtVrfObject::myObjectGeometryModel

protected

The object geometry that this object can use to see if it intersects with a higher level fidelity model.

DtTerrainGeometryHandle* DtVrfObject::myTerrainEmbeddedGeometry

protected

If the geometry for this object is embedded in the terrain this handle allows control.

DtTime DtVrfObject::myLastTerrainEmbeddedGeometryUpdateTime

protected

double DtVrfObject::myLastWeatherHeading

protected

bool DtVrfObject::myDuplicatedSubComponents

protected

bool DtVrfObject::myAwaitingHandoffCompletion

protected

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf4-8-branch/include/vrfobjcore/vrfObject.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Static Protected Attributes

Detailed Description

Member Typedef Documentation

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
