DtVrfObjectPredicate Class Reference

Instances of DtVrfObjectPredicate are used to evaluate a condition, given a DtVrfObject as an argument. More...

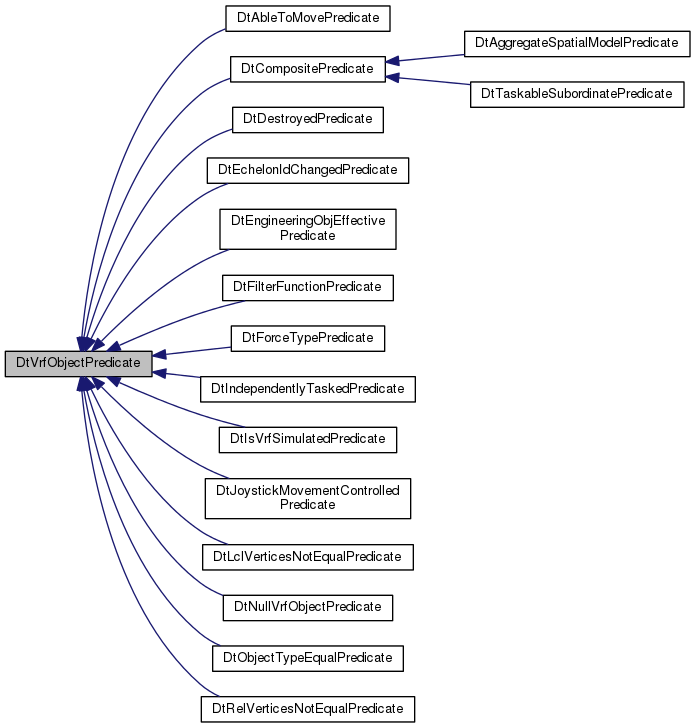

Inheritance diagram for DtVrfObjectPredicate:

Public Member Functions
	DtVrfObjectPredicate (bool negate=false)
	constructor More...
virtual	~DtVrfObjectPredicate ()
	destructor More...
	DtVrfObjectPredicate (const DtVrfObjectPredicate &orig)
	copy constructor More...
DtVrfObjectPredicate &	operator= (const DtVrfObjectPredicate &orig)
	assignment operator More...
virtual DtVrfObjectPredicate *	clone () const =0
	clone function More...
bool	operator== (const DtVrfObjectPredicate &orig) const
	Equality operators used to compare predicates. More...
bool	operator!= (const DtVrfObjectPredicate &orig) const
virtual bool	negated () const
virtual void	setNegate (bool negate)
bool	isTrue (const DtVrfObject *vrfObject)
	This function evaluates the eval function (to be defined in derived classes) given a DtVrfObject and returns the result, negated if indicated. More...
virtual bool	canBeTrue (const DtVrfObject *vrfObject)
virtual bool	canBeFalse (const DtVrfObject *vrfObject)
virtual void	stringRep (std::ostream &str, int indentLevel=0) const

Static Public Member Functions
static const DtVrfObjectPredicate &	nullPredicate ()
	Returns an instance of a DtNullVrfObjectPredicate. More...

Protected Member Functions
virtual bool	eval (const DtVrfObject *vrfObject)=0
	The actual test to be applied. More...
virtual bool	predicateEqual (const DtVrfObjectPredicate &orig) const
	Test if this instance of a predicate is equal to another. More...
virtual bool	canEvalTrue (const DtVrfObject *vrfObject)
virtual bool	canEvalFalse (const DtVrfObject *vrfObject)
virtual void	typeSpecificStringRep (std::ostream &str, int indentLevel) const
	Override in specific subclasses to print the predicate description to the stream. More...

Protected Attributes
bool	myNegated

Detailed Description

Instances of DtVrfObjectPredicate are used to evaluate a condition, given a DtVrfObject as an argument.

Constructor & Destructor Documentation

DtVrfObjectPredicate::DtVrfObjectPredicate

(

bool

negate = false

)

constructor

virtual DtVrfObjectPredicate::~DtVrfObjectPredicate ( )

virtual

destructor

DtVrfObjectPredicate::DtVrfObjectPredicate

(

const DtVrfObjectPredicate &

orig

)

copy constructor

Member Function Documentation

DtVrfObjectPredicate& DtVrfObjectPredicate::operator=

(

const DtVrfObjectPredicate &

orig

)

assignment operator

virtual DtVrfObjectPredicate* DtVrfObjectPredicate::clone ( ) const

pure virtual

clone function

Implemented in DtObjectTypeEqualPredicate, DtCompositePredicate, DtEchelonIdChangedPredicate, DtFilterFunctionPredicate, DtForceTypePredicate, DtLclVerticesNotEqualPredicate, DtNullVrfObjectPredicate, DtRelVerticesNotEqualPredicate, DtDestroyedPredicate, DtAbleToMovePredicate, DtEngineeringObjEffectivePredicate, DtIndependentlyTaskedPredicate, DtTaskableSubordinatePredicate, DtJoystickMovementControlledPredicate, DtIsVrfSimulatedPredicate, and DtAggregateSpatialModelPredicate.

bool DtVrfObjectPredicate::operator==

(

const DtVrfObjectPredicate &

orig

)

const

Equality operators used to compare predicates.

Do not attempt to override these. Override predicateEqual() so that the negate functionality can be correctly considered.

bool DtVrfObjectPredicate::operator!=

(

const DtVrfObjectPredicate &

orig

)

const

virtual bool DtVrfObjectPredicate::negated ( ) const

virtual

virtual void DtVrfObjectPredicate::setNegate ( bool  negate )

virtual

bool DtVrfObjectPredicate::isTrue

(

const DtVrfObject *

vrfObject

)

This function evaluates the eval function (to be defined in derived classes) given a DtVrfObject and returns the result, negated if indicated.

virtual bool DtVrfObjectPredicate::canBeTrue ( const DtVrfObject *  vrfObject )

virtual

Returns

True if this predicate can return true in any cases.

virtual bool DtVrfObjectPredicate::canBeFalse ( const DtVrfObject *  vrfObject )

virtual

Returns

True if this predicate can return false in any cases.

virtual void DtVrfObjectPredicate::stringRep ( std::ostream &  str, int  indentLevel = 0  ) const

virtual

static const DtVrfObjectPredicate& DtVrfObjectPredicate::nullPredicate ( )

static

Returns an instance of a DtNullVrfObjectPredicate.

virtual bool DtVrfObjectPredicate::eval ( const DtVrfObject *  vrfObject )

protectedpure virtual

The actual test to be applied.

Override eval() when creating a concrete predicate.

Implemented in DtCompositePredicate, DtForceTypePredicate, DtEchelonIdChangedPredicate, DtLclVerticesNotEqualPredicate, DtRelVerticesNotEqualPredicate, DtObjectTypeEqualPredicate, DtFilterFunctionPredicate, DtNullVrfObjectPredicate, DtDestroyedPredicate, DtAbleToMovePredicate, DtEngineeringObjEffectivePredicate, DtIndependentlyTaskedPredicate, DtJoystickMovementControlledPredicate, and DtIsVrfSimulatedPredicate.

virtual bool DtVrfObjectPredicate::predicateEqual ( const DtVrfObjectPredicate &  orig ) const

protectedvirtual

Test if this instance of a predicate is equal to another.

The callback mechanisms need this to function correctly. Override predicateEqual() when creating a concrete predicate to test any parameters of the predicate. Be sure to call down to the base class implementation to check if the predicates are of the same type and their negated flags are equal. Derived predicates with no parameters do not need to implement this method.

Returns

True when the predicates are of the same type (using typeid())and their negated flags are equal.

Reimplemented in DtCompositePredicate, DtForceTypePredicate, DtEchelonIdChangedPredicate, DtLclVerticesNotEqualPredicate, DtRelVerticesNotEqualPredicate, DtObjectTypeEqualPredicate, DtFilterFunctionPredicate, and DtEngineeringObjEffectivePredicate.

virtual bool DtVrfObjectPredicate::canEvalTrue ( const DtVrfObject *  vrfObject )

inlineprotectedvirtual

Returns

true if this predicate's eval() function can ever return true. If predicate subclass tests a static property of an object, override this function to return appropriately.

Reimplemented in DtCompositePredicate, and DtObjectTypeEqualPredicate.

virtual bool DtVrfObjectPredicate::canEvalFalse ( const DtVrfObject *  vrfObject )

inlineprotectedvirtual

Returns

true if this predicate's eval() function can ever return false. If predicate subclass tests a static property of an object, override this function to return appropriately.

Reimplemented in DtCompositePredicate, and DtObjectTypeEqualPredicate.

virtual void DtVrfObjectPredicate::typeSpecificStringRep ( std::ostream &  str, int  indentLevel  ) const

protectedvirtual

Override in specific subclasses to print the predicate description to the stream.

Reimplemented in DtCompositePredicate, DtObjectTypeEqualPredicate, DtForceTypePredicate, DtFilterFunctionPredicate, and DtDestroyedPredicate.

Member Data Documentation

bool DtVrfObjectPredicate::myNegated

protected

---

The documentation for this class was generated from the following file:

• /data/exports/nrhent7-1/nightly/docs/vrForces.vrf4-8-branch/include/vrfobjcore/vrfObjectPredicate.h
