A widget class for encapsulating radio commands for tasks or sets. More...

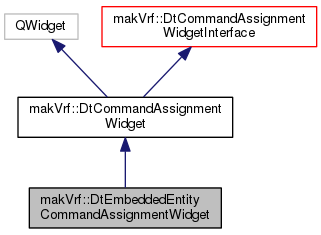

Inheritance diagram for makVrf::DtEmbeddedEntityCommandAssignmentWidget:

Classes
struct	EmbeddedEntity

Public Member Functions
	DtEmbeddedEntityCommandAssignmentWidget (makVrv::DtDe &de, DtCommandDialogExtensionInterface , QWidget parent=0, Qt::WindowFlags flags=Qt::Dialog\|Qt::CustomizeWindowHint\|Qt::WindowTitleHint)
	CTOR. More...

virtual	~DtEmbeddedEntityCommandAssignmentWidget ()
	DTOR. More...

virtual bool	insertMapFocusHandler (DtMapFocusHandler *, int index=-1)
	The QListWidget does not interact with the map so this implementation is blank. More...

virtual void	setAllowBroadcast (bool)
	No-op – not allowed. More...

virtual void	setupUi (const std::vector< makVrv::DtSimEntry * > &data, const DtSimStatement *stmt)
	Turn off broadcast. More...

Public Member Functions inherited from makVrf::DtCommandAssignmentWidget
	DtCommandAssignmentWidget (makVrv::DtDe &de, DtCommandDialogExtensionInterface , QWidget parent=0, Qt::WindowFlags flags=Qt::Dialog\|Qt::CustomizeWindowHint\|Qt::WindowTitleHint, int partOfPlan=false)
	CTOR. More...

virtual	~DtCommandAssignmentWidget ()
	DTOR. More...

virtual void	run (const std::vector< makVrv::DtSimEntry * > &)
	Override to run the dialog. More...

virtual void	connectSignals (const std::vector< makVrv::DtSimEntry * > &)
	Call to remove dialog if an entity is destroyed that is part of the supplied list. More...

virtual void	selectionChanged (const DtUUID &selection)
	Called when myEntitySelectionWidget selection has changed. More...

void	setPartOfPlan (int b)
	0 - Not part of plan dialog 1 - Part of plan dialog 2 - Part of command widget More...

virtual void	setBroadcastTitle (const QString &)

virtual DtCommandDialogExtensionInterface *	extension ()

Public Member Functions inherited from makVrf::DtCommandAssignmentWidgetInterface
	DtCommandAssignmentWidgetInterface ()

virtual	~DtCommandAssignmentWidgetInterface ()
	DTOR. More...

void	setParentMenu (DtVrfTaskSetMenu *p)

void	setParentContainer (DtCommandAssignmentWidgetInterface *p)

DtCommandAssignmentWidgetInterface *	parentContainer ()

void	setAllowExtensionChange (bool b)

bool	allowExtensionChange () const

virtual const std::vector < makVrv::DtSimEntry * > &	connectedTo () const =0

Public Member Functions inherited from makVrf::DtCommandDialogExtensionInterface
virtual	~DtCommandDialogExtensionInterface ()

virtual bool	initiallyBroadcast () const
	Whether or not to initially set to broadcast. Default is false. More...

virtual bool	allowBroadcasting () const
	Whether or not to allow broadcasting. Default is true. More...

virtual bool	hasUserEntry () const
	Returns true if there is user entry. Default is to assume there is. More...

virtual QString	entitySelectionGroupBoxTitle () const
	If defined, title for the group box for entity selection on command widget. More...

virtual void	filterAboutToBeAdded (DtVrfSelectionFilter *)

virtual void	parentShown (QWidget *)

virtual void	onCancel ()=0

virtual makVrv::DtUnicode	broadcastTitle () const

Protected Member Functions
virtual std::vector< std::string >	commandDialogFiltersFor (const std::vector< makVrv::DtSimEntry * > &data, const DtSimStatement *stmt, int &initialSelection) const
	If part of a command dialog the filters to use for the command dialog selection. More...

virtual void	populateEntitySelectionWidget (const std::vector< makVrv::DtSimEntry * > &)

virtual void	attachExtension (const std::vector< makVrv::DtSimEntry * > &data, DtCommandDialogExtensionInterface ext, const DtSimStatement stmt)

Protected Member Functions inherited from makVrf::DtCommandAssignmentWidget
QWidget *	widget ()
	Returns the widget. More...

virtual bool	broadcasting () const

virtual void	setBroadcasting (bool)

virtual void	enableEntitySelectionWidget (bool)

virtual void	addFilter (const DtVrfSelectionFilter *filter)

virtual void	setSelectedName (const DtUUID &)

virtual DtUUID	selectedName () const

virtual void	selectFilter (int)

virtual void	selectFirstNonEmptyFilter ()

virtual void	setOKEnabled (bool)
	Sets whether or not the OK button is enabled. More...

virtual void	setCancelEnabled (bool)
	Sets whether or not the Cancel button is enabled. More...

virtual bool	extensionValid () const

virtual void	initializeFromAction (DtVrfTaskSetAction *)
	Called to initialize from the given action. More...

virtual void	commandActivated (const DtSimTask &, const std::vector< DtUUID > &, bool immediate)
	If immediate is true, puts command assignment widget into pick mode before finishing command activated code. More...

virtual void	commandActivated (const DtSimCommandObjectWrapper &, bool immediate)

virtual void	slot_objectAboutToBeRemoved (makVrv::DtSimObjectEntry &)

virtual void	detachExtension ()

virtual void	setPickMode (bool)

virtual bool	editStatement (const std::vector< makVrv::DtSimEntry * > &, const DtSimStatement *)
	Edits the current statement. Return true if the statement can be edited. More...

virtual std::vector < DtObjectListViewItem::DtVrfObjectState >	selectedObjects () const

virtual void	setAllowObjectSelection (bool b)
	If false will hide broadcast and object selection. More...

virtual bool	canSelectObjects () const

virtual bool	wantsSelectionOfObjectInCommandMode (const std::vector< makVrv::DtSimEntry * > &) const
	Override to return false if, when this task is used as part of a simulation command, it does not want to allow to choose an object to apply the command to. More...

virtual bool	valid () const
	Override to return whether or not extension is valid. More...

virtual void	setupFrom (const std::vector< makVrv::DtSimEntry * > &)
	Sets up the extension for the given entries. More...

virtual void	unknownObjectSelected (const DtUUID &)
	Sets up from an empty set. More...

virtual void	noObjectsSelected ()
	Called when no objects are selected. More...

virtual void	onOK ()

virtual void	hideButtons (bool)
	If OK and Cancel buttons are present, hide them (or not) More...

virtual void	showEvent (QShowEvent *)

Protected Attributes
std::vector< EmbeddedEntity >	myEmbeddedEntities

Protected Attributes inherited from makVrf::DtCommandAssignmentWidget
makVrv::DtDe &	myDe

DtCommandAssignmentWidgetLogic *	myLogic

int	myPartOfPlan

std::vector< makVrv::DtSimEntry * >	myConnectedTo

DtSimTask *	myImmediateTask

std::vector< DtUUID >	myImmediateNames

DtSimCommandObjectWrapper *	myCommandObjectWrapper

DtCommandDialogExtensionInterface *	myInitialExtension

QString	myBroadcastTitle

makVrv::DtSignalConnectionManager	myConnections

Protected Attributes inherited from makVrf::DtCommandAssignmentWidgetInterface
DtVrfTaskSetMenu *	myTaskSetMenu

DtCommandAssignmentWidgetInterface *	myParentContainer

bool	myAllowExtensionChange

Additional Inherited Members
Public Attributes inherited from makVrf::DtCommandAssignmentWidget
DtCommandDialogExtensionInterface *	myExtension

QSplitter *	mySplitter

QWidget *	myOriginalExtensionParent

QCheckBox *	myBroadcast

QGroupBox *	myEntitySelectionGroupBox

DtVrfFilteredListView *	myEntitySelectionWidget

QHBoxLayout *	myMasterLayout

QVBoxLayout *	myWidgetLayout

QFrame *	mySeparator

QWidget *	myButtonFrame

QHBoxLayout *	myButtonLayout

QSpacerItem *	myButtonSpacer

QPushButton *	myOKButton

QPushButton *	myCancelButton

Public Attributes inherited from makVrf::DtCommandAssignmentWidgetInterface
boost::signals2::signal< void(const std::vector < makVrv::DtSimEntry * > &)>	signal_stopWatching

Public Attributes inherited from makVrf::DtCommandDialogExtensionInterface
boost::signals2::signal< void()>	signal_cancelled

boost::signals2::signal< void(bool)>	signal_enableCommandModeSelection
	Signal sent when the task becomes valid (or invalid) More...

boost::signals2::signal< void(bool)>	signal_validStateChanged

boost::signals2::signal< void(bool)>	signal_disableCancel

boost::signals2::signal< void(std::vector < DtUUID > names, const DtSetDataRequest &)>	signal_sendSetRequest

boost::signals2::signal< void(std::vector < DtUUID > names, const DtSimTask &)>	signal_sendTaskRequest

boost::signals2::signal< void(const DtSimCommandObjectWrapper &)>	signal_sendCommandRequest

boost::signals2::signal< void(const std::vector< DtUUID > &, const DtSimTask &, DtVrfTaskSetMenu *)>	signal_commandActivated

boost::signals2::signal< void(const DtSimCommandObjectWrapper &)>	signal_simCommandActivated

boost::signals2::signal< void(const std::vector < makVrv::DtSimEntry * > &)>	signal_stopWatching

Protected Slots inherited from makVrf::DtCommandAssignmentWidget
virtual void	onBroadcastChanged ()
	Calls down to logic to let it know the broadcast value has changed. More...

virtual void	onCancel ()
	Emits cancel signal and closes dialog. More...

virtual void	onPickOK ()
	Only used in pick mode. More...

const std::vector < makVrv::DtSimEntry * > &	connectedTo () const

Detailed Description

A widget class for encapsulating radio commands for tasks or sets.

Constructor & Destructor Documentation

makVrf::DtEmbeddedEntityCommandAssignmentWidget::DtEmbeddedEntityCommandAssignmentWidget	(	makVrv::DtDe &	de,
		DtCommandDialogExtensionInterface *	,
		QWidget *	parent = `0`,
		Qt::WindowFlags	flags = `Qt::Dialog\|Qt::CustomizeWindowHint\|Qt::WindowTitleHint`
	)

CTOR.

virtual makVrf::DtEmbeddedEntityCommandAssignmentWidget::~DtEmbeddedEntityCommandAssignmentWidget ( )

virtual

DTOR.

Member Function Documentation

virtual bool makVrf::DtEmbeddedEntityCommandAssignmentWidget::insertMapFocusHandler	(	DtMapFocusHandler *	,
		int	index = `-1`
	)

inlinevirtual

The QListWidget does not interact with the map so this implementation is blank.

Reimplemented from makVrf::DtCommandAssignmentWidget.

virtual void makVrf::DtEmbeddedEntityCommandAssignmentWidget::setAllowBroadcast ( bool )

virtual

No-op – not allowed.

Reimplemented from makVrf::DtCommandAssignmentWidget.

virtual void makVrf::DtEmbeddedEntityCommandAssignmentWidget::setupUi	(	const std::vector< makVrv::DtSimEntry * > &	data,
		const DtSimStatement *	stmt
	)

virtual

Turn off broadcast.

Reimplemented from makVrf::DtCommandAssignmentWidget.

virtual std::vector<std::string> makVrf::DtEmbeddedEntityCommandAssignmentWidget::commandDialogFiltersFor	(	const std::vector< makVrv::DtSimEntry * > &	data,
		const DtSimStatement *	stmt,
		int &	initialSelection
	)		const

protectedvirtual

If part of a command dialog the filters to use for the command dialog selection.

Reimplemented from makVrf::DtCommandAssignmentWidget.

virtual void makVrf::DtEmbeddedEntityCommandAssignmentWidget::populateEntitySelectionWidget ( const std::vector< makVrv::DtSimEntry * > & )

protectedvirtual

virtual void makVrf::DtEmbeddedEntityCommandAssignmentWidget::attachExtension	(	const std::vector< makVrv::DtSimEntry * > &	data,
		DtCommandDialogExtensionInterface *	ext,
		const DtSimStatement *	stmt
	)

protectedvirtual

Reimplemented from makVrf::DtCommandAssignmentWidget.

Member Data Documentation

std::vector<EmbeddedEntity> makVrf::DtEmbeddedEntityCommandAssignmentWidget::myEmbeddedEntities

protected

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf4-8-branch/include/vrfGuiTaskSetQt/embeddedEntityCommandAssignmentWidget.h
