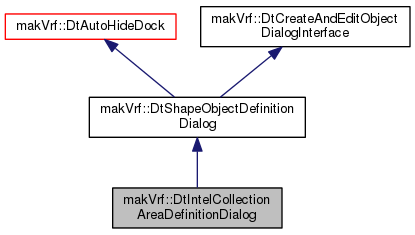

Inheritance diagram for makVrf::DtIntelCollectionAreaDefinitionDialog:

Public Member Functions
	DtIntelCollectionAreaDefinitionDialog (makVrv::DtDe &de, QWidget *parent, const QString &title="", DtDialogInteractionMode mode=DtCreationMode)
	Constructor. More...

virtual	~DtIntelCollectionAreaDefinitionDialog ()
	Destructor. More...

virtual void	setToIntelCollectionArea (DtRwIntelCollectionArea &) const

virtual void	setupIntelCollectionArea (const DtRwIntelCollectionArea &evt)

virtual void	createChooseForceDialog ()

Public Member Functions inherited from makVrf::DtShapeObjectDefinitionDialog
	DtShapeObjectDefinitionDialog (makVrv::DtDe &de, QWidget *parent, const QString &title="", DtDialogInteractionMode mode=DtCreationMode)

virtual	~DtShapeObjectDefinitionDialog ()

virtual void	init (const DtEntityType &, const QString &title, bool forPlan, DtCreateAndEditObjectDialogInterface::DtDialogInteractionMode, const DtEditingType &)

virtual void	closeDialog ()

virtual void	setLocationInGridFor (int row, const DtGeodeticCoord &, makVrv::DtSharedDisplayUnitsSettings::CoordSys=makArchives::DtDisplayUnitsSettingsRecord::End_CoordSys, makVrv::DtSharedDisplayUnitsSettings::DistanceUnits=makArchives::DtDisplayUnitsSettingsRecord::End_DistanceUnits)
	Sets the location into the grid at the specified row, using the location entry widget for format. More...

virtual bool	validateDMS (const std::string &str) const
	Validate DMS string. More...

virtual void	addLocation (const DtVector &loc, int index=-1)
	Add a new point. More...

virtual void	setEmbarkationAllowed (bool flag)
	Sets whether or not attachment (embarkation) of this object is allowed on another object. More...

virtual void	clear ()

virtual void	removePoint (int)

virtual void	setUseInputValidation (bool b)
	Set to not use item validation. Default is true (to validate cell items) More...

virtual void	insertLocation (int index, const DtVector &loc)

virtual void	selectLocation (int index)

virtual DtGeodeticCoord	getLocation (int index)
	Returns the location of the control point located at the given index. More...

virtual QString	getName ()
	Returns the shape object's name. More...

virtual void	hideDialog ()
	Hides the dialog. More...

virtual int	selectedPointIndex () const

virtual int	rowCount () const

virtual void	setAltitudeAboveTerrain (bool)
	Set altitude above terrain/sea level. More...

virtual bool	altitudeAboveTerrain () const

virtual void	setAttachedToMouseVisible (bool)

virtual void	setName (const QString &name)
	Sets the shape object's name. More...

virtual void	setLabel (const QString &name)
	Sets the shapes object's label. More...

virtual void	setExtendedLabels (const std::map< int, DtString > &lab)
	Sets the point object's extended labels. More...

virtual void	setLabelEntryVisible (bool)

virtual void	setNameVisible (bool flag)
	sets the name field to visible More...

virtual void	setSetActivationTimeVisible (bool flag)

virtual void	setTitle (const QString &title)

virtual void	setCreateButtonEnabled (bool flag)
	Enables/disables the create button. More...

virtual void	setAdjustStyleEnabled (bool)

virtual void	setCreateButtonText (const QString &text)

virtual void	setCreateButtonVisible (bool flag)
	Shows/hides the create button. More...

virtual void	setUpdateButtonEnabled (bool flag)
	Enables/disables the update button. More...

virtual void	setUpdateButtonVisible (bool flag)
	Shows/hides the update button. More...

virtual void	setAllowOverlaySelection (bool flag)

virtual void	setUpdateButtonText (const QString &text)

virtual void	setDoneButtonEnabled (bool flag)
	Enables/disables the Done button. More...

virtual void	setDoneButtonVisible (bool flag)
	Shows/hides the Done button. More...

virtual void	setShowFloorCeiling (bool)

virtual void	setFloor (double)
	Values set/returned in meters. More...

virtual double	floor () const

virtual void	setFloorLabel (const QString &)

virtual void	setCeiling (double)

virtual double	ceiling () const

virtual void	setCeilingLabel (const QString &)

virtual void	hideForces ()

virtual void	setUpButtonVisible (bool flag)

virtual void	setDownButtonVisible (bool flag)

virtual void	setAddPointButtonVisible (bool flag)

virtual void	setAddPointButtonEnabled (bool flag)

virtual void	setAdjustAltitudeButtonVisible (bool flag)

virtual void	setAdjustAltitudeButtonEnabled (bool flag)

virtual void	setRemovePointButtonVisible (bool flag)

virtual void	setRemovePointButtonEnabled (bool flag)

virtual void	setShowStyleButton (bool flag)

virtual void	setShowColorButton (bool flag)

virtual void	setControlButtonsVisible (bool flag)

virtual void	setAttachObjectToMouse (bool)

virtual DtDialogInteractionMode	interactionMode ()

virtual void	populate (const makVrv::DtUniqueID &)

virtual void	populate (const DtCreateObjectCommand *cmd)

virtual bool	blockSignals (bool)

virtual void	addOverlay (const QString &name, bool translate=true)
	Add an overlay to the object's overlay. More...

virtual void	removeOverlay (const QString &name)
	Remove an overlay from the object's overlay. More...

virtual void	renameOverlay (const QString &oldName, const QString &newName)
	Rename an overlay int the object's overlay. More...

virtual void	setOverlay (const QString &name)
	Sets the point object's overlay. More...

virtual void	setPublishObjectVisible (bool)

virtual void	setPublishObject (bool)

virtual bool	publishObject () const

virtual void	clearOverlays ()

virtual void	setAltitudeAboveTerrain (int row, double alt)

bool	attachedToMouse () const

virtual double	altitude (int) const
	Returns an altitude at the given row. More...

virtual void	setAltitude (int, double, bool blocked=false)
	Regardless of the altitude selection, set the altitude to the specified value on the given row. More...

virtual void	setAltitudeAllowed (bool)
	Sets whether or not altitude items are shown. More...

virtual bool	disallowsAltitudeAdjustmentBasedOnObjectCharacteristics () const

bool	altitudeAllowed () const

bool	altitudeShown () const

virtual void	setShowForces (bool)
	Show forces combo. More...

virtual void	setReadOnly (bool)
	Sets read only the items on the dialog that should be when in mouse attach mode. More...

virtual void	setReadOnly (int, bool)
	Sets the row read only or not. More...

virtual void	setColor (unsigned int color)

virtual void	setXLabel (const QString &)

virtual void	setYLabel (const QString &)

virtual void	setZLabel (const QString &)

virtual void	adjustAltitudeAdjustmentDialogLabels ()

virtual void	setupForCoordinateSystemAndUnits (makVrv::DtSharedDisplayUnitsSettings::CoordSys, makVrv::DtSharedDisplayUnitsSettings::DistanceUnits)

virtual void	setAllowHeadingChange (bool)
	Sets whether or not to allow heading change. Heading change only modifies the points. More...

virtual void	setHeading (double)
	Set in radians. More...

virtual double	heading () const
	Returns in radians. More...

virtual void	refreshLocs ()

virtual void	refreshAltitudes ()

virtual void	refreshLocs (const std::vector< DtGeodeticCoord > &)

virtual void	clearSelection ()

virtual void	setForce (int force)
	Selects the force. More...

virtual void	addExtension (QWidget *)
	Add an extension to the dialog. Will add to current extension. More...

virtual void	removeExtension (QWidget *)
	Removes an extension. More...

virtual void	showPropertiesDialog (bool)
	Show/hide properties dialog for this item. More...

virtual void	setTerrainProfileButtonEnabled (bool)
	Enables/disables terrain profile show button. More...

virtual void	setTerrainProfileButtonVisible (bool)

virtual void	includeSpacer (bool)
	Adds/removes the spacer from the top of the dialog. More...

virtual bool	extendedLabelsValid () const

virtual void	setEmbarkationWidgetVisible (bool flag)
	Sets whether or not attachment (embarkation) is vibiel. More...

DtEmbarkationWidget *	embarkationWidget ()

virtual QSize	minimumSizeHint () const

Public Member Functions inherited from makVrf::DtAutoHideDock
	DtAutoHideDock (makVrv::DtDe &de, const QString &title="", const std::string &className="", QWidget *parent=0, Qt::WindowFlags flags=0)
	Ctor. More...

	~DtAutoHideDock ()
	Dtor. More...

virtual const QIcon &	icon ()
	Set/Get the icon. More...

virtual void	setIcon (const QIcon &icon)

virtual DtAutoHideDockType	dockType () const
	Set/Get the type of dock this item represents. More...

virtual void	setDockType (DtAutoHideDockType t)

virtual bool	pinned () const
	Set/Get the pin status. More...

virtual void	setPinned (bool flag)

virtual void	setAdjustToMinimumSize (bool)
	Whether or not to adjust the size of the doc (on open) to minimum size. Default is true. More...

virtual bool	adjustToMinimumSize () const

const std::string &	className () const

Public Member Functions inherited from makVrf::DtCreateAndEditObjectDialogInterface
virtual	~DtCreateAndEditObjectDialogInterface ()

Public Attributes
QWidget *	myExtension

QVBoxLayout *	myMainLayout

QHBoxLayout *	myButtonLayout

QLabel *	myTitle

QPushButton *	myAdd

QPushButton *	myRemove

QTreeWidget *	myModifiers

QDialog *	myChooseForceDialog

QTreeWidget *	myChooseForce

Public Attributes inherited from makVrf::DtShapeObjectDefinitionDialog
boost::signals2::signal< void(double)>	signal_floorChanged

boost::signals2::signal< void(double)>	signal_ceilingChanged

Ui_ShapeObjectDefinitionWidgetUi	myUiImpl

DtHeadingEntryWidget *	myHeading

DtForceSelectionEntryWidget *	myForces

DtShapeValidatingTableWidget *	myShapeLocations

DtExtendedLabelsEntryWidget *	myExtendedLabelsEntryWidget

DtAltitudeEntryWidget *	myFloor

DtAltitudeEntryWidget *	myCeiling

DtEmbarkationWidget *	myEmbarkationWidget

DtOverlayParentEntryWidget *	myOverlaysCombo

Public Attributes inherited from makVrf::DtCreateAndEditObjectDialogInterface
boost::signals2::signal< void()>	signal_dialogClosing
	This signal gets emitted when the dialog is closing. More...

boost::signals2::signal< void()>	signal_dialogUpdated
	This signal gets emitted when the dialog is updated. More...

boost::signals2::signal< void(const std::string &)>	signal_nameChanged
	This signal gets emitted when the name is updated. More...

boost::signals2::signal< void(const std::string &)>	signal_labelChanged
	This signal gets emitted when the label is updated. More...

boost::signals2::signal< void(const std::map< int, DtString > &)>	signal_extendedLabelsChanged
	This signal gets emitted when the label is updated. More...

boost::signals2::signal< void(bool)>	signal_reviewMouseClicks
	This signal get emitted when the "enable/disable mouse clicks for automatic creation" option is toggled. More...

boost::signals2::signal< void(const DtVector &)>	signal_locationAdded
	This signal gets emitted when a location is added to the dialog. More...

boost::signals2::signal< void(const DtVector &)>	signal_locationSet
	This signal gets emitted when a location is set into the dialog. More...

boost::signals2::signal< void(const std::string &)>	signal_overlayNameChanged
	This signal gets emitted when the overlay name changes in the dialog. More...

boost::signals2::signal< void(int)>	signal_forceChanged
	This signal gets emitted when the force changes in the dialog. More...

boost::signals2::signal< void(bool)>	signal_publishObjectChanged
	This signal gets sent when object publication changes. More...

boost::signals2::signal< void(int)>	signal_colorChanged
	This signal gets sent when color has changed. More...

Protected Slots
virtual void	addForce ()

virtual void	removeForce ()

virtual void	itemSelectionChanged ()

Protected Slots inherited from makVrf::DtShapeObjectDefinitionDialog
virtual void	slot_onFloorChanged ()

virtual void	slot_onCeilingChanged ()

virtual void	slot_onReversePoints ()

virtual void	slot_onSetActivationTime ()

virtual void	slot_onLabelEdited ()

virtual void	slot_onExtendedLabelsEdited ()

virtual void	slot_itemSelectionChanged ()

virtual void	slot_onCreateButtonClicked ()

virtual void	slot_onUpdateButtonClicked ()

virtual void	slot_onDoneButtonClicked ()

virtual void	slot_onNamePrefixEdited ()

virtual void	slot_closePressed ()

virtual void	slot_onBtnMoveDownClicked ()

virtual void	slot_onBtnMoveUpClicked ()

virtual void	slot_onBtnAddPointClicked ()

virtual void	slot_onBtnRemovePointClicked ()

virtual void	slot_onShapeLocationsCellEntered (int, int)

virtual void	slot_onOverlaysComboCurrentIndexChanged (int index)

virtual void	slot_onForceComboCurrentIndexChanged (int index)

virtual void	slot_attachedToMouseChanged ()

virtual void	slot_onAdjustAltitudeClicked ()

virtual void	slot_onShowTerrainProfile ()

virtual void	slot_onPublishObjectChanged ()

virtual void	slot_onBtnColorClicked ()

virtual void	slot_onBtnStyleClicked ()

Protected Slots inherited from makVrf::DtAutoHideDock
virtual void	slot_closePressed ()
	Gets called when the close button is pressed on the titleBarWidget. More...

virtual void	slot_pinPressed (bool flag)
	Gets called when the pin is pressed on the titleBarWidget. More...

virtual void	slot_topLevelChanged (bool)
	Gets called when the widget changes its floating status. More...

Protected Member Functions
virtual void	populateOverlays ()

virtual void	setupGui ()

virtual DtShapeObjectDefinitionDialogLogic *	createLogic ()
	Creates a new logic for this dialog. Override to return a subclass of the base logic. More...

virtual bool	effectsForce (int) const
	Returns true if the current force is effected. More...

virtual void	addModifier (int force, double mod)

Protected Member Functions inherited from makVrf::DtShapeObjectDefinitionDialog
virtual void	addLocationIntoList (const DtGeodeticCoord &loc, int pos=-1, makVrv::DtSharedDisplayUnitsSettings::CoordSys=makArchives::DtDisplayUnitsSettingsRecord::End_CoordSys, makVrv::DtSharedDisplayUnitsSettings::DistanceUnits=makArchives::DtDisplayUnitsSettingsRecord::End_DistanceUnits)
	Inserts a new point for the shape at the given position. More...

virtual void	setupConnections ()

virtual void	closeEvent (QCloseEvent *event)
	This event gets automatically called when the widget is about to be closed. More...

virtual QDialog *	createAltitudeAdjustmentDialog ()
	Creates the altitude adjustment dialog. More...

virtual bool	showAlpha () const

virtual void	showEvent (QShowEvent *)

virtual void	getDistanceAndAltitudeDecimals (int &decimals, int &altDecimals)

Protected Member Functions inherited from makVrf::DtAutoHideDock
virtual bool	eventFilter (QObject p, QEvent e)
	Event filter installed to listen for mouse events from the titleBarWidget. More...

virtual void	enterEvent (QEvent *event)
	Automatic event that gets triggered when the mouse enters the widget. More...

virtual void	leaveEvent (QEvent *event)
	Automatic event that gets triggered when the mouse leaves the widget. More...

virtual void	paintEvent (QPaintEvent *p)
	This event gets automatically called when the widget is about to be painted on screen. More...

virtual void	resizeEvent (QResizeEvent *event)

Protected Attributes
DtIntelCollectionAreaDefinitionDialogLogic *	myCustomLogic

Protected Attributes inherited from makVrf::DtShapeObjectDefinitionDialog
bool	myActivationTimeVisible

DtShapeObjectDefinitionDialogLogic *	myLogic

DtDialogInteractionMode	myInteractionMode

bool	myBlockSignals

bool	myAltitudeAllowed

bool	myAltitudeShown

QDialog *	myAltitudeAdjustmentDialog

QWidget *	myParent

unsigned int	myBackgroundColor

DtEntityType	myEditingType

Protected Attributes inherited from makVrf::DtAutoHideDock
makVrv::DtDe &	myDe

DtExtendedTitleBarWidget *	myTitleBarWidget

QIcon	myIcon

DtAutoHideDockType	myDockType

bool	myAdjustToMinimumSize

std::string	myClassName

Additional Inherited Members
Public Types inherited from makVrf::DtAutoHideDock
enum	DtAutoHideDockType { Palette = 0, Dialog }

Public Types inherited from makVrf::DtCreateAndEditObjectDialogInterface
enum	DtDialogInteractionMode { DtCreationMode = 0, DtEditingMode }

Public Slots inherited from makVrf::DtShapeObjectDefinitionDialog
virtual void	slot_onShapeLocationsCellChanged (int, int)
	Call to force the updating of a cell contents. More...

virtual void	slot_altitudeTypeChanged ()
	Call to force update of display based on a change of altitude selection type. More...

Signals inherited from makVrf::DtAutoHideDock
void	signal_closing (DtAutoHideDock *dock)
	This signal gets emitted when the widget is closing. More...

void	signal_pinPressed (DtAutoHideDock *dock)
	This signal gets emitted when the pin button is pressed on this widget. More...

void	signal_topLevelChanged (DtAutoHideDock *dock)
	This signal gets emitted when this widget changes its status from docked to floating and vice versa. More...

void	signal_resized (DtAutoHideDock *dock)
	This signal gets emitted when this widget is resized. More...

void	signal_destroyed (DtAutoHideDock *dock)
	This signal gets emitted when this widget is about to be destroyed. More...

void	signal_enter (DtAutoHideDock *dock)
	This signal gets emitted when the mouse enters on this widget. More...

void	signal_leave (DtAutoHideDock *dock)
	This signal gets emitted when the mouse leaves this widget. More...

Detailed Description

The dialog class is derived here from DtShapeObjectDefinitionDialog, which is ultimately multiply derived from a base interface class and QDockWidget, a Qt object.

While dialogs in the VR-Forces API have their own UI object classes, this example derives from DPoinObjectDefinitionDialog and makes direct post de facto modifications to the Qt layout, adding on mutators and accessors.

Constructor & Destructor Documentation

makVrf::DtIntelCollectionAreaDefinitionDialog::DtIntelCollectionAreaDefinitionDialog	(	makVrv::DtDe &	de,
		QWidget *	parent,
		const QString &	title = `""`,
		DtDialogInteractionMode	mode = `DtCreationMode`
	)

Constructor.

virtual makVrf::DtIntelCollectionAreaDefinitionDialog::~DtIntelCollectionAreaDefinitionDialog ( )

virtual

Destructor.

Member Function Documentation

virtual void makVrf::DtIntelCollectionAreaDefinitionDialog::setToIntelCollectionArea ( DtRwIntelCollectionArea & ) const

virtual

virtual void makVrf::DtIntelCollectionAreaDefinitionDialog::setupIntelCollectionArea ( const DtRwIntelCollectionArea & evt )

virtual

virtual void makVrf::DtIntelCollectionAreaDefinitionDialog::createChooseForceDialog ( )

virtual

virtual void makVrf::DtIntelCollectionAreaDefinitionDialog::populateOverlays ( )

protectedvirtual

Reimplemented from makVrf::DtShapeObjectDefinitionDialog.

virtual void makVrf::DtIntelCollectionAreaDefinitionDialog::setupGui ( )

protectedvirtual

called during initialization, setupGui() first calls the method of the same name of the base class, which instantiates the Qt dialog.

The derived logic then modifies the base dialog, inserting new UI elements.

Reimplemented from makVrf::DtShapeObjectDefinitionDialog.

virtual DtShapeObjectDefinitionDialogLogic* makVrf::DtIntelCollectionAreaDefinitionDialog::createLogic ( )

protectedvirtual

Creates a new logic for this dialog. Override to return a subclass of the base logic.

Reimplemented from makVrf::DtShapeObjectDefinitionDialog.

virtual bool makVrf::DtIntelCollectionAreaDefinitionDialog::effectsForce ( int ) const

protectedvirtual

Returns true if the current force is effected.

virtual void makVrf::DtIntelCollectionAreaDefinitionDialog::addModifier	(	int	force,
		double	mod
	)

protectedvirtual

virtual void makVrf::DtIntelCollectionAreaDefinitionDialog::addForce ( )

protectedvirtualslot

virtual void makVrf::DtIntelCollectionAreaDefinitionDialog::removeForce ( )

protectedvirtualslot

virtual void makVrf::DtIntelCollectionAreaDefinitionDialog::itemSelectionChanged ( )

protectedvirtualslot

Member Data Documentation

QWidget* makVrf::DtIntelCollectionAreaDefinitionDialog::myExtension

QVBoxLayout* makVrf::DtIntelCollectionAreaDefinitionDialog::myMainLayout

QHBoxLayout* makVrf::DtIntelCollectionAreaDefinitionDialog::myButtonLayout

QLabel* makVrf::DtIntelCollectionAreaDefinitionDialog::myTitle

QPushButton* makVrf::DtIntelCollectionAreaDefinitionDialog::myAdd

QPushButton* makVrf::DtIntelCollectionAreaDefinitionDialog::myRemove

QTreeWidget* makVrf::DtIntelCollectionAreaDefinitionDialog::myModifiers

QDialog* makVrf::DtIntelCollectionAreaDefinitionDialog::myChooseForceDialog

QTreeWidget* makVrf::DtIntelCollectionAreaDefinitionDialog::myChooseForce

DtIntelCollectionAreaDefinitionDialogLogic* makVrf::DtIntelCollectionAreaDefinitionDialog::myCustomLogic

protected

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf4-8-branch/include/vrfGuiCoreQt/intelCollectionAreaDefinitionDialog.h

Public Member Functions

Public Attributes

Protected Slots

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
