Represents a new kind of dock widget: it has a "pin" button that allows the widget to pin/unpin from an autoHidePanel widget (if added to it) and a "close" button. More...

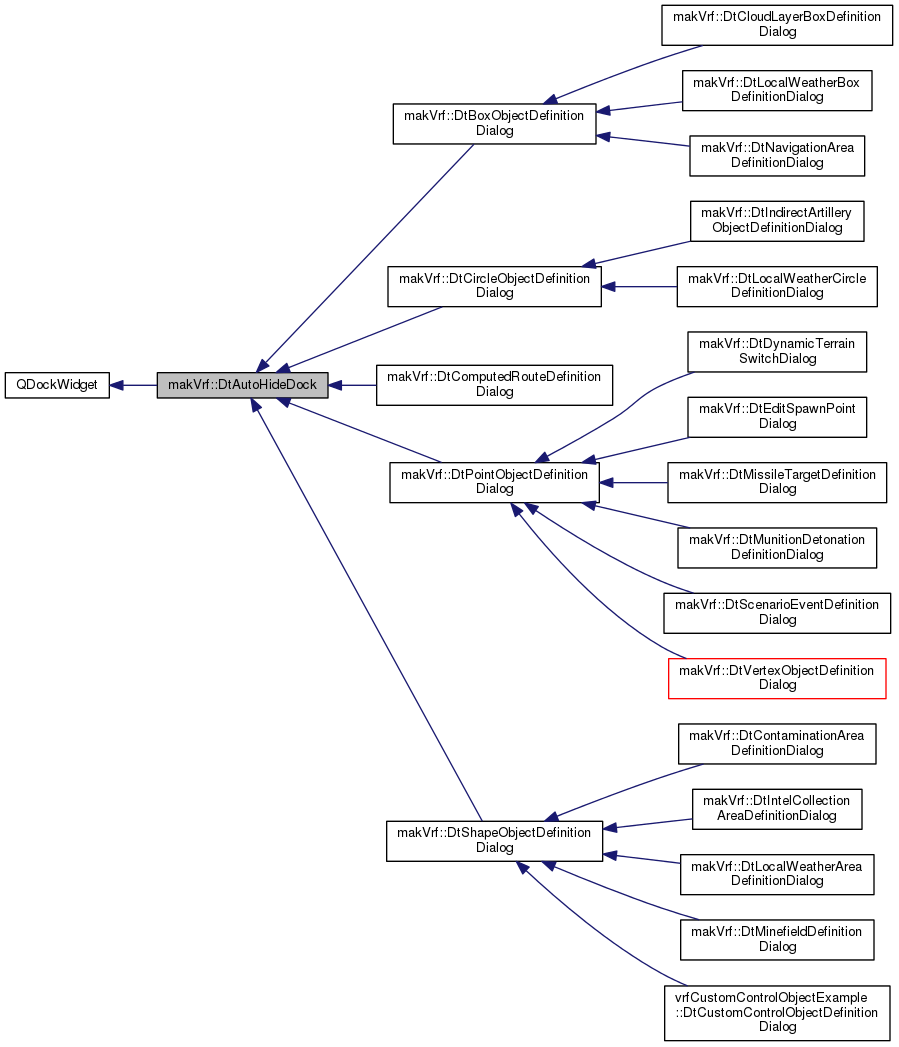

Inheritance diagram for makVrf::DtAutoHideDock:

[legend]

Public Types
enum	DtAutoHideDockType { Palette = 0, Dialog }

Signals
void	signal_closing (DtAutoHideDock *dock)
	This signal gets emitted when the widget is closing. More...

void	signal_pinPressed (DtAutoHideDock *dock)
	This signal gets emitted when the pin button is pressed on this widget. More...

void	signal_topLevelChanged (DtAutoHideDock *dock)
	This signal gets emitted when this widget changes its status from docked to floating and vice versa. More...

void	signal_resized (DtAutoHideDock *dock)
	This signal gets emitted when this widget is resized. More...

void	signal_destroyed (DtAutoHideDock *dock)
	This signal gets emitted when this widget is about to be destroyed. More...

void	signal_enter (DtAutoHideDock *dock)
	This signal gets emitted when the mouse enters on this widget. More...

void	signal_leave (DtAutoHideDock *dock)
	This signal gets emitted when the mouse leaves this widget. More...

Public Member Functions
	DtAutoHideDock (makVrv::DtDe &de, const QString &title="", const std::string &className="", QWidget *parent=0, Qt::WindowFlags flags=0)
	Ctor. More...

	~DtAutoHideDock ()
	Dtor. More...

virtual const QIcon &	icon ()
	Set/Get the icon. More...

virtual void	setIcon (const QIcon &icon)

virtual DtAutoHideDockType	dockType () const
	Set/Get the type of dock this item represents. More...

virtual void	setDockType (DtAutoHideDockType t)

virtual bool	pinned () const
	Set/Get the pin status. More...

virtual void	setPinned (bool flag)

virtual void	setupGui ()
	Initializes the visuals of this object. More...

virtual void	setTitle (const QString &title)

virtual void	setAdjustToMinimumSize (bool)
	Whether or not to adjust the size of the doc (on open) to minimum size. Default is true. More...

virtual bool	adjustToMinimumSize () const

const std::string &	className () const

Protected Slots
virtual void	slot_closePressed ()
	Gets called when the close button is pressed on the titleBarWidget. More...

virtual void	slot_pinPressed (bool flag)
	Gets called when the pin is pressed on the titleBarWidget. More...

virtual void	slot_topLevelChanged (bool)
	Gets called when the widget changes its floating status. More...

Protected Member Functions
virtual bool	eventFilter (QObject p, QEvent e)
	Event filter installed to listen for mouse events from the titleBarWidget. More...

virtual void	enterEvent (QEvent *event)
	Automatic event that gets triggered when the mouse enters the widget. More...

virtual void	leaveEvent (QEvent *event)
	Automatic event that gets triggered when the mouse leaves the widget. More...

virtual void	closeEvent (QCloseEvent *event)
	This event gets automatically called when the widget is about to be closed. More...

virtual void	paintEvent (QPaintEvent *p)
	This event gets automatically called when the widget is about to be painted on screen. More...

virtual void	resizeEvent (QResizeEvent *event)

Protected Attributes
makVrv::DtDe &	myDe

DtExtendedTitleBarWidget *	myTitleBarWidget

QIcon	myIcon

DtAutoHideDockType	myDockType

bool	myAdjustToMinimumSize

std::string	myClassName

Detailed Description

Represents a new kind of dock widget: it has a "pin" button that allows the widget to pin/unpin from an autoHidePanel widget (if added to it) and a "close" button.

It also adds an entry inside the "View" menu to show/hide the dock (if it is a palette type)

Member Enumeration Documentation

enum makVrf::DtAutoHideDock::DtAutoHideDockType

Enumerator
Palette
Dialog

Constructor & Destructor Documentation

makVrf::DtAutoHideDock::DtAutoHideDock	(	makVrv::DtDe &	de,
		const QString &	title = `""`,
		const std::string &	className = `""`,
		QWidget *	parent = `0`,
		Qt::WindowFlags	flags = `0`
	)

Ctor.

makVrf::DtAutoHideDock::~DtAutoHideDock ( )

Dtor.

Member Function Documentation

virtual const QIcon& makVrf::DtAutoHideDock::icon ( )

virtual

Set/Get the icon.

virtual void makVrf::DtAutoHideDock::setIcon ( const QIcon & icon )

virtual

virtual DtAutoHideDockType makVrf::DtAutoHideDock::dockType ( ) const

virtual

Set/Get the type of dock this item represents.

virtual void makVrf::DtAutoHideDock::setDockType ( DtAutoHideDockType t )

virtual

virtual bool makVrf::DtAutoHideDock::pinned ( ) const

virtual

Set/Get the pin status.

virtual void makVrf::DtAutoHideDock::setPinned ( bool flag )

virtual

virtual void makVrf::DtAutoHideDock::setupGui ( )

virtual

Initializes the visuals of this object.

virtual void makVrf::DtAutoHideDock::setTitle ( const QString & title )

virtual

Reimplemented in makVrf::DtShapeObjectDefinitionDialog, makVrf::DtPointObjectDefinitionDialog, makVrf::DtBoxObjectDefinitionDialog, and makVrf::DtCircleObjectDefinitionDialog.

virtual void makVrf::DtAutoHideDock::setAdjustToMinimumSize ( bool )

virtual

Whether or not to adjust the size of the doc (on open) to minimum size. Default is true.

virtual bool makVrf::DtAutoHideDock::adjustToMinimumSize ( ) const

virtual

const std::string& makVrf::DtAutoHideDock::className ( ) const

inline

virtual bool makVrf::DtAutoHideDock::eventFilter	(	QObject *	p,
		QEvent *	e
	)

protectedvirtual

Event filter installed to listen for mouse events from the titleBarWidget.

virtual void makVrf::DtAutoHideDock::enterEvent ( QEvent * event )

protectedvirtual

Automatic event that gets triggered when the mouse enters the widget.

virtual void makVrf::DtAutoHideDock::leaveEvent ( QEvent * event )

protectedvirtual

Automatic event that gets triggered when the mouse leaves the widget.

virtual void makVrf::DtAutoHideDock::closeEvent ( QCloseEvent * event )

protectedvirtual

This event gets automatically called when the widget is about to be closed.

Reimplemented in makVrf::DtShapeObjectDefinitionDialog, makVrf::DtPointObjectDefinitionDialog, makVrf::DtBoxObjectDefinitionDialog, makVrf::DtCircleObjectDefinitionDialog, and makVrf::DtComputedRouteDefinitionDialog.

virtual void makVrf::DtAutoHideDock::paintEvent ( QPaintEvent * p )

protectedvirtual

This event gets automatically called when the widget is about to be painted on screen.

virtual void makVrf::DtAutoHideDock::resizeEvent ( QResizeEvent * event )

protectedvirtual

void makVrf::DtAutoHideDock::signal_closing ( DtAutoHideDock * dock )

signal

This signal gets emitted when the widget is closing.

It passes itself as argument.

void makVrf::DtAutoHideDock::signal_pinPressed ( DtAutoHideDock * dock )

signal

This signal gets emitted when the pin button is pressed on this widget.

It passes itself as argument.

void makVrf::DtAutoHideDock::signal_topLevelChanged ( DtAutoHideDock * dock )

signal

This signal gets emitted when this widget changes its status from docked to floating and vice versa.

It passes itself as argument.

void makVrf::DtAutoHideDock::signal_resized ( DtAutoHideDock * dock )

signal

This signal gets emitted when this widget is resized.

void makVrf::DtAutoHideDock::signal_destroyed ( DtAutoHideDock * dock )

signal

This signal gets emitted when this widget is about to be destroyed.

void makVrf::DtAutoHideDock::signal_enter ( DtAutoHideDock * dock )

signal

This signal gets emitted when the mouse enters on this widget.

void makVrf::DtAutoHideDock::signal_leave ( DtAutoHideDock * dock )

signal

This signal gets emitted when the mouse leaves this widget.

virtual void makVrf::DtAutoHideDock::slot_closePressed ( )

protectedvirtualslot

Gets called when the close button is pressed on the titleBarWidget.

virtual void makVrf::DtAutoHideDock::slot_pinPressed ( bool flag )

protectedvirtualslot

Gets called when the pin is pressed on the titleBarWidget.

virtual void makVrf::DtAutoHideDock::slot_topLevelChanged ( bool )

protectedvirtualslot

Gets called when the widget changes its floating status.

Member Data Documentation

makVrv::DtDe& makVrf::DtAutoHideDock::myDe

protected

DtExtendedTitleBarWidget* makVrf::DtAutoHideDock::myTitleBarWidget

protected

QIcon makVrf::DtAutoHideDock::myIcon

protected

DtAutoHideDockType makVrf::DtAutoHideDock::myDockType

protected

bool makVrf::DtAutoHideDock::myAdjustToMinimumSize

protected

std::string makVrf::DtAutoHideDock::myClassName

protected

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf4-8-branch/include/vrfGuiCoreQt/autoHideDock.h
