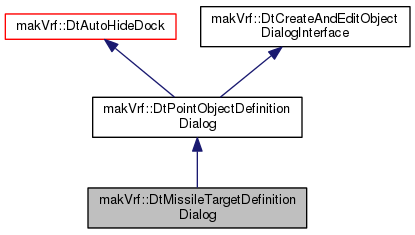

Inheritance diagram for makVrf::DtMissileTargetDefinitionDialog:

Public Member Functions
	DtMissileTargetDefinitionDialog (makVrv::DtDe &de, QWidget *parent, const QString &title="", DtDialogInteractionMode mode=DtCreationMode)
	Constructor. More...

virtual	~DtMissileTargetDefinitionDialog ()
	Destructor. More...

virtual DtPointObjectDefinitionDialogLogic *	createLogic ()
	Initialization method; called by creator class. More...

virtual int	simulationTime () const
	Returns the current value in the parameter one text box. More...

virtual double	incomingHeading () const
	Returns the current value in the parameter two text box. More...

virtual QString	scriptedMovementObject () const
	Returns the scripted movement object file. More...

virtual void	clearScriptedMovementObjects ()
	Clears out current fly out files. More...

virtual void	addScriptedMovementObject (const QString &displayName, const QString &description)
	Adds a new scripted movement object file. More...

virtual void	setSimulationTime (int)
	Populates the Parameter One text box with an int. More...

virtual void	setIncomingHeading (double)
	Populates the Parameter One text box with a double. More...

virtual void	setScriptedMovementObject (const std::string &)
	Populates for scripted movement object file to use. More...

Public Member Functions inherited from makVrf::DtPointObjectDefinitionDialog
	DtPointObjectDefinitionDialog (makVrv::DtDe &de, QWidget *parent, const QString &title="", DtDialogInteractionMode mode=DtCreationMode, const std::string &className="DtPointObjectDefinitionDialog")

virtual	~DtPointObjectDefinitionDialog ()

virtual void	init (const DtEntityType &, DtCreateAndEditObjectDialogInterface::DtDialogInteractionMode)

virtual void	closeDialog ()

virtual QString	getName ()
	Returns the point object's name. More...

virtual double	getHeading ()
	Returns the point object's heading. More...

virtual double	getPitch ()
	Returns the point object's pitch. More...

virtual DtVector	getLocation ()
	Returns the point object's location. More...

virtual double	getAltitudeAboveSeaLevel () const

virtual void	setEmbarkationAllowed (bool flag)
	Sets whether or not attachment (embarkation) of this object is allowed on another object. More...

virtual void	setEmbarkationWidgetVisible (bool flag)
	Sets whether or not attachment (embarkation) is vibiel. More...

virtual double	getAltitudeAboveGroundLevel () const

virtual void	setHeading (double heading)
	Sets the point object's heading. More...

virtual void	setPitch (double heading)
	Sets the point object's pitch. More...

virtual void	setAltitudeAboveTerrain (double altitude)

virtual void	setAltitudeAboveSeaLevel (double altitude)

virtual void	setLocation (const DtVector &pt, bool resetAltitude=true)
	Sets the point object's location. More...

virtual void	setName (const QString &name)
	Sets the point object's name. More...

virtual void	setLabel (const QString &name)
	Sets the point object's label. More...

virtual void	setExtendedLabels (const std::map< int, DtString > &lab)
	Sets the point object's extended labels. More...

virtual void	addOverlay (const QString &name, bool translate=true)
	Add an overlay to the object's overlay. More...

virtual void	removeOverlay (const QString &name)
	Remove an overlay from the object's overlay. More...

virtual void	renameOverlay (const QString &oldName, const QString &newName)
	Rename an overlay int the object's overlay. More...

virtual void	setOverlay (const QString &name)
	Sets the point object's overlay. More...

virtual void	setPublishObjectVisible (bool)

virtual void	setPublishObject (bool)

virtual bool	publishObject () const

virtual void	refreshLabels ()

virtual void	clearOverlays ()

virtual void	setNameVisible (bool flag)
	sets the name field to visible More...

virtual void	setSetActivationTimeVisible (bool flag)

virtual void	setHeadingVisible (bool flag)

virtual void	setPitchVisible (bool flag)

virtual void	setHeadingDecimalPlaces (int decimalPlaces)
	Called by DtPointObjectDefinitionDialogLogic::refreshLabels to set the number of decimal places based on the DtSharedDisplayUnitsSettings. More...

virtual void	setHeadingStep (double)
	Sets the step value of the heading spin. More...

virtual void	setAllowOverlaySelection (bool flag)

virtual void	setAllowVisualMetaDataSelection (bool flag)

virtual void	setTitle (const QString &title)

virtual void	setCreateButtonEnabled (bool flag)
	Enables/disables the create button. More...

virtual void	setCreateButtonText (const QString &text)

virtual void	setCreateButtonVisible (bool flag)
	Shows/hides the create button. More...

virtual void	setUpdateButtonEnabled (bool flag)
	Enables/disables the update button. More...

virtual void	setUpdateButtonText (const QString &text)
	Enables/disables the update button. More...

virtual void	setUpdateButtonVisible (bool flag)
	Shows/hides the update button. More...

virtual void	setCancelButtonEnabled (bool flag)
	Enables/disables the Done button. More...

virtual void	setCancelButtonVisible (bool flag)
	Shows/hides the Done button. More...

virtual void	setNameLabel (const QString &text)
	Sets the name label. More...

virtual void	setCancelButtonText (const QString &text)

virtual void	setAttachObjectToMouseVisible (bool flag)
	Shows/hides the check to enable/disable the mouse click preview. More...

virtual void	setAttachObjectToMouseChecked (bool flag)

virtual bool	attachObjectToMouseEnabled ()

virtual void	setLabelEntryVisible (bool)

virtual void	setAttachObjectToMouseEnabled (bool flag)

virtual DtDialogInteractionMode	interactionMode ()

virtual void	populate (const makVrv::DtUniqueID &)

virtual void	hideDialog ()
	Hides the dialog. More...

DtAltitudeClampType	currentAltitudeTypeSelection () const

virtual void	setCurrentAltitudeTypeSelection (const DtAltitudeClampType &)

virtual void	setAltitudeAllowed (bool)
	Disables (greys out) the entire Altitude Entry box in the dialog if set to false. More...

virtual void	setAltitudeSelectionEnabled (bool)
	Enables Z selection. More...

virtual void	populate (const DtCreateObjectCommand *cmd)

virtual bool	blockSignals (bool)

virtual void	populateOverlays ()

virtual void	populateVisualMetaData (const DtEntityType &)

virtual void	populateVisualMetaData (makVrv::DtUniqueID)

virtual void	populateVisualMetaData (const DtEntityType &type, const DtRwStringAttributeList *atrList)

virtual void	setForce (int)
	Set force. More...

virtual void	hideForces ()
	Hides force label and combo. More...

virtual void	showForces ()
	Shows force label and combo. More...

virtual void	setReadOnly (bool)
	Sets read only the items on the dialog that should be when in mouse attach mode. More...

virtual void	addExtension (QWidget *)
	Add an extension to the dialog. Will add to current extension. More...

virtual void	removeExtension (QWidget *)
	Removes an extension. More...

virtual void	updateEmbarkationWidget (const DtVector &pt)

virtual void	showPropertiesDialog (bool)
	Show/hide properties dialog for this item. More...

DtLocationEntryWidget *	locationEntryWidget ()

DtEmbarkationWidget *	embarkationWidget ()

virtual void	setShowStyleButton (bool)

virtual void	includeSpacer (bool flag)

virtual void	setVisualMarking (const std::string &linkageName, const std::string &value)

virtual void	setCacheMarkingSelections (bool)

virtual void	setupVariants (const std::map< std::string, std::string > &)

Public Member Functions inherited from makVrf::DtAutoHideDock
	DtAutoHideDock (makVrv::DtDe &de, const QString &title="", const std::string &className="", QWidget *parent=0, Qt::WindowFlags flags=0)
	Ctor. More...

	~DtAutoHideDock ()
	Dtor. More...

virtual const QIcon &	icon ()
	Set/Get the icon. More...

virtual void	setIcon (const QIcon &icon)

virtual DtAutoHideDockType	dockType () const
	Set/Get the type of dock this item represents. More...

virtual void	setDockType (DtAutoHideDockType t)

virtual bool	pinned () const
	Set/Get the pin status. More...

virtual void	setPinned (bool flag)

virtual void	setAdjustToMinimumSize (bool)
	Whether or not to adjust the size of the doc (on open) to minimum size. Default is true. More...

virtual bool	adjustToMinimumSize () const

const std::string &	className () const

Public Member Functions inherited from makVrf::DtCreateAndEditObjectDialogInterface
virtual	~DtCreateAndEditObjectDialogInterface ()

Protected Slots
virtual void	slot_onUserDataChanged ()

virtual void	onValueChanged ()

Protected Slots inherited from makVrf::DtPointObjectDefinitionDialog
virtual void	markingChanged (QComboBox *, const QString &, const QString &)

virtual void	slot_onBtnStyleClicked ()

virtual void	slot_attachObjectToMouseClicked (bool flag)

virtual void	slot_onCreateButtonClicked ()

virtual void	slot_onUpdateButtonClicked ()

virtual void	slot_onDoneButtonClicked ()

virtual void	slot_onNamePrefixEdited ()

virtual void	slot_onSetActivationTime ()

virtual void	slot_onLabelEdited ()

virtual void	slot_onExtendedLabelsEdited ()

virtual void	slot_onOverlaysComboCurrentIndexChanged (int index)

virtual void	slot_onForceComboCurrentIndexChanged (int index)

virtual void	slot_onHeadingChanged (double value)

virtual void	slot_onPitchChanged (double value)

virtual void	slot_closePressed ()

virtual void	slot_onAltitudeSelectionTypeChanged (const DtAltitudeClampType &)

virtual void	slot_onLocationChanged ()

virtual void	slot_onAltitudeAboveSeaLevelEdited (double value)

virtual void	slot_onAltitudeAboveGroundLevelEdited (double value)

virtual void	slot_onPublishObjectChanged ()

Protected Slots inherited from makVrf::DtAutoHideDock
virtual void	slot_closePressed ()
	Gets called when the close button is pressed on the titleBarWidget. More...

virtual void	slot_pinPressed (bool flag)
	Gets called when the pin is pressed on the titleBarWidget. More...

virtual void	slot_topLevelChanged (bool)
	Gets called when the widget changes its floating status. More...

Protected Member Functions
virtual void	setupGui ()

void	setupConnections ()

Protected Member Functions inherited from makVrf::DtPointObjectDefinitionDialog
virtual void	closeEvent (QCloseEvent *event)
	This event gets automatically called when the widget is about to be closed. More...

virtual void	showEvent (QShowEvent *)

virtual bool	needsNameCheck () const

Protected Member Functions inherited from makVrf::DtAutoHideDock
virtual bool	eventFilter (QObject p, QEvent e)
	Event filter installed to listen for mouse events from the titleBarWidget. More...

virtual void	enterEvent (QEvent *event)
	Automatic event that gets triggered when the mouse enters the widget. More...

virtual void	leaveEvent (QEvent *event)
	Automatic event that gets triggered when the mouse leaves the widget. More...

virtual void	paintEvent (QPaintEvent *p)
	This event gets automatically called when the widget is about to be painted on screen. More...

virtual void	resizeEvent (QResizeEvent *event)

Protected Attributes
DtMissileTargetDefinitionDialogLogic *	myCustomLogic

DtTimeEntryWidget *	mySimulationTime

DtHeadingEntryWidget *	myIncomingHeading

DtSimpleComboVariableWidget *	myScriptedMovementObjects

Protected Attributes inherited from makVrf::DtPointObjectDefinitionDialog
bool	myActivationTimeVisible

DtPointObjectDefinitionDialogLogic *	myLogic

DtDialogInteractionMode	myInteractionMode

QString	myDefaultName

bool	mySettingGuiUp

bool	myBlockSignals

DtEntityType	myEditingType

bool	myEditingLocation

bool	myCreated

bool	myAllowVisualMetaDataSelection

bool	myAltitudeAllowed

bool	myEmbarkationAllowed

makVrv::DtSignalConnectionManager	myConnectionManager

DtCreateAndEditObjectDialogInterface::DtDialogInteractionMode	myCreationMode

Protected Attributes inherited from makVrf::DtAutoHideDock
makVrv::DtDe &	myDe

DtExtendedTitleBarWidget *	myTitleBarWidget

QIcon	myIcon

DtAutoHideDockType	myDockType

bool	myAdjustToMinimumSize

std::string	myClassName

Additional Inherited Members
Public Types inherited from makVrf::DtAutoHideDock
enum	DtAutoHideDockType { Palette = 0, Dialog }

Public Types inherited from makVrf::DtCreateAndEditObjectDialogInterface
enum	DtDialogInteractionMode { DtCreationMode = 0, DtEditingMode }

Signals inherited from makVrf::DtAutoHideDock
void	signal_closing (DtAutoHideDock *dock)
	This signal gets emitted when the widget is closing. More...

void	signal_pinPressed (DtAutoHideDock *dock)
	This signal gets emitted when the pin button is pressed on this widget. More...

void	signal_topLevelChanged (DtAutoHideDock *dock)
	This signal gets emitted when this widget changes its status from docked to floating and vice versa. More...

void	signal_resized (DtAutoHideDock *dock)
	This signal gets emitted when this widget is resized. More...

void	signal_destroyed (DtAutoHideDock *dock)
	This signal gets emitted when this widget is about to be destroyed. More...

void	signal_enter (DtAutoHideDock *dock)
	This signal gets emitted when the mouse enters on this widget. More...

void	signal_leave (DtAutoHideDock *dock)
	This signal gets emitted when the mouse leaves this widget. More...

Public Attributes inherited from makVrf::DtPointObjectDefinitionDialog
Ui_PointObjectDefinitionWidgetUi	myUiImpl

DtForceSelectionEntryWidget *	myForces

QWidget *	myParent

DtExtendedLabelsEntryWidget *	myExtendedLabelsEntryWidget

DtLocationEntryWidget *	myLocationWidget

DtEmbarkationWidget *	myEmbarkationWidget

DtOverlayParentEntryWidget *	myOverlaysCombo

DtVisualMetaDataSelectionWidget *	myVisualMetaDataSelectionWidget

Public Attributes inherited from makVrf::DtCreateAndEditObjectDialogInterface
boost::signals2::signal< void()>	signal_dialogClosing
	This signal gets emitted when the dialog is closing. More...

boost::signals2::signal< void()>	signal_dialogUpdated
	This signal gets emitted when the dialog is updated. More...

boost::signals2::signal< void(const std::string &)>	signal_nameChanged
	This signal gets emitted when the name is updated. More...

boost::signals2::signal< void(const std::string &)>	signal_labelChanged
	This signal gets emitted when the label is updated. More...

boost::signals2::signal< void(const std::map< int, DtString > &)>	signal_extendedLabelsChanged
	This signal gets emitted when the label is updated. More...

boost::signals2::signal< void(bool)>	signal_reviewMouseClicks
	This signal get emitted when the "enable/disable mouse clicks for automatic creation" option is toggled. More...

boost::signals2::signal< void(const DtVector &)>	signal_locationAdded
	This signal gets emitted when a location is added to the dialog. More...

boost::signals2::signal< void(const DtVector &)>	signal_locationSet
	This signal gets emitted when a location is set into the dialog. More...

boost::signals2::signal< void(const std::string &)>	signal_overlayNameChanged
	This signal gets emitted when the overlay name changes in the dialog. More...

boost::signals2::signal< void(int)>	signal_forceChanged
	This signal gets emitted when the force changes in the dialog. More...

boost::signals2::signal< void(bool)>	signal_publishObjectChanged
	This signal gets sent when object publication changes. More...

boost::signals2::signal< void(int)>	signal_colorChanged
	This signal gets sent when color has changed. More...

Detailed Description

The dialog class is derived here from DtPointbjectDefinitionDialog, which is ultimately multiply derived from a base interface class and QDockWidget, a Qt object.

While dialogs in the VR-Forces API have their own UI object classes, this example derives from DtShapeObjectDefinitionDialog and makes direct post de facto modifications to the Qt layout, adding on mutators and accessors.

Constructor & Destructor Documentation

makVrf::DtMissileTargetDefinitionDialog::DtMissileTargetDefinitionDialog	(	makVrv::DtDe &	de,
		QWidget *	parent,
		const QString &	title = `""`,
		DtDialogInteractionMode	mode = `DtCreationMode`
	)

Constructor.

Registration of the Dialog class as a Q_OBJECT is centrally important to being able to register Qt signals - in this example these signals are sent whenever either of

the parameter text boxes (called QLineEdit objects) are modified by the user.

virtual makVrf::DtMissileTargetDefinitionDialog::~DtMissileTargetDefinitionDialog ( )

virtual

Destructor.

Member Function Documentation

virtual DtPointObjectDefinitionDialogLogic* makVrf::DtMissileTargetDefinitionDialog::createLogic ( )

virtual

Initialization method; called by creator class.

Reimplemented from makVrf::DtPointObjectDefinitionDialog.

virtual int makVrf::DtMissileTargetDefinitionDialog::simulationTime ( ) const

virtual

Returns the current value in the parameter one text box.

virtual double makVrf::DtMissileTargetDefinitionDialog::incomingHeading ( ) const

virtual

Returns the current value in the parameter two text box.

virtual QString makVrf::DtMissileTargetDefinitionDialog::scriptedMovementObject ( ) const

virtual

Returns the scripted movement object file.

virtual void makVrf::DtMissileTargetDefinitionDialog::clearScriptedMovementObjects ( )

virtual

Clears out current fly out files.

virtual void makVrf::DtMissileTargetDefinitionDialog::addScriptedMovementObject	(	const QString &	displayName,
		const QString &	description
	)

virtual

Adds a new scripted movement object file.

virtual void makVrf::DtMissileTargetDefinitionDialog::setSimulationTime ( int )

virtual

Populates the Parameter One text box with an int.

virtual void makVrf::DtMissileTargetDefinitionDialog::setIncomingHeading ( double )

virtual

Populates the Parameter One text box with a double.

virtual void makVrf::DtMissileTargetDefinitionDialog::setScriptedMovementObject ( const std::string & )

virtual

Populates for scripted movement object file to use.

virtual void makVrf::DtMissileTargetDefinitionDialog::setupGui ( )

protectedvirtual

called during initialization, setupGui() first calls the method of the same name of the base class, which instantiates the Qt dialog.

The derived logic then modifies the base dialog, inserting new UI elements.

Reimplemented from makVrf::DtPointObjectDefinitionDialog.

void makVrf::DtMissileTargetDefinitionDialog::setupConnections ( )

protectedvirtual

sets up connections between the Qt dialog elements and local methods.  This override wraps the base method and connects the additional signals

between the new LineEdit elements and slot_onUserDataChanged()

Reimplemented from makVrf::DtPointObjectDefinitionDialog.

virtual void makVrf::DtMissileTargetDefinitionDialog::slot_onUserDataChanged ( )

protectedvirtualslot

virtual void makVrf::DtMissileTargetDefinitionDialog::onValueChanged ( )

protectedvirtualslot

Member Data Documentation

DtMissileTargetDefinitionDialogLogic* makVrf::DtMissileTargetDefinitionDialog::myCustomLogic

protected

The base class DtShapeObjectDefinitionDialog has a pointer to its base logic class DtShapeObjectDefinitionDialogLogic called myLogic.

This example derives its own custom logic class from this and and instantiates it vduring initialization, so myLogic is pointed to the derived logic class.

DtTimeEntryWidget* makVrf::DtMissileTargetDefinitionDialog::mySimulationTime

protected

DtHeadingEntryWidget* makVrf::DtMissileTargetDefinitionDialog::myIncomingHeading

protected

DtSimpleComboVariableWidget* makVrf::DtMissileTargetDefinitionDialog::myScriptedMovementObjects

protected

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf4-8-branch/include/vrfGuiCoreQt/missileTargetDefinitionDialog.h

Public Member Functions

Protected Slots

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
