These classes will define simple data entry widgets that can be used in scripted (or other) tasks. More...

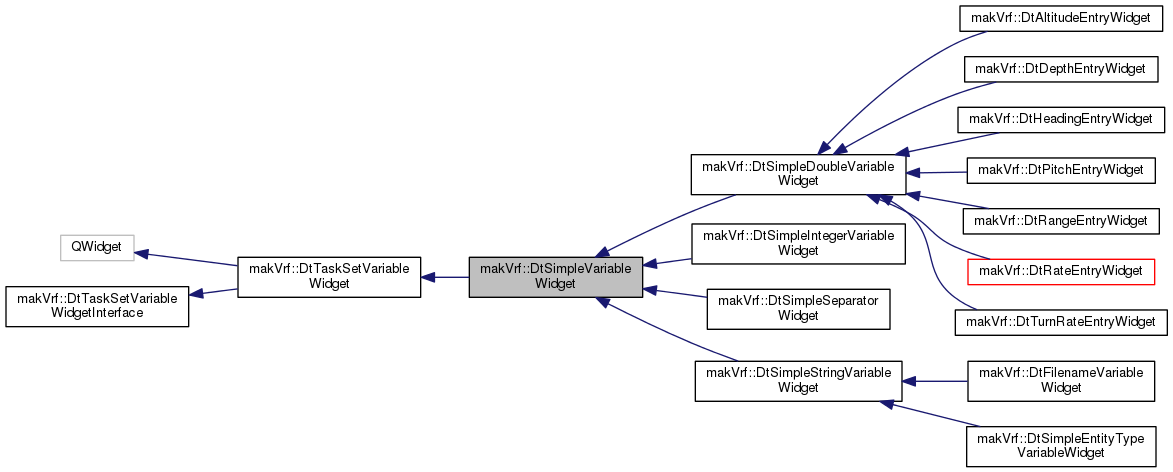

Inheritance diagram for makVrf::DtSimpleVariableWidget:

Public Slots
virtual void	setText (const QString &)

Signals
void	textChanged (const QString &)

void	textEdited (const QString &)

Signals inherited from makVrf::DtTaskSetVariableWidget
void	validityUpdated ()
	Signal which can be emitted to indicate the validity of the current widget selection has changed. More...

Public Member Functions
	DtSimpleVariableWidget (makVrv::DtDe &de, QWidget *parent, const Qt::WindowFlags &flags=0, const CreationFlags &cflags=NormalMode)

virtual	~DtSimpleVariableWidget ()

virtual void	setLabel (const std::string &)
	Display label. More...

virtual void	setDefaultValue (const std::string &)
	Default value to set in control. More...

virtual void	setLabel (const QString &)
	QString version for property. More...

virtual QString	label () const

virtual QString	text () const

Public Member Functions inherited from makVrf::DtTaskSetVariableWidget
	DtTaskSetVariableWidget (makVrv::DtDe &de, QWidget *parent, const Qt::WindowFlags &flags=0, const CreationFlags &cflags=NormalMode)

virtual	~DtTaskSetVariableWidget ()

virtual void	setToolTip (const QString &)
	Sets the tool tip. More...

virtual void	setVariableData (const std::string &)
	Calls QString version. More...

virtual void	setVariableData (const QString &)
	QString version calls std::string version. More...

virtual QString	variableData () const

virtual void	setupFrom (const std::vector< makVrv::DtSimEntry * > &data)
	Sets up widget with currently selected item. No-op. More...

virtual void	setIsInternal (bool)
	Whether or not value is internal. Internal values will not be shown to the user on the scripted task dialog. More...

virtual bool	isInternal () const

virtual void	setTopLineVisible (bool)
	Hides top line. More...

virtual bool	topLineVisible () const

virtual void	createTopLine ()
	Creates top line. More...

virtual void	setIndent (int)
	Sets the indent level for the contents of this widget, except for the title line. More...

virtual int	indent () const

virtual bool	isValid () const
	Indicates the current selection is valid. More...

virtual void	setTopLabelChecked (bool)
	Sets the top label to be checked/unchecked and calls topLabelChecked if the check box is visible. More...

virtual bool	topLabelChecked () const

virtual void	setRange (double, double)
	Sets the range of the item. This widget (by default) does not support that. More...

virtual void	setRange (const DtRange &)

virtual void	setRangeTop (double)

virtual void	setRangeTop (int)

virtual double	rangeTop () const

virtual void	setRangeBottom (double)

virtual void	setRangeBottom (int)

virtual double	rangeBottom () const

virtual const DtRange &	getRange () const

virtual void	setTopLabelIsCheckable (bool)
	Sets whether or not the top label is checkable. More...

virtual bool	topLabelIsCheckable () const

virtual void	getDefaultSpecificTitles (QString &defaultTitle, QString &specificTitle) const

virtual void	setDefaultSpecificTitles (const QString &defaultTitle, const QString &specificTitle)

virtual void	setupDefaultSpecificFromVariableData (const DtString &var)
	Format is allowdefault=[defaultTitle],[specificTitle]. More...

virtual std::string	variableDataFromUiDesigner (const QDomElement &, const DtScriptedTaskVariableLayoutConverter &) const
	Given the Ui designer properties create a string that will represent the variable data for those properties. More...

virtual std::string	scriptedTaskVariableName () const
	In most cases this is the objectName of the object, however, in some cases (as in radio button) this could be a name that is shared amongst like objects, so, that is returned instead. More...

Public Member Functions inherited from makVrf::DtTaskSetVariableWidgetInterface
	DtTaskSetVariableWidgetInterface ()

virtual	~DtTaskSetVariableWidgetInterface ()

virtual void	widgetInitializedForDialog (DtScriptedTaskDialog , const std::vector< makVrv::DtSimEntry > &data)
	Called when the widget is initialized from a scripted task dialog. Default implementation is to do nothing. More...

virtual DtReaderWriter *	createBoundVariable (const std::string &variableName)=0
	Creates the reader/writer variable that will be used as part of the task statement. More...

virtual void	setupFromBoundVariable (const DtReaderWriter *variableName)=0
	Sets up the widget from the given reader/writer variables. More...

virtual DtTaskSetVariableWidgetExtensionInterface *	parameterContents (QWidget *parent, const Qt::WindowFlags &flags=0) const
	If there are any, returns contents for this variable for variable extension. Default is no extension. More...

virtual bool	guiElementOnly () const
	Returns true if this is a GUI element only. Default is false. More...

Public Attributes
QHBoxLayout *	myLayout

QLabel *	myLabel

QLineEdit *	myValue

Public Attributes inherited from makVrf::DtTaskSetVariableWidget
boost::signals2::signal< void(bool)>	signal_topLevelCheckStateChanged

int	myIndent

QVBoxLayout *	myVariableWidgetLayout

QHBoxLayout *	mySpacedLayout

QVBoxLayout *	myVariableContentLayout
	When creating subclasses of this item, use the variable content layout to add your content. More...

QWidget *	myTopLine

QLabel *	myTopLabel

QWidget *	myChoiceCanvas

QRadioButton *	myUseDefault

QRadioButton *	myUseSpecific

QSpacerItem *	myTopSeparator

QHBoxLayout *	myTopLineLayout

QSpacerItem *	mySpacerItem

Additional Inherited Members
Public Types inherited from makVrf::DtTaskSetVariableWidgetInterface
enum	CreationFlags { NormalMode = 0x00000000, QtDesignerMode = 0x00000001 }

Static Public Member Functions inherited from makVrf::DtTaskSetVariableWidget
static bool	includeInQtDesigner ()

Static Public Member Functions inherited from makVrf::DtTaskSetVariableWidgetInterface
static bool	canBeUsedAsWidget ()
	Whether or not this shows up as a usable variable widget. More...

static void	initializeForQtDesignerExtension (makVrv::DtDe &de, QDesignerFormEditorInterface *core)
	Implement at class level to perform Qt Designer custom widget initialization. Please refer to Qt documentation for designer modifications. More...

static bool	includeInQtDesigner ()

Protected Slots inherited from makVrf::DtTaskSetVariableWidget
virtual void	topLabelCheckStateChanged ()

Protected Attributes inherited from makVrf::DtTaskSetVariableWidget
makVrv::DtDe &	myDe

makVrv::DtSignalConnectionManager	myConnections

bool	myTopLabelIsCheckable

DtRange	myRange

bool	myIsInternal

CreationFlags	myCreationFlags

QString	myVariableData

Properties inherited from makVrf::DtTaskSetVariableWidget
QString	label

bool	isInternal

int	indent

QString	variableData

Detailed Description

These classes will define simple data entry widgets that can be used in scripted (or other) tasks.

Constructor & Destructor Documentation

makVrf::DtSimpleVariableWidget::DtSimpleVariableWidget	(	makVrv::DtDe &	de,
		QWidget *	parent,
		const Qt::WindowFlags &	flags = `0`,
		const CreationFlags &	cflags = `NormalMode`
	)
