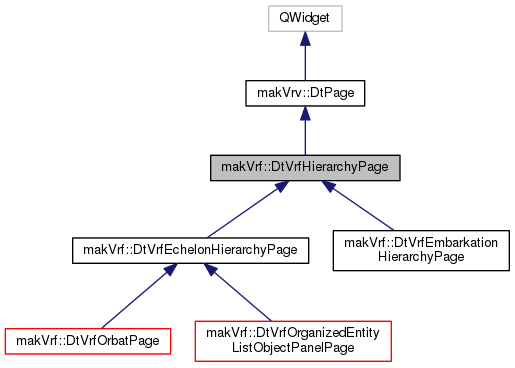

Inheritance diagram for makVrf::DtVrfHierarchyPage:

Public Slots
virtual void	onItemSelected ()
	Calls down to logic to select item. More...

Public Member Functions
virtual	~DtVrfHierarchyPage ()
	DTOR. More...

DtVrfTreeWidget *	echelon ()

virtual void	selectObjects (const std::vector< DtObjectListViewItem::DtVrfObjectState >)
	Clears current selection and selects object in list. More...

virtual std::vector < DtObjectListViewItem::DtVrfObjectState >	selectedObjects () const
	Returns a list of the objects selected. More...

virtual DtExpandCollapseButton *	createExpandCollapseButton (unsigned int, int numButtons)

virtual int	initialSortColumn () const

virtual void	changeForceOf (const QStringList &ids, int)

virtual void	setAllowNameChange (bool)

virtual void	setEditPressTime (double)

virtual void	setRootNodeDefaultHidden (QTreeWidgetItem *, bool)

virtual bool	isRootNodeDefaultHidden (QTreeWidgetItem *)

virtual void	setDoubleClickAttachesAndCenters (bool b)
	Calls down to logic to set. More...

bool	doubleClickAttachesAndCenters () const

Public Member Functions inherited from makVrv::DtPage
	DtPage (DtDe &de, QWidget *parent=0, Qt::WindowFlags f=0)
	CTOR for page. More...

virtual	~DtPage ()
	DTOR for page. More...

virtual QIcon	icon ()=0
	Get the icon of the page. More...

virtual QString	title ()=0
	Get the title of the page. More...

virtual const std::string &	pageClassName () const =0
	Get the class name of the page. More...

virtual PageAction	pageAction ()
	return the current action on the page More...

virtual void	setPageAction (PageAction action)
	set the curret action on the page More...

virtual void	setActionFlag (int flag)
	set the action flag of the page More...

virtual int	actionFlag ()
	return the action flag of the page More...

virtual void	setParentDialog (QWidget *paraentDialog)
	set the parent dialog that owns this page More...

virtual QWidget *	parentDialog ()
	return the parent dialog that own this page More...

virtual bool	shouldAskBeforeAction (PageAction action)
	test the action flag with the action, return true if we should ask before executing the action /param action the current page action More...

virtual void	askBeforeAction ()
	Called when the action flag is set and before the action is beind executed, default do nothing. More...

virtual void	executeAfterAsk (bool revert)
	Called after askBeforeAction(), whether user wants to revert the action or resume the action /param revert if true, the user wants to revert the action, otherwise resume it. More...

virtual void	resumeLastAction ()
	resume the last action of the page More...

virtual void	onCloseEvent ()
	will be called when user hit the close button of this page, default do nothing. More...

virtual void	onSwitchEvent ()
	will be called when user try switch to another page, default do nothing. More...

Public Attributes
boost::signals2::signal< void(QTreeWidgetItem *)>	signal_itemDoubleClicked

QVBoxLayout *	myMasterLayout

DtVrfTreeWidget *	myEchelon

DtScrollButtonArea *	myCollapseButtonWidget

QPixmap	myPlusPixmap

QPixmap	myMinusPixmap

QCheckBox *	myShowEchelonId

QFrame *	myDividingLine

QLabel *	mySearchLabel

QLineEdit *	mySearch

QPushButton *	myResetButton

QHBoxLayout *	mySearchBarLayout

Protected Types
typedef std::map < QTreeWidgetItem , DtParentedUnderOrganizedNode >	VisibilityFilters

Protected Slots
virtual void	onMarkingTextChanged (DtObjectListViewItem *, const QString &)

virtual void	onRightClickOnItem (QTreeWidgetItem , QMouseEvent , int col)
	Sends off boost signal of similar name. More...

virtual void	onScrollRangeChanged (int)

virtual void	onViewItemExpanded (QTreeWidgetItem *)

virtual void	onViewItemCollapsed (QTreeWidgetItem *)

virtual void	onExpandToLevel (unsigned int)

virtual void	onCollapseToLevel (unsigned int)

virtual void	itemDoubleClicked (QTreeWidgetItem *)

virtual void	executeTextFilter ()

virtual void	resetTextFilter ()

Protected Member Functions
	DtVrfHierarchyPage (makVrv::DtDe &de, QWidget *parent=0, Qt::WindowFlags flags=0)
	CTOR. More...

virtual DtVrfTreeWidget *	createHierarchyList ()=0

virtual DtVrfHierarchyPageLogic *	createLogic ()=0

virtual void	setupUi (QWidget *p)

virtual DtScrollButtonArea *	createCollapseButtonConainer (QWidget *parent)

virtual DtMarkingTextSignalItemDelegate *	createTreeItemDelegate ()

virtual void	slot_onDeParent (const QStringList &)

virtual void	slot_onReParent (const QStringList &children, makVrv::DtUniqueID parentId)

virtual void	createSearchBar ()

virtual void	showSearchBars (bool)

virtual void	activate ()
	Called when the page is displayed. More...

virtual void	deactivate ()
	Called when the page is hidden. More...

virtual void	setChildrenVisible (QTreeWidgetItem *item, bool visible)

Protected Attributes
DtVrfHierarchyPageLogic *	myLogic

makVrv::DtSignalConnectionManager	myConnections

VisibilityFilters	myVisibilityFilters

std::set< QTreeWidgetItem * >	myDefaultHiddenRootNodes

bool	myDoubleClickAttachesAndCenters
	Defaults to false. More...

Protected Attributes inherited from makVrv::DtPage
DtDe &	myDe

QWidget *	myParentDialog

PageAction	myCurrentPageAction

int	myActionFlag

Additional Inherited Members
Public Types inherited from makVrv::DtPage
enum	PageAction { None = 0x0000, Switching = 0x0001, Closing = 0x0010 }

Member Typedef Documentation

typedef std::map<QTreeWidgetItem*, DtParentedUnderOrganizedNode*> makVrf::DtVrfHierarchyPage::VisibilityFilters

protected

Constructor & Destructor Documentation

virtual makVrf::DtVrfHierarchyPage::~DtVrfHierarchyPage ( )

virtual

DTOR.

makVrf::DtVrfHierarchyPage::DtVrfHierarchyPage	(	makVrv::DtDe &	de,
		QWidget *	parent = `0`,
		Qt::WindowFlags	flags = `0`
	)

protected

CTOR.

Member Function Documentation

DtVrfTreeWidget* makVrf::DtVrfHierarchyPage::echelon ( )

virtual void makVrf::DtVrfHierarchyPage::selectObjects ( const std::vector< DtObjectListViewItem::DtVrfObjectState > )

virtual

Clears current selection and selects object in list.

Blocks signals so the new selection will not be signaled. Only objects on the current filter will be selected

virtual std::vector<DtObjectListViewItem::DtVrfObjectState> makVrf::DtVrfHierarchyPage::selectedObjects ( ) const

virtual

Returns a list of the objects selected.

virtual DtExpandCollapseButton* makVrf::DtVrfHierarchyPage::createExpandCollapseButton	(	unsigned	int,
		int	numButtons
	)

virtual

virtual int makVrf::DtVrfHierarchyPage::initialSortColumn ( ) const

virtual

virtual void makVrf::DtVrfHierarchyPage::changeForceOf	(	const QStringList &	ids,
		int
	)

virtual

virtual void makVrf::DtVrfHierarchyPage::setAllowNameChange ( bool )

virtual

virtual void makVrf::DtVrfHierarchyPage::setEditPressTime ( double )

virtual

virtual void makVrf::DtVrfHierarchyPage::setRootNodeDefaultHidden	(	QTreeWidgetItem *	,
		bool
	)

virtual

virtual bool makVrf::DtVrfHierarchyPage::isRootNodeDefaultHidden ( QTreeWidgetItem * )

virtual

virtual void makVrf::DtVrfHierarchyPage::setDoubleClickAttachesAndCenters ( bool b )

virtual

Calls down to logic to set.

bool makVrf::DtVrfHierarchyPage::doubleClickAttachesAndCenters ( ) const

virtual void makVrf::DtVrfHierarchyPage::onItemSelected ( )

virtualslot

Calls down to logic to select item.

Reimplemented in makVrf::DtVrfOrbatPage.

virtual void makVrf::DtVrfHierarchyPage::onMarkingTextChanged	(	DtObjectListViewItem *	,
		const QString &
	)

protectedvirtualslot

Reimplemented in makVrf::DtVrfOrbatPage.

virtual void makVrf::DtVrfHierarchyPage::onRightClickOnItem	(	QTreeWidgetItem *	,
		QMouseEvent *	,
		int	col
	)

protectedvirtualslot

Sends off boost signal of similar name.

Reimplemented in makVrf::DtVrfOrbatPage, and makVrf::DtVrfOrganizedObjectListPanelPage.

virtual void makVrf::DtVrfHierarchyPage::onScrollRangeChanged ( int )

protectedvirtualslot

virtual void makVrf::DtVrfHierarchyPage::onViewItemExpanded ( QTreeWidgetItem * )

protectedvirtualslot

virtual void makVrf::DtVrfHierarchyPage::onViewItemCollapsed ( QTreeWidgetItem * )

protectedvirtualslot

virtual void makVrf::DtVrfHierarchyPage::onExpandToLevel ( unsigned int )

protectedvirtualslot

virtual void makVrf::DtVrfHierarchyPage::onCollapseToLevel ( unsigned int )

protectedvirtualslot

virtual void makVrf::DtVrfHierarchyPage::itemDoubleClicked ( QTreeWidgetItem * )

protectedvirtualslot

virtual void makVrf::DtVrfHierarchyPage::executeTextFilter ( )

protectedvirtualslot

virtual void makVrf::DtVrfHierarchyPage::resetTextFilter ( )

protectedvirtualslot

virtual DtVrfTreeWidget* makVrf::DtVrfHierarchyPage::createHierarchyList ( )

protectedpure virtual

Implemented in makVrf::DtVrfOrbatPage, makVrf::DtVrfEchelonHierarchyPage, and makVrf::DtVrfEmbarkationHierarchyPage.

virtual DtVrfHierarchyPageLogic* makVrf::DtVrfHierarchyPage::createLogic ( )

protectedpure virtual

Implemented in makVrf::DtVrfOrbatPage, makVrf::DtVrfEchelonHierarchyPage, makVrf::DtVrfEmbarkationHierarchyPage, makVrf::DtVrfOrganizedEntityListObjectPanelPage, and makVrf::DtVrfOrganizedObjectListPanelPage.

virtual void makVrf::DtVrfHierarchyPage::setupUi ( QWidget * p )

protectedvirtual

virtual DtScrollButtonArea* makVrf::DtVrfHierarchyPage::createCollapseButtonConainer ( QWidget * parent )

protectedvirtual

virtual DtMarkingTextSignalItemDelegate* makVrf::DtVrfHierarchyPage::createTreeItemDelegate ( )

protectedvirtual

Reimplemented in makVrf::DtVrfEchelonHierarchyPage, and makVrf::DtVrfEmbarkationHierarchyPage.

virtual void makVrf::DtVrfHierarchyPage::slot_onDeParent ( const QStringList & )

protectedvirtual

virtual void makVrf::DtVrfHierarchyPage::slot_onReParent	(	const QStringList &	children,
		makVrv::DtUniqueID	parentId
	)

protectedvirtual

virtual void makVrf::DtVrfHierarchyPage::createSearchBar ( )

protectedvirtual

virtual void makVrf::DtVrfHierarchyPage::showSearchBars ( bool )

protectedvirtual

virtual void makVrf::DtVrfHierarchyPage::activate ( )

protectedvirtual

Called when the page is displayed.

Implements makVrv::DtPage.

Reimplemented in makVrf::DtOrbatPalettePage, makVrf::DtVrfOrbatPage, and makVrf::DtVrfOrganizedEntityListObjectPanelPage.

virtual void makVrf::DtVrfHierarchyPage::deactivate ( )

protectedvirtual

Called when the page is hidden.

Implements makVrv::DtPage.

virtual void makVrf::DtVrfHierarchyPage::setChildrenVisible	(	QTreeWidgetItem *	item,
		bool	visible
	)

protectedvirtual

Member Data Documentation

boost::signals2::signal<void (QTreeWidgetItem*)> makVrf::DtVrfHierarchyPage::signal_itemDoubleClicked

DtVrfHierarchyPageLogic* makVrf::DtVrfHierarchyPage::myLogic

protected

makVrv::DtSignalConnectionManager makVrf::DtVrfHierarchyPage::myConnections

protected

VisibilityFilters makVrf::DtVrfHierarchyPage::myVisibilityFilters

protected

std::set<QTreeWidgetItem*> makVrf::DtVrfHierarchyPage::myDefaultHiddenRootNodes

protected

bool makVrf::DtVrfHierarchyPage::myDoubleClickAttachesAndCenters

protected

Defaults to false.

QVBoxLayout* makVrf::DtVrfHierarchyPage::myMasterLayout

DtVrfTreeWidget* makVrf::DtVrfHierarchyPage::myEchelon

DtScrollButtonArea* makVrf::DtVrfHierarchyPage::myCollapseButtonWidget

QPixmap makVrf::DtVrfHierarchyPage::myPlusPixmap

QPixmap makVrf::DtVrfHierarchyPage::myMinusPixmap

QCheckBox* makVrf::DtVrfHierarchyPage::myShowEchelonId

QFrame* makVrf::DtVrfHierarchyPage::myDividingLine

QLabel* makVrf::DtVrfHierarchyPage::mySearchLabel

QLineEdit* makVrf::DtVrfHierarchyPage::mySearch

QPushButton* makVrf::DtVrfHierarchyPage::myResetButton

QHBoxLayout* makVrf::DtVrfHierarchyPage::mySearchBarLayout

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf4-8-branch/include/vrfGuiCoreQt/vrfHierarchyPage.h
