Widget that allows users to select weapons for the given entity. More...

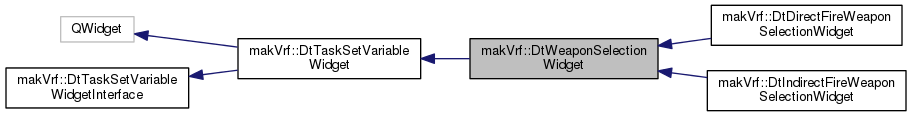

Inheritance diagram for makVrf::DtWeaponSelectionWidget:

Public Member Functions
	DtWeaponSelectionWidget (makVrv::DtDe &de, QWidget *parent, const Qt::WindowFlags &flags=0, const CreationFlags &cflags=NormalMode)

virtual	~DtWeaponSelectionWidget ()

virtual void	setLabel (const QString &)
	Display label. More...

virtual QString	label () const

virtual void	setRange (double bottom, double top)
	Validation range. Not applicable. More...

virtual void	setDefaultValue (const std::string &)
	Default value to set in control. Will contain initial weapon to select. More...

virtual void	setVariableData (const QString &)
	Variable data. Unused in this widget. More...

virtual void	setupFrom (const std::vector< makVrv::DtSimEntry * > &data)
	Sets up widget with currently selected item. Requests data. More...

virtual DtReaderWriter *	createBoundVariable (const std::string &variableName)
	Creates the reader/writer variable that will be used as part of the task statement. More...

virtual void	setupFromBoundVariable (const DtReaderWriter *variableName)
	Sets up the widget from the given reader/writer variables. More...

virtual void	requestWeaponsFor (const std::vector< makVrv::DtSimEntry * > &data)
	Add all the entities (vector of sim entries) to myAwaitingWeaponSystemResponse list, and then call the DtWeaponListRequestor instance's updateWeaponSystem() on the first entity in the list. More...

virtual void	slot_receivedWeaponList (const DtUUID &entity)

virtual void	setAllowMultipleSelection (bool)
	Call before setup – allows multiple selection of weapons. More...

virtual bool	allowMultipleSelection () const

virtual QStringList	selectedWeapons () const
	List of currently selected weapons. More...

virtual void	selectWeapons (const QStringList &)
	Selects weapons in the list. If combo box will only look at first one. More...


virtual bool	includeResources () const
	Set/get whether resources are requested along with weapon names when making a weapon list request from the back end. More...

virtual void	setIncludeResources (const bool doInclude)

Public Member Functions inherited from makVrf::DtTaskSetVariableWidget
	DtTaskSetVariableWidget (makVrv::DtDe &de, QWidget *parent, const Qt::WindowFlags &flags=0, const CreationFlags &cflags=NormalMode)

virtual	~DtTaskSetVariableWidget ()

virtual void	setToolTip (const QString &)
	Sets the tool tip. More...

virtual void	setLabel (const std::string &)
	Display label. More...

virtual void	setVariableData (const std::string &)
	Calls QString version. More...

virtual QString	variableData () const

virtual void	setIsInternal (bool)
	Whether or not value is internal. Internal values will not be shown to the user on the scripted task dialog. More...

virtual bool	isInternal () const

virtual void	setTopLineVisible (bool)
	Hides top line. More...

virtual bool	topLineVisible () const

virtual void	createTopLine ()
	Creates top line. More...

virtual void	setIndent (int)
	Sets the indent level for the contents of this widget, except for the title line. More...

virtual int	indent () const

virtual bool	isValid () const
	Indicates the current selection is valid. More...

virtual void	setTopLabelChecked (bool)
	Sets the top label to be checked/unchecked and calls topLabelChecked if the check box is visible. More...

virtual bool	topLabelChecked () const

virtual void	setRange (const DtRange &)

virtual void	setRangeTop (double)

virtual void	setRangeTop (int)

virtual double	rangeTop () const

virtual void	setRangeBottom (double)

virtual void	setRangeBottom (int)

virtual double	rangeBottom () const

virtual const DtRange &	getRange () const

virtual void	setTopLabelIsCheckable (bool)
	Sets whether or not the top label is checkable. More...

virtual bool	topLabelIsCheckable () const

virtual void	getDefaultSpecificTitles (QString &defaultTitle, QString &specificTitle) const

virtual void	setDefaultSpecificTitles (const QString &defaultTitle, const QString &specificTitle)

virtual void	setupDefaultSpecificFromVariableData (const DtString &var)
	Format is allowdefault=[defaultTitle],[specificTitle]. More...

virtual std::string	scriptedTaskVariableName () const
	In most cases this is the objectName of the object, however, in some cases (as in radio button) this could be a name that is shared amongst like objects, so, that is returned instead. More...

Public Member Functions inherited from makVrf::DtTaskSetVariableWidgetInterface
	DtTaskSetVariableWidgetInterface ()

virtual	~DtTaskSetVariableWidgetInterface ()

virtual void	widgetInitializedForDialog (DtScriptedTaskDialog , const std::vector< makVrv::DtSimEntry > &data)
	Called when the widget is initialized from a scripted task dialog. Default implementation is to do nothing. More...

virtual DtTaskSetVariableWidgetExtensionInterface *	parameterContents (QWidget *parent, const Qt::WindowFlags &flags=0) const
	If there are any, returns contents for this variable for variable extension. Default is no extension. More...

virtual bool	guiElementOnly () const
	Returns true if this is a GUI element only. Default is false. More...

Static Public Member Functions
static makVrv::DtUnicode	codeVariableType ()

static std::string	designerGroup ()

static std::string	headerFile ()

static std::string	variableName ()

Static Public Member Functions inherited from makVrf::DtTaskSetVariableWidget
static bool	includeInQtDesigner ()

Static Public Member Functions inherited from makVrf::DtTaskSetVariableWidgetInterface
static bool	canBeUsedAsWidget ()
	Whether or not this shows up as a usable variable widget. More...

static void	initializeForQtDesignerExtension (makVrv::DtDe &de, QDesignerFormEditorInterface *core)
	Implement at class level to perform Qt Designer custom widget initialization. Please refer to Qt documentation for designer modifications. More...

static bool	includeInQtDesigner ()

Public Attributes
boost::signals2::signal< void()>	signal_receivedWeaponsList

boost::signals2::signal< void()>	signal_weaponSelectionChanged

QLabel *	myWeaponLabel

QComboBox *	myWeaponSystemsCombo

QListWidget *	myWeaponSystemsList

QBoxLayout *	myContentLayout

QString	myDefaultValue

Public Attributes inherited from makVrf::DtTaskSetVariableWidget
boost::signals2::signal< void(bool)>	signal_topLevelCheckStateChanged

int	myIndent

QVBoxLayout *	myVariableWidgetLayout

QHBoxLayout *	mySpacedLayout

QVBoxLayout *	myVariableContentLayout
	When creating subclasses of this item, use the variable content layout to add your content. More...

QWidget *	myTopLine

QLabel *	myTopLabel

QWidget *	myChoiceCanvas

QRadioButton *	myUseDefault

QRadioButton *	myUseSpecific

QSpacerItem *	myTopSeparator

QHBoxLayout *	myTopLineLayout

QSpacerItem *	mySpacerItem

Protected Slots
virtual void	weaponSelectionChanged ()

Protected Slots inherited from makVrf::DtTaskSetVariableWidget
virtual void	topLabelCheckStateChanged ()

Protected Member Functions
virtual std::string	variableDataFromUiDesigner (const QDomElement &element, const DtScriptedTaskVariableLayoutConverter &converter) const
	Given the Ui designer properties create a string that will represent the variable data for those properties. More...

virtual void	addWeapon (const WeaponSystem &)

virtual void	weaponUpdated (const WeaponSystem &)

virtual void	weaponChanged ()

virtual void	weaponCheckingDisabled ()

virtual void	weaponCheckComplete ()

virtual void	updateWeapons ()

virtual void	nextRequest ()

virtual void	setupForComboBox ()

virtual void	setupForListBox ()

Protected Attributes
std::set< DtUUID >	myToRequest

std::set< DtUUID >	myAwaitingWeaponSystemResponse

std::set< DtUUID >	myDidRequest

std::vector< DtUUID >	myCurrSelected

bool	myIncludeResources
	Indicates whether the back end will be asked to include resources with the weapon names it returns; also whether they will be included in the display list. More...

bool	myMultipleSelection

QString	myTitle

Protected Attributes inherited from makVrf::DtTaskSetVariableWidget
makVrv::DtDe &	myDe

makVrv::DtSignalConnectionManager	myConnections

bool	myTopLabelIsCheckable

DtRange	myRange

bool	myIsInternal

CreationFlags	myCreationFlags

QString	myVariableData

Properties
bool	allowMultipleSelecion

Properties inherited from makVrf::DtTaskSetVariableWidget
QString	label

bool	isInternal

int	indent

QString	variableData

Additional Inherited Members
Public Types inherited from makVrf::DtTaskSetVariableWidgetInterface
enum	CreationFlags { NormalMode = 0x00000000, QtDesignerMode = 0x00000001 }

Signals inherited from makVrf::DtTaskSetVariableWidget
void	validityUpdated ()
	Signal which can be emitted to indicate the validity of the current widget selection has changed. More...

Detailed Description

Widget that allows users to select weapons for the given entity.

Constructor & Destructor Documentation

makVrf::DtWeaponSelectionWidget::DtWeaponSelectionWidget	(	makVrv::DtDe &	de,
		QWidget *	parent,
		const Qt::WindowFlags &	flags = `0`,
		const CreationFlags &	cflags = `NormalMode`
	)

virtual makVrf::DtWeaponSelectionWidget::~DtWeaponSelectionWidget ( )

virtual

Member Function Documentation

virtual void makVrf::DtWeaponSelectionWidget::setLabel ( const QString & )

virtual

Display label.

Reimplemented from makVrf::DtTaskSetVariableWidget.

virtual QString makVrf::DtWeaponSelectionWidget::label ( ) const

virtual

Reimplemented from makVrf::DtTaskSetVariableWidget.

virtual void makVrf::DtWeaponSelectionWidget::setRange	(	double	bottom,
		double	top
	)

virtual

Validation range. Not applicable.

Reimplemented from makVrf::DtTaskSetVariableWidget.

virtual void makVrf::DtWeaponSelectionWidget::setDefaultValue ( const std::string & )

virtual

Default value to set in control. Will contain initial weapon to select.

Implements makVrf::DtTaskSetVariableWidgetInterface.

virtual void makVrf::DtWeaponSelectionWidget::setVariableData ( const QString & )

virtual

Variable data. Unused in this widget.

Reimplemented from makVrf::DtTaskSetVariableWidget.

virtual void makVrf::DtWeaponSelectionWidget::setupFrom ( const std::vector< makVrv::DtSimEntry * > & data )

virtual

Sets up widget with currently selected item. Requests data.

Reimplemented from makVrf::DtTaskSetVariableWidget.

virtual DtReaderWriter* makVrf::DtWeaponSelectionWidget::createBoundVariable ( const std::string & variableName )

virtual

Creates the reader/writer variable that will be used as part of the task statement.

Implements makVrf::DtTaskSetVariableWidgetInterface.

virtual void makVrf::DtWeaponSelectionWidget::setupFromBoundVariable ( const DtReaderWriter * variableName )

virtual

Sets up the widget from the given reader/writer variables.

Implements makVrf::DtTaskSetVariableWidgetInterface.

virtual void makVrf::DtWeaponSelectionWidget::requestWeaponsFor ( const std::vector< makVrv::DtSimEntry * > & data )

virtual

Add all the entities (vector of sim entries) to myAwaitingWeaponSystemResponse list, and then call the DtWeaponListRequestor instance's updateWeaponSystem() on the first entity in the list.

If the list is empty, call updateWeapons().

virtual void makVrf::DtWeaponSelectionWidget::slot_receivedWeaponList ( const DtUUID & entity )

virtual

virtual bool makVrf::DtWeaponSelectionWidget::includeResources ( ) const

virtual

Set/get whether resources are requested along with weapon names when making a weapon list request from the back end.

Used in requestWeaponsFor().

virtual void makVrf::DtWeaponSelectionWidget::setIncludeResources ( const bool doInclude )

virtual

virtual void makVrf::DtWeaponSelectionWidget::setAllowMultipleSelection ( bool )

virtual

Call before setup – allows multiple selection of weapons.

virtual bool makVrf::DtWeaponSelectionWidget::allowMultipleSelection ( ) const

virtual

virtual QStringList makVrf::DtWeaponSelectionWidget::selectedWeapons ( ) const

virtual

List of currently selected weapons.

virtual void makVrf::DtWeaponSelectionWidget::selectWeapons ( const QStringList & )

virtual

Selects weapons in the list. If combo box will only look at first one.

static makVrv::DtUnicode makVrf::DtWeaponSelectionWidget::codeVariableType ( )

inlinestatic

References makVrv::DtUnicode::tr().

static std::string makVrf::DtWeaponSelectionWidget::designerGroup ( )

inlinestatic

static std::string makVrf::DtWeaponSelectionWidget::headerFile ( )

inlinestatic

static std::string makVrf::DtWeaponSelectionWidget::variableName ( )

inlinestatic

virtual std::string makVrf::DtWeaponSelectionWidget::variableDataFromUiDesigner	(	const QDomElement &	,
		const DtScriptedTaskVariableLayoutConverter &
	)		const

protectedvirtual

Given the Ui designer properties create a string that will represent the variable data for those properties.

Reimplemented from makVrf::DtTaskSetVariableWidget.

virtual void makVrf::DtWeaponSelectionWidget::addWeapon ( const WeaponSystem & )

protectedvirtual

Reimplemented in makVrf::DtIndirectFireWeaponSelectionWidget, and makVrf::DtDirectFireWeaponSelectionWidget.

virtual void makVrf::DtWeaponSelectionWidget::weaponUpdated ( const WeaponSystem & )

protectedvirtual

virtual void makVrf::DtWeaponSelectionWidget::weaponChanged ( )

protectedvirtual

virtual void makVrf::DtWeaponSelectionWidget::weaponCheckingDisabled ( )

protectedvirtual

virtual void makVrf::DtWeaponSelectionWidget::weaponCheckComplete ( )

protectedvirtual

virtual void makVrf::DtWeaponSelectionWidget::updateWeapons ( )

protectedvirtual

virtual void makVrf::DtWeaponSelectionWidget::nextRequest ( )

protectedvirtual

virtual void makVrf::DtWeaponSelectionWidget::setupForComboBox ( )

protectedvirtual

virtual void makVrf::DtWeaponSelectionWidget::setupForListBox ( )

protectedvirtual

virtual void makVrf::DtWeaponSelectionWidget::weaponSelectionChanged ( )

protectedvirtualslot

Member Data Documentation

boost::signals2::signal<void ()> makVrf::DtWeaponSelectionWidget::signal_receivedWeaponsList

boost::signals2::signal<void ()> makVrf::DtWeaponSelectionWidget::signal_weaponSelectionChanged

std::set<DtUUID> makVrf::DtWeaponSelectionWidget::myToRequest

protected

std::set<DtUUID> makVrf::DtWeaponSelectionWidget::myAwaitingWeaponSystemResponse

protected

std::set<DtUUID> makVrf::DtWeaponSelectionWidget::myDidRequest

protected

std::vector<DtUUID> makVrf::DtWeaponSelectionWidget::myCurrSelected

protected

bool makVrf::DtWeaponSelectionWidget::myIncludeResources

protected

Indicates whether the back end will be asked to include resources with the weapon names it returns; also whether they will be included in the display list.

QLabel* makVrf::DtWeaponSelectionWidget::myWeaponLabel

QComboBox* makVrf::DtWeaponSelectionWidget::myWeaponSystemsCombo

QListWidget* makVrf::DtWeaponSelectionWidget::myWeaponSystemsList

QBoxLayout* makVrf::DtWeaponSelectionWidget::myContentLayout

QString makVrf::DtWeaponSelectionWidget::myDefaultValue

bool makVrf::DtWeaponSelectionWidget::myMultipleSelection

protected

QString makVrf::DtWeaponSelectionWidget::myTitle

protected

Property Documentation

bool makVrf::DtWeaponSelectionWidget::allowMultipleSelecion

readwrite

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf4-8-branch/include/vrfGuiDataEntryWidgets/weaponSelectionWidget.h

Public Member Functions

Static Public Member Functions

Public Attributes

Protected Slots

Protected Member Functions

Protected Attributes

Properties

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation

Property Documentation
